RCDrone 5.8G 3W 48CH FPV VTX

Overview

The RCDrone 5.8G 3W 48CH VTX is a high-performance FPV video transmitter designed to deliver reliable, long-range video transmission with adjustable power output up to 3W. Its compact size, lightweight build, and integrated micro fan cooling system make it an ideal choice for FPV drones, providing excellent efficiency and stable performance.

Features

1. 48 Channels: Wide frequency compatibility ensures interference-free operation across multiple setups.
2. High Power Output: Adjustable power levels (25mW, 1.6W, 2.5W, 3W) for optimal transmission across short- and long-range applications.

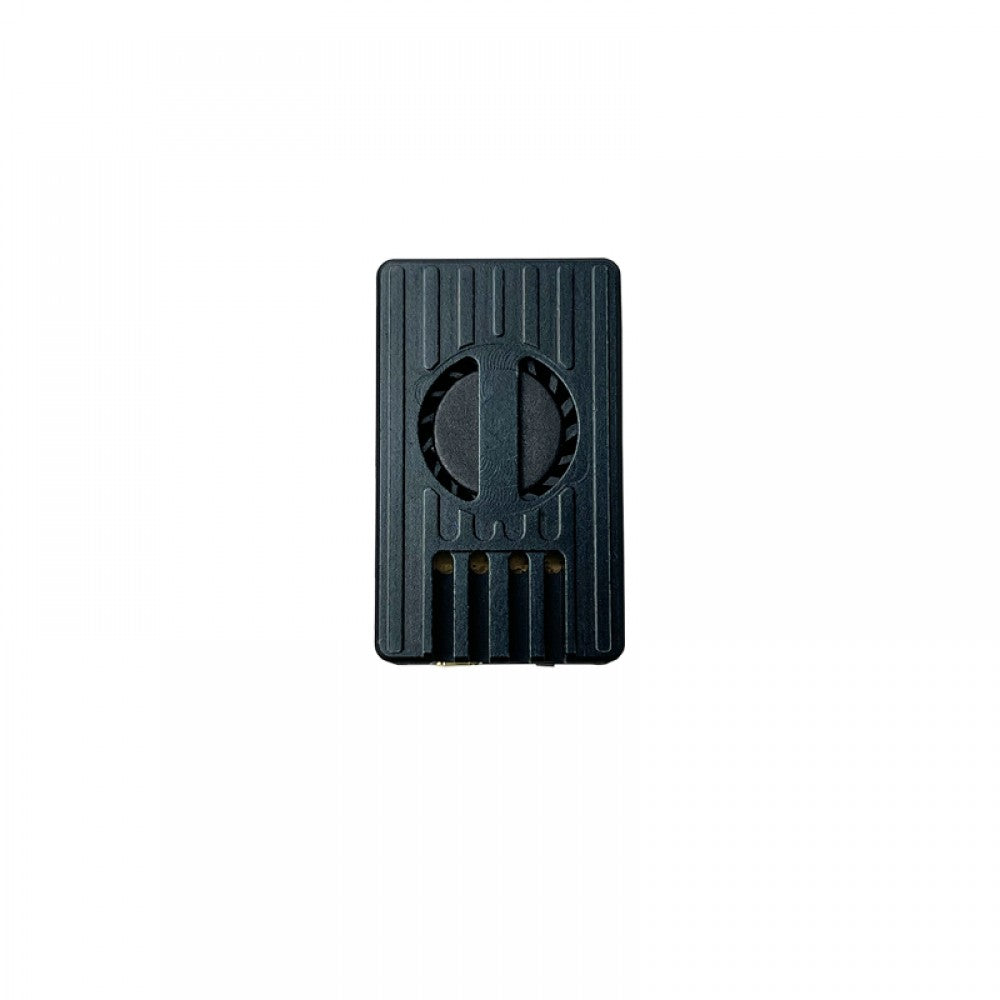

3. Advanced Cooling System: Integrated micro fan and compact heat sink ensure effective temperature regulation for stable, prolonged operation.
4. Compact and Lightweight: Small dimensions (41mm × 25mm × 13mm) and only 18g weight make it perfect for FPV drones.
5. Reliable Circuit Design: Built with a large-scale integrated circuit for enhanced reliability and efficiency.

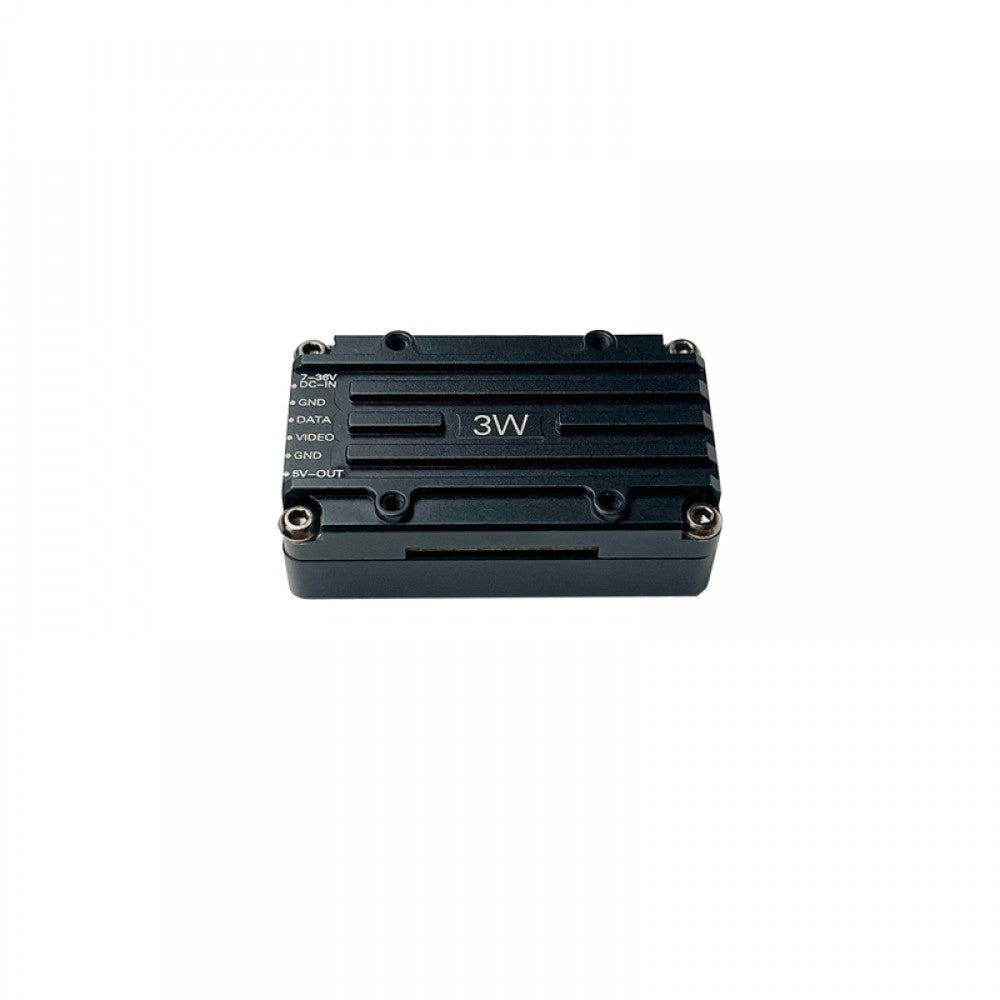

6. Wide Voltage Support: Input voltage range of 7-36V, compatible with 2S-8S batteries, and 5V output for external components.

Specifications

• Channels: 48CH
• Power Output: Adjustable (25mW, 1.6W, 2.5W, 3W)
• Voltage:
  • Input: 7-36V (supports 2S-8S batteries)
  • Output: 5V
• Current: 1.3A at 12V for maximum power
• Cooling System: Micro fan and heat sink
• Dimensions: 41mm × 25mm × 13mm
• Mounting Hole Spacing: 20mm × 20mm
• Weight: 18g

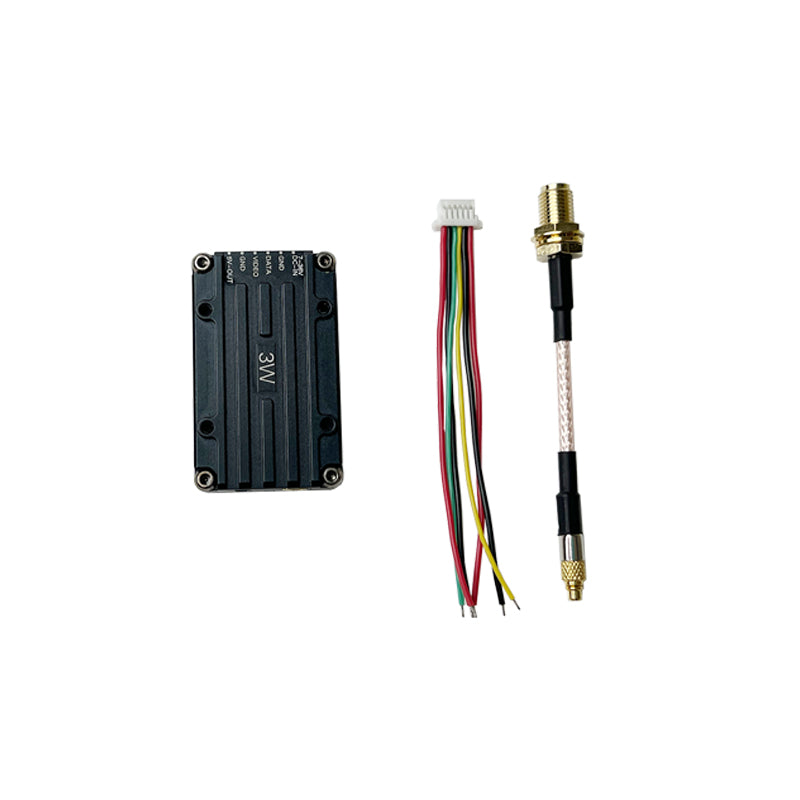

Package

• 1 × RCDrone 5.8G 3W 48CH VTX
• 1 × MMCX Antenna
• 1 × Connection Cable

Applications

1. FPV Racing Drones: High-speed video transmission for competitive drone racing.
2. Freestyle Flying: Stable video feeds for acrobatic and freestyle pilots.

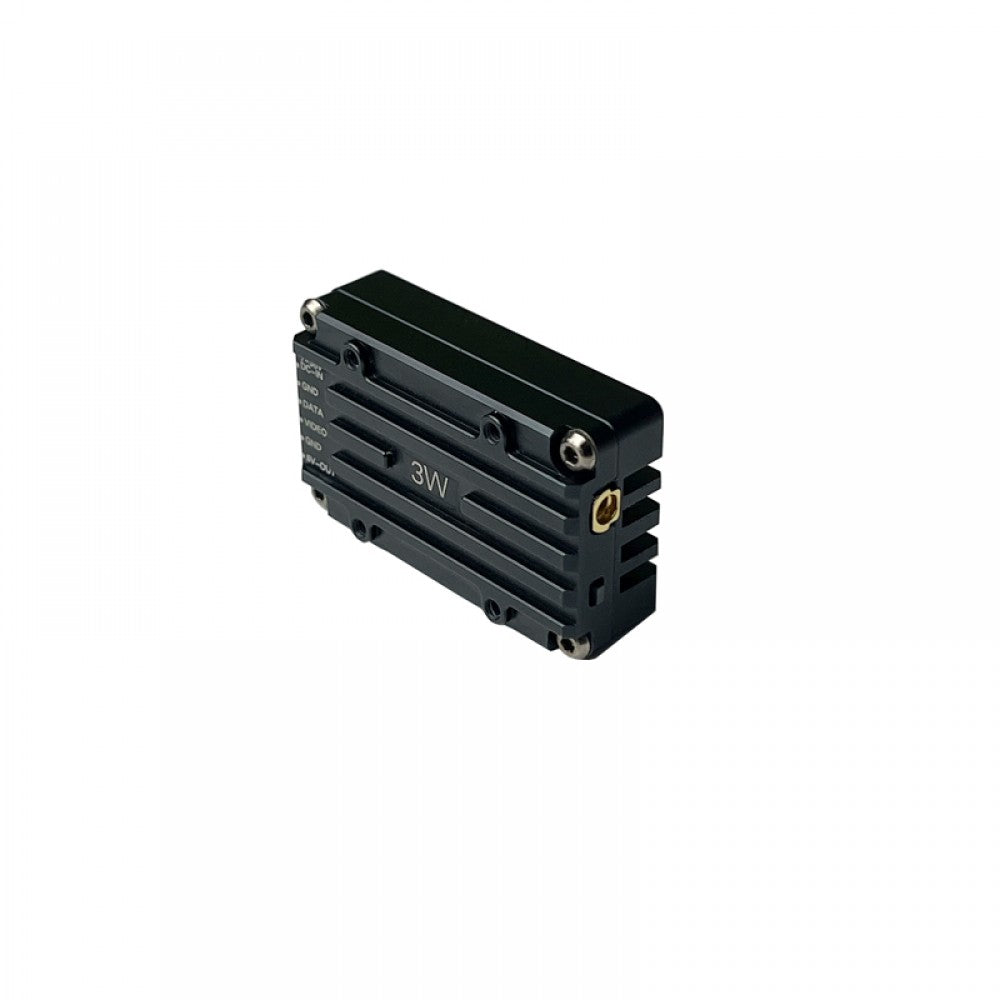

3. Long-Range FPV: Reliable and interference-free operation for long-distance video transmission.
4. Aerial Photography: Ideal for capturing high-quality video feeds over extended flights.

The RCDrone 5.8G 3W 48CH VTX combines high power output, efficient cooling, and a lightweight, compact design to deliver exceptional performance for all FPV drone applications. Whether you're racing, exploring, or filming, this VTX ensures seamless, long-range video transmission with maximum reliability.
