RCDrone JCV-600 Educational Drone - 1.5KG Payload 70 Minutes Long Endurance Industrial Aerial Photography Open Source DIY Drone Kit

RCDrone JCV-600 Educational Drone - 1.5KG Payload 70 Minutes Long Endurance Industrial Aerial Photography Open Source DIY Drone Kit

RCDrone

$2,599.00 USD
$2,599.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

4 orders in last 90 days

Version
  • PayPal
  • Visa
  • Mastercard
  • American Express

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

Overview

The RCDrone JCV-600 Educational Drone is a robust and versatile platform designed for research, teaching, and industrial applications. With its 600mm wheelbase, long endurance flight capability of up to 70 minutes, and modular design, this open-source drone is ideal for aerial photography, mapping, and advanced development. Equipped with powerful hardware and expandable interfaces, the JCV-600 supports RTK, UWB, obstacle avoidance, and LiDAR modules, making it a reliable and adaptable solution for various professional and educational needs.

Key Features

  1. Durable Modular Design

    • 600mm wheelbase quadrotor frame with a flexible and customizable structure.

  2. Long-Endurance Flight

    • Delivers up to 70 minutes of flight time with a 10,000mAh lithium battery.

  3. High Payload Capacity

    • Carries up to 1.5kg of payload, with a maximum takeoff weight of 4kg.

  4. Advanced Flight Modes

    • Position and sport modes, supporting speeds of up to 80km/h.

  5. Comprehensive Integration

    • Expandable with RTK, UWB, visual obstacle avoidance, and edge computing modules.

  6. Precise Control

    • Achieves hover accuracy of 0.5m (vertical) and 1.5m (horizontal).

  7. Open-Source and Programmable

    • Compatible with PX4 flight controllers, ideal for secondary development.

Specifications

Specification Details
Size 600mm [Diagonal motor-to-motor distance]
Flight Platform Type Quadcopter
Power System 6S FOC ESC + 4006 Motor + 370mm Propeller
Weight 2.4kg [Including battery, excluding payload]
Maximum Payload 1.5kg
Maximum Takeoff Weight 4kg
Flight Duration 70 minutes [2.4kg + no payload]
35 minutes [2.4kg + 1.5kg payload]
Hovering Accuracy Vertical: ±0.5m
Horizontal: ±1.5m
Maximum Rotation Speed Position Mode [120°/s]
Sport Mode [150°/s]
Maximum Tilt Angle Position Mode [30°]
Sport Mode [35°]
Maximum Flight Speed 45KM/H [Position Mode]
80KM/H [Sport Mode]
Maximum Ascent Speed 5m/s
Maximum Descent Speed 3m/s
Maximum Wind Resistance 15m/s
Battery Configuration 6S 12000mAh 18650 Lithium Battery Pack [65 minutes]
6S 10000mAh Lithium Polymer Battery Pack [70 minutes]
External Ports A. 3× UART Ports
B. 1× CAN Port
C. 1× Battery Power Supply XT30
D. 1× RC Port
E. 8× PWM Ports
Expandable Sensor Modules RTK/UWB/Omnidirectional Vision Obstacle Avoidance/Edge Computing Unit/Lidar, etc.





Packages

Frame Version

  • Frame: 600 Axis Distance (Includes motor and ESC) - 1 set
  • Flight Controller: ubox - 1 unit
  • GPS: m8q - 1 unit
  • Propeller: 370 Folding Propellers - 2 pairs
  • Power Battery: 6S-10000mAh Lithium Polymer Battery - 1 unit
  • Balance Charger: Lithium Polymer Battery Charger - 1 unit



Frame + Radiolink AT9S

All in Frame Version

Radiolink AT9S - 1 set

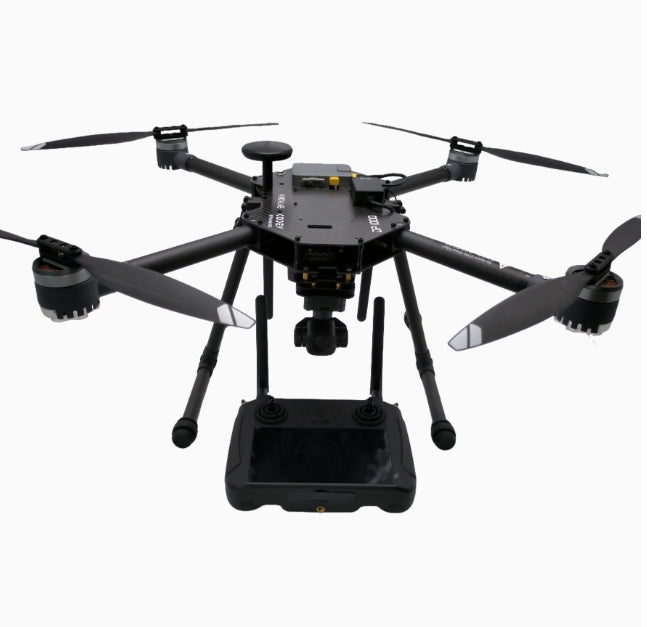

Aerial Photography Version

All in Frame Version

SIYI A8 Mini Drone Gimbal Camera - 1 set

SIYI MK15 Handheld Radio System Transmitter - 1 set



Applications

  1. Education and Research

    • Ideal for UAV teaching, prototyping, and algorithm testing.

  2. Aerial Photography

    • High-resolution image capture and video transmission.

  3. Mapping and Surveying

    • Supports precision mapping and terrain analysis.

  4. Industrial Inspection

    • Suitable for inspecting large-scale infrastructure like solar panels and wind turbines.

This open-source and fully programmable drone is an excellent choice for professionals and developers looking to explore UAV technology and push the boundaries of innovation.

Details

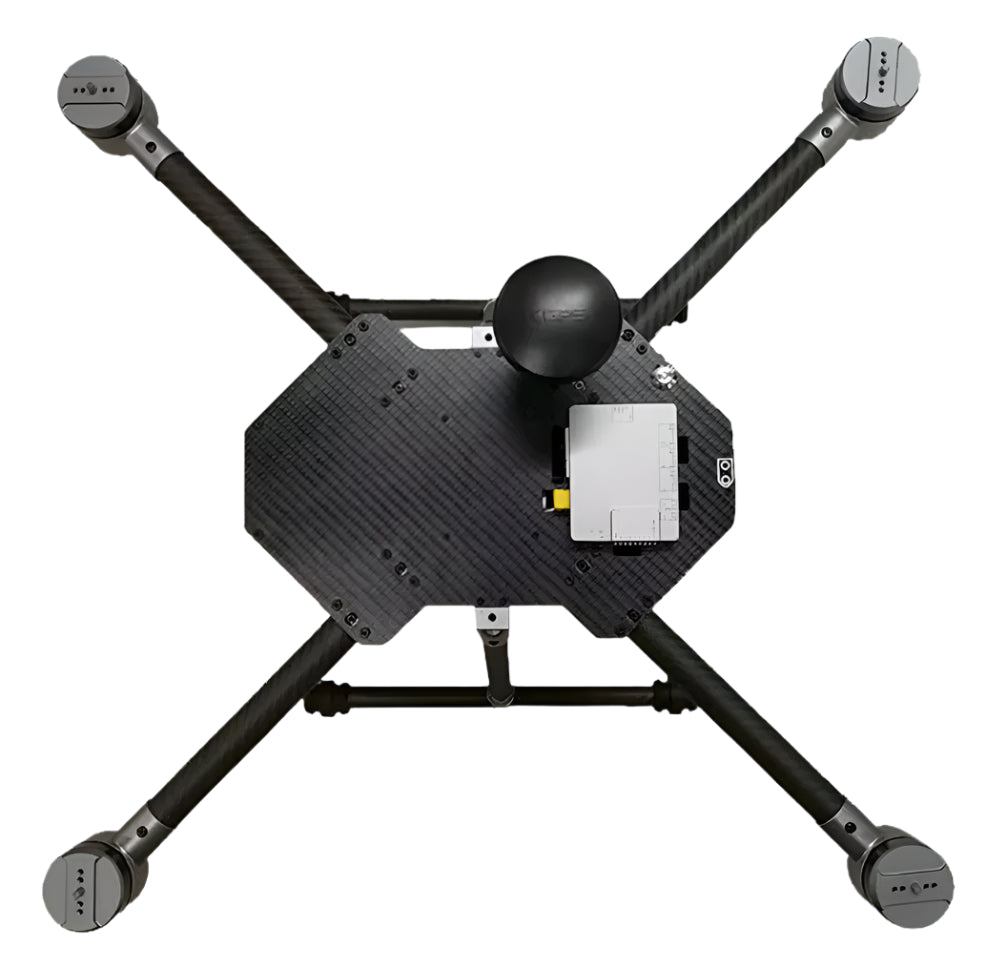

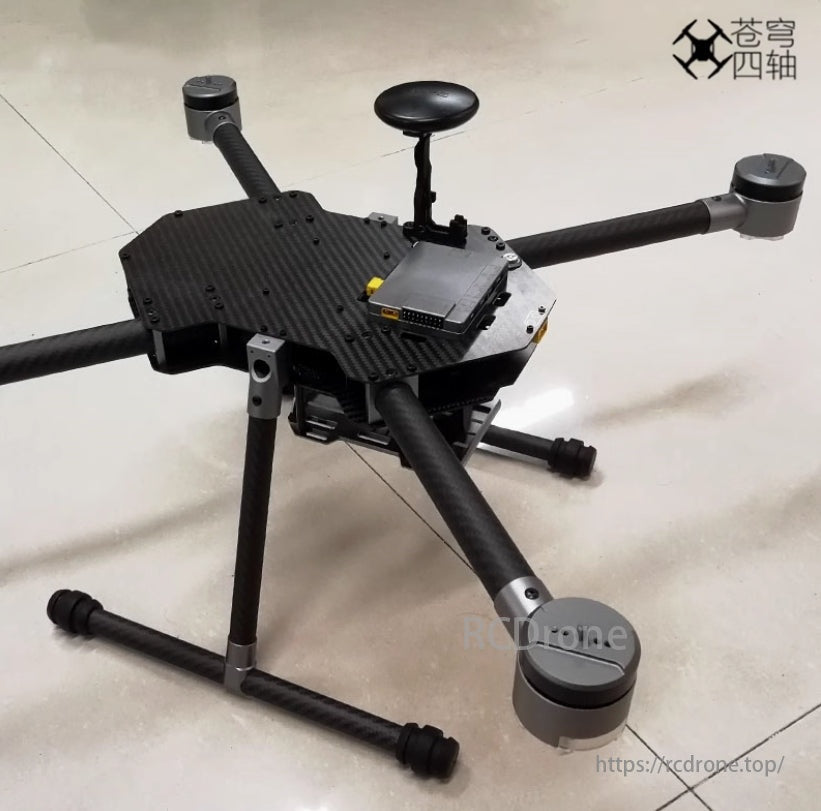

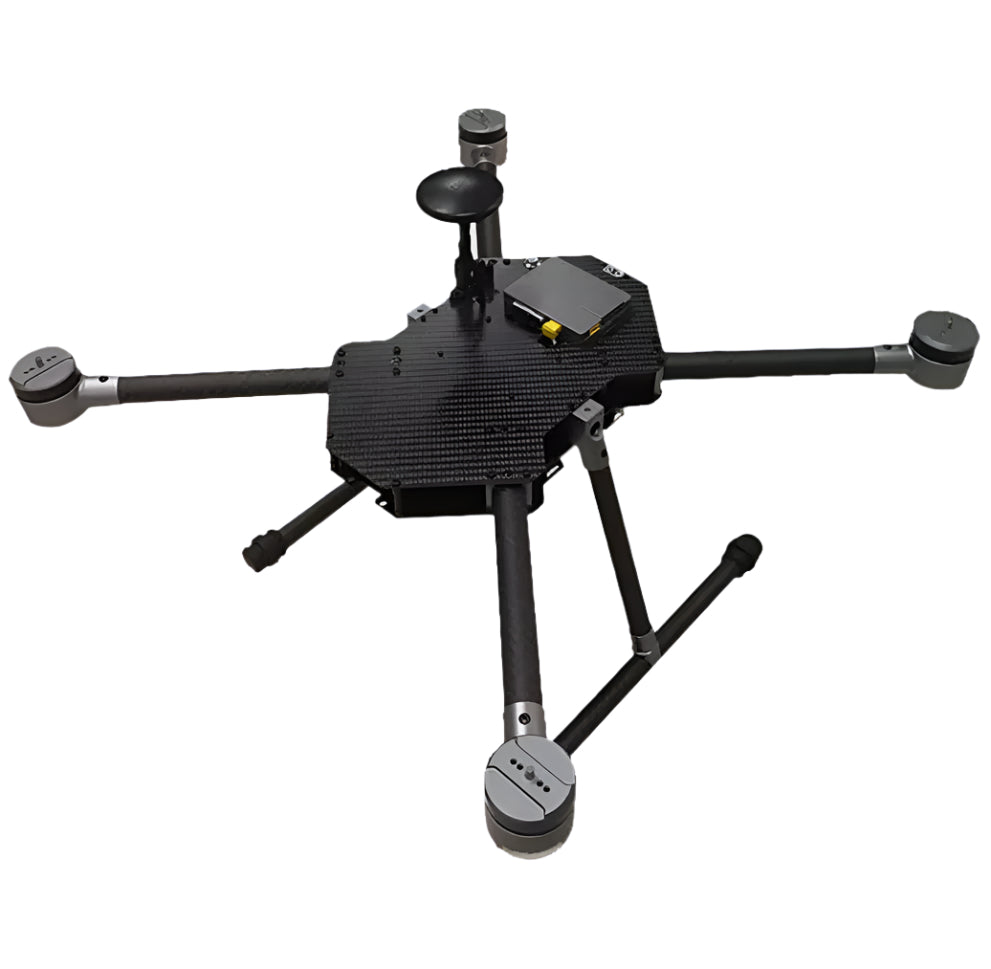

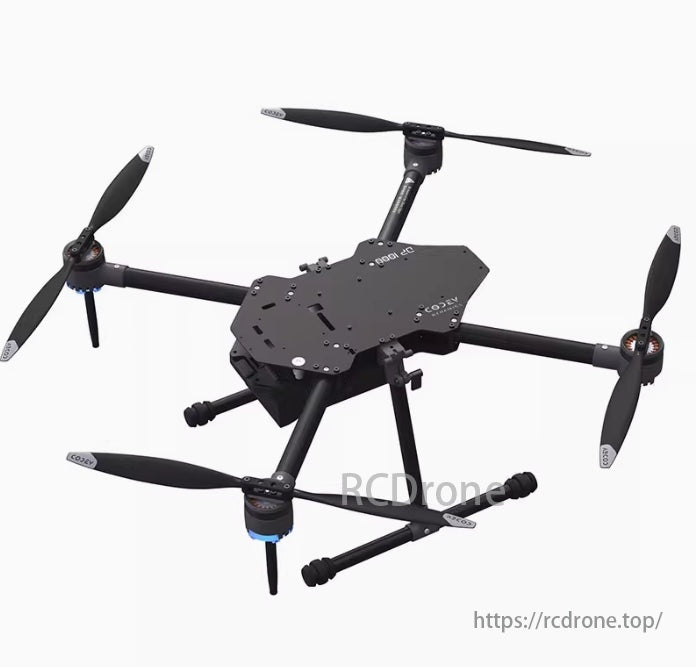

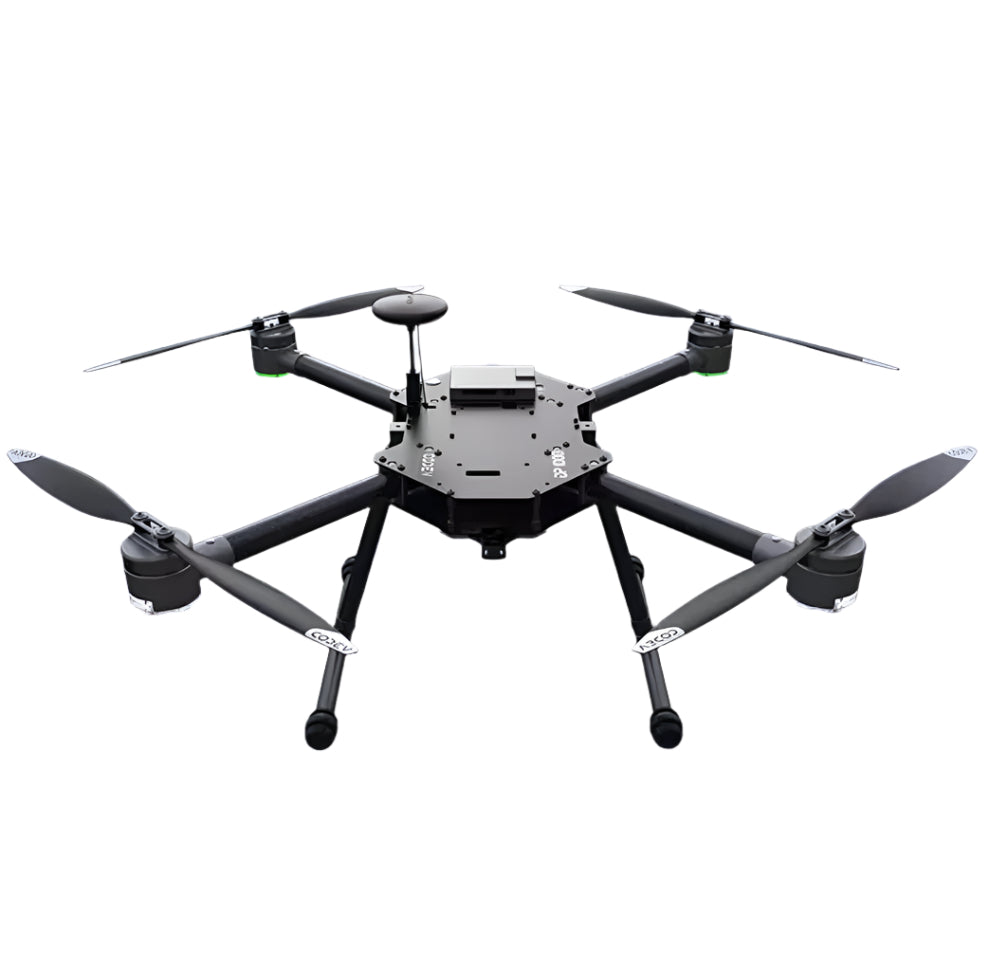

RCDrone JCV-600 Educational Drone - 1.5KG Payload 70 Minutes Long Endurance Industrial Aerial Photography Open Source DIY Drone Kit

RCDrone, The JCV-600 robot is equipped with powerful hardware and expandable interfaces, supporting various features for professional and educational uses.

RCDrone, Comprehensive integration platform expandable with RTK, UWB, visual obstacle avoidance, and edge computing modules.

RCDrone, Open-source drone suitable for professionals and developers exploring UAV technology and innovation.

RCDrone, The product features a durable modular design with a 600mm wheelbase quadrotor frame for flexibility and customizability.
