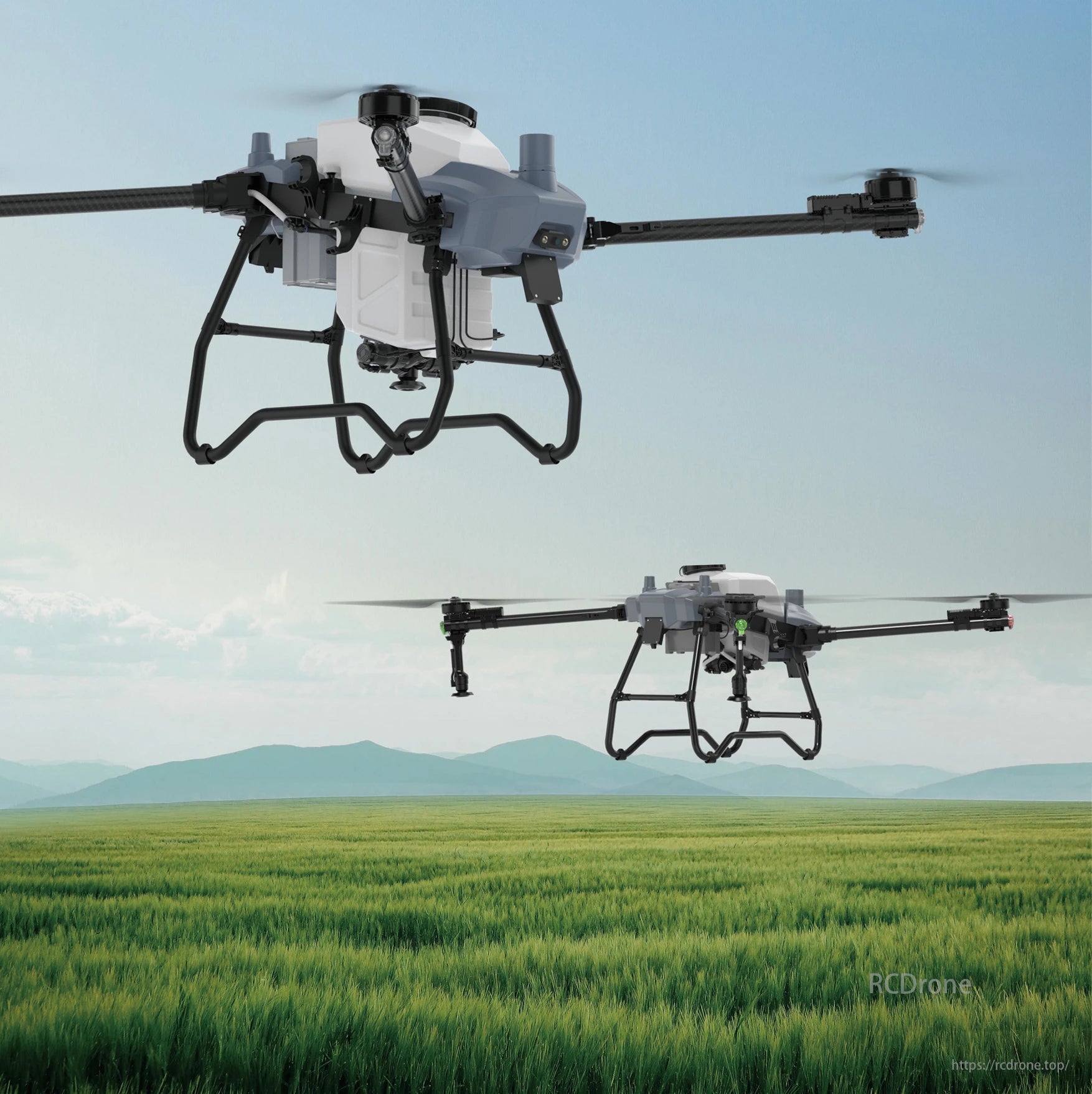

RCDrone M30 30L Sprayer Agriculture Drone

RCDrone M30 Drone Overview

The RCDrone M30 30L Sprayer Agriculture Drone is a highly integrated, easy-to-use drone designed specifically for agricultural purposes. It offers advanced features and robust build quality, making it an ideal choice for modern farming needs.

Core Parameters

1. Medicine Box Capacity: 30L
2. Flight Time: 28 minutes
3. Flight Radius: 5000 meters
4. Spraying Width: 8-20 meters
5. Maximum Spraying Flow Rate: 24L/min

Advantages

1. High Efficiency and Durability: Equipped with high-flow impeller pumps for efficient spraying operations.
2. Safety and Reliability: Features 360-degree omnidirectional radar for comprehensive obstacle avoidance.
3. Smart Flight: Supports intelligent route planning and fully autonomous operation, simplifying tasks and increasing efficiency.

RCDrone M30 Detailed Description

Design Highlights

1. Z-Shaped Frame: The innovative Z-shaped folding design reduces storage volume by 15%, making transportation and transfer more convenient.
2. Front Low, Rear High Design: Reduces wind resistance, increasing flight endurance by 10%.
3. Truss Structure: Offers a stable, durable, and reliable build.
4. Snap-Lock Structure: Provides convenient operation, dual protection, and improves safety performance by 80% compared to traditional structures.
5. Group Modular Design: Separate design of flight control module, RTK module, and receiver module for plug-and-play flexibility.
6. High Precision Weighing Module: Features automatic calibration, real-time weighing, greatly improved spraying and spreading accuracy, saving 75% of losses.

Spraying System

1. Dual High-Flow Impeller Pumps: Achieves a large flow rate of 16 L/min with ultrasonic flow meter sensor and liquid separation detection for stable performance and precise accuracy.
2. Water-Cooled Centrifugal Nozzle: Reduces motor and ESC temperatures, extending lifespan by 70%. The droplet size range can be as small as 30 microns, providing a new spraying experience.

Intelligent Features

1. Intelligent Route Planning: Autonomously plans the best route for each operation. Combined with a continuous liquid level gauge, it monitors remaining medication in real-time, predicts medication exchange points, and achieves optimal medication-electricity matching. Automatically scans edges and sprays comprehensively, making crop protection operations easier.
2. U-Turn Flight Path: The U-turn angle is small, ensuring smoother flight and higher efficiency.
3. Rich Operation Functions: Fully autonomous flight with a user-friendly app tailored for agricultural crop protection, providing arbitrary polygon flight route planning for irregular terrain. It features route memory and can calculate spraying area, assisting operators in more accurately controlling the dosage.
4. Scanning Mode: After selecting the edge scanning mode, set the number of edge scanning flight circles. You can also set flight speed, spraying width, and other parameters. All flight parameter adjustments are the same as conventional route operations.
5. AB-T Mode: Adjust AB point angles during marking to change aircraft flight routes, suitable for more complex land plots.

RCDrone M30 Drone Technical Specifications

Additional Features

1. AB Point Memory Operation: Automatically remembers AB points, facilitating repeated route operations.
2. Fully Autonomous Operation: Supports fully autonomous flight and spraying, reducing manual intervention.
3. Pesticides Breakpoint Memory and Resuming: Smart memory of breakpoint positions ensures accurate resumption of spraying.
4. GNSS GPS System: Provides precise positioning and navigation support.
5. Ground Station Control: Supports remote control and monitoring via ground station.
6. Video Transmission: Real-time video transmission, providing a clear operational view.
7. Radar Obstacle Avoidance: Ensures flight safety with an omnidirectional radar system.
8. Folding Propellers: Saves storage space and facilitates transportation.
9. Night Flight Function: Supports night operations, enhancing work time utilization.
10. Full Machine Folding Design: Easy to carry and quick to deploy.
11. Waveform Radar: Provides terrain sensing and obstacle detection.
12. Beyond Visual Line of Sight Operations: Supports extended range operations.
13. Flight Stability: Multiple safeguard systems ensure stable and reliable flight.
14. Applicable for Various Crops and Fruit Trees: Widely applicable for different agricultural spraying needs.
15. Flight Modes: Supports manual and intelligent mode switching to meet different operational requirements.
16. Applicable Venues: Suitable for all terrains, highly adaptable.

What's Include

RCDrone M30 Drone Only:

1 x Whole M30 Agri Drone (Including Drone Fame, Motor, Propellers,Camera,GNSS );

RCDrone M30 Basic Combo:

• 1 x M30-30L Agriculture Drone
• 2 x Centrifugal Nozzle
• 2 x Spraying Pump (Brushless high-pressure)
• 1 x Remote Controller (High brightness with 5.5-inch screen)
• 1 x Maintenance Toolkit
• 1 x Charger (Dual way quick charger, AC 110V-240V, Max 3000W)
• 1 x Battery (14S 30000mAh Smart)
• 1 x Granular Spreader

RCDrone M30 Standard Combo:

• 1 x M30-30L Agriculture Drone
• 2 x Centrifugal Nozzle
• 2 x Spraying Pump (Brushless high-pressure)
• 1 x Remote Controller (High brightness with 5.5-inch screen)
• 1 x Maintenance Toolkit
• 1 x Charger (Dual way quick charger, AC 110V-240V, Max 3000W)
• 2 x Battery (14S 30000mAh Smart)
• 1 x Granular Spreader

RCDrone M30 Details

Highly integrated and easy-to-use agricultural drone for Super Sabre M30/M40/M50 models.

Introducing the M30 Agricultural Drone System, featuring a 30L payload capacity, robust truss design, advanced flight control, and integrated radar for precise navigation. Its modular system combines high-flow pumps and water-cooled nozzles for efficient spraying. With deep integration of hardware and software, this drone provides intelligent sensing and an unparalleled user experience.

Compact and portable, the Z-shaped frame folds to reduce storage space by 15%, making it easy to transport and transfer.

Unique 'front low; rear high' design reduces wind resistance, increasing flight endurance by up to 10%.

Stable truss design provides durable and reliable performance.

Easy snap-lock design ensures safe and reliable operation with dual protection, boosting safety performance by 80% over traditional designs.

Equipped with a 360-degree omnidirectional radar for comprehensive obstacle detection and avoidance, ensuring enhanced operational safety.

Modular design features separate components for flight control, RTK, and receiver modules, offering plug-and-play flexibility.

Enhanced precision weighing module with automatic calibration and real-time weighing for accurate spraying and spreading, reducing losses by up to 75%.

Water-cooled centrifugal nozzle efficiently cools motors and ESCs, increasing lifespan by 70%, with precise droplets as small as 30 microns, offering a superior spraying experience.

Equipped with dual high-flow impeller pumps for efficient operation, this drone features a large flow rate of 16L/min, paired with an ultrasonic flow meter sensor and liquid separation detection for stable performance and precise accuracy.

Autonomously plans optimized routes for each operation, monitoring liquid levels in real-time to predict refills, ensuring comprehensive spraying and efficient crop protection.

Smooth U-turns achieved with a small angle, resulting in efficient and stable flight.

Intuitive remote controller with wide FOV and high brightness for easy operation, featuring a Qualcomm processor, Android system, advanced SDR tech, and super protocol stack for seamless performance.

Rich Operation Functions allow for fully autonomous flights with user-friendly app control. Plan arbitrary polygon routes for irregular terrain, and let the drone work independently. Features include route memory and automatic spraying area calculation to enhance efficiency and accuracy.

Adjust AB-T mode settings to alter aircraft flight paths, ideal for marking complex land plots with varying angle points.

Selecting the scanning mode allows you to set number of edge scanning flight circles, retract entire or single side of route, adjust flight speed and spraying width, and more. All parameters are identical to conventional routes, with default heading towards next waypoint in edge scanning mode.

RCDrone M30 is a 30L sprayer agriculture drone that offers various features such as flight altitude up to 0.5m, flight time of 28 minutes, and spraying width of 20m. It has a centrifugal nozzle spraying system and can hover in any position mid-air. The drone has a high prevention and control efficiency of <200 haliday and comes with GPS, radar, and obstacle avoidance features. It also supports autonomous operation, manual mode, and night flight function.
