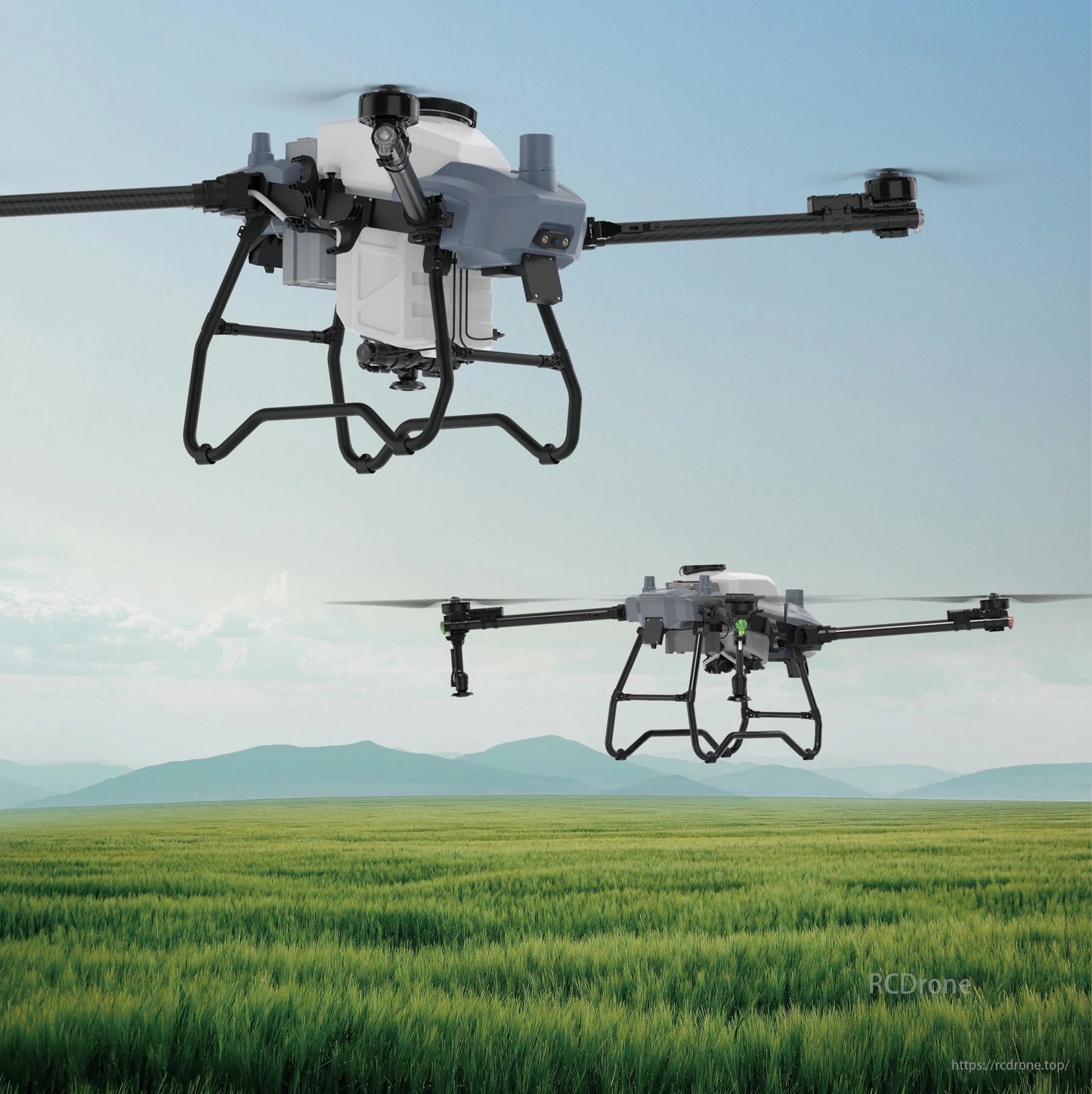

RCDrone M40 40L Sprayer Agriculture Drone

RCDrone M40 Overview

The RCDrone M40 40L Sprayer Agriculture Drone is a powerful and efficient tool tailored for sophisticated agricultural spraying operations. With a substantial 40L medicine box, this drone can cover extensive areas with ease. It boasts a flight duration of up to 28 minutes and a range reaching 5000 meters. Enhanced by advanced features like a high-strength truss fuselage, 360-degree omnidirectional radar, and dual high-flow impeller pumps, it stands out as an essential asset for modern agriculture.

Core Parameters

1. Medicine Box Capacity: 40L
2. Flight Time: 28 minutes
3. Flight Radius: 5000 meters
4. Spraying Width: 8-20 meters
5. Maximum Spraying Flow Rate: 24L/min

Advantages

1. High Performance and Durability: The high-flow impeller pumps ensure effective and enduring spraying operations.
2. Enhanced Safety: The 360-degree omnidirectional radar provides comprehensive obstacle detection and avoidance, boosting operational safety.
3. Smart Operations: The drone supports intelligent route planning and autonomous operation, simplifying tasks and enhancing efficiency.

RCDrone M40 Detailed Description

Design Innovations

1. Z-Shaped Folding Frame: The Z-shaped folding mechanism reduces storage space by 15%, facilitating easier transportation.
2. Aerodynamic Design: The front low, rear high structure minimizes wind resistance, extending flight endurance by 10%.
3. Robust Truss Structure: Ensures a stable, durable, and reliable frame for demanding agricultural tasks.
4. Snap-Lock Mechanism: This dual-protection feature enhances safety by 80% compared to traditional designs, offering convenient operation.
5. Modular System: The flight control, RTK, and receiver modules are separately designed for flexibility and ease of use.
6. Precision Weighing: Real-time weighing and automatic calibration improve spraying accuracy and efficiency, reducing losses by 75%.

Advanced Spraying System

1. High-Flow Dual Impeller Pumps: Capable of achieving a flow rate of 16 L/min, these pumps are paired with ultrasonic flow meters and liquid separation detection for precise performance.
2. Water-Cooled Centrifugal Nozzles: These nozzles lower motor and ESC temperatures, extending their lifespan by 70%. The droplet size can be as small as 30 microns, ensuring efficient spraying.

Smart Features

1. Intelligent Route Planning: The system autonomously plots the optimal path, using a continuous liquid level gauge to monitor real-time medication levels, predict exchange points, and match medication with power requirements. It also scans edges and sprays comprehensively, streamlining crop protection tasks.
2. Efficient U-Turn Path: The small U-turn angle ensures smooth flight transitions and higher operational efficiency.
3. Comprehensive Operation Functions: With a user-friendly app, the drone offers polygon flight route planning for irregular terrains and fully autonomous operation. Route memory and area calculation features assist in precise dosage control.
4. Edge Scanning Mode: Allows customization of edge scanning flight circles, speed, spraying width, and other parameters, maintaining consistent operation standards.
5. Adaptive AB-T Mode: Enables adjustment of AB points during marking to adapt flight routes for complex land plots.

RCDrone M40 Technical Specifications

Additional Features

• AB Point Memory: Simplifies repeated route operations by remembering AB points.
• Autonomous Flight: Minimizes manual intervention through fully autonomous flight and spraying capabilities.
• Breakpoint Resuming: Ensures accurate resumption of spraying after interruptions.
• GNSS GPS System: Provides precise navigation and positioning.
• Ground Station Control: Enables remote operation and monitoring.
• Real-Time Video Transmission: Delivers clear visual feedback for effective management.
• Omnidirectional Radar: Enhances flight safety with comprehensive obstacle detection.
• Folding Propellers: Facilitates easy storage and transport.
• Night Operation Capability: Extends work hours by supporting night-time operations.
• Compact Folding Design: Allows for quick deployment and easy portability.
• Waveform Radar: Improves terrain sensing and obstacle detection.
• Extended Range Operations: Supports beyond visual line of sight (BVLOS) operations.
• Stable Flight: Equipped with multiple safeguards to ensure reliable performance.
• Versatility: Suitable for various crops and fruit trees, adapting to different agricultural needs.
• Multiple Flight Modes: Offers both manual and intelligent mode options to cater to different operational requirements.
• All-Terrain Capability: Designed to perform efficiently in diverse terrains.

What's Include

RCDrone M40 Drone Only:

1 x Whole M40 Agri Drone (Including Drone Fame, Motor, Propellers,Camera,GNSS );

RCDrone M40 Basic Combo:

• 1 x M40-40L Agriculture Drone
• 2 x Centrifugal Nozzle
• 2 x Spraying Pump (Brushless high-pressure)
• 1 x Remote Controller (High brightness with 5.5-inch screen)
• 1 x Maintenance Toolkit
• 1 x Charger (Dual way quick charger, AC 110V-240V, Max 3000W)
• 1 x Battery (14S 30000mAh Smart)
• 1 x Granular Spreader

RCDrone M40 Standard Combo:

• 1 x M40-40L Agriculture Drone
• 2 x Centrifugal Nozzle
• 2 x Spraying Pump (Brushless high-pressure)
• 1 x Remote Controller (High brightness with 5.5-inch screen)
• 1 x Maintenance Toolkit
• 1 x Charger (Dual way quick charger, AC 110V-240V, Max 3000W)
• 2 x Battery (14S 30000mAh Smart)
• 1 x Granular Spreader

RCDrone M40 Details

Highly integrated and easy-to-use agricultural drone for M3O, M4O, or M5O models.

Introducing the M Series Agricultural Drone, offering three payload models: 30L, 40L, and 50L. Features include a high-strength truss fuselage, wire-free flight control system, 360-degree radar, and integrated pumps and nozzles for efficient spraying. This comprehensive solution combines hardware and software for intelligent sensing and an unparalleled user experience.

Features a compact Z-shaped frame for easy storage, reducing volume by 15%, simplifying transportation and transfer.

Unique design features a low front section and high rear section to reduce wind resistance, increasing flight endurance by up to 10%.

Stable Truss Structure ensures durability and reliability for a robust agricultural drone operation.

Rugged snap-lock design ensures safe and convenient operation with dual protection, boosting safety performance by 80% over traditional designs.

Features a 360-degree omnidirectional radar for comprehensive obstacle detection and safe flight operation.

Modular design separates flight control, RTK, and receiver modules for easy swapping and customization.

Features a high precision weighing module for automatic calibration and real-time weighing, enhancing spraying and spreading accuracy while reducing losses by up to 75%.

Effortlessly reduce motor and ESC temperatures with our water-cooled centrifugal nozzle. Enjoy extended lifespan (up to 70%!) and precise control over droplet sizes, down to 30 microns. Experience the ultimate spraying performance with our RCDrone M40.

Equipped with dual high-flow impeller pumps for efficient operation, this drone features a large flow rate of 16 L/min, paired with an ultrasonic flow meter sensor and liquid separation detection for stable performance and precise accuracy.

Autonomously plans optimal routes with intelligent route mode, monitoring liquid levels in real-time to predict and optimize medication exchange points, ensuring comprehensive spraying for efficient crop protection.

Smooth U-turn flight path with minimal angle changes for efficient and stable operations.

Control with ease using the intelligent remote controller featuring a wide field of view, high brightness, and Android embedded system, powered by a Qualcomm processor and advanced SDR technology.

Experience advanced agriculture drone capabilities with fully autonomous flight, user-friendly app, and customizable polygon routes for irregular terrain. Enjoy enhanced efficiency through route memory and accurate spray control calculations.

Adjust AB-T mode to modify aircraft flight paths by changing point angles, ideal for intricate land plots, offering greater flexibility in aerial seeding and marking applications.

Select scanning mode, customize number of edge flights, retract entire or single side route, adjust speed and spraying width. All settings identical to standard routes. Default heading set for next waypoint, targeting edges.

RCDrone M40: A professional agriculture drone with a 40L medicine box capacity, weighing 34kg and featuring a flight altitude of up to 0.5m, flight time of 28 minutes, and spraying width of 20m. It has a centrifugal nozzle spraying system and can hover in any position. The drone offers high prevention and control efficiency, with a takeoff and landing speed of S6 level. It also features night flight function, folding propellers, and beyond visual line of sight operations.
