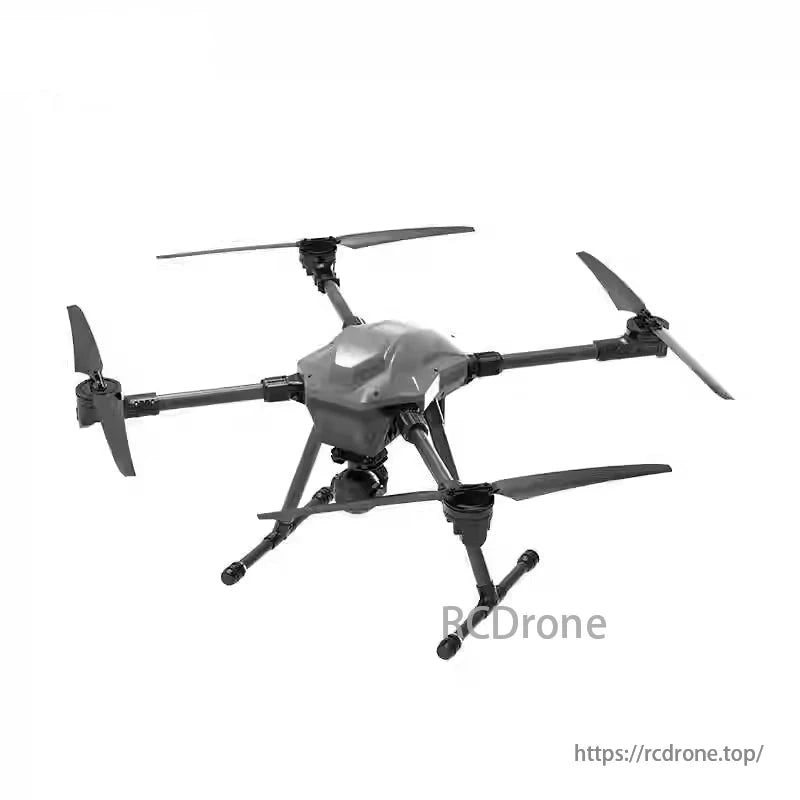

RCDrone X900 Long Endurance Drone - 4 Axis 3KG 5kg Payload 30 Minutes 6S 900mm Wheelbase Industrial Drone for Aerial Photography and Survey
RCDrone X900 Long Endurance Drone - 4 Axis 3KG 5kg Payload 30 Minutes 6S 900mm Wheelbase Industrial Drone for Aerial Photography and Survey
RCDrone
Couldn't load pickup availability
Overview
The RCDrone X900 is a high-performance 4-axis drone, designed for payloads ranging from 3 to 5 kg, making it ideal for industrial applications. With a fully sealed dustproof and waterproof body, an integrated injection molding design, and a spacious battery compartment, the X900 offers exceptional durability, convenience, and efficiency. It features a 900mm wheelbase, a robust X6SE propulsion system, and a customizable mounting platform for versatile payload compatibility. A long flight time of up to 60 minutes (no payload) or 30 minutes (with 3 kg payload) ensures reliable performance for professional tasks.
Key Features
- Payload Capacity: Supports 3-5 kg loads for industrial-grade flexibility.
- Sealed Body: Dustproof and waterproof with a split top cover for GPS installation.
- X6SE Propulsion System: Optimized for energy efficiency and high thrust with a maximum of 6.2 kg per motor.
- Battery Compatibility: Large 270x200x68mm compartment compatible with multiple battery types, enabling extended flight times.
- Foldable Design: Downward folding arms with a 90° quick-twist lock mechanism for portability and easy storage.
- Multiple Payloads: Compatible with market-standard payloads like C10, C12, C20, and ZT30.
- Lightweight Frame: Weighs only 1.5 kg, enhancing agility and reducing energy consumption.
Specifications
| Item | Details |
|---|---|
| Model | X900 |
| Wheelbase | 900mm |
| Unfolded Size | 710 x 710 x 500mm |
| Folded Size | 345 x 435 x 500mm |
| Arm Diameter | 25mm |
| Frame Weight | 1.5 kg |
| Payload Capacity | 3-5kg |
| Propulsion System | X6SE Motors |
| Propeller Size | 22x70 |
| Battery Compartment | 270 x 200 x 68mm |
| Max. Takeoff Weight | 11kg |
Package
- RCDrone X900 4-Axis Drone Frame Kit (Unassembled) x 1
- X6SE Power System (2CW + 2CCW) x 4
Note: Flight controller, battery, and radio equipment are sold separately.
Applications
- Aerial Photography: Ideal for high-quality imaging with compatible cameras like C20 or ZT30.
- Industrial Inspections: Suitable for infrastructure, pipelines, and power line inspections.
- Mapping and Surveying: Accurate data collection for land surveys and urban planning.
- Search and Rescue: Effective in disaster management and rescue missions.
- Delivery: Reliable for transporting essential goods over short to medium distances.
Additional Features

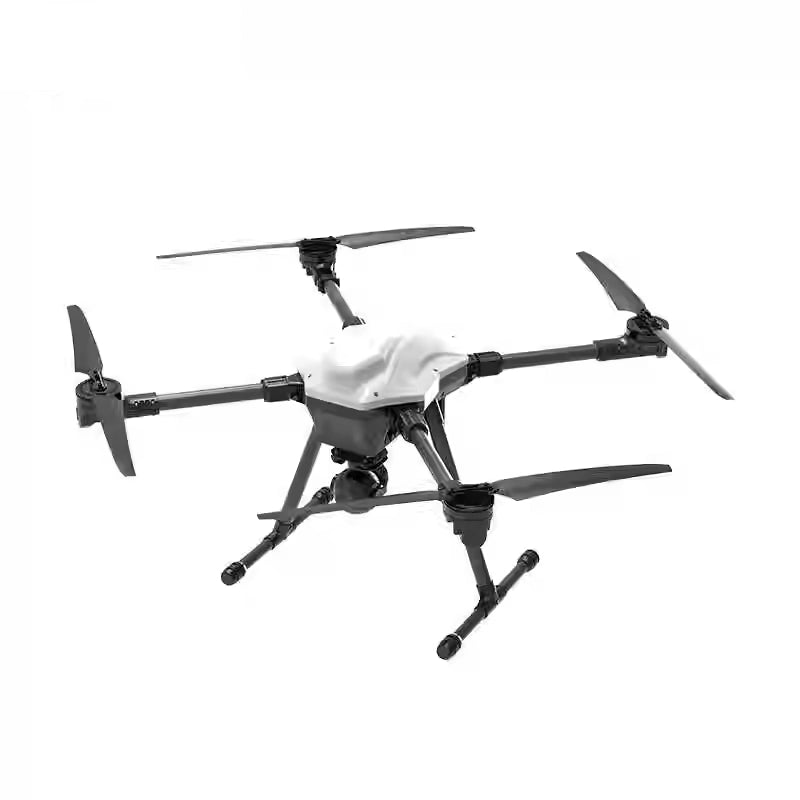

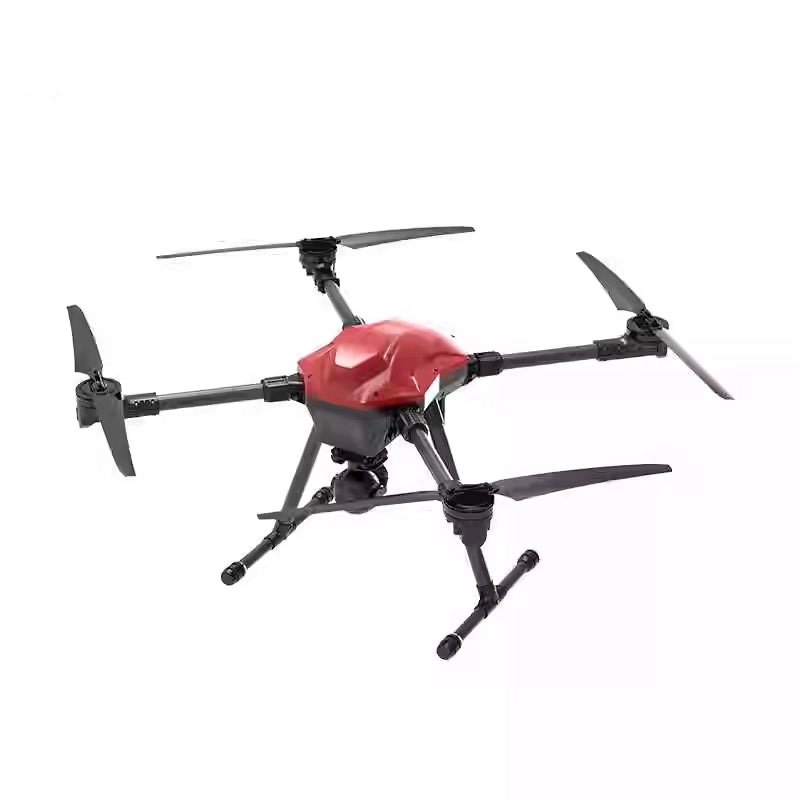

- Color Options: Available in Red, Black, Dark Grey, and White.
- Enhanced Protection: Integrated waterproof seals and a built-in power distribution board with 8 XT30 connectors for a clean and safe wiring layout.
- Durability: Constructed using high-quality injection molding for enhanced structural integrity.
- Foam Packaging: Delivered in a durable foam package to prevent transport damage.
Details
The mounting plate has a reserved area at the bottom. It compatible with various payloads, including C1o, C12, C20, A8mini, ZRIO, and ZT30.
The product has an entire body sealed with upper and lower covers, featuring a split top cover for installing a GPS unit while maintaining a sleek design.
The body features an integrated injection molding process, enabling quick and easy component installation. The built-in power distribution board includes 8 pre-configured XT30 power ports for a clean and concealed wiring setup.
Integrate battery space has press-open lid and large inside measurements 270 x 200 x 68 mm

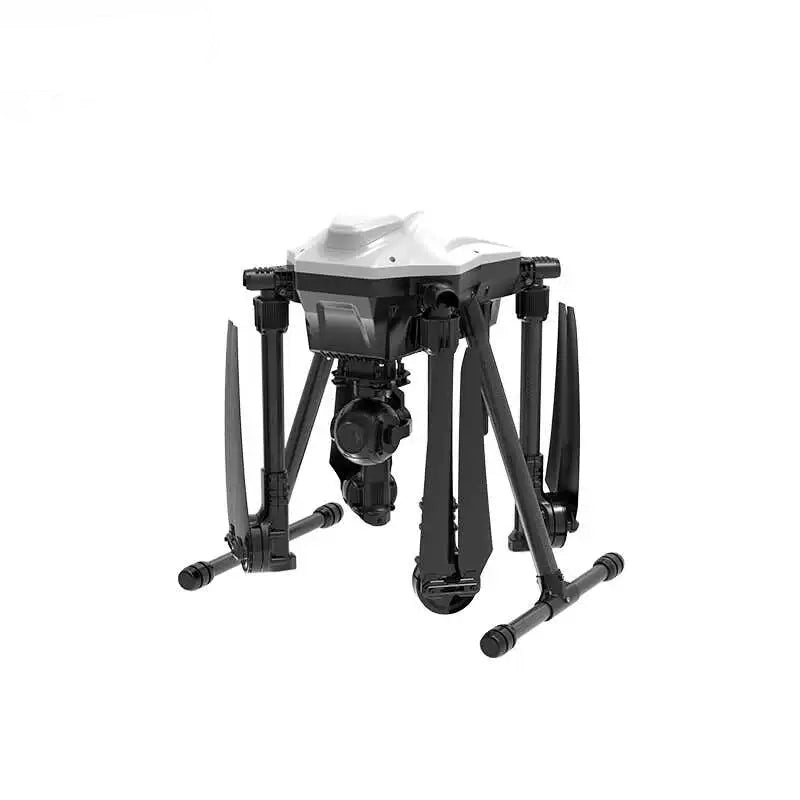

The X9OO features a downward folding design with a 90-degree quick-twist lock mechanism.
XGSE Propulsion System X6 weighs 2.2kg with rated thrust suitable for arm use, offering reliability and performance.
A foam packaging box protects all components from damage during transport by placing them in designated positions.
