RCGF Stinger ENGINES SPECIFICATIONS
Wheelbase: Screws
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Adapter
Tool Supplies: Assembled class
Technical parameters: Value 5
Remote Control Peripherals/Devices: Remote Controller
Recommend Age: 14+y
RC Parts & Accs: Engines
Origin: Mainland China
Model Number: stinger 20cc Rear Exhaust
Material: Metal
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Airplanes
Brand Name: uuustore
RCGF Stinger 20CC RE Gasoline Engine 2 Cycle Piston Value Type 6-14V 1500-105000rpm Support 14/15/16/17 inch Prop for Airplane

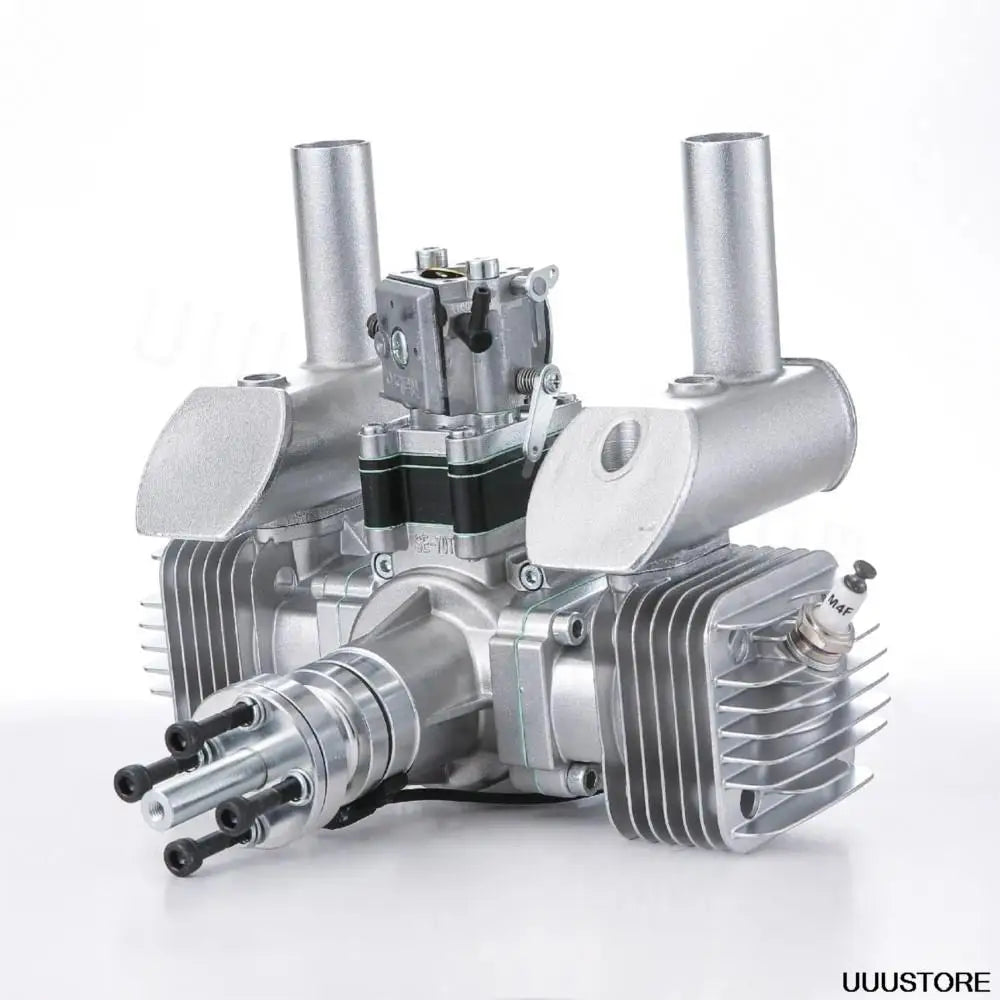

![RCGF Stinger 20CC RE Gasoline Engine, RCGF STINGER 70CC TWIN 2 cycle piston valve type gasoline engine Support 2210 2308 2310 2408 for FPV RC UAV Airplane Fixed-Wing](https://rcdrone.top/cdn/shop/files/S86fcc986cfe640f29859d4709ea05ed0N.webp?v=1715409424)

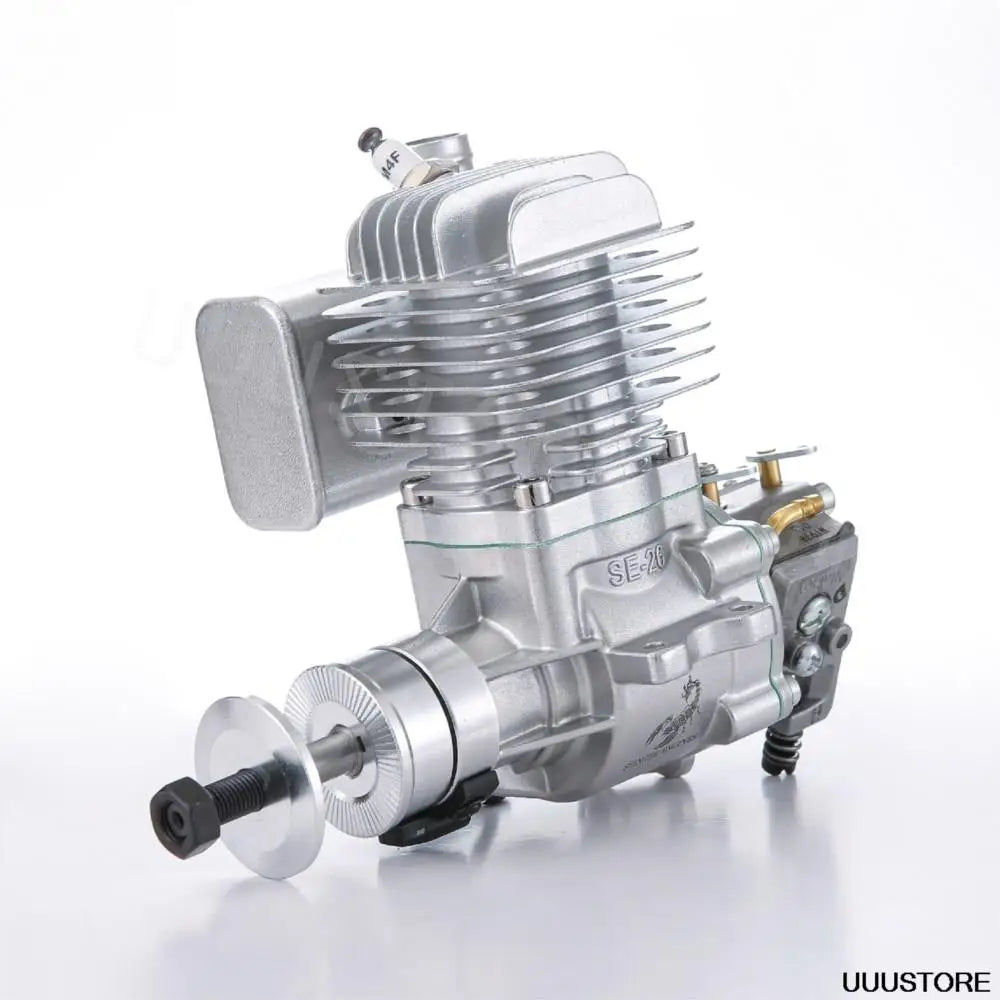

![RCGF Stinger 20CC RE Gasoline Engine, RCGF Stinger 26CC SE Gasoline Engine 2 Cycle Piston Value Type Support 1608 1610 1708 1808 Prop for FPV RC Airplane Fixed-Wing](https://rcdrone.top/cdn/shop/files/S76bc0fbebe354c148942d1eeec5b65caa.webp?v=1715409427)

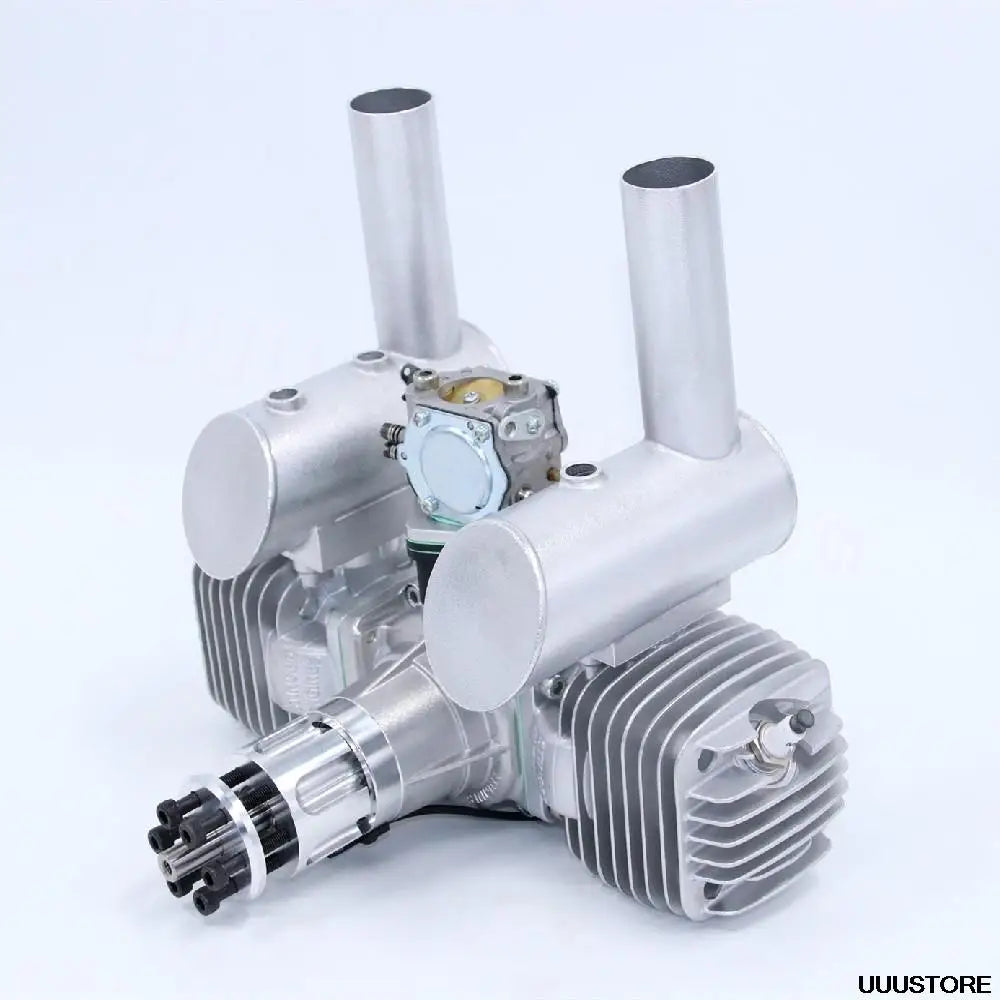

![RCGF Stinger 20CC RE Gasoline Engine, RCGF STINGER 125CC TWIN 2 cycle piston valve type gasoline engine Support 2710 2708 2711 2808 for FPV RC UAV Airplane Fixed-Wing](https://rcdrone.top/cdn/shop/files/Sce39c1721acb428c9ae393272402933bC.webp?v=1715409430)

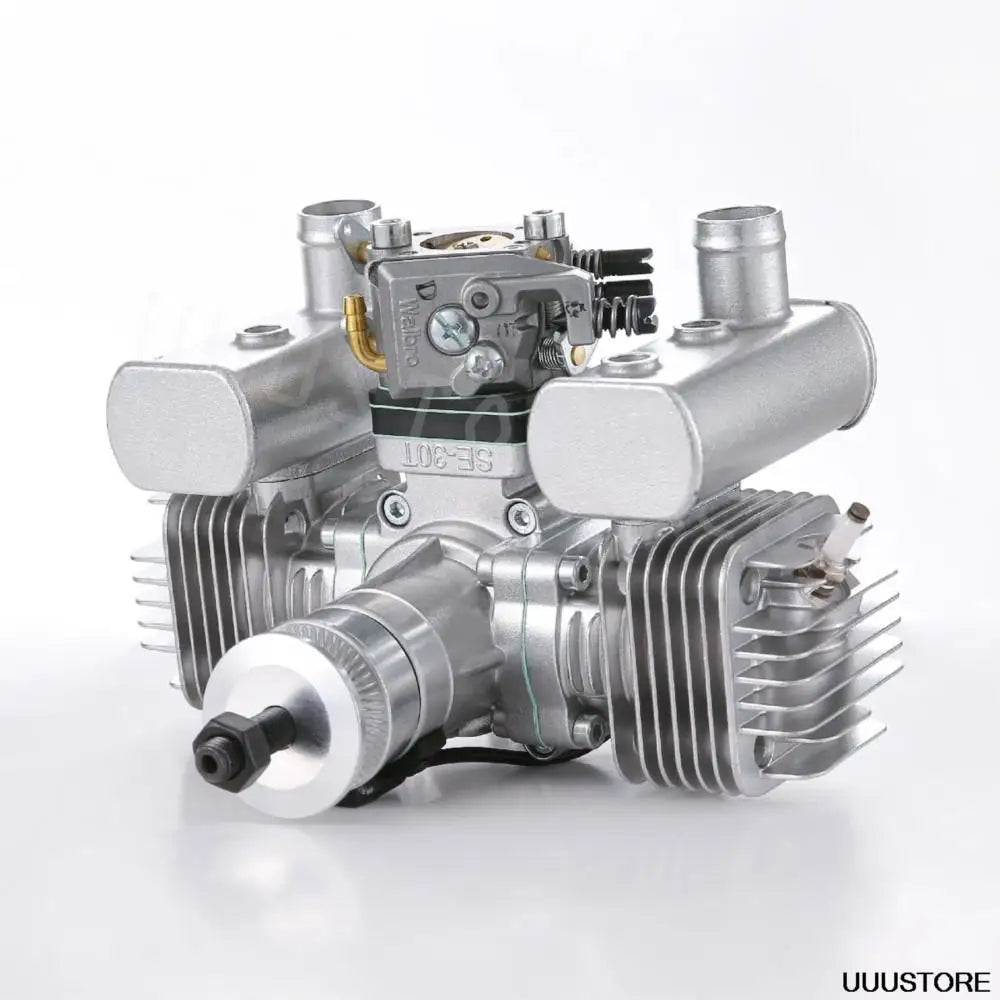

![RCGF Stinger 20CC RE Gasoline Engine, RCGF STINGER 30CC TWIN 2 cycle piston valve type gasoline engine Support 1808 1810 1908 2008 for FPV RC UAV Airplane Fixed-Wing](https://rcdrone.top/cdn/shop/files/Sea7cf6bf4b0148b8ae7307f1c803649aG.webp?v=1715409434)

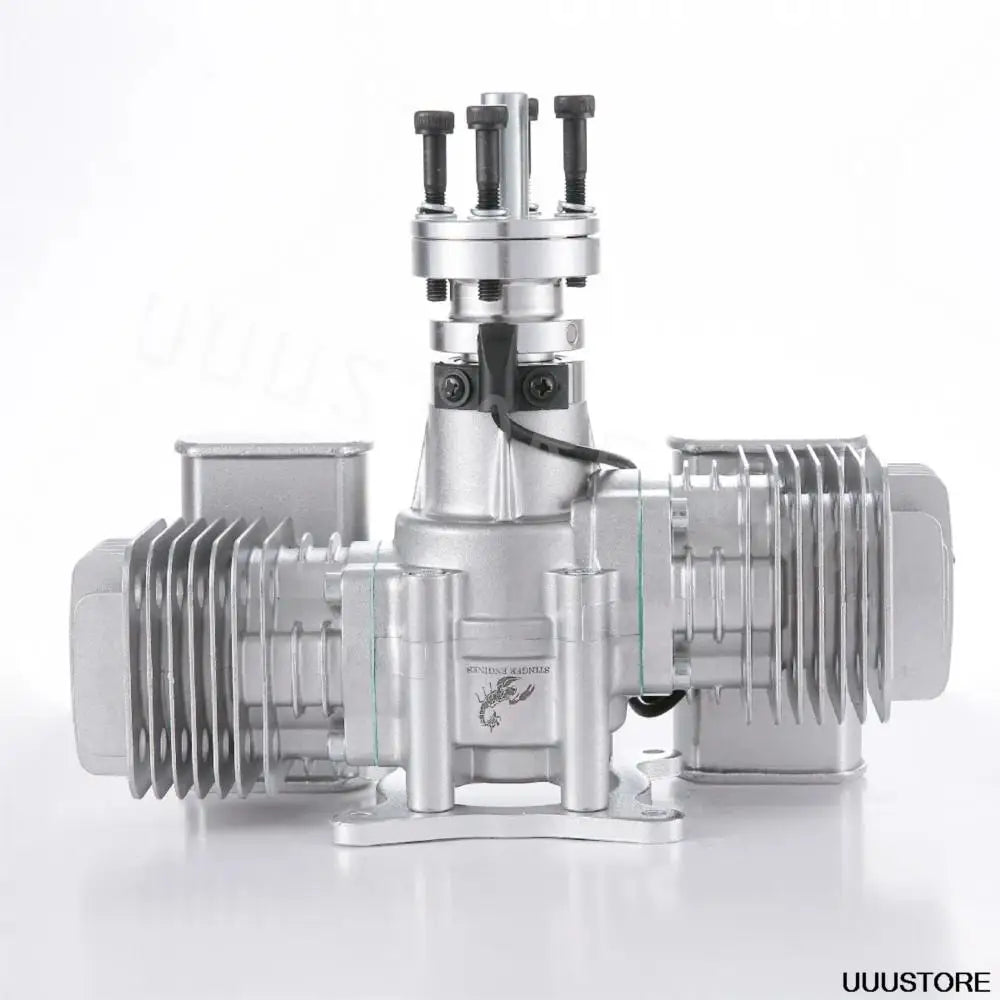

![RCGF Stinger 20CC RE Gasoline Engine, RCGF STINGER 40CC TWIN 2 cycle piston valve type gasoline engine Support 1908 1910 2008 2010 for FPV RC UAV Airplane Fixed-Wing](https://rcdrone.top/cdn/shop/files/Sf74f30a2cbad4c9c8b098401b49d7936v.webp?v=1715409437)

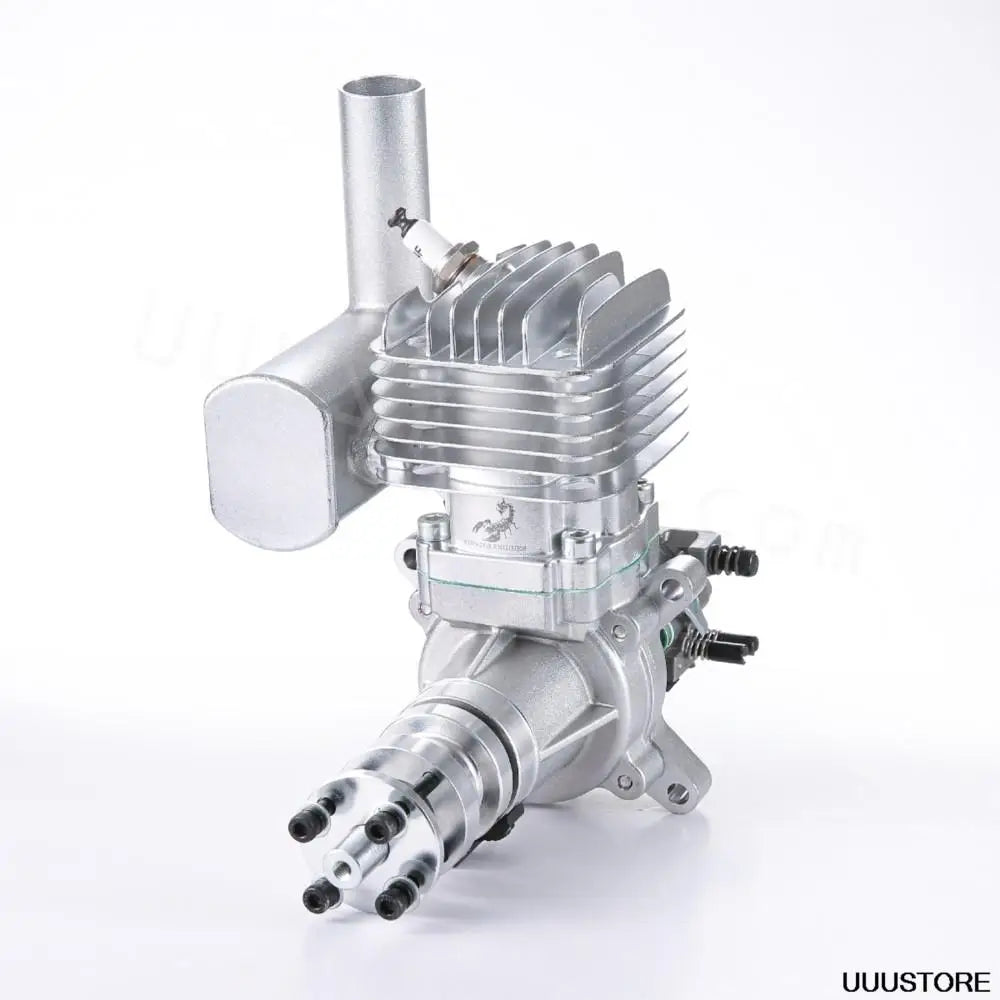

![RCGF Stinger 20CC RE Gasoline Engine, RCGF Stinger 35CC SE Gasoline Engine 2 Cycle Piston Value Type Support 1908 2008 2010 Prop for FPV RC UAV Airplane Fixed-Wing](https://rcdrone.top/cdn/shop/files/Sa7e9c2d83ef9406382c696cd637ed2130.webp?v=1715409441)

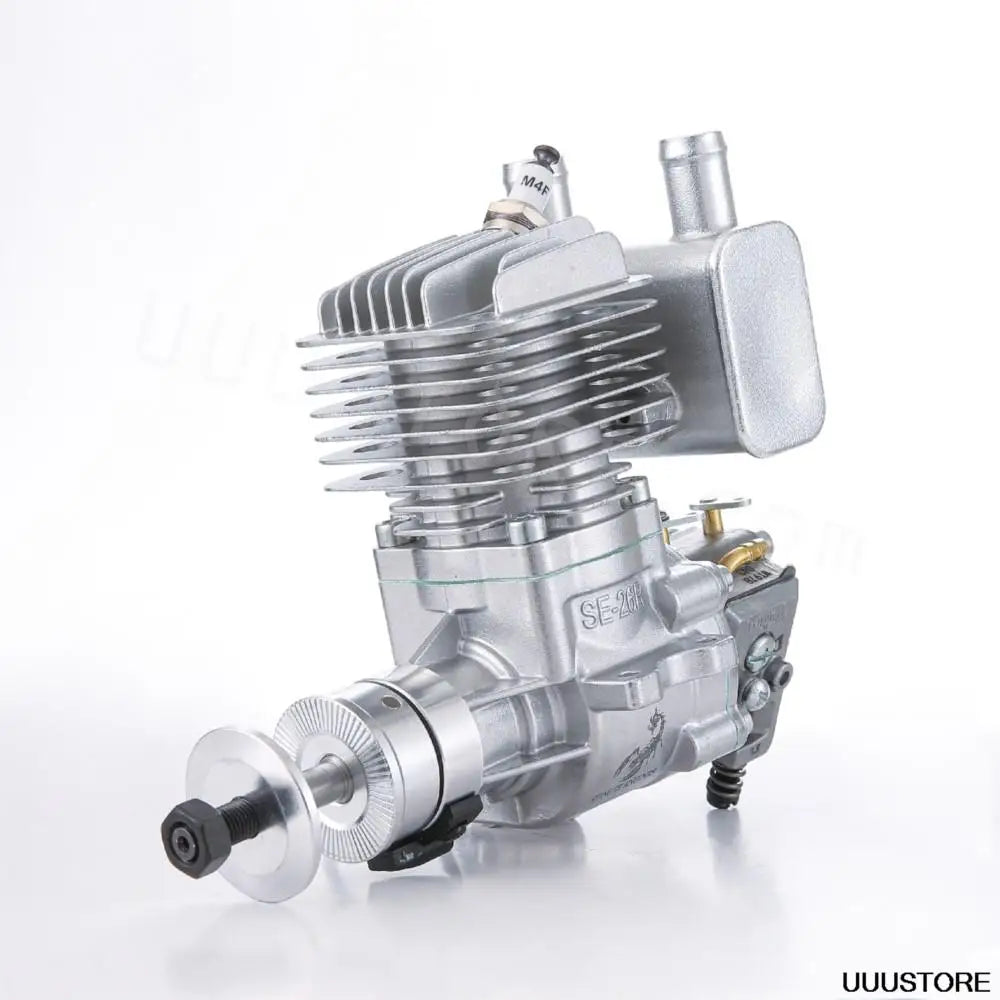

![RCGF Stinger 20CC RE Gasoline Engine, RCGF Stinger 26CC RE Gasoline Engine 2 Cycle Piston Value Type Support 1608 1610 1708 1808 Prop for FPV RC Airplane Fixed-Wing](https://rcdrone.top/cdn/shop/files/S420e1d8753464215a4e2058c659b68387.webp?v=1715409445)

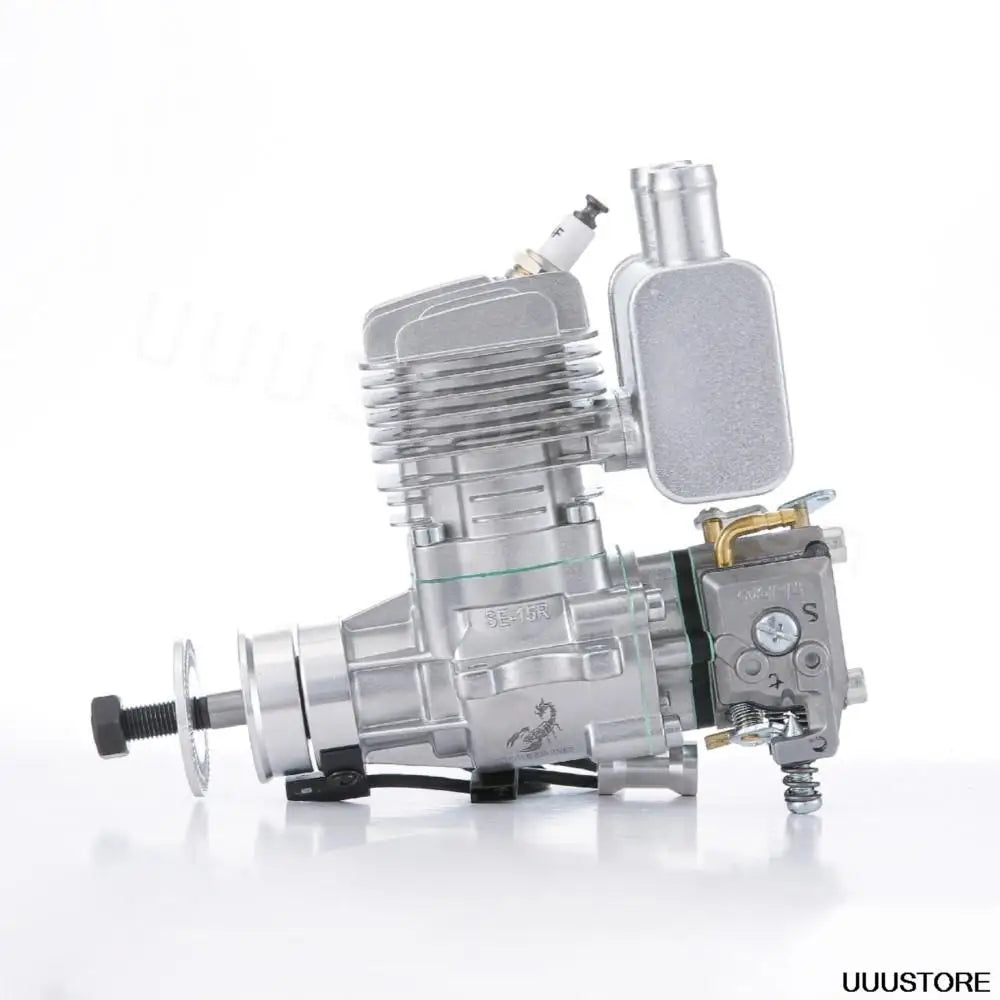

![RCGF Stinger 20CC RE Gasoline Engine, RCGF Stinger 15CC RE Gasoline Engine 2 Cycle Piston Value Type Support 1306 1406 1308 1307 Prop for FPV RC Airplane Fixed-Wing](https://rcdrone.top/cdn/shop/files/Sdfc64bcbb8f54da899ab9d07ccaa0f59G.webp?v=1715409449)

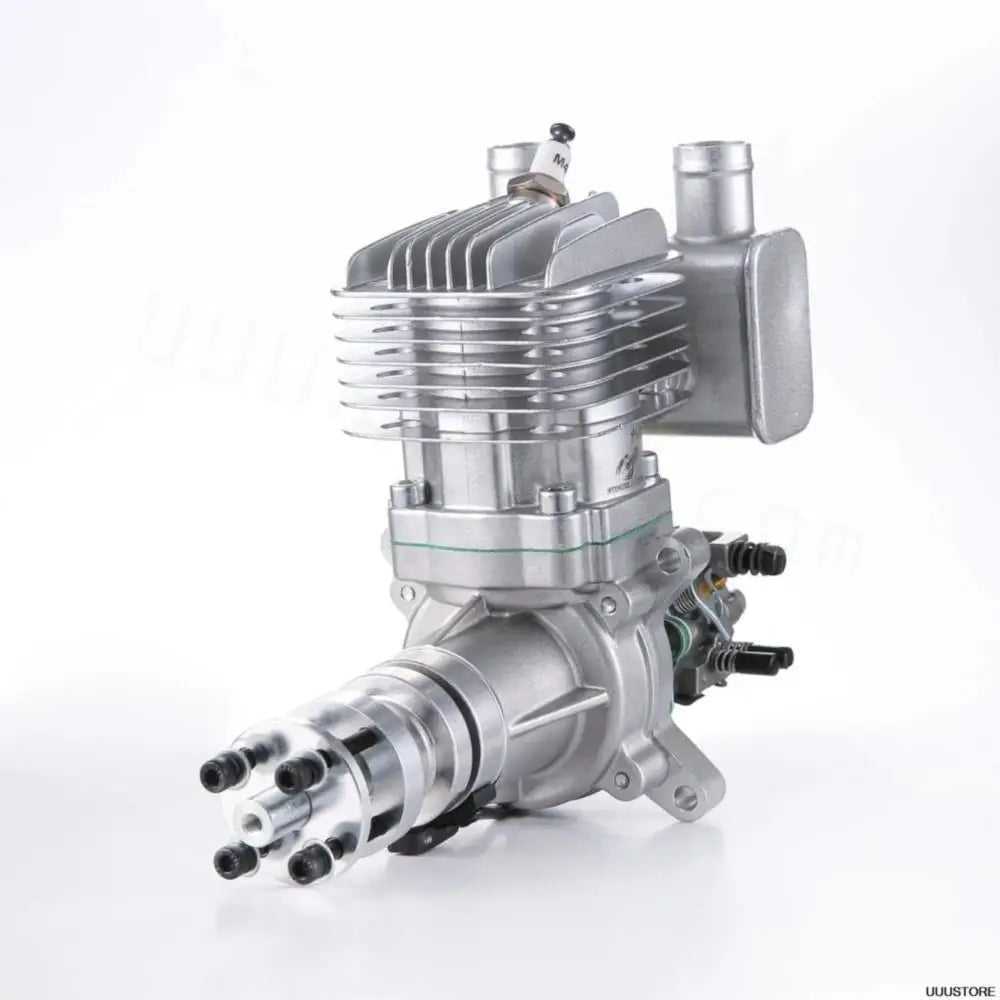

![RCGF Stinger 20CC RE Gasoline Engine, RCGF Stinger 35CC RE Gasoline Engine 2 Cycle Piston Value Type Support 1908 2008 2010 Prop for FPV RC UAV Airplane Fixed-Wing](https://rcdrone.top/cdn/shop/files/Sd7d2737b2af5437b837b3f926eefc6c8v.webp?v=1715409452)

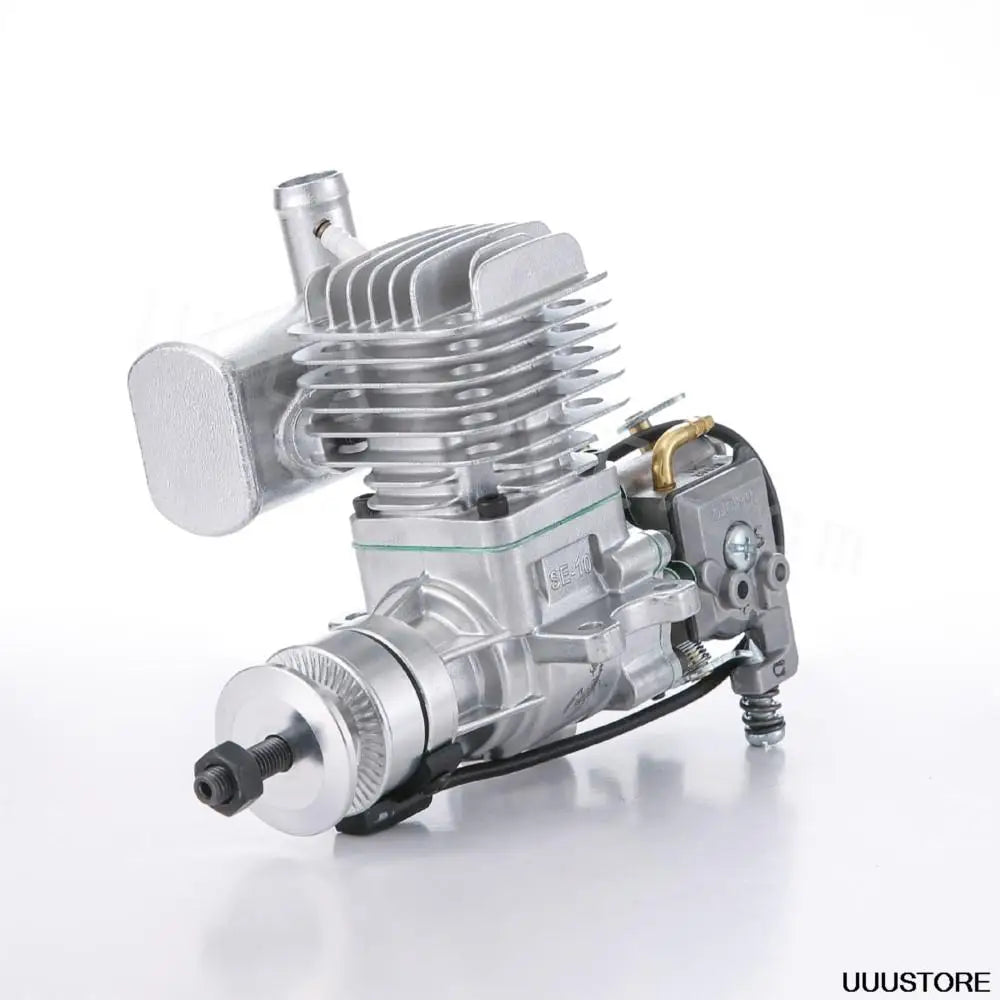

![RCGF Stinger 20CC RE Gasoline Engine, RCGF Stinger 10CC SE Gasoline Engine 2 Cycle Piston Value Type Support 1306 1406 1308 1307 Prop for FPV RC Airplane Fixed-Wing](https://rcdrone.top/cdn/shop/files/S8d1a3822c70b43649e5b93a9f929d9f2F.webp?v=1715409455)

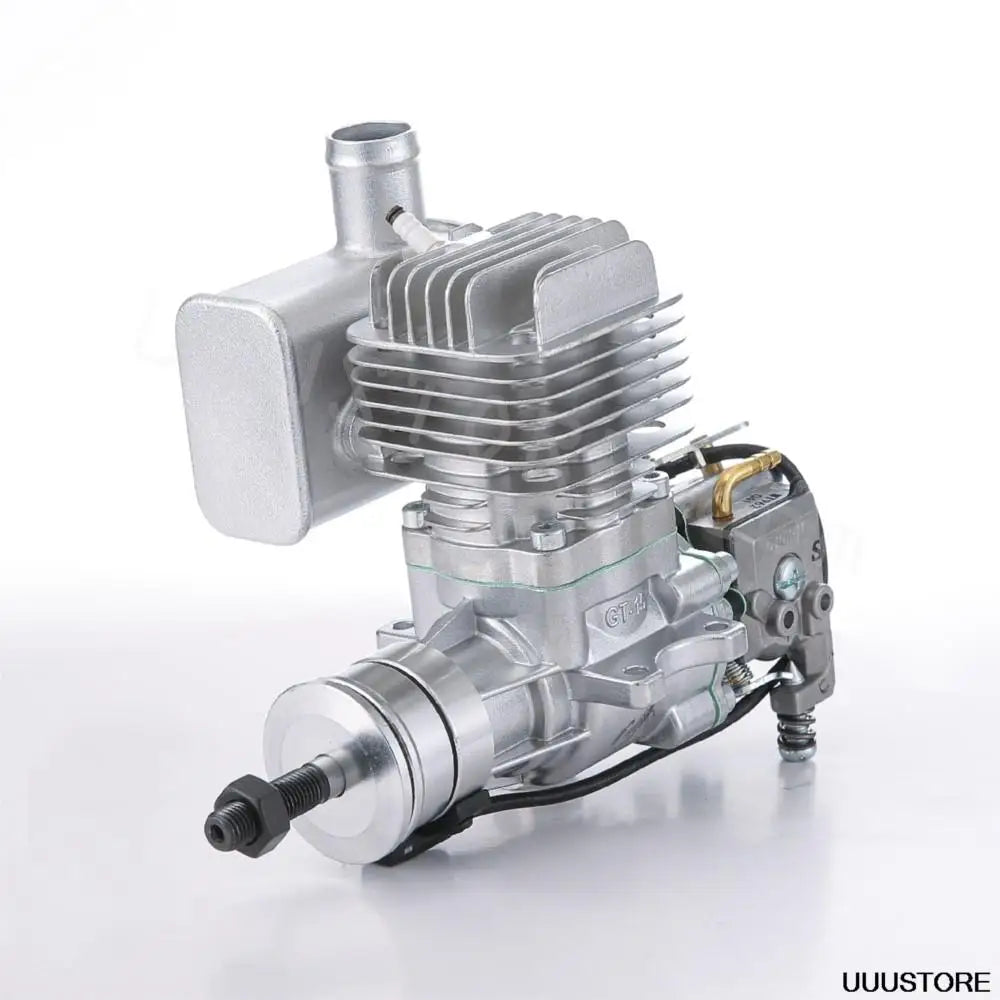

![RCGF Stinger 20CC RE Gasoline Engine, RCGF Stinger 15CC SE Gasoline Engine 2 Cycle Piston Value Type Support 1306 1406 1308 1508 Prop for FPV RC Airplane Fixed-Wing](https://rcdrone.top/cdn/shop/files/S880ce38e292f42a390d06020ac7ec5fcH.webp?v=1715409459)

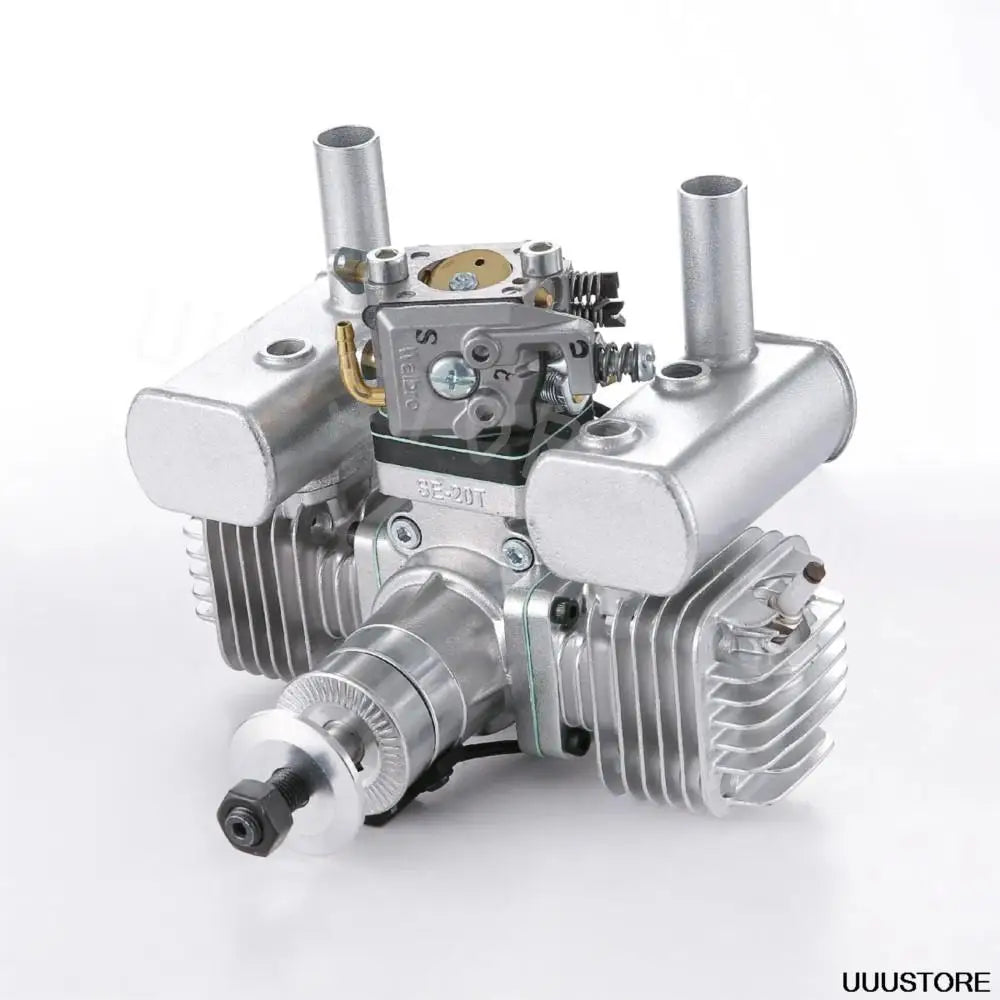

![RCGF Stinger 20CC RE Gasoline Engine, RCGF STINGER 20CC TWIN 2 stroke engines RC model gasoline engines rc aircraft rc airplane two cycle stinger 20CC engine UAV](https://rcdrone.top/cdn/shop/files/Sc03396a295954d64b89109a9de06d3e5I.webp?v=1715409463)

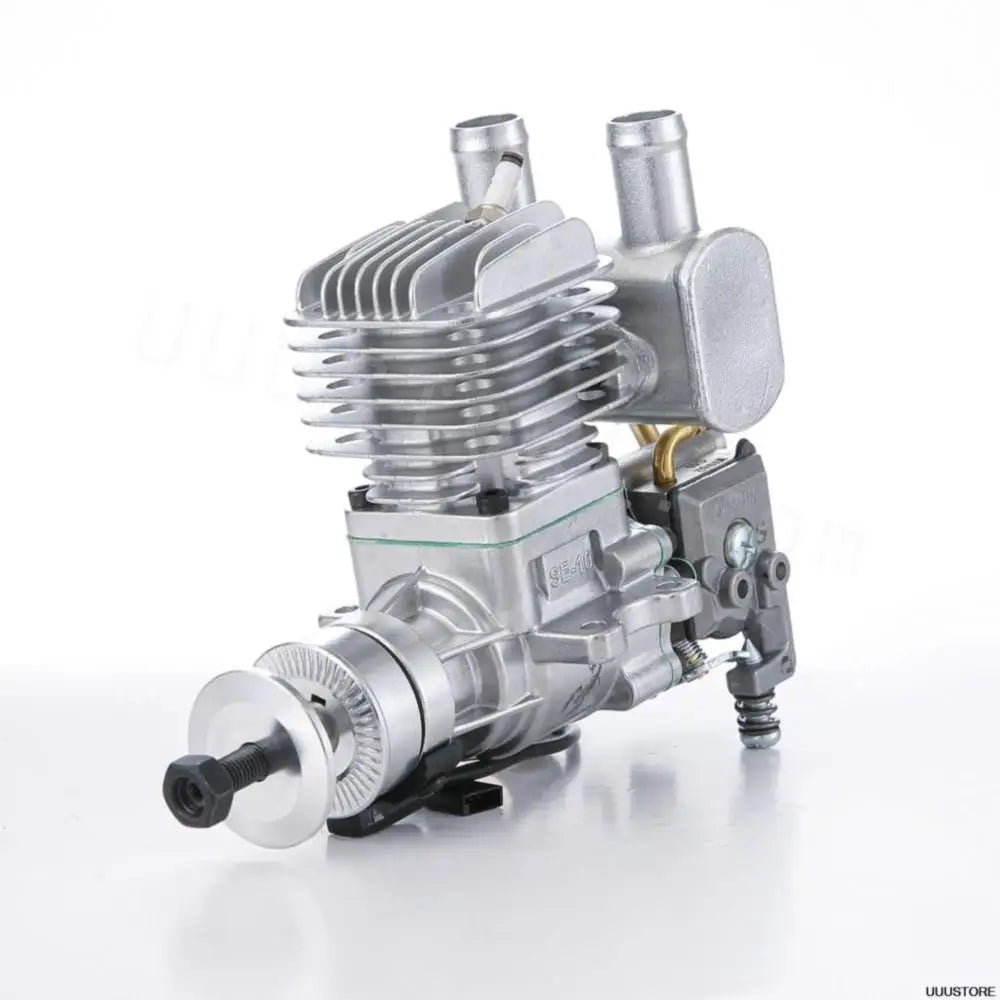

![RCGF Stinger 20CC RE Gasoline Engine, RCGF Stinger 10CC RE Gasoline Engine 2 Cycle Piston Value Type Support 1306 1406 1308 1307 Prop for FPV RC Airplane Fixed-Wing](https://rcdrone.top/cdn/shop/files/Se873e1d2ef674d31830e19fa0c5f50ffj.webp?v=1715409466)

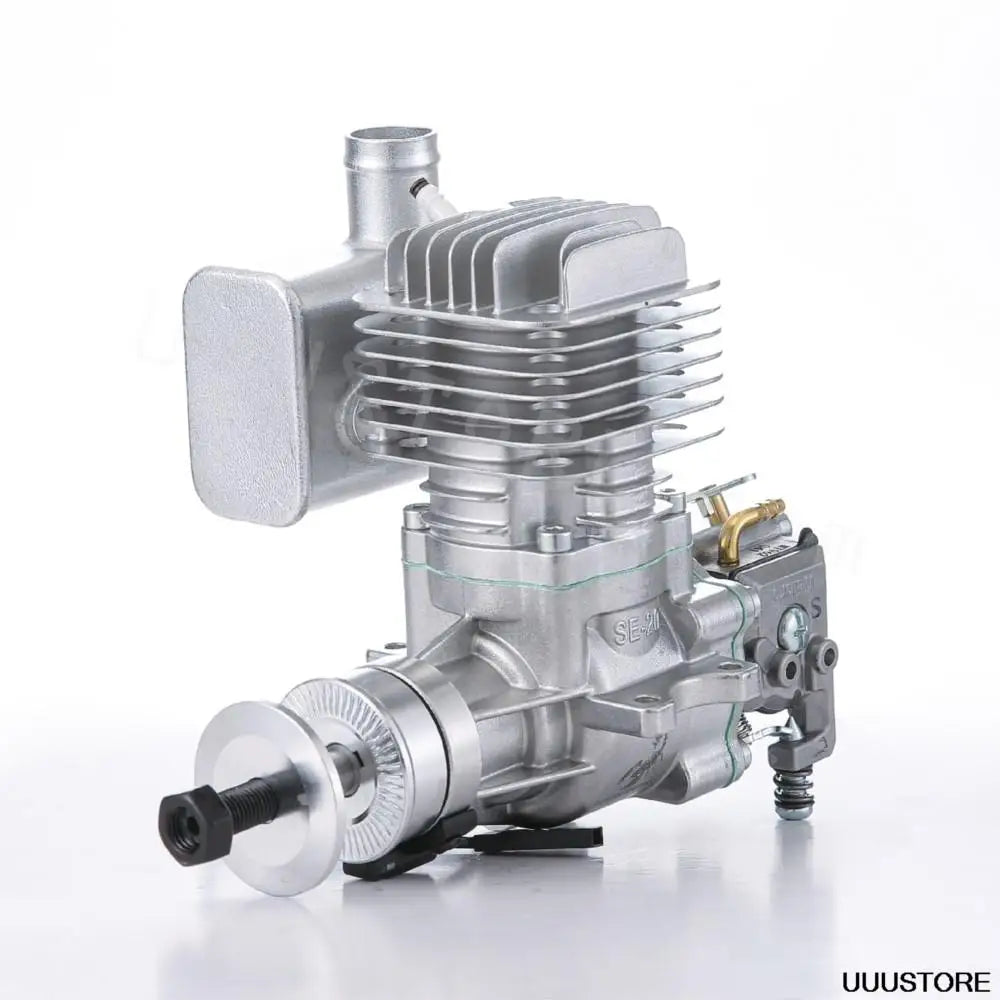

![RCGF Stinger 20CC RE Gasoline Engine, RCGF Stinger 20CC SE Gasoline Engine 2 Cycle Piston Value Type 6-14V 1500-105000rpm Support 14/15/16/17 inch Prop for Airplane](https://rcdrone.top/cdn/shop/files/S68ea5883fc594b8a87442713074a598bB.webp?v=1715409469)

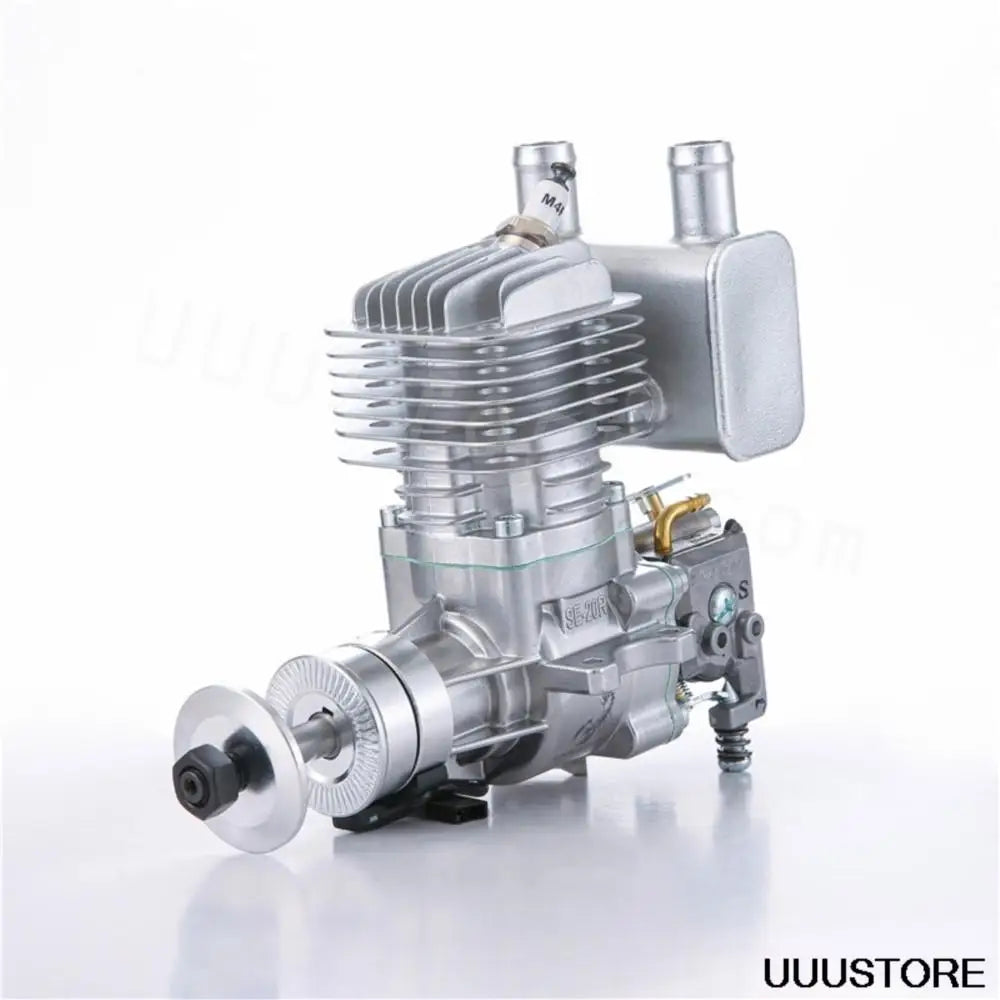

![RCGF Stinger 20CC RE Gasoline Engine 2 Cycle Piston Value Type 6-14V 1500-105000rpm Support 14/15/16/17 inch Prop for Airplane](https://rcdrone.top/cdn/shop/files/S658bb232a92c4c4faadaae6dc591c75dd.webp?v=1715409473)

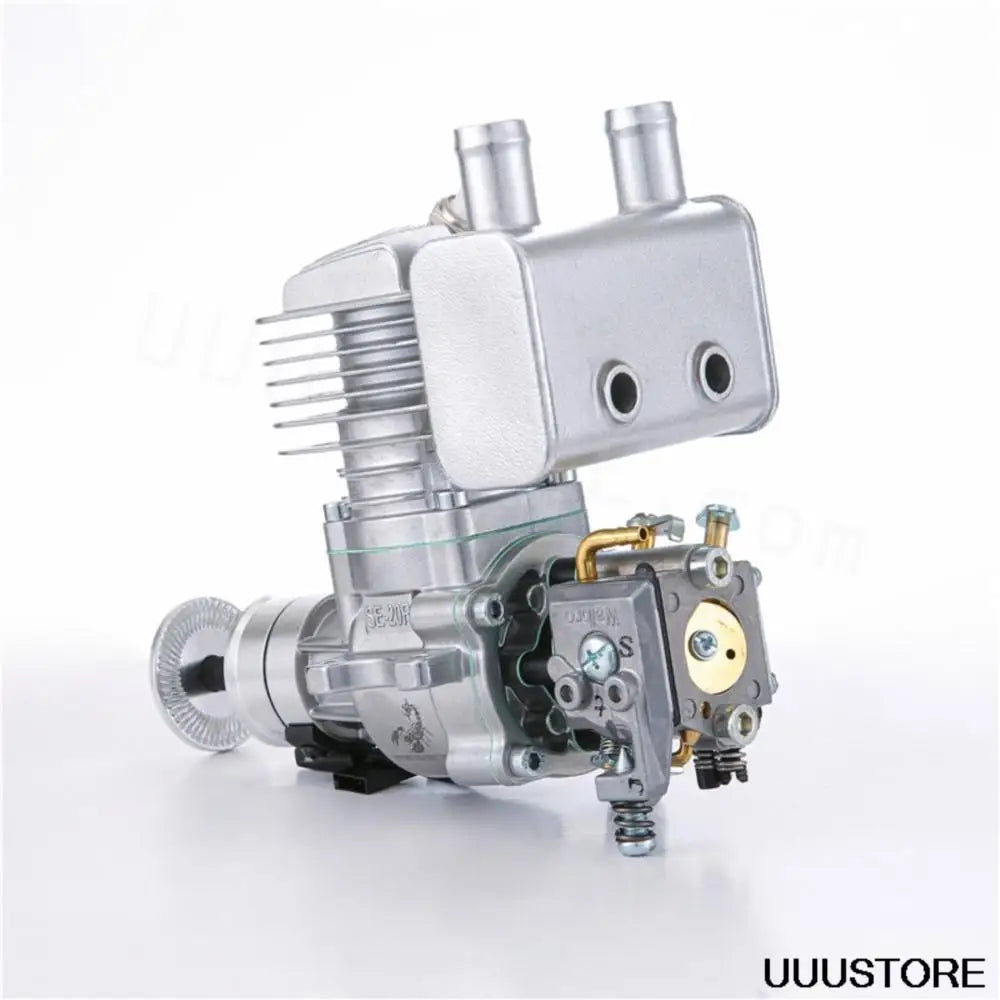

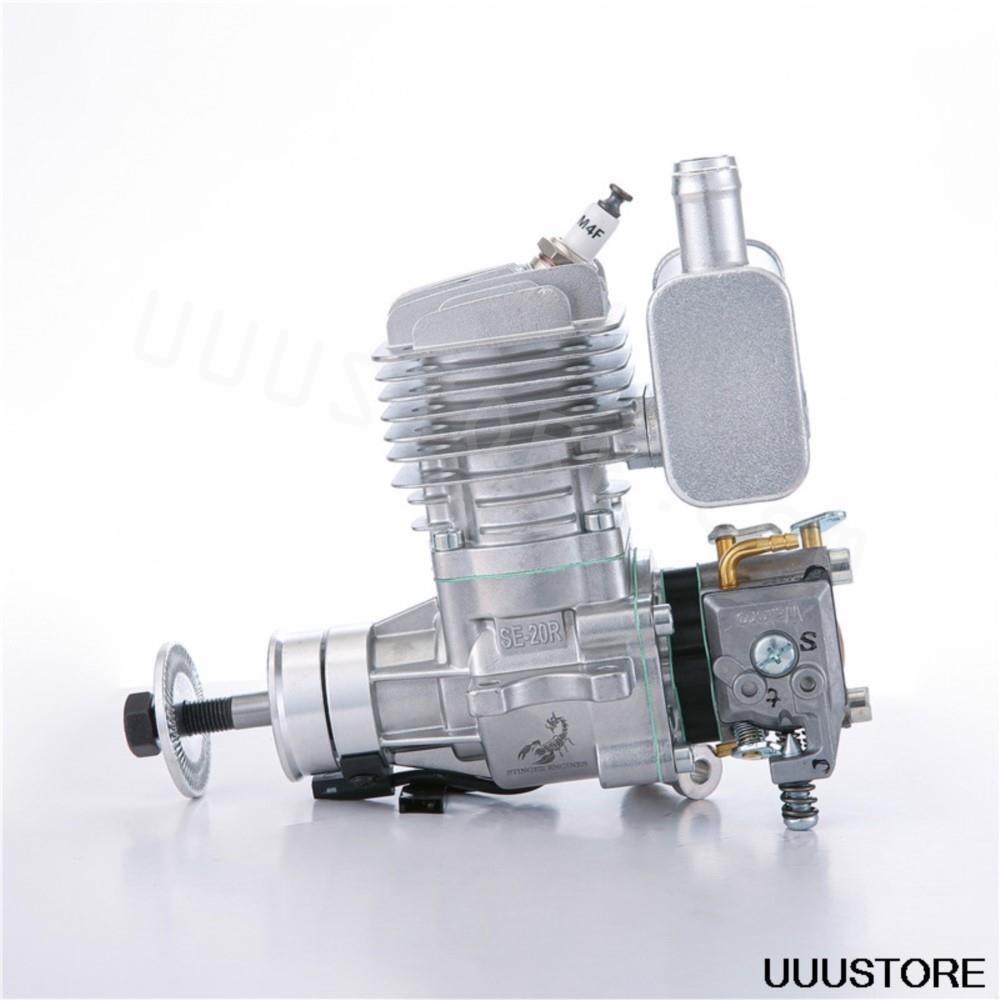

RCGF Stinger 20cc RE
Glow size:gasoline economy & ease!
Glow power isn’t the only option anymore. The NEW STINGER 20CC RE engine not only fills the displacement gap, but includes a beam mount to make the glow-to gasoline upgrade drop-in fast and easy. A rear pumper carb simplifies installation and adjustment.
NEW STINGER 20cc RE is starting ease and top performance make the 20CC RE an attractive alternative to glow and a solid buy for value and performance.
Parameter
Type | 2 cycle piston valve type gasoline engine for airplane |
---|---|
Displacement (cc) | 20cc (1.22 cu in) |
Bore x Stroke (mm) | 1.3 in(32mm) x 9.5 in (24mm) |
Recommended props | 14×10, 15×8, 16×6, 16×8, 17×6 |
Maximum Output | 2.8HP /2.1KW |
Power supply | 7.4V-14V |
- Carburetor : Walbro
- Ignition : DC-CDI (Computer Controlled auto advance, electronic ignition system)
- SPARK PLUG: NGK-CM6 type
- Requires: Gasoline, 2-cycle oil, ignition battery & propeller
- speed rang : 1500-10800rpm
- Gasoline-Version : Pre-mixed Fuel, 25-40 (Gasoline):1 (recommended : 30:1)
- Lubrication Oil : High quality fully synthetic 2 cylinder oil such as Motul 800 2T 100% synthetic racing motro oil , Red line two-stroke racing motor oil , Stihl Ultra high performance 2 cycle fully synthetic engine oil etc .
- Break in Propeller : 16X8 (Standard Two leafs prop)
- Cooling System : Air Cooled

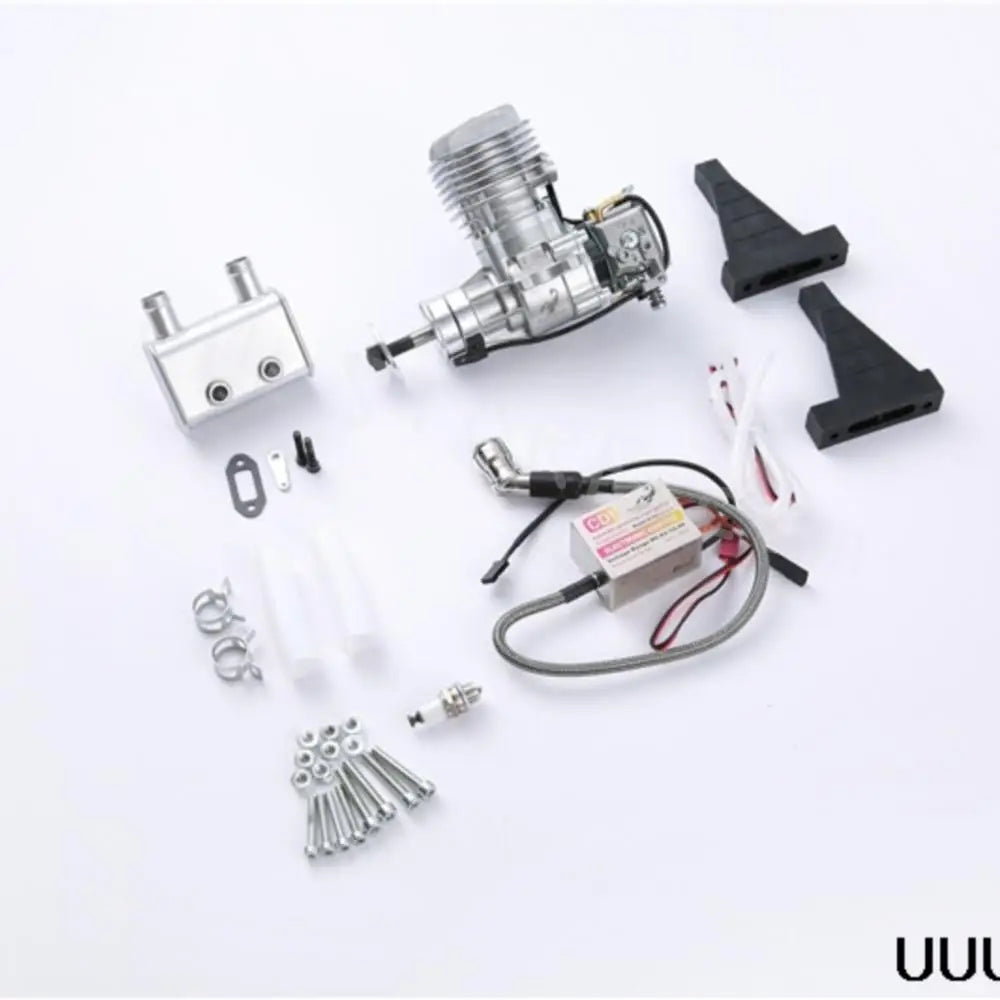

- RCGF Stinger Engine package Includes: electronic CDI ignition, muffler, spark plug, gaskets, bolts, throttle arm extension & manual.
- Engine: 1.37 lb (620g)
- Muffler: 2.08 oz (59 g)
- Ignition Module: 4.4 oz (125 g)
- Total: Weight: 1.75 lb (795 g)
- Ignition Battery: 7.4V-14VNiCd or NiMH, 7.4V LiFe or 2S LiPo pack
- Gasoline/Oil Mix: 30:1
- Replacement Spark Plug: NGK-CM6 or equivalent
- Idle Speed: 1800 rpm/min
Package:
1 x RCGF STINGER 20cc RE
