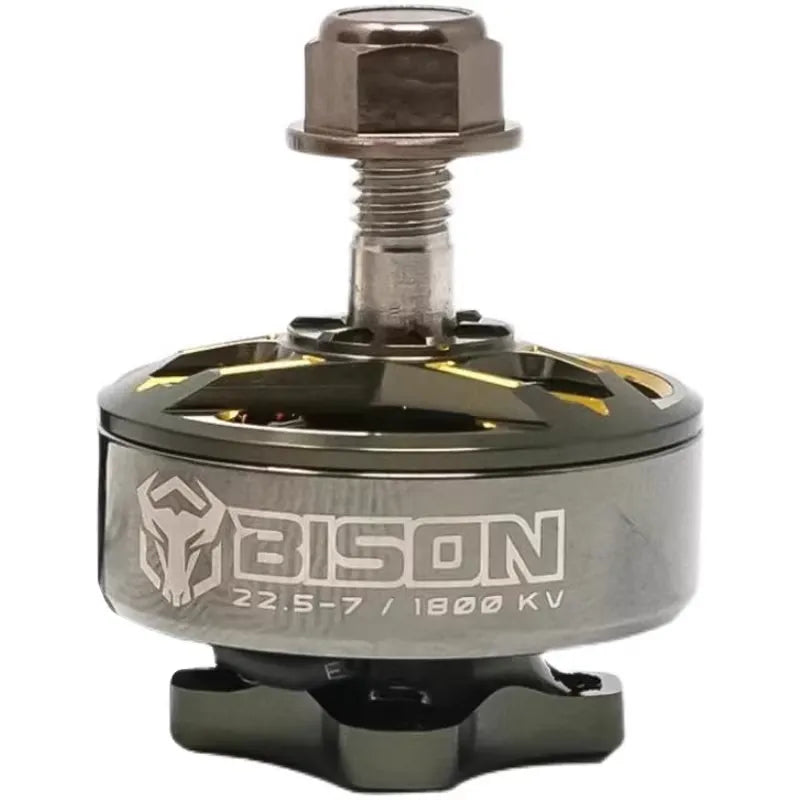

• RCInpower Bison 22.5-7 1800KV brushless FPV drone motor with top prop nut and BISON logo

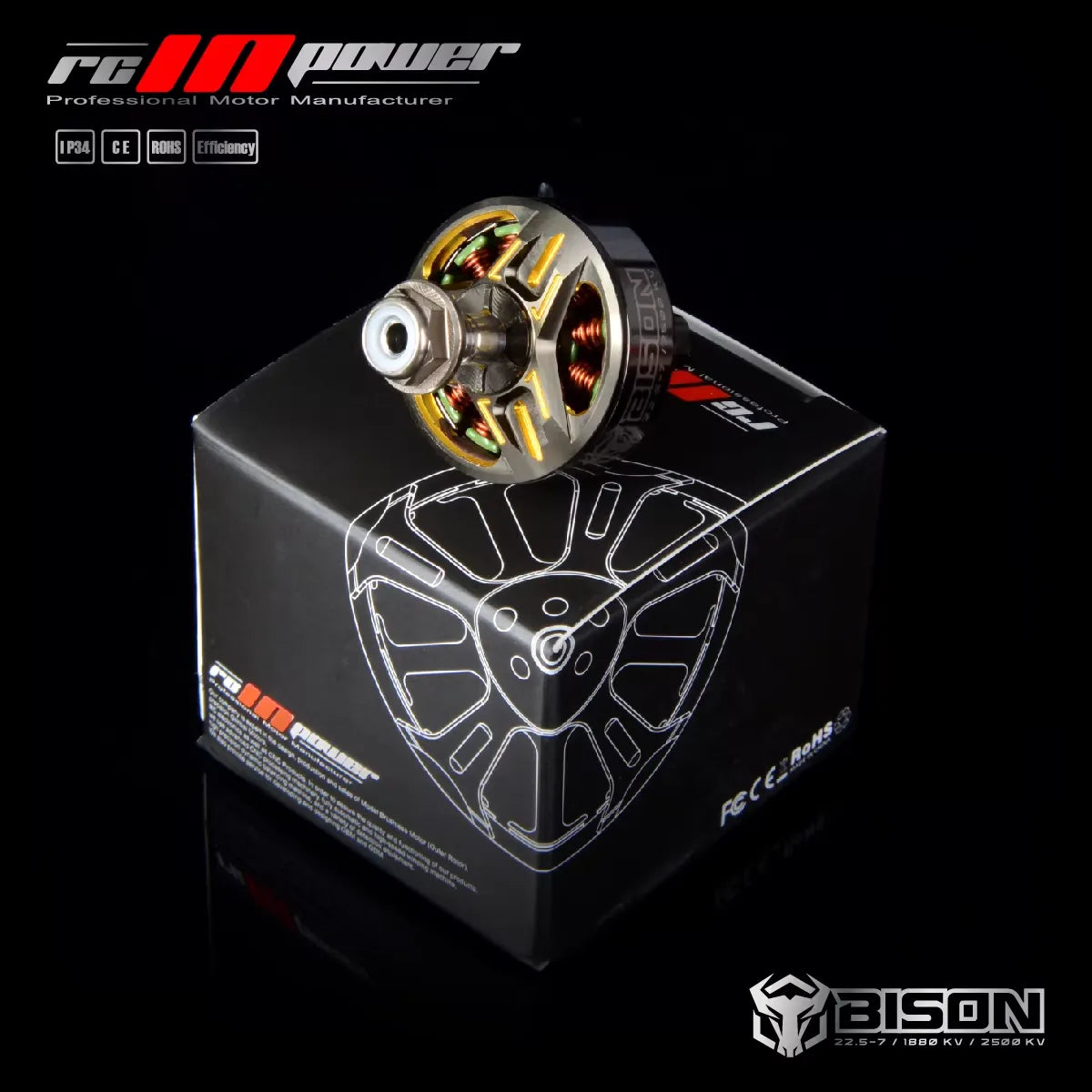

  • RCInpower Bison 22.5-7 FPV drone brushless motor on retail box, open-bell design with exposed copper windings

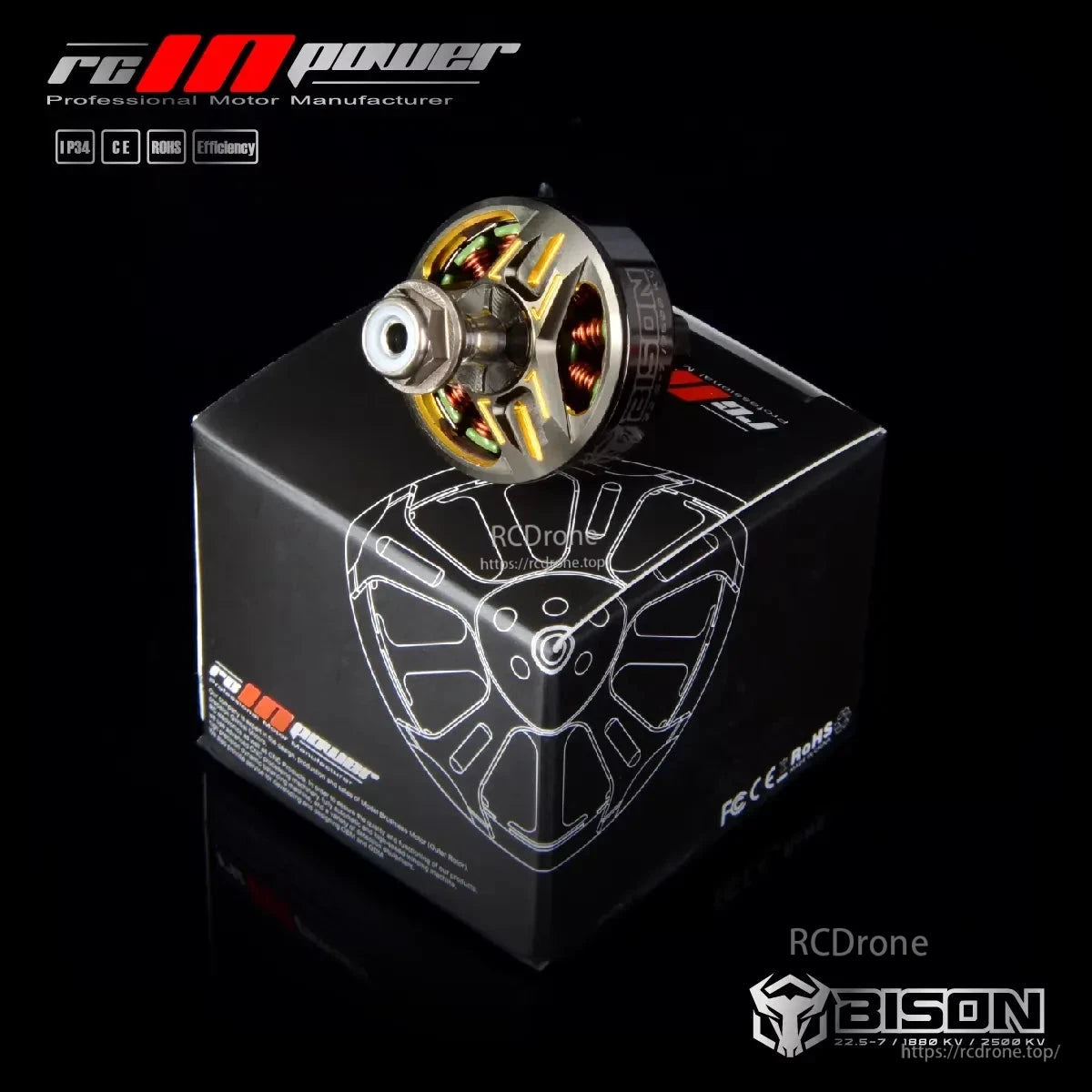

  • RCInpower Bison brushless FPV drone motor with exposed copper windings, mounted on branded box
1 3

RCInpower Bison 22.5-7 1800KV 2500KV Brushless Motor for 5-6 Inch FPV Drone

RCInpower Bison 22.5-7 1800KV 2500KV Brushless Motor for 5-6 Inch FPV Drone

RCINPOWER

$32.00 USD
$32.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
KV
Options
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

The RCInpower Bison 22.5-7 FPV Drone Motor is a high-performance brushless motor designed for FPV drone builds that demand strong structure, smooth operation, and efficient power delivery. According to the product images, this motor continues the design language of the earlier GTS V2 series while improving structural strength and crash resistance. It features a 22.5mm stator diameter, 7mm stator height, 12N14P configuration, a 4mm semi-hollow shaft, and a lightweight design of about 33g.

The Bison 22.5-7 uses a newly developed stator specification rather than a conventional 22xx or 23xx size, and it is equipped with 220°C single-strand enameled copper winding for strong and linear throttle response. RCInpower also highlights an optimized anti-vibration design and upgraded 4x11x4mm (694) bearings, intended to improve smoothness, durability, and bearing life. Available in 1800KV and 2500KV versions, this FPV motor suits different voltage platforms and flying styles.

Key Features

New 22.5-7 Stator Platform

This motor uses a 22.5mm stator diameter and 7mm stator height, setting it apart from more common 22xx and 23xx class motors. The design aims to balance output, responsiveness, and weight.

Improved Structural Strength

The image text states that the Bison series continues the GTS V2 design language while optimizing structural strength and improving crash resistance, making it better suited for demanding FPV use.

220°C Single-Strand Copper Winding

The stator uses 220-grade single-strand oxygen-free copper winding, which is presented as delivering very linear power output.

Optimized Anti-Vibration Design

RCInpower highlights an optimized damping and anti-vibration structure to reduce motor vibration and help extend bearing life.

Larger 694 Bearings

Compared with standard 4x9x4mm (684) bearings, this motor uses larger 4x11x4mm (694) bearings for improved smoothness and durability.

Lightweight Design

The product image shows the motor weight at approximately 33.07g, while the specification sheet lists 33g (with 3cm wire), indicating a design focus on keeping weight low while maintaining strength and power.

Specifications

Item RCInpower Bison 22.5-7 1800KV RCInpower Bison 22.5-7 2500KV
KV 1800KV 2500KV
Configuration 12N14P 12N14P
Stator Diameter 22.5mm 22.5mm
Stator Length 7mm 7mm
Shaft Diameter 4mm (Semi-Hollow) 4mm (Semi-Hollow)
Motor Size Φ27.7 × 32.7mm Φ27.7 × 32.7mm
Weight 33g (3cm wire) 33g (3cm wire)
Idle Current (10V) 1.2A 1.9A
Recommended LiPo Cells 5-6S 3-4S
Max Continuous Power 630W 588W
Internal Resistance 79mΩ 55mΩ
Max Current 25A 35A
Max Efficiency Current (2-6A) >85% (3-7A) >85%
Bearing Size 4x11x4mm (694) 4x11x4mm (694)

Test Data

The following values are taken directly from the spec charts shown in your images.

1800KV Test Data

Voltage: 25.2V

Prop Throttle Current Pull Power Efficiency Temp
HQ EthiX S3 50% 4.1A 552g 103.3W 5.343g/W 66°C
HQ EthiX S3 100% 17.1A 1485g 430.9W 3.446g/W 66°C
HQ EthiX S4 50% 4.6A 603g 115.9W 5.202g/W 68°C
HQ EthiX S4 100% 18.5A 1530g 466.2W 3.282g/W 68°C
HQ EthiX S5 50% 5.4A 673g 136.1W 4.946g/W 72°C
HQ EthiX S5 100% 21.5A 1589g 541.8W 2.933g/W 72°C
DAL Fold F5 50% 4.0A 540g 100.8W 5.357g/W 67°C
DAL Fold F5 100% 18.4A 1443g 463.7W 3.090g/W 67°C
DAL5147.5 50% 4.3A 621g 108.4W 5.731g/W 67°C
DAL5147.5 100% 18.2A 1580g 458.6W 3.445g/W 67°C
HQ 5.1×3.1×3 50% 4.4A 616g 110.9W 5.556g/W 69°C
HQ 5.1×3.1×3 100% 19.3A 1621g 486.4W 3.333g/W 69°C
GF6045×2 50% 5.4A 781g 136.1W 5.739g/W 76°C
GF6045×2 100% 23.5A 1835g 592.2W 3.099g/W 76°C

2500KV Test Data

Voltage: 16.8V

Prop Throttle Current Pull Power Efficiency Temp
HQ EthiX S3 50% 6.1A 520g 102.5W 5.074g/W 68°C
HQ EthiX S3 100% 25.4A 1401g 426.7W 3.283g/W 68°C
HQ EthiX S4 50% 6.8A 570g 114.2W 4.989g/W 70°C
HQ EthiX S4 100% 27.4A 1447g 460.3W 3.143g/W 70°C
HQ EthiX S5 50% 7.9A 635g 132.7W 4.785g/W 74°C
HQ EthiX S5 100% 31.2A 1509g 524.2W 2.879g/W 74°C
DAL Fold F5 50% 5.9A 512g 99.1W 5.165g/W 69°C
DAL Fold F5 100% 26.5A 1355g 445.2W 3.044g/W 69°C
DAL5147.5 50% 6.1A 589g 102.5W 5.747g/W 69°C
DAL5147.5 100% 26.3A 1491g 441.8W 3.375g/W 69°C
HQ 5.1×3.1×3 50% 6.3A 583g 105.8W 5.508g/W 71°C
HQ 5.1×3.1×3 100% 28.0A 1538g 470.4W 3.270g/W 71°C
GF6045×2 50% 7.8A 738g 131.0W 5.632g/W 78°C
GF6045×2 100% 33.6A 1740g 564.5W 3.082g/W 78°C

Recommended Use

Based on the prop test data shown in the images, the RCInpower Bison 22.5-7 1800KV 2500KV FPV Drone Motor is well suited to 5 inch and 6 inch FPV drone builds, especially where pilots want a balance of structural strength, smoothness, and responsive power delivery.

  • 1800KV version: better aligned with 5S-6S setups
  • 2500KV version: better aligned with 3S-4S setups

Details

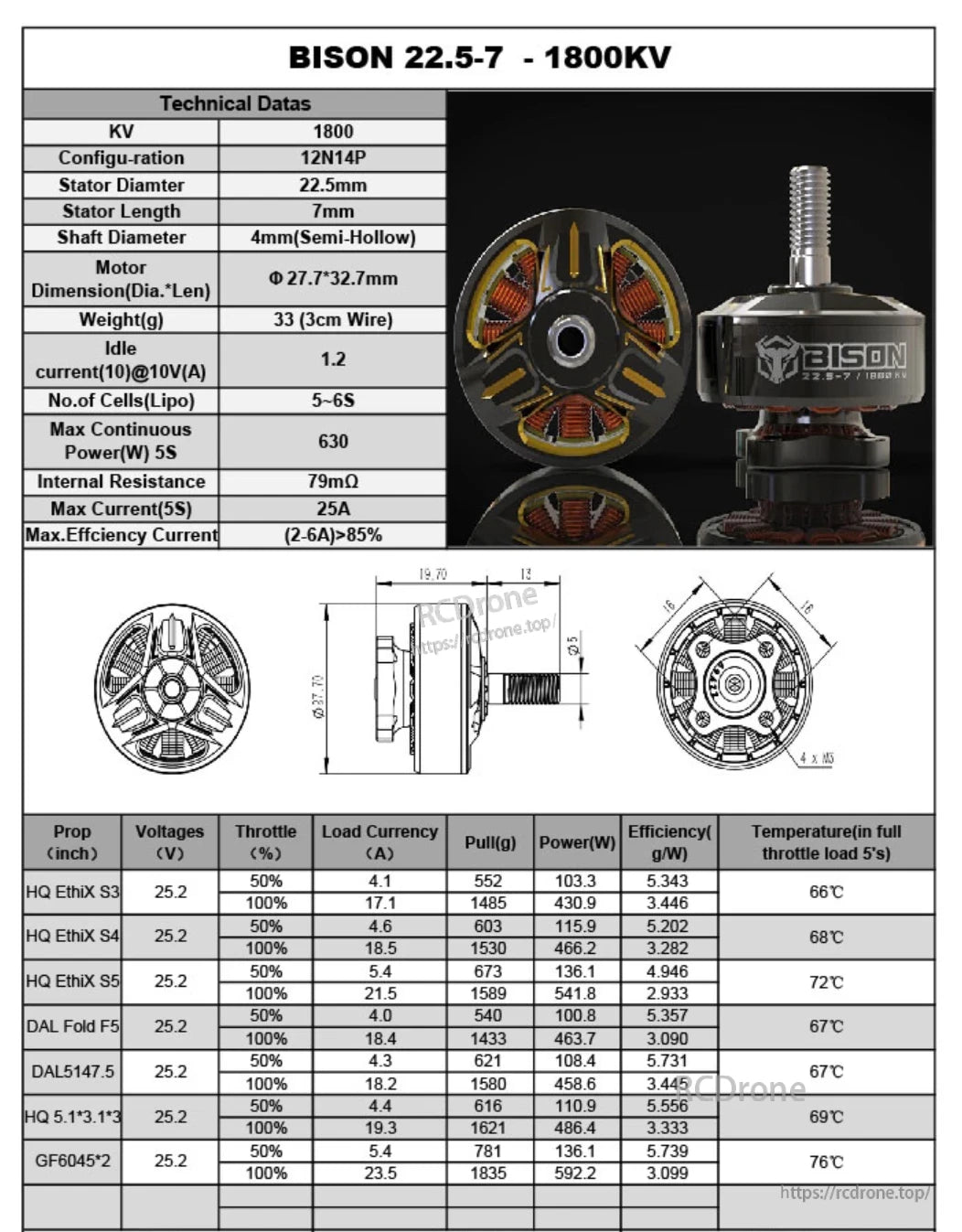

RCInpower Bison 22.5-7 1800KV brushless FPV motor with technical specs table and dimension drawings

Bison 22.5-7 1800KV motor specs list a 22.5mm x 7mm stator, 4mm semi-hollow shaft, 33g weight, and 5–6S LiPo support.

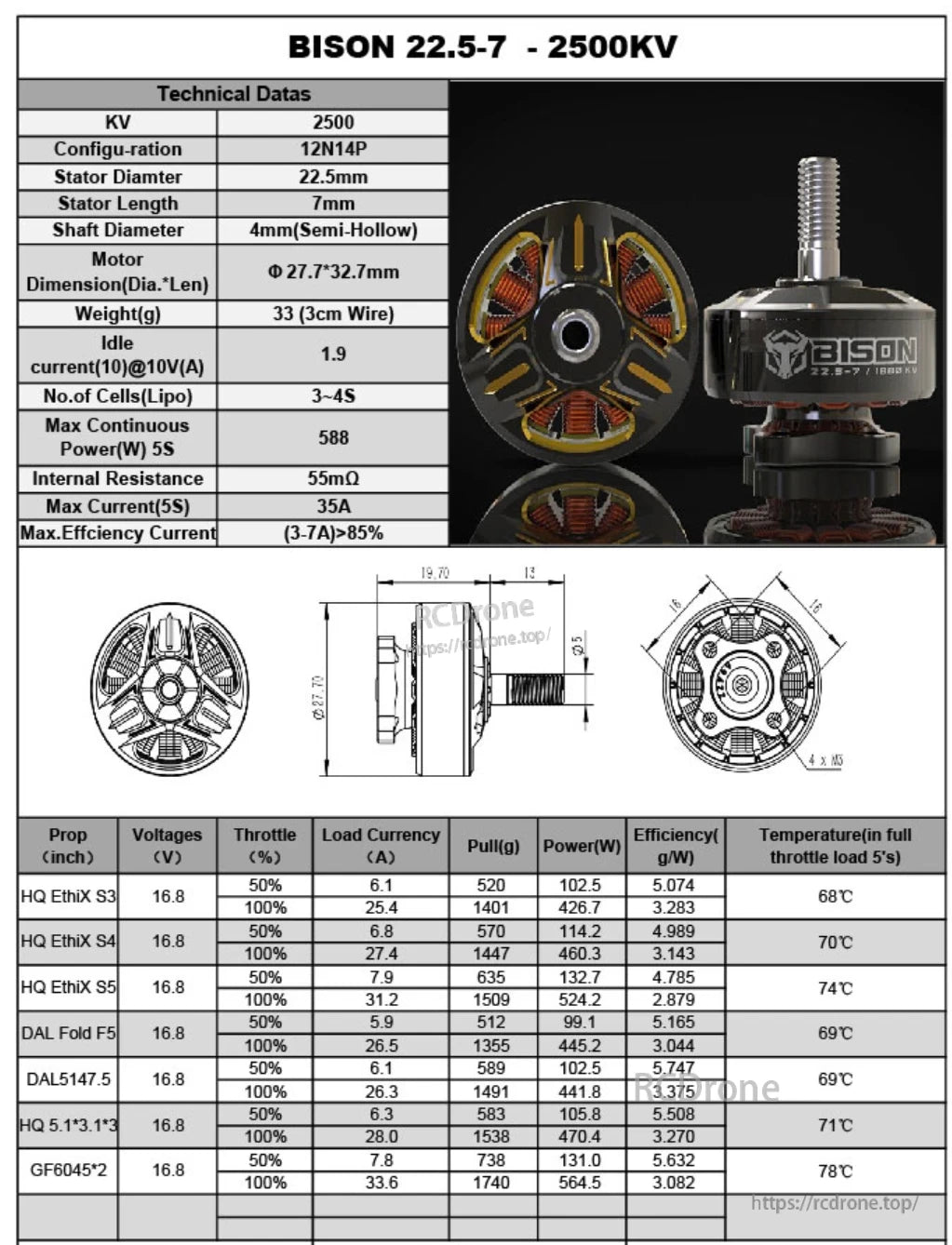

RCInpower Bison 22.5-7 2500KV FPV drone brushless motor specs with motor photo, dimensions, and thrust table

Bison 22.5-7 2500KV brushless motor uses a 22.5×7mm stator with a 4mm semi-hollow shaft and supports 3–4S LiPo setups.
