4PCS RCINPOWER EX2306 Plus 1800KV / 2500KV / 2750KV Brushless Motors 3–6S for 5 Inch FPV Racing Drones

4PCS RCINPOWER EX2306 Plus 1800KV / 2500KV / 2750KV Brushless Motors 3–6S for 5 Inch FPV Racing Drones

RCINPOWER

$58.35 USD
$58.35 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Color
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

The RCINPOWER EX2306 Plus Brushless Motor Series is purpose-built for high-thrust 5-inch FPV racing drones, offering three KV options (1800KV / 2500KV / 2750KV) to support different flight styles and battery setups. With 3mm shaft, 12N14P configuration, and robust stator structure, these motors combine power, responsiveness, and efficiency — ideal for freestyle, long-range, or aggressive track racing.

Specifications Comparison

Spec 1800KV 2500KV 2750KV
Configuration 12N14P 12N14P 12N14P
Stator Size 23mm x 6.5mm 23mm x 6.5mm 23mm x 6.5mm

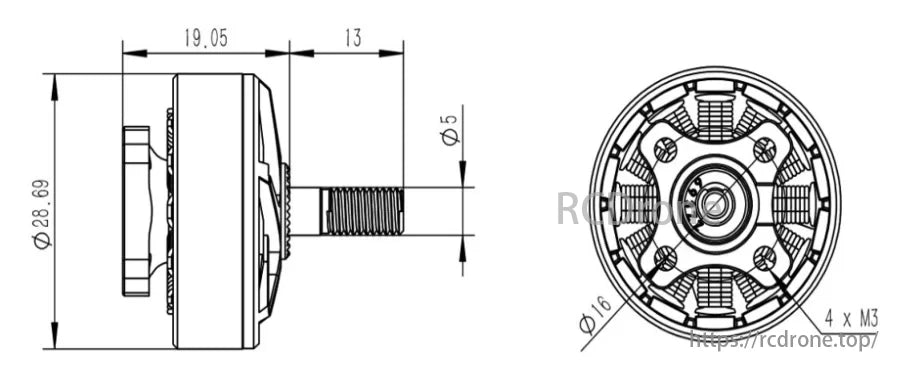

Motor Dimensions Ø28.69 × 32.05mm Ø28.69 × 32.05mm Ø28.69 × 32.05mm
Shaft Diameter 3mm 3mm 3mm
Weight (with wire) 34g 34g 34g
Idle Current @10V 1.15A 1.5A 1.7A
Input Voltage 5–6S Lipo 3–5S Lipo 3–4S Lipo
Max Continuous Power 900W 850W 740W
Max Current 40A 46A 50A
Internal Resistance 78mΩ 48mΩ 38mΩ
Max Efficiency Current (3–6A) >85% (3–6A) >83% (4–7A) >82%

Propeller Compatibility & Performance

Recommended Prop: 5 inch (e.g., GF543, GF544, HQ6*4.5)
Tested with various props and voltages, these motors deliver:

  • Thrust up to 1910g (with GF6*4.5 prop at 22.2V)

  • Power output up to 900W

  • Efficiency range between 2.0–4.0 g/W

  • Operating temperature between 45°C to 85°C

Note: 1800KV is ideal for high-efficiency 6S long-range setups; 2500KV for freestyle on 4–5S; 2750KV for ultra-aggressive 4S racing builds.

Key Features

  • CNC precision bell with enhanced rotor balancing

  • Class-leading thrust-to-weight ratio

  • Efficient and responsive throttle across voltage ranges

  • Durable 3mm titanium shaft and 7075 aluminum casing

  • Extended 3cm 20AWG wires for easier stack mounting

  • Compatible with all mainstream 5-inch racing frames

Package Includes

  • 4 × RCINPOWER EX2306 Plus Brushless Motors (select KV: 1800KV / 2500KV / 2750KV)

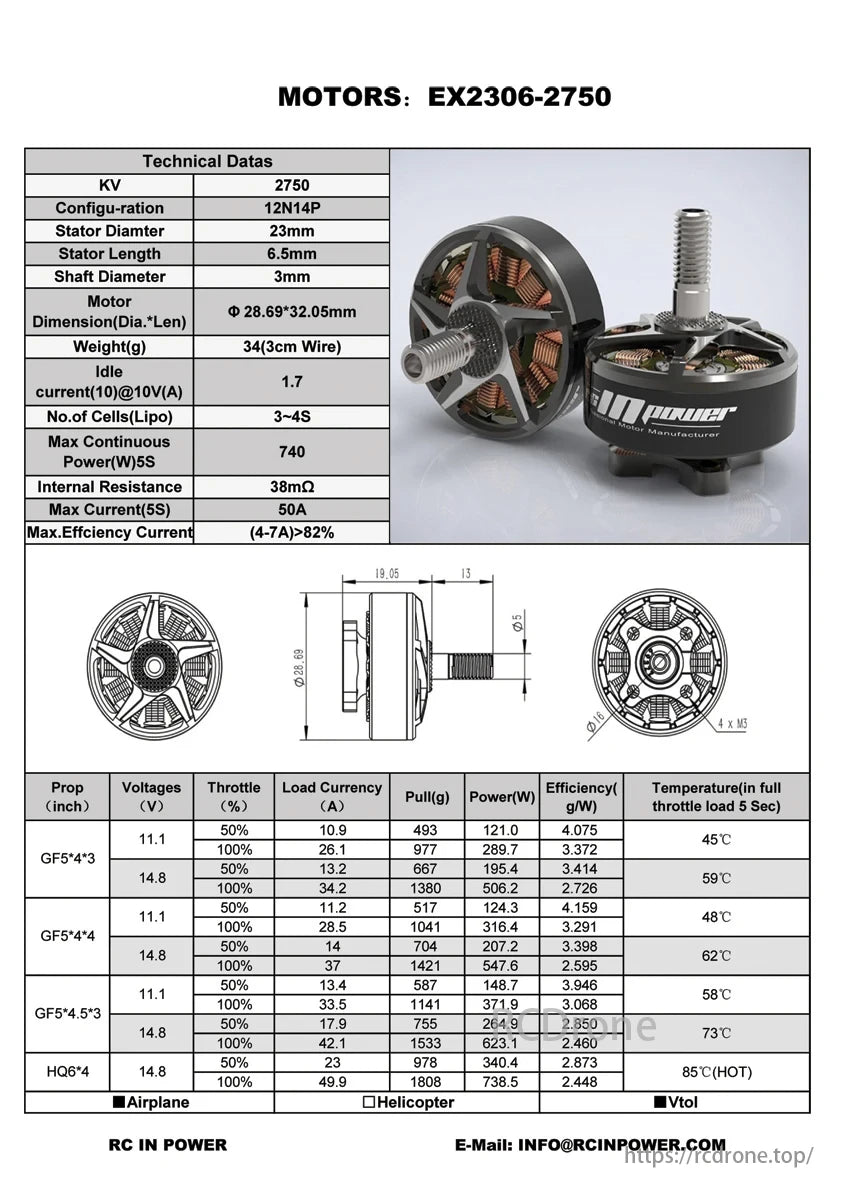

Ex2306 Brushless Motor, Ex2306-2750 brushless motor: KV 2750, 23mm stator, 34g, 740W max power, ideal for RC models with different props and voltages.

Ex2306-2750 brushless motor specs: KV 2750, 12N14P config, 23mm stator diameter, 6.5mm length, 3mm shaft. Weighs 34g, max 740W power, 50A current. Efficient for RC models with various props and voltages.

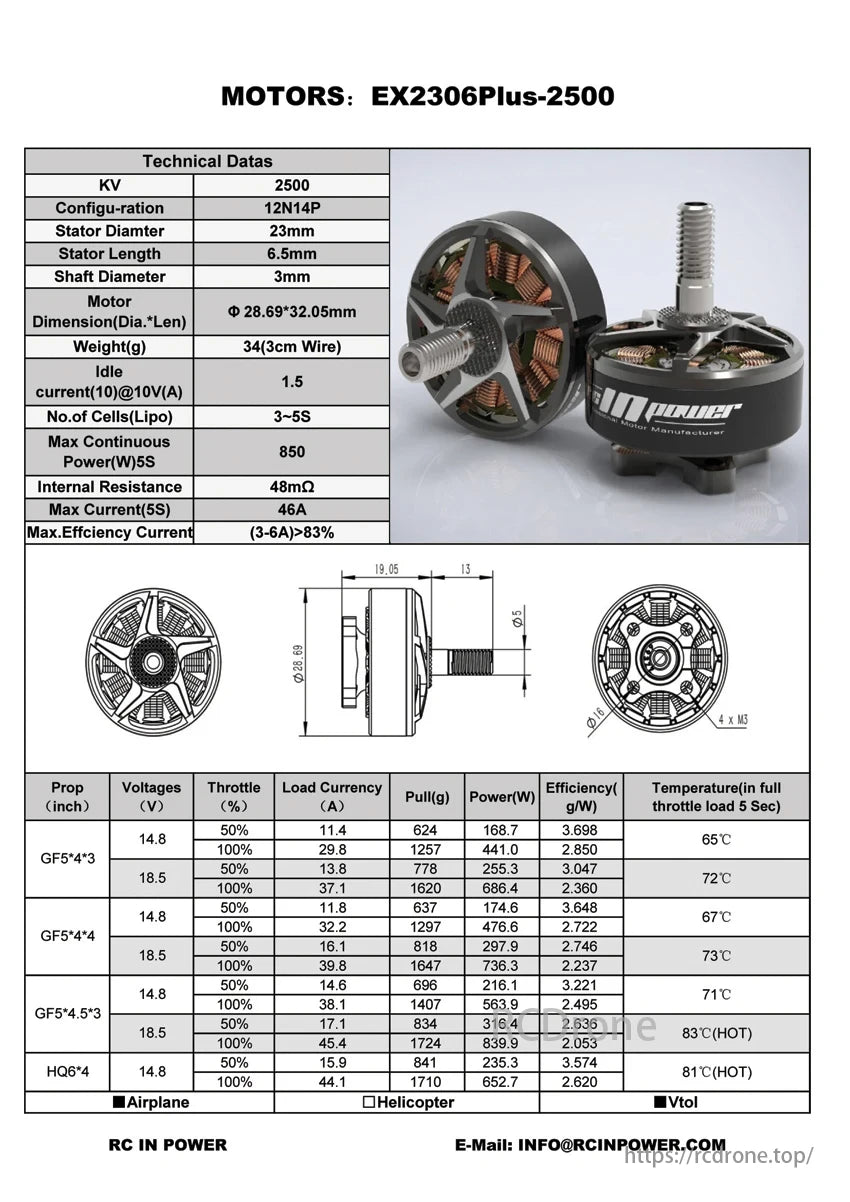

Ex2306 Brushless Motor, Ex2306Plus-2500 brushless motor: KV 2500, 23mm stator, 850W max power, 46A max current, over 83% efficiency at 3-6A, tested with multiple props.

Ex2306Plus-2500 brushless motor specs: KV 2500, 12N14P config, 23mm stator diameter, 850W max power, 46A max current. Efficiency over 83% at 3-6A. Tested with various props at different voltages and loads.

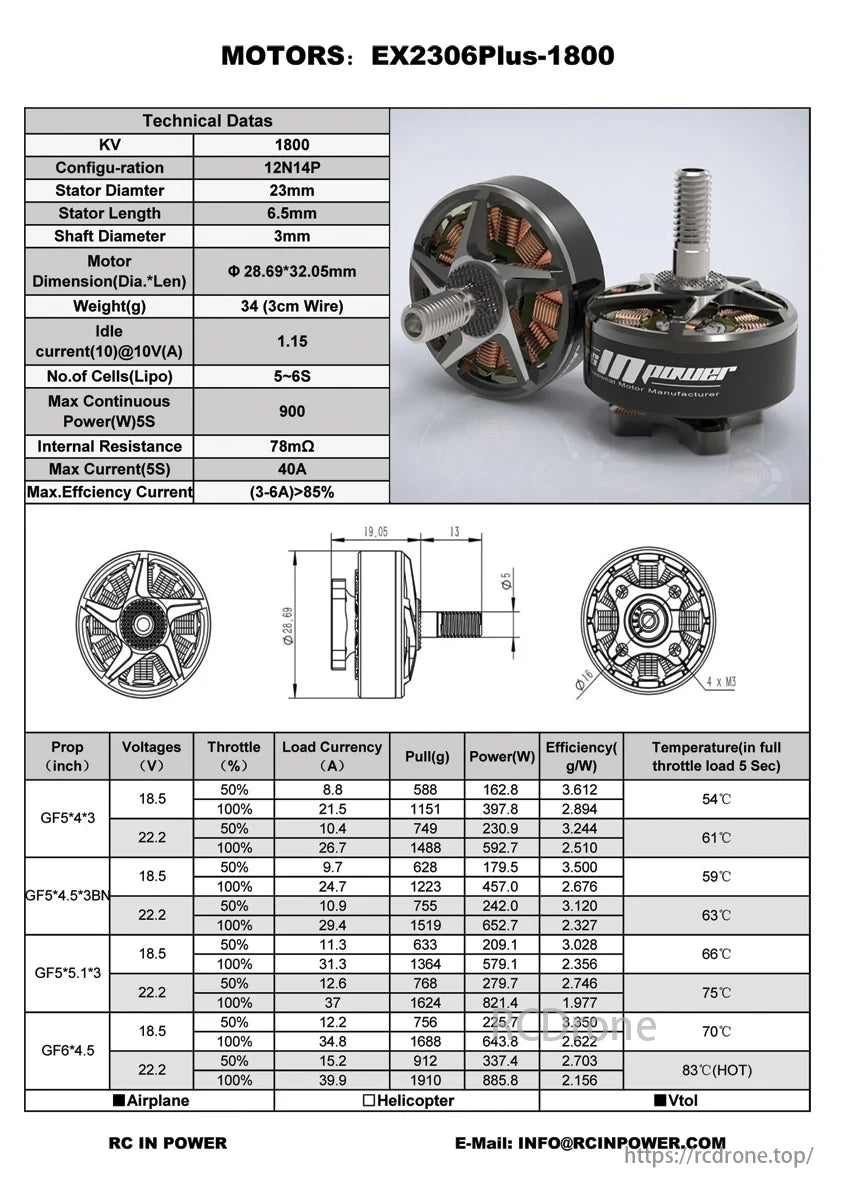

Ex2306 Brushless Motor, EX2306Plus-1800 motor: 1800KV, 12N14P, 23mm stator, 900W, 40A max, >85% efficiency (3-6A), tested with props at varied voltages/loads.

EX2306Plus-1800 motor specs: 1800KV, 12N14P config, 23mm stator diameter, 900W max power, 40A max current. Efficiency over 85% at 3-6A. Tested with various props at different voltages and loads.

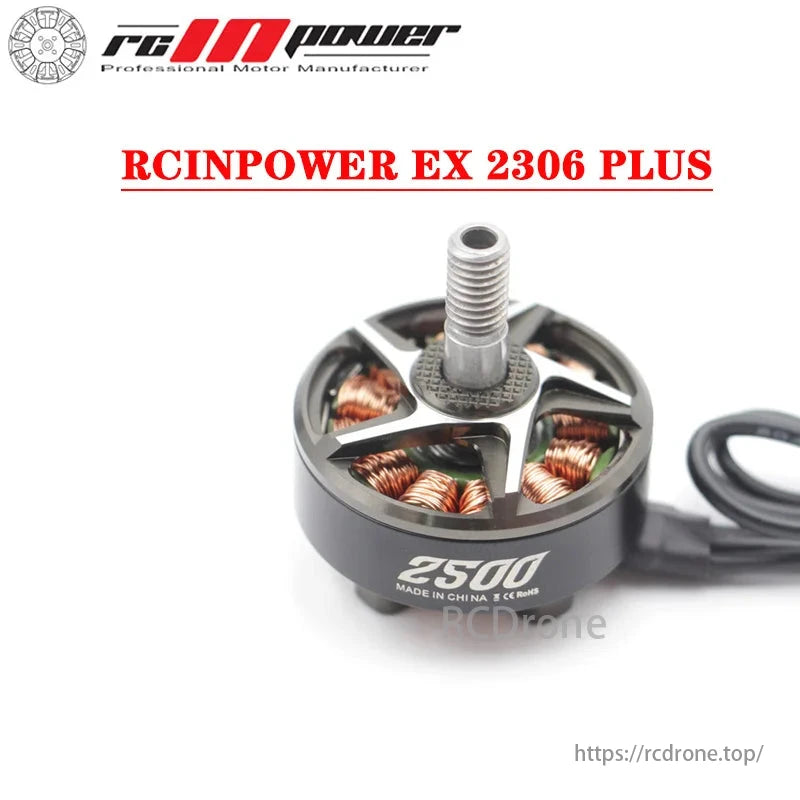

Ex2306 Brushless Motor, These motors combine power, responsiveness, and efficiency with a 3mm shaft, 12N14P config, and robust stator structure.Ex2306 Brushless Motor, RCINPOWER EX 2306 PLUS brushless motor, 2500KV, is a high-performance Chinese-made motor for drones and RC models.

RCINPOWER EX 2306 PLUS brushless motor, 2500KV, made in China.

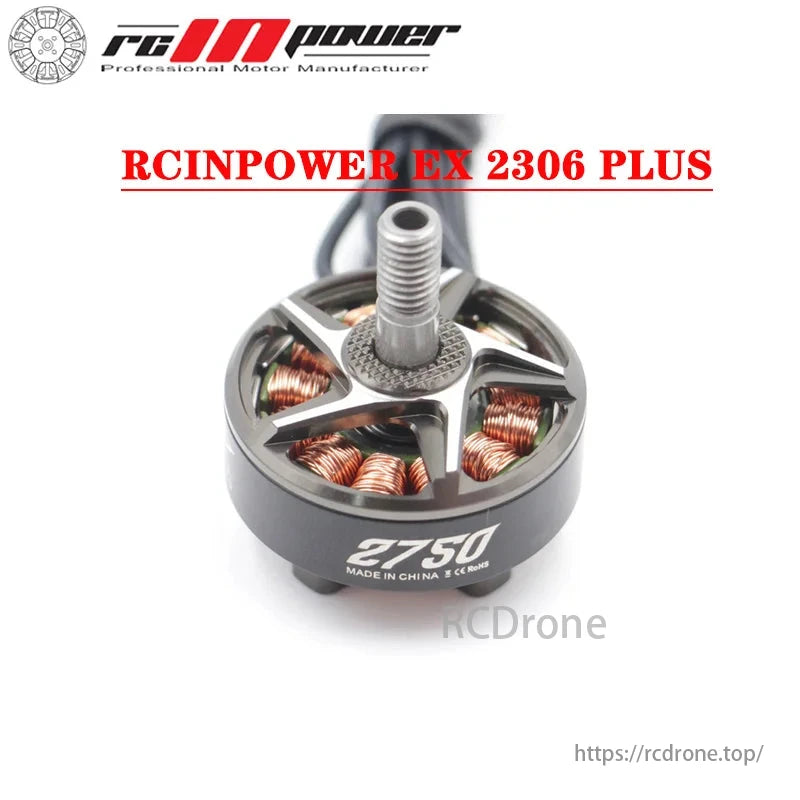

Ex2306 Brushless Motor, RCINPOWER EX 2306 PLUS brushless motor, 2750 KV.Ex2306 Brushless Motor, Specifications comparison for three motors with varying KV values and performance characteristics.Ex2306 Brushless Motor, Specifications comparison for three motors with varying KV ratings and performance characteristics.Ex2306 Brushless Motor, RCINPOWER EX 2306 PLUS brushless motor, 1800KV, is a high-performance Chinese-made motor for drones and RC models.

RCINPOWER EX 2306 PLUS brushless motor, 1800KV, made in China.

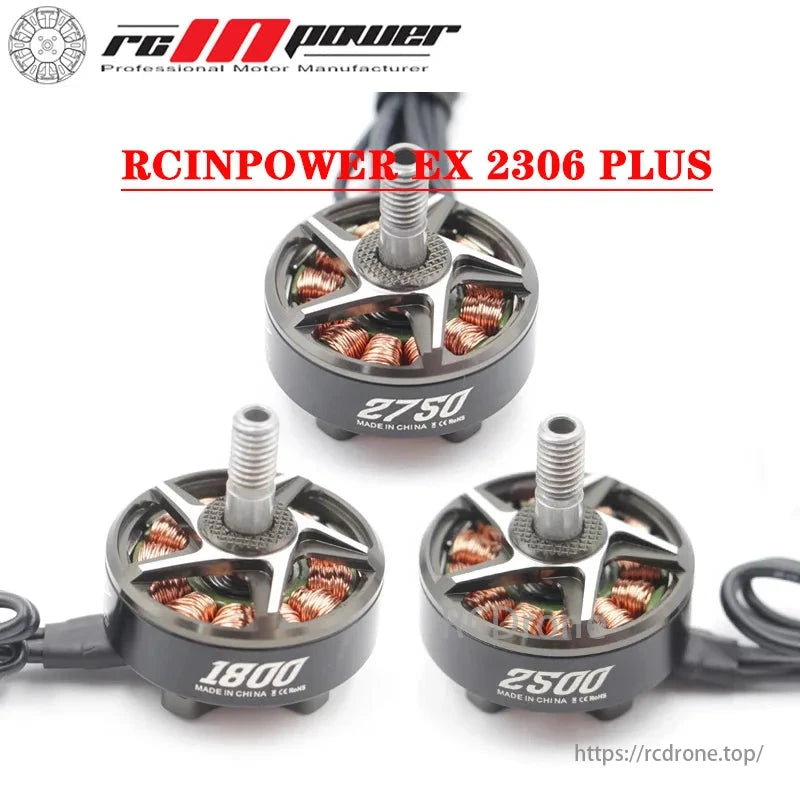

Ex2306 Brushless Motor, RCINPOWER EX 2306 PLUS brushless motors offer 1800, 2500, and 2750 KV options for diverse performance needs.

RCINPOWER EX 2306 PLUS brushless motors with 1800, 2500, and 2750 KV ratings.
