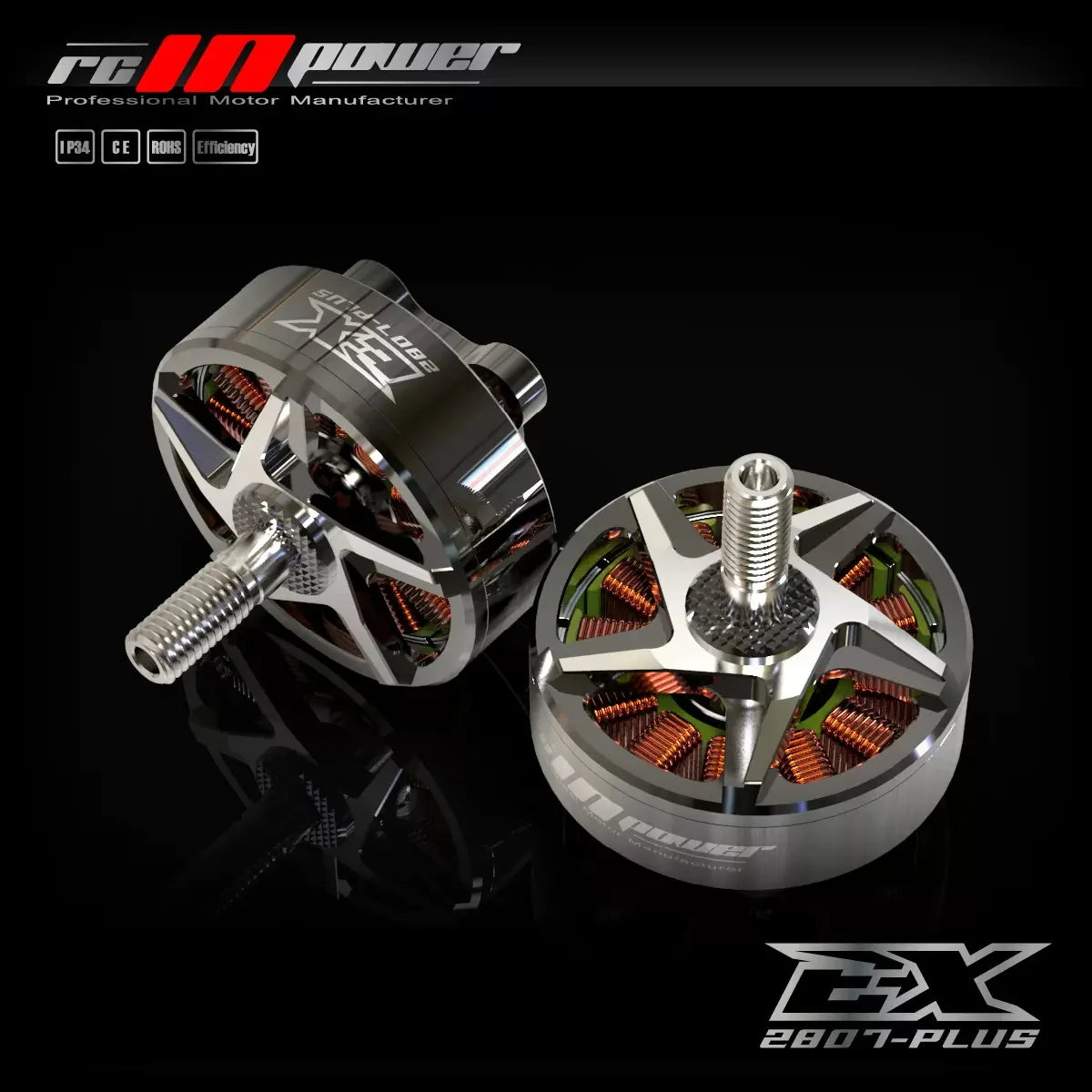

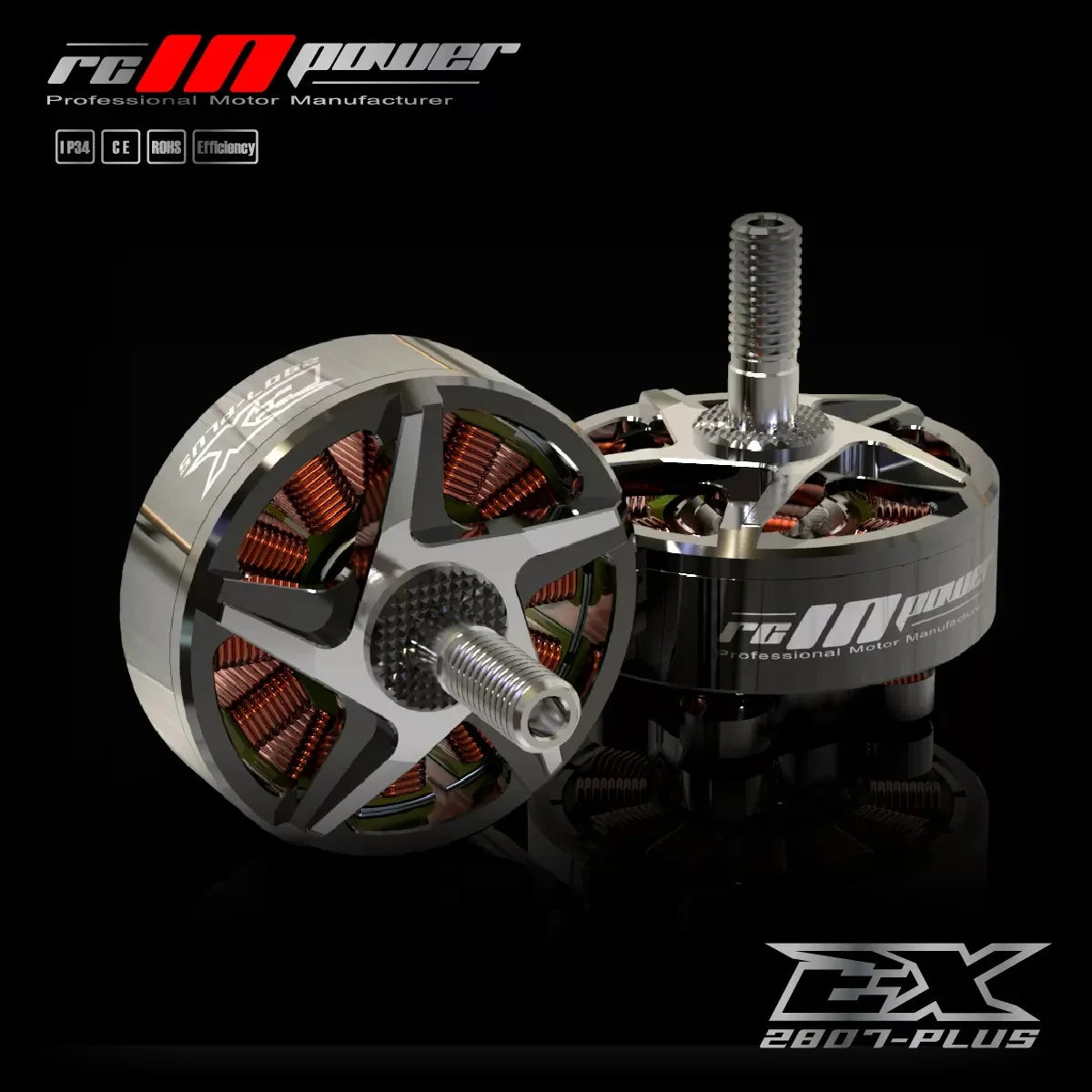

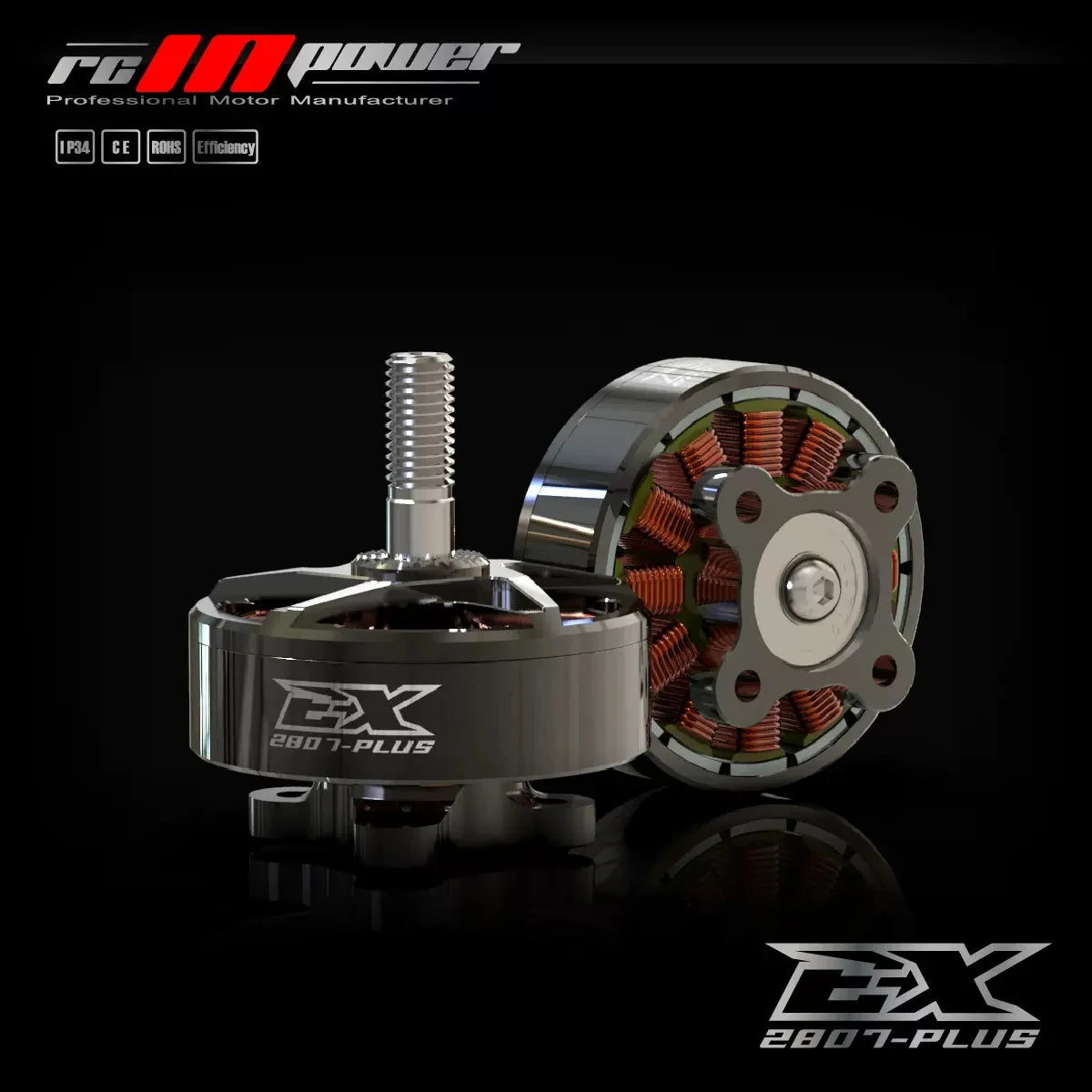

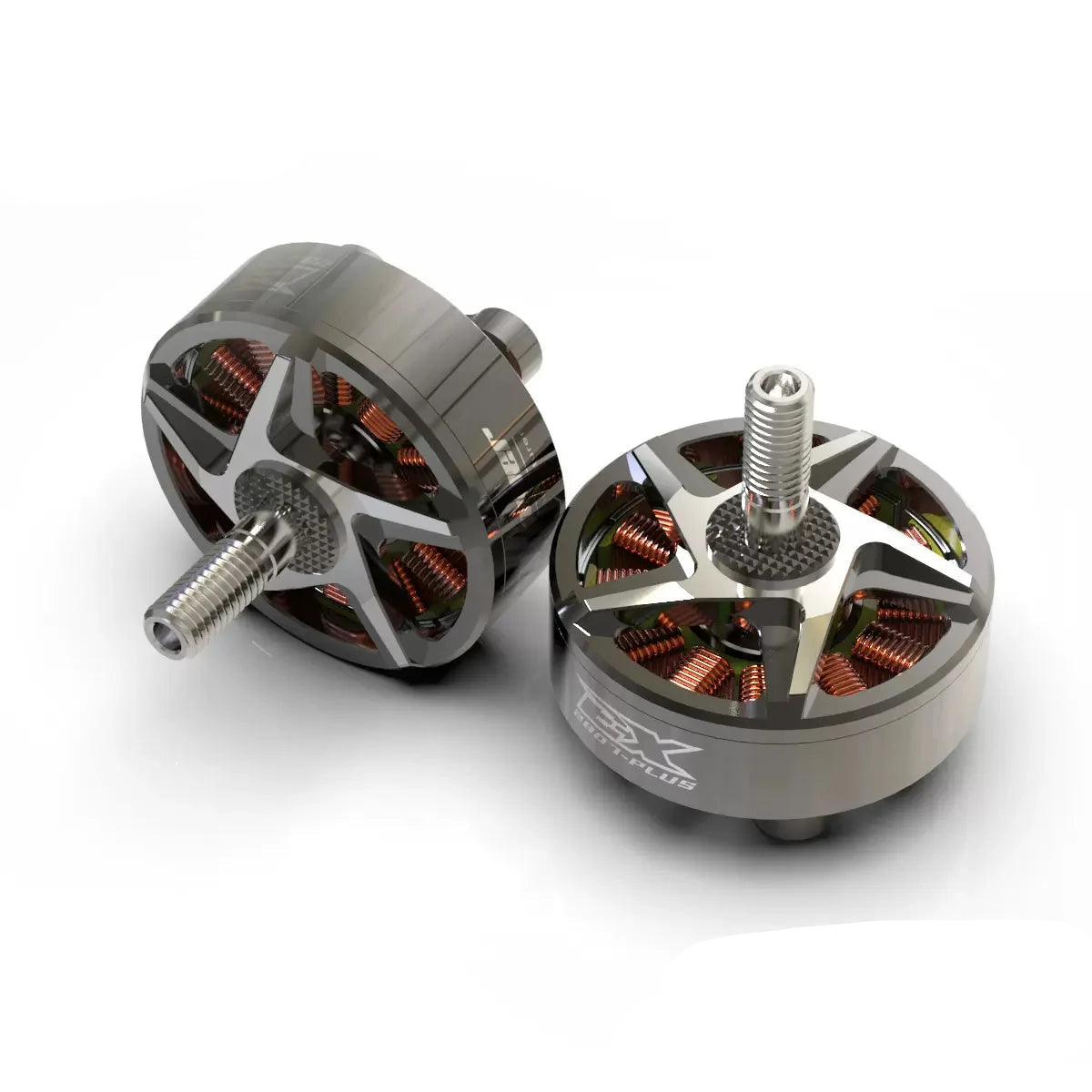

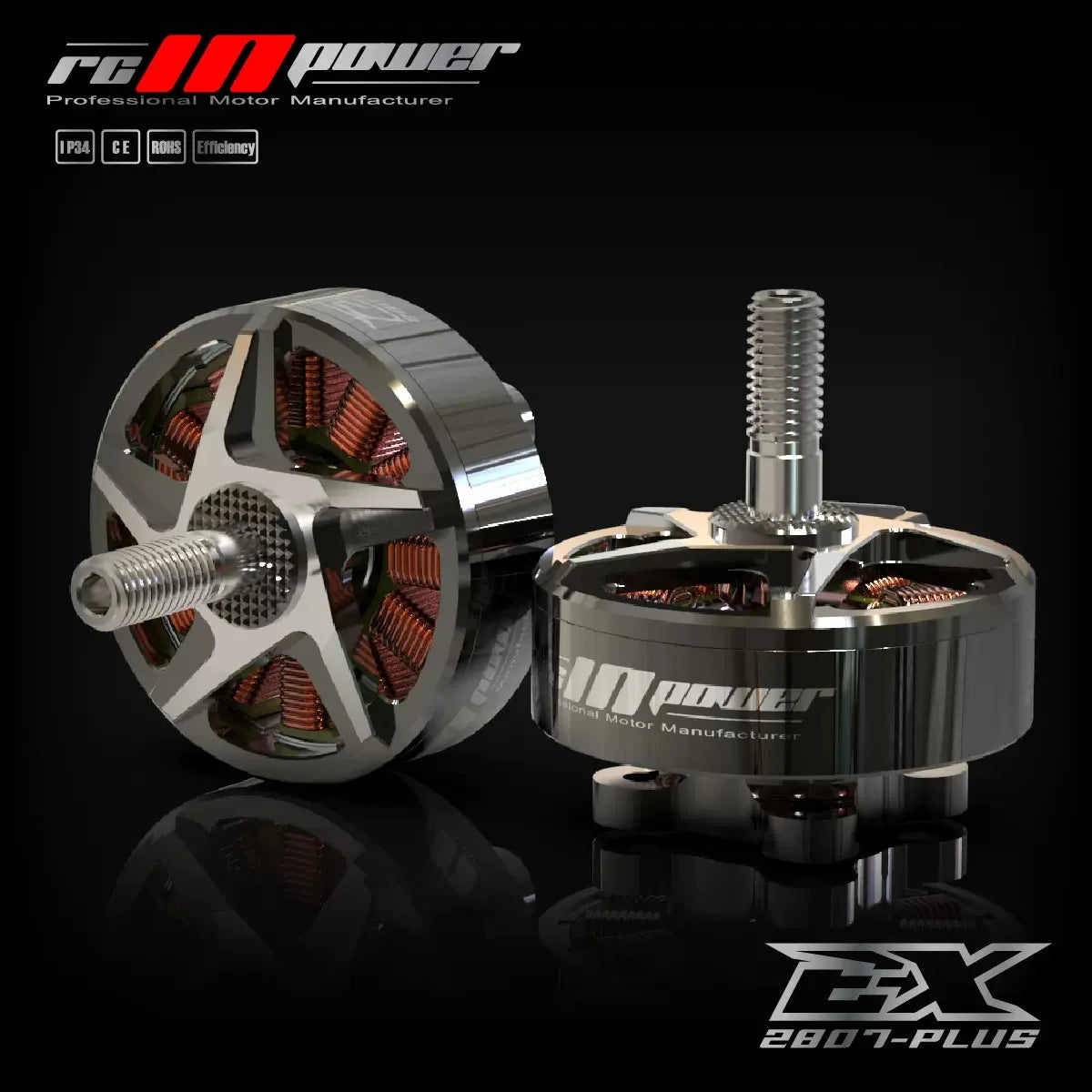

RCINPOWER EX2807 1300KV 4–6S Brushless Motor for 6″–7″ Heavy-Lift RC FPV Drones
RCINPOWER EX2807 1300KV 4–6S Brushless Motor for 6″–7″ Heavy-Lift RC FPV Drones
RCINPOWER
Couldn't load pickup availability
Overview
The RCINPOWER EX2807 is a high-performance brushless motor engineered for 6″–7″ propeller heavy-lift and VTOL RC drones. Its 12-slot, 14-pole (12N14P) winding on a 28 mm × 7 mm stator delivers smooth throttle response, excellent torque, and sustained power. Rated for 4–6S LiPo, it offers up to 984 W continuous output at 5S, making it ideal for large-load aerial photography, cargo transport, and long-range FPV flights.
Key Features
-
Optimized Winding: 12N14P configuration for balanced thrust and efficiency (>82% at light loads).
-
Wide Voltage Range: 4–6S LiPo compatibility for versatile flight profiles.
-
Robust Power: 984 W max continuous (5S) with 40 A peak current handling.
-
Compact & Lightweight: Ø 34.3 × 32.9 mm housing; 48 g (including 3 cm leads).
-
Durable Construction: CNC-machined aluminum shell, 4 mm hollow steel shaft, 62 mΩ internal resistance.
Specifications
| Specification | Value |
|---|---|
| KV Rating | 1 300 KV |
| Configuration | 12N14P |
| Stator Diameter × Length | 28 mm × 7 mm |
| Motor Dimensions (Dia × Len) | Ø 34.3 mm × 32.9 mm |
| Shaft | 4 mm (hollow) |
| No-Load Current (10 V) | 1.2 A max |
| Internal Resistance | 62 mΩ |
| LiPo Cells | 4 – 6 S |
| Max Continuous Power (5S) | 984 W |
| Max Current (5S) | 40 A |
| Weight | 48 g (with 3 cm wire) |
| Lead | 18 AWG, 200 mm |
| Recommended Props | 6″ – 7″ |
Performance Data (24 V Tests)
| Propeller | Throttle | Current (A) | Thrust (g) | Power (W) | Eff. (g/W) | Temp (°C) |
|---|---|---|---|---|---|---|
| GF6042 (2-blade) | 50 % | 4.6 | 621 | 110.4 | 5.63 | 63 |
| 100 % | 34.8 | 1 876 | 835.2 | 2.25 | – | |
| GF7042 (2-blade) | 50 % | 6.8 | 878 | 163.2 | 5.38 | – |
| 100 % | 41.0 | 2 189 | 984.0 | 2.23 | 85 (Hot) | |
| GF6042 × 3 (tri) | 50 % | 6.3 | 766 | 151.2 | 5.07 | 72 |
| 100 % | 31.2 | 2 079 | 748.8 | 2.78 | – | |
| GF7040 × 3 (tri) | 50 % | 7.2 | 936 | 172.8 | 5.42 | 80 |
| 100 % | 36.8 | 2 480 | 883.2 | 2.81 | – | |
| DAL7056 × 3 (tri) | 50 % | 6.0 | 748 | 125.8 | 5.95 | 72 |
| 100 % | 31.7 | 2 136 | 665.7 | 3.21 | – |
With its high thrust, broad voltage range, and proven thermal stability, the EX2807 is an excellent choice for demanding RC FPV and VTOL applications requiring both lift and endurance.
