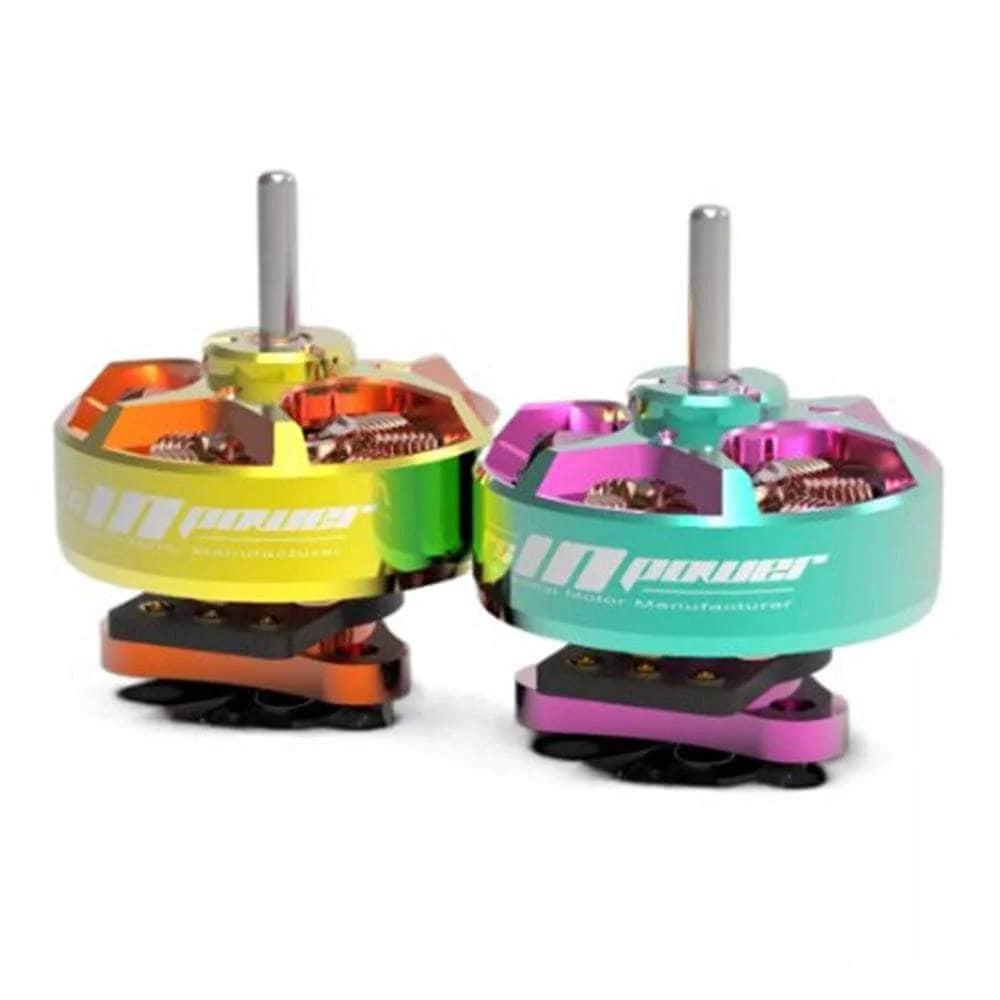

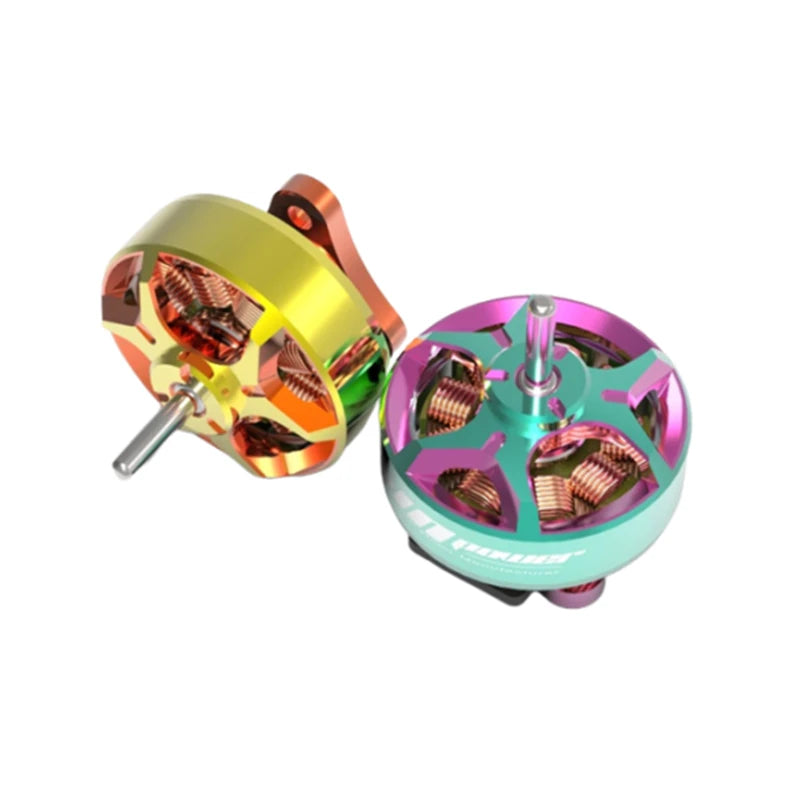

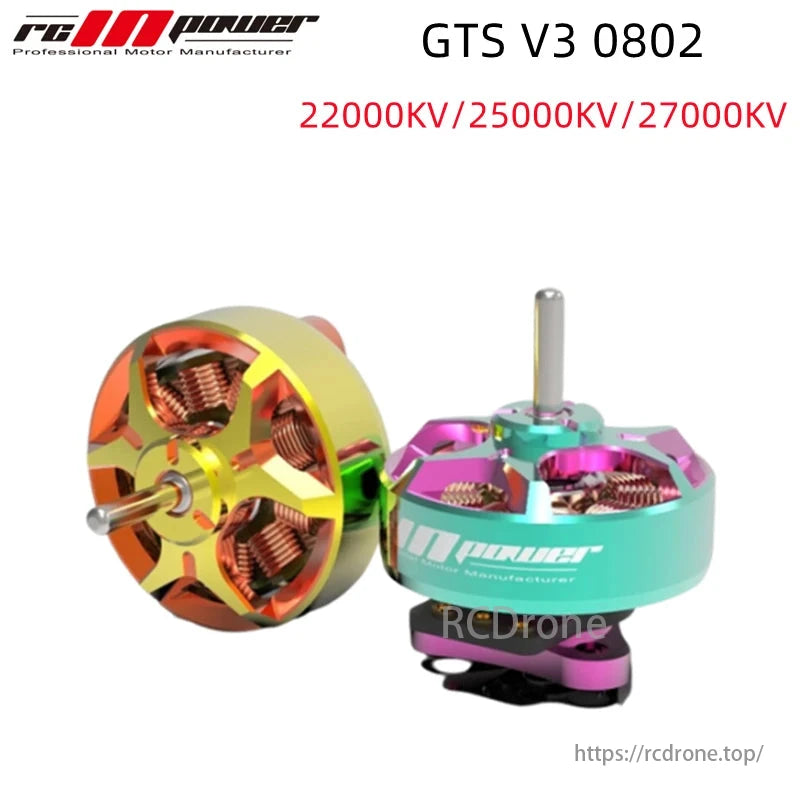

RCINPOWER GTS V3 0802 22000KV / 25000KV / 27000KV Micro Brushless Motor for 1S 1.6” FPV Racing Drone

Overview

The RCINPOWER GTS V3 0802 Brushless Motors are engineered for serious micro FPV racers and freestyle pilots who demand maximum precision and performance in 65mm–75mm (1.6") whoops. Available in 22000KV, 25000KV, and 27000KV, these motors are optimized for 1S LiPo setups, delivering punchy throttle response, high RPM, and smooth linear power.

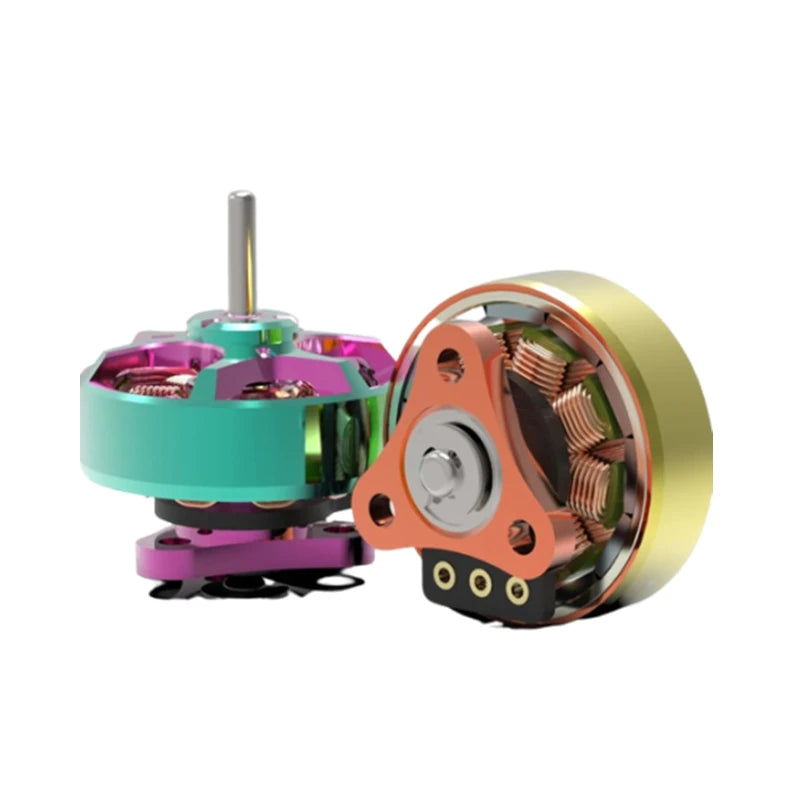

With a Unibell construction, stunning dual-color anodized finish, and high-efficiency arc-shaped N52H magnets, the GTS V3 motors are lightweight yet rugged, offering exceptional dynamic balance and long-lasting reliability. The 1mm shaft with 1.5mm inside diameter, CNC machined bell, and double ball bearing system ensure silky-smooth rotation even under aggressive flight conditions.

Key Features

• Available in 22000KV, 25000KV, 27000KV for tuning flexibility

• 0802 Micro Brushless FPV Motor, perfect for 1.6” prop whoops

• Unibell structure with precision CNC machined aluminum bell

• N52H arc magnets + 9N12P stator design for max torque and magnetism

• 1S compatibility (3.7V–4.35V), ideal for lightweight builds

• 1mm shaft / 1.5mm internal – durable and prop-friendly

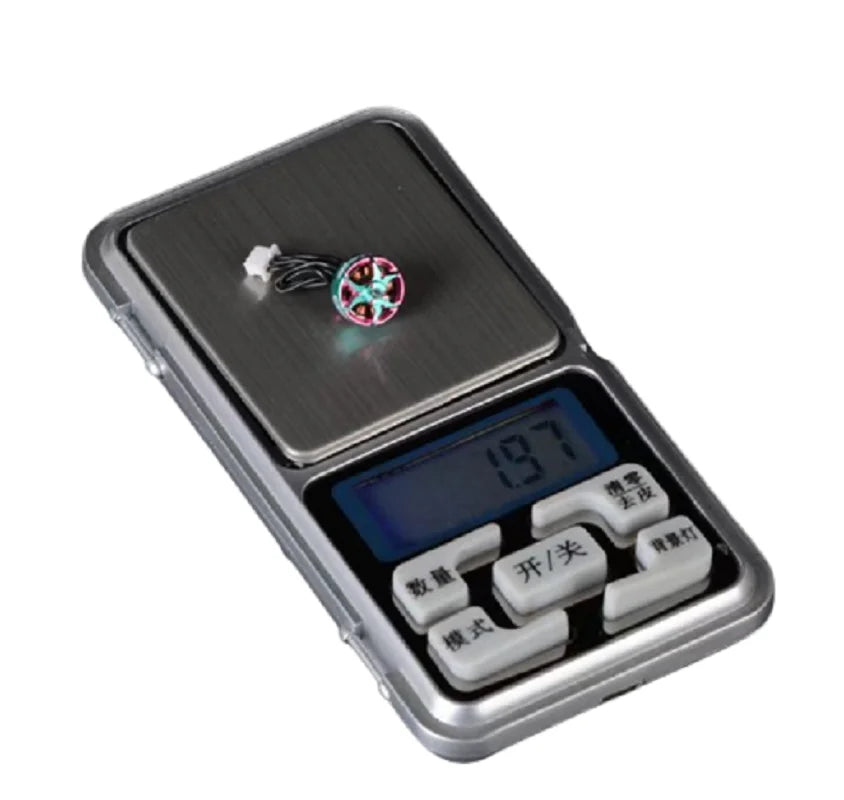

• Weight: only 1.97g with plug, ideal for micro racers

• Double ball bearings for longer motor life and improved smoothness

• Compatible with Gemfan 1203, 1204, 1635, 1636 1.6” props

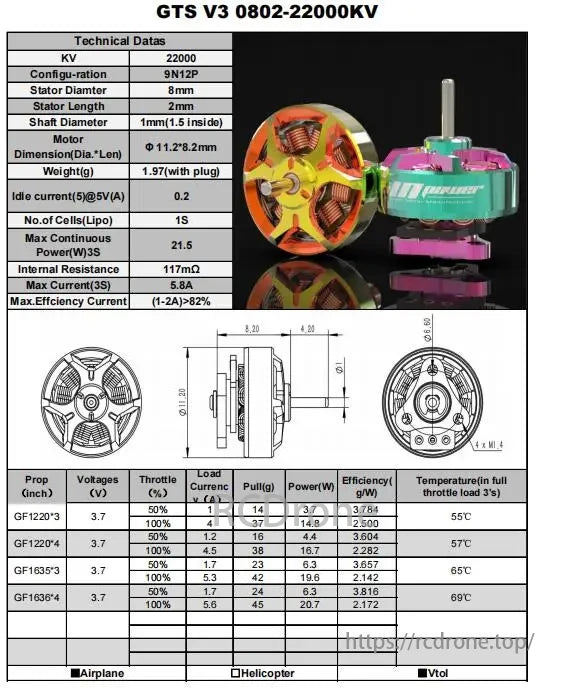

Technical Specifications (per KV option)

🚀 Performance Test Highlights

• 22000KV: Balanced for longer flight time & stable power, 37.68g thrust @ 3.5A

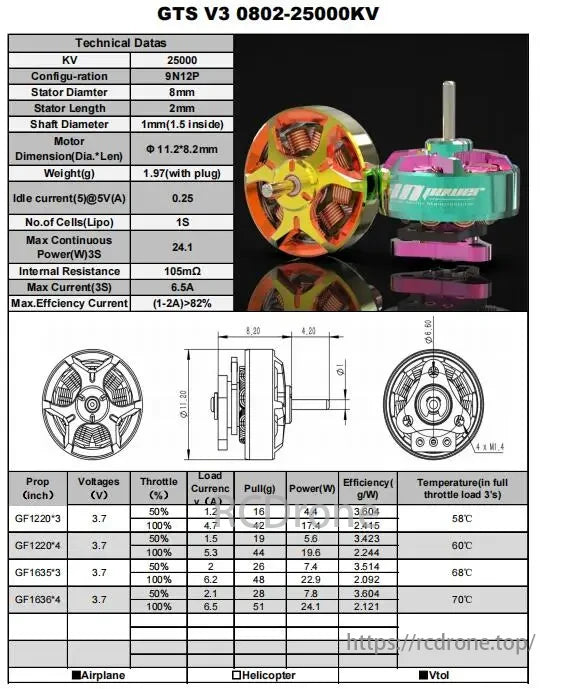

• 25000KV: Best all-around racing KV, 51g thrust @ 6.5A, 24.1W

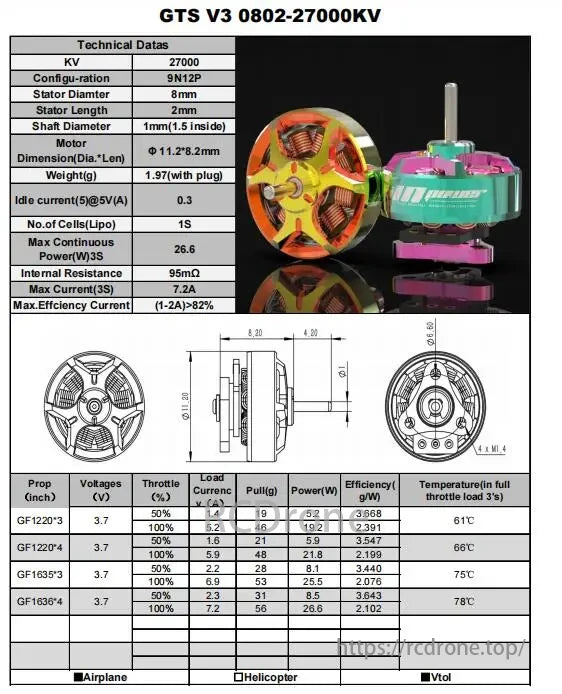

• 27000KV: For aggressive performance, 55.4g thrust @ 4.6A, 26.6W

• All variants tested on Gemfan 1203~1636 props

• Peak efficiency up to 3.78g/W

• Operating temp @ full throttle: 55–78°C (depending on KV)

📦 Package Includes

• 1 × RCINPOWER GTS V3 0802 Brushless Motor (Choose KV)

• 1 × Mounting hardware kit

• 1 × JST plug (pre-soldered)

GTS V3 0802 Micro Motor, featuring 22000KV, 25000KV, 27000KV options. Precision design for FPV drones, with lightweight construction and high efficiency. Ideal for racing and agile flight performance.
