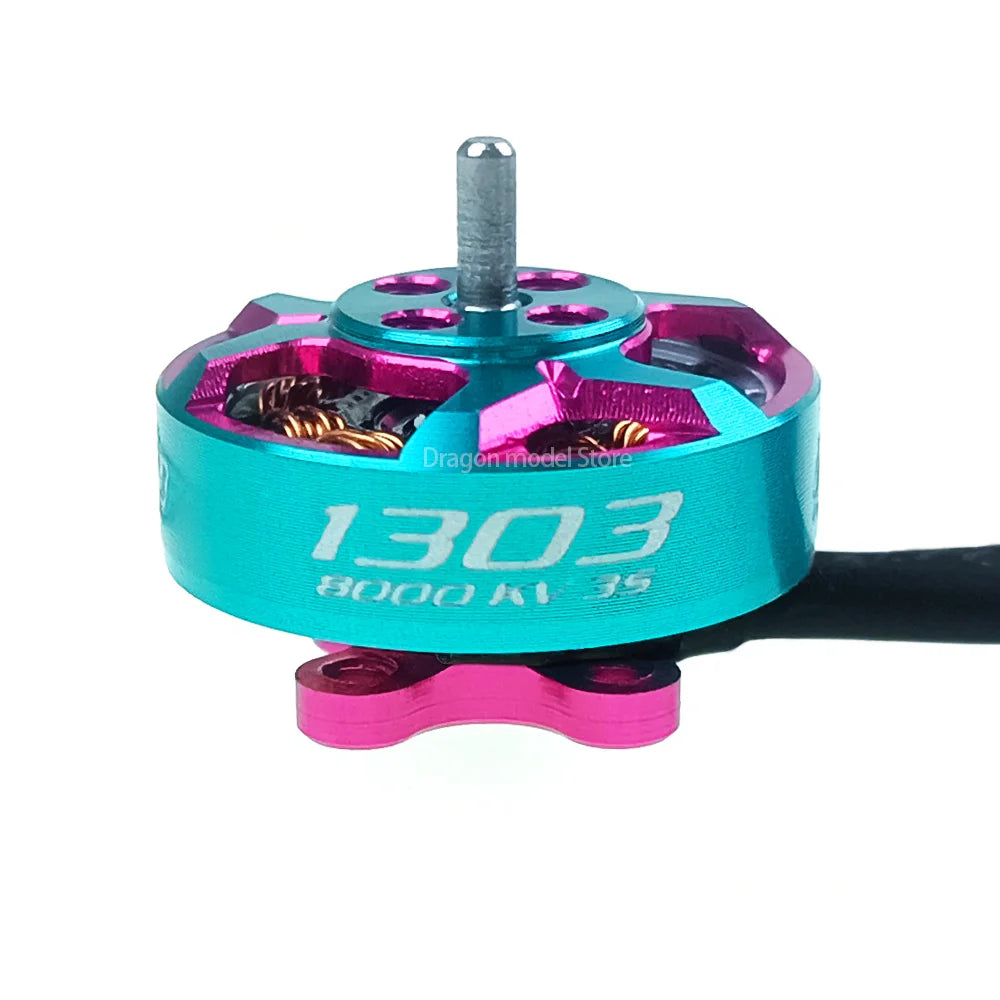

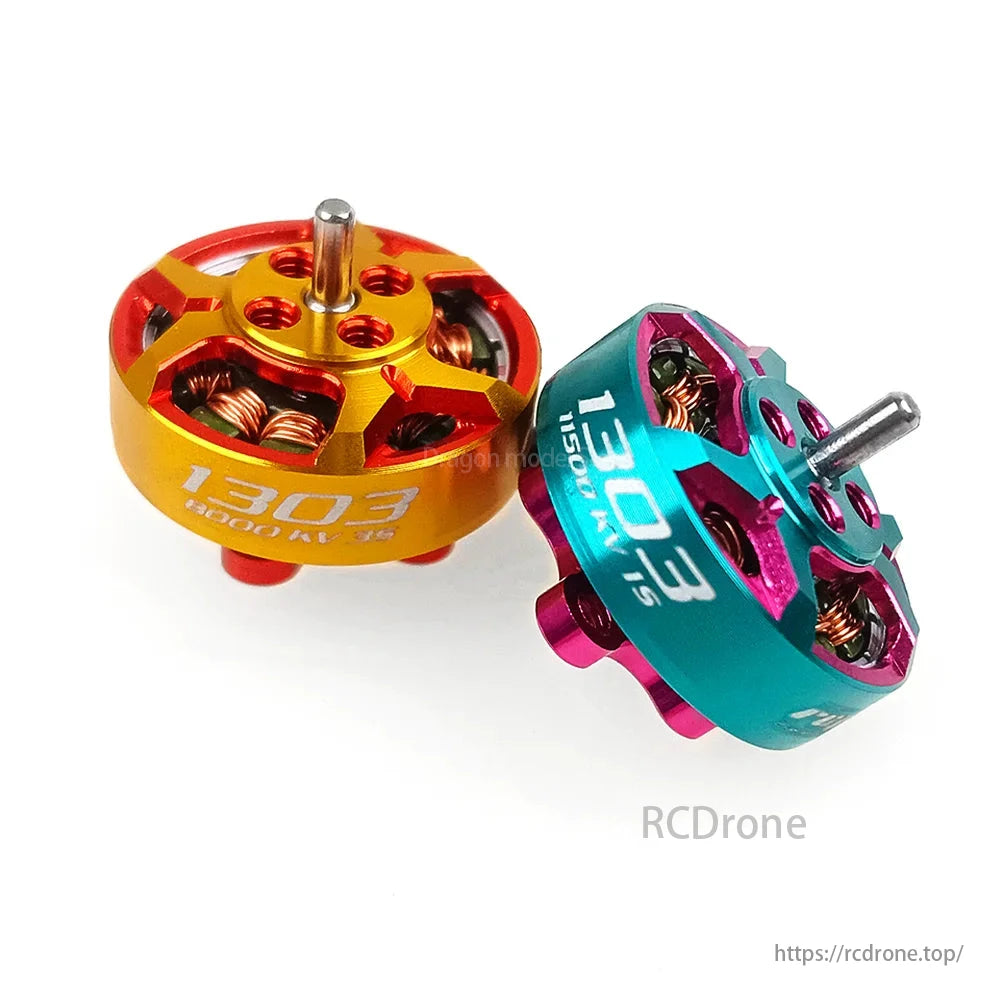

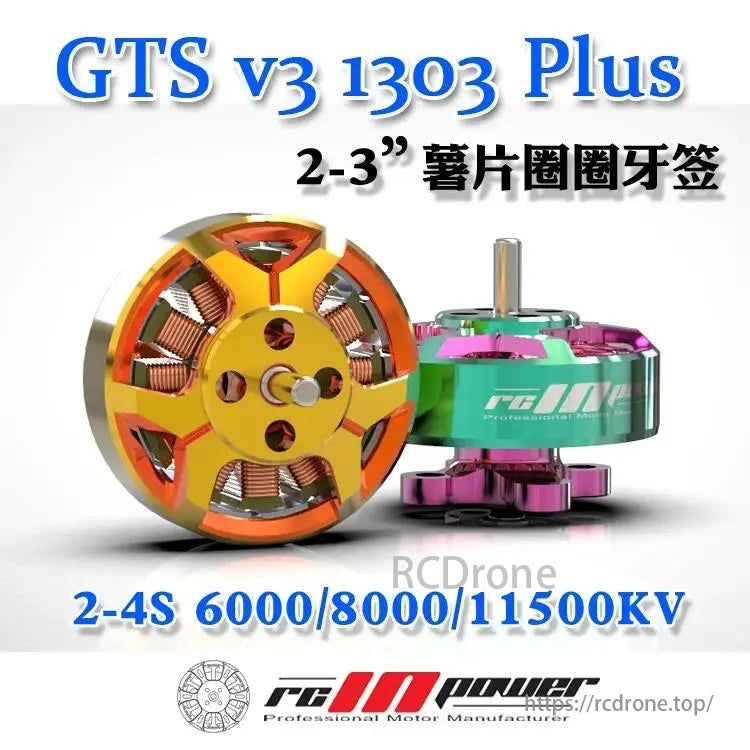

RCINPOWER GTS V3 1303 Plus 6000KV / 8000KV / 11500KV Brushless Motor for 2-Inch FPV Fixed-Wing Drone DJI O3 Mapper UAV

Description:

The RCINPOWER GTS V3 1303 Plus is a next-gen micro brushless motor tailored for 2-inch fixed-wing drones, circular mapping planes, and ultra-light FPV builds like the DJI O3 Mapper. Available in 6000KV, 8000KV, and 11500KV, this motor series balances thrust, responsiveness, and thermal stability for high-efficiency flight on 1S–4S LiPo setups.

Whether you're building a high-speed micro plane or a precise mapping UAV, the 1303+ motor delivers class-leading performance in a compact 5.6g (with wire) form.

Key Features:

• Available KV options: 6000KV (2–4S), 8000KV (2–3S), 11500KV (1–2S)

• 13mm stator, 12N14P configuration, and 1.5mm shaft

• Excellent power-to-weight ratio: up to 250W continuous output

• Perfect fit for 2-inch FPV planes, VTOL, or DJI O3 fixed-wing mapping platforms

• High efficiency: >85% in optimal current range

• Precision machined with smooth performance and excellent heat control

Technical Specifications:

Recommended Propellers & Performance (Sample):

Application Scenarios:

• 2-inch FPV micro planes

• DJI O3-based fixed-wing mapping drones

• VTOL or hybrid electric UAVs

• Toothpick-class freestyle racers

Package Includes:

• 1 × RCINPOWER GTS V3 1303 Plus Brushless Motor (KV Option)

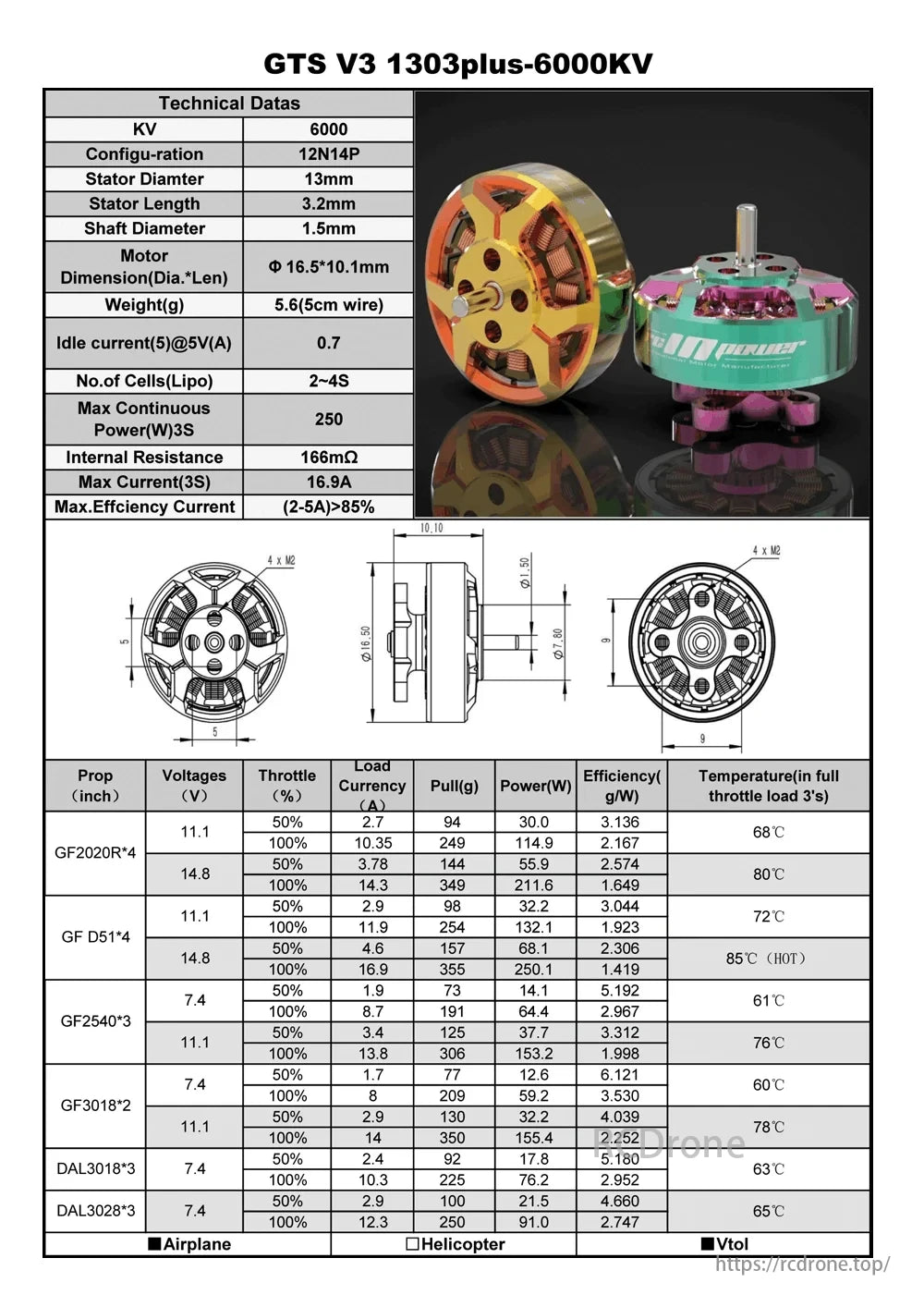

GTS V3 1303plus-6000KV motor specs: 12N14P config, 13mm stator, 6000KV, 5.6g weight. Max 250W power, 16.9A current. Efficiency over 85% at 2-5A. Tested with various props at different voltages and loads.

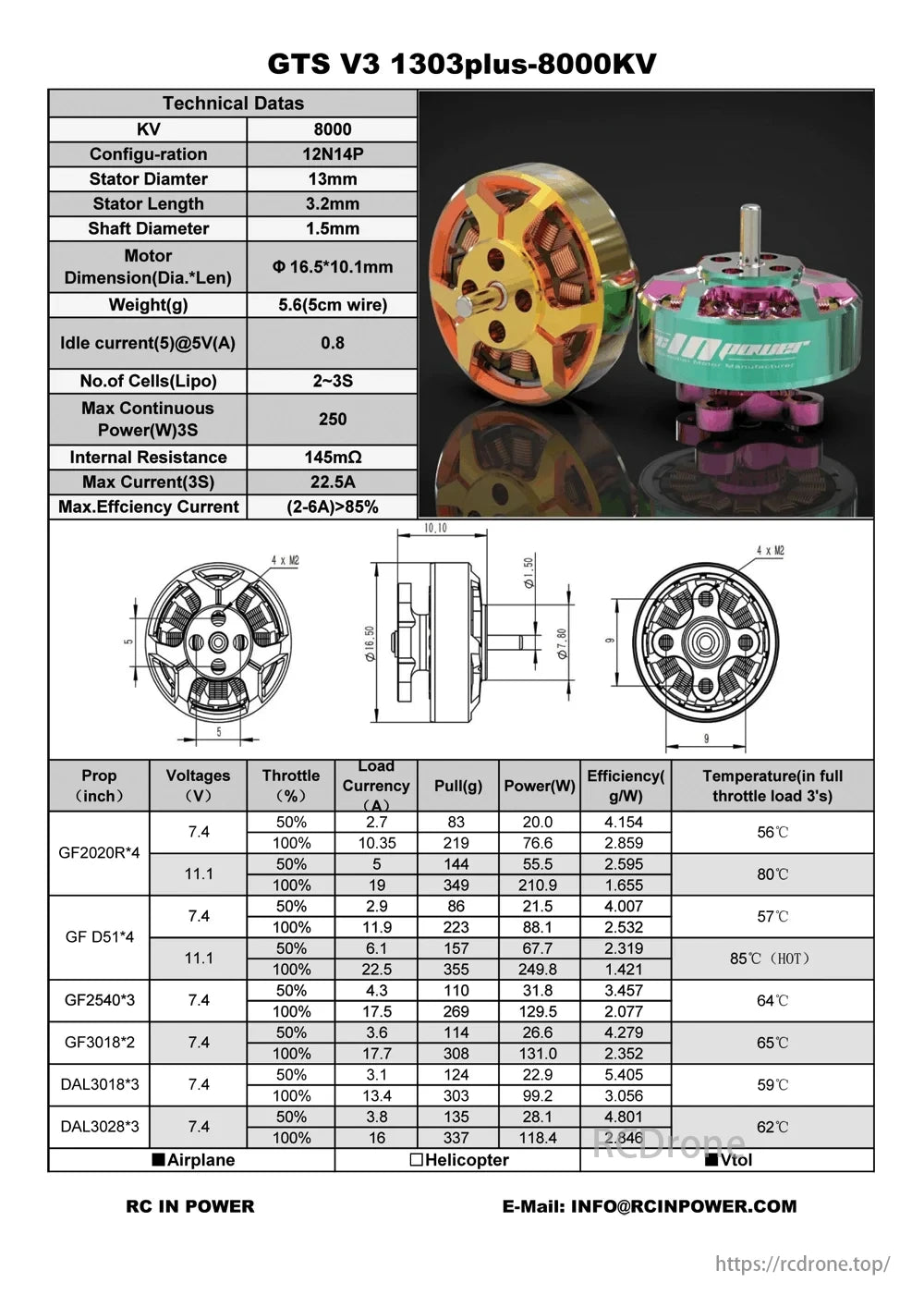

GTS V3 1303plus-8000KV motor specs: 8000KV, 12N14P config, 13mm stator diameter, 3.2mm length, 1.5mm shaft, 16.5x10.1mm size, 5.6g weight. Max 250W power, 22.5A current, >85% efficiency at 2-6A.

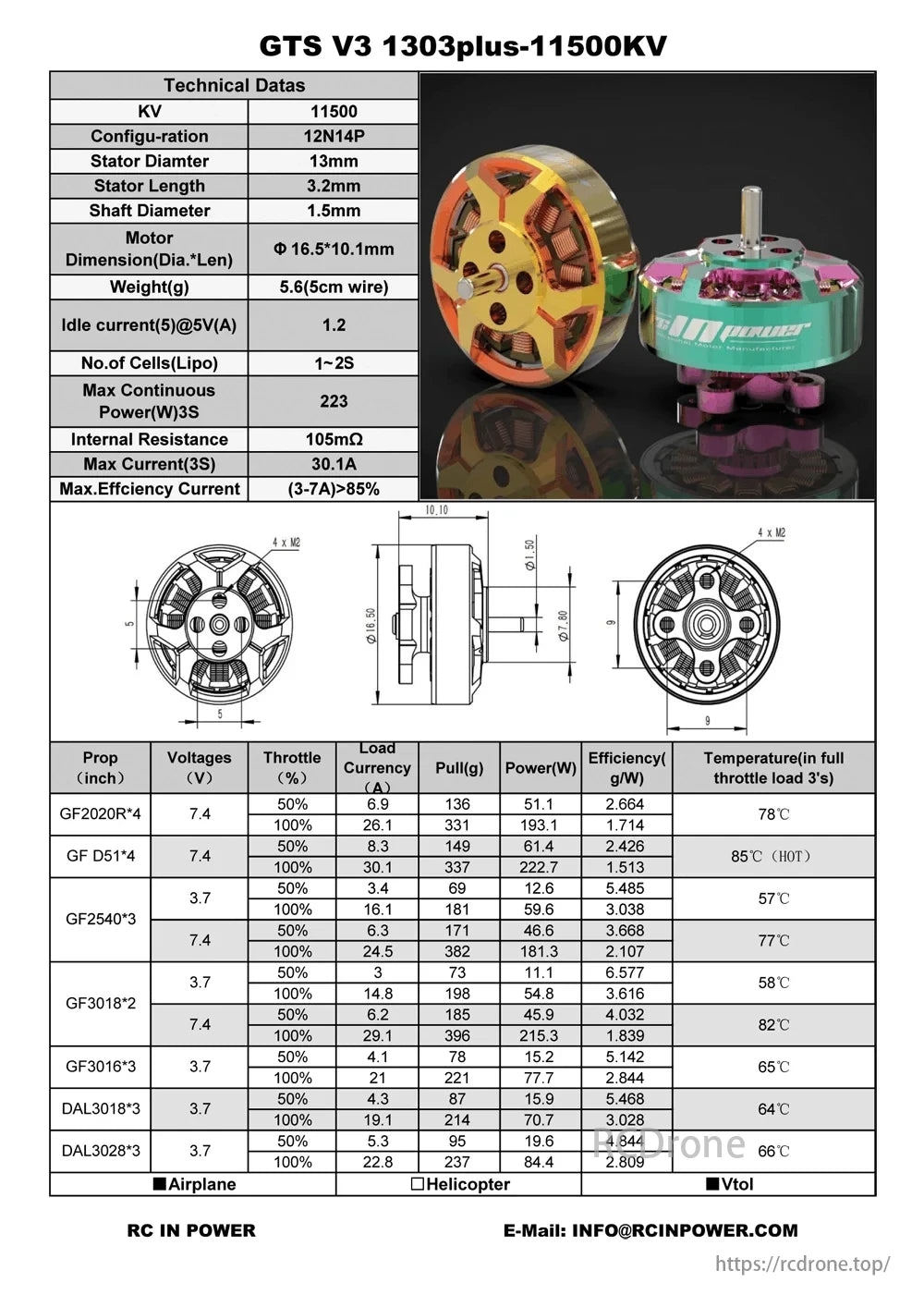

GTS V3 1303plus-11500KV motor: KV 11500, 12N14P, 13mm stator, 3.2mm length, 1.5mm shaft. Weighs 5.6g, 223W max power at 3S, >85% efficiency, ideal for RC models.
