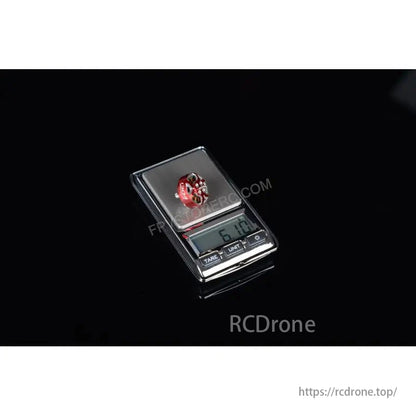

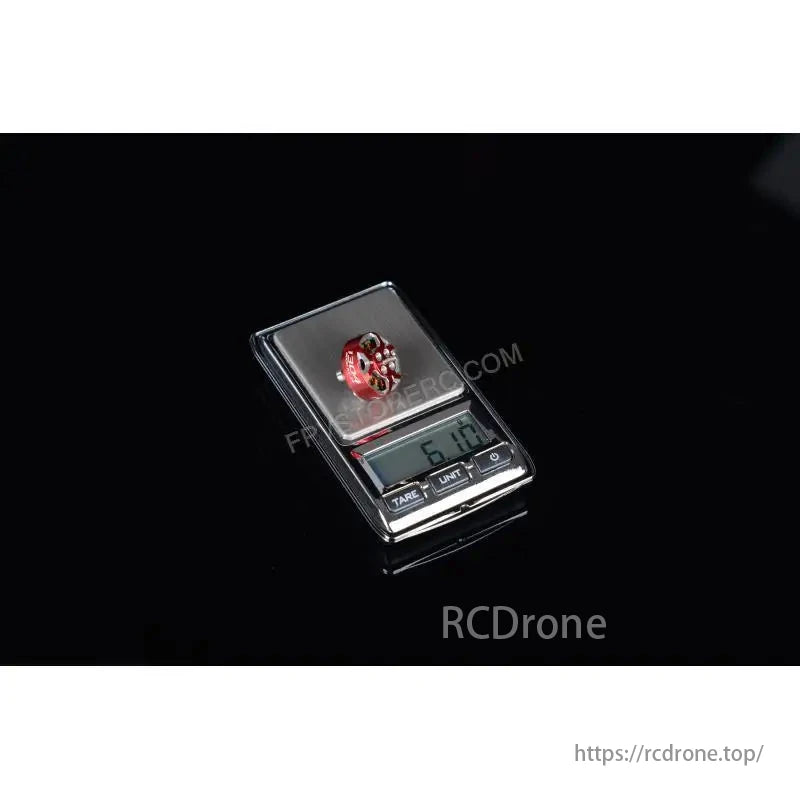

  • RCINPOWER GTS V3 1304 Plus brushless motor, 6.1g, ideal for FPV racing drones.
  • RCINPOWER GTS V3 1304 Plus 5000KV 6000KV 11500KV 2–4S Brushless Motor for 2–3 Inch FPV Racing Drone Toothpick Cinewhoop
1 6

RCINPOWER GTS V3 1304 Plus 5000KV 6000KV 11500KV 2–4S Brushless Motor for 2–3 Inch FPV Racing Drone Toothpick Cinewhoop

RCINPOWER GTS V3 1304 Plus 5000KV 6000KV 11500KV 2–4S Brushless Motor for 2–3 Inch FPV Racing Drone Toothpick Cinewhoop

RCINPOWER

$23.94 USD
$23.94 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Color
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

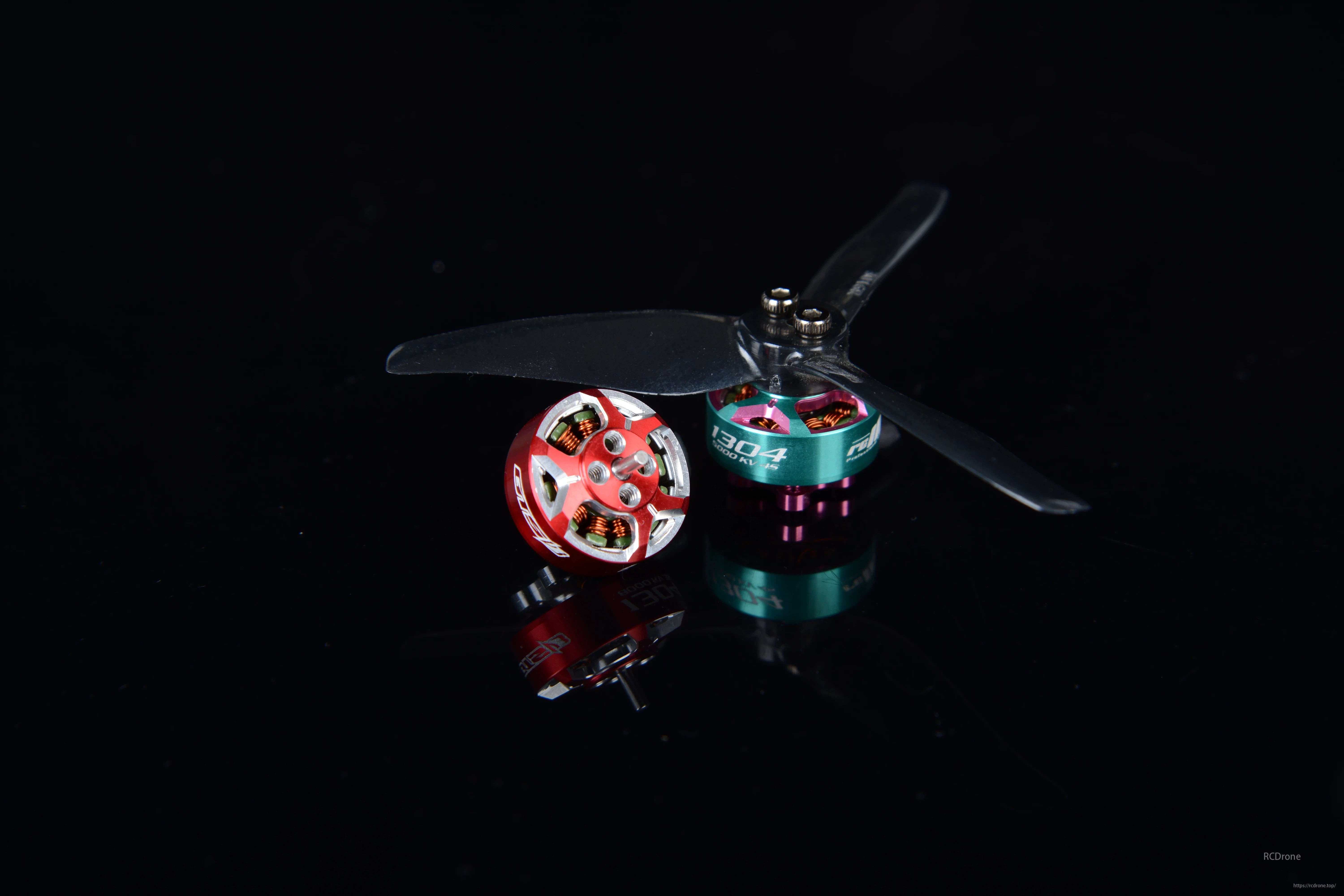

The RCINPOWER GTS V3 1304 Plus is a next-generation micro brushless motor designed for high-performance FPV drones. Available in 5000KV, 6000KV, and 11500KV variants, this motor is compatible with 2-inch to 3-inch props, supporting 2S to 4S LiPo setups. Whether you're building a smooth cinewhoop or a high-speed toothpick racer, the GTS V3 1304 Plus provides exceptional power-to-weight ratio and thermal performance in a compact package.

Key Specifications:

Parameter 5000KV 6000KV 11500KV
Configuration 12N14P 12N14P 12N14P
Stator Size 13mm × 4mm 13mm × 4mm 13mm × 4mm
Shaft Diameter 1.5mm 1.5mm 1.5mm
Dimensions (D×L) Φ16.5mm × 11.4mm Φ16.5mm × 11.4mm Φ16.5mm × 11.4mm
Weight (w/ 5cm wire) 6.2g 6.2g 6.2g
Idle Current @5V 0.7A 0.8A 1.2A
Voltage Range 2–4S 2–4S 2–4S
Max Continuous Power (3S) 234W 275W 245W
Internal Resistance 160mΩ 146mΩ 90mΩ
Max Current (3S) 15.8A 18.6A 33.1A
Best Efficiency Current (2–4A) >85% (2–5A) >85% (3–7A) >85%

Features:

  • Lightweight 6.2g design with high power output

  • Multiple KV options for tuning thrust and responsiveness

  • Precision-balanced for reduced vibration and improved stability

  • Compatible with 2” to 3” props – ideal for freestyle and cinematic flying

  • Strong 1.5mm shaft and CNC aluminum build ensure durability

Recommended Use Cases:

  • 2”–3” FPV Toothpick Drones

  • Sub250 Micro Freestyle Builds

  • Cinewhoop Micro Racers

  • DJI O3 Ready HD FPV Drones

GTS V3 Motor, GTS V3 1304plus-5000KV motor: 5000KV, 12N14P, 13mm stator, 6.2g. 234W max power, >85% efficiency (2-4A). Tested with multiple props/voltages for performance.

GTS V3 1304plus-5000KV motor specs: KV 5000, 12N14P config, 13mm stator diameter, 6.2g weight. Max continuous power 234W, efficiency over 85% at 2-4A. Tested with various props and voltages for performance data.

GTS V3 Motor, GTS V3 1304plus-6000KV motor: 6000KV, 12N14P, 13mm stator, 4mm length, 1.5mm shaft, 6.2g weight, 275W power, 18.6A current, 85% efficiency, with prop data.

GTS V3 1304plus-6000KV motor specs: 6000KV, 12N14P config, 13mm stator diameter, 4mm length, 1.5mm shaft. Weighs 6.2g, max 275W power, 18.6A current. Efficiency over 85% at 2-5A. Detailed performance data for various props included.

GTS V3 Motor, GTS V3 1303plus-11500KV motor: 11500KV, 12N14P, 13mm stator, 6.2g, 245W max power, >85% efficiency, data for various props.

GTS V3 1303plus-11500KV motor specs: KV 11500, 12N14P config, 13mm stator diameter, 6.2g weight. Max continuous power 245W at 3S, efficiency over 85% at 3-7A current. Detailed performance data for various props included.

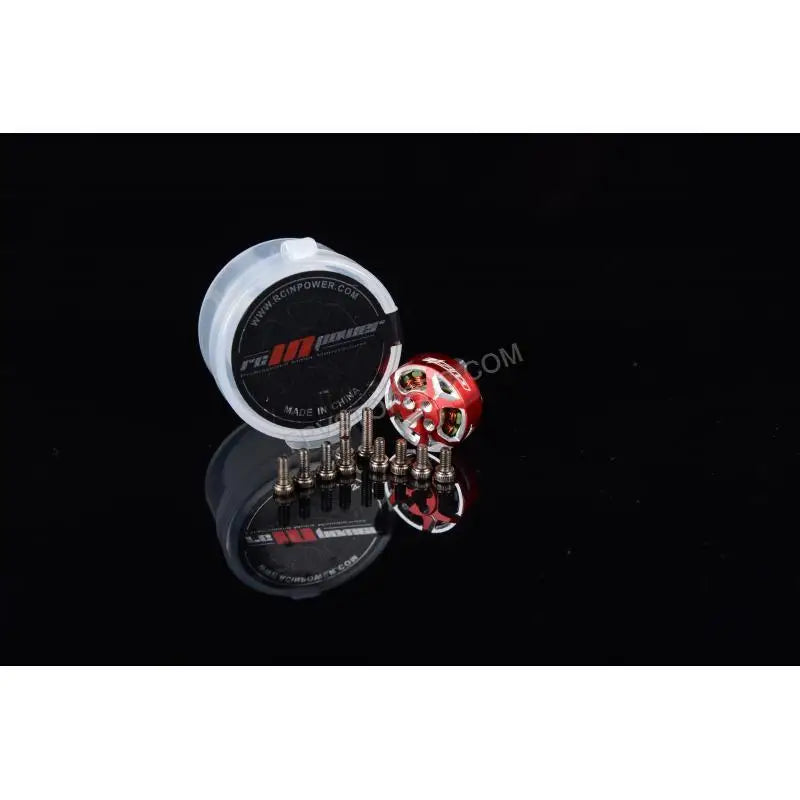

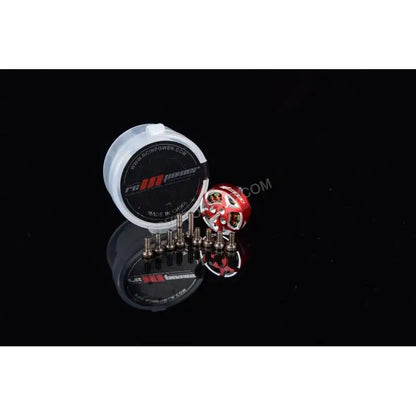

GTS V3 Motor by RCINPOWER, a professional Chinese manufacturer, includes screws, packaging, and website information.

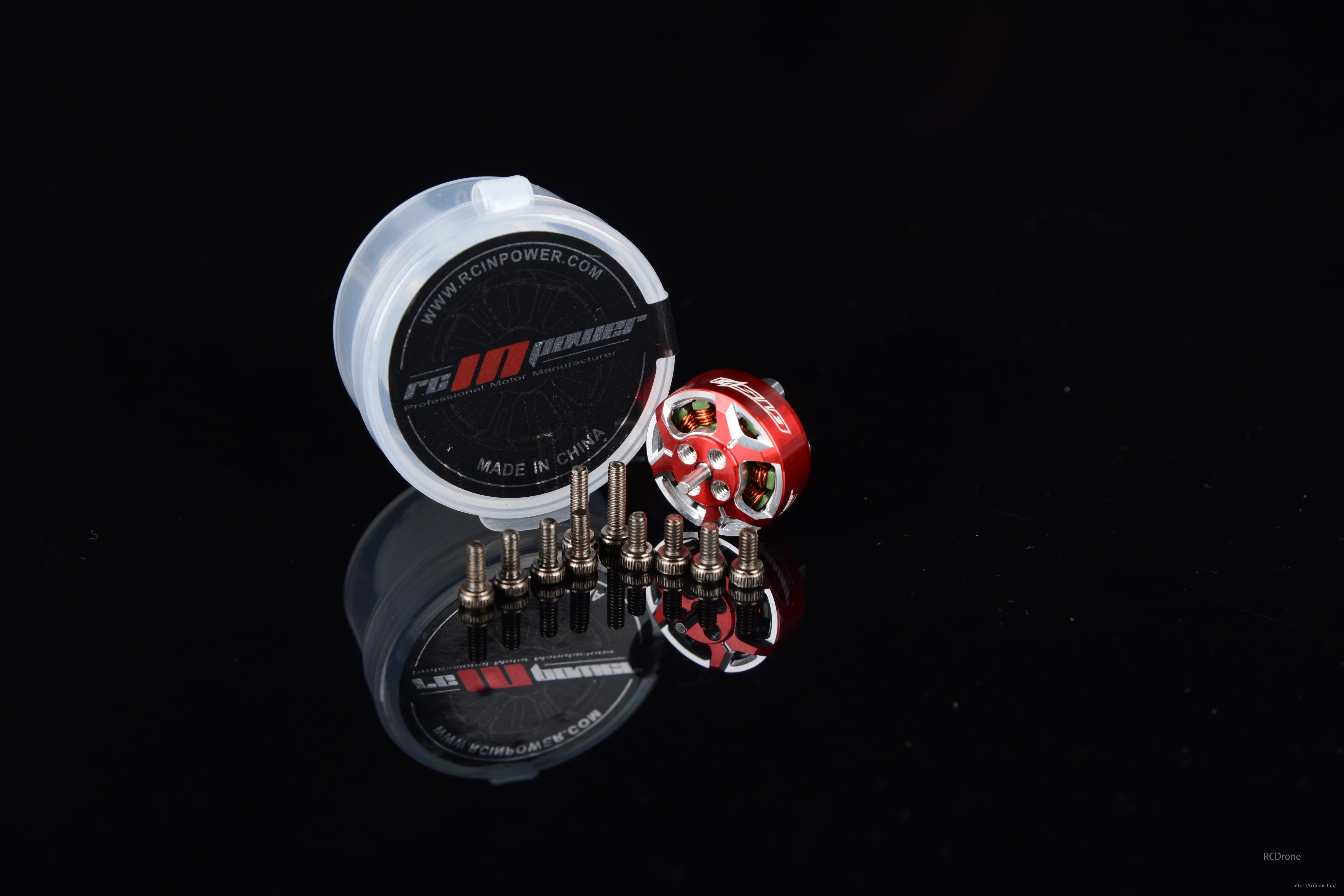

GTS V3 Motor by RCINPOWER, professional motor manufacturer. Made in China. Includes screws and packaging with website www.rcinpower.com.

GTS V3 Motor, The RCINPOWER GTS V3 1304 Plus is a high-performance micro brushless motor for FPV drones.GTS V3 Motor, Motor specifications and features for various KV options, suitable for small drones and freestyle flying.GTS V3 Motor, This motor is available in three variants and compatible with 2-3 inch props, supporting LiPo setups from 2S to 4S.
