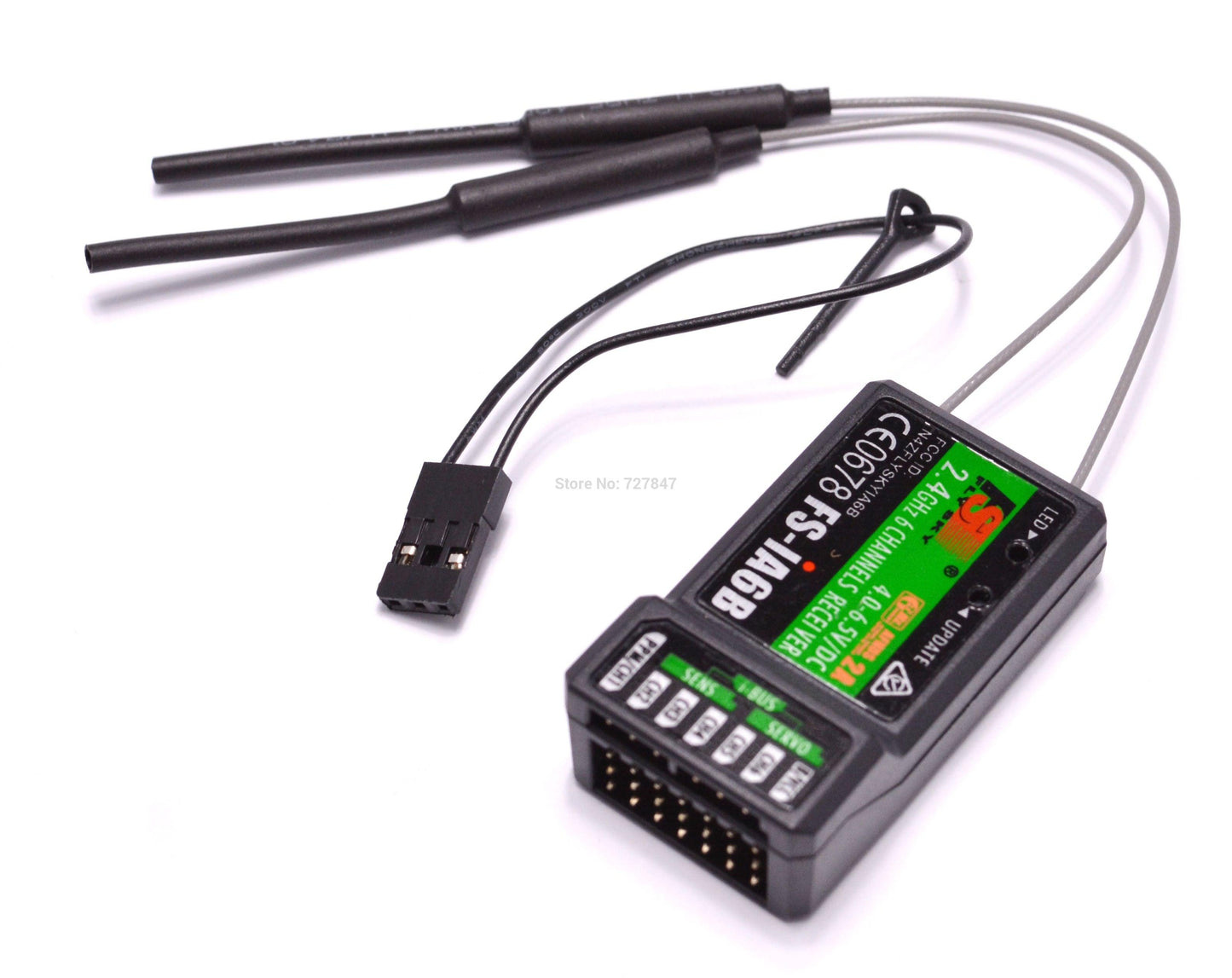

Item Name: FS-iA6B
Channel: 6
Frequency Range: 2.4055--2.475GHZ
Band Width Number: 140
Transmitting Power:  20dBm
RF Receiver Sensitivity: -105dbm
2.4G Mode: The second generation of an enhanced version of the automatic FM digital system
Encoding: GFSK
Antenna Length: 26mm * 2 (dual antenna)
Input Power: 4.0-6.5V DC
Dimension: 47 x 26.2 x 15mm
Weight: 14.9g
Package Weight
Color: Black
i-Bus Interface: Yes
Data Acquisition Interface: Yes
Model Type: Airplane / Glider / Helicopter
Compatible Transmitter: Compatible with FS-i4,FS-i6,FS-i10,FS-GT2E,FS-GT2G

Features:
Works in the frequency range of 2.405 to 2.475GHz.This band has been divided into 142 independent channels,each radio system uses 16 different channels and 160 different types of hopping algorithm.

This radio system uses a high gain and high quality multi directional antenna,it covers the whole frequency band. Associated with a high sensitivity receiver,this radio system guarantees a jamming free long range radio transmission

Each transmitter has a unique ID,when binding with a receiver,the receiver saves that unique ID and can accepts only data from the unique transmitter.this avoids picking another transmitter signal and dramatically increase interference immunity and safety.

This radio system uses low power electronic components and sensitive receiver chip.The RF modulation uses intermittent signal thus reducing even more power consumption.

AFHDS2A system has the automatic identification function,which can switch automatically current mode between single-way communication mode and two-way communication mode according to the customer needs.

AFHDS2A has built-in multiple channel coding and error-correction,which improve the stability of the communication,reduce the error ratio and extend the reliable transmission distance.

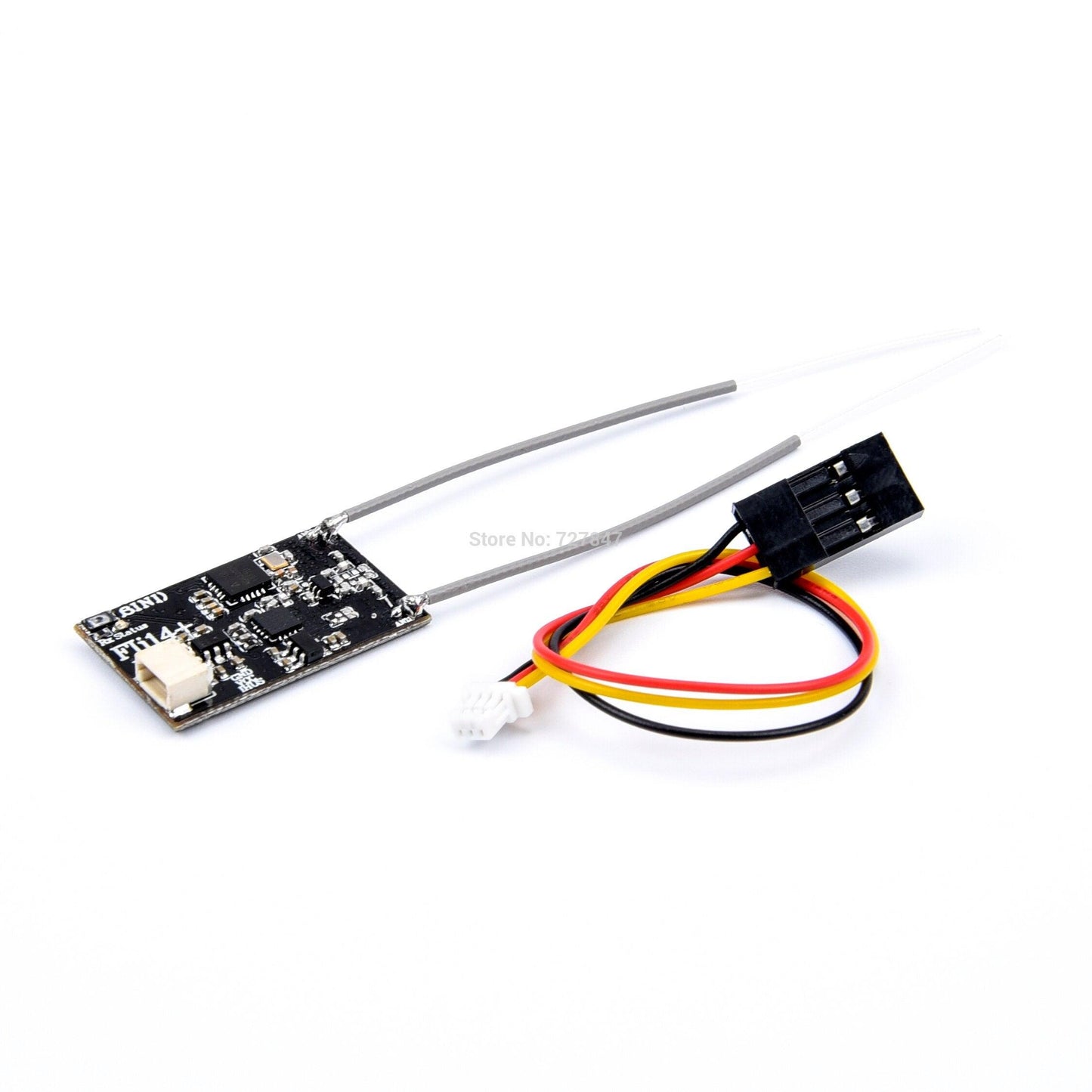

Item Name: 2.4G 14CH Compatible Flysky AFHDS-2A Receiver

Channel: 14CH

Protocol: AFHDS-2A

2.4G Mode: The second generation of an enhanced version of the automatic FM digital system

Antenna Length: 70mm (Dual Antennas)

Input Voltage: 4-6.5V DC

Weight: Only 1.7g

Size: 25x15x5mm

Color: Black

Signal Outpu: IBUS

RSSI Output: Channel14

No ground interference ( Transmitting and receiving 1 m from the ground): more than 500m

Features:
Works in the frequency range of 2.405 to 2.475GHz.This brand has been divided into 142 independent channels,each radio system uses 16 different channels and 160 different types of hopping algorithm.

This radio system uses a high gain and high quality multi directional antenna,it covers the whole frequency brand. Associated with a high sensitivity receiver,this radio system guarantees a jamming free long range radio transmission

Each transmitter has a unique ID,when binding with a receiver,the receiver saves that unique ID and can accepts only data from the unique transmitter.this avoids picking another transmitter signal and dramatically increase interference immunity and safety.

This radio system uses low power electronic components and sensitive receiver chip.The RF modulation uses intermittent signal thus reducing even more power consumption.

AFHDS2A system has the automatic identification function,which can switch automatically current mode between single-way communication mode and two-way communication mode according to the customer needs.

AFHDS2A has built-in multiple channel coding and error-correction,which improve the stability of the communication,reduce the error ratio and extend the reliable transmission distance.

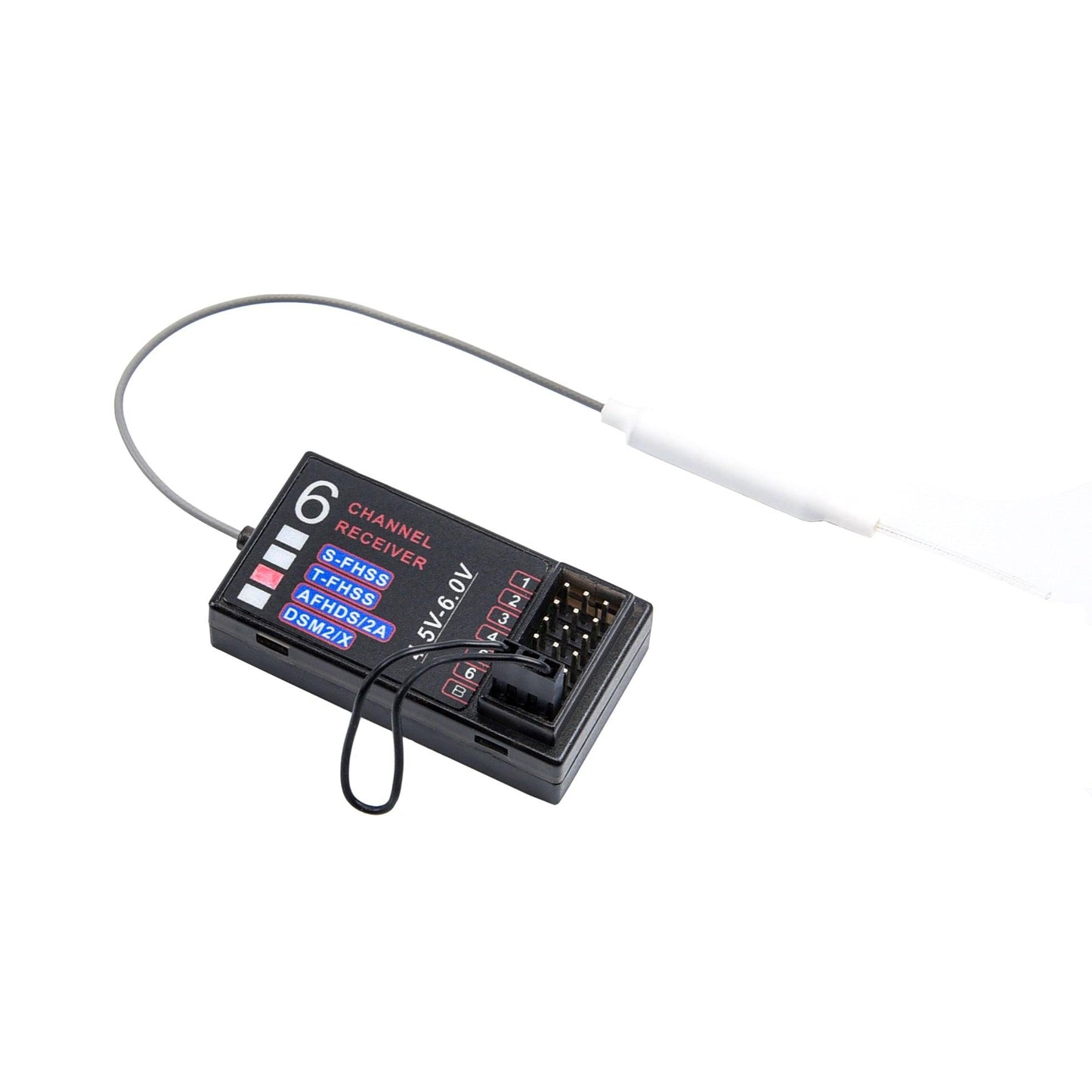

Compatible with all current first-generation (AFHDS) and second-generation (AFHDS 2A) remote controllers of FS (Flysky) (does not support return):



FS-GT2 / FS-GT2B / FS-GT2E / FS-GT2F / FS-GT2G

FS-GT3B / FS-GT3C / FS-IT4

FS-i4 / FS-T4B

FS-i6 / FS-i6S / FS-T6 / FS-CT6B

FS-i10 / FS-TH9X

Signal output supports 6CH PWM and 1 PPM



Fixed out-of-control protection signal output: CH1, CH2, CH4 -> 1.5mS, CH3 -> 0.9mS, CH5-CH8 hold signals after 1 second after losing the remote control signal





*Product specifications:

Working voltage: 3.8-6V

Working current: 30mA

Sensitivity: <-92dbm

Signal output: 6PWM + 1PPM

2.4G mode: AFHDS / AFHDS 2A

Output channel: 6CH(PWM)+8CH(PPM)

Weight: 9 grams

Dimensions: 45*25mm

Distance: 400+ meters



*Product use:



Coding method:

1. Insert the code matching line of the receiver into the code matching port "B" and power on, and the blue light flashes quickly to enter the code matching mode

2. Press the code button (Bind button) on the FS (Fouss) remote control to power on and enter the remote control code matching mode

3. If the blue light of the receiver flashes quickly and turns off, it means that the code is successfully coded.

4. Turn off the power of the remote control and power it back on to enter the normal mode. The blue light of the receiver is always on.

5. Unsuccessful code matching, repeat 1-4
