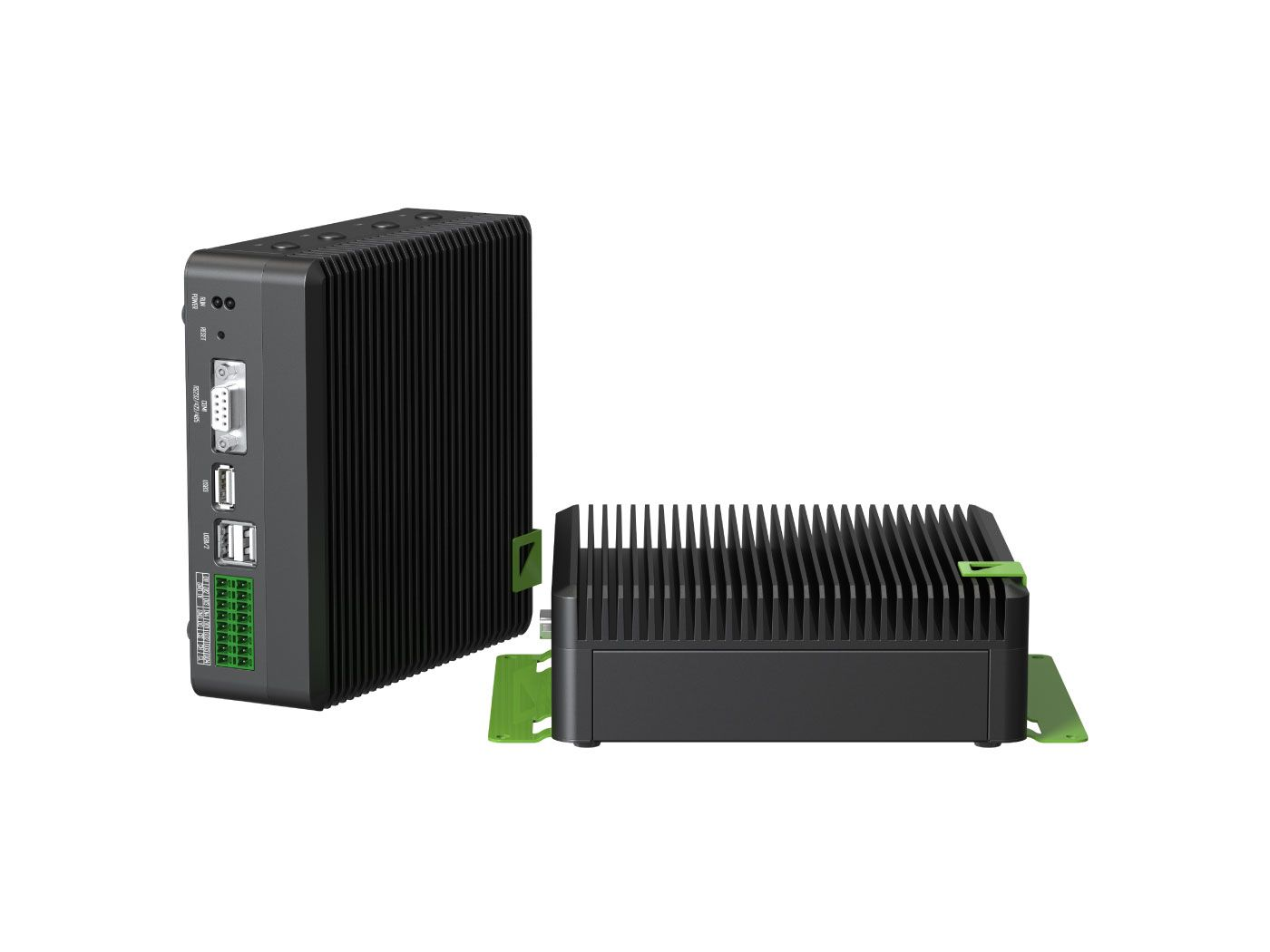

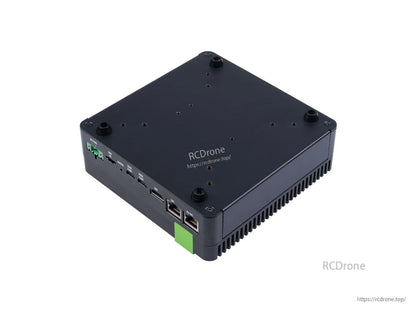

reComputer Industrial J2012 AI Device with Jetson Xavier NX 16GB, 21 TOPS, dual GbE (PoE‑PSE), RS232/422/485, DI/DO, CAN

Overview

reComputer Industrial J2012 is an industrial AI Device delivering 21 TOPS AI performance, built with the NVIDIA Jetson™ Xavier NX 16GB module. The fanless, compact box integrates rich industrial I/O for edge AI deployments: dual RJ‑45 GbE (one PoE‑PSE 802.3 af, 15 W), 1x DB9 RS‑232/RS‑422/RS‑485, CAN, 4x isolated DI/DO, 3x USB3.2 Gen1, 1x USB2.0 Type‑C (Device), 1x USB2.0 Type‑C (Debug UART & RP2040), 1x HDMI 2.0, 2x CSI (2‑lane 15‑pin), 1x Nano SIM slot, and DC 12–24V input. It includes an M.2 Key M PCIe Gen4.0 NVMe 2280 SSD 128G, offers optional TPM 2.0, Wi‑Fi/Bluetooth and 4G/5G via M.2 Key B, and supports desk, DIN rail, wall and VESA mounting. Operating range is −20 ~ 60°C with 0.7 m/s airflow; size is 159mm x 155mm x 57mm, weight 1.57kg. Power efficiency indicated in product visuals: 10W–20W.

Key Features

• Jetson Xavier NX 16GB module: 21 TOPS AI, 384‑core NVIDIA Volta GPU with 48 Tensor Cores.
• Industrial connectivity: 2x RJ‑45 GbE (LAN1 PoE‑PSE 802.3 af 15 W; LAN2 10/100/1000 Mbps), 1x RS‑232/RS‑422/RS‑485, CAN, 4x DI/4x DO.
• Vision interfaces: 2x CSI camera (2‑lane 15‑pin), 1x HDMI 2.0 Type‑A.
• USB: 3x USB3.2 Gen1; 1x USB2.0 Type‑C (Device mode); 1x USB2.0 Type‑C for Debug UART & RP2040.
• Storage: M.2 Key M PCIe Gen4.0; NVMe 2280 SSD 128G included.
• Networking expansion: M.2 Key B supports 4G/5G (module optional); optional SMD Wi‑Fi/Bluetooth.
• Power & mechanical: DC 12–24V terminal block (2‑pin); fanless passive heatsink; 1x 5V PWM fan connector.
• Robust design: −20 ~ 60°C with 0.7 m/s airflow; 95% @ 40°C non‑condensing humidity; 3 Grms vibration; 50G shock.

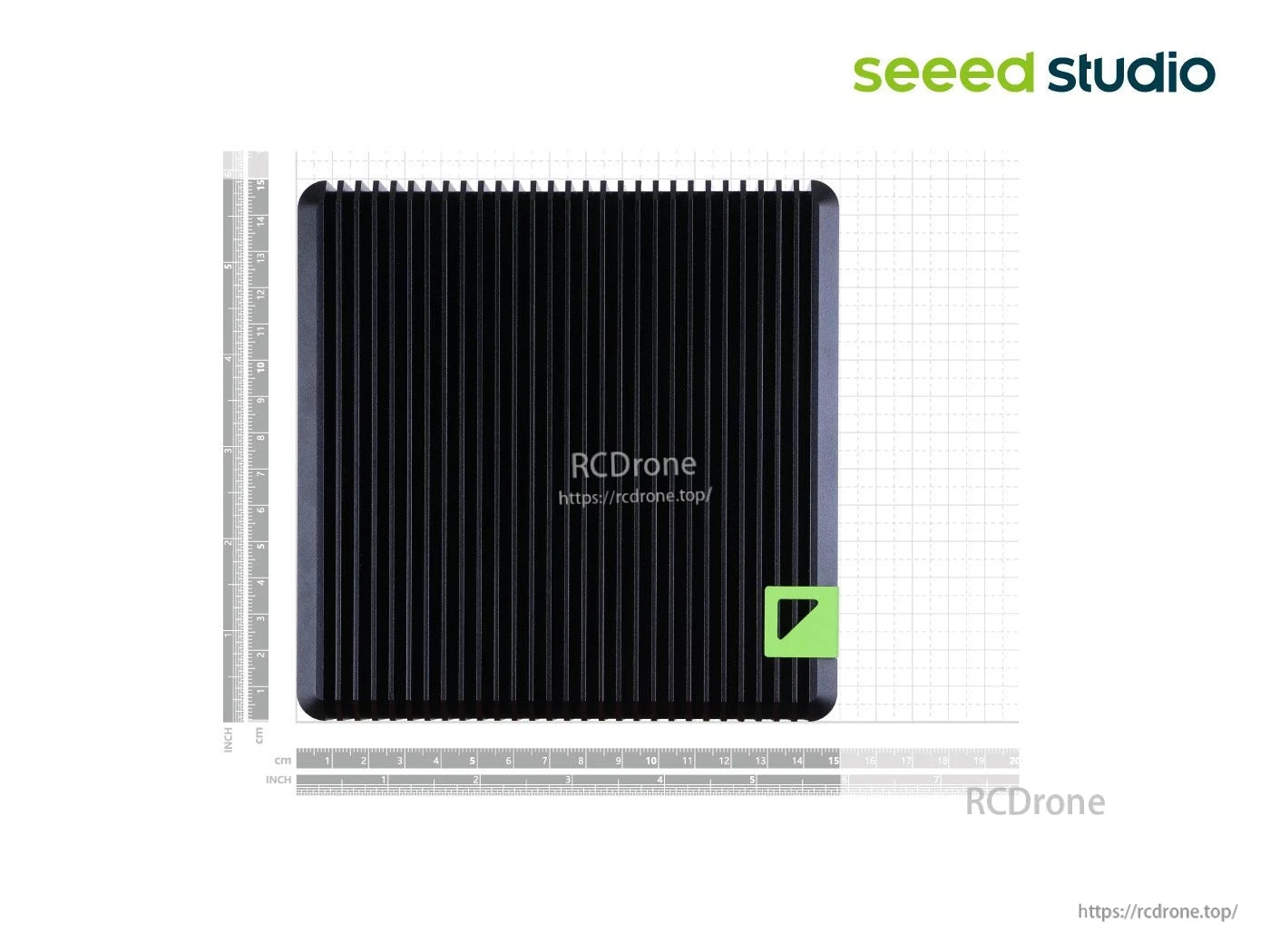

• Compact footprint: 159mm x 155mm x 57mm; 1.57kg; flexible desk, DIN rail, wall‑mounting, VESA.
• Open‑source hardware noted in product visuals; 2‑year warranty.

Note on SSD compatibility

If using SSDs, Seeed recommends 128GB, 256GB and 512GB NVMe options from Seeed due to JetPack version compatibility behaviors.

Specifications

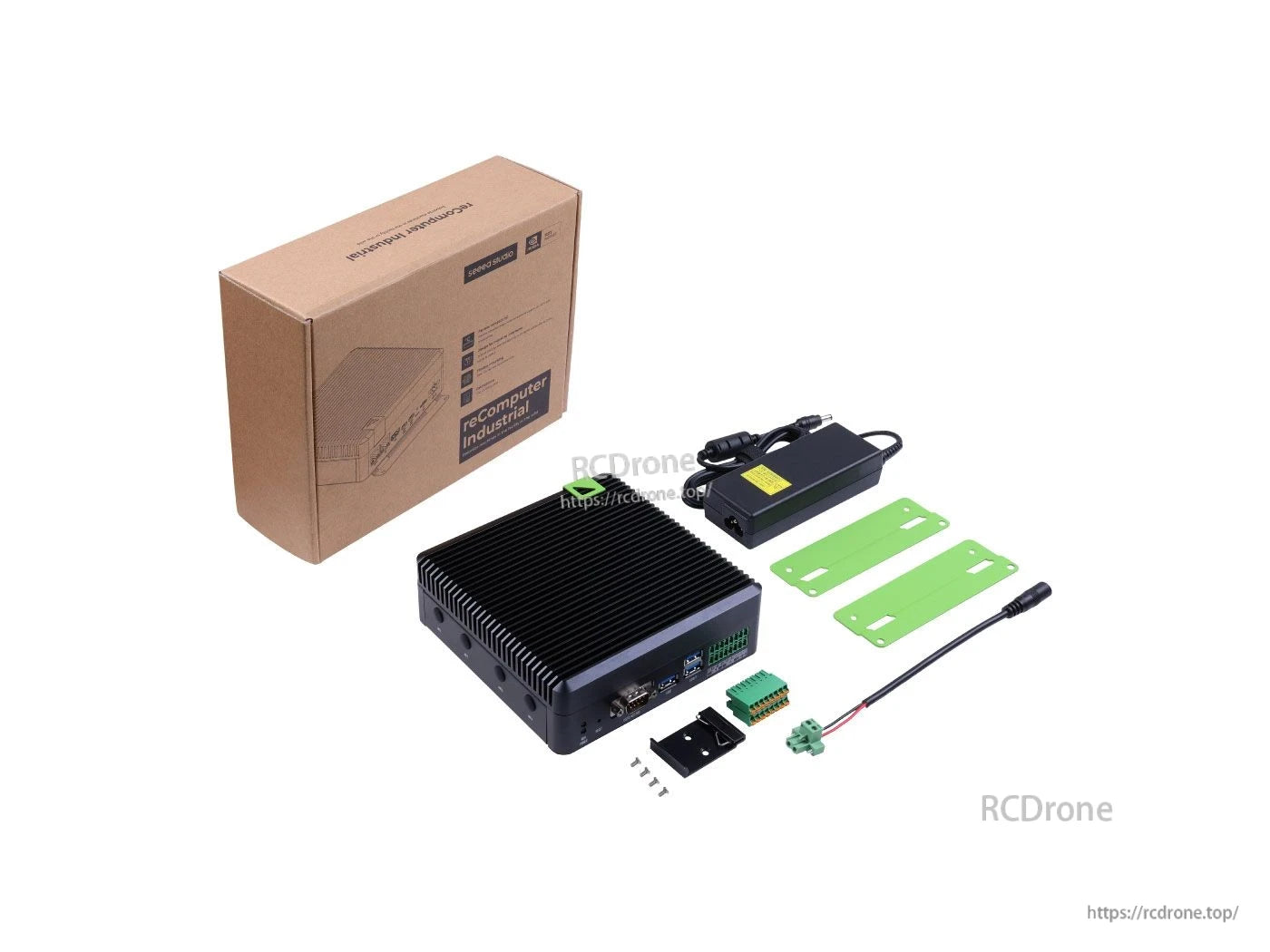

What’s Included

Please note: the product includes a power adapter but does not include an AC cloverleaf power cord. Purchase the appropriate cord based on local socket specifications (US, EU).

Applications

Application Fields

• AI Video Analytics
• Machine Vision
• Autonomous Mobile Robot (AMR)
• Generative AI

Capable of Bringing Generative AI to the Edge

Build AI agents that process large volumes of live or archived video and images with Vision‑Language Models (e.g., LLaVA) to summarize, search and extract insights using natural language.

Build Multi‑stream AI Video Analytics

Leverage the Jetson Xavier NX hardware video decoder for multi‑stream workloads (e.g., up to 44x 1080p30 H.265 decode), suitable for SD, HD and UltraHD sources.

Fastest Way to Deploy Generative AI and Computer Vision Models

Seeed provides jetson‑example projects enabling one‑line deployment for edge AI workloads such as Ollama, Llama3, YOLOv8 and more, with preconfigured environments.

Manuals

• Datasheet
• Schematic
• 3D File
• Assembly Guide
• MTBF Test Report
• Github
• Seeed NVIDIA Jetson Product Catalog
• NVIDIA Jetson Comparison
• NVIDIA Jetson Product Comparison
• Seeed NVIDIA Jetson Success Cases
• Seeed Jetson One Pager

Certification

Hardware Overview

Full System

Carrier Board

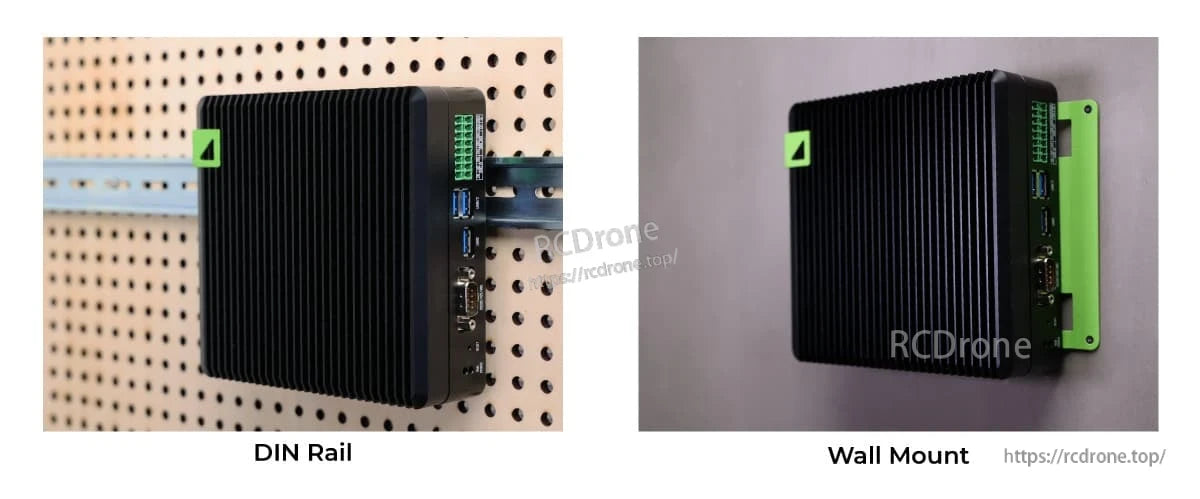

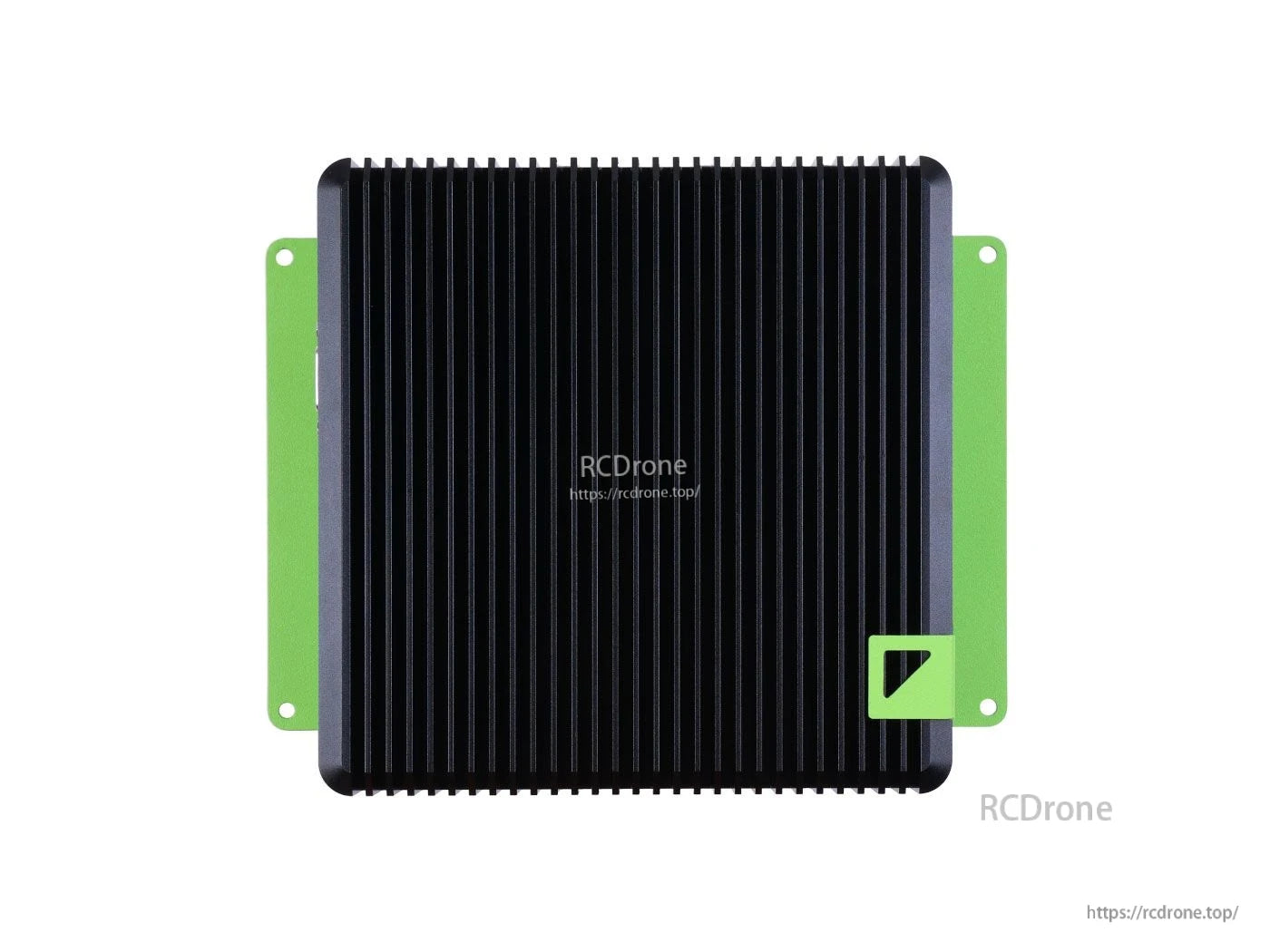

Desktop, Wall Mount, DIN Rail, VESA mount

Details

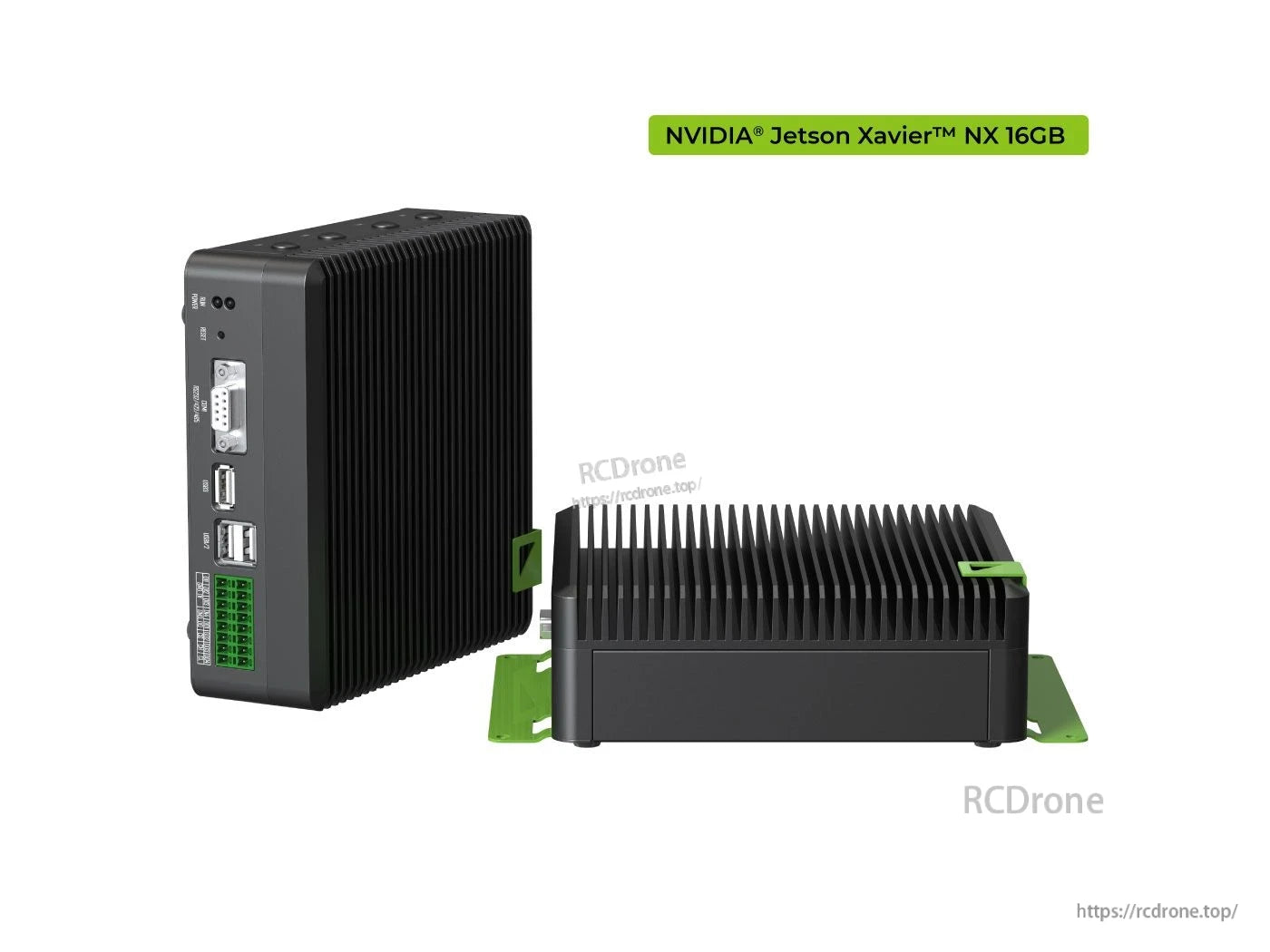

NVIDIA Jetson Xavier NX 16GB, 21 TOPS AI performance, fanless design, open-source hardware. Supports robotics, computer vision, and offers multiple connectivity options.

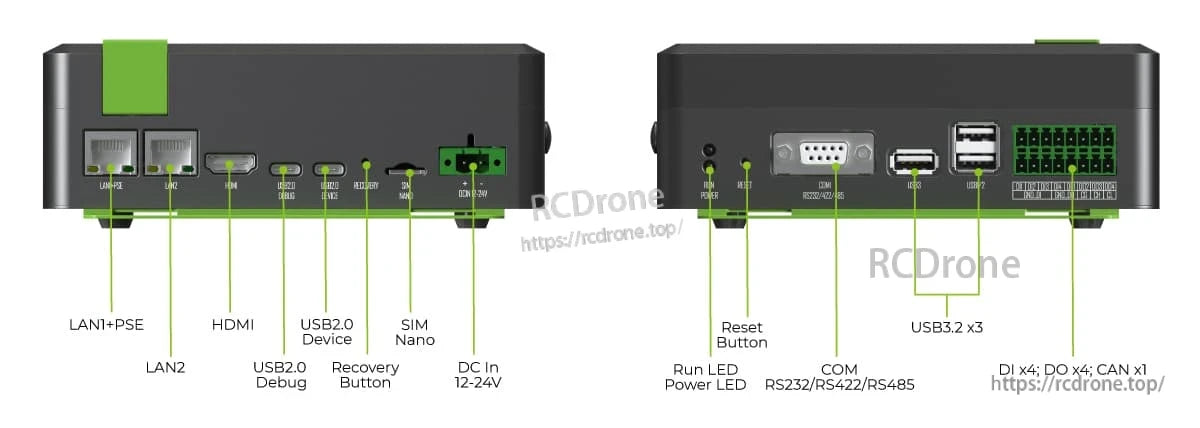

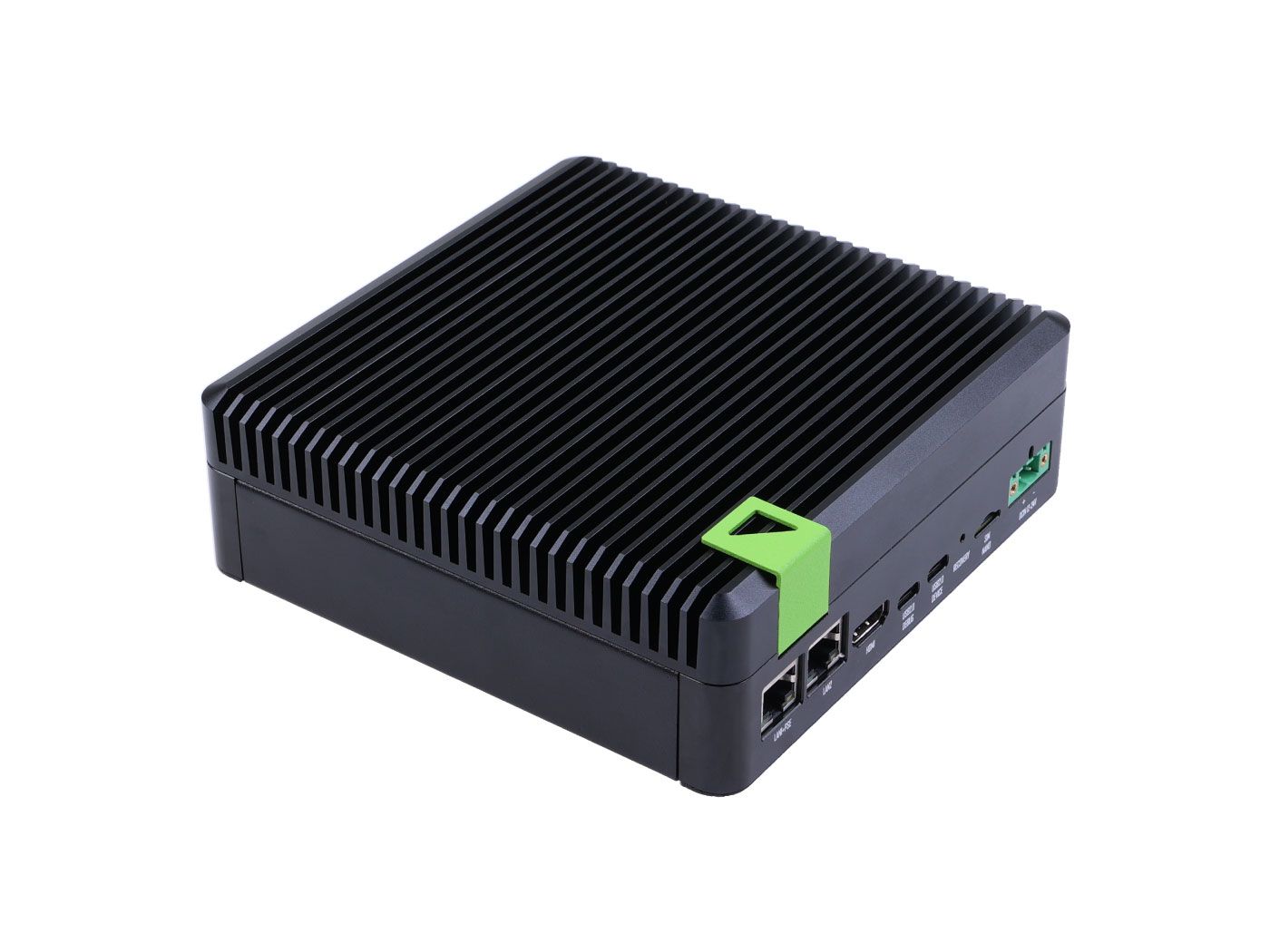

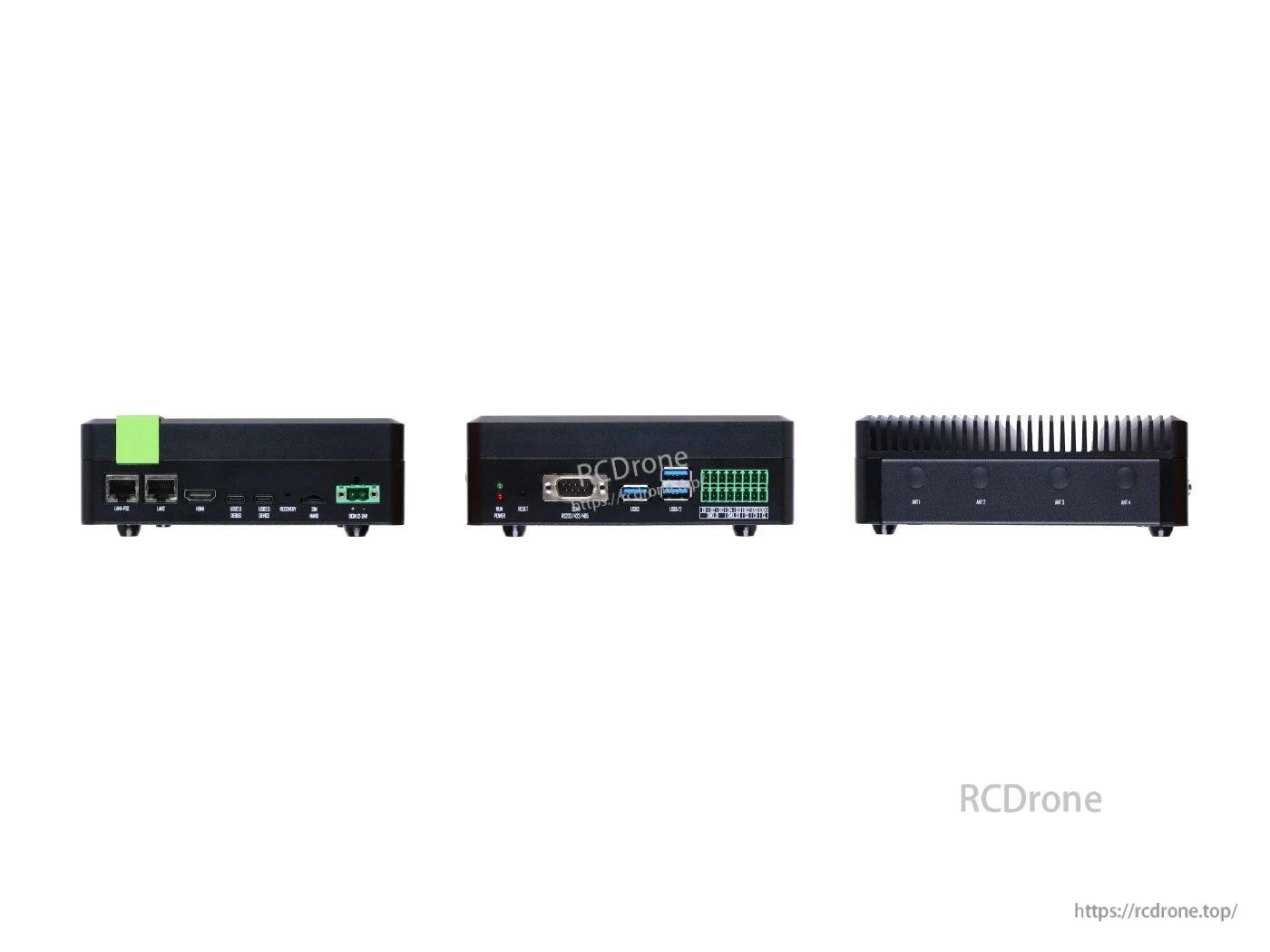

J2012 AI Device includes LAN, HDMI, USB, SIM, DC power, reset, LEDs, COM ports, and industrial I/O like DI, DO, and CAN. (32 words)

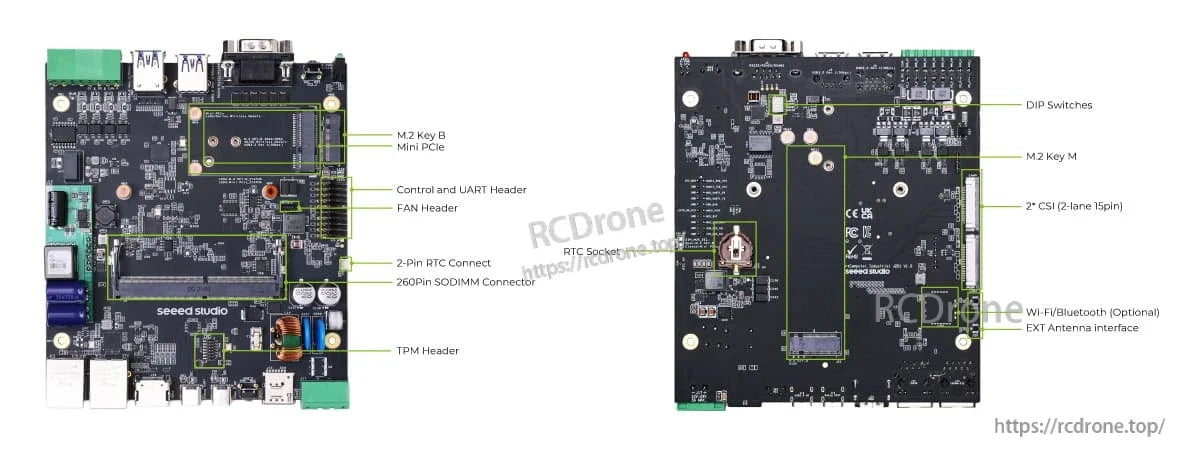

UNWA DIP Switches Mini PC with MZ-Key, ECCE Control and UART header. Includes FAN |header C5I(2-lane ISP). Features RTC Sockel with 2-pin RTC connector. Also includes SODIMM connector for expansion. Optional features include Wi-Fi Bluetooth (FVT) and TPM header.

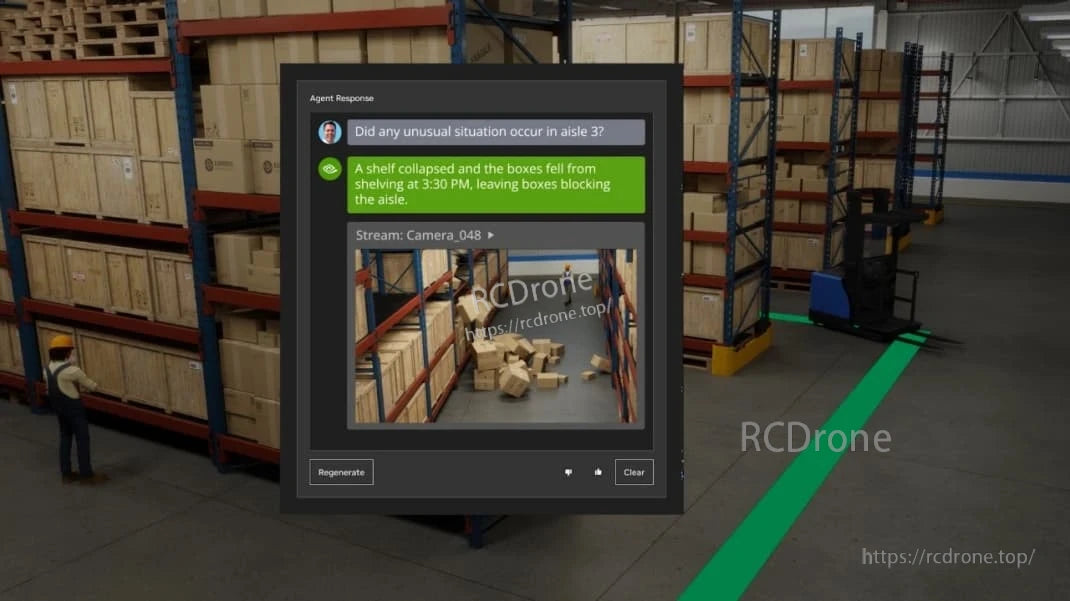

Acount area experienced an unusual incident when a shelf collapsed, blocking the aisle with fallen boxes at 3.30 pm.

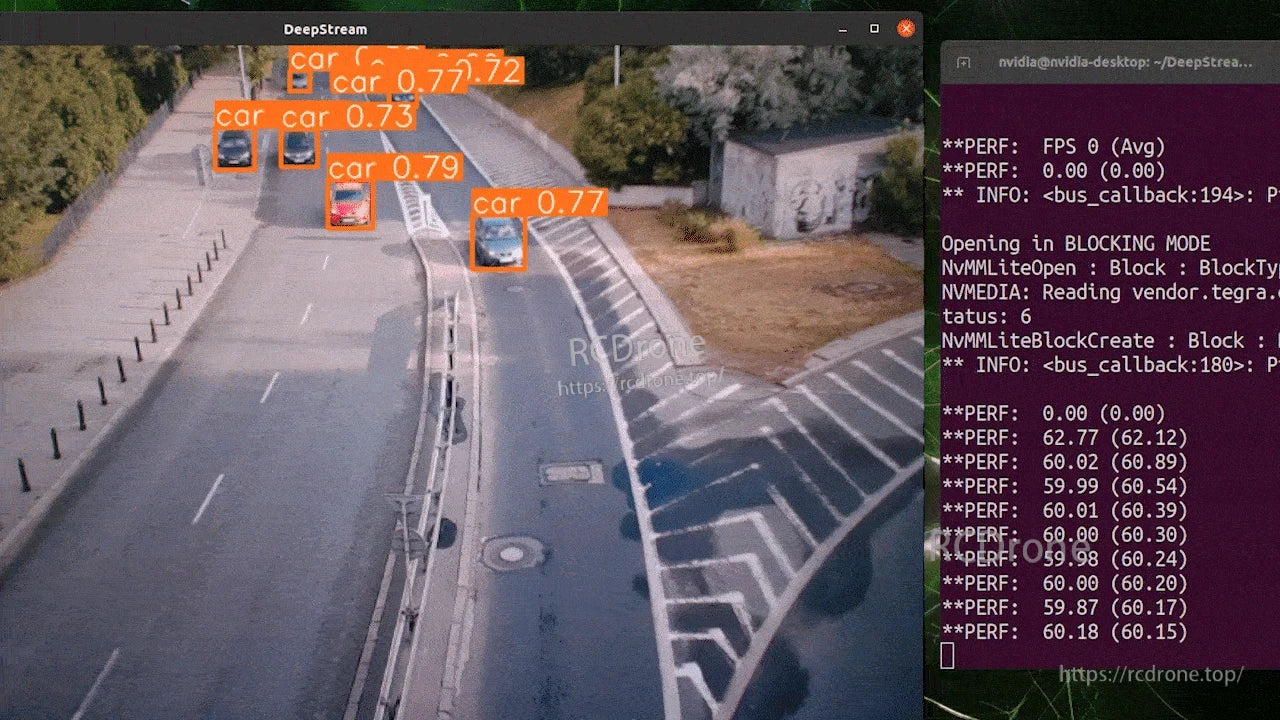

DeepStream detects cars with confidence scores. Real-time performance metrics display FPS values, averaging around 60. System logs indicate blocking mode operation and vendor reading status.

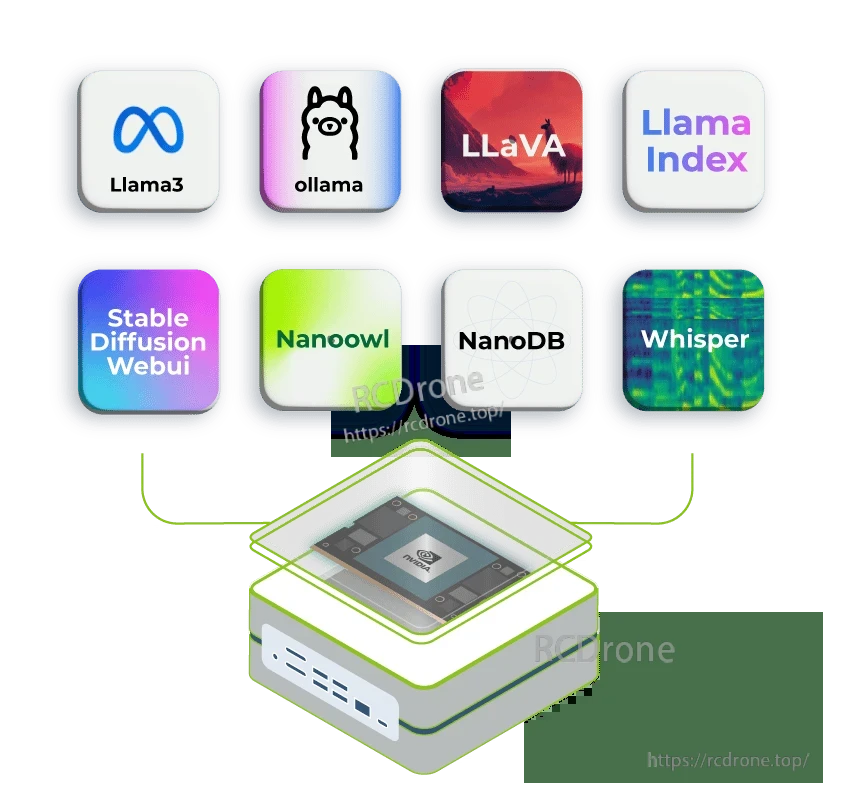

J2012 AI supports Llama3, ollama, LLaVA, Llama Index, Stable Diffusion, Nanoowl, NanoDB, Whisper.
