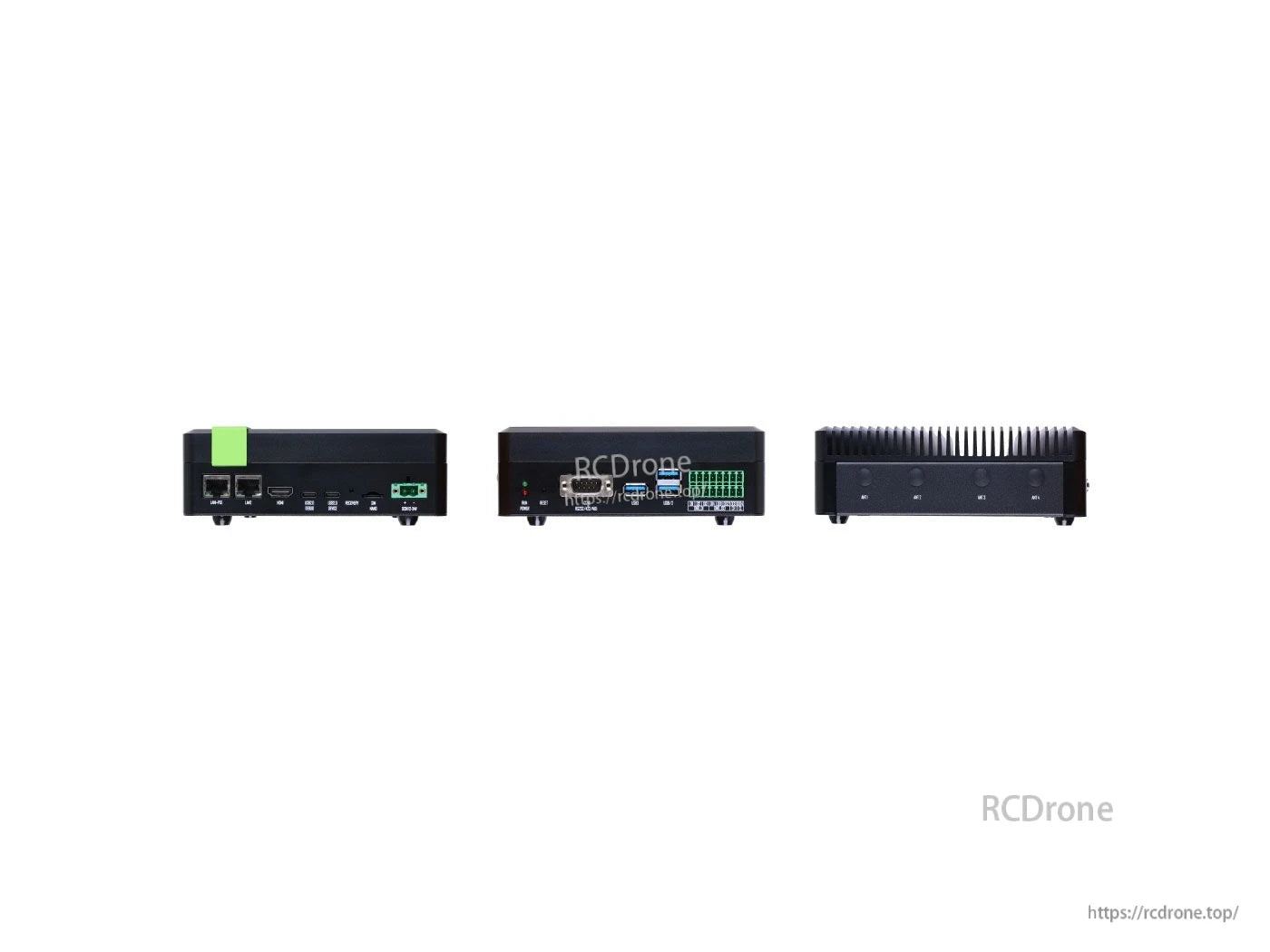

  • Fanless industrial edge AI computer featuring PoE, GbE, M.2 NVMe, DI/DO, and CAN interfaces for robust, high-performance applications.
  • Compact fanless Edge AI computer powered by Jetson Orin NX, featuring PoE, M.2 NVMe storage, DI/DO, and CAN for industrial automation and AI applications.
  • NVIDIA Jetson Orin NX 8GB delivers 70 TOPS in a fanless design with PoE GbE, M.2 NVMe, DI/DO, CAN, and Elite Partner support for edge AI applications.
  • Fanless industrial AI computer with Jetson Orin NX 8GB, 70 TOPS, PoE GbE, M.2 NVMe, DI/DO, CAN, and green mounting brackets.
1 12

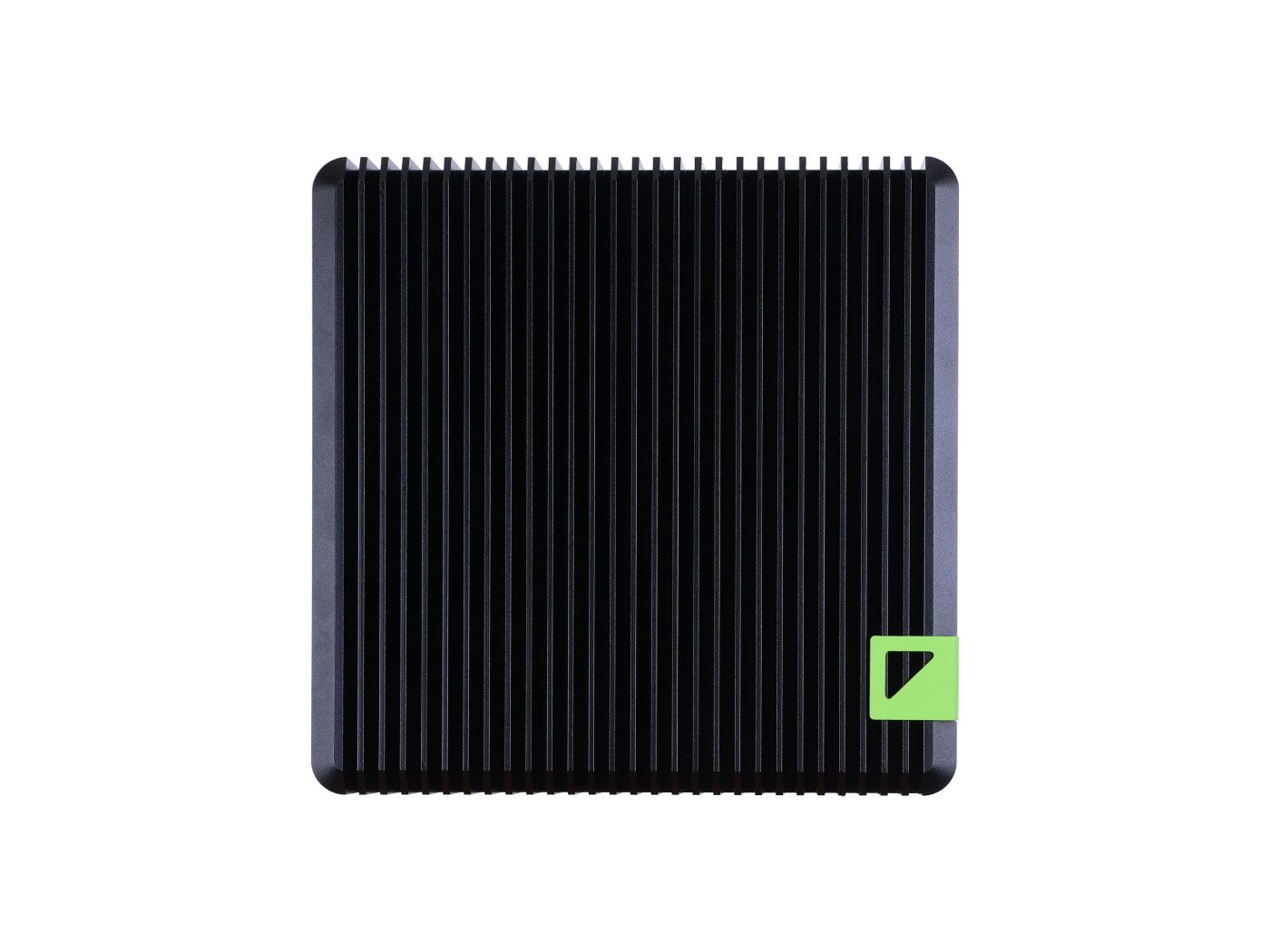

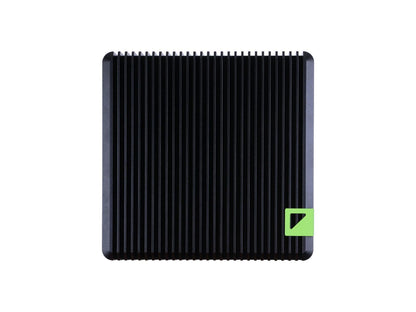

reComputer Industrial J4011 Edge AI Computer – Fanless Jetson Orin NX 8GB, 70 TOPS, PoE GbE, M.2 NVMe, DI/DO, CAN

reComputer Industrial J4011 Edge AI Computer – Fanless Jetson Orin NX 8GB, 70 TOPS, PoE GbE, M.2 NVMe, DI/DO, CAN

Seeed Studio

$1,519.00 USD
$1,519.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Processor+Memory
Wireless Connector
Options
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

reComputer Industrial J4011 is an Edge AI Computer built on the NVIDIA Jetson Orin™ NX 8GB module delivering up to 70 TOPS AI performance. The fanless thermal design and versatile mounting options support deployments in harsher environments and heavier workloads. Hybrid connectivity options (module optional) include 5G/4G/LTE/LoRaWAN®/GPS with a Nano SIM slot, while industrial I/O covers PoE GbE, serial, DI/DO, CAN, HDMI, CSI, and USB.

Key Features

  • Jetson Orin™ NX 8GB module with 70 TOPS AI performance
  • Fanless thermal design; operating temperature: -20 ~ 60°C with 0.7m/s airflow
  • Industrial interfaces: 2x RJ-45 GbE (1x PoE-PSE 802.3 af, 15 W), 1x DB9 RS-232/RS-422/RS-485, 4x DI/4x DO, 1x CAN
  • Display and camera: 1x HDMI 2.0 Type A, 2x CSI (2-lane 15pin)
  • USB: 3x USB 3.2 Type-A (10Gbps), 1x USB 2.0 Type-C (Device mode), 1x USB 2.0 Type-C for Debug UART & RP2040
  • Storage: 1x M.2 Key M PCIe Gen4.0 (NVMe 2280 SSD 128G included)
  • Wireless expansion: 1x M.2 Key B for 4G/5G; optional SMD Wi‑Fi/Bluetooth
  • Hybrid connectivity support: 5G/4G/LTE/LoRaWAN®/GPS (module optional); 1x Nano SIM card slot
  • Power efficiency: 10W–20W (per product image)
  • Security and reliability: TPM 2.0 connector (module optional); RTC socket (CR1220 included)
  • Scale to deploy: OTA and remote management services powered by Allxon

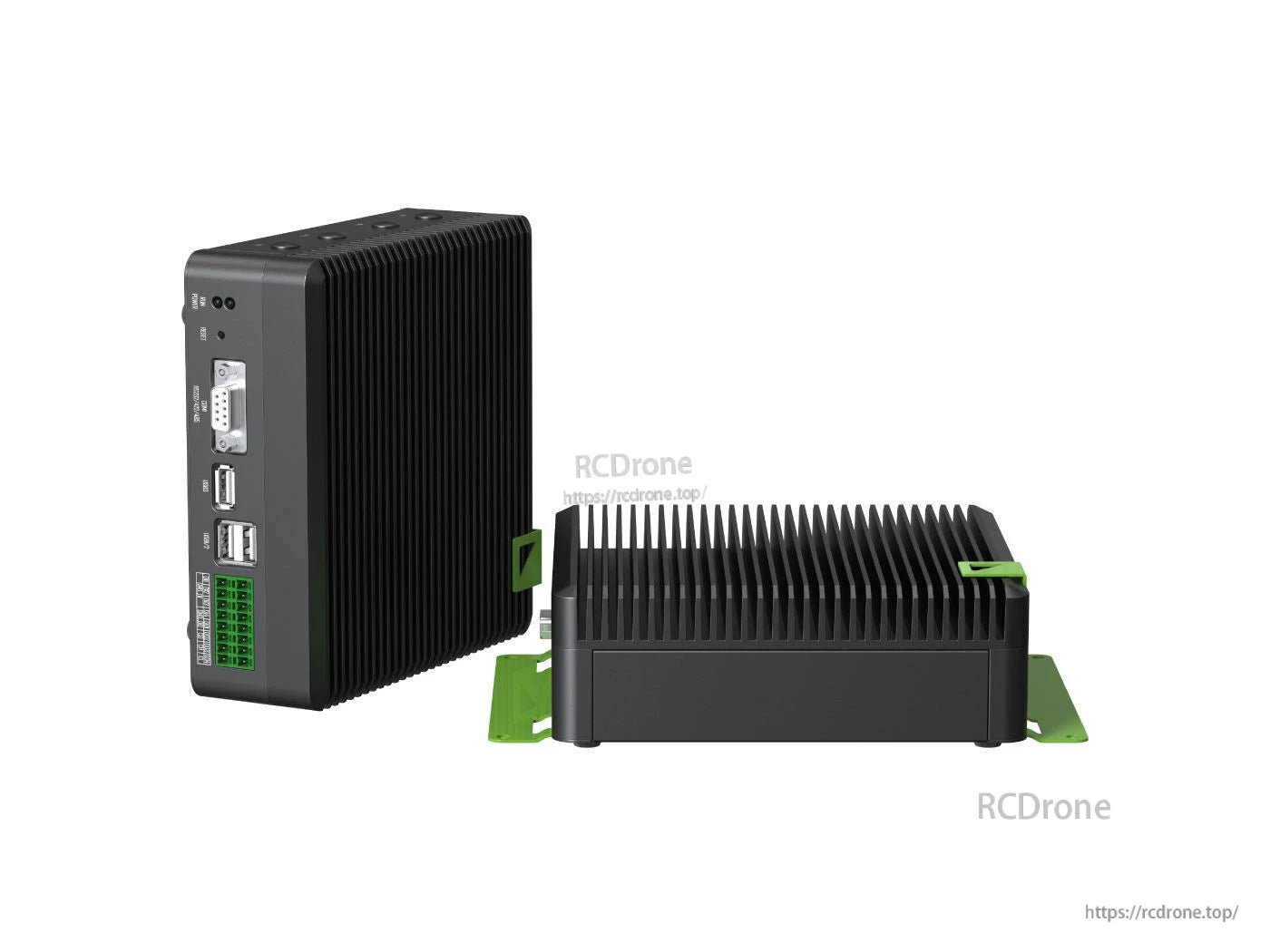

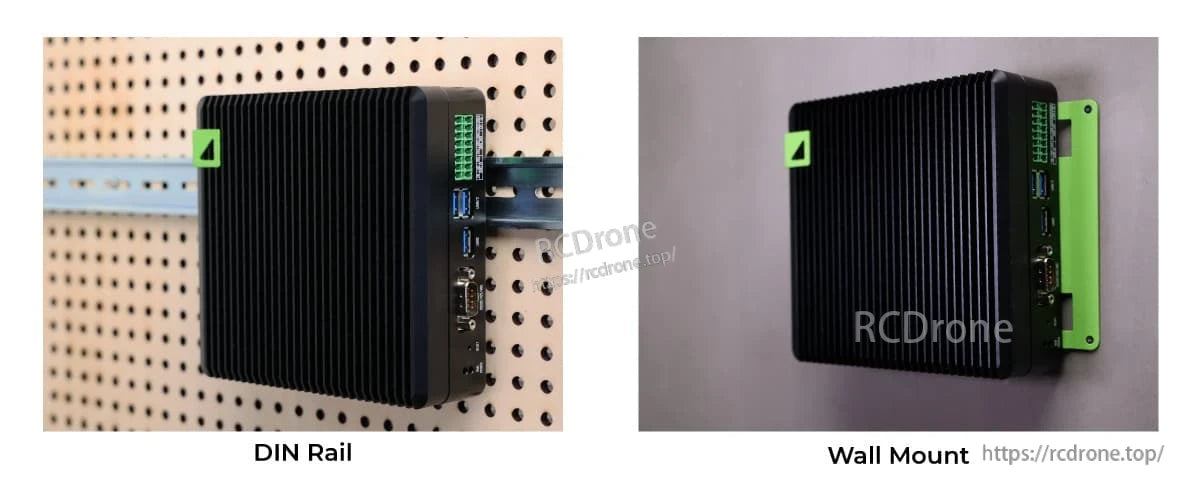

  • Flexible installation: Desk, DIN rail, wall-mounting, VESA
  • Dimensions: 159mm x 155mm x 57mm; Weight: 1.57kg

Note

If using SSDs with reComputer, Seeed recommends the 128GB, 256GB, and 512GB NVMe M.2 2280 versions from Seeed due to JetPack version compatibility differences observed across the market and even with NVIDIA official dev kits.

Specifications

AI Performance 70 TOPS (Jetson Orin NX 8GB)
GPU 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
CPU 6-core Arm® Cortex®-A78AE
Memory 8GB 128-bit LPDDR5
Video Decode 1x 8K30 (H.265); 2x 4K60 (H.265); 4x 4K30 (H.265); 9x 1080p60 (H.265); 18x 1080p30 (H.265)
Video Encode 1x 4K60 (H.265); 3x 4K30 (H.265); 6x 1080p60 (H.265); 12x 1080p30 (H.265)
DL Accelerator 2x NVDLA v2
Storage 1x M.2 Key M PCIe Gen4.0 SSD (M.2 NVMe 2280 SSD 128G included)
Ethernet 1x LAN1 RJ45 GbE PoE (PSE 802.3 af, 15 W); 1x LAN2 RJ45 GbE (10/100/1000Mbps)
Wi‑Fi/Bluetooth Support SMD Wi‑Fi/Bluetooth (customized production)
M.2 Key B 1x M.2 Key B supports 4G/5G (module optional)
USB 3x USB 3.2 Type-A (10Gbps); 1x USB 2.0 Type-C (Device mode); 1x USB 2.0 Type-C for Debug UART & RP2040
DI/DO & CAN 4x DI, 4x DO, 3x GND_DI, 2x GND_DO, 1x GND_ISO, 1x CAN
Serial (COM) 1x DB9 (RS232/RS422/RS485)
Display 1x HDMI 2.0 Type A
Camera 2x CSI (2-lane 15pin)
SIM 1x Nano SIM card slot
Fan / Thermal Fanless passive heatsink; 1x fan connector (5V PWM)
TPM 1x TPM 2.0 connector (module optional)
RTC 1x RTC socket (CR1220 included); 1x RTC 2-pin
Power Supply DC 12V–24V (terminal block 2-pin)
Power Adapter 19V power adapter (without power cord)
Power Efficiency 10W–20W (per product image)

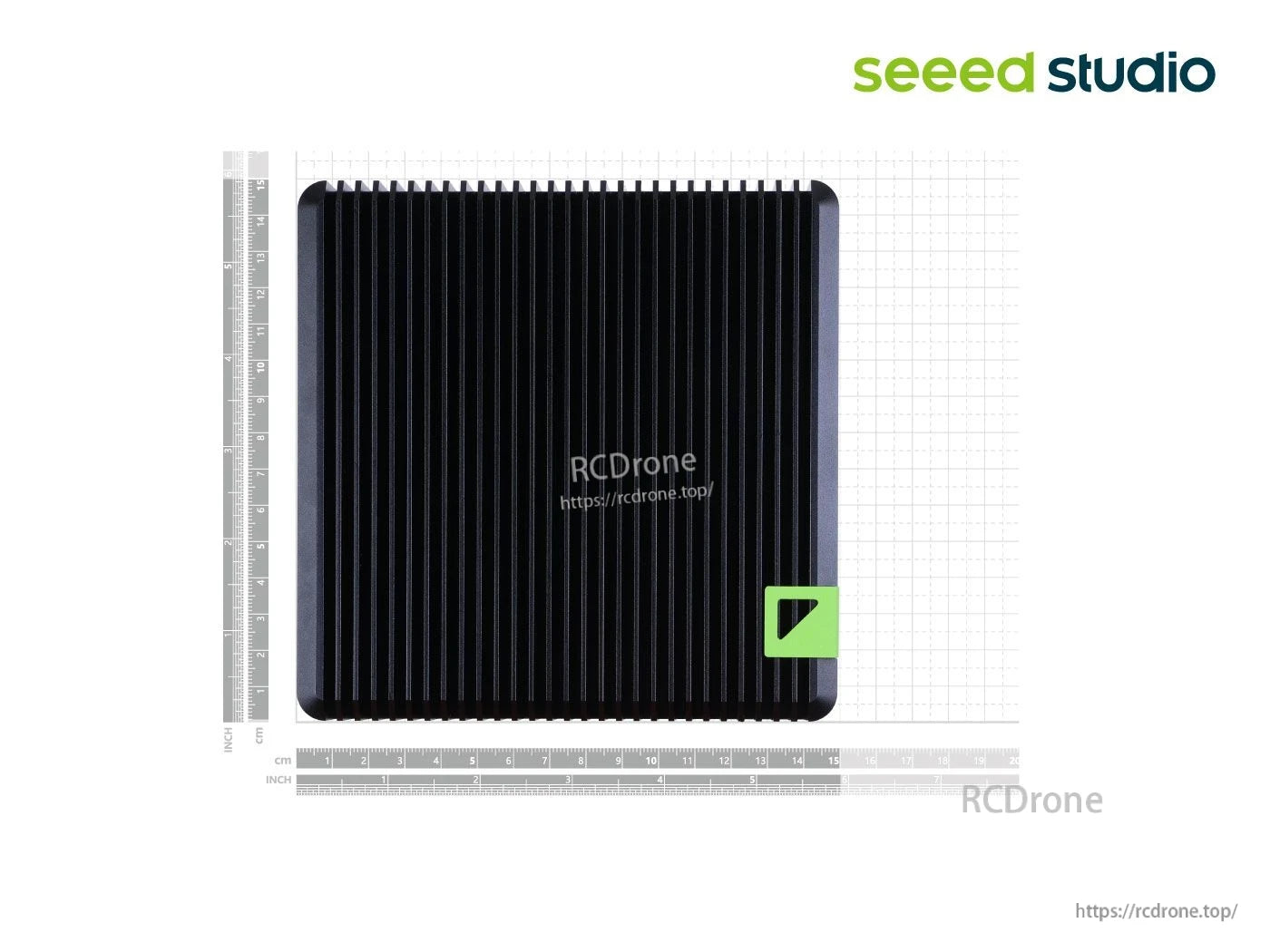

Dimensions (W x D x H) 159mm x 155mm x 57mm
Weight 1.57kg
Installation Desk, DIN rail, wall-mounting, VESA
Operating Temperature -20 ~ 60°C with 0.7m/s airflow
Operating Humidity 95% @ 40 °C (non-condensing)
Vibration 3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis
Shock 50G peak acceleration (11 msec)
Warranty 2 Years

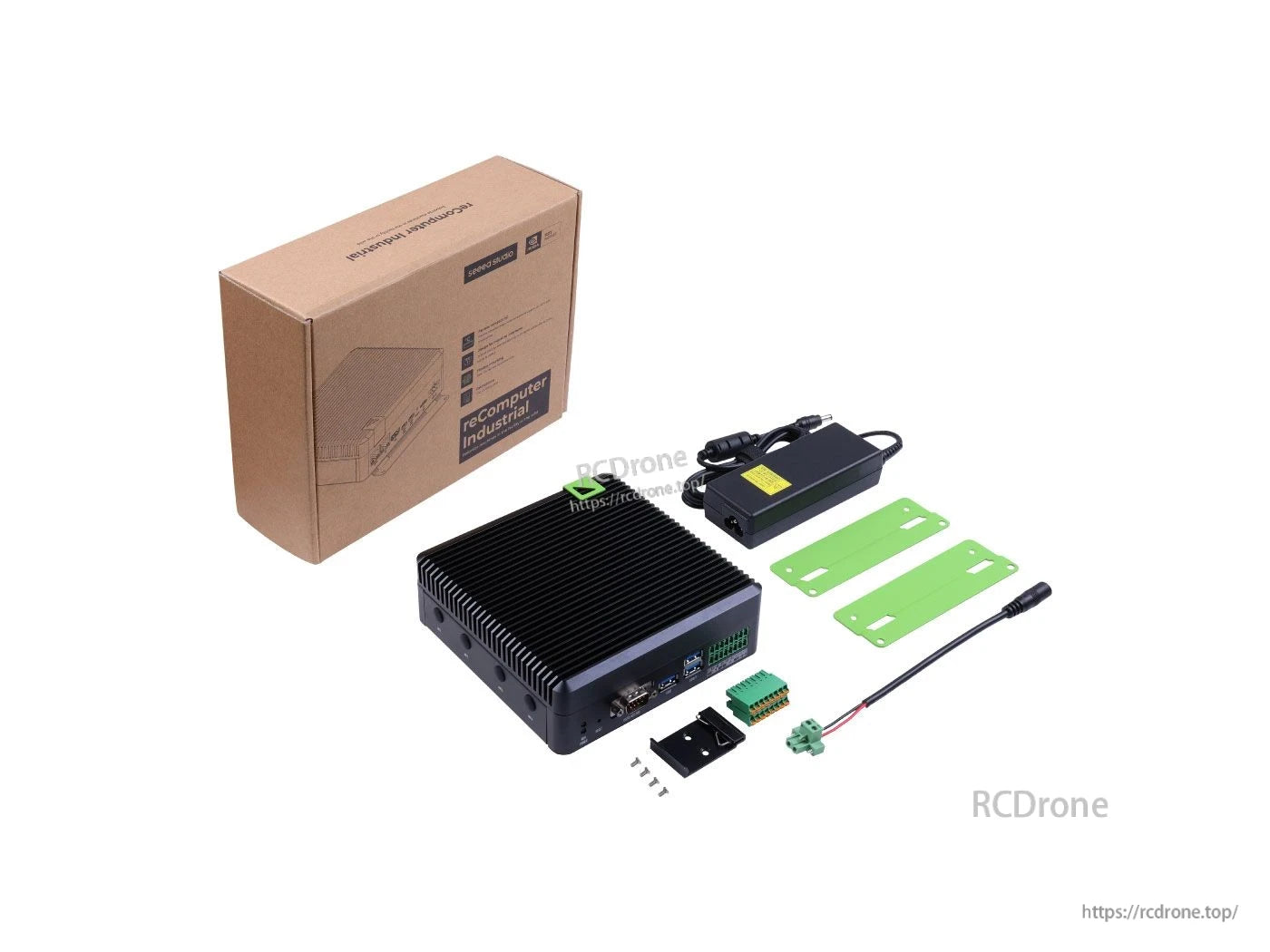

What’s Included

  • reComputer Industrial J4011 (system installed) x1
  • 19V Power Adapter (without power cord) x1

Note

The product includes a power adapter but does not include an AC cloverleaf power cord. Purchase a suitable AC cloverleaf power cord according to local socket specifications.

Applications

  • AI Video Analytics
  • Machine Vision
  • Medical Imaging
  • Autonomous Mobile Robot (AMR)
  • Generative AI

Manuals

Details

J4011 Edge AI Computer, Elite Partner NVIDIA Jetson Orin Computer for industrial AI applications with high-performance, open-source, and power-efficient features.

Elite Porter NVIDIA reComputer Industrial J4011 Lite Jetson Orin, featuring up to 70 TOPS of NVIDIA performance, 8GB of RAM, and a fanless design. It measures 159mm x 155mm x 20w with an operating temperature range of ~20°C to 60°C. The device has multiple I/O options, including RJ-45 GbE, M2 KEY, and USB ports.

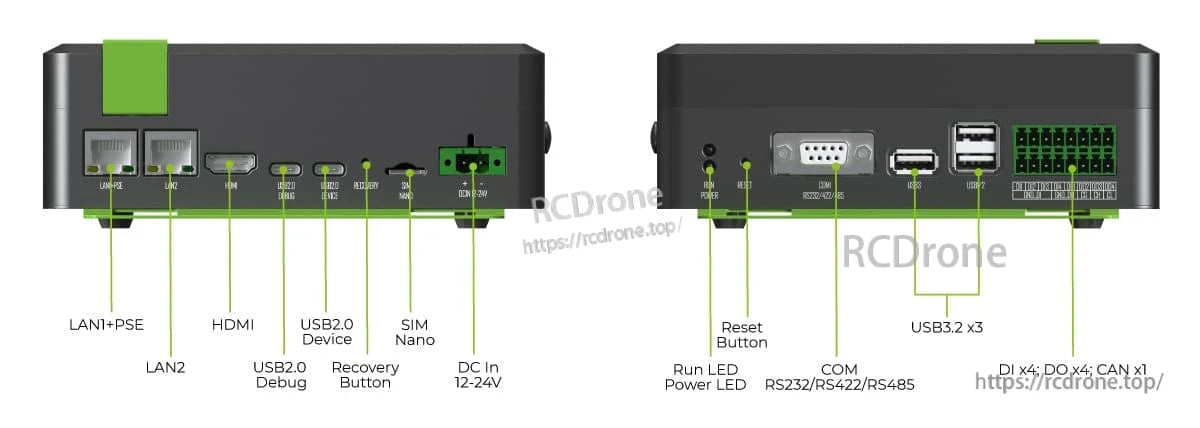

J4011 Edge AI Computer, WDLI image features LANI-PSE HDMI and USB-ZO interfaces, SIM reset option, U5B3.2 processor, and nano Bulton device with LAN2 and USB-Z.0 connectivity.

A device for resetting a WDL interface with HDMI and USB capabilities. It has SIM reset features, with x3 devices in Nano format from Bolton. The product supports LAN2, USB0 recovery, DC power input, and debugging via ED COM Dlx4 and DOx4 interfaces, along with CAN XL and RS232/RS422/RS485 communication.

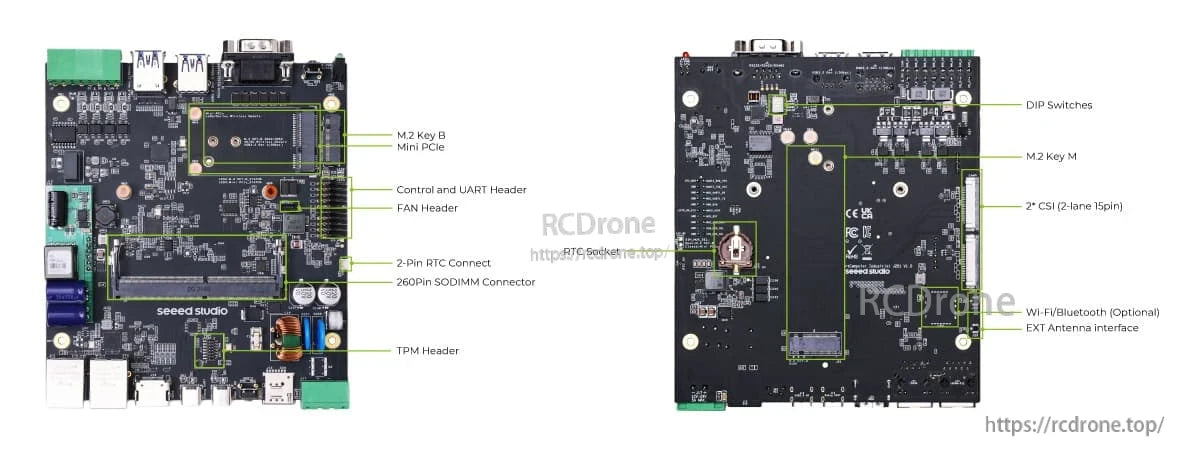

J4011 Edge AI Computer, Unboxed NWA DIP switches and MZ key for Mini PCle DCE with EC E control and other components from Seeed Studio.

Unowa Nwa Bubi DIP Switches MZ Key 845 Mini PC with Cleared MZ Key, EC Control and UART Header, FAN header C5I (2-lane I Spin), RTC Socket 2-Pin RTC Connect, Z6 open pin SODIMM connector. Also features Wi-Fi Bluetooth (Optional) FXT Antenna interface and TPM Header.

J4011 Edge AI Computer, Jetson Orin NX module features AI performance, industrial interfaces, display and camera connectivity, storage, wireless expansion, and power efficiency options.J4011 Edge AI Computer, Applications and manuals for AI video analytics, machine vision, medical imaging, autonomous robots, generative AI, and Seeed Nvidia Jetson products.J4011 Edge AI Computer, Applications and manuals for AI, machine vision, medical imaging, and robotics, including datasheets and 3D files.J4011 Edge AI Computer, The text lists various applications and manuals related to AI, robotics, medical imaging, and electronics.J4011 Edge AI Computer, Hybrid connectivity options include 5G/4G/LTE/LoRaWAN/GPS with Nano SIM slot, and industrial I/O covers various interfaces.
