reComputer J1020 v2 Edge AI Computer with NVIDIA Jetson Nano 4GB, 0.5 TOPS, 16G eMMc, M.2 Key M, 4x USB3, HDMI & DP

Overview

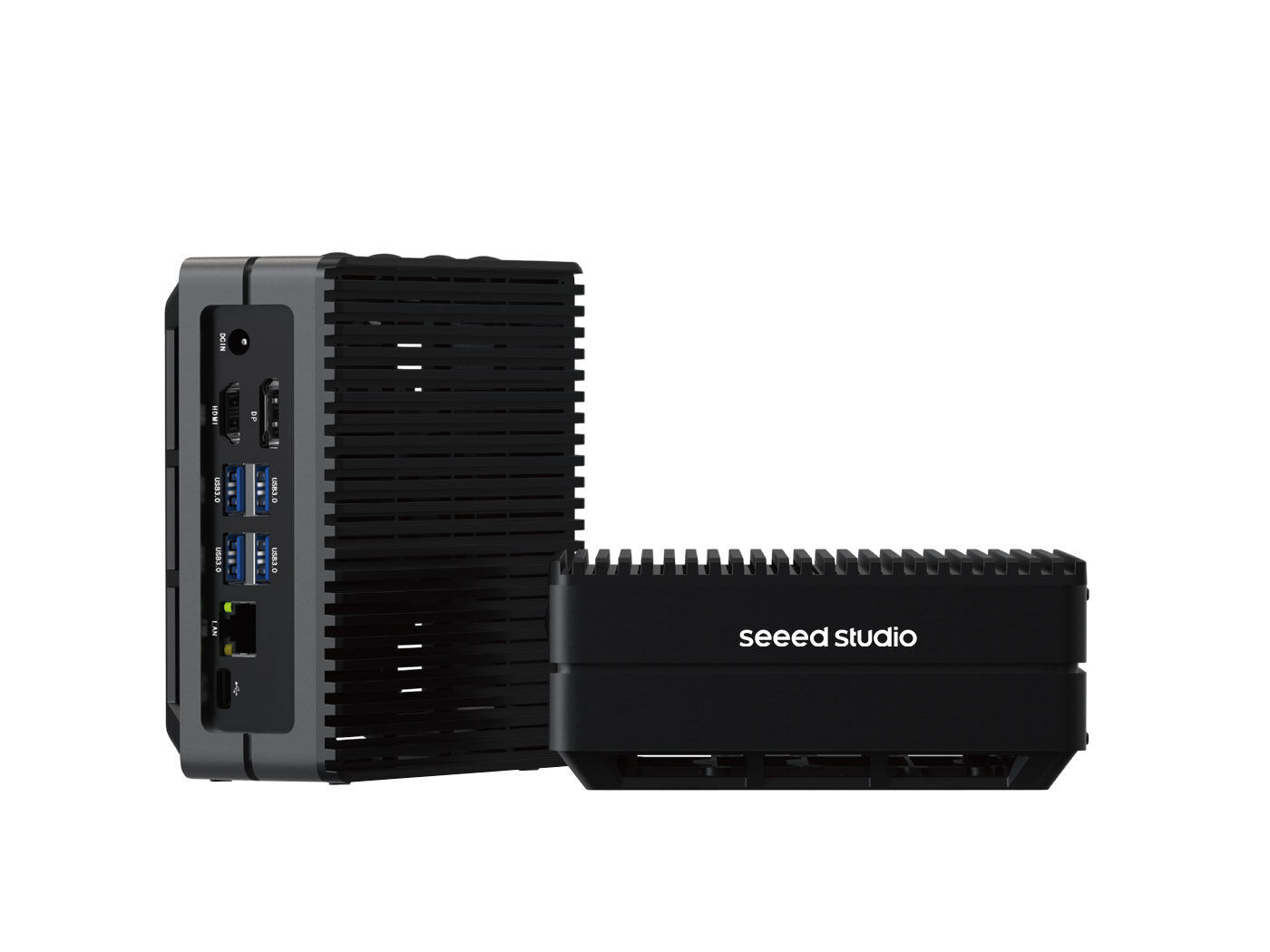

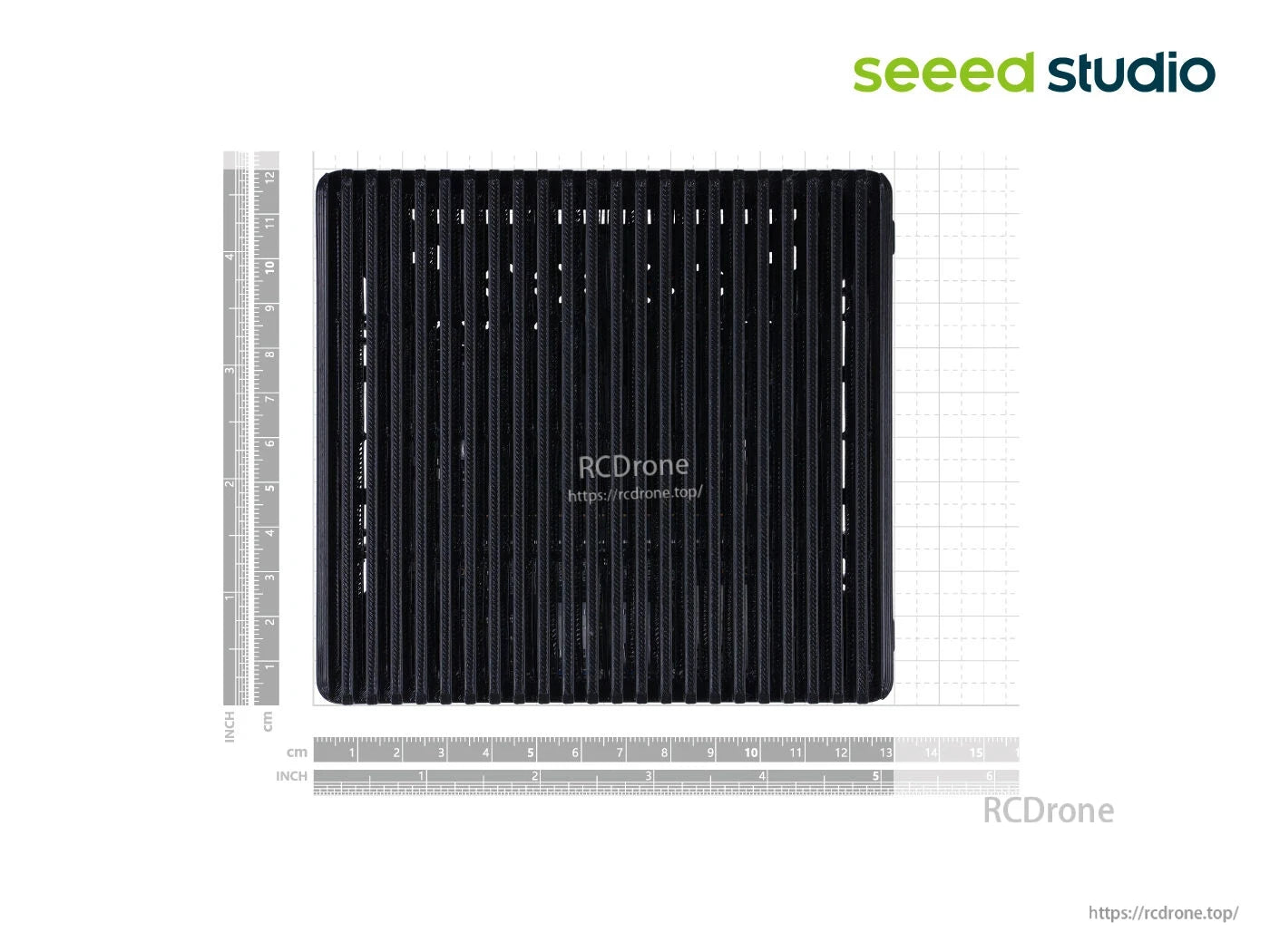

reComputer J1020 v2 is an Edge AI Computer built on the NVIDIA Jetson Nano 4GB production module, delivering 0.5 TOPS AI performance in a compact, hand-sized aluminum enclosure with a passive heatsink. It comes ready for development with NVIDIA JetPack 4.6, onboard 16G eMMc, and a rich I/O set including 4x USB 3.0 Type‑A, 2x CSI camera connectors, HDMI, DP, RJ‑45 Gigabit Ethernet, M.2 Key M, and DC Jack 12V/2A. Mechanical dimensions are 130mm x 120mm x 58.5mm (with case).

Key Features

Compute and software

• NVIDIA Jetson Nano 4GB production module, 0.5 TOPS AI performance.
• Pre-installed NVIDIA JetPack 4.6 for rapid development and deployment; supports NVIDIA embedded developer tools and industry AI frameworks.

I/O and expansion

• 4x USB 3.0 Type‑A; 1x Micro‑USB port for device mode.
• 2x CSI (2‑lane 15‑pin) camera connectors.
• 1x HDMI Type‑A; 1x DP.
• M.2 Key M for SSD, LTE, and Bluetooth; onboard RTC; Raspberry Pi GPIO 40‑pin; 12‑pin Control and UART header; 4‑pin fan connector (5V PWM).

Mechanical and power

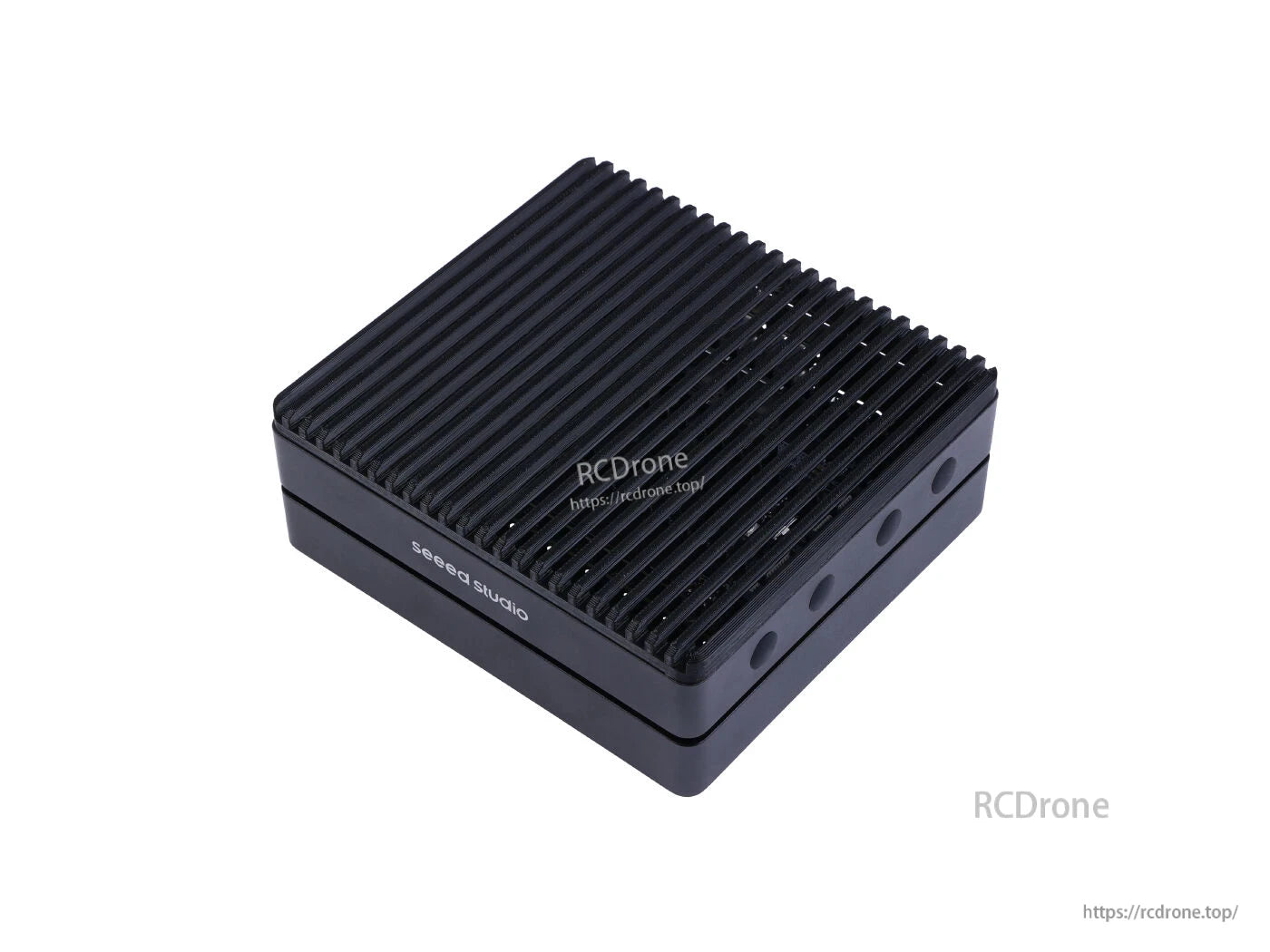

• Aluminum case with passive cooling.
• Desk or wall mounting.
• Power-efficient operation via DC Jack 12V/2A.

Notes

• The official NVIDIA Jetson Nano Developer Kit has reached EOL. reComputer J10 full system is a recommended alternative to the Jetson Nano Developer Kit.
• Using certain GPIO libraries may cause floating voltage (1.2V~2V), which can lead to GPIO issues on carrier boards. This is a common situation on reComputer series and official NVIDIA Jetson developer kits; after-sales/warranty does not apply to this issue. For details, see the NVIDIA official document.
• For the version without a power adapter, see reComputer J1020 v2 without power adapter.

Specifications

What’s Included

• reComputer J1020 v2 (System Installed) x1

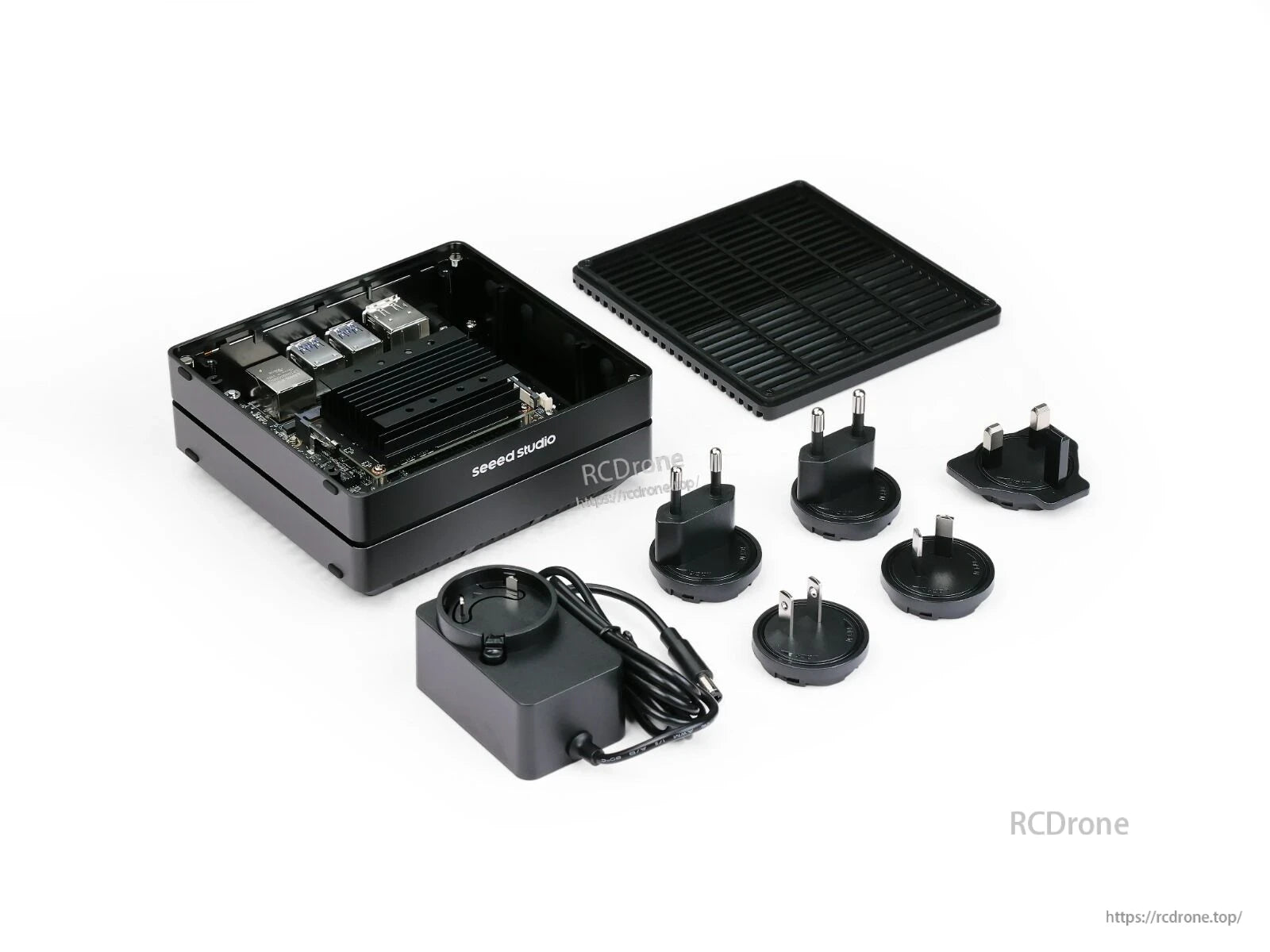

• 12V/2A power adapter (with 5 interchangeable adapter plugs) x1
• *We will not include a 3V RTC battery

Applications

• Computer Vision
• Machine Learning
• Autonomous Mobile Robot (AMR)

Manuals

• Datasheet
• Schematic
• 3D File
• Seeed Nvidia Jetson Product Catalog
• Nvidia Jetson Comparison
• Nvidia Jetson Product Comparison
• Seeed Nvidia Jetson Success Cases
• Seeed Jetson One Pager

Details

NVIDIA Jetson Nano 4GB powers the reComputer J1020 v2 with 0.5 TOPS AI performance, offering a compact alternative to the Jetson Nano B01 Dev Kit. Measuring 130mm x 120mm x 58.5mm with case, it features 1x HDMI, 1x DisplayPort, 4x USB 3.0 Type-A, and 1x Micro-USB for device mode. Includes M.2 KEY M slot for SSD, DC Jack (12V/2A), and supports JetPack 4.6. Ideal for robotics, computer vision, and AI-driven applications, it delivers powerful, space-efficient computing in a ready-to-use design.

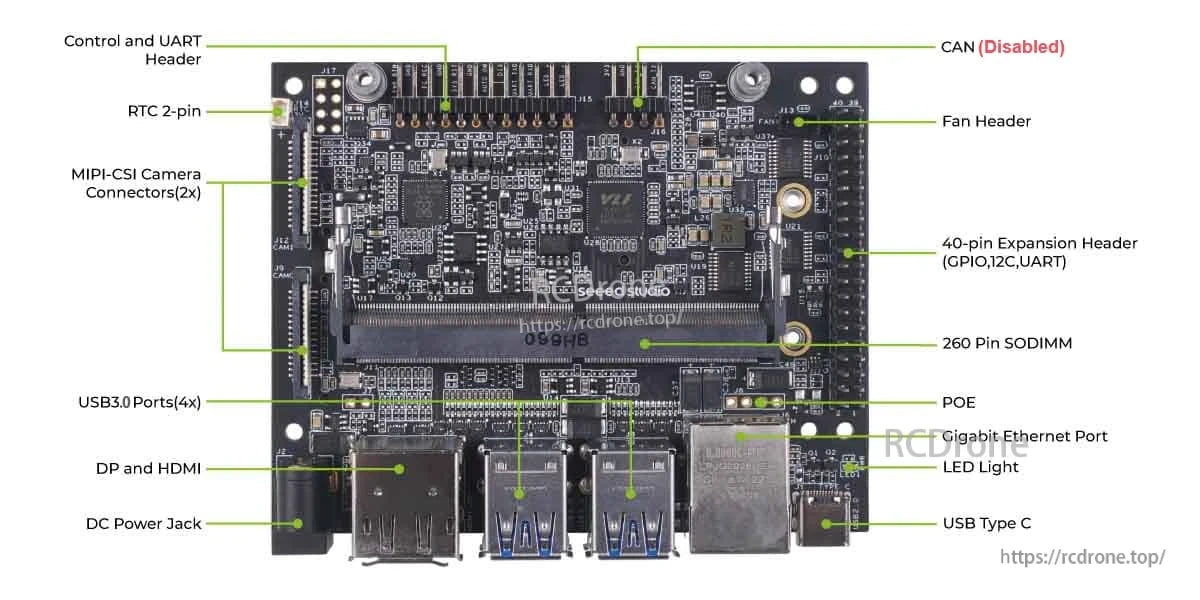

Product features: Control and UART CAN (disabled), header for RTC, 2-pin fan header, MIPI-CSI camera connector, two ooco connectors, Quinno 40-pin expansion header with GPIO, I2C, and UART, seeedstudio audio module, 260-pin SODIMM slot, USB3.0 ports (4x), POE gigabit Ethernet port, DisplayPort, HDMI, LED light indicator, DC power jack, and USB Type-C port.

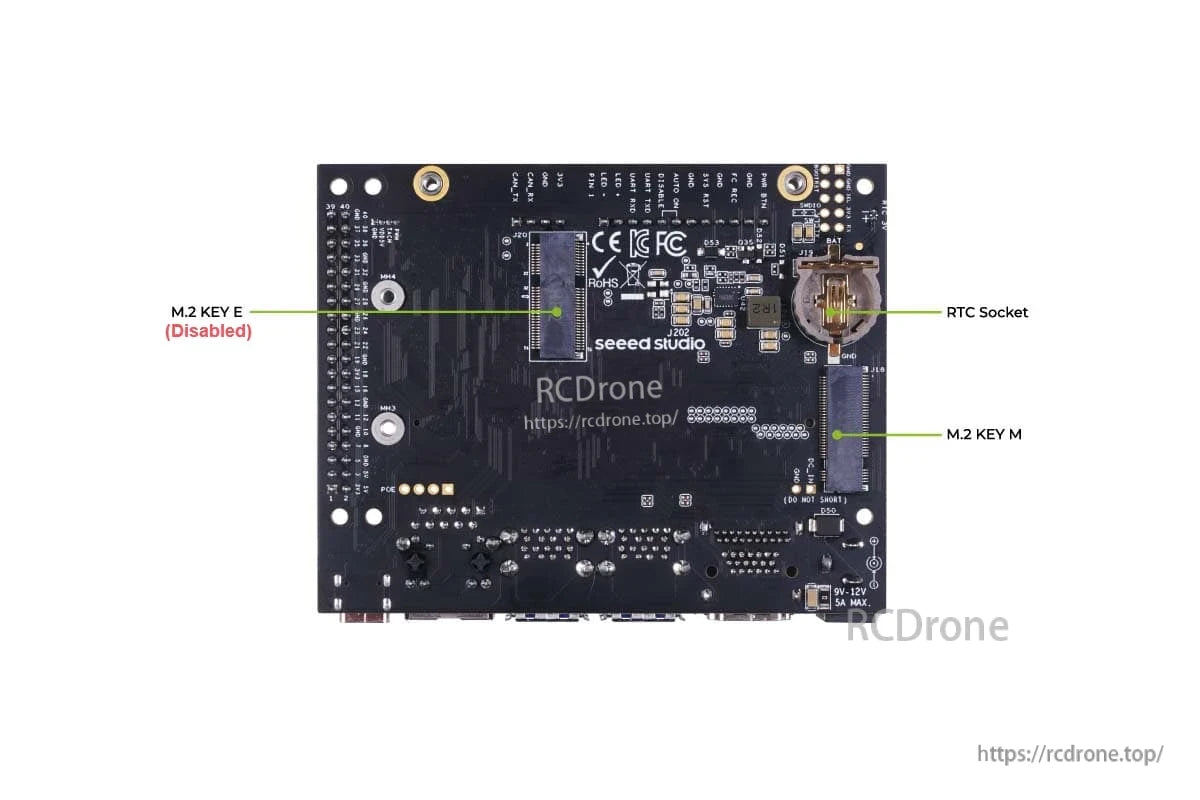

Jetson Nano AI Computer with M.2 KEY E (Disabled), M.2 KEY M, RTC Socket, and various connectors; labeled components include power input, USB ports, and GPIO pins.
