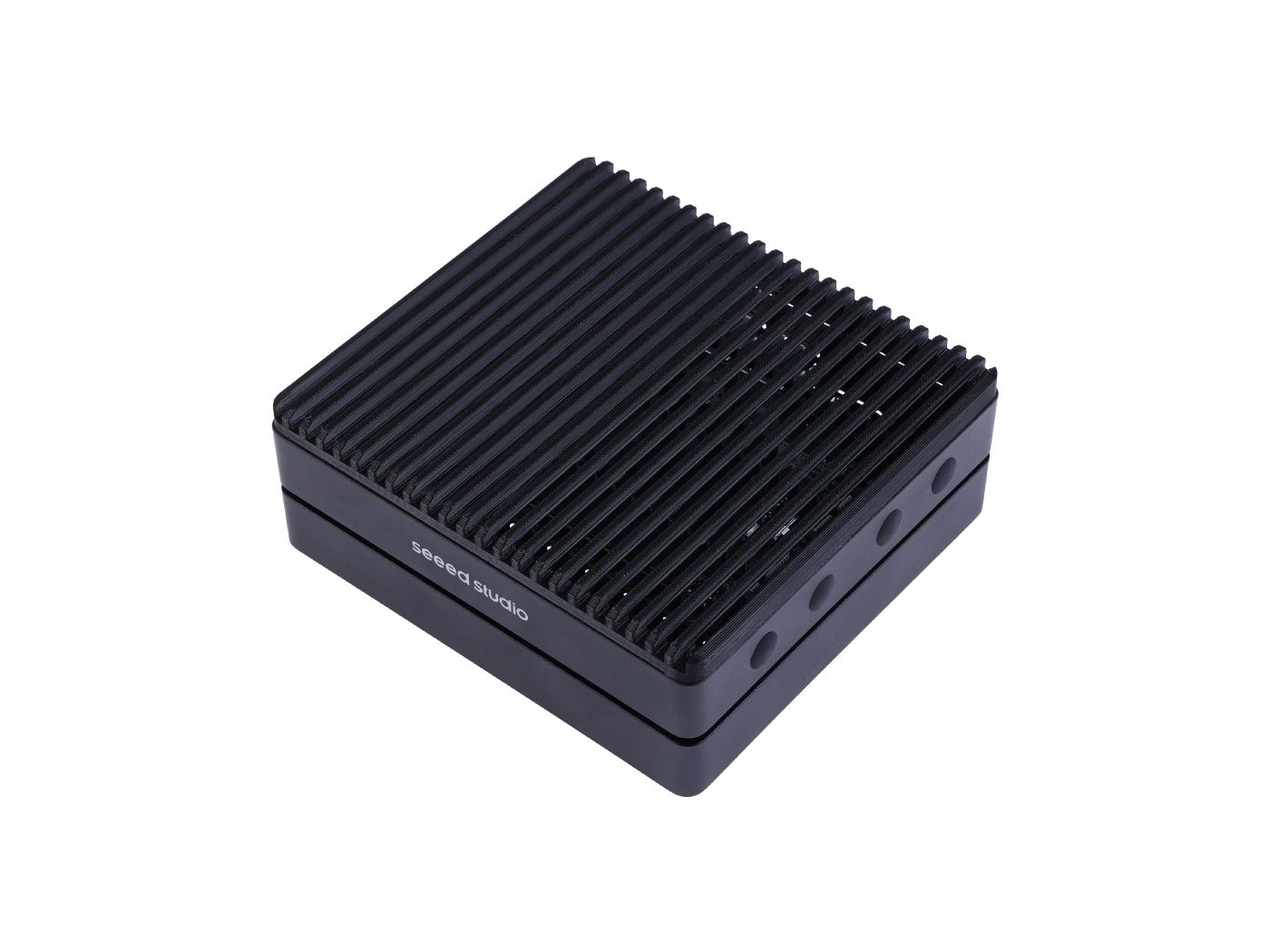

reComputer J1020 v2 (w/o power adapter) Edge AI Computer with NVIDIA Jetson Nano 4GB, 0.5 TOPS, 16GB eMMC, M.2 Key M

Overview

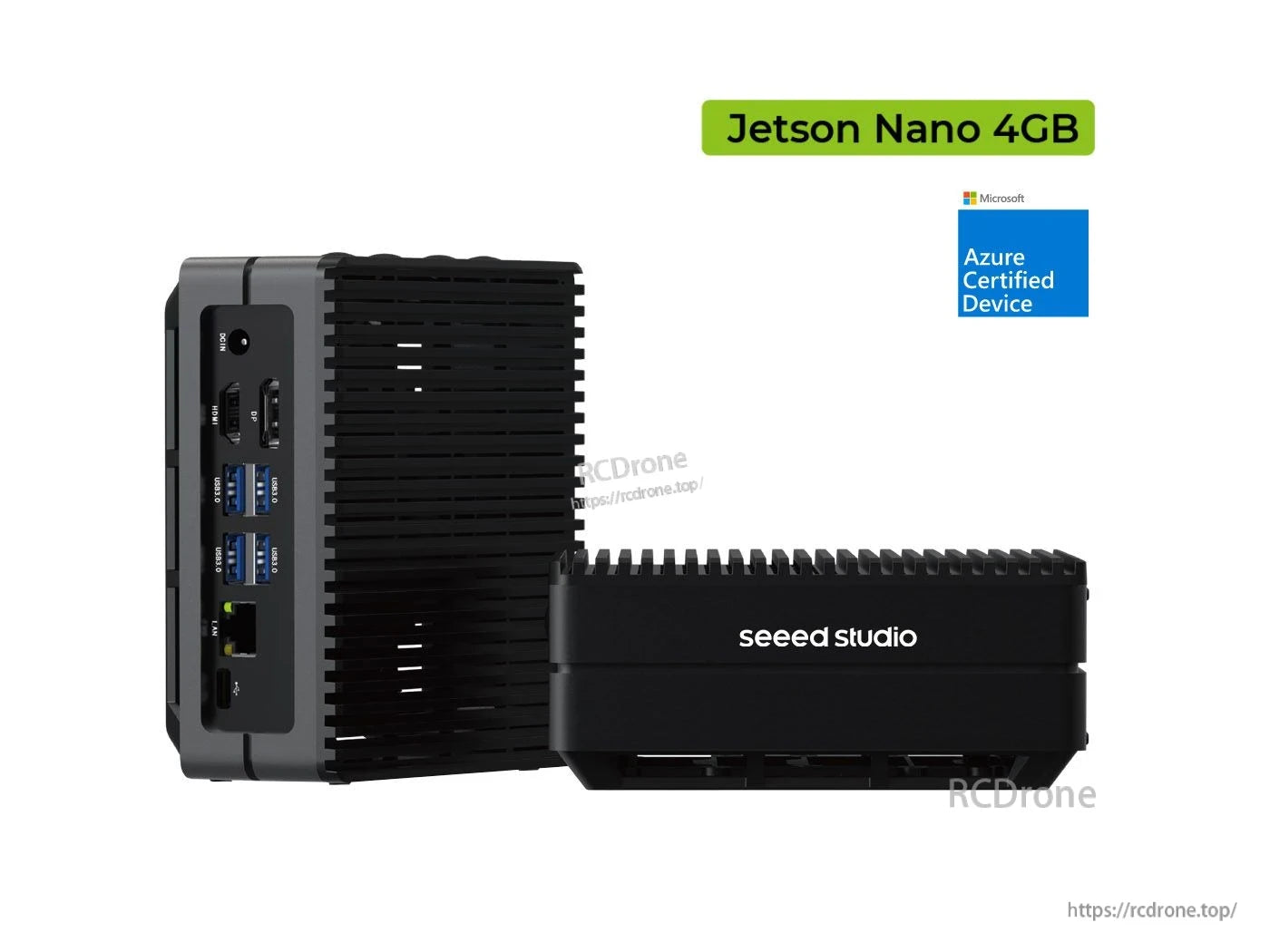

reComputer J1020 v2 (w/o power adapter) is an Edge AI Computer built on the NVIDIA Jetson Nano 4GB production module, delivering 0.5 TOPS AI performance in a hand-sized aluminum enclosure with a passive heatsink. It comes with JetPack 4.6.1 pre-installed and onboard 16 GB eMMC, and provides rich I/O including 2x CSI camera connectors, 4x USB 3.0, HDMI, DP, and an M.2 Key M slot for SSD expansion.

Key Features

• NVIDIA Jetson Nano 4GB production module; 0.5 TOPS AI performance
• Pre-installed NVIDIA JetPack 4.6.1
• Compact aluminum case with passive heatsink
• Onboard 16 GB eMMC storage and M.2 Key M PCIe for SSD
• Rich I/O: 4x USB 3.0 Type-A, 2x CSI (2-lane 15-pin), 1x HDMI Type A, 1x DP
• Gigabit Ethernet RJ-45 (10/100/1000M)
• 40-pin expansion header, 12-pin control & UART header, 4-pin fan connector (5V PWM), RTC
• Power input: 9–12V DC

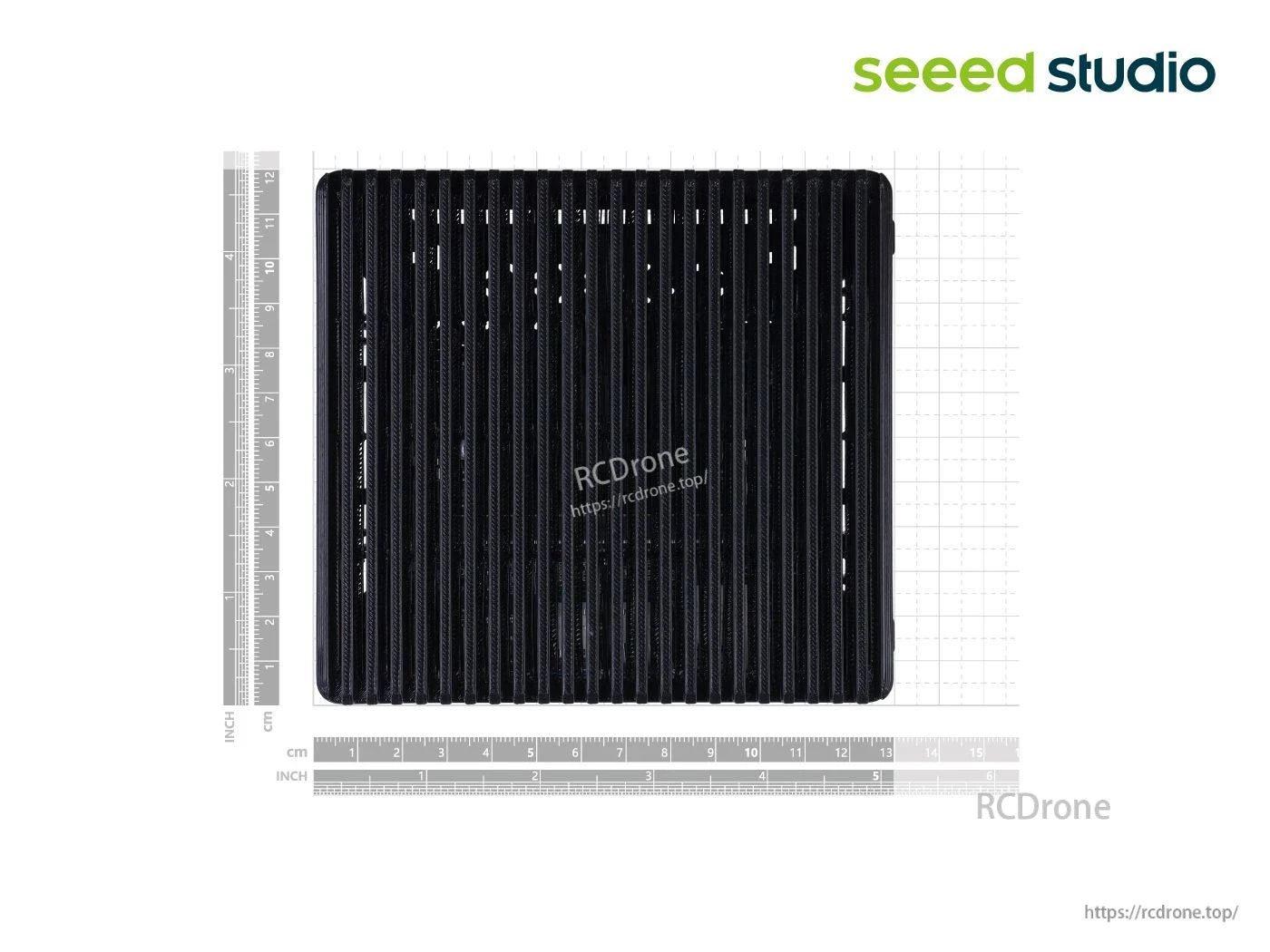

• Mechanical size: 130 mm x 120 mm x 58.5 mm (with case); desk or wall mounting
• Board highlights from product images: USB Type-C, PoE marking, CAN (Disabled), M.2 Key E (Disabled), DC power jack

Specifications

Notes

• The official NVIDIA Jetson Nano Developer Kit has reached EOL. reComputer J1020 v2 is a replacement choice for Jetson Nano Developer Kit users.
• GPIO libraries that induce floating voltage (1.2V–2V) can cause GPIO issues; normal voltage should be ~3V. Warranty does not apply to this issue. Refer to NVIDIA’s official document for details.
• If a version with power adapter is required, see: reComputer J1020 v2 Edge device.

What’s Included

• reComputer J1020 v2 (System Installed) x1
• No 3V RTC battery included
• This SKU is shipped without a power adapter

Applications

• Computer Vision
• Machine Learning
• Autonomous Mobile Robot (AMR)

Documents

• Datasheet
• Schematic
• 3D File
• Seeed NVIDIA Jetson Product Catalog
• NVIDIA Jetson Comparison
• NVIDIA Jetson Product Comparison
• Seeed NVIDIA Jetson Success Cases
• Seeed Jetson One Pager

Certification

REACH | RoHS

Hardware Overview

reComputer J202 carrier board, included in the full system reComputer J1020 v2. Desktop, wall-mount, expandable, fit anywhere.

Details

The reComputer J1020 v2 is an edge AI computer powered by the NVIDIA Jetson Nano 4GB, delivering 0.5 TOPS AI performance. It serves as an alternative to the Jetson Nano B01 Dev Kit. With dimensions of 130mm x 120mm x 58.5mm (with case), it supports JetPack 4.6 and operates on 9-12V DC power. Features include 1x HDMI, 1x DP, 4x USB 3.0 Type-A, and 1x Micro-USB for device mode. It supports M.2 KEY M for SSD storage. Designed for robotics and computer vision applications, it is ideal for AI-driven projects requiring compact, high-performance computing.

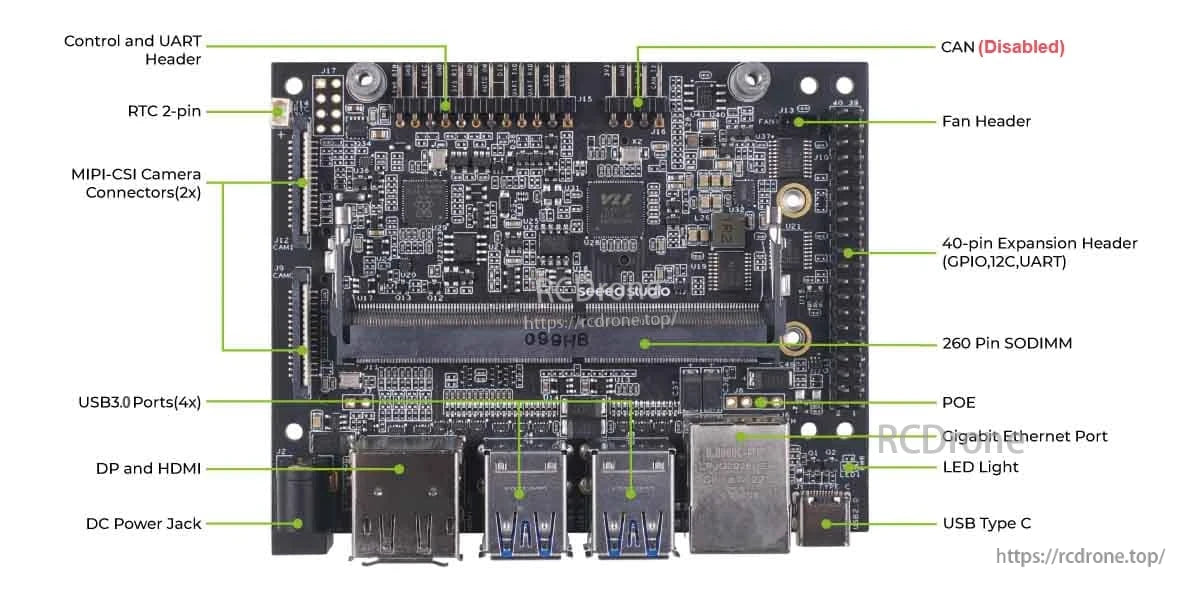

This product features a control and UART CAN header with disabled mode, an RTC 2-pin fan header, and a MIPI-CSI camera connector. It also includes Quinno 40-pin expansion header supporting GPIO, I2C, and UART protocols. Additionally, it has ISeeD 260-pin SODIMM interface for USB3.0 connectivity with four ports, POE gigabit Ethernet port, display and HDMI connectors, LED light indicator, DC power jack, and a single USB Type-C port.

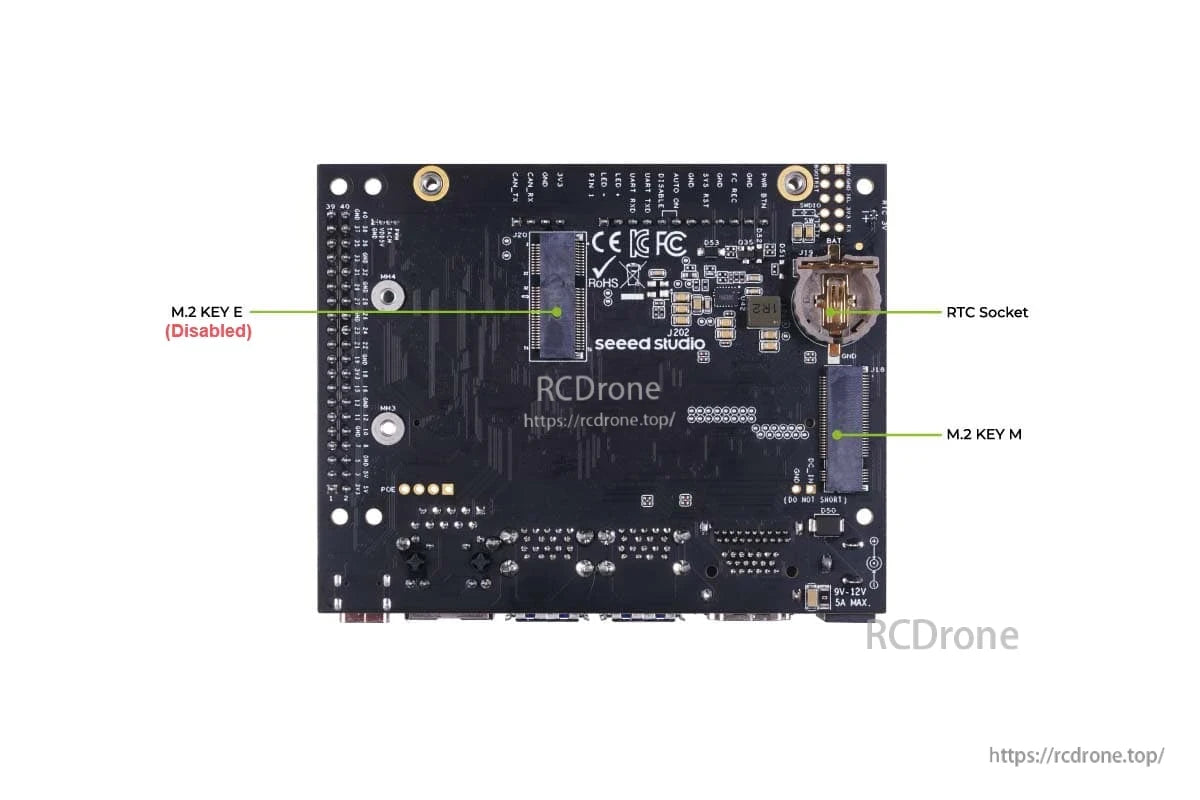

J1020 Edge AI Computer includes M.2 KEY E (disabled), M.2 KEY M, RTC socket, multiple connectors, CE, FCC, RoHS certifications, and Seeed Studio branding.
