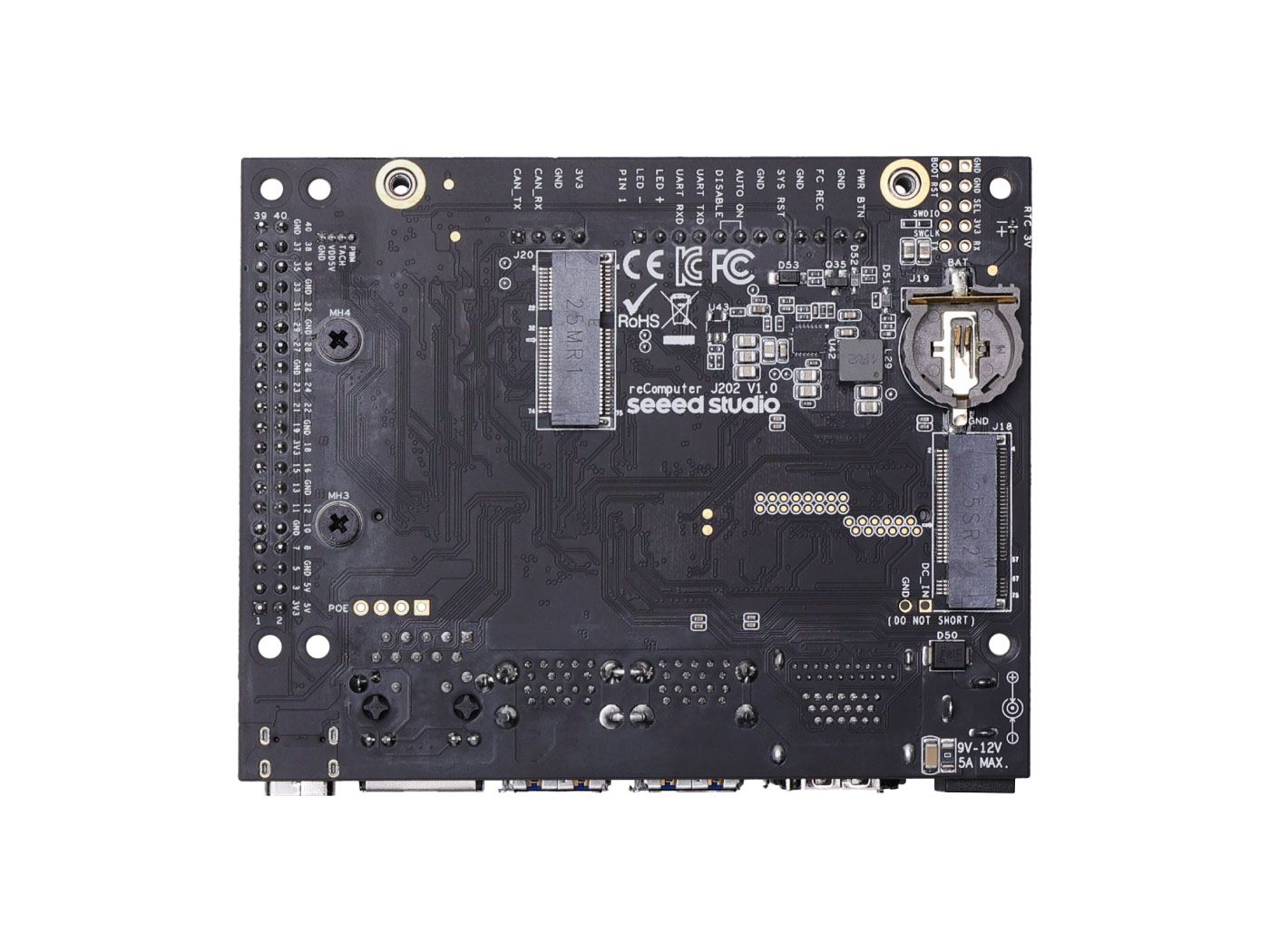

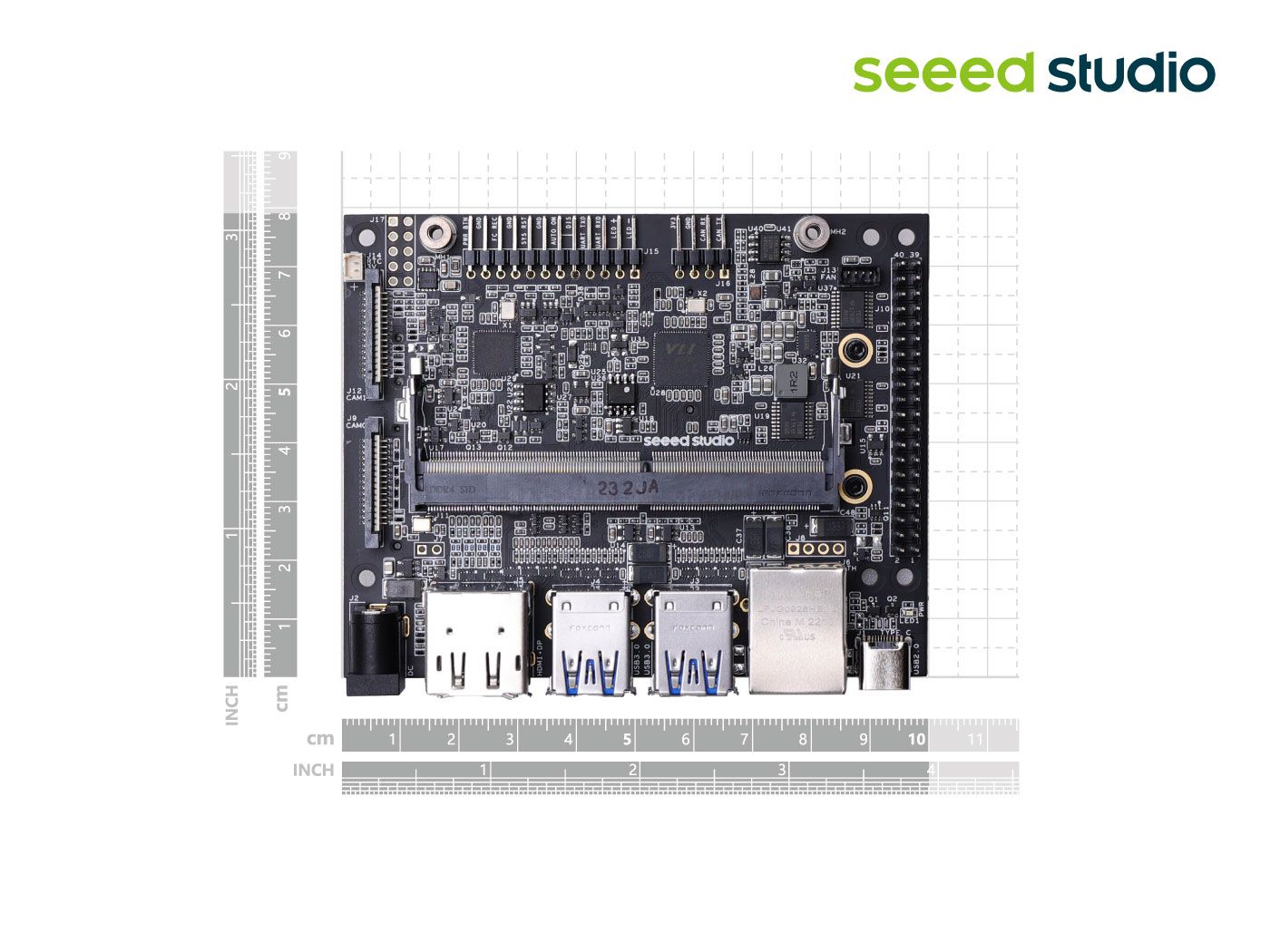

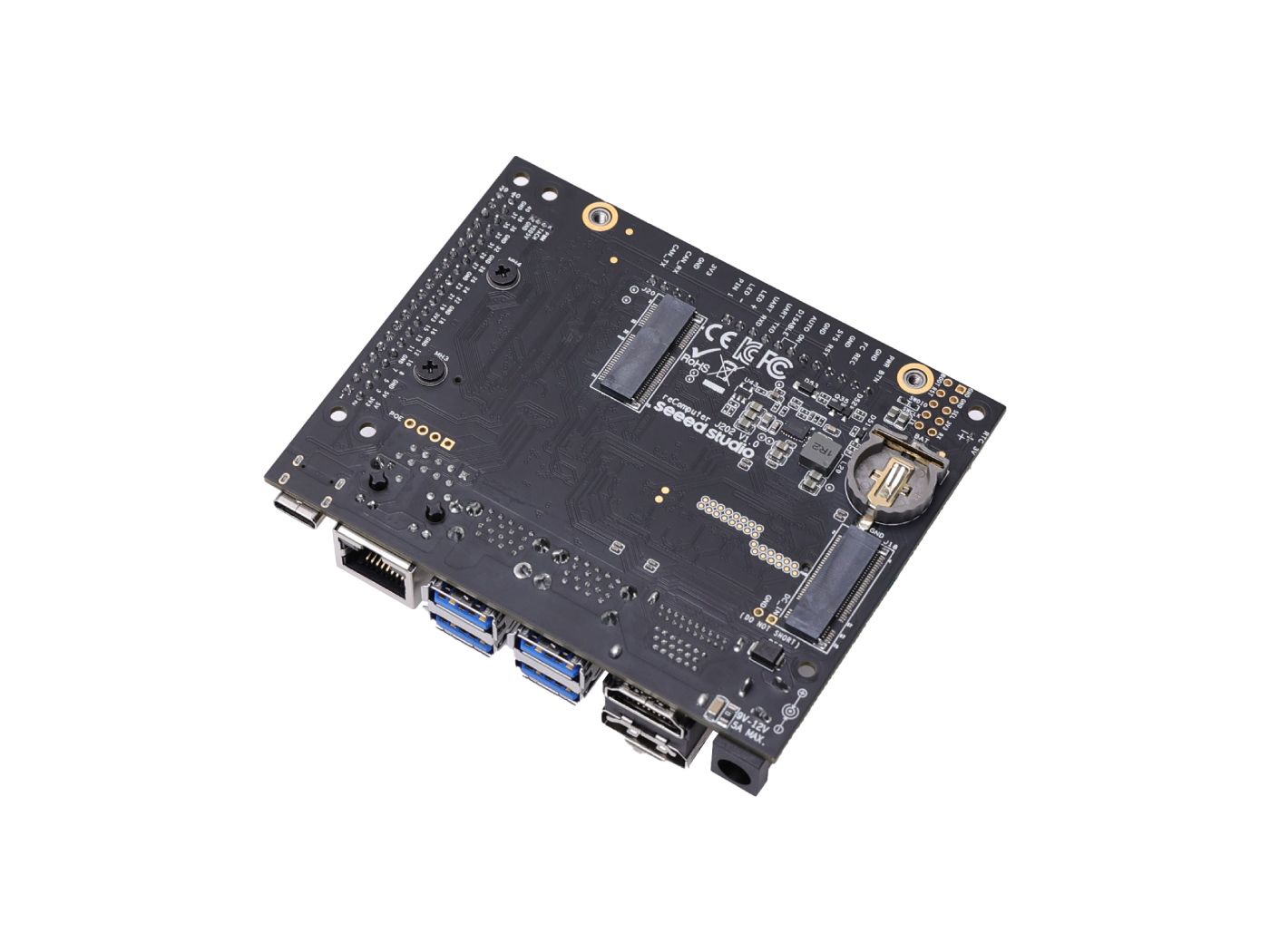

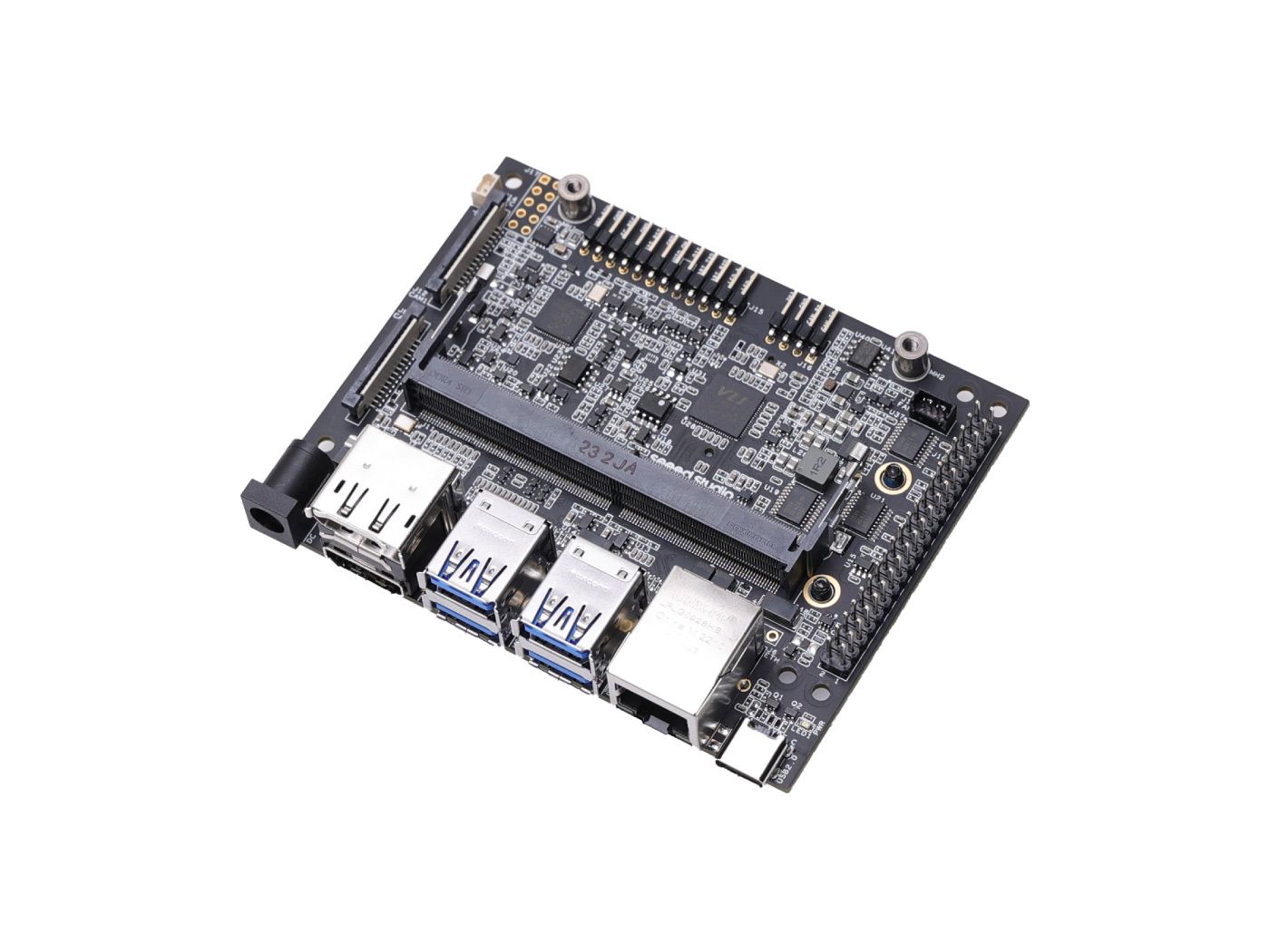

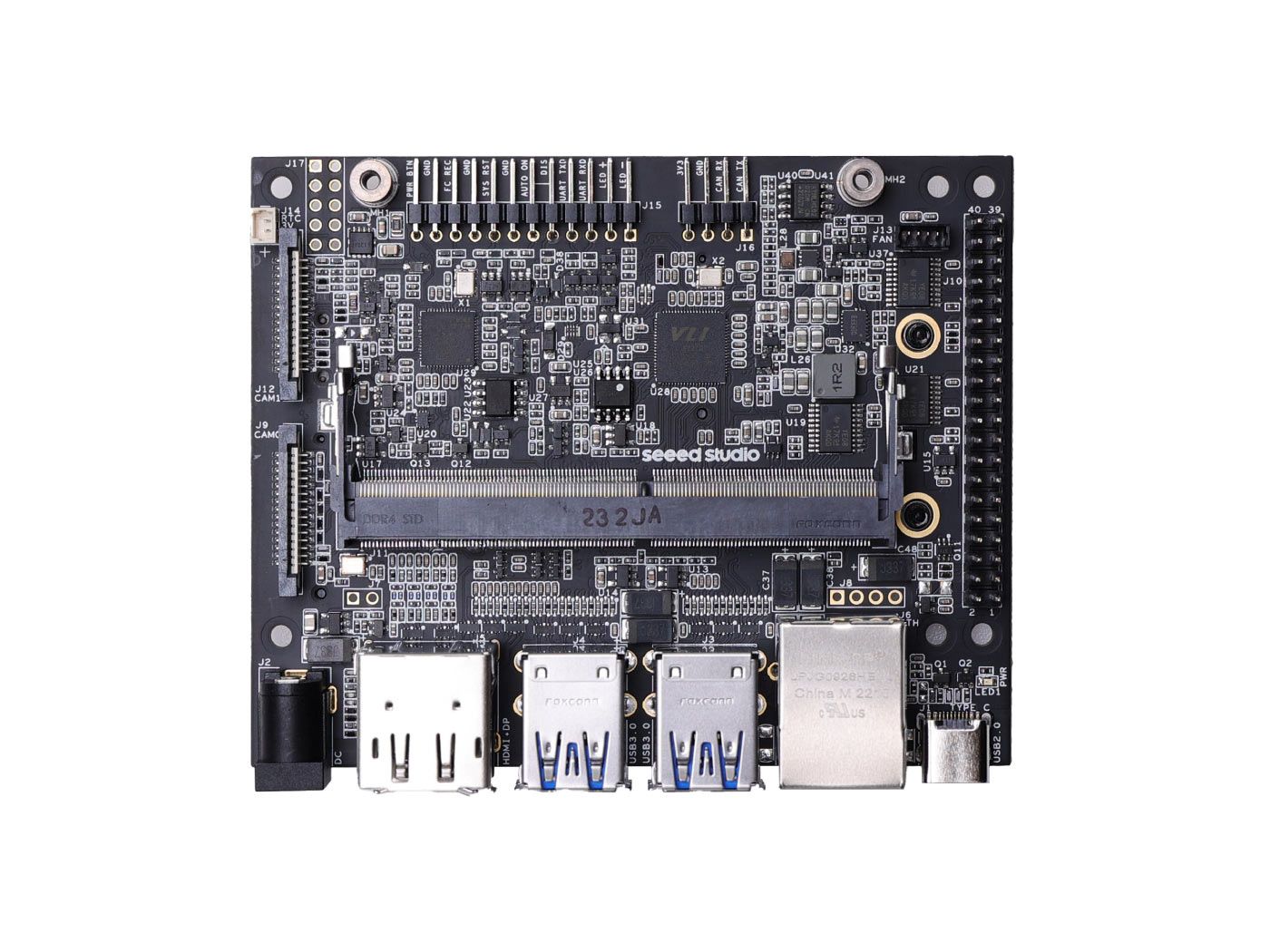

reComputer J202 - Carrier Board for Jetson Xavier NX/Nano/TX2 NX (w/o Power Adapter)
reComputer J202 - Carrier Board for Jetson Xavier NX/Nano/TX2 NX (w/o Power Adapter)
Seeed Studio
Couldn't load pickup availability
reComputer J202 has nearly the same design and function as NVIDIA® Jetson Xavier NX™ carrier board, perfectly works with Jetson Nano/Xavier NX/TX2 NX module, and consists of 4x USB 3.1 gen 2 ports, M.2 key E for WIFI, M.2 Key M for SSD, RTC, CAN, Raspberry Pi GPIO 40-pin, and so on.
Feature
Specification
|
Carrier Board |
||
|
Storage |
1x M.2 Key M |
|
|
Networking |
Ethernet |
1x RJ-45 Gigabit Ethernet (10/100/1000M) |
|
M.2 KEY E |
1x M.2 Key E for WiFi/Bluetooth module |
|
|
I/O |
USB |
4x USB 3.1 Type-A (10Gbps for Xavier NX, 5Gbps for Nano), 1x USB2.0 Type-C (Device Mode) |
|
Camera |
2x CSI |
|
|
Display |
1x HDMI 2.1, 1x DP |
|
|
Fan |
1x Fan Connector |
|
|
CAN |
1x CAN (Just for Nvidia Xavier Series) |
|
|
Multifunctional Port |
1x 40-Pin Expansion header 1x 12-Pin Control and UART header |
|
|
RTC |
1x RTC 2-pin |
|
|
Power |
DC 12V/5A |
|
|
Mechanical |
Dimensions (W x D) |
100mm x 80mm |
|
Installation |
Desk, wall-mounting |
|
|
Operating Temperature |
0℃~60℃ |
|
Hardware Overview
Application
Application Fields:
- AI Video Analytics
- Machine Vision
- Autonomous Mobile Robot (AMR)
Certification
| HSCODE | 8543909000 |
| USHSCODE | 8543903500 |
| UPC | |
| EUHSCODE | 8543709099 |
| COO | CHINA |
Part List
|
reComputer J202 Carrier Board |
x1 |
