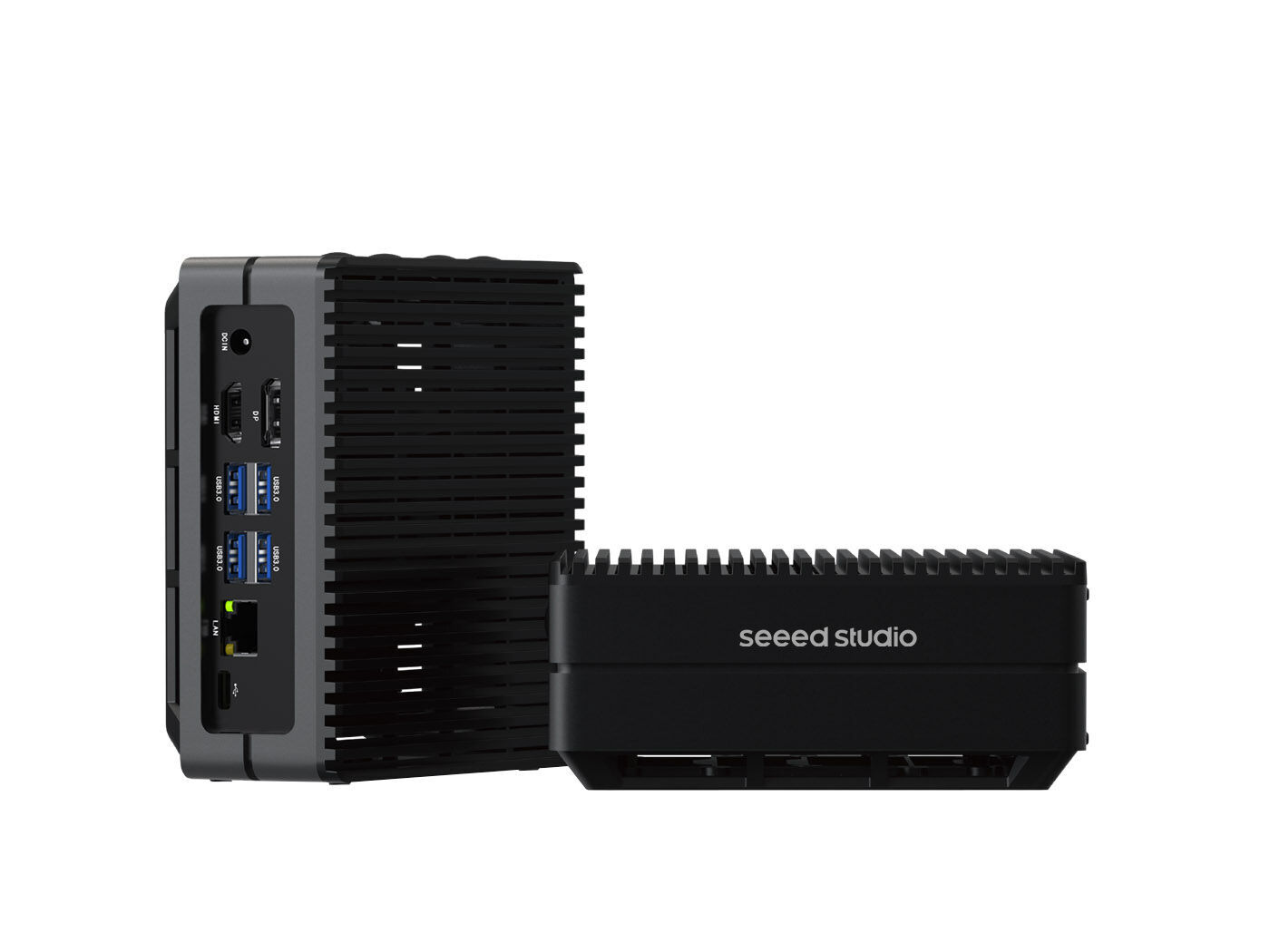

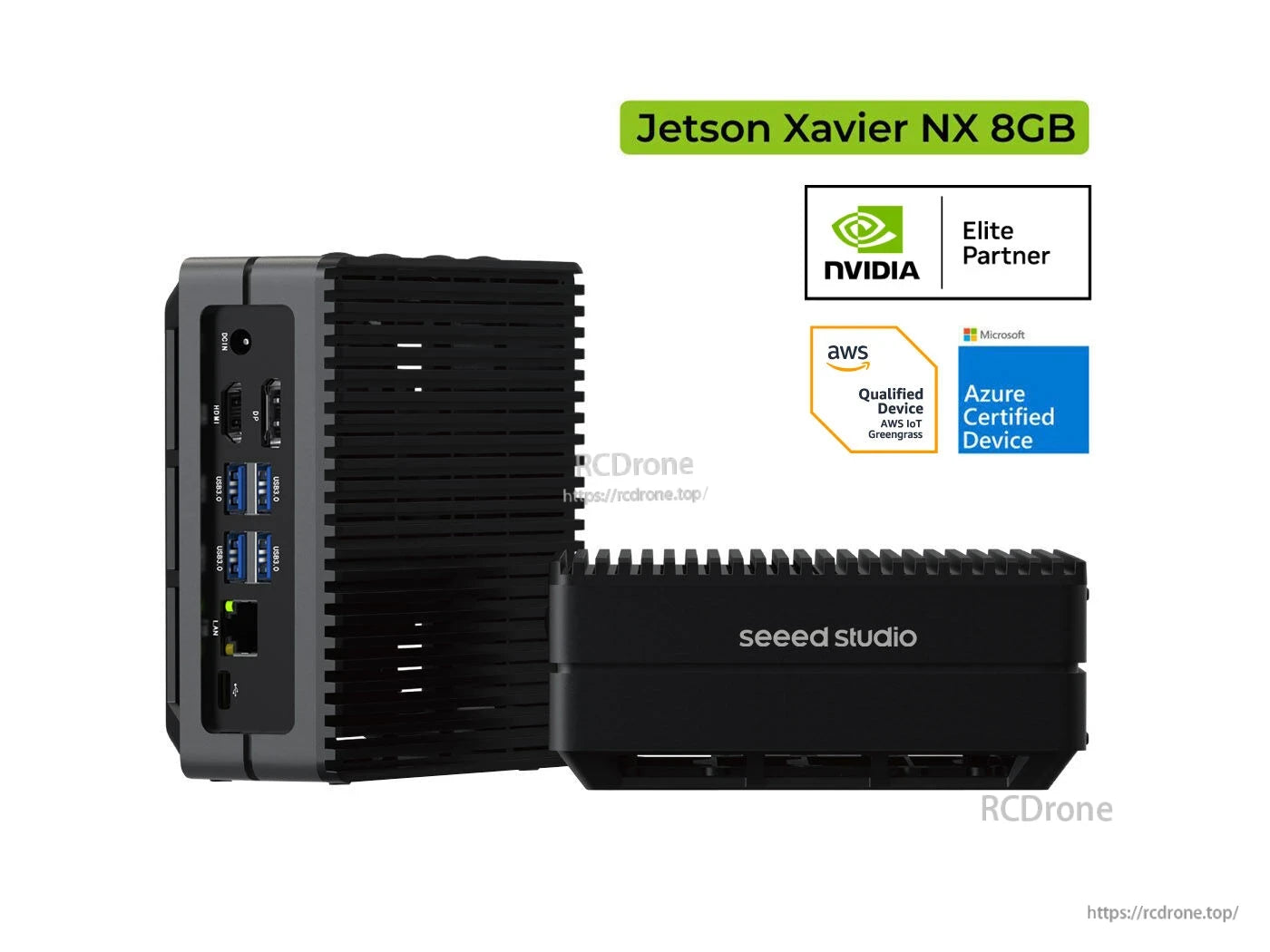

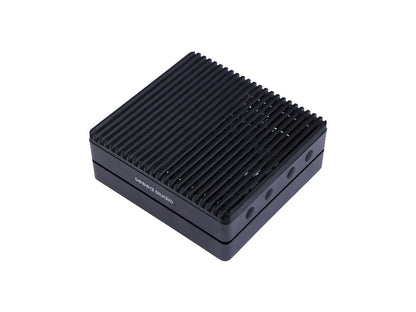

reComputer J2021 Edge AI Computer (w/o power adapter), Jetson Xavier NX 8GB, 128GB SSD, 4x USB 3.1, HDMI/DP, GbE

Overview

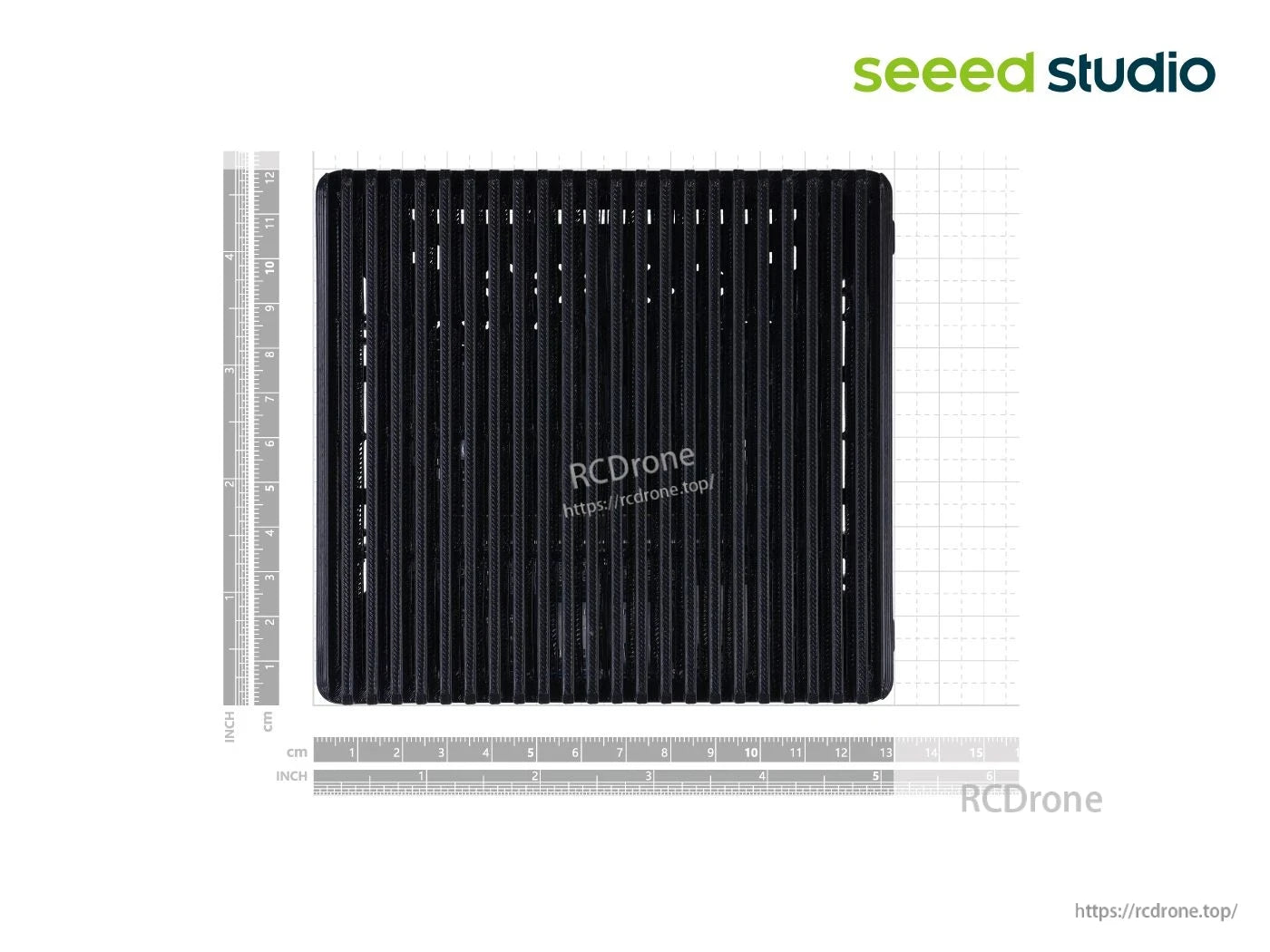

Edge AI Computer reComputer J2021 (w/o power adapter) integrates the NVIDIA ae Jetson a0Xavier NX 8GB SoM to deliver up to 21 TOPS AI performance with low power and latency. The compact system (130mm x 120mm x 58.5mm, with case) combines an aluminum enclosure, cooling fan, and the J202 carrier board. It comes with JetPack 4.6 (pre-installed JetPack 4.6.1 as described) on a 128GB NVMe SSD, and offers rich I/O: 4x USB 3.1 Type-A, 1x USB Type-C (device mode), 1x HDMI 2.1, 1x DP, 1x RJ-45 Gigabit Ethernet, 2x CSI camera connectors, CAN, RTC, a 40-pin expansion header, and a 12-pin control/UART header. The carrier board includes M.2 Key E and M.2 Key M (SSD included). Power input: 99V DC. Supports desktop or wall mounting.

Key Features

• AI performance: up to 21 TOPS on NVIDIA Jetson Xavier NX 8GB.
• GPU: 384-core NVIDIA Volta ae architecture with 48 Tensor Cores; integrated advanced multi-function video/image processing and NVIDIA Deep Learning Accelerators.
• CPU: 6-core NVIDIA Carmel Arm ae v8.2 64-bit CPU (6MB L2 + 4MB L3).
• Pre-installed JetPack 4.6 (JetPack 4.6.1 stated) on 128GB NVMe SSD; Linux OS BSP; supports Jetson software and leading AI frameworks.
• Rich, expandable I/O: 4x USB 3.1 Type-A; 1x USB Type-C (device mode); 1x HDMI 2.1; 1x DP; 1x RJ-45 GbE; 2x CSI (2-lane, 15-pin); 40-pin expansion header; 12-pin control/UART header; 1x CAN; 1x RTC 2-pin and socket; 4-pin fan connector (5V PWM).
• Storage and wireless expansion: M.2 Key M (NVMe 2280 SSD, 128GB included) and M.2 Key E.
• Remote management/OTA: supported via Allxon and Balena.
• Mechanical: aluminum enclosure; compact footprint; desk or wall-mount installation.
• Operating temperature: 0 9~60 9 b0C.
• Flexible customization: accessory modules, logo, and hardware interface modifications based on the reComputer J2021 design.

Specifications

Hardware Overview

• reComputer J202 carrier board, included in the full system reComputer J2021
• Desktop, wall-mount, expandable form factor

What e2 80 99s Included

• reComputer J2021 Edge AI Computer main unit
• NVIDIA Jetson Xavier NX 8GB module
• J202 carrier board
• M.2 NVMe 2280 SSD 128GB (included; JetPack pre-installed)

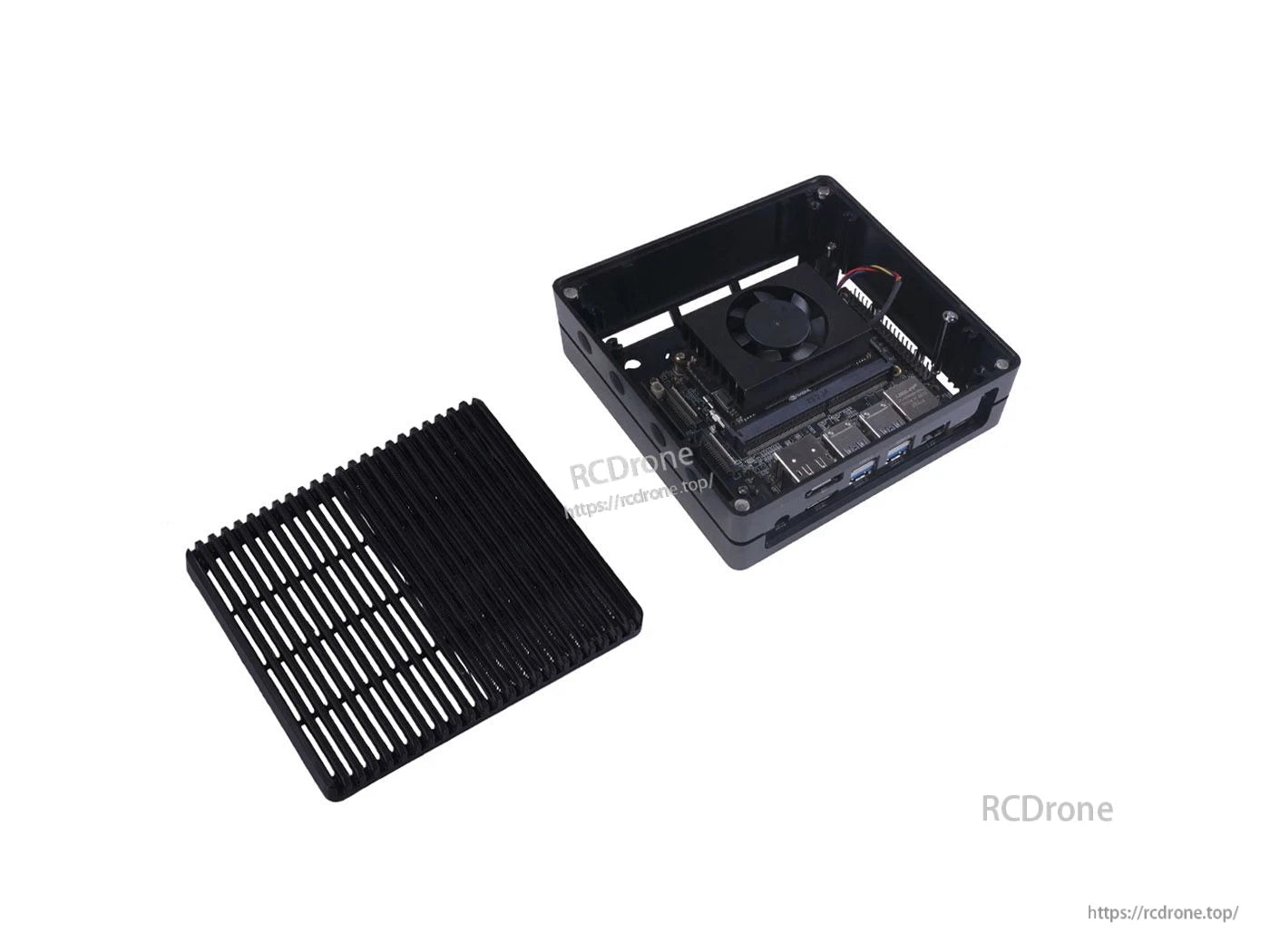

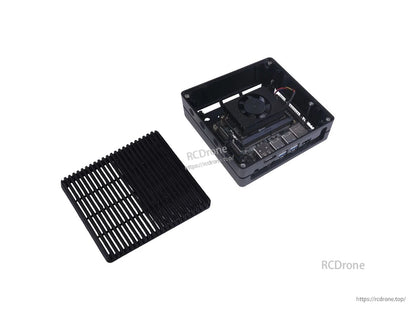

• Cooling fan
• Aluminum enclosure
• Power adapter: not included

Applications

• AI Video Analytics
• Machine Vision
• Autonomous Mobile Robot (AMR)
• Robotics
• Computer Vision

Build Multi-streams AI Video Analytics

Jetson Xavier NX incorporates the NVIDIA Multi-Standard Video Decoder to accelerate video decode across low-resolution mobile content, SD, HD, and UltraHD (8K, 4K, etc.). Explore real deployments and tools on the video analytics main page.

Manuals

Certification

Notes

• For optimal performance, Seeed recommends 128GB / 256GB / 512GB / 1TB NVMe SSDs from Seeed. Some SSDs on the market may only be compatible with specific JetPack versions, which can cause the device to fail to function properly; this issue is also present with official NVIDIA dev kits.
• Looking for the version with power adapter? See reComputer J2021 Edge device.
• Using GPIO libraries that cause floating voltages between 1.2V and 2V may lead to GPIO issues on the carrier board; the normal voltage should be 3V.
