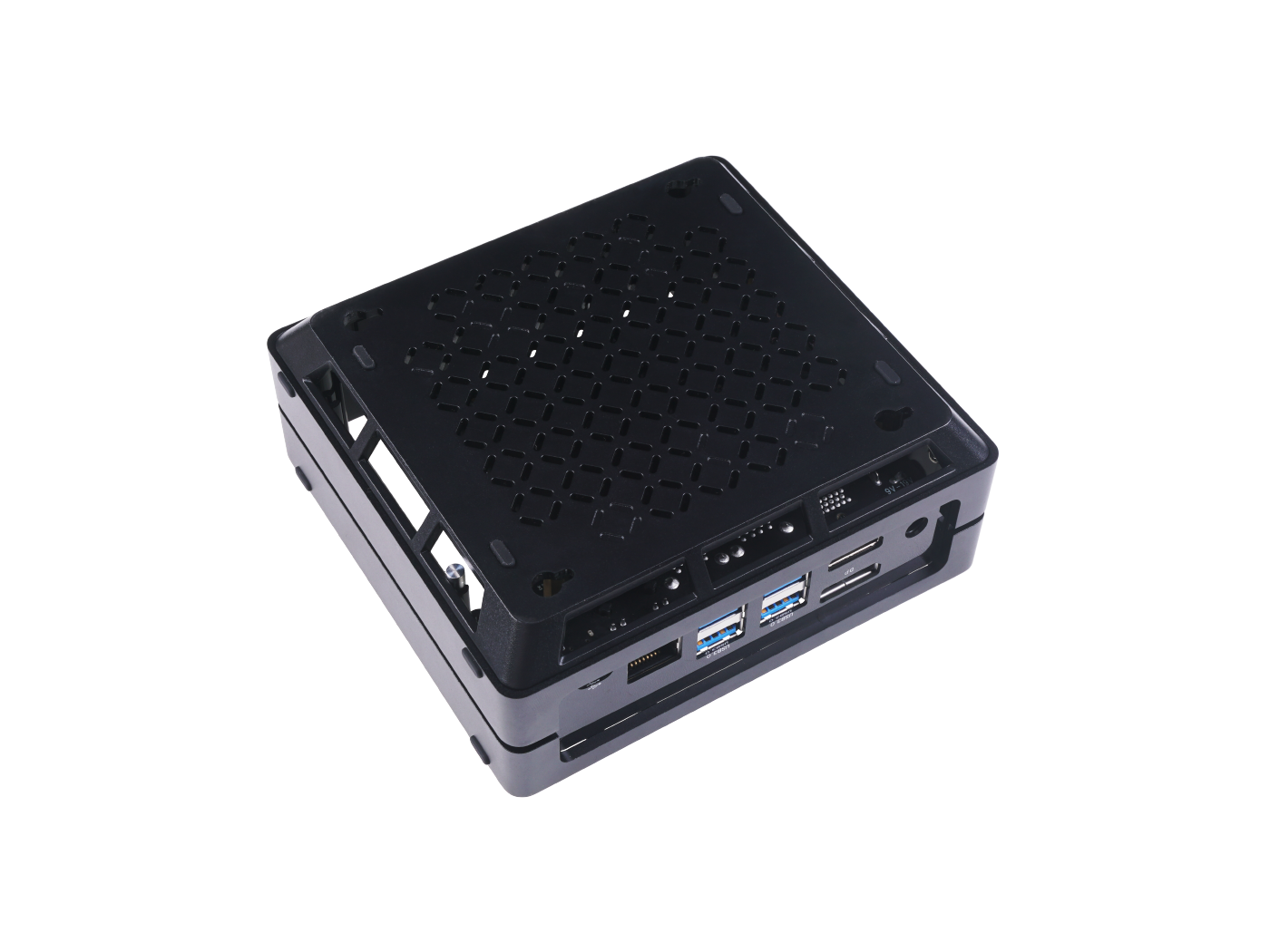

reComputer J2022 Edge AI Computer | Jetson Xavier NX 16GB, 21 TOPS, 4×USB 3.1, HDMI/DP, GbE, M.2, 130×120×58.5mm

Overview

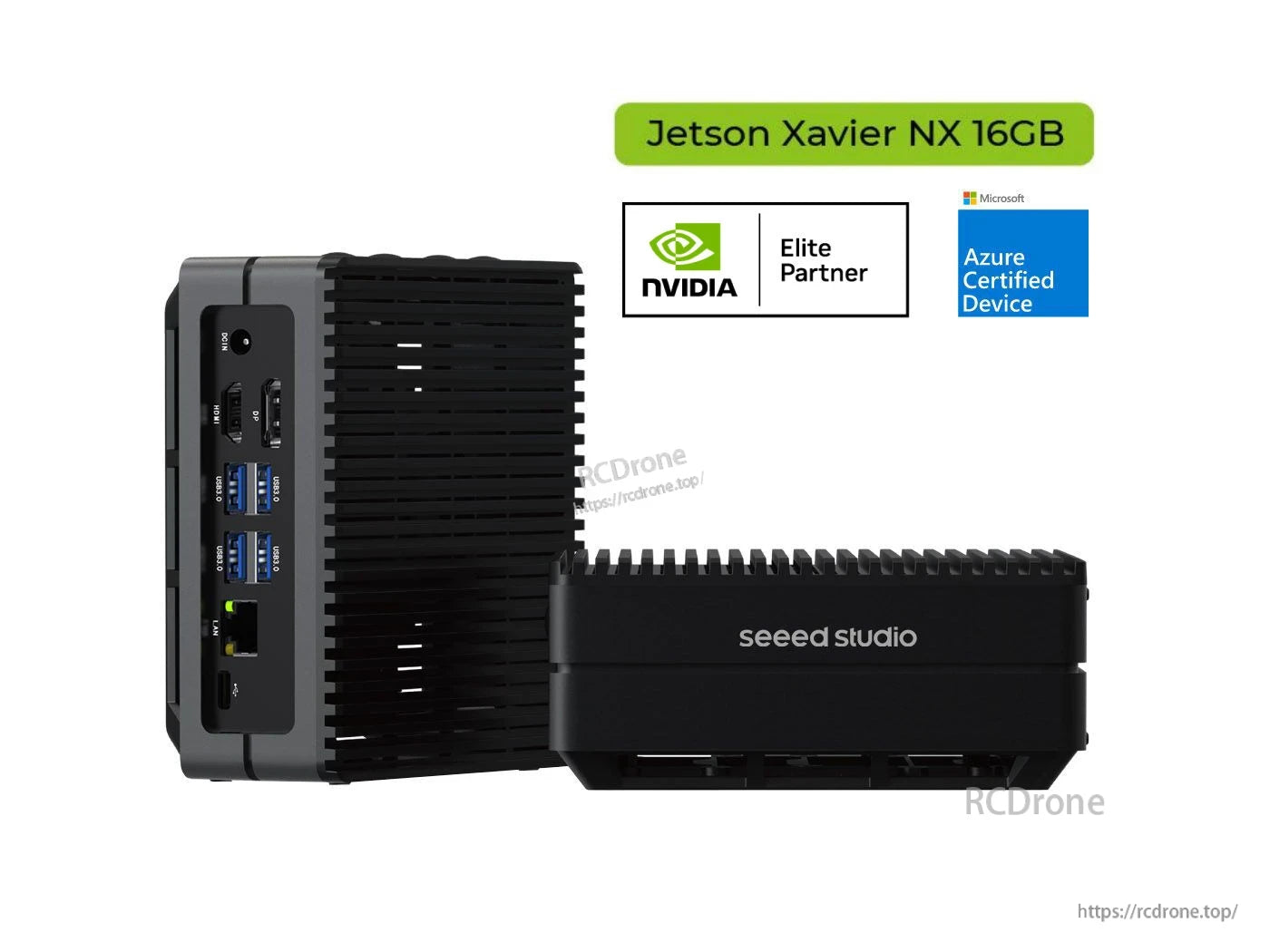

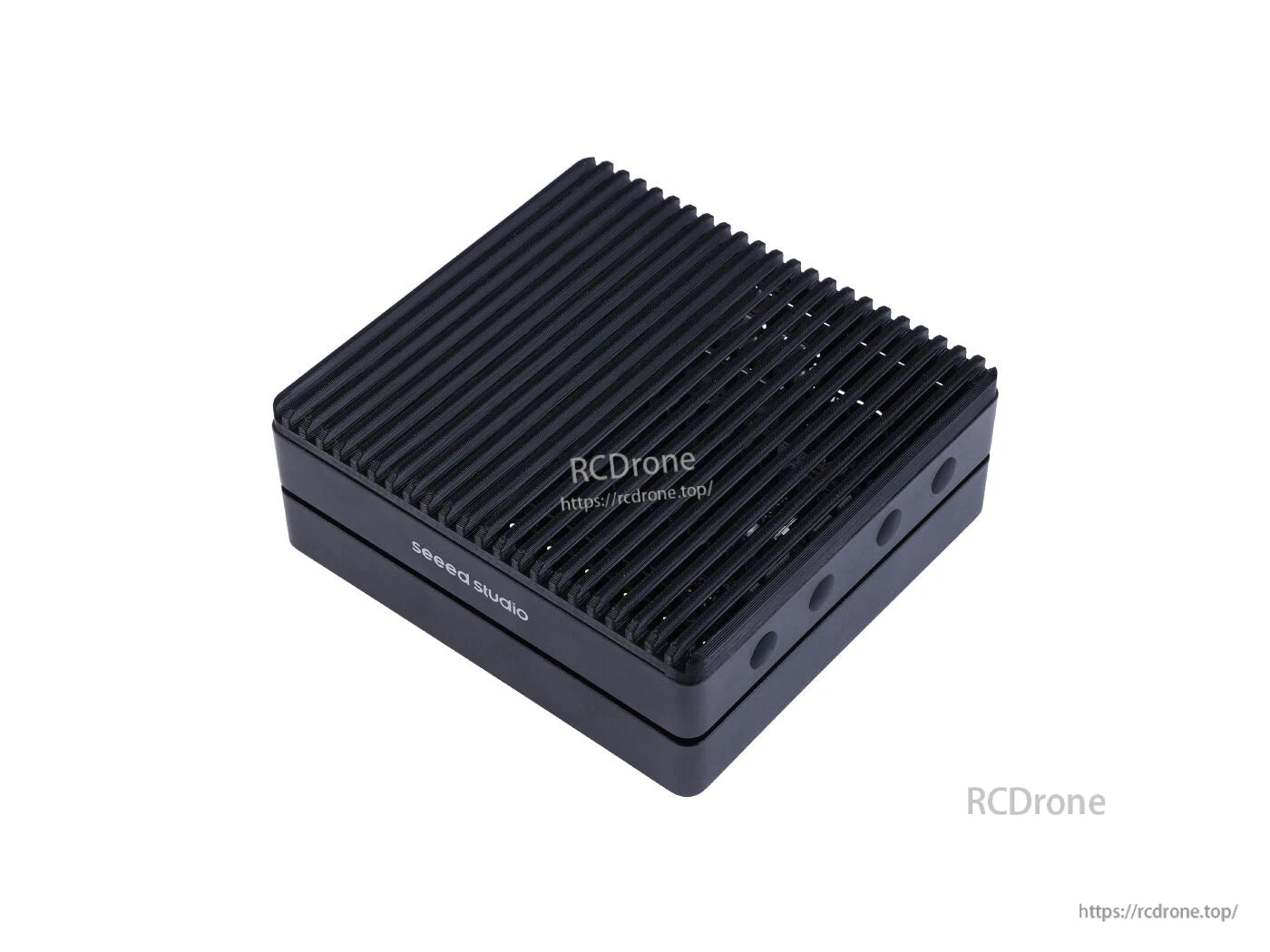

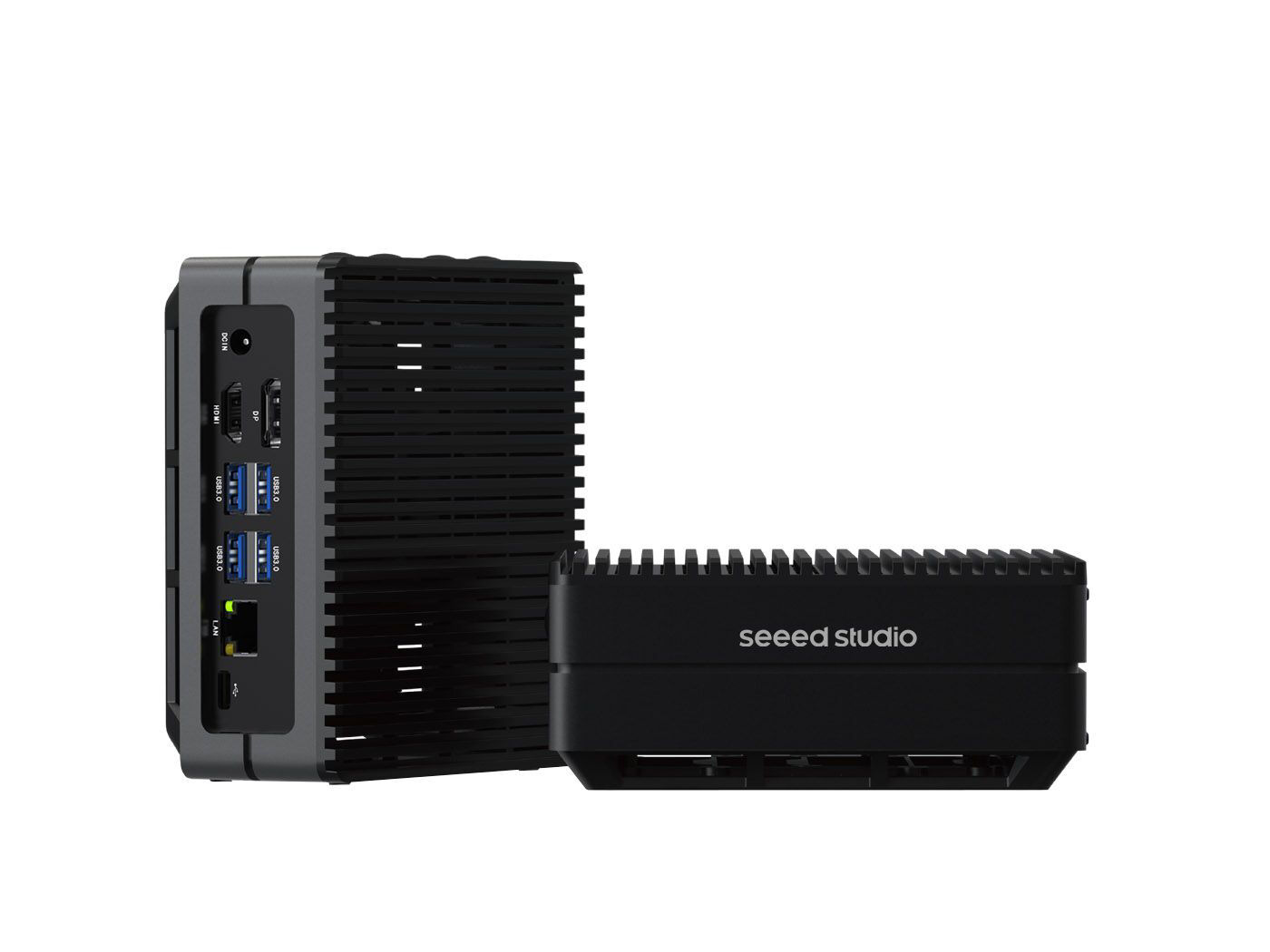

reComputer J2022 is a hand‑size Edge AI Computer built around the NVIDIA Jetson Xavier NX 16GB production module. It delivers up to 21 TOPS AI performance with a compact form factor of 130mm x 120mm x 58.5mm (with case). The system integrates 384‑core NVIDIA Volta architecture GPU with 48 Tensor Cores and a 6‑core NVIDIA Carmel Arm®v8.2 64‑bit CPU. It comes with NVIDIA JetPack pre‑installed (JetPack 4.6 shown in product images) and a rich set of I/O including 4x USB 3.1 Type‑A, 1x USB Type‑C (device mode), 1x RJ45 Gigabit Ethernet, HDMI, and DP. The reComputer J202 carrier board provides M.2 Key E for Wi‑Fi, M.2 Key M for SSD, RTC (2‑pin and socket), CAN, and a 40‑pin expansion header. Desk or wall‑mounting is supported.

Key Features

• Jetson Xavier NX 16GB production SoM; up to 21 TOPS AI performance.
• GPU: 384‑core NVIDIA Volta architecture with 48 Tensor Cores.
• CPU: 6‑core NVIDIA Carmel Arm®v8.2 64‑bit, 6MB L2 + 4MB L3.
• Pre‑installed NVIDIA JetPack (JetPack 4.6 shown in images); supports NVIDIA embedded developer tools.
• I/O: 4x USB 3.1 Type‑A; 1x USB Type‑C (device mode), HDMI Type‑A, DP, RJ45 GbE.
• Expansion: 1x M.2 Key E (Wi‑Fi), 1x M.2 Key M (SSD), 2x CSI camera (MIPI CSI‑2), 1x CAN, 1x 40‑pin expansion header, RTC 2‑pin and RTC socket, 1x 5V PWM fan connector.
• Power: 9–16V DC input.

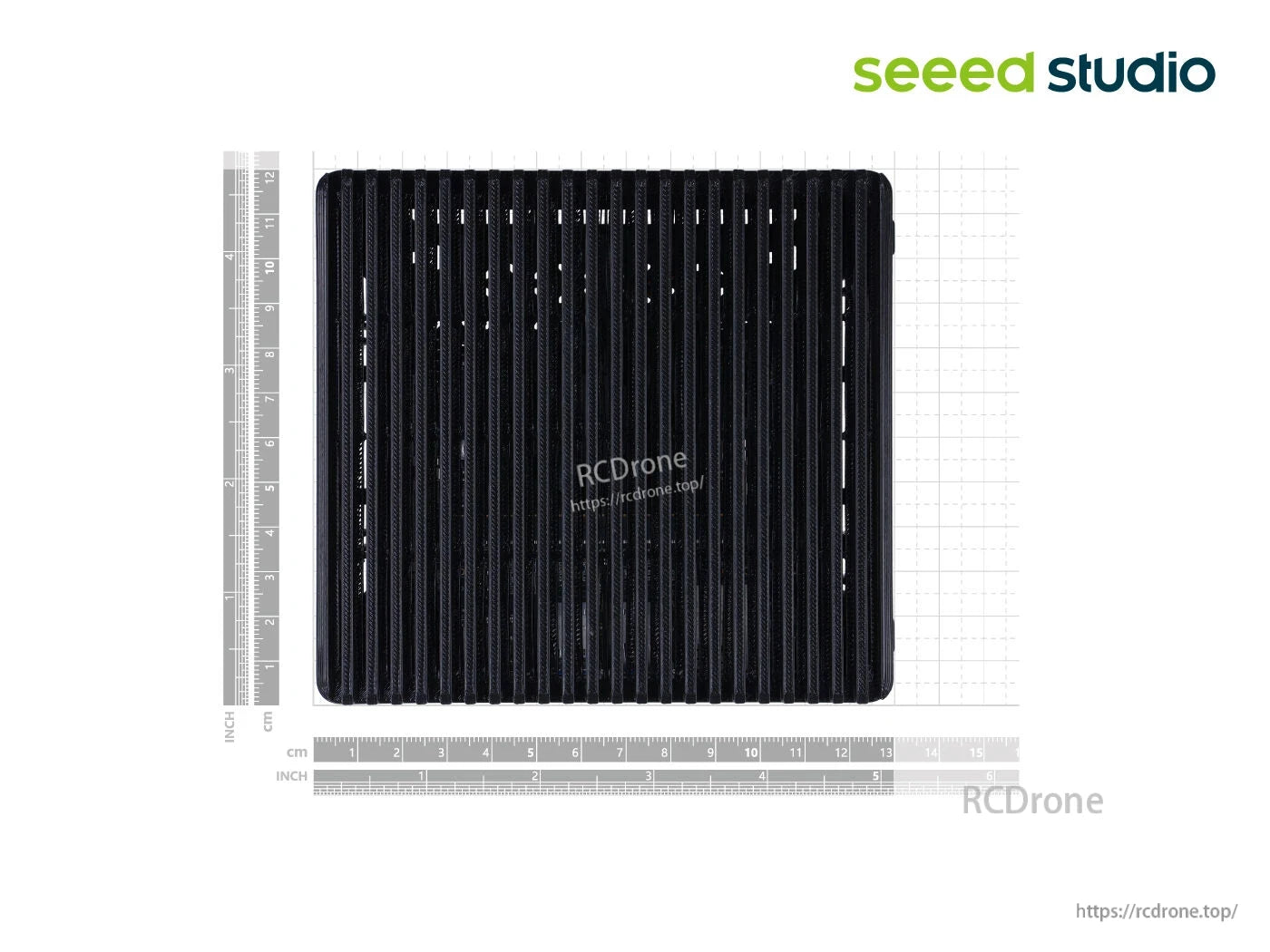

• Mechanical: 130mm x 120mm x 58.5mm (with case); desk or wall‑mounting.
• Operating temperature: −10℃ to 60℃; Warranty: 1 Year.

Specifications

Hardware Overview

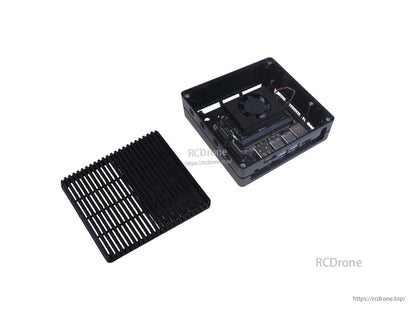

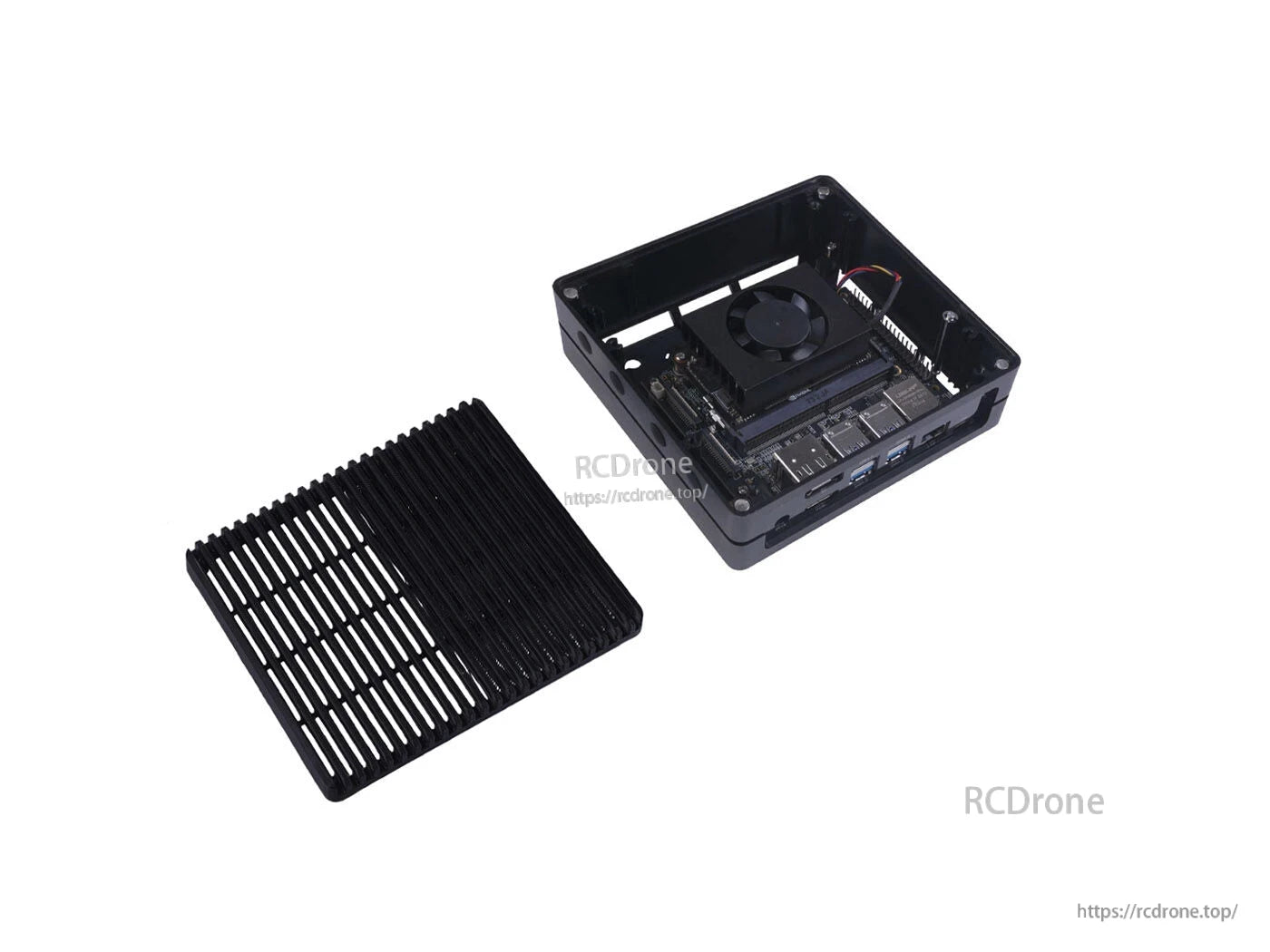

reComputer J202 carrier board, included in the full system – reComputer J2022.

Desktop, Wall Mount, Expandable, or Fit in Anywhere

Applications

• Autonomous Mobile Robot (AMR)
• AI Video Analytics
• Machine Vision

FAQ

1. What is the main difference between the reComputer J2021 and J2022?

The difference is memory. The module on reComputer J2021 is Jetson Xavier NX 8GB. If more memory is required, J2022 with Jetson Xavier NX 16GB may meet your needs.

2. Can I install the Jetson Nano module on the reComputer J2022 carrier board?

Yes. The reComputer J202 carrier board supports both Jetson Nano and Jetson Xavier modules.

3. What type of RTC is recommended for the RTC socket?

CR1220 and ML1220. The non‑rechargeable design of the RTC circuit allows both rechargeable and non‑rechargeable RTC batteries to be used.

Documents

Certification

Details

Elite Partner NVIDIA reComputer J2022, a powerful robotics computer, features an NVIDIA Jetson Xavier NX module with up to 21 TOPS of performance. It has 6GB of RAM and measures 130mm x 120mm x 58mm when housed in its case. The device includes RJ-45 Gigabit Ethernet, M.2 KEY E for storage expansion, as well as HDMI and DP ports. JetPack 4.6 software is pre-installed, along with four USB 3.1 Type-A ports and one USB-C port supporting USB-C and DisplayPort. This computer is designed for robotics and computer vision applications.

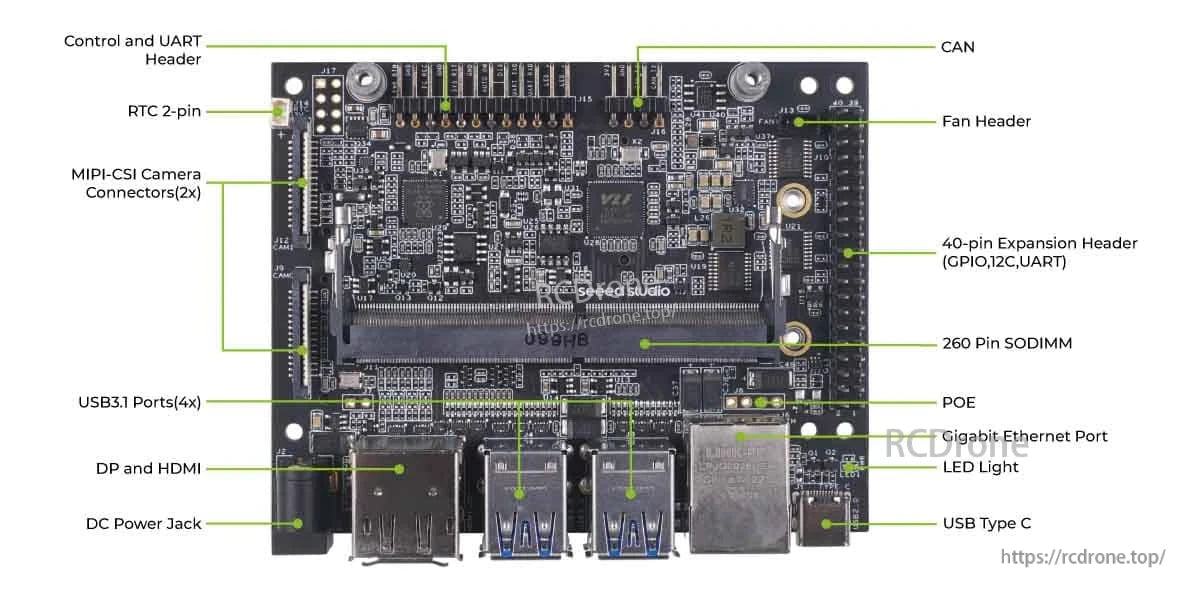

Features a 260-pin SODIMM, 40-pin expansion header with GPIO, I2C, and UART, and dual MIPI-CSI camera connectors. Includes four USB 3.1 ports, DP and HDMI outputs, DC power jack, USB Type-C, Gigabit Ethernet, POE, LED, fan header, CAN interface, RTC 2-pin, and control/UART header. Designed for edge computing, it supports extensive connectivity and expansion options in a compact form.
