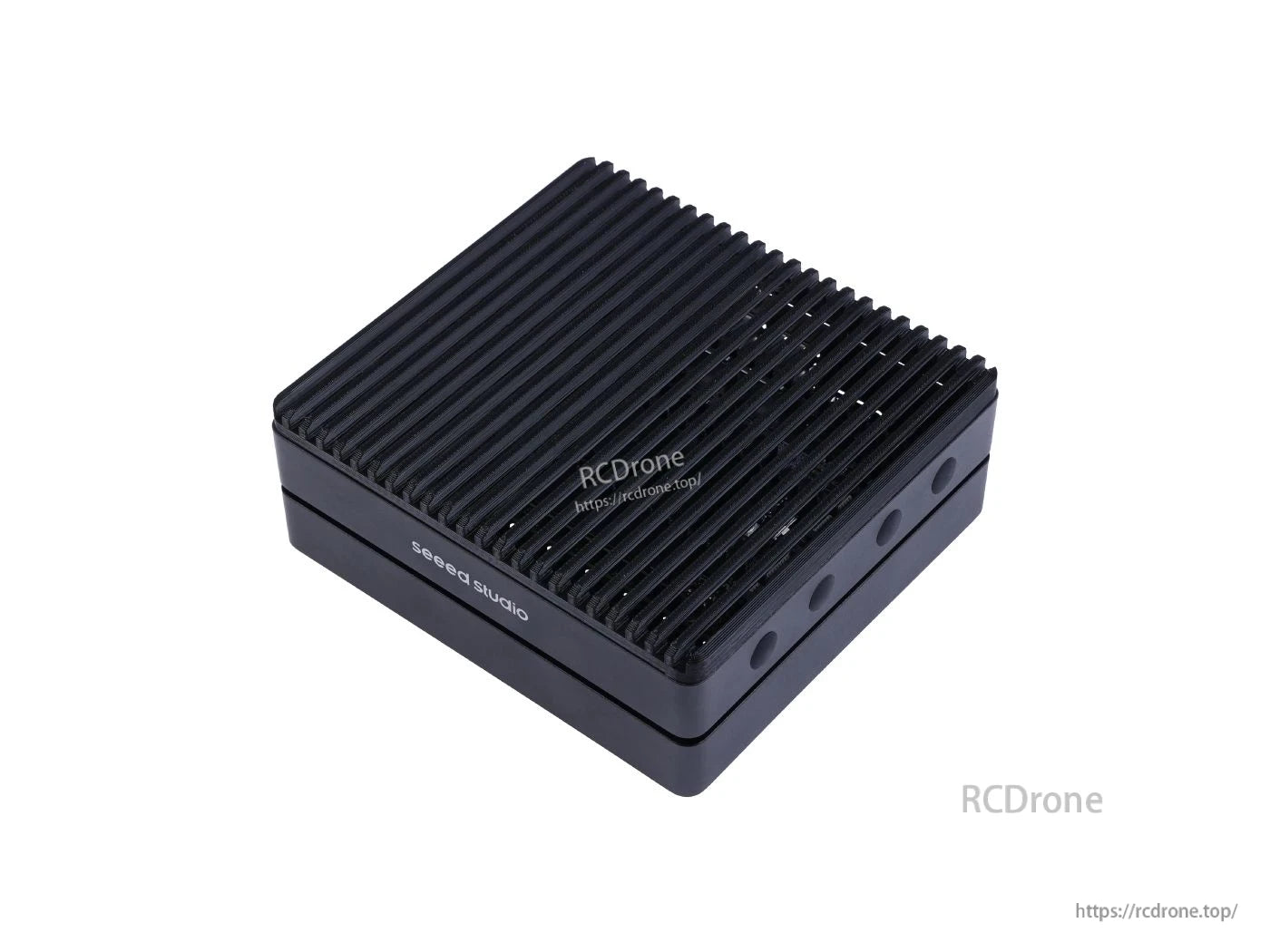

  • Seeed Studio reComputer J2022 is an edge AI device powered by Jetson Xavier NX, designed for high-performance AI applications in compact, rugged environments.

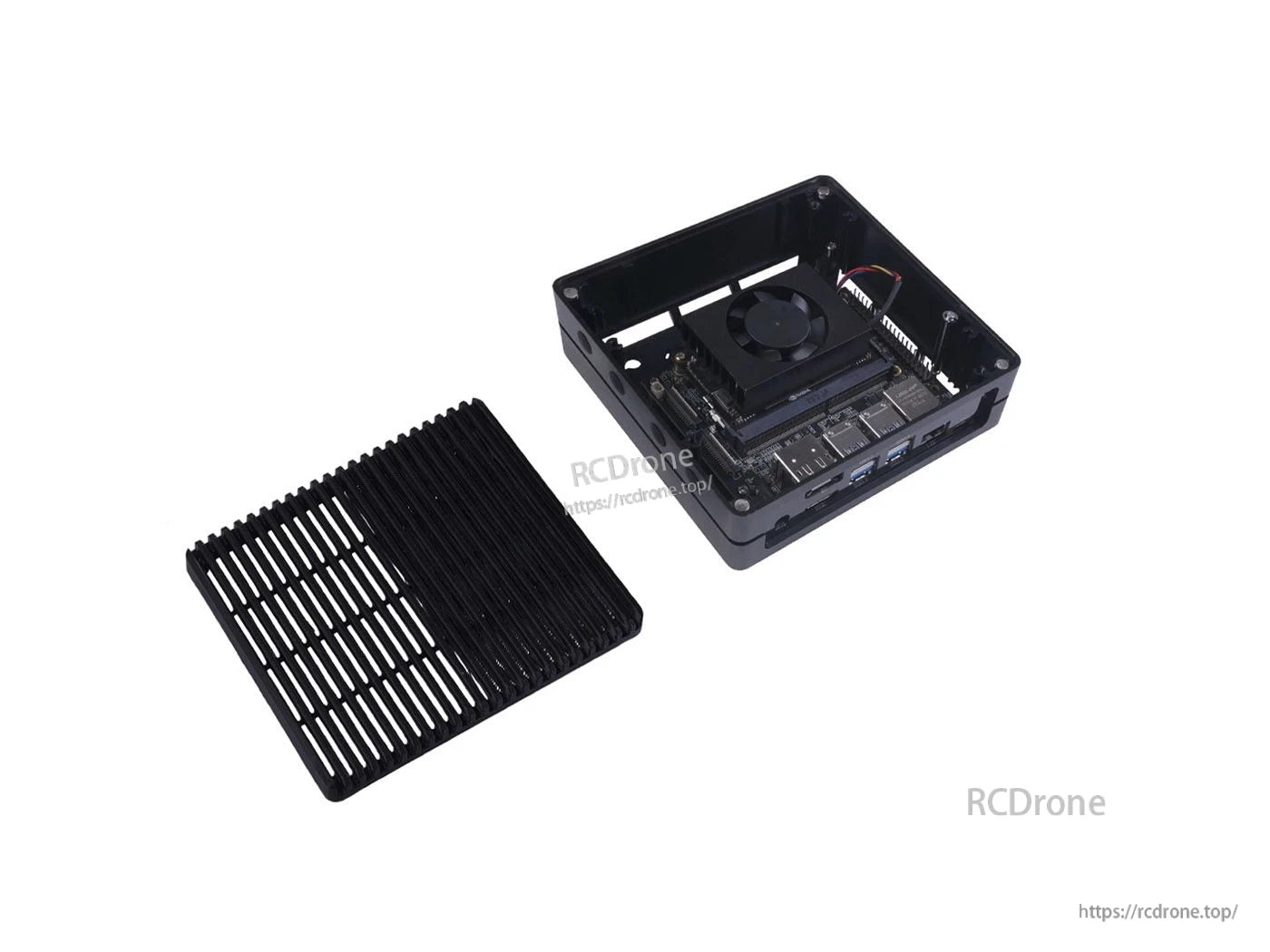

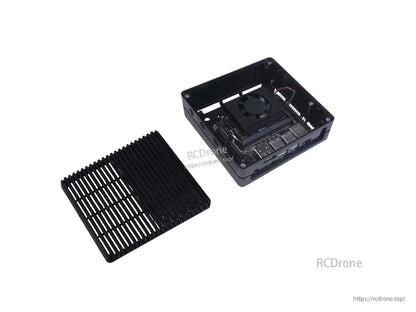

  • Compact Edge AI computer powered by Jetson Xavier NX, featuring 16GB RAM and 128GB SSD for high-performance drone and robotics applications.

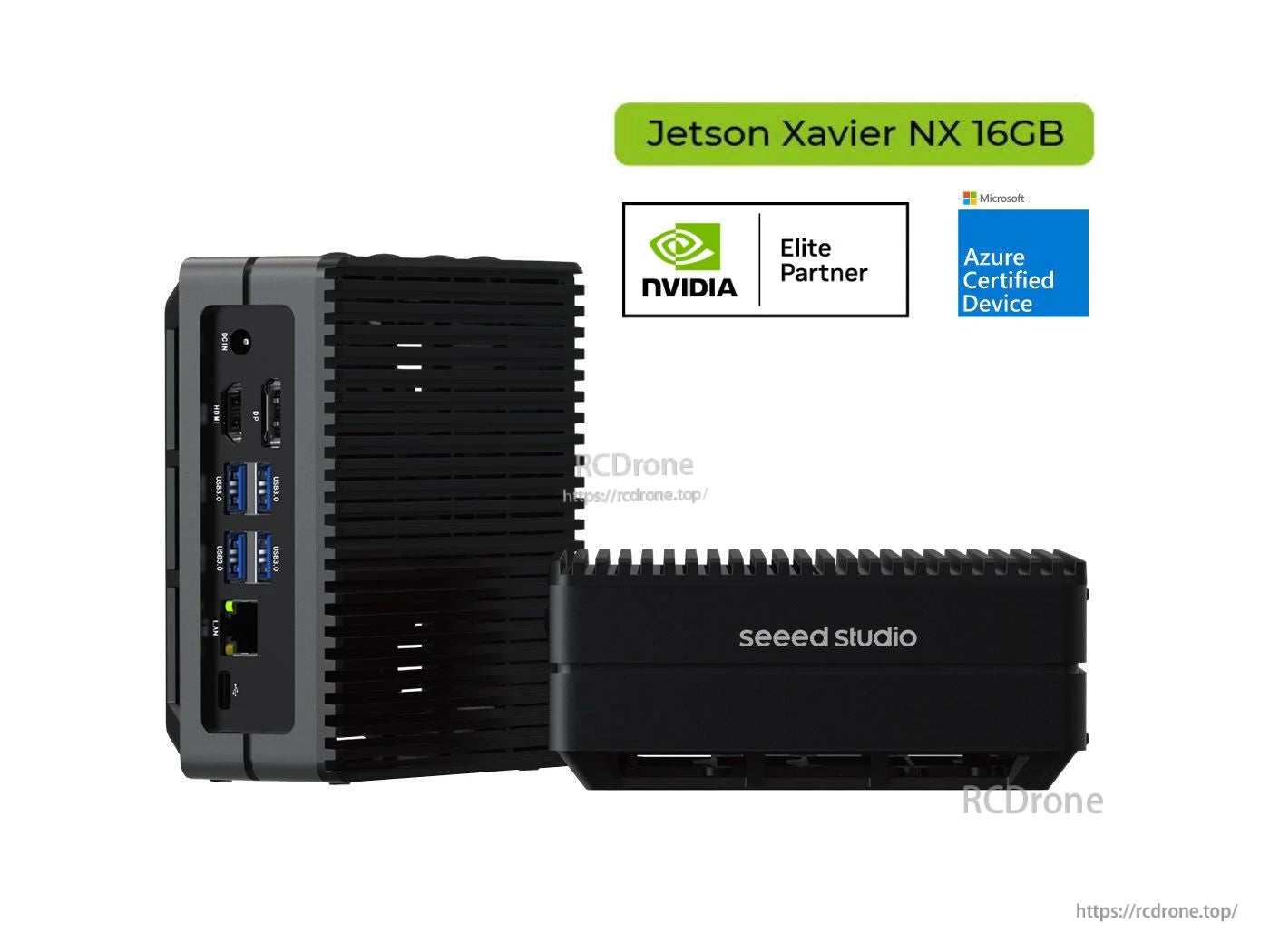

  • The reComputer J2022 is an edge AI computer featuring a NVIDIA Jetson Xavier NX processor with 16GB of RAM and 128GB storage.

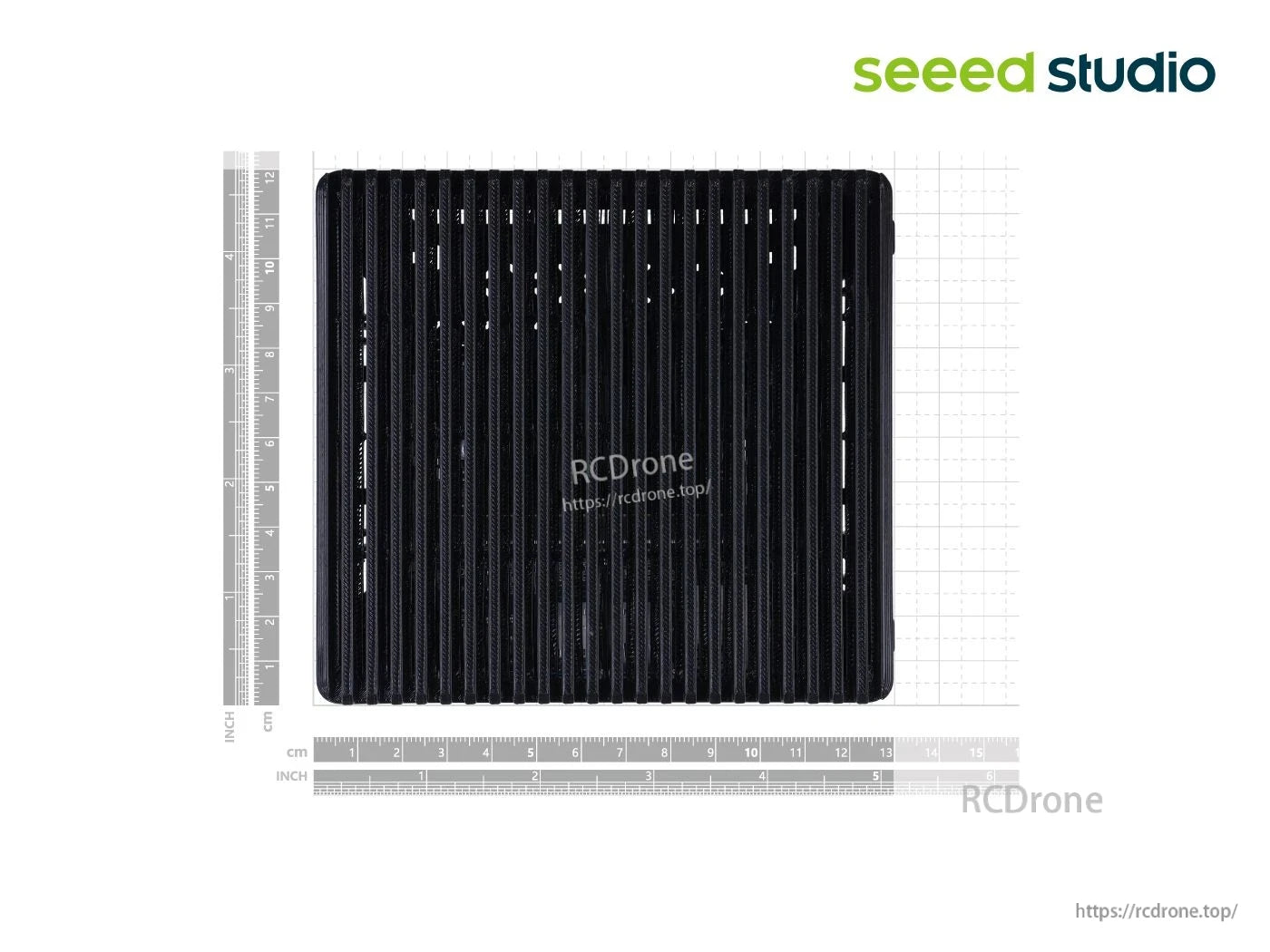

  • The reComputer J2022 is an edge AI computer powered by Jetson Xavier NX, featuring 16GB RAM, 128GB SSD, 21 TOPS performance, HDMI, and DisplayPort support.
1 6

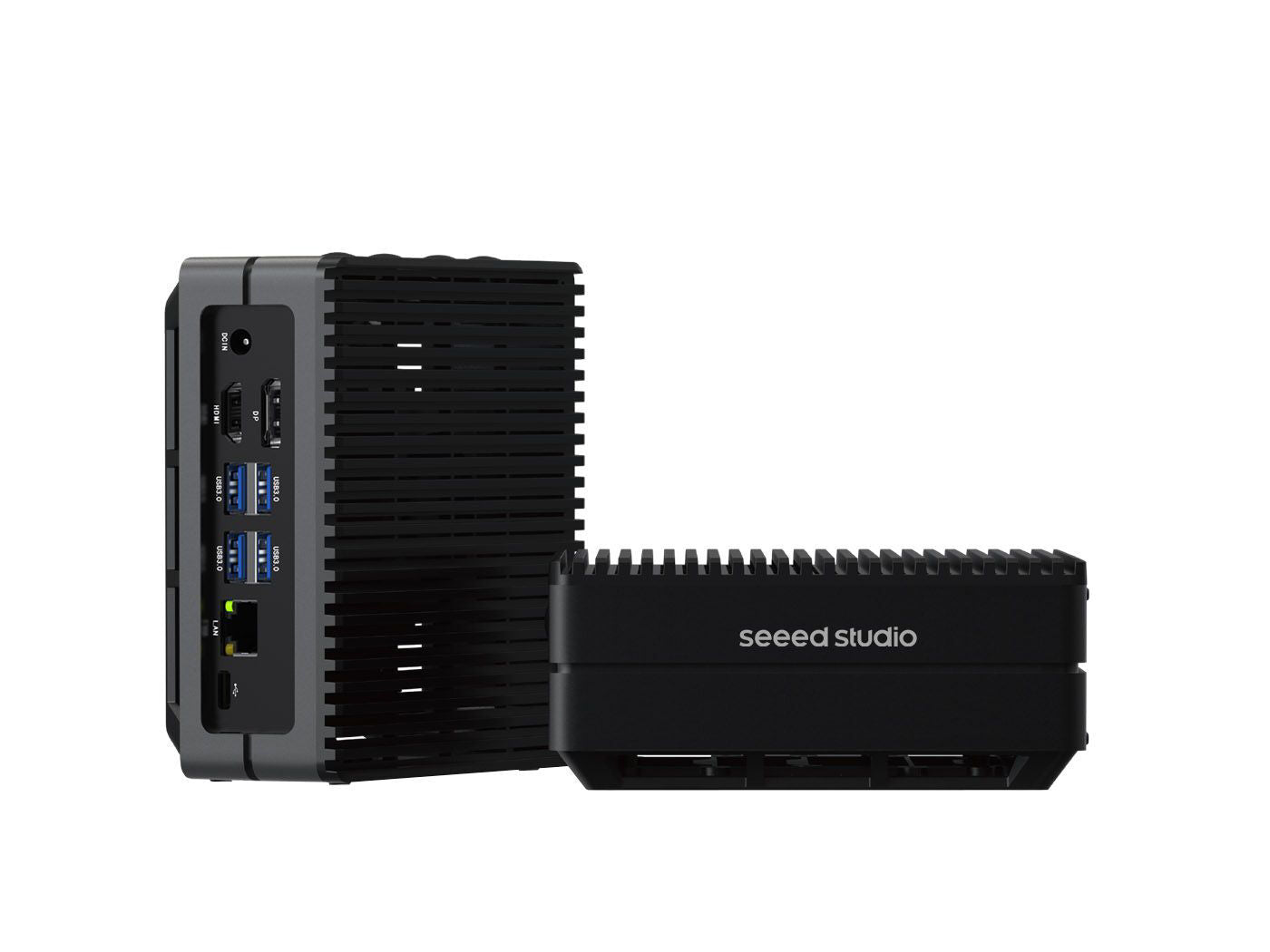

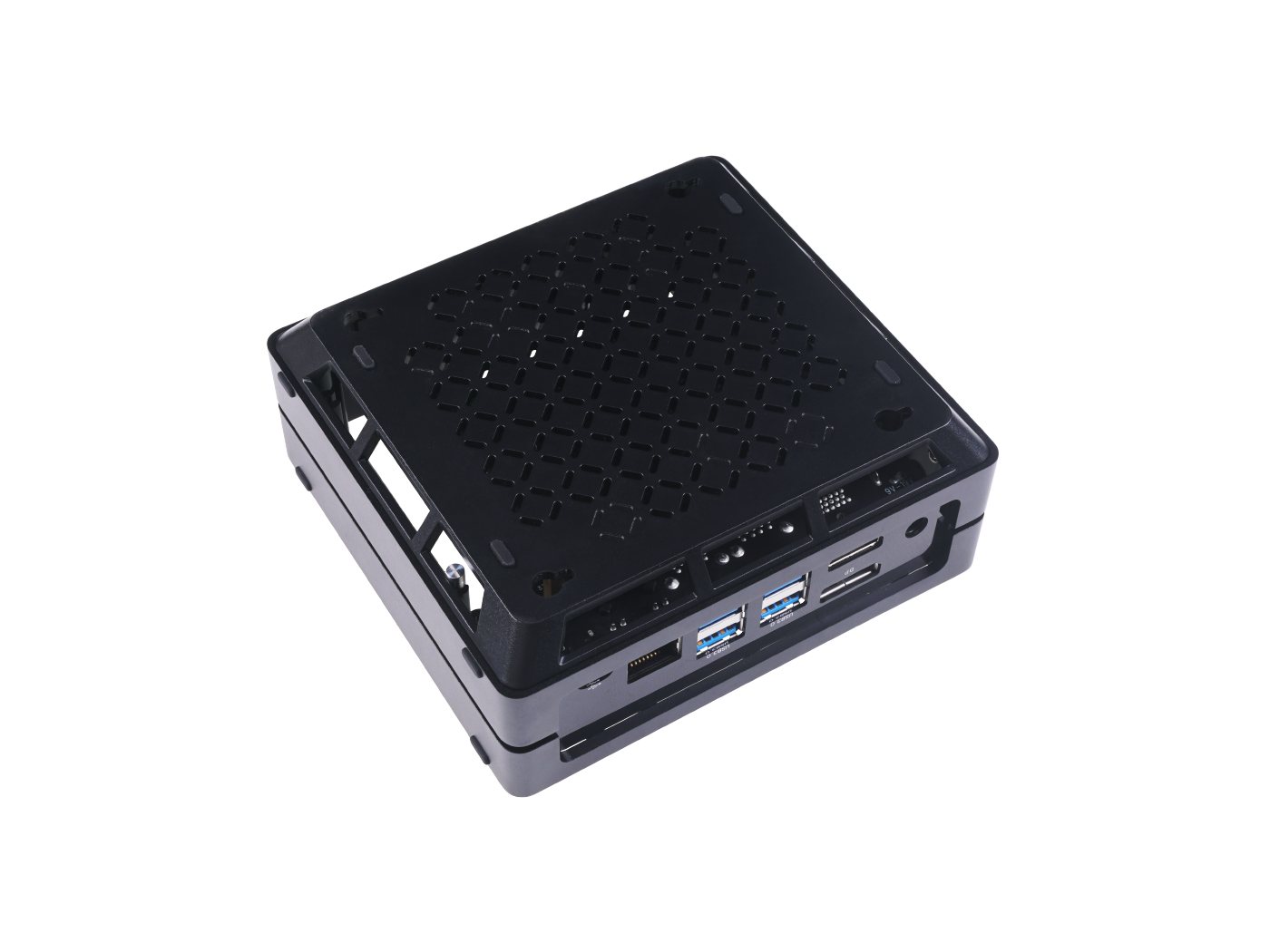

reComputer J2022 (w/o power adapter) Edge AI Computer with NVIDIA Jetson Xavier NX 16GB, 128GB NVMe SSD, 21 TOPS, HDMI/DP

reComputer J2022 (w/o power adapter) Edge AI Computer with NVIDIA Jetson Xavier NX 16GB, 128GB NVMe SSD, 21 TOPS, HDMI/DP

Seeed Studio

$1,049.00 USD
$1,049.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Options
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

reComputer J2022 (w/o power adapter) is a compact Edge AI Computer built around the NVIDIA Jetson Xavier NX 16GB module. It delivers up to 21 TOPS AI performance with low latency, and comes pre-installed with JetPack 4.6.1 on a 128GB NVMe SSD. The system integrates the J202 carrier board, active cooling fan, and aluminum enclosure. Rich I/O includes 4x USB 3.1 Type-A, USB Type-C (device mode), HDMI, DP, CSI camera connectors, Gigabit Ethernet, CAN, GPIO via a 40-pin header, M.2 Key E for Wi-Fi expansion, and M.2 Key M for SSD. The enclosure supports desktop and wall mounting. Dimensions: 130mm x 120mm x 58.5mm (with case).

Key Features

Up to 21 TOPS AI performance powered by NVIDIA Jetson Xavier NX SoC (Volta architecture GPU, NVIDIA Deep Learning Accelerators)

Hand-size system: 130mm x 120mm x 58.5mm with fan-cooled aluminum enclosure; desktop or wall mounting

Rich expandability: 4x USB 3.1 Type-A, 1x USB Type-C (device mode), 1x HDMI, 1x DP, 2x CSI camera connectors, 1x RJ-45 GbE, CAN, 40-pin GPIO header

Storage and wireless expansion: M.2 Key M (NVMe, 128GB SSD included) and M.2 Key E (for Wi-Fi modules)

Accelerated development: JetPack 4.6.1 and Linux BSP pre-installed; supports Jetson software and leading AI frameworks

Fleet deployment options: supports OTA and remote management services powered by Allxon and Balena

Flexible customization: accessories, logo, and hardware interface modifications based on the reComputer J2022 design

Specifications

AI Performance 21 TOPS (Jetson Xavier NX 16GB)
GPU 384-core NVIDIA Volta architecture GPU with 48 Tensor Cores
CPU 6-core NVIDIA Carmel Arm v8.2 64-bit CPU, 6MB L2 + 4MB L3
Memory 16GB 128-bit LPDDR4x, 59.7GB/s
Video Encoder 2x 4K60 (H.265) | 4x 4K30 (H.265) | 10x 1080p60 (H.265) | 22x 1080p30 (H.265)
Video Decoder 2x 8K30 (H.265) | 6x 4K60 (H.265) | 12x 4K30 (H.265) | 22x 1080p60 (H.265) | 44x 1080p30 (H.265)
Storage 1x M.2 Key M PCIe (M.2 NVMe 2280 SSD 128GB included)
Networking 1x RJ-45 Gigabit Ethernet (10/100/1000M)
Wireless Expansion 1x M.2 Key E
USB 4x USB 3.1 Type-A; 1x USB Type-C (Device Mode)
Camera 2x CSI (2-lane, 15-pin)
Display 1x HDMI 2.1; 1x DP
Fan 1x 4-pin Fan Connector (5V PWM)
CAN 1x CAN
GPIO / Expansion 1x 40-Pin Expansion header; 1x 12-Pin Control and UART header
RTC 1x RTC 2-pin; RTC socket
Power 9-16V DC
Mechanical 130mm x 120mm x 58.5mm (with case)
Installation Desk, wall-mounting
Operating Temperature 0℃~60℃
Software JetPack 4.6.1 and Linux OS BSP pre-installed on 128GB NVMe SSD

Note (GPIO): Using GPIO libraries that cause floating voltages between 1.2V and 2V may lead to GPIO issues on the carrier board; normal voltage should be 3V.

Note (SSD compatibility): For optimal performance, use 128GB / 256GB / 512GB / 1TB NVMe SSDs from Seeed. Some SSDs may only be compatible with specific JetPack versions and can cause malfunction; this issue may also occur with official NVIDIA dev kits.

What’s Included

  • reComputer J2022 (System Installed) x1 — power adapter not included

Applications

  • AI Video Analytics
  • Machine Vision
  • Autonomous Mobile Robot (AMR)

Multi-stream AI Video Analytics

Jetson Xavier NX integrates the NVIDIA Multi-Standard Video Decoder to accelerate video processing across SD, HD, and UltraHD (8K, 4K, etc.), enabling efficient multi-stream analytics with NVIDIA DeepStream and related toolchains.

Documents

Certification

HSCODE 8471419000
USHSCODE 8517180050
EUHSCODE 8471800000
COO CHINA

Hardware Overview

Includes the reComputer J202 carrier board with labeled connectors: 4x USB 3.1, USB Type-C (device), RJ-45 GbE, HDMI and DP, 2x MIPI-CSI camera ports, 40-pin expansion header (GPIO/I2C/UART), 12-pin control and UART header, 4-pin fan header, CAN, RTC 2-pin and socket, M.2 Key E and M slots, and DC power jack. The complete system integrates active cooling within an aluminum enclosure, suitable for desktop or wall-mounted installations.
