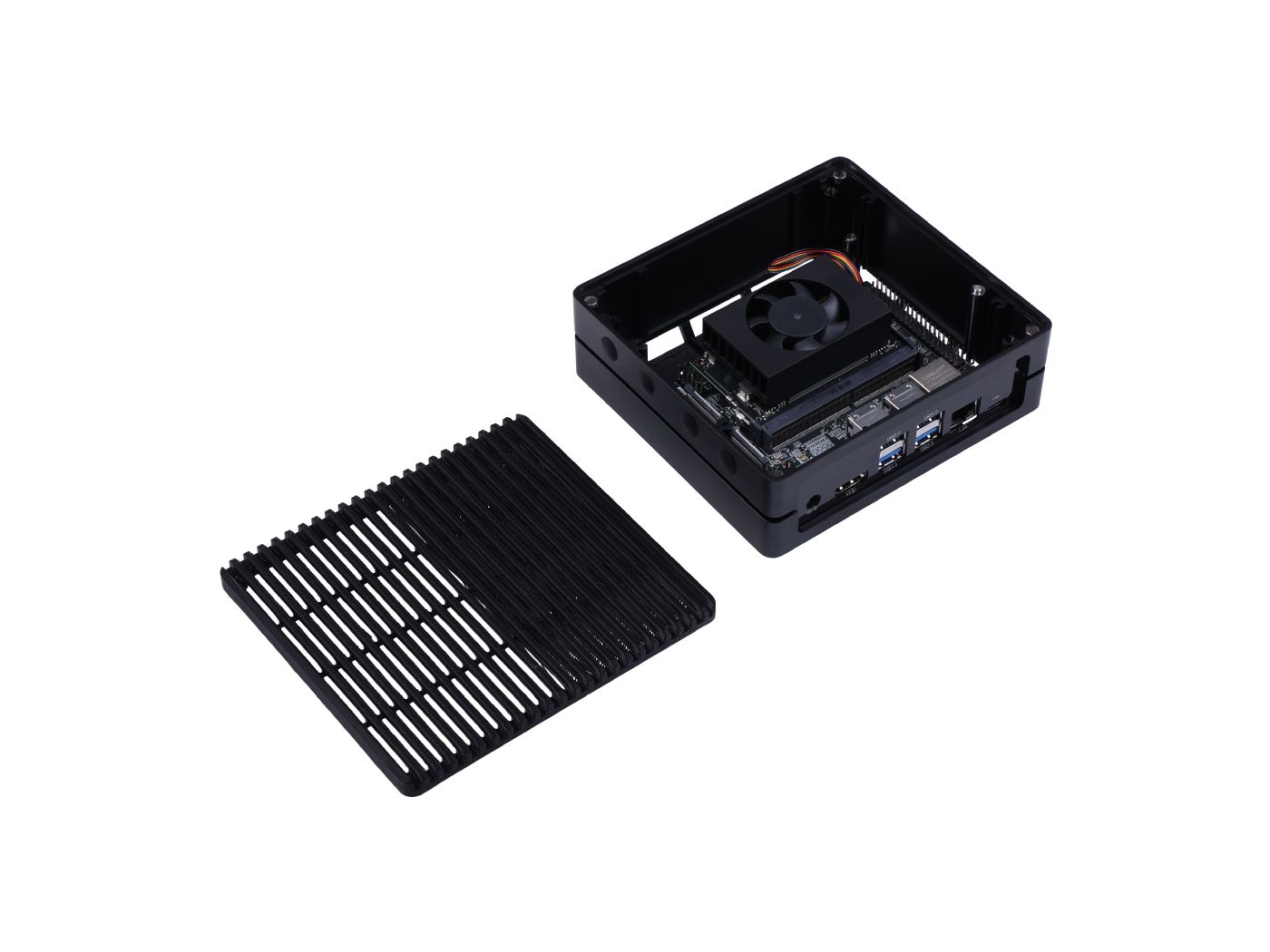

reComputer J3010 Edge AI Computer with Jetson Orin Nano 4GB, 20–34 TOPS, 128GB SSD, Wi‑Fi/BT, 4x USB 3.2, HDMI, GbE

Overview

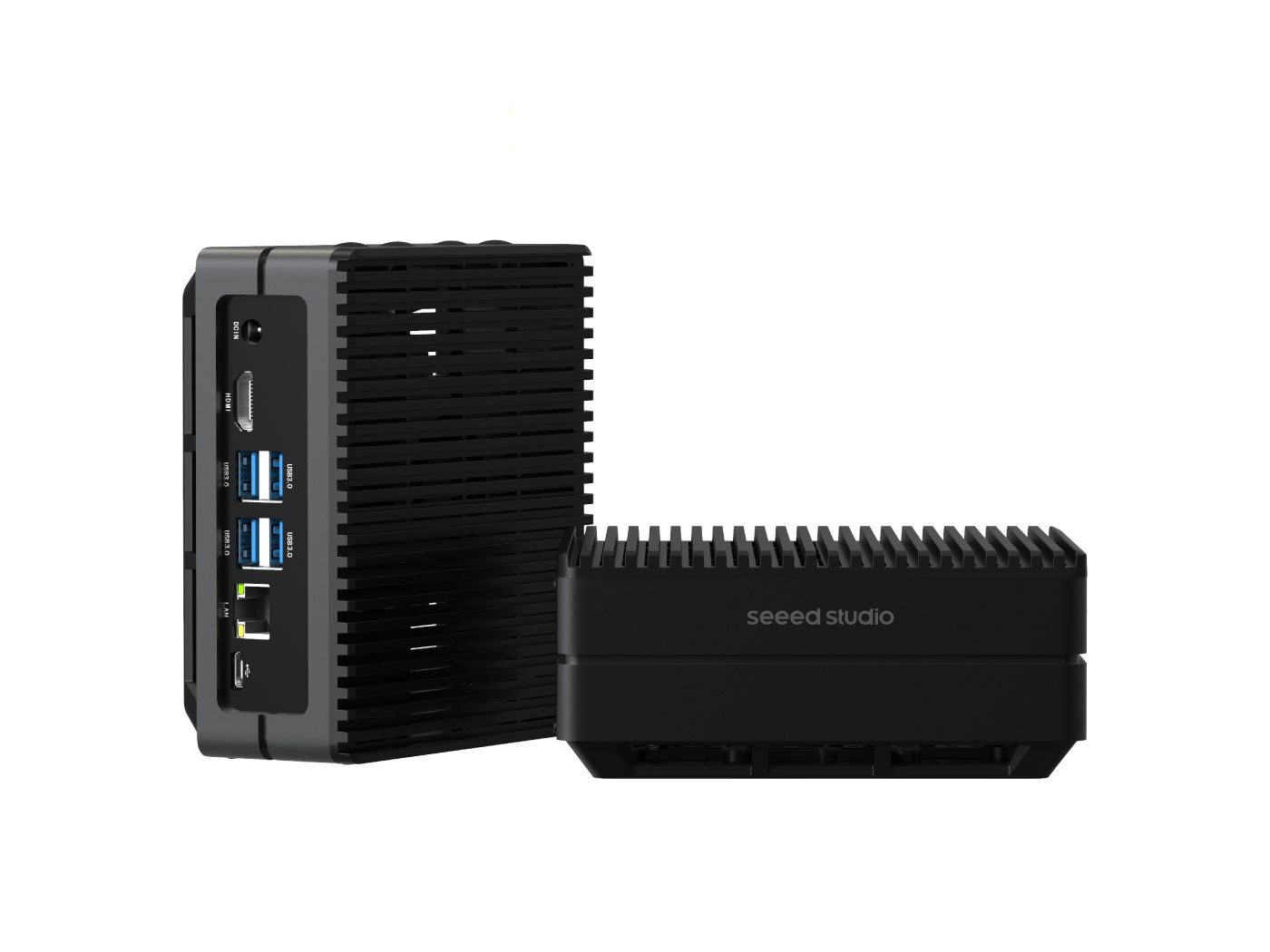

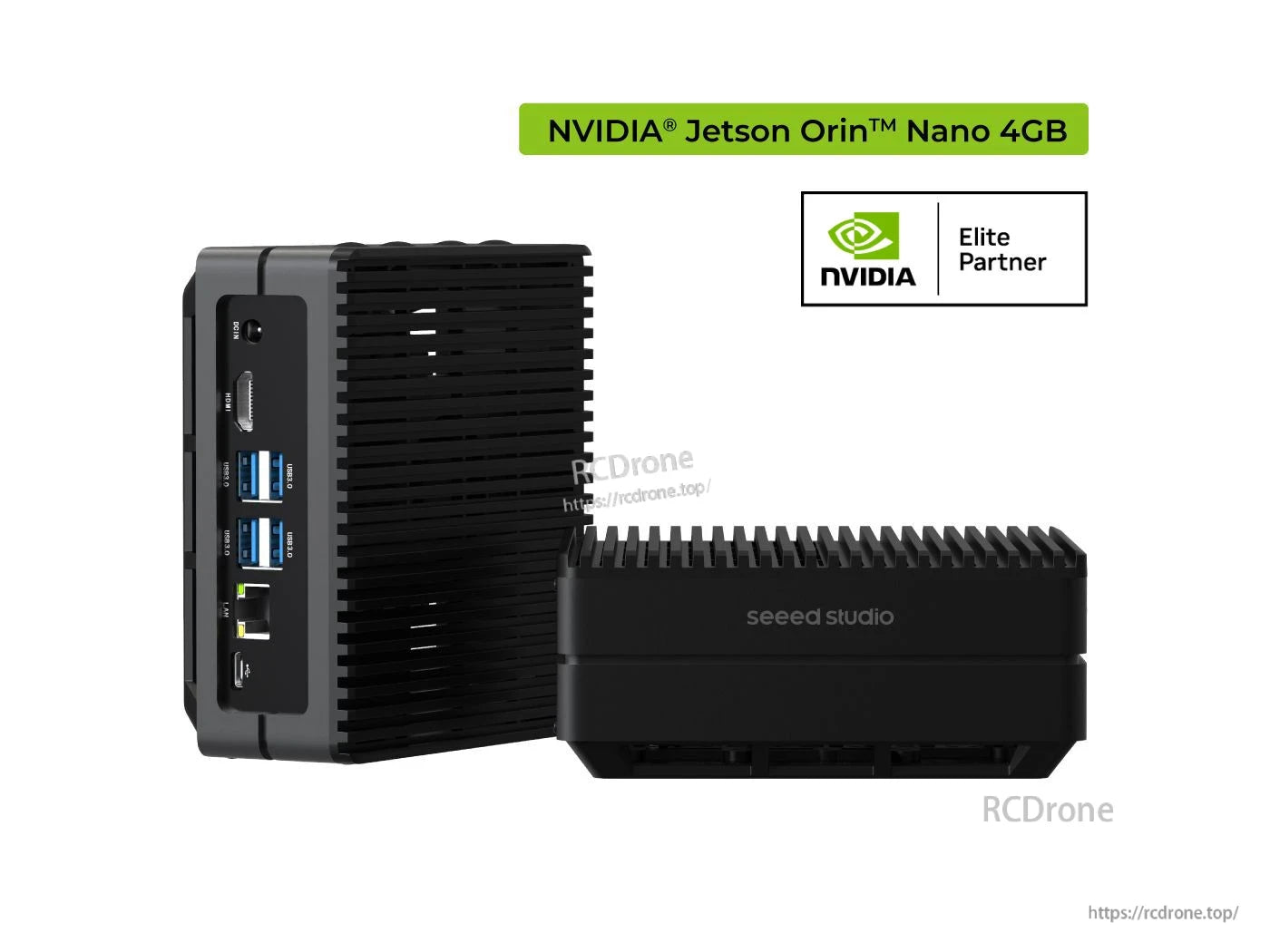

reComputer J3010 is a compact Edge AI Computer built on the NVIDIA Jetson Orin Nano 4GB production module. It delivers 20 INT8 TOPS (Sparse) AI performance out of the box with JetPack 5.1.x and supports Super Mode via JetPack 6.2, boosting performance up to 34 TOPS (Sparse). The system includes a 128GB M.2 NVMe SSD, pre-installed Wi‑Fi/Bluetooth combo module, 4x USB 3.2 Type‑A (10Gbps), HDMI 2.1, and Gigabit Ethernet, integrated on the Seeed Studio reComputer J401 carrier board.

Key Features

• NVIDIA Jetson Orin Nano 4GB SoM (Ampere architecture GPU, 512 CUDA Cores, 16 Tensor Cores)
• AI performance: 20 TOPS (Sparse) / 10 TOPS (Dense); up to 34 TOPS (Sparse) / 17 TOPS (Dense) after upgrading to JetPack 6.2 Super Mode
• CPU: 6‑core Arm Cortex‑A78AE v8.2 64‑bit
• Memory (Orin Nano 4GB): 4GB 64‑bit LPDDR5, 34 GB/s
• Storage: M.2 Key M PCIe slot with M.2 NVMe 2280 SSD 128G included
• Wireless: M.2 Key E slot with pre‑installed Wi‑Fi/Bluetooth combo module
• I/O: 4x USB 3.2 Type‑A (10Gbps), 1x USB 2.0 Type‑C (Device Mode), 2x CSI (2‑lane 15‑pin), 1x HDMI 2.1
• Networking: 1x RJ‑45 Gigabit Ethernet (10/100/1000M)
• Expansion: 40‑pin header (GPIO/I2C/UART), 12‑pin control & UART header, 4‑pin fan connector (5V PWM), 1x CAN, RTC 2‑pin (CR1220 supported, not included)

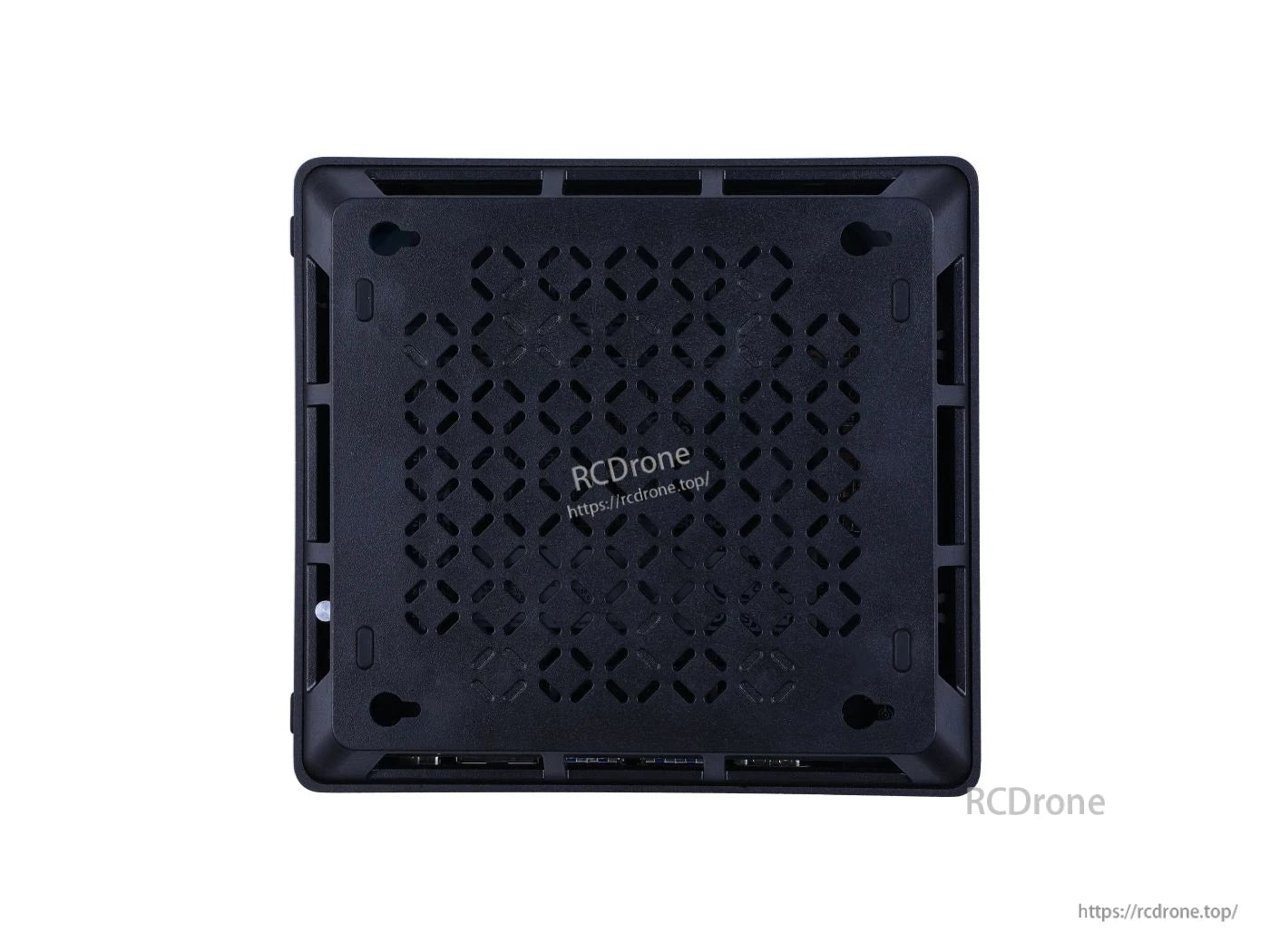

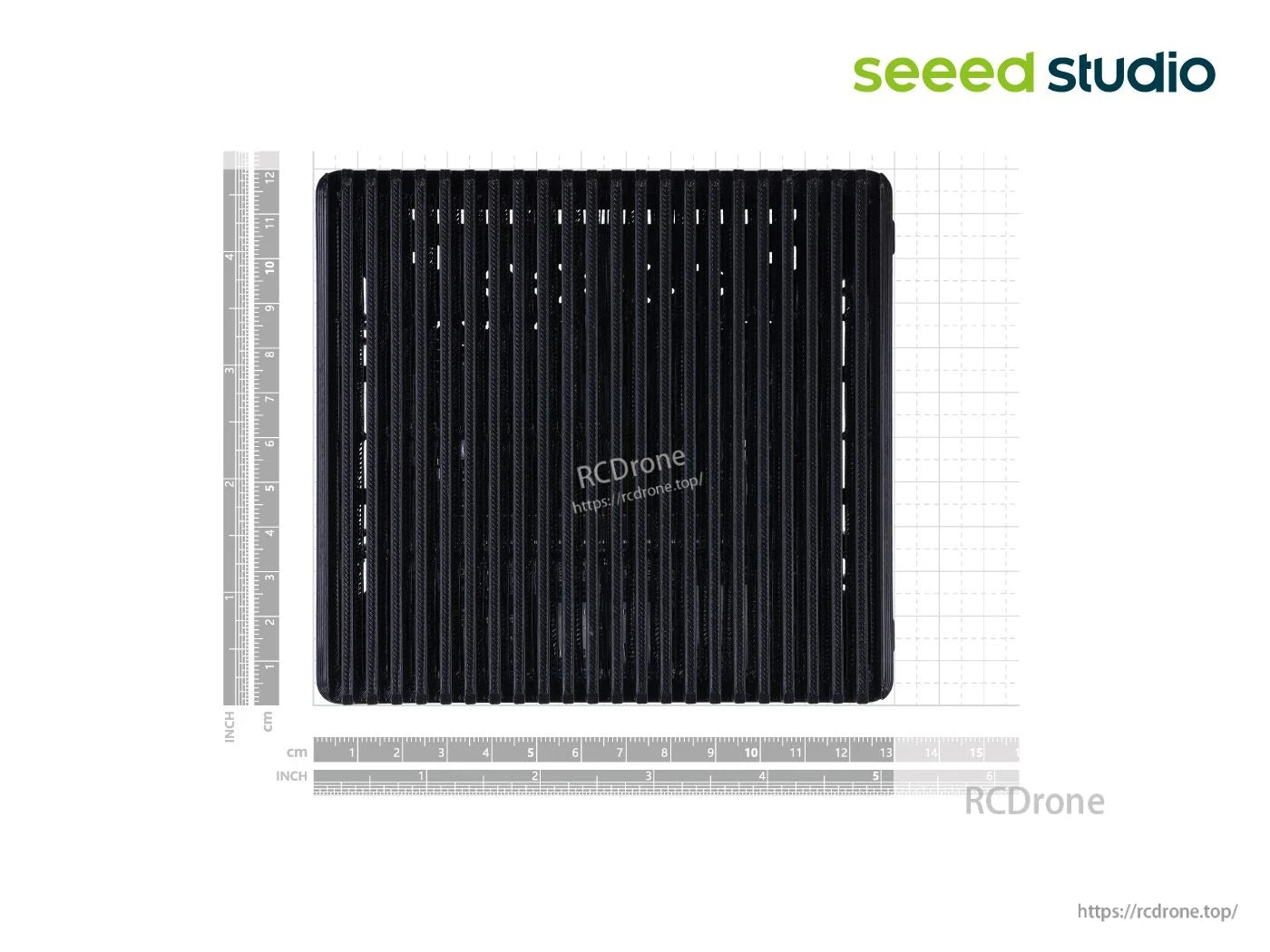

• Mechanical: 130mm x 120mm x 58.5mm (with case); desktop or wall‑mount installation
• Power: DC 9–19V input; DC Jack 12V/5A power adapter included (barrel 5.5/2.5mm). AC cloverleaf power cord not included.
• Operating temperature: −10℃ to 60℃; Warranty: 1 Years
• Open Source Hardware

Notes

• Upgrading the pre‑installed JetPack 5.1.x to JetPack 6.2 (Super Mode) increases AI and CPU frequencies (GPU up to 1,020MHz; CPU up to 1.7GHz) and AI performance to 34/17 TOPS (Sparse/Dense).
• For best compatibility, use Seeed NVMe SSDs (128GB/256GB/512GB/1TB). Some market SSDs may require specific JetPack versions.
• If you need a version without a power adapter, see: reComputer J3010 Edge device (w/o power adapter).

Specifications

Hardware Overview

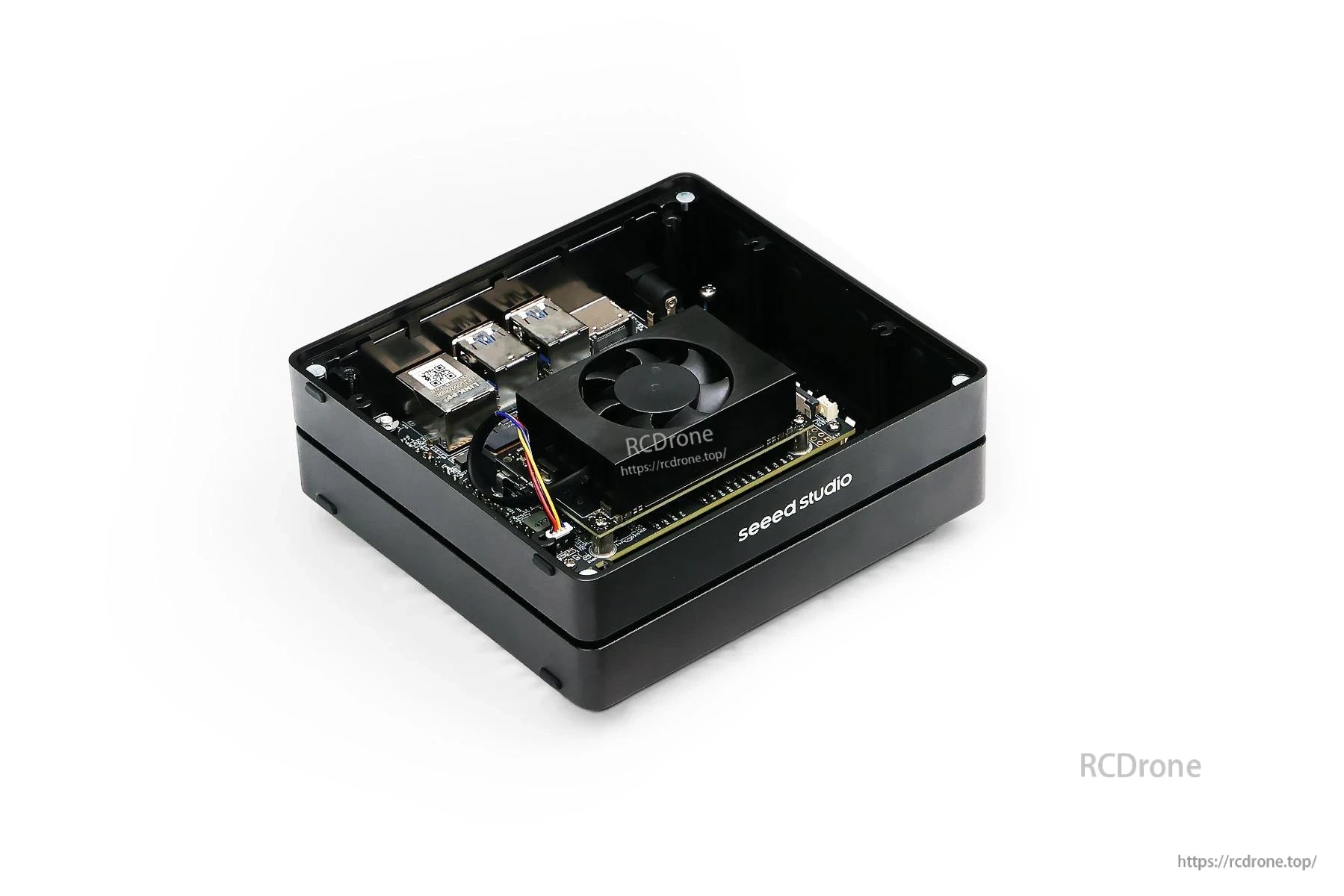

Includes the reComputer J401 carrier board with: 4x USB 3.2 ports, USB Type‑C (device), RJ‑45 Gigabit Ethernet, HDMI 2.1, 2x MIPI‑CSI camera connectors, 40‑pin expansion header, 12‑pin control/UART header, fan header, CAN, RTC socket, M.2 Key E (Wi‑Fi/BT), and M.2 Key M (SSD).

Applications

Application Fields

• AI Video Analytics
• Machine Vision
• Robotics

Fast deployment for Generative AI and Computer Vision

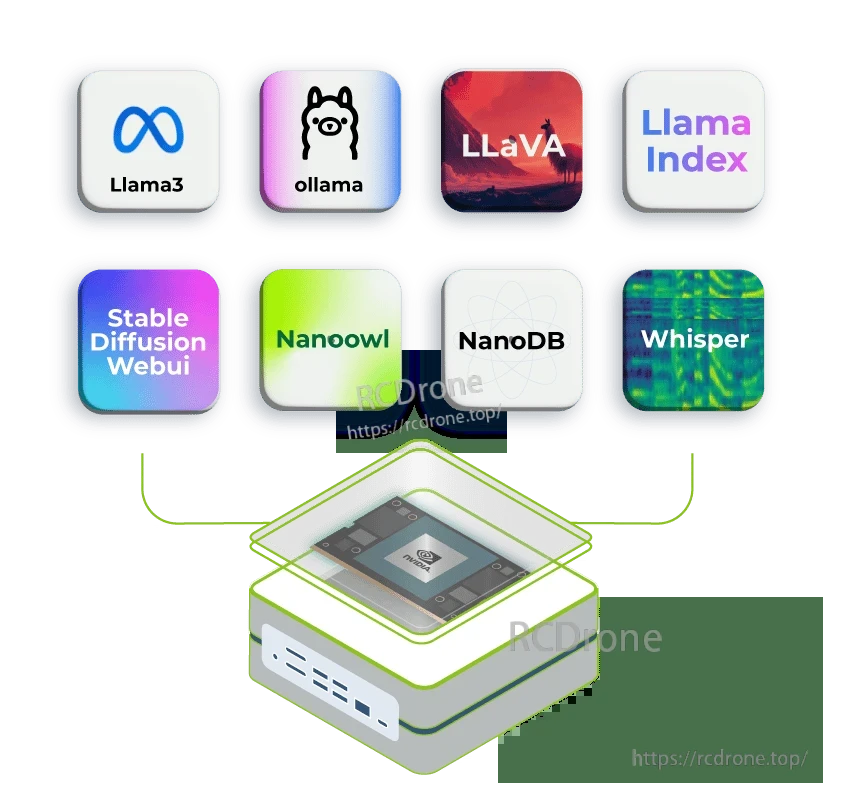

Ready‑to‑use jetson‑examples enable one‑line deployment for edge AI projects including Ollama, Llama3, YOLOv8, and more. Environments are pre‑configured to provide single‑command setup.

Documents

• Datasheet
• Schematic
• 3D File
• Seeed NVIDIA Jetson Product Catalog
• NVIDIA Jetson Comparison
• NVIDIA Jetson Product Comparison
• Seeed NVIDIA Jetson Success Cases
• Seeed Jetson One Pager

ECCN/HTS

What’s Included

• reComputer J3010 (system installed) x1

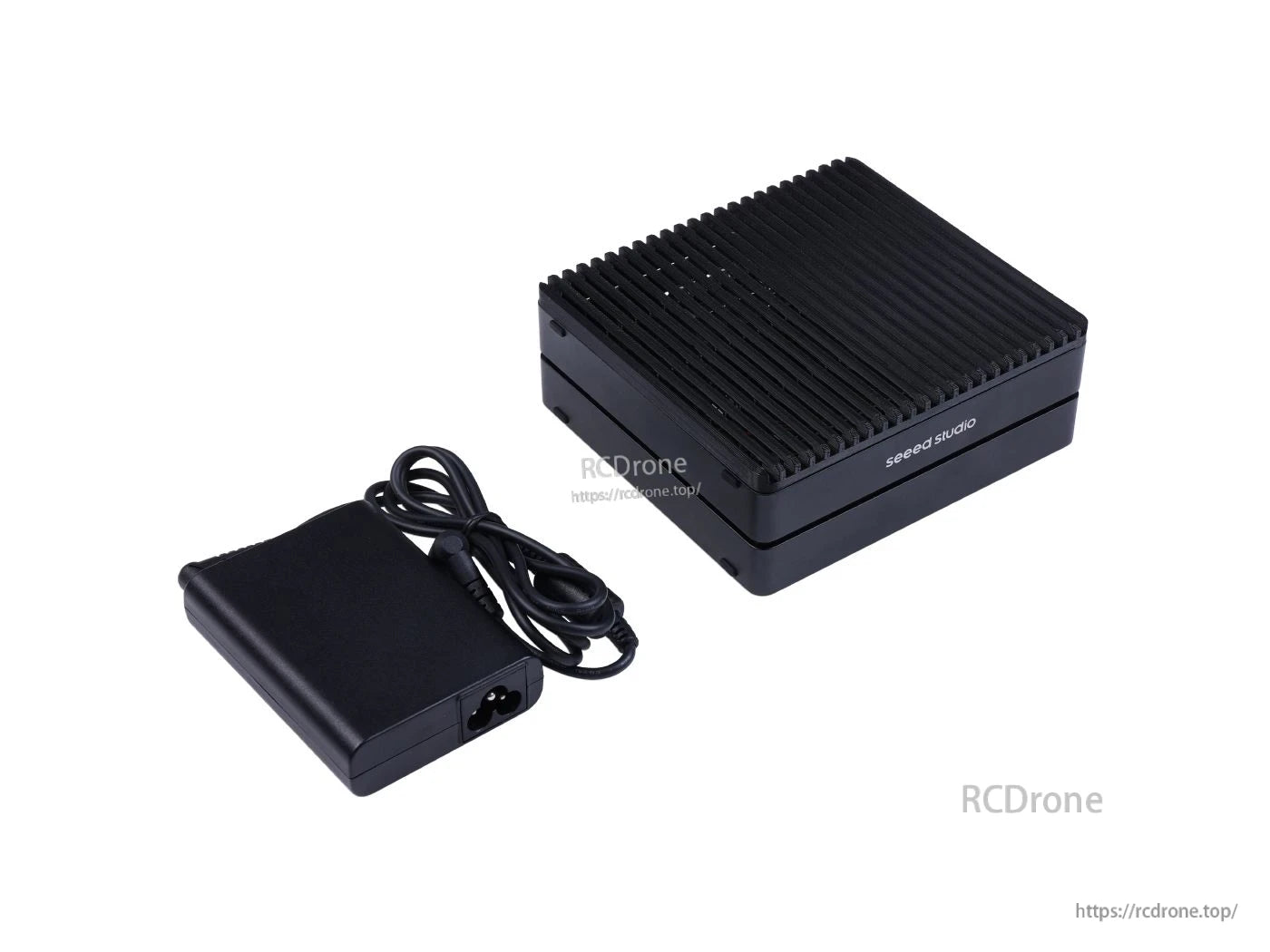

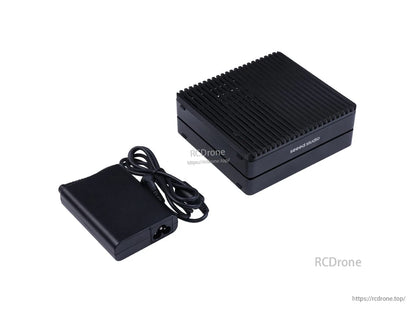

• 12V/5A power adapter, barrel jack 5.5/2.5mm (power cord not included) x1

Power cord note

The product includes a power adapter but does not include an AC cloverleaf power cord. Please purchase an appropriate cord for your region:

• AC Cloverleaf Power Cord – US
• AC Cloverleaf Power Cord – EU

Details

Jetson Orin Nano 4GB, 20 TOPS AI (up to 34 TOPS), 7W-10W efficiency, -10°C to 60°C operation, WiFi/Bluetooth, M.2 SSD, GbE, CSI, HDMI, USB, DC input. Open-source hardware ideal for robotics, generative AI, and computer vision.

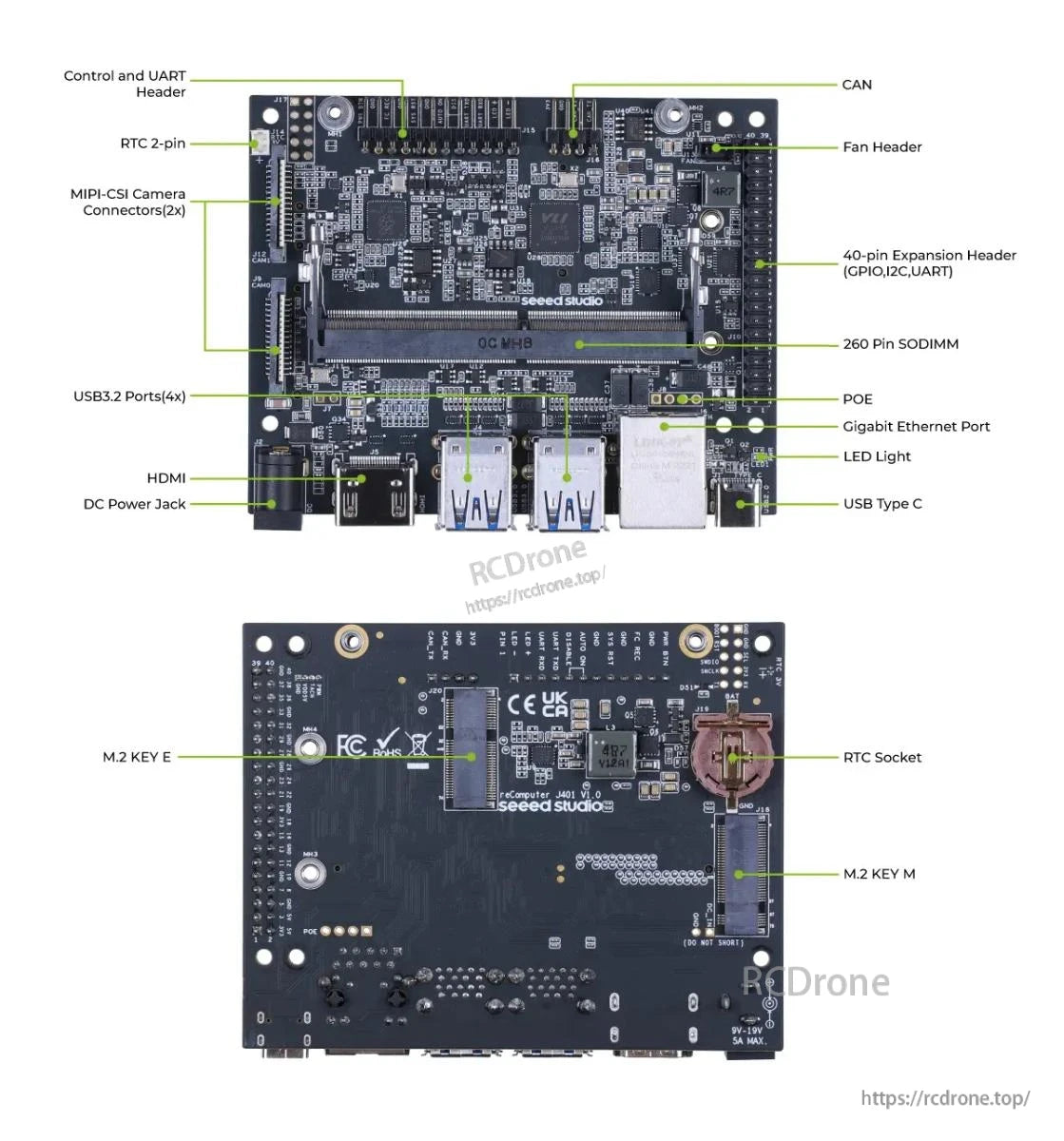

Control and UART CAN Header, RTC, 2-pin Fan Header, E3598, MIPI-CSI Camera, Connectors (2x), 40-pin Expansion Header (CPIO, IZC, UART) with LED Light, HDMI, DC Power Jack, USB Type-C, Gigabit Ethernet Port. The product also features a SODIMM slot and 4x USB3.2 ports.

Stable diffusion AI model for generating creative content using llama and web interface.
