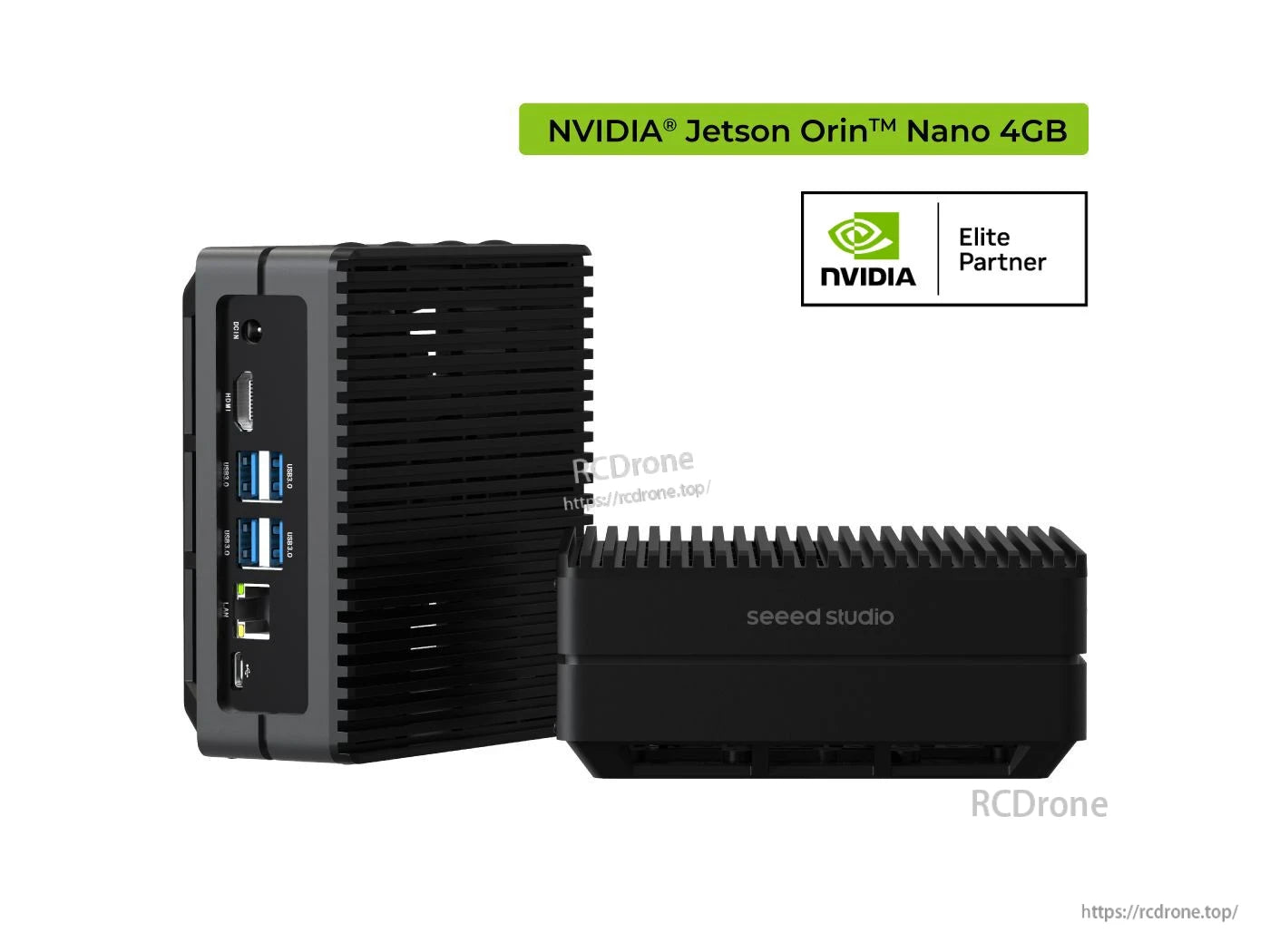

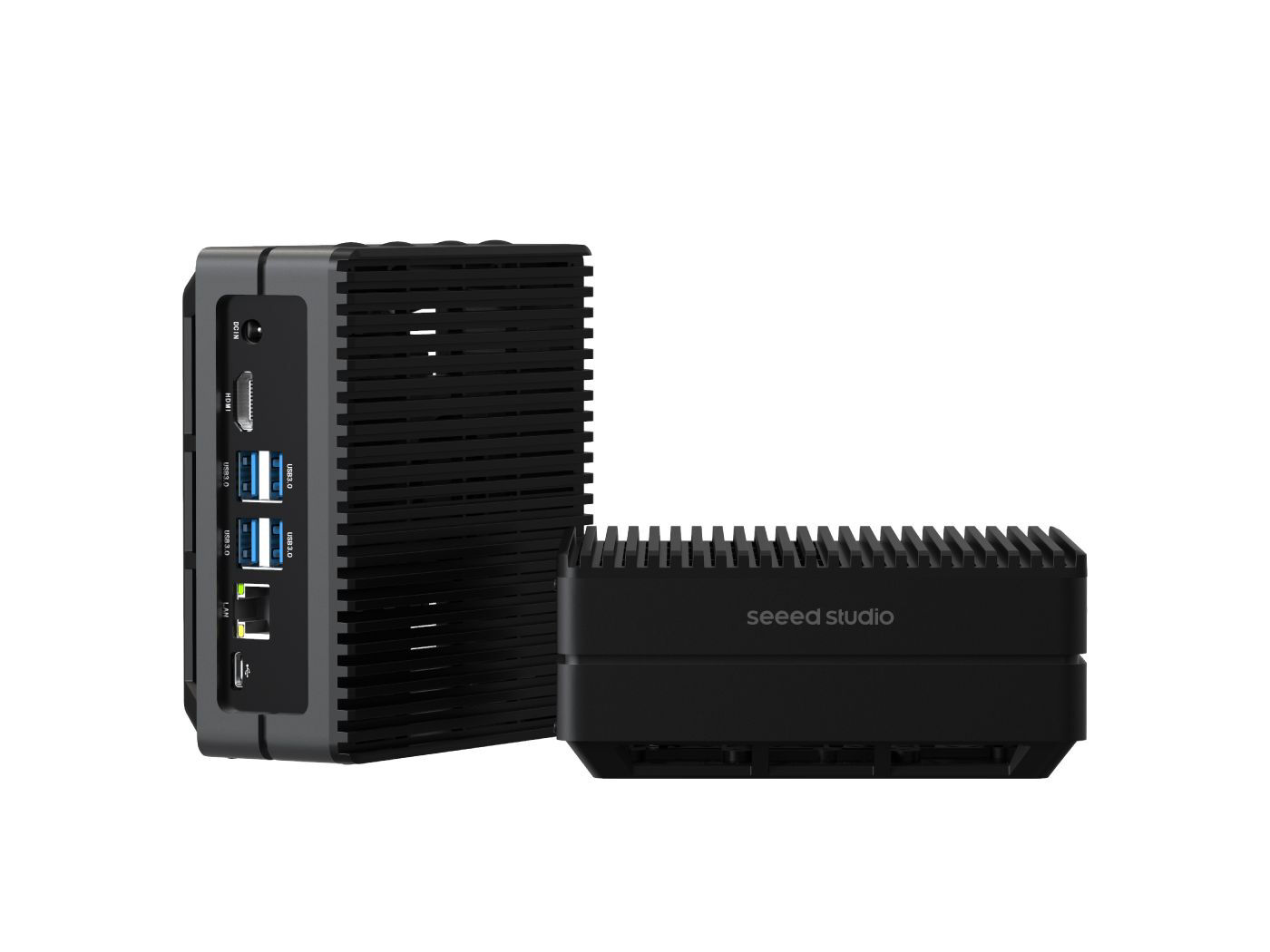

reComputer J3010 Edge AI Computer (w/o power adapter) – Jetson Orin Nano 4GB, 128GB SSD, 4× USB 3.2, HDMI, GbE, Super Mode

Overview

reComputer J3010 (w/o power adapter) is an Edge AI Computer built around the NVIDIA Jetson Orin Nano 4GB production SoM. It comes pre-built with JetPack 5.1.1 (super with JP6.2), includes a 128GB NVMe SSD, and provides rich I/O: 4× USB 3.2 Type‑A, HDMI, Gigabit Ethernet, dual CSI camera connectors, CAN, RTC, 40‑pin expansion and more. The carrier board integrates M.2 Key E for Wi‑Fi/Bluetooth and M.2 Key M for SSD.

Key Features

• NVIDIA Ampere architecture GPU (512 CUDA Cores, 16 Tensor Cores).
• AI performance upgrade path: self‑upgrade to JetPack 6.2 to boost from 20 TOPS (Sparse) / 10 TOPS (Dense) to 34 TOPS (Sparse) / 17 TOPS (Dense). Upgrade guide.
• Pre-installed 128GB M.2 NVMe 2280 SSD; carrier supports additional NVMe SSDs via M.2 Key M.
• Wireless-ready via M.2 Key E (pre‑installed Wi‑Fi/Bluetooth combo module).
• I/O: 4× USB 3.2 Type‑A (10Gbps), 1× USB 2.0 Type‑C (Device Mode), 1× HDMI 2.1, 1× RJ‑45 GbE (10/100/1000M), 2× CSI (2‑lane, 15‑pin), 1× CAN, 4‑pin 5V PWM fan header, RTC 2‑pin.

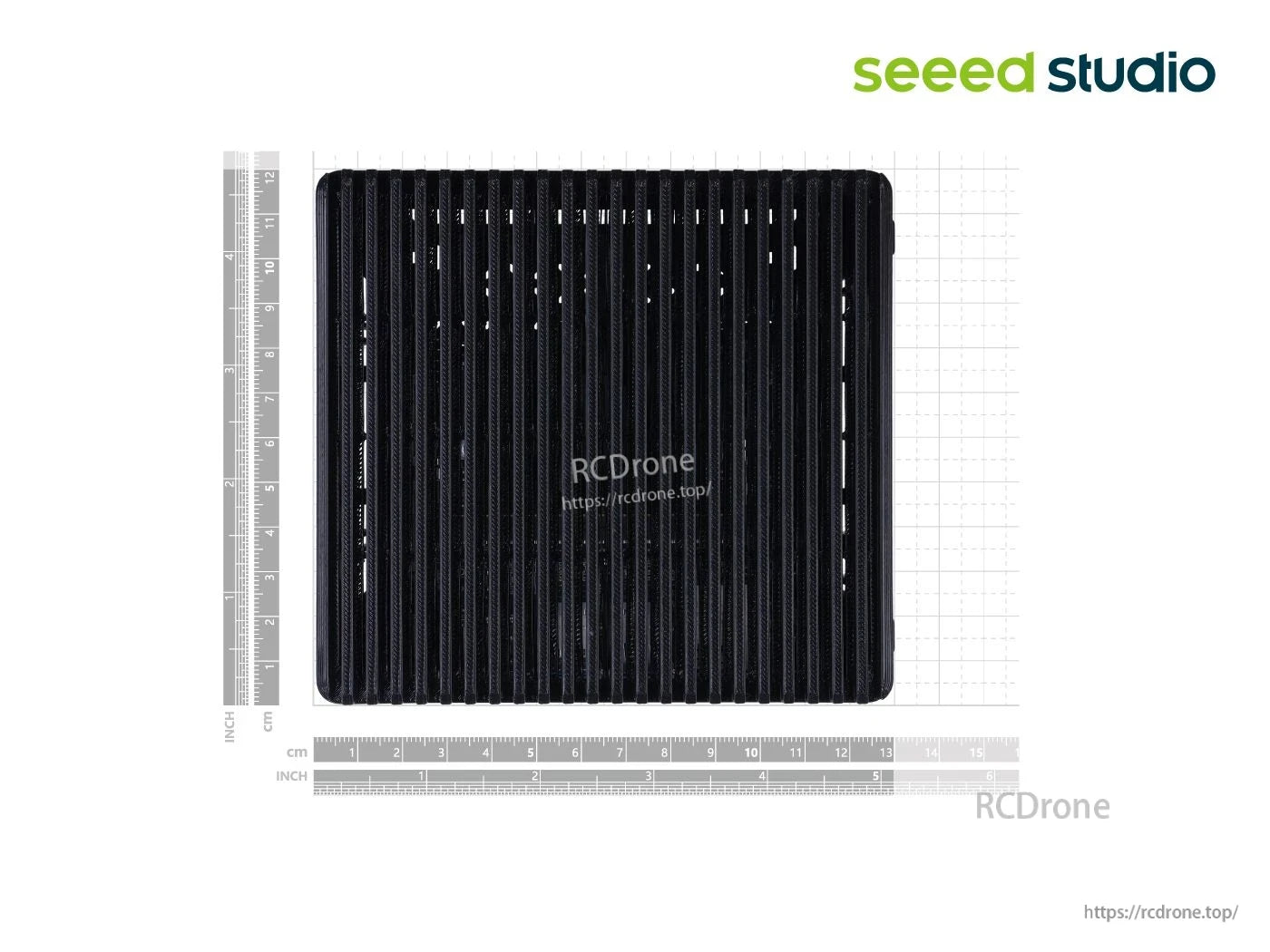

• Power input: 9–19V DC; DC Jack 12V/5A. Compact enclosure: 130mm × 120mm × 58.5mm (with case).
• Operating temperature: −10℃ to 60℃; installation options: desk or wall‑mount.
• For best compatibility and performance, Seeed recommends 128GB / 256GB / 512GB / 1TB NVMe SSDs. Some third‑party SSDs may only work with specific JetPack versions.
• If you need the version with power adapter, please check reComputer J3010 Edge device.

Specifications

Hardware Overview

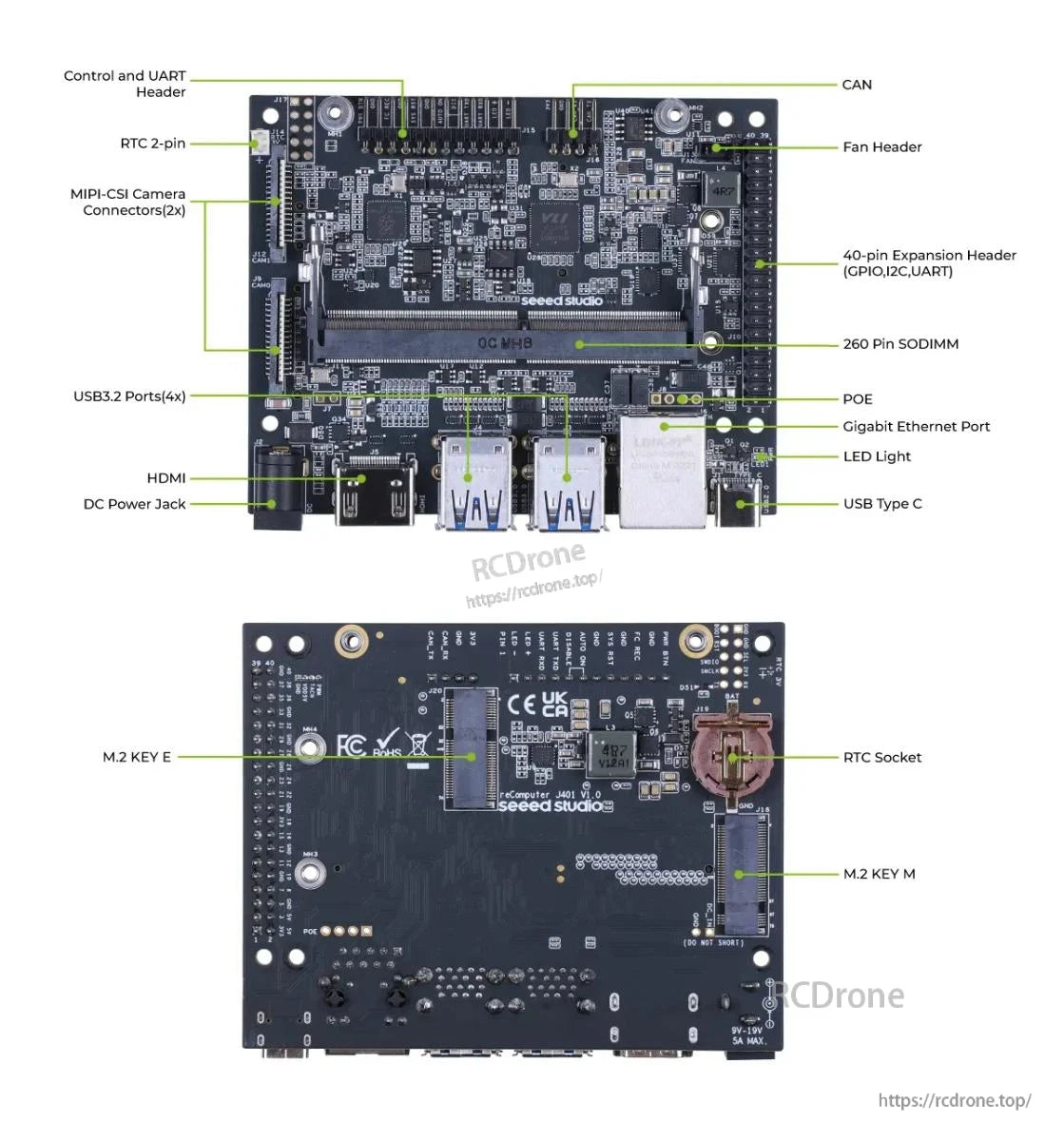

• reComputer J401 carrier board, included in the full system – reComputer J3010.

Control and UART CAN Header, RTC 2-pin Fan Header, E3598-0, Ei MIPI-CSI Camera, E, OCR Connectors (2x), 40-pin Expansion Header with CPIO, IZC, and UART. This board also features an OCEDRAM SODIMM module, 4x USB3.2 ports, POE Gigabit Ethernet port, LED light, HDMI, DC power jack, and a VaV valve.

Applications

Application Fields

• AI Video Analytics
• Machine Vision
• Autonomous Mobile Robot (AMR)
• Generative AI

Capable of Bringing Generative AI to the Edge

Build AI agents capable of processing large volumes of live or archived videos and images with Vision‑Language Models (VLM) such as LLaVA, enabling natural‑language summarization, search, and insights from video.

Build Multi‑streams AI Video Analytics

Jetson Orin Nano integrates the NVIDIA Multi‑Standard Video Decoder for accelerated decode across SD, HD, and UltraHD. reComputer J3010 can take 11×1080p30 streams. See tested YOLOv8 performance using NVIDIA DeepStream.

Fastest Way to Deploy Generative AI and Computer Vision Models

Seeed provides jetson-example projects for one‑line deployment of edge AI applications including Ollama, Llama3, computer vision with YOLOv8, and more. All environments are pre‑configured for single‑command deployment.

Documents

Certification

What’s Included

Details

Elite Partner NVIDIA reComputer J3010 offers high performance with up to 34 TOPS on Jetson Orin and 20 TOPS on Nano. It features 4GB of AI acceleration, efficient power management with 'flashing' JP6.2, and a compact design measuring I3Omm x 12Omm x 58.Smm. The device operates in a wide temperature range from -10PC to 60C and is open-source. Key features include M2 key slots for RJ-45 GbE and CSI interfaces, as well as WiFi/Bluetooth, SSD storage, nine HDMI ports, and multiple USB and DC power options.

J3010 Edge AI Computer supports USB3.2, HDMI, Gigabit Ethernet, PoE, M.2 slots, SODIMM, camera, UART, CAN, GPIO, RTC socket, fan header, and DC power input.

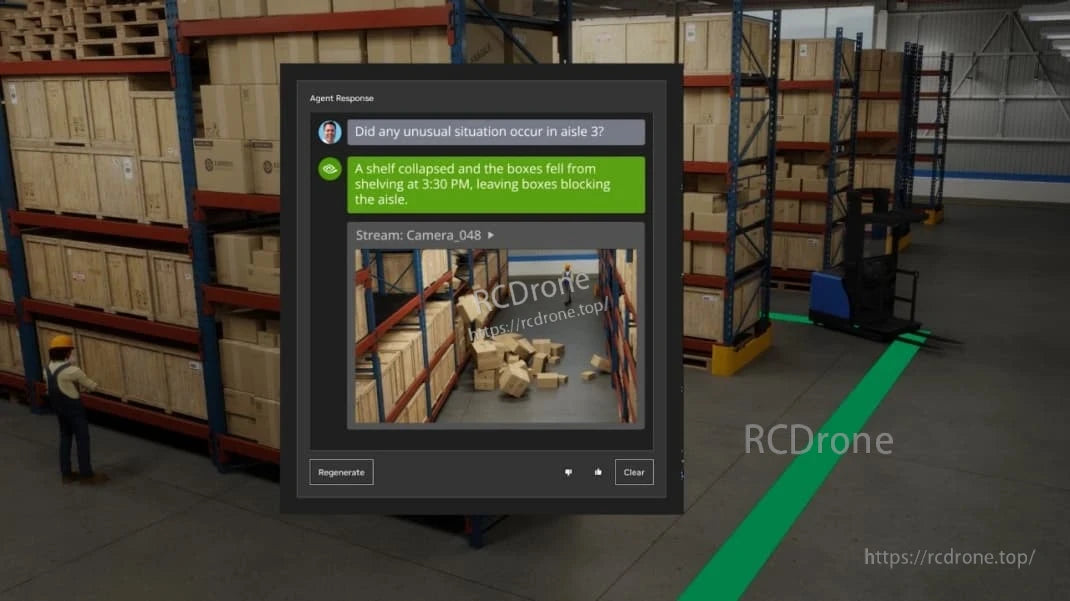

Acount Alert: Unusual incident in aisle 324 - shelf collapse at 3:30 PM, blocking boxes

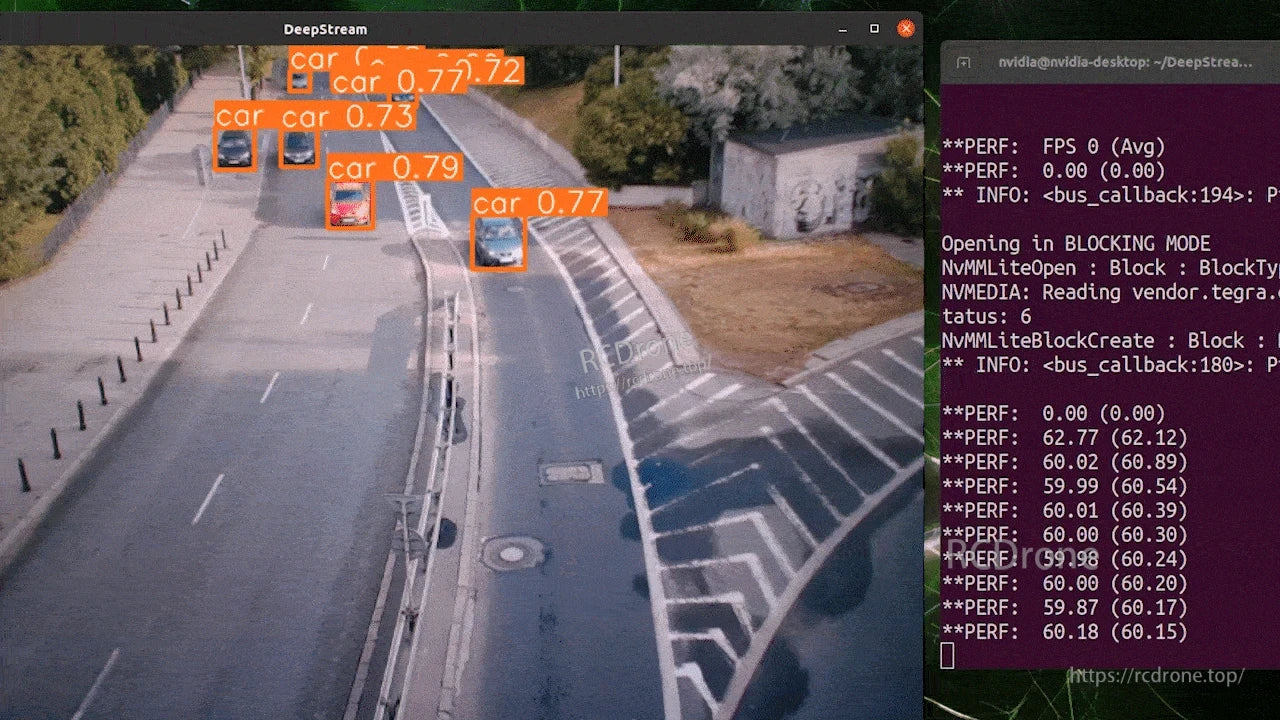

Detects cars with confidence scores; logs display FPS, performance metrics, and system initialization for edge AI on NVIDIA hardware.

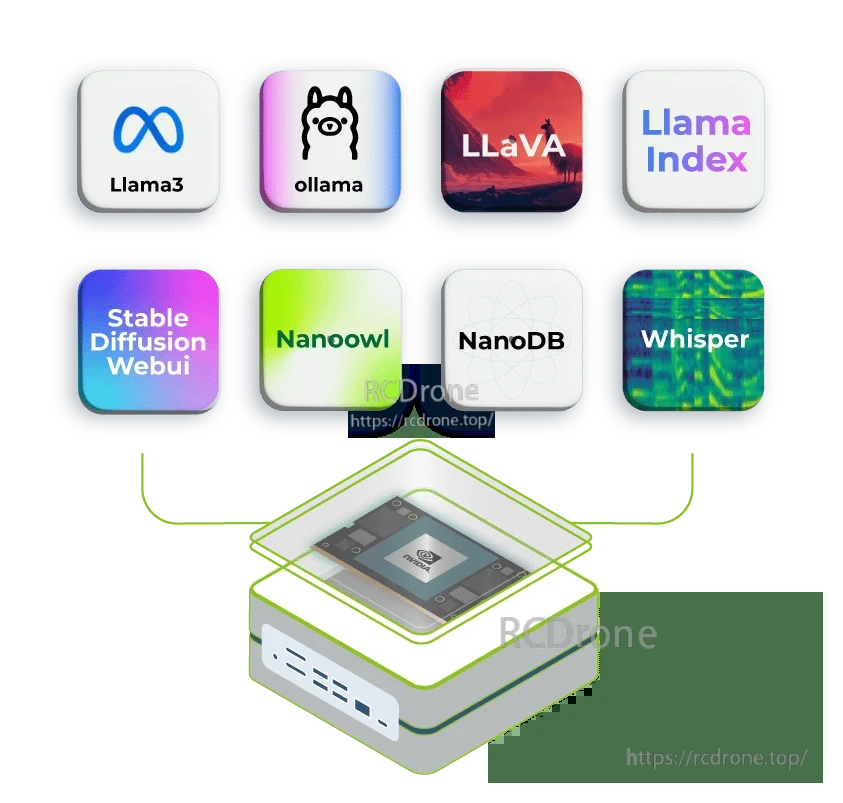

J3010 Edge AI supports Llama3, ollama, LLaVA, Whisper, and more.
