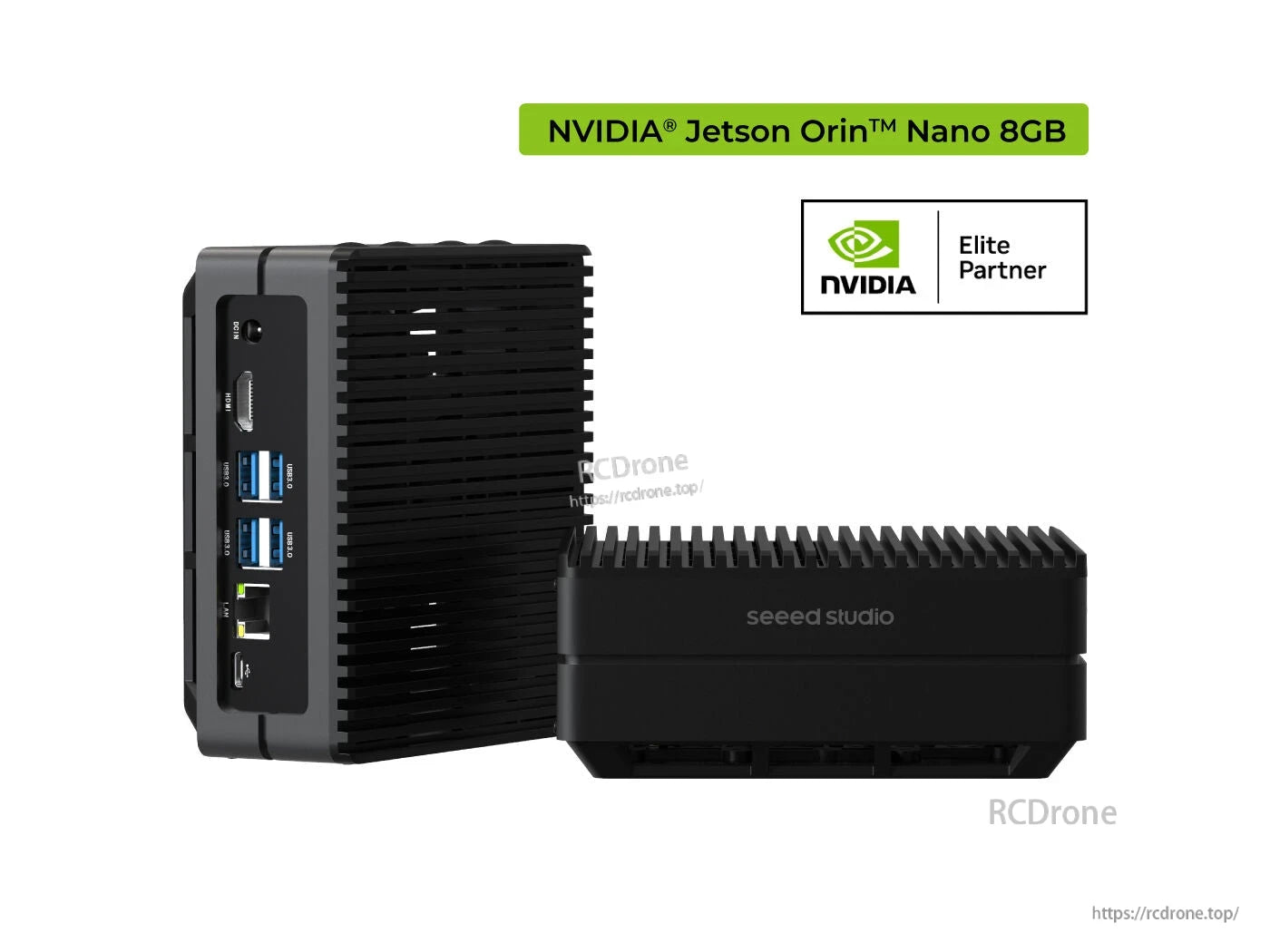

reComputer J3011 Edge AI Computer with NVIDIA Jetson Orin Nano 8GB, 128GB SSD, 4x USB 3.2, HDMI 2.1, GbE, Super Mode JP6.2

Overview

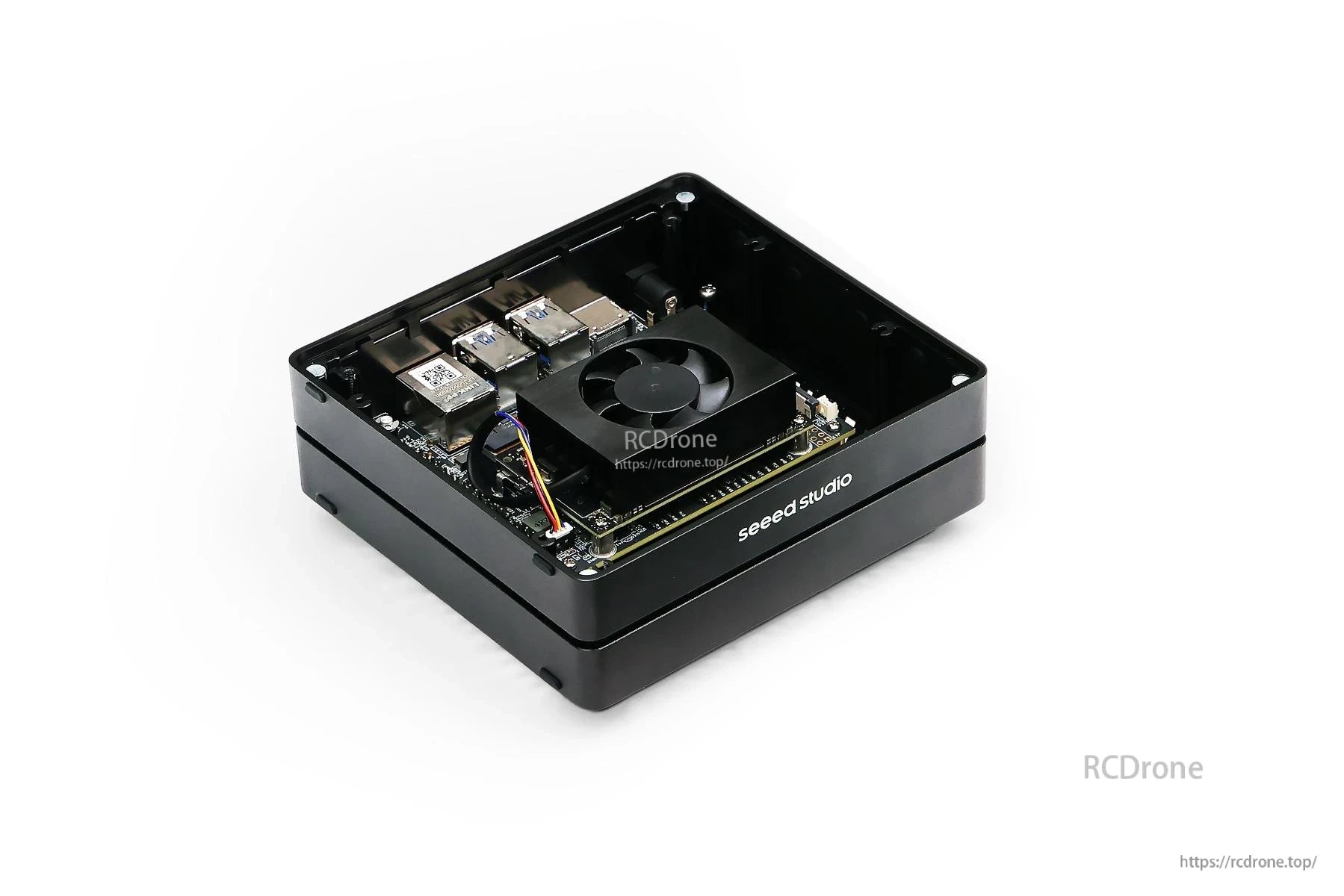

reComputer J3011 is an Edge AI Computer built on the NVIDIA Jetson Orin Nano 8GB SoM. It comes pre-installed with JetPack 5.1.1 (original JP5.1.3 is also referenced) on a 128GB NVMe SSD and provides rich I/O: 4x USB 3.2, HDMI 2.1, RJ-45 GbE, 2x CSI, CAN, GPIO via a 40-pin header, RTC, plus M.2 Key E for Wi‑Fi/Bluetooth and M.2 Key M for SSD. The compact enclosure supports desk and wall mounting and operates from -10℃ to 60℃.

With a self-upgrade to JetPack 6.2 “Super Mode”, AI performance increases from 40 TOPS (INT8 Sparse) to 67 TOPS (INT8 Sparse), offering capabilities comparable to the NVIDIA Jetson Orin Nano Super Developer Kit. OTA and remote management services powered by Allxon and Balena are supported to help scale deployments.

Key Features

Performance

• NVIDIA Ampere architecture GPU: 1,024 CUDA cores, 32 Tensor Cores
• AI performance: 40 INT8 TOPS (Sparse) / 20 INT8 TOPS (Dense); Super Mode: 67 TOPS (Sparse) / 33 TOPS (Dense)
• CPU: 6-core Arm Cortex-A78AE v8.2 64-bit
• Memory: 8GB 128-bit LPDDR5 (68 GB/s); Super Mode memory bandwidth: 102 GB/s
• Module power: 7W | 15W (original); 10W | 15W | 25W (Super Mode)

Connectivity and I/O

• 4x USB 3.2 Type-A (10Gbps); 1x USB2.0 Type-C (Device Mode)
• 1x HDMI 2.1 display output
• 1x RJ-45 Gigabit Ethernet (10/100/1000M)
• 2x CSI camera interfaces (2-lane, 15-pin)
• M.2 Key E (pre-installed 1x Wi‑Fi/Bluetooth combo module)
• M.2 Key M for NVMe SSD (128G included)
• 1x CAN; 1x 40-pin Expansion header; 1x 12-pin Control & UART header
• 1x RTC 2-pin (supports CR1220, battery not included)
• 1x 4-pin Fan connector (5V PWM)

Mechanical and Power

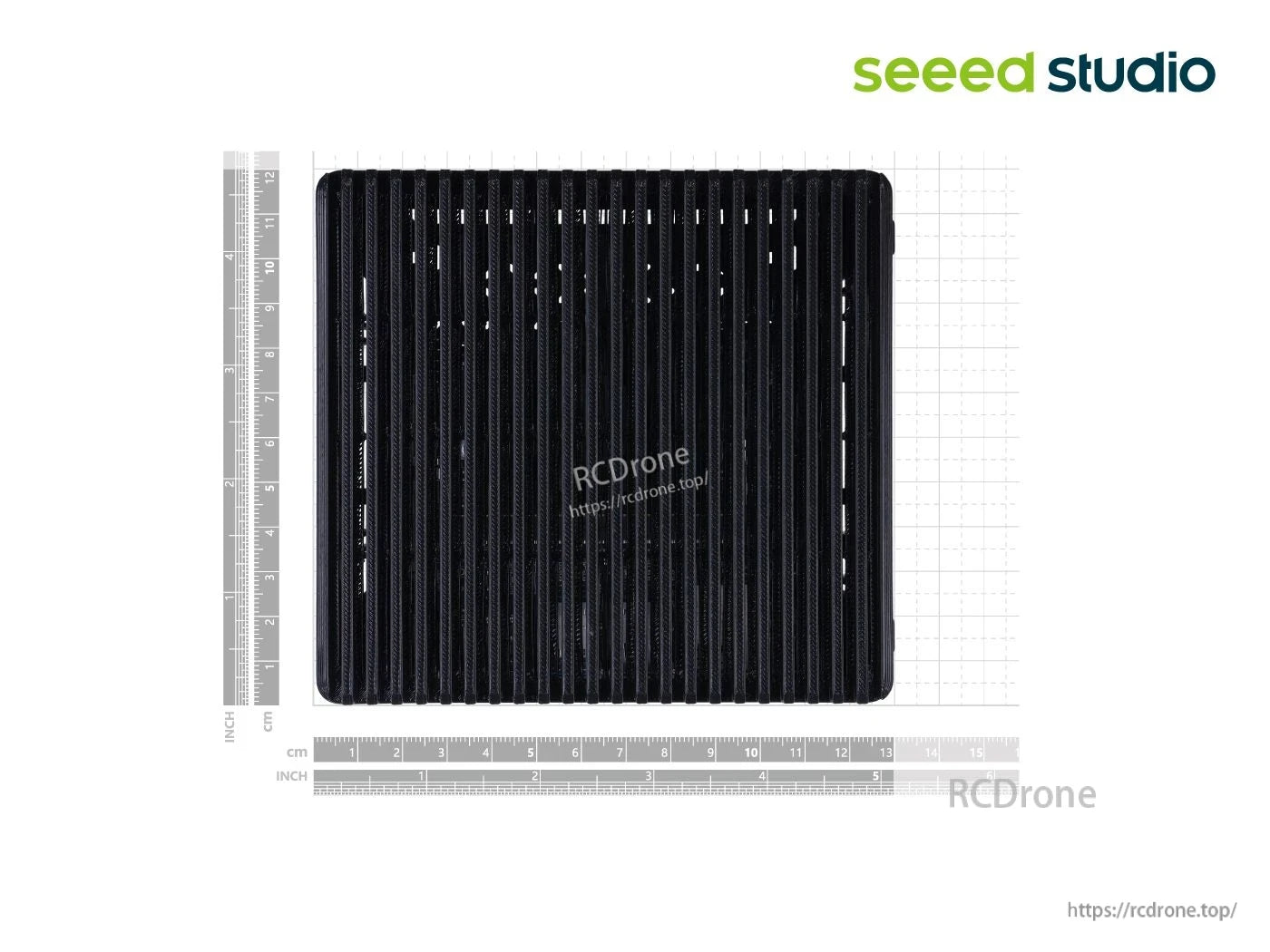

• Dimensions (with case): 130mm x 120mm x 58.5mm
• Power input: 9–19V DC; 12V/5A power adapter included
• Installation: Desk or wall-mounting
• Operating temperature: -10℃ to 60℃

Video Capabilities

• Video encoder: 1080p30 supported by 1–2 CPU cores
• Video decoder: 1x 4K60 (H.265) | 2x 4K30 (H.265) | 5x 1080p60 (H.265) | 11x 1080p30 (H.265)

Notes

• Upgrade to JetPack 6.2 to enable Super Mode and boost AI performance from 40 TOPS to 67 TOPS.
• Recommended SSDs: 128GB / 256GB / 512GB / 1TB from Seeed; some market SSDs may only work with specific JetPack versions.
• Version without power adapter available: reComputer J3011 without power adapter.

Specifications

Hardware Overview

reComputer J401 carrier board is included in the full system reComputer J3011.

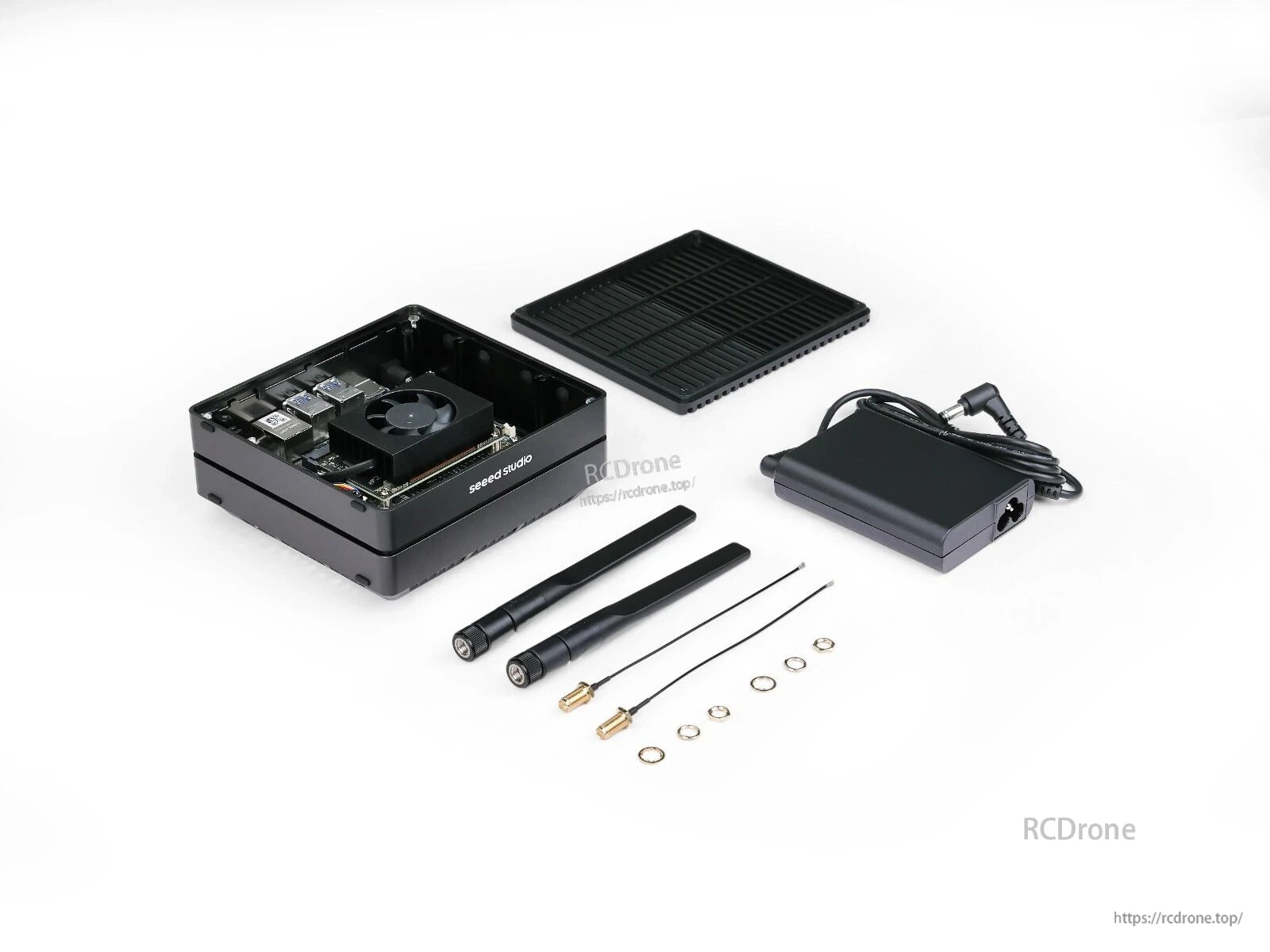

What’s Included

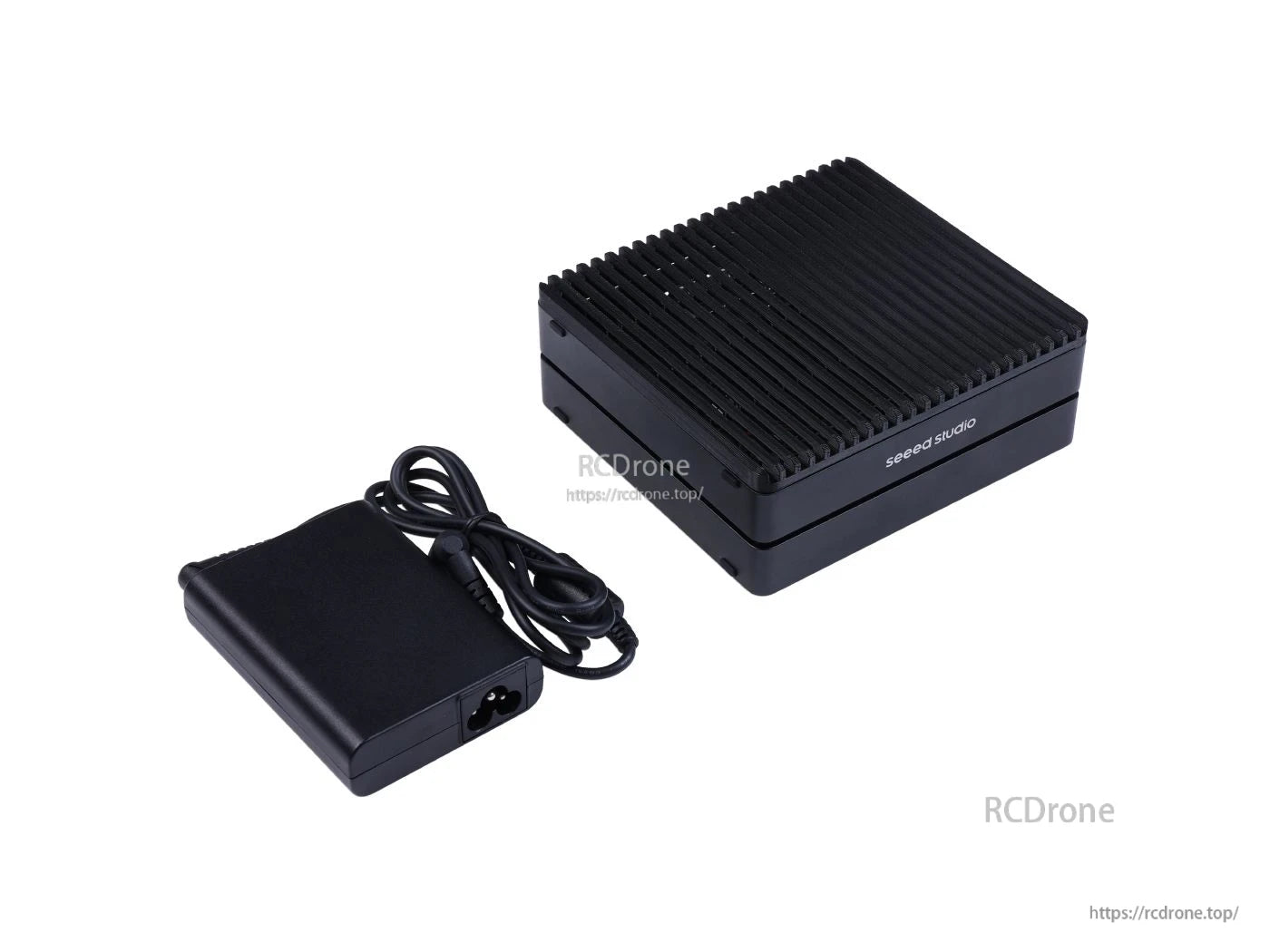

• reComputer J3011 (system installed) x1
• 12V/5A (Barrel Jack 5.5/2.5mm) Power Adapter (power cord not included) x1

Note: The product includes a power adapter but no AC cloverleaf power cord. Please purchase a suitable cord for your region: US or EU.

Applications

• AI Video Analytics
• Machine Vision
• Autonomous Mobile Robot (AMR)
• Generative AI

Multi-stream AI Video Analytics

Jetson Orin Nano integrates the NVIDIA Multi-Standard Video Decoder. reComputer J3011 can take 13x1080p30 streams. See tested YOLOv8 performance with NVIDIA DeepStream.

Deploy Generative AI and Computer Vision Quickly

Seeed provides jetson-examples for one-line deployment of edge AI projects including Ollama, Llama3, LLaVA, YOLOv8, and more. Environments are pre-configured for single-command deployments.

Documents

• reComputer J301x Datasheet
• NVIDIA Jetson Devices and carrier boards comparisions
• reComputer J401 schematic design file
• reComputer J3011 3D file

ECCN/HTS

Details

Jetson Orin Nano 8GB, 40 TOPS AI (up to 67 TOPS), compact, power-efficient, open-source hardware. Supports robotics, generative AI, and computer vision with wide temperature range and multiple I/Os.

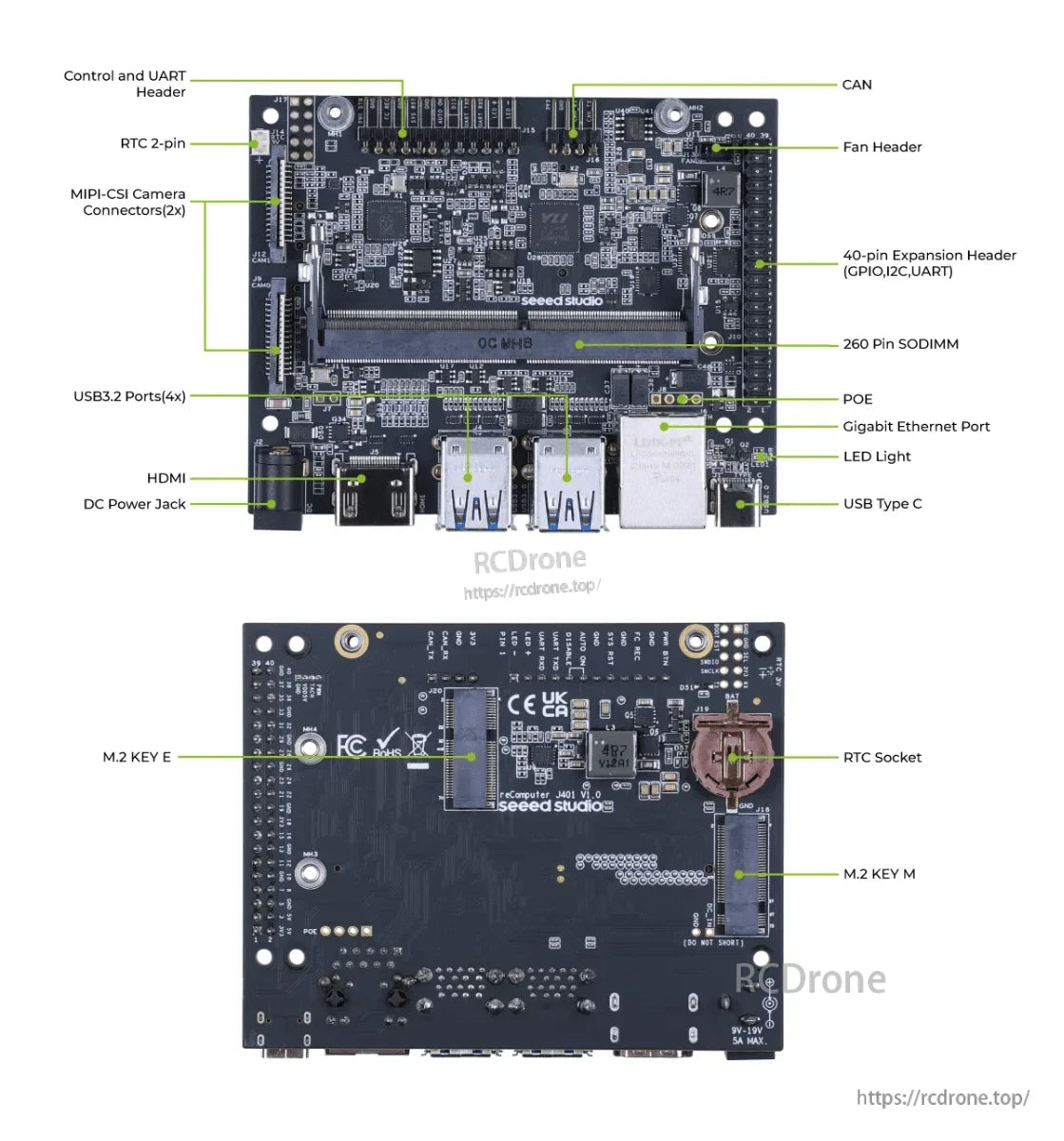

This board features a Control and UART CAN Header, 2-pin Fan Header, and MIPI-CSI Camera. It also includes EVRO connectors and a 40-pin Expansion Header for GPIO, IZC, and UART functions. The board has USB3.2 ports, Gigabit Ethernet, LED lights, HDMI, and a DC power jack.

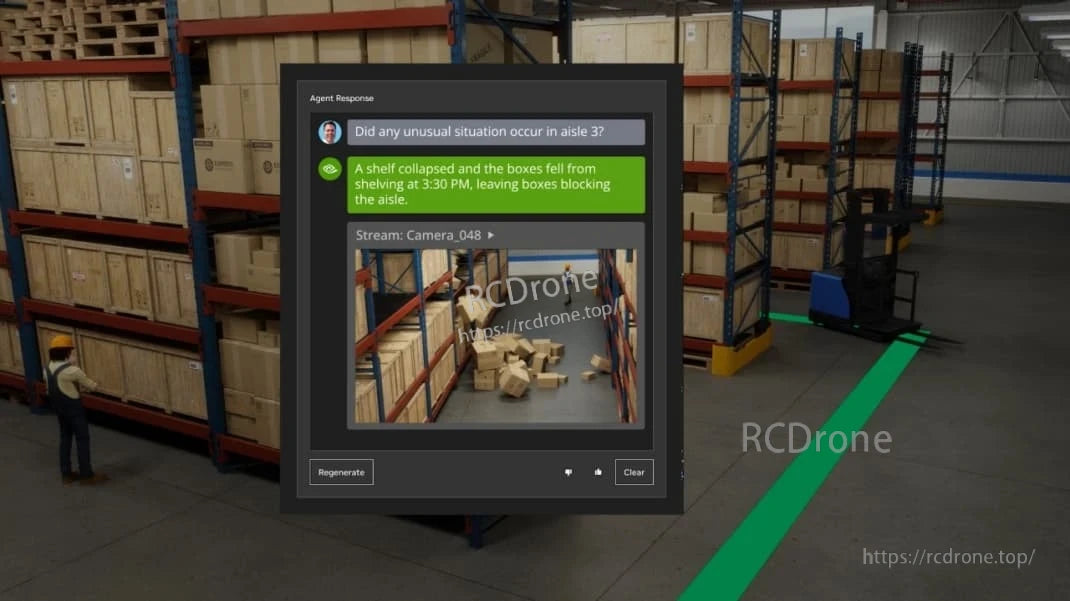

Shelf collapsed, boxes fell at 3:30 PM, blocking aisle. Camera stream displayed.

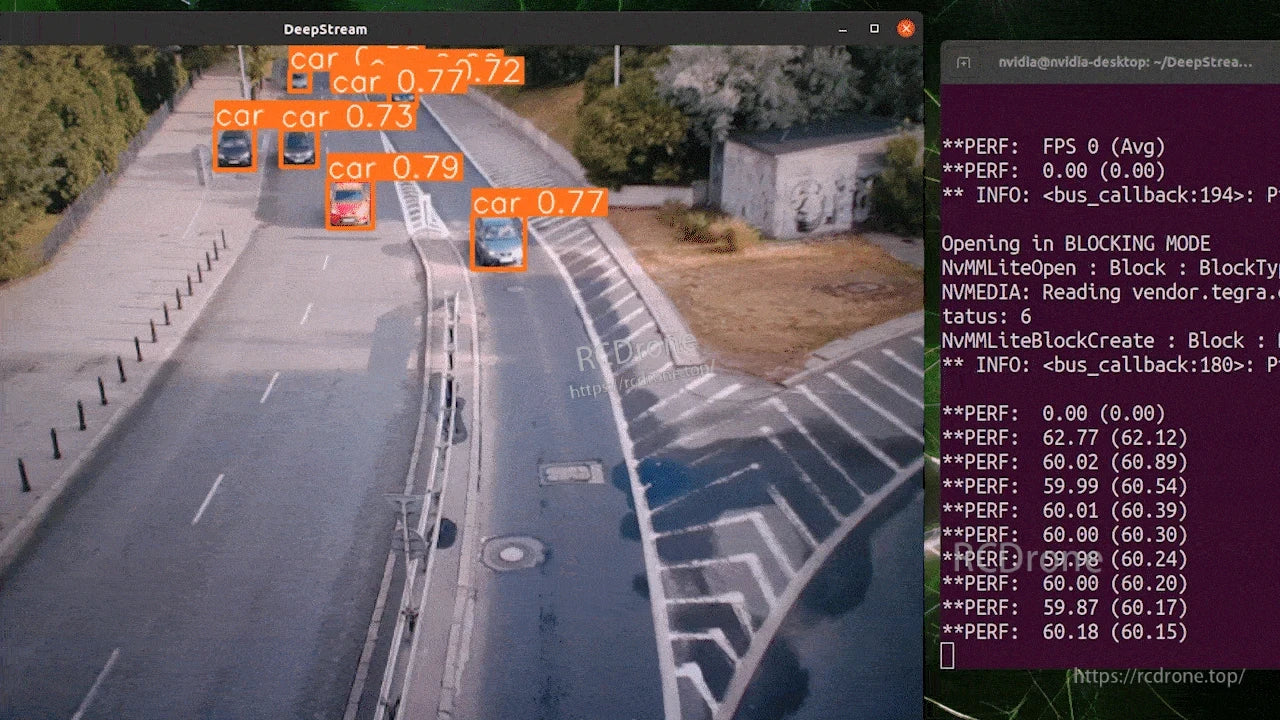

Nvidia Deepstream car recognition on desktop with performance metrics including FPS, average speed, and block creation.

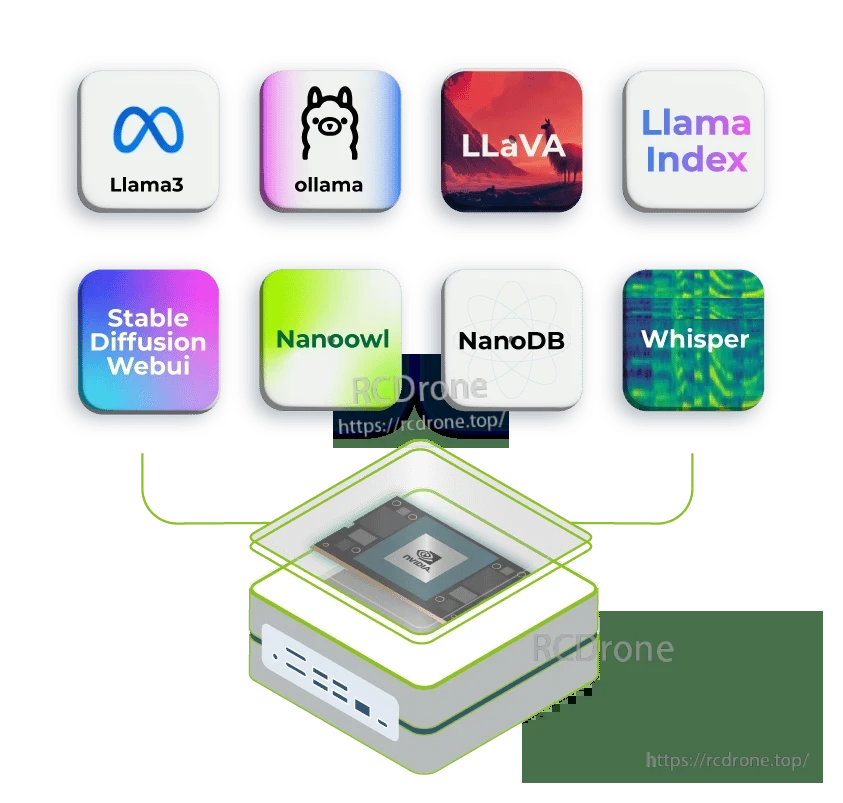

J3011 Edge AI supports Llama3, ollama, LLaVA, Stable Diffusion, Whisper.
