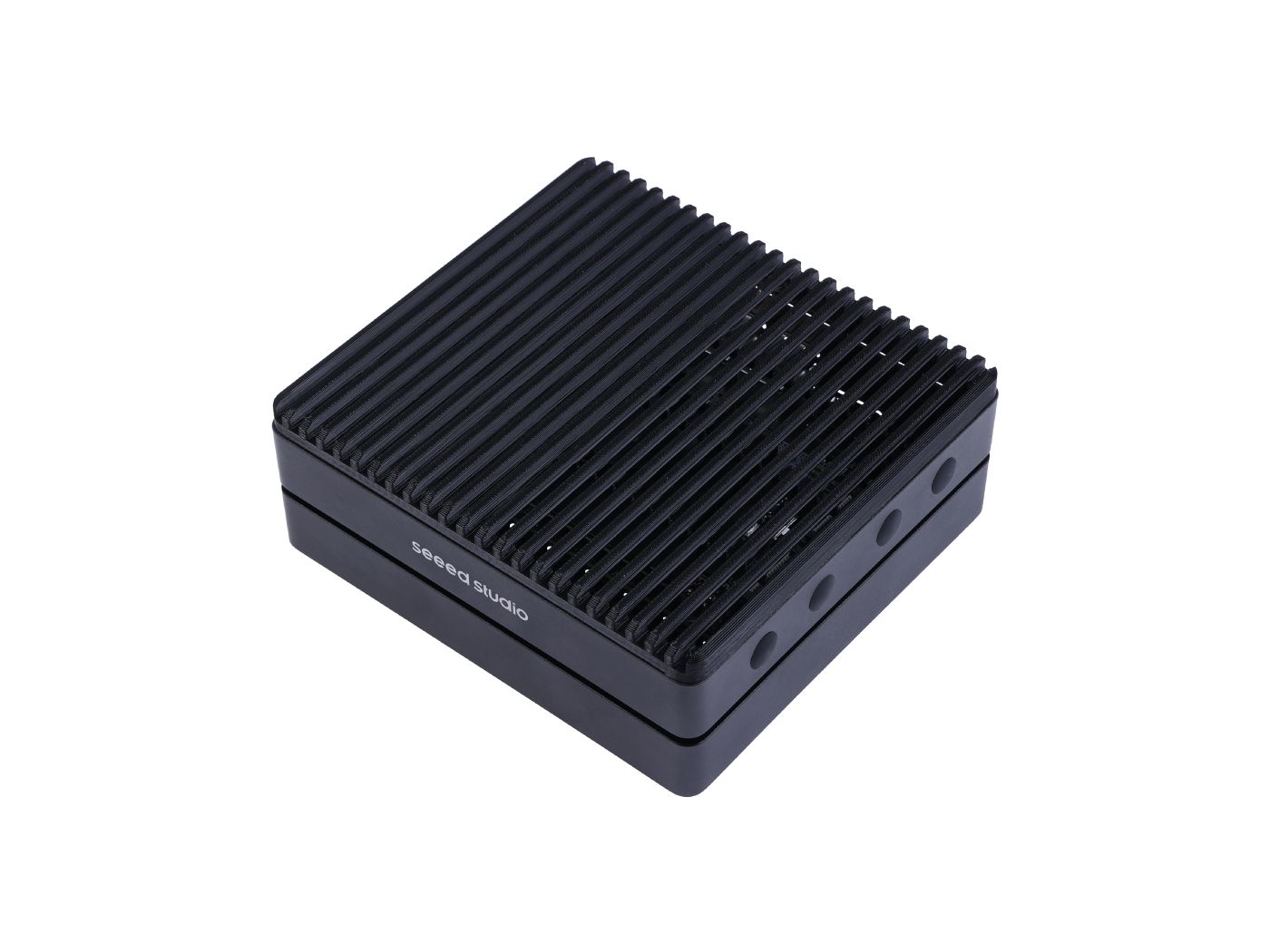

reComputer J4012 Edge AI Computer — Jetson Orin NX 16GB, 100 TOPS, 128GB NVMe, HDMI, 4x USB 3.2 (No Super Mode)

Overview

reComputer J4012 is an Edge AI Computer built on the NVIDIA Jetson Orin NX 16GB module, delivering up to 100 TOPS AI performance. It comes pre-built with NVIDIA JetPack 5.1.1 and includes a 128GB M.2 NVMe SSD. The compact system provides HDMI, Gigabit Ethernet, 4x USB 3.2, USB 2.0 Type‑C (Device Mode), dual CSI camera interfaces, CAN, RTC, and 40‑pin expansion for rapid deployment at the edge. Super Mode is not supported on this model.

Key Features

• NVIDIA Jetson Orin NX 16GB SoM with 1024‑core NVIDIA Ampere architecture GPU and 32 Tensor Cores
• AI performance: up to 100 TOPS (Orin NX 16GB). Super Mode is NOT supported on J4012
• Pre-built NVIDIA JetPack 5.1.1
• Storage: 1x M.2 Key M PCIe; 128GB NVMe 2280 SSD included
• Wireless-ready: 1x M.2 Key E for WiFi/Bluetooth module (module not included)
• I/O: 4x USB 3.2 Type‑A (10Gbps), 1x USB 2.0 Type‑C (Device Mode), 1x HDMI 2.1, 1x RJ‑45 GbE (10/100/1000M), 2x CSI (2‑lane 15‑pin)
• Expansion and control: 1x 40‑pin header, 1x 12‑pin Control & UART header, 1x CAN, 1x 4‑pin fan connector (5V PWM), 1x RTC 2‑pin supporting CR1220 (not included)
• Power: 9–19V DC input; 12V/5A power adapter included (AC cloverleaf power cord not included)

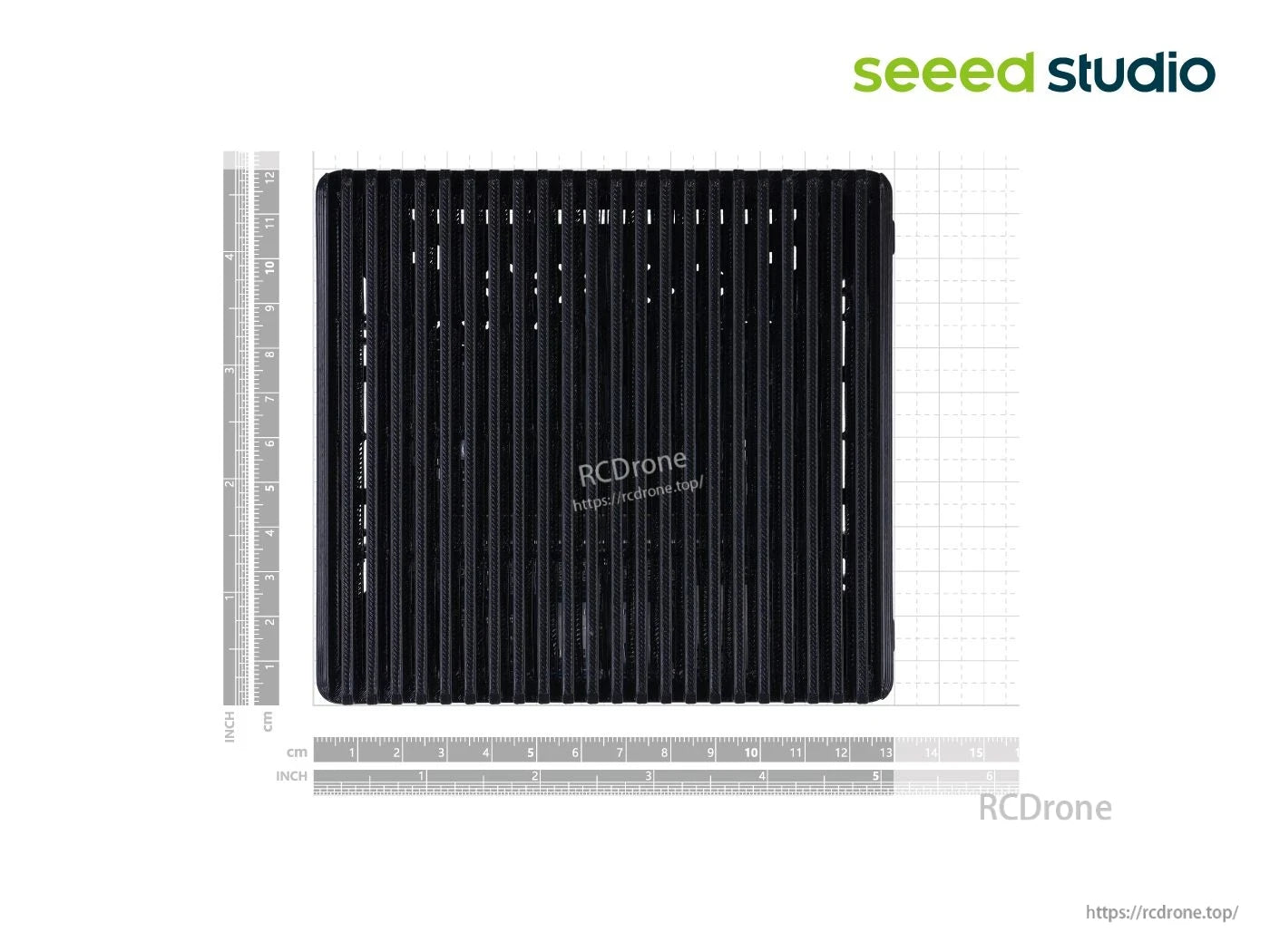

• Mechanical: 130mm x 120mm x 58.5mm (with case); desk or wall mounting
• Operating temperature: −10℃ to 60℃; power efficient 10W–25W (per product imagery)
• Warranty: 1 Year

Notes

• reComputer Super J4012 comes with Jetson Orin NX 16GB and delivers up to 157 TOPS in MAXN Super Mode.
• Alternative in stock: reComputer Mini J4012 (Jetson Orin NX 16GB, up to 100 TOPS).
• For the version without power adapter: reComputer J4012 without power adapter.
• Recommended SSDs for optimal compatibility: 128GB / 256GB / 512GB / 1TB.

Specifications

Trade Codes (ECCN/HTS)

What’s Included

• reComputer J4012 (System Installed) x1
• 12V/5A (Barrel Jack 5.5/2.5mm) Power Adapter (power cord not included) x1

Note: The unit includes a power adapter but no AC cloverleaf power cord. Please purchase the appropriate cord for local sockets: US | EU.

Applications

• AI Video Analytics
• Machine Vision
• Autonomous Mobile Robot (AMR)
• Generative AI at the edge (e.g., Vision‑Language Models such as LLaVA)

For multi‑stream video analytics, Jetson Orin NX integrates NVIDIA Multi‑Standard Video Decoder. reComputer J4012 can take 18x1080p30 streams. See the tested YOLOv8 performance on NVIDIA DeepStream. One‑line deploy examples for generative AI (Ollama, Llama3) and computer vision (YOLOv8) are available in the jetson-examples repository.

Manuals & Documents

• Datasheet
• Schematic
• 3D File
• Seeed Nvidia Jetson Product Catalog
• Nvidia Jetson Comparison
• Nvidia Jetson Product Comparison
• Seeed Nvidia Jetson Success Cases
• Seeed Jetson One Pager

Details

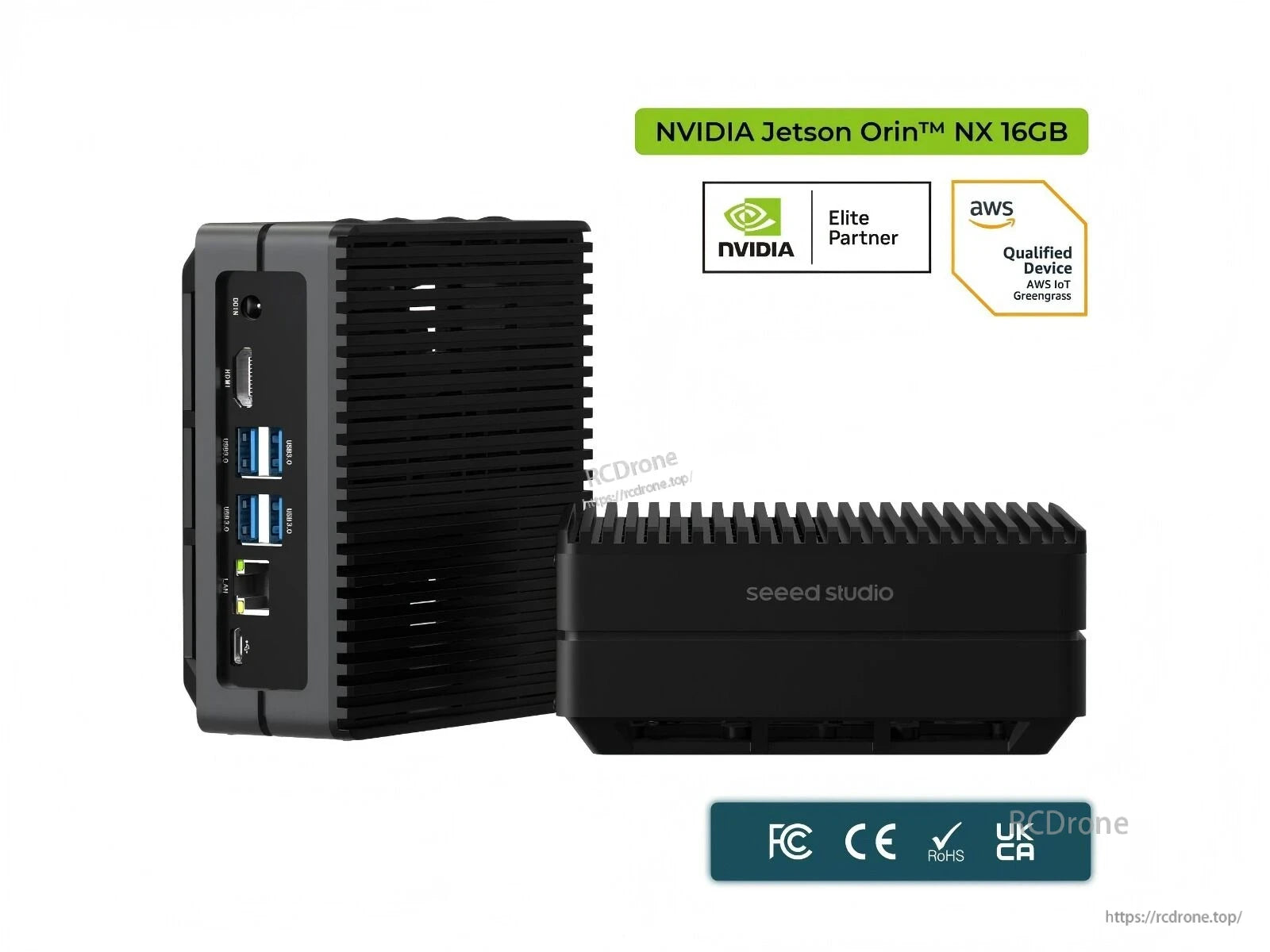

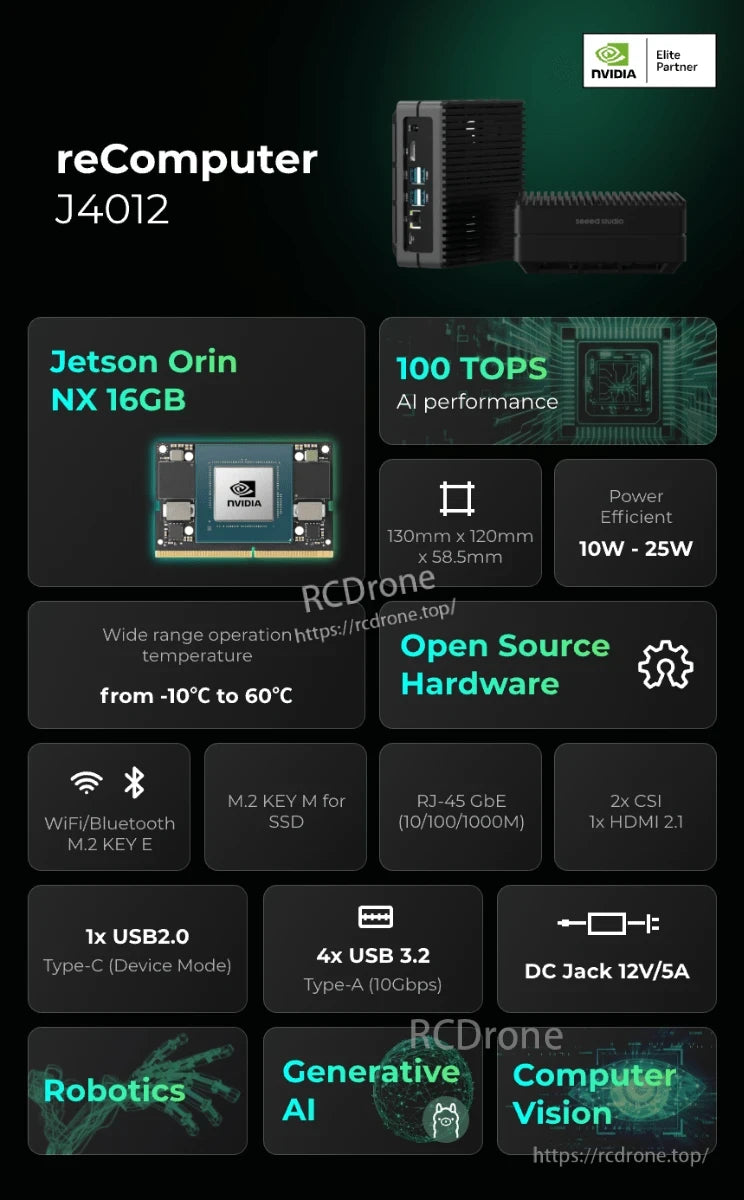

Jetson Orin NX 16GB with 100 TOPS AI performance, open-source hardware supports robotics, generative AI, and computer vision. Features wide temperature range, multiple I/O ports, and 10W–25W power efficiency.

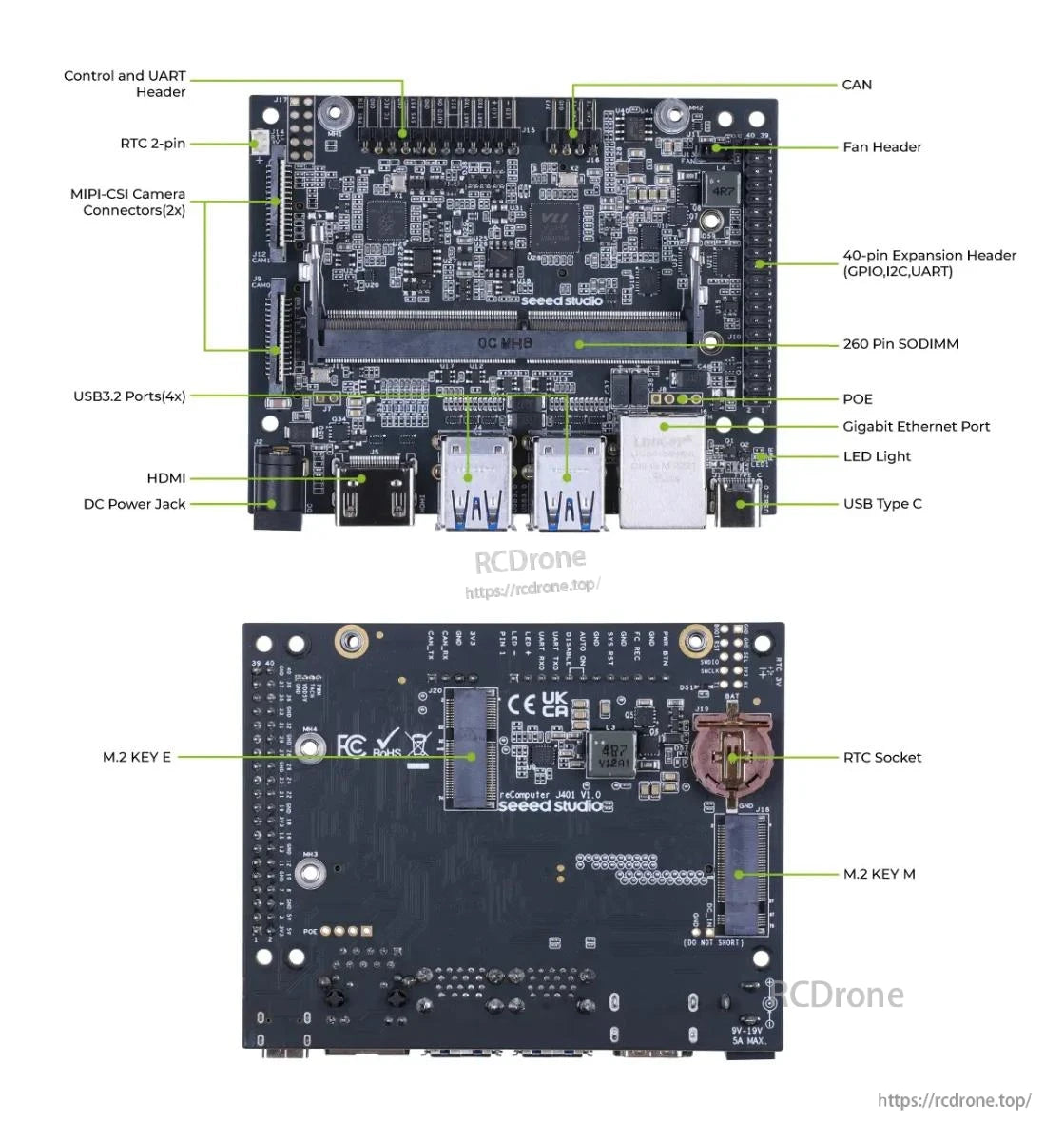

J4012 Edge AI Computer offers M.2 slots, USB 3.2, HDMI, Gigabit Ethernet, POE, SODIMM, expansion headers, RTC socket, fan header, CAN, UART, and camera connectors for versatile AI and connectivity applications.

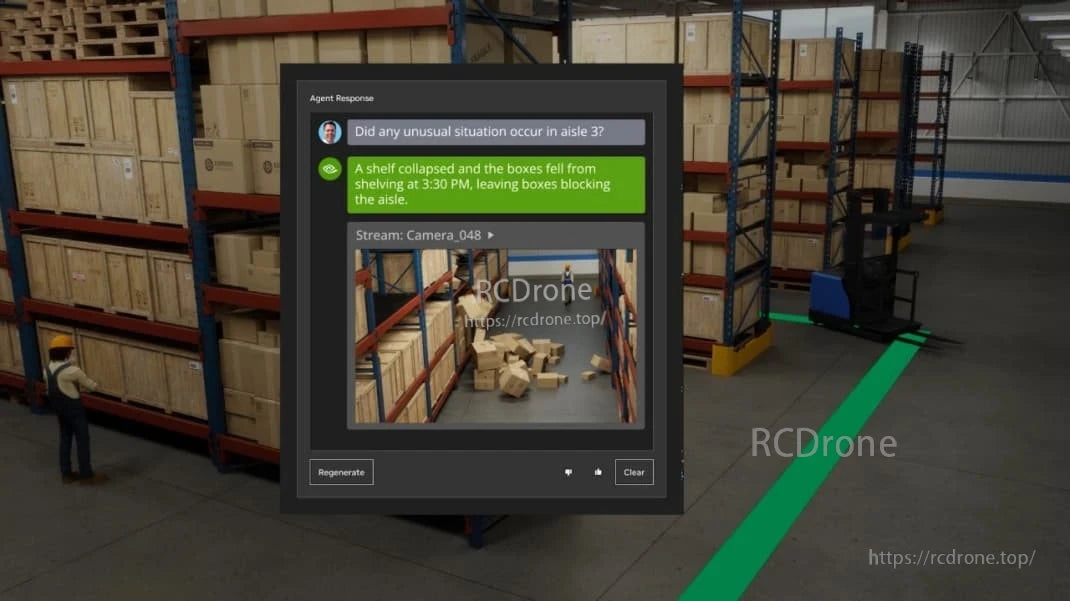

Shelf collapsed in aisle 3 at 3:30 PM, boxes fell and blocked passage; visible on camera.

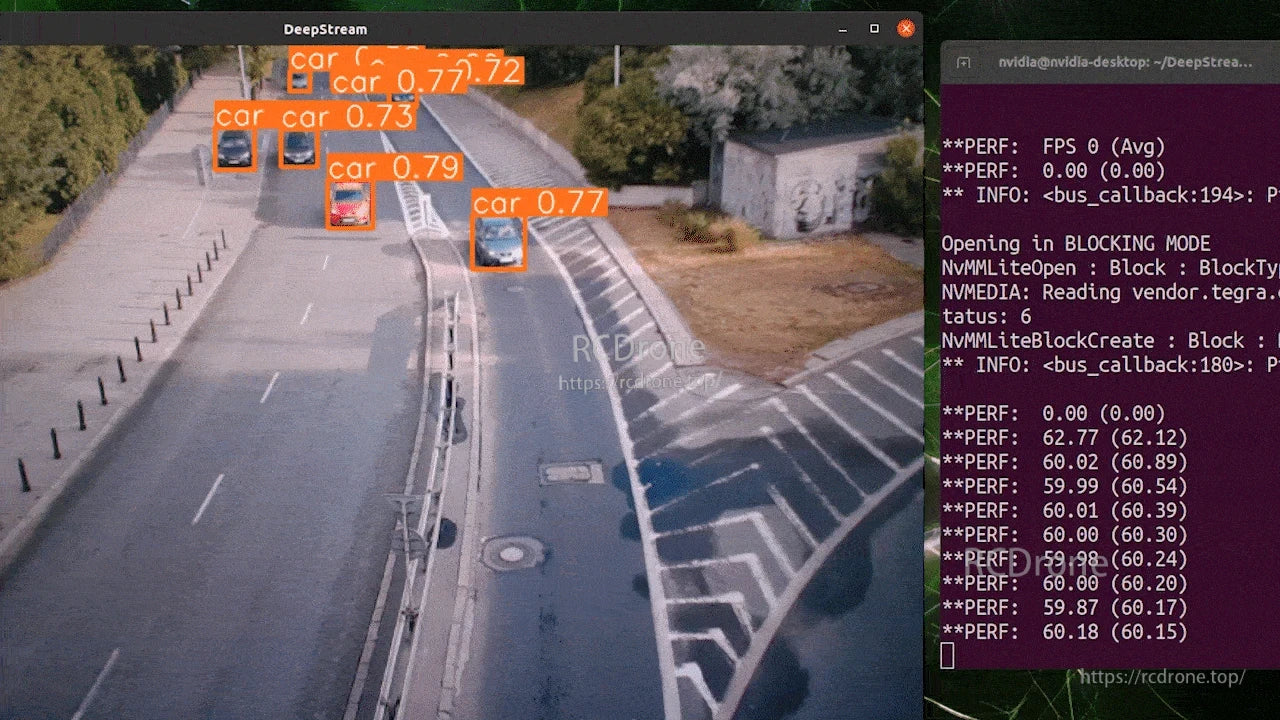

DeepStream detects cars with confidence scores. Logs display FPS, initialization messages, and block operations. System operates in blocking mode with vendor.tegra details. (39 words)

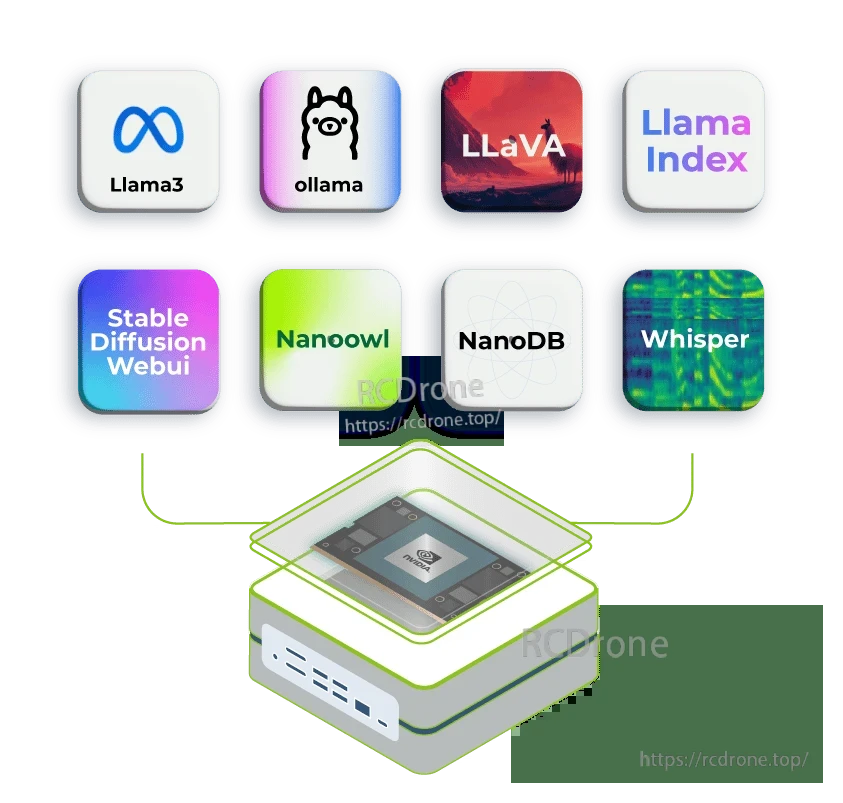

J4012 Edge AI supports Llama3, ollama, LLaVA, Stable Diffusion, Nanoowl, and Whisper.
