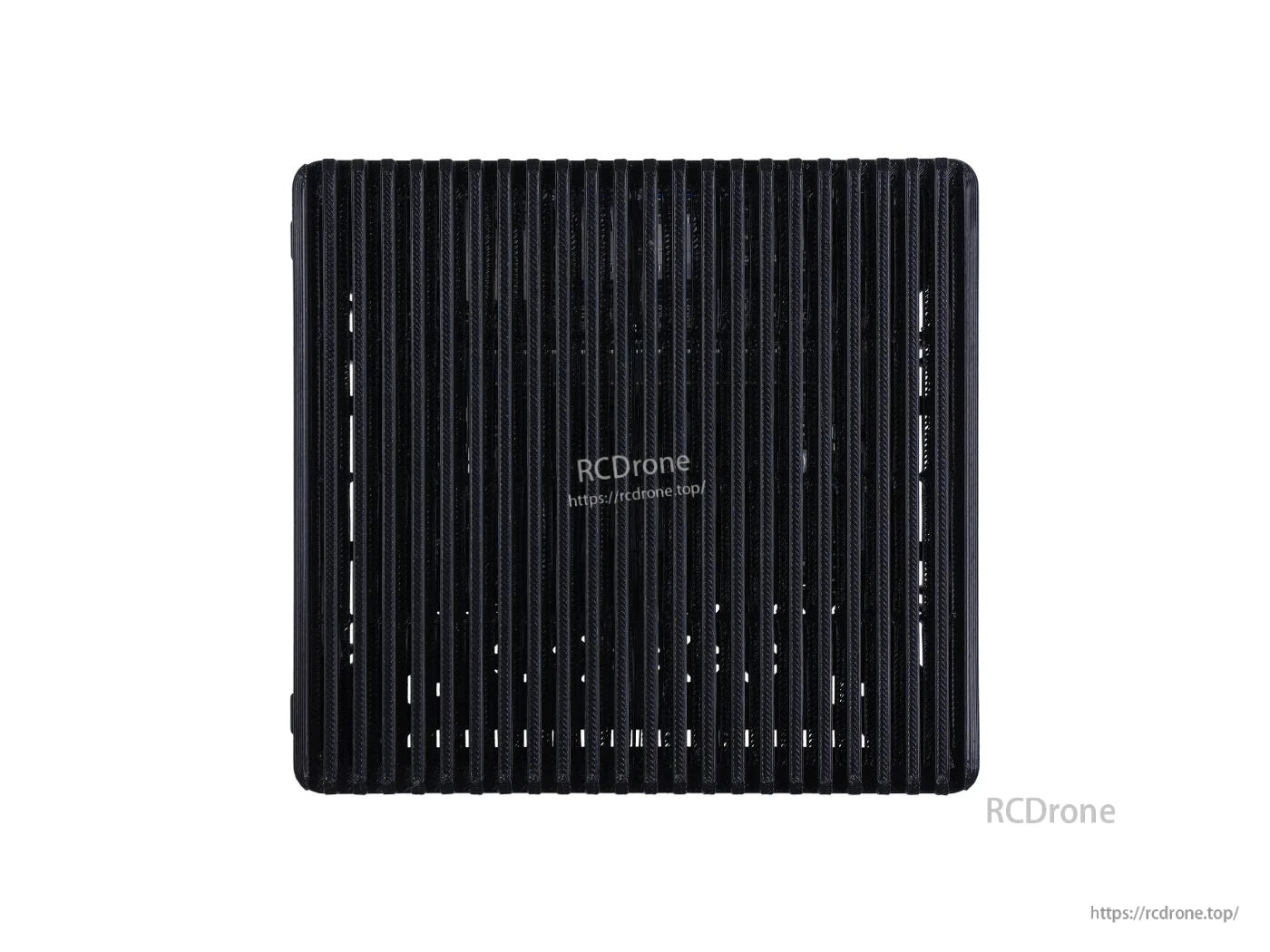

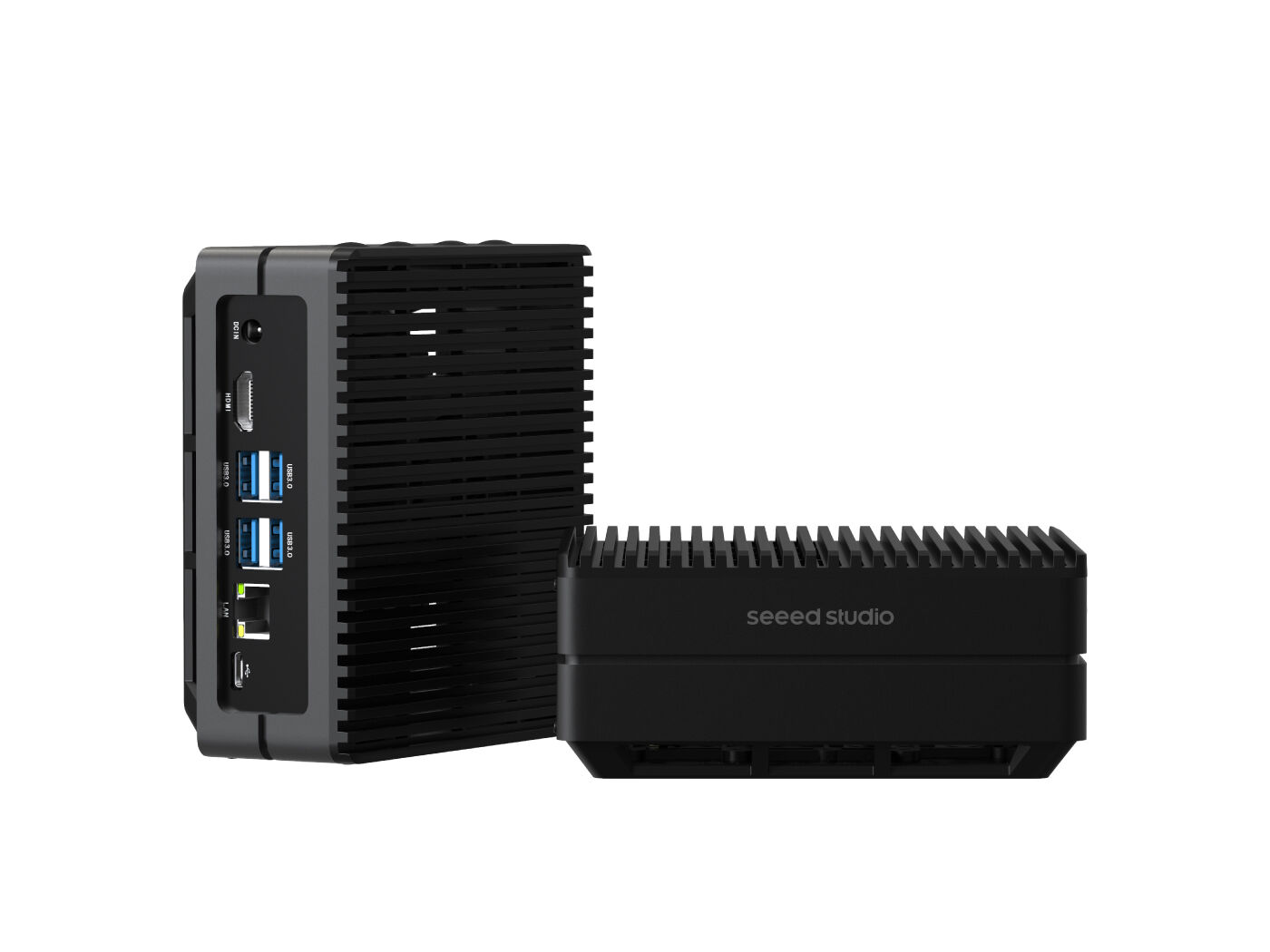

reComputer J4012 Edge AI Computer, Jetson Orin NX 16GB, 128GB SSD, 100 TOPS (w/o power adapter; Super Mode NOT Supported)

Overview

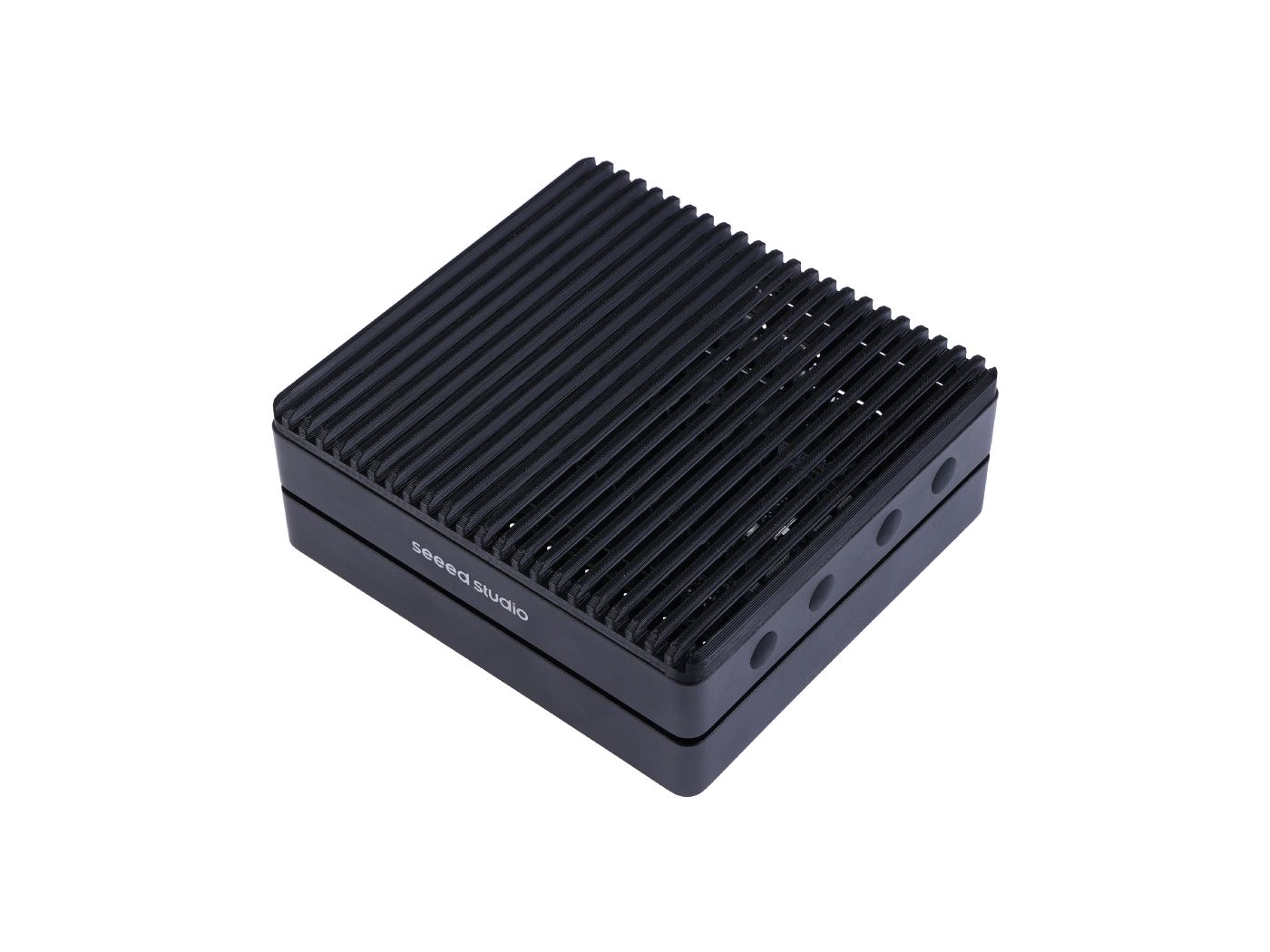

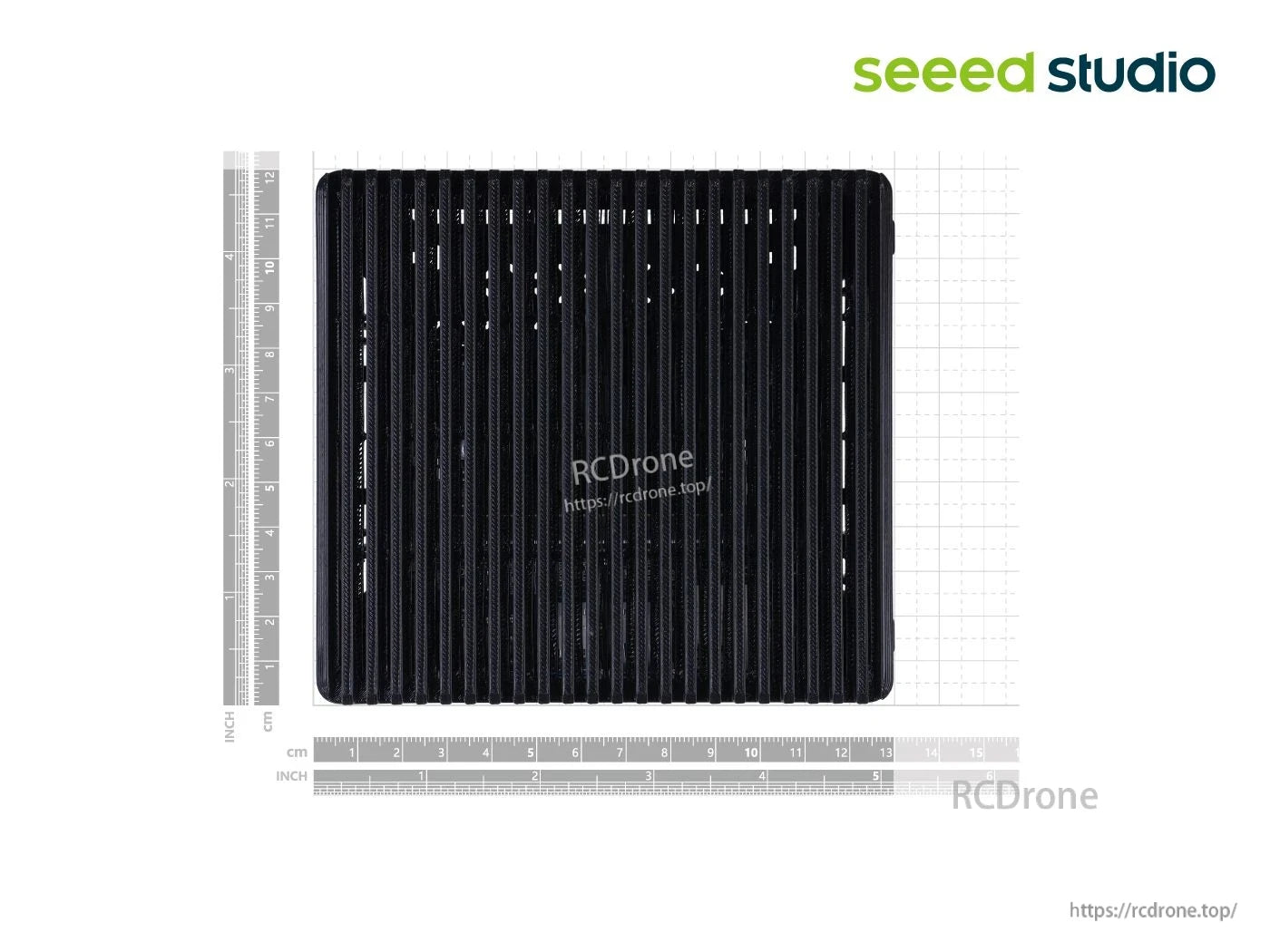

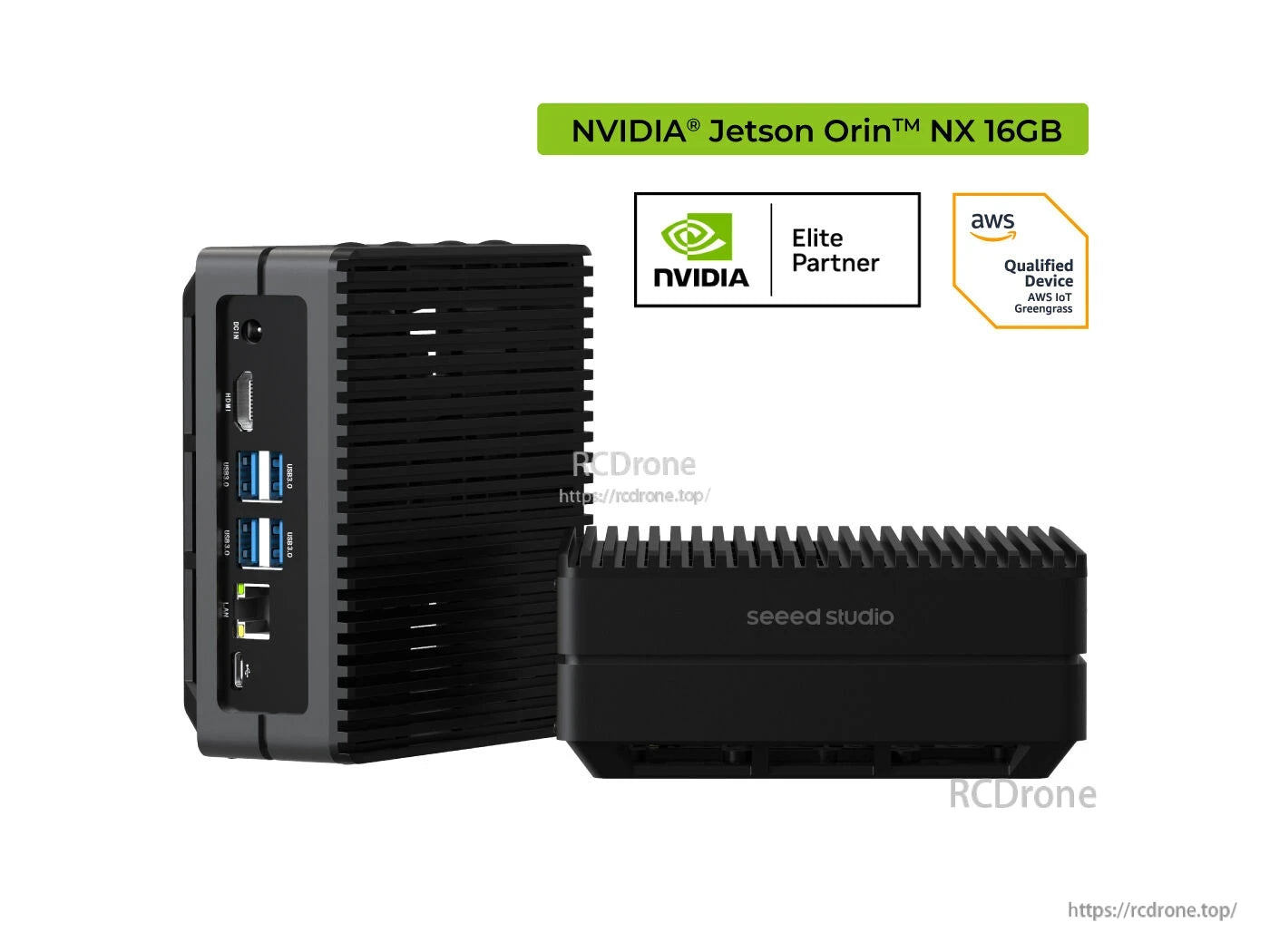

reComputer J4012 is an Edge AI Computer built on the NVIDIA Jetson Orin NX 16GB module, designed for production-grade AI at the edge. This version ships without a power adapter and runs JetPack 5.1.1 pre-installed on a 128GB NVMe SSD. The system delivers up to 100 TOPS AI performance with low latency, and integrates rich I/O: 4x USB 3.2 Type-A (10Gbps), 1x USB2.0 Type-C (Device Mode), 1x HDMI 2.1, 1x RJ-45 GbE (10/100/1000M), 2x CSI camera connectors, CAN, RTC header, and 40‑pin/12‑pin expansion headers. The compact case (130mm x 120mm x 58.5mm) supports desktop and wall mounting. Power input: 9–19V DC. Super Mode NOT Supported.

Notes

• This is the w/o power adapter variant. For the version with power adapter, see: reComputer J4012 Edge device.
• For optimal performance and compatibility, Seeed recommends 128GB / 256GB / 512GB / 1TB NVMe SSDs from Seeed. Some market SSDs may only be compatible with specific JetPack versions and can cause malfunctions, as also seen with official NVIDIA dev kits.

Key Features

• Jetson Orin NX 16GB module with up to 100 TOPS AI performance
• Pre-installed JetPack 5.1.1 on 128GB NVMe SSD for faster deployment
• Rich expansion: 4x USB 3.2 Type-A (10Gbps), USB2.0 Type-C (Device Mode), HDMI 2.1, GbE, 2x CSI, CAN, 40‑pin GPIO, 12‑pin control/UART
• M.2 Key M (NVMe SSD, 128G included) and M.2 Key E for WiFi/Bluetooth module

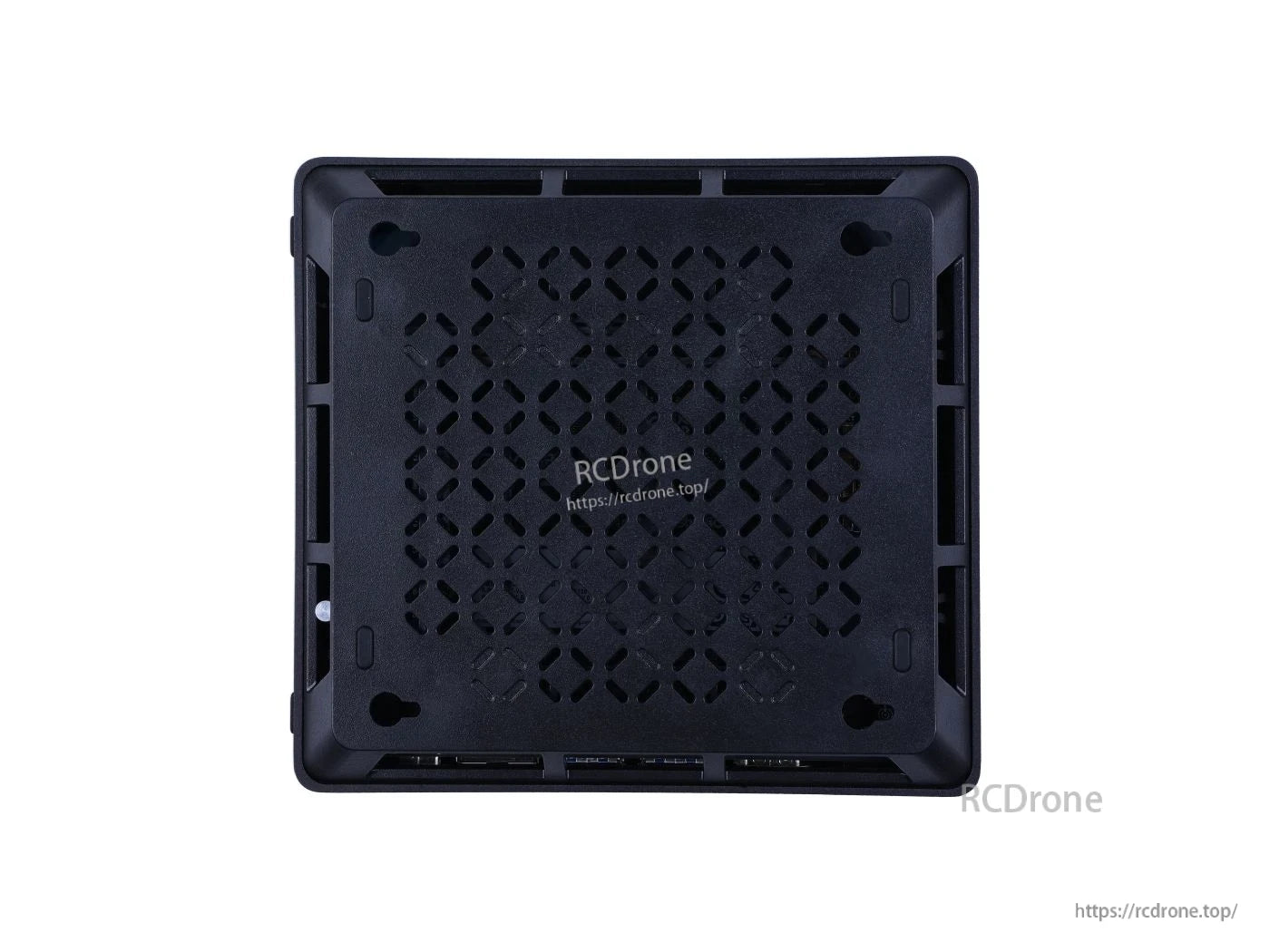

• Compact metal enclosure, active cooling, desktop and wall mounting
• Power efficient operation shown as 10W–25W (image reference); 9–19V DC input
• Remote fleet management and OTA enablement via Allxon and Balena
• Operating temperature: -10℃ to 60℃; 1-year warranty

Specifications

Hardware Overview

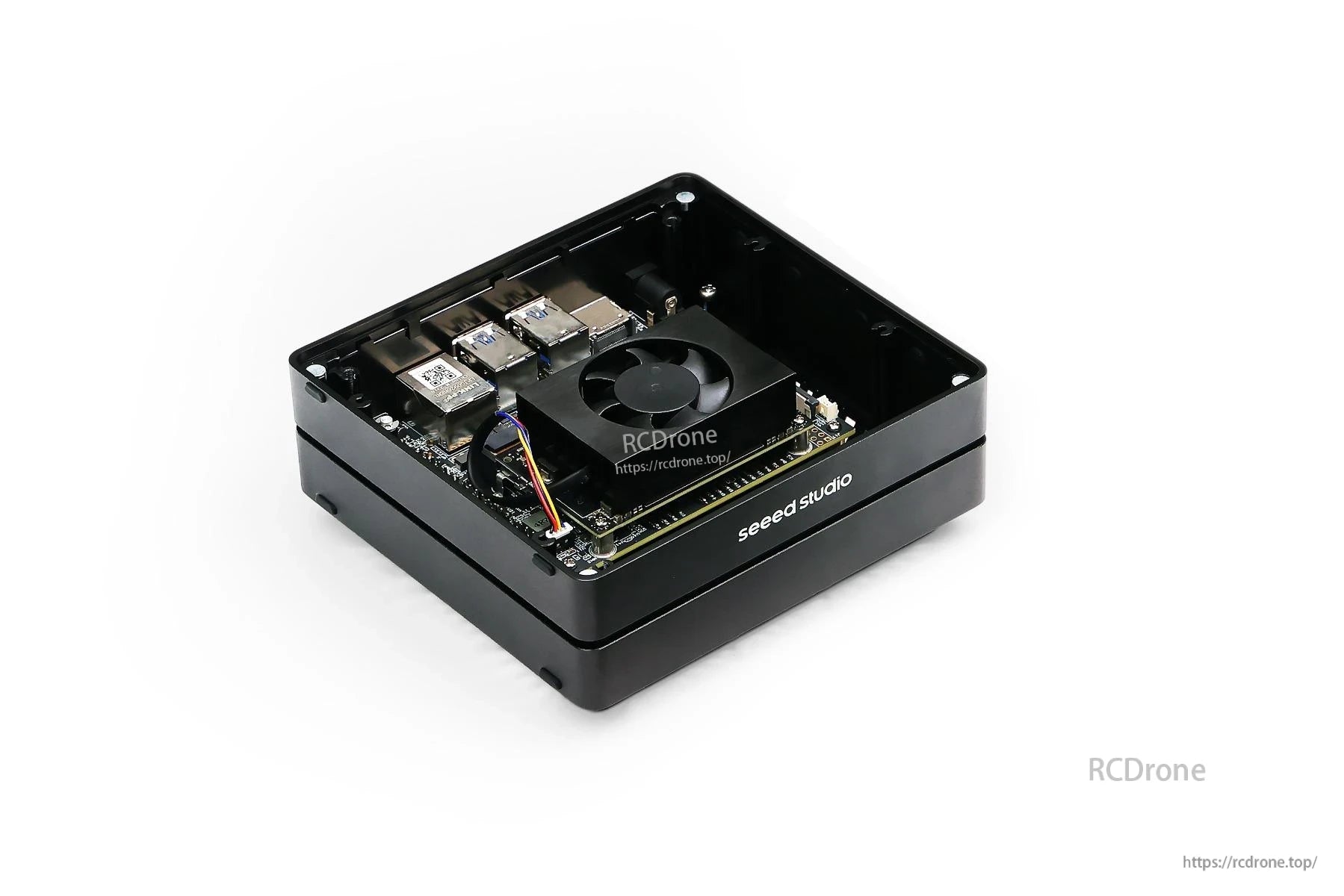

• Includes the reComputer J401 carrier board in the complete system (J4012), offering CSI camera headers, 40‑pin expansion, HDMI 2.1, GbE, 4x USB 3.2, USB Type‑C (Device), CAN, fan header, RTC header, and M.2 Key E / Key M.

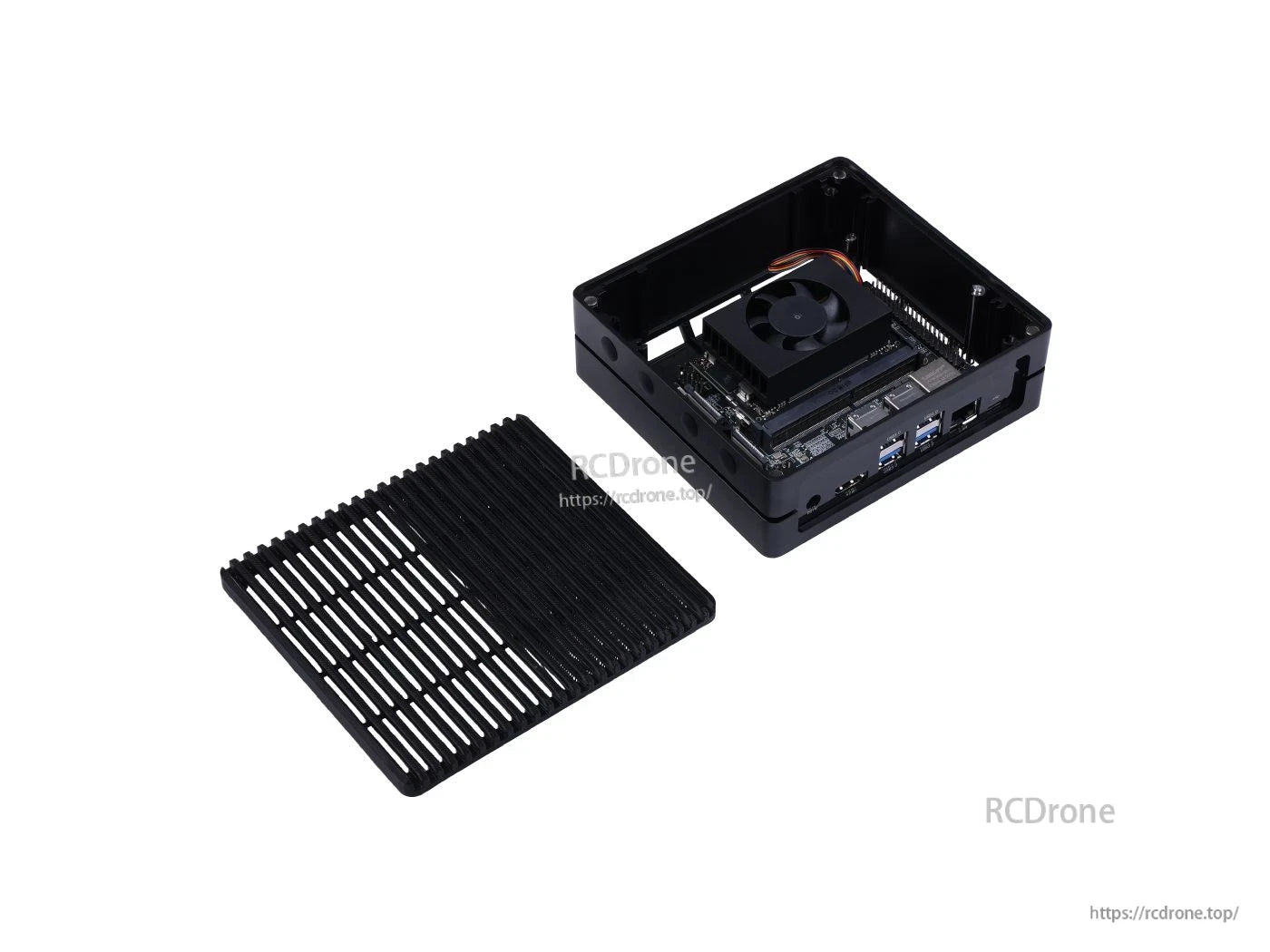

• Compact, actively cooled aluminum enclosure; suitable for desktop and wall mounting.

Applications

Application Fields

• AI Video Analytics
• Machine Vision
• Autonomous Mobile Robot (AMR)
• Generative AI

Capable of Bringing Generative AI to the Edge

Build AI agents that process live or archived video and images with Vision‑Language Models (e.g., LLaVA) to summarize, search, and extract insights using natural language.

Build Multi-streams AI Video Analytics

With NVIDIA’s Multi‑Standard Video Decoder, Jetson Orin NX accelerates decode across SD/HD/UltraHD content. reComputer J4012 can take 18x1080p30 streams. See the tested YOLOv8 DeepStream benchmarks.

Fastest Way to Deploy Generative AI and Computer Vision Models

Seeed’s jetson-examples enable one‑line deployment for applications including Ollama, Llama3, YOLOv8, and more.

Documents

• Datasheet
• Schematic
• 3D File
• Seeed Nvidia Jetson Product Catalog
• Nvidia Jetson Comparison
• Nvidia Jetson Product Comparison
• Seeed Nvidia Jetson Success Cases
• Seeed Jetson One Pager

ECCN/HTS

Part List

Details

Jetson Orin NX 16GB, 100 TOPS AI performance, open-source hardware, wide temperature range, and multiple connectivity options. Ideal for robotics, generative AI, and computer vision.

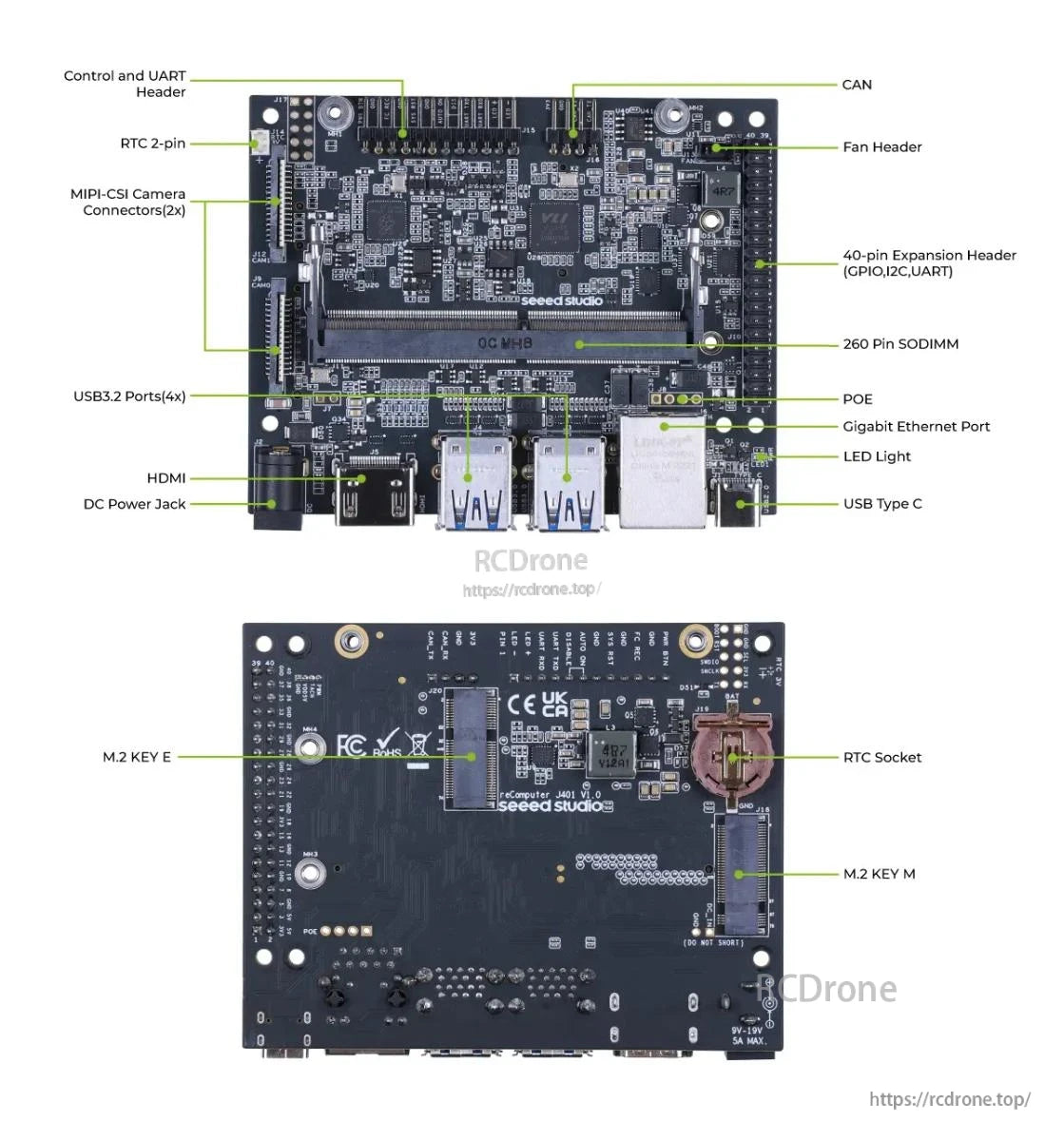

ReComputer J4012 offers M.2 slots, USB 3.2, HDMI, Gigabit Ethernet, POE, SODIMM, and headers for GPIO, I2C, UART, and camera connections.

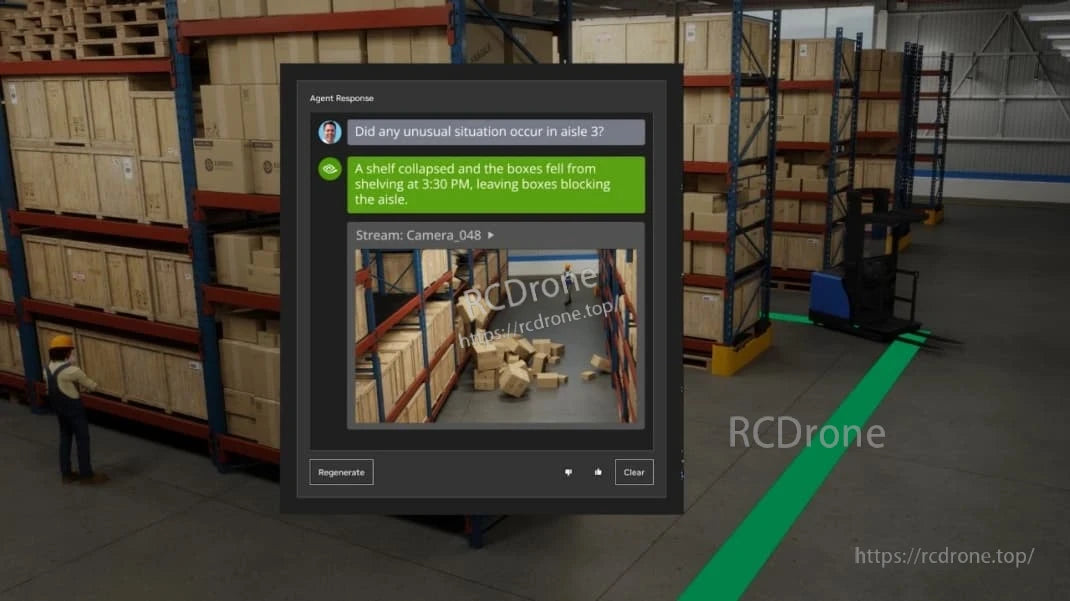

Acount Area Store Report: No unusual situations occurred in aisle 324, a shelf collapsed at 3:30 PM, causing boxes to block the aisle.

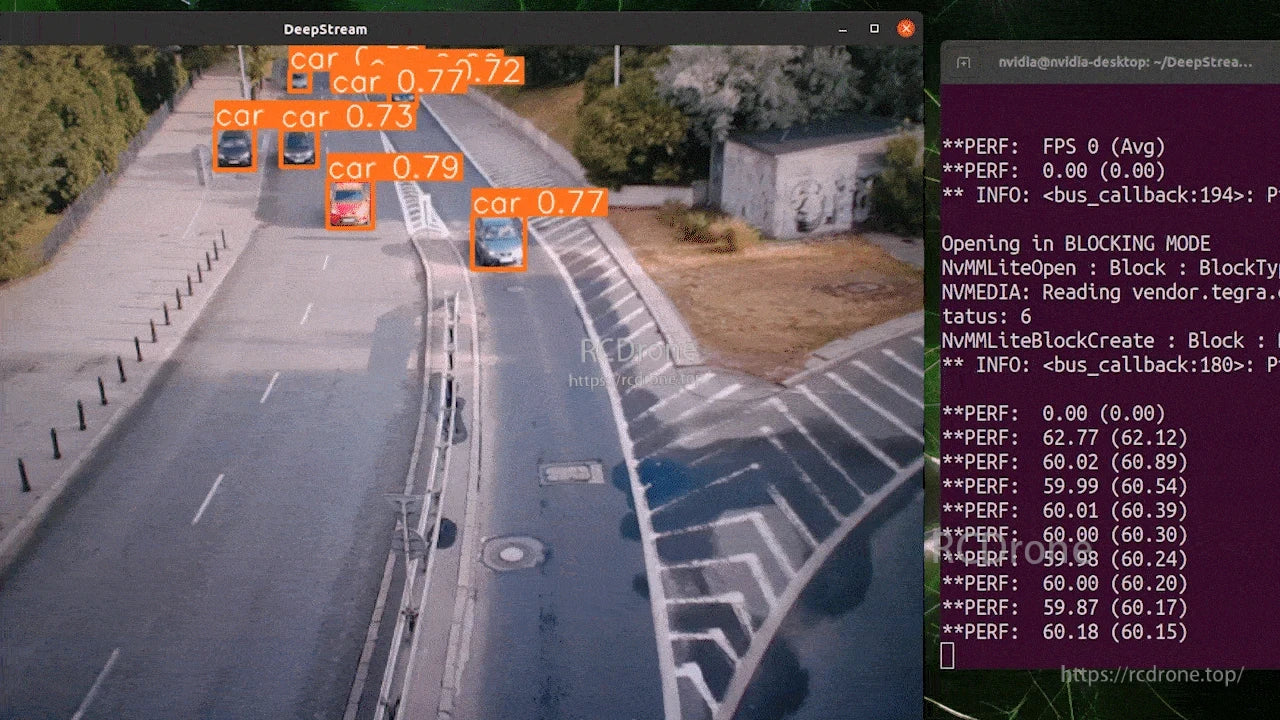

Nvidia Deepstream car output: FPS 0, average 0.79. Opening in blocking mode.

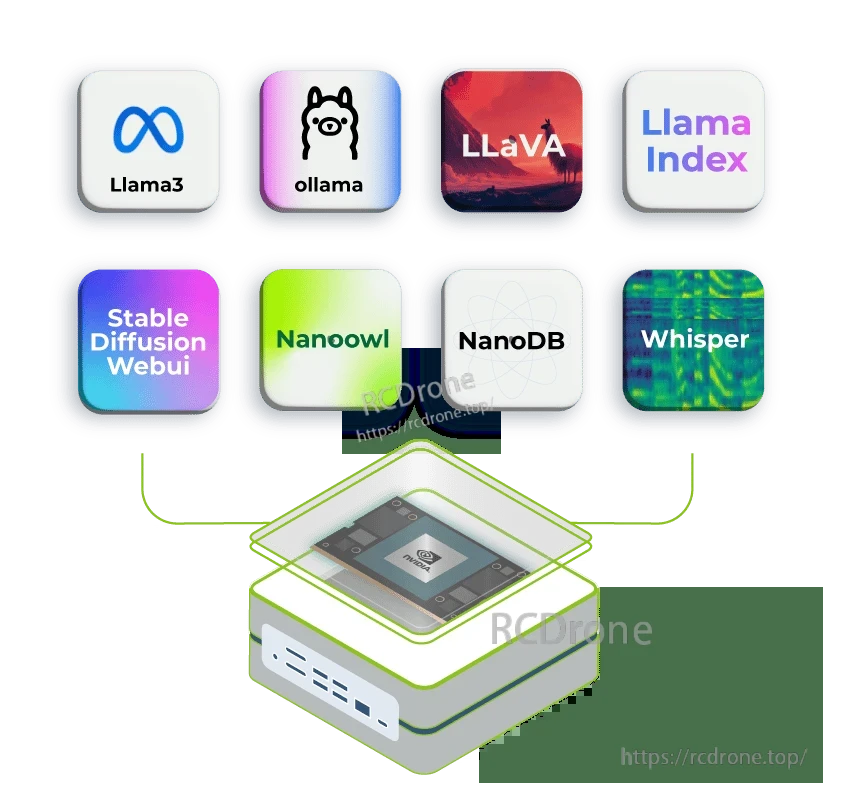

Edge AI computer with Llama3, ollama, LLaVA, and more.
