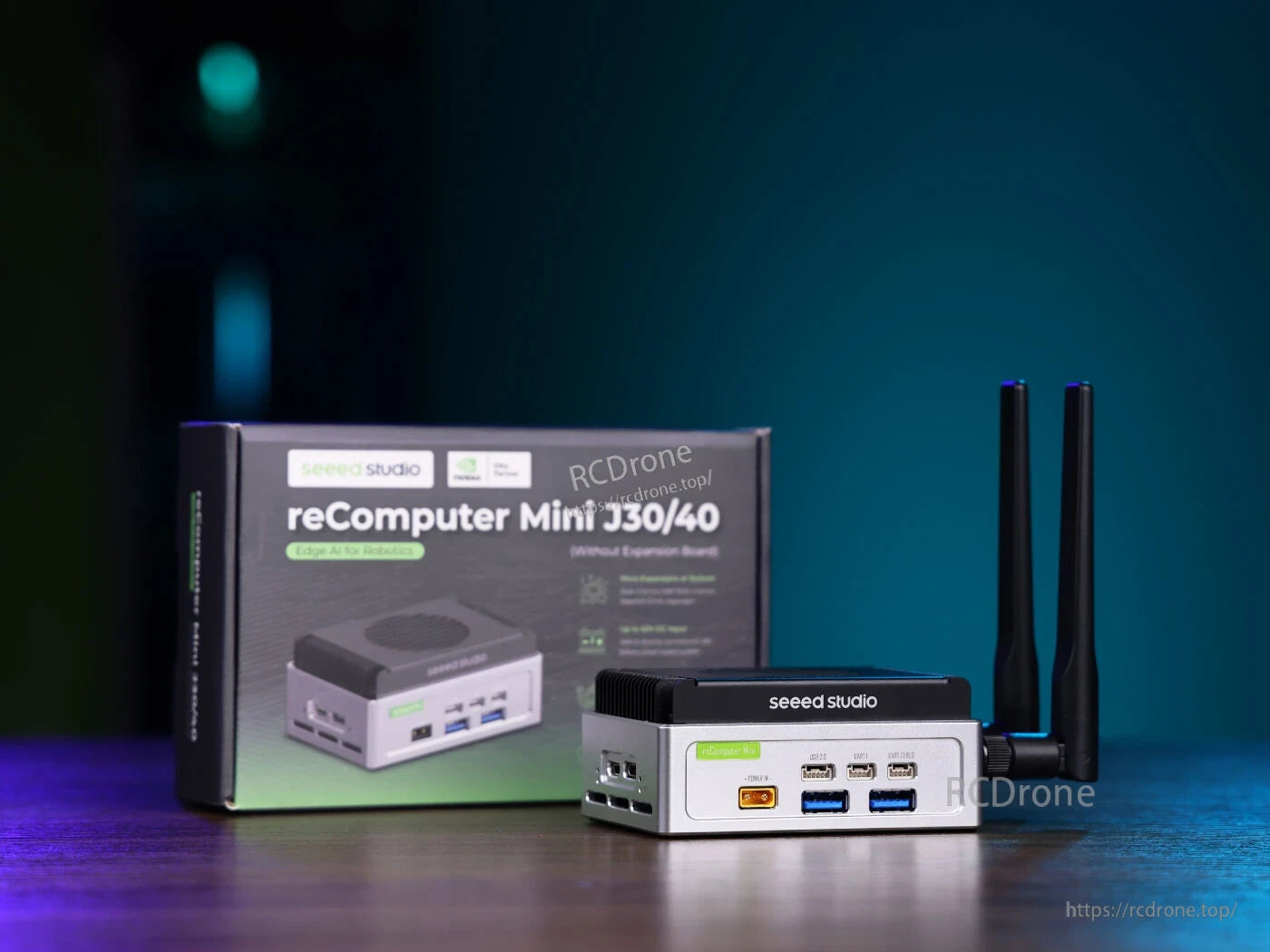

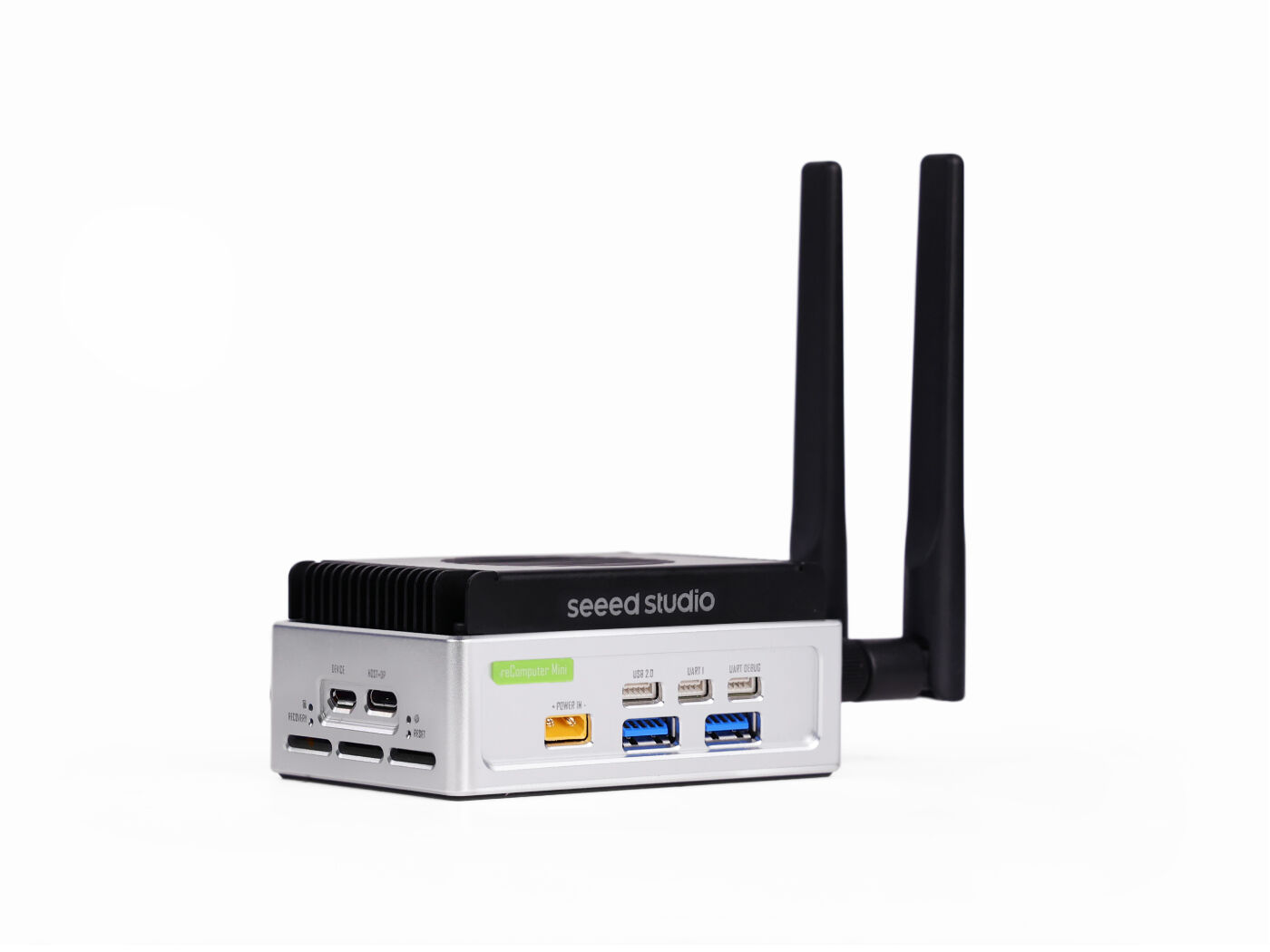

reComputer Mini J3011 Edge AI Computer with NVIDIA Jetson Orin Nano 8GB, up to 40 TOPS, PCIe, 63mm x 95mm x 42mm

Overview

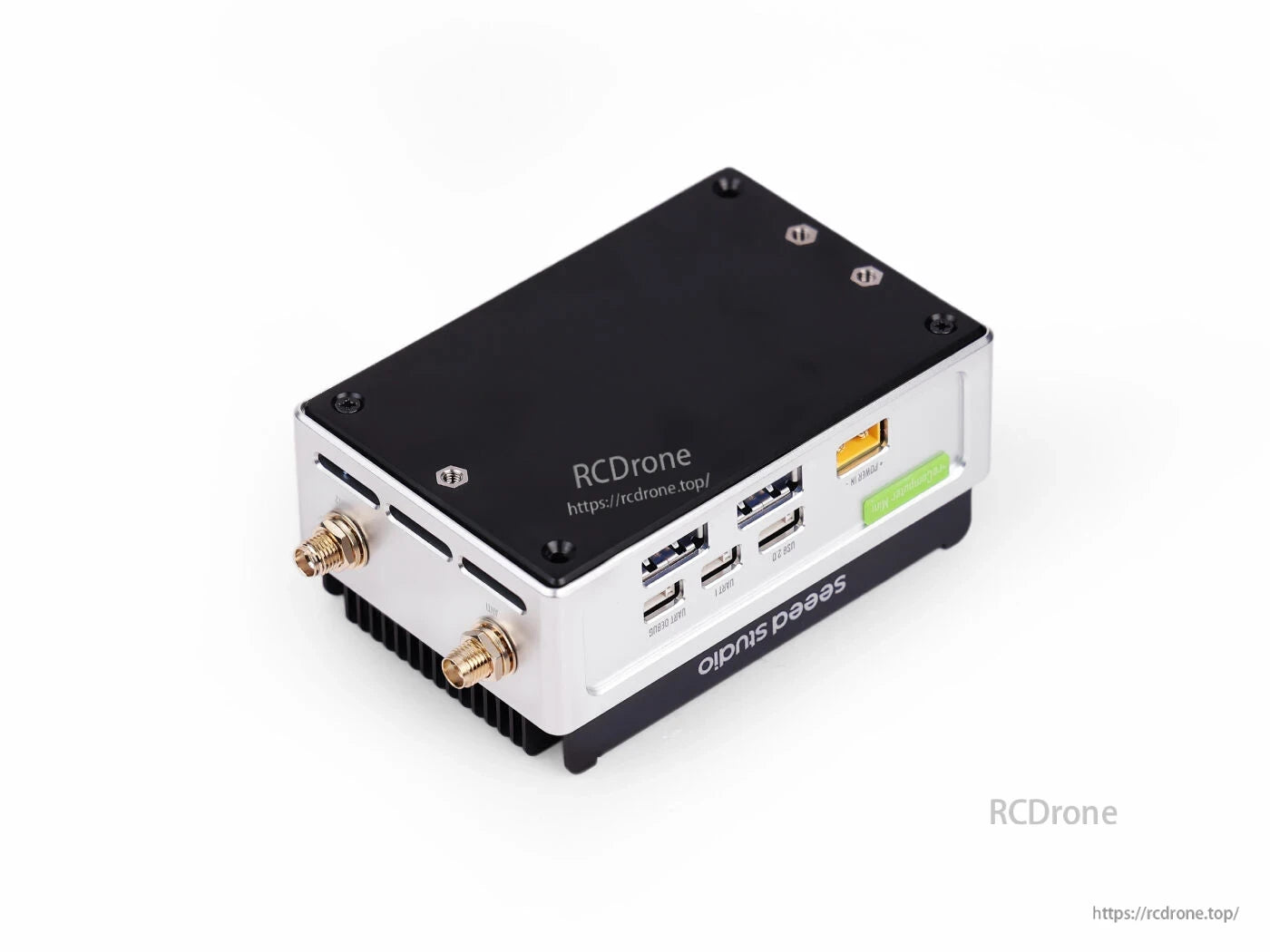

reComputer Mini J3011 is an Edge AI Computer built around the NVIDIA Jetson Orin Nano 8GB module, delivering up to 40 TOPS AI performance. The compact system (63mm x 95mm x 42mm) integrates the Mini J401 carrier board, cooling fan and enclosure, and features a bottom PCIe interface for flexible expansion. Designed for embedded use in autonomous machines such as drones, patrol robots and delivery robots, it supports wide-range 12–54V DC input via an XT30 connector for battery-powered deployments.

Key Features

• Brilliant AI performance: up to 40 TOPS with low power and latency on NVIDIA Orin Nano (Ampere GPU + 6-core Arm CPU) with advanced video/image processing and NVIDIA Deep Learning Accelerators.

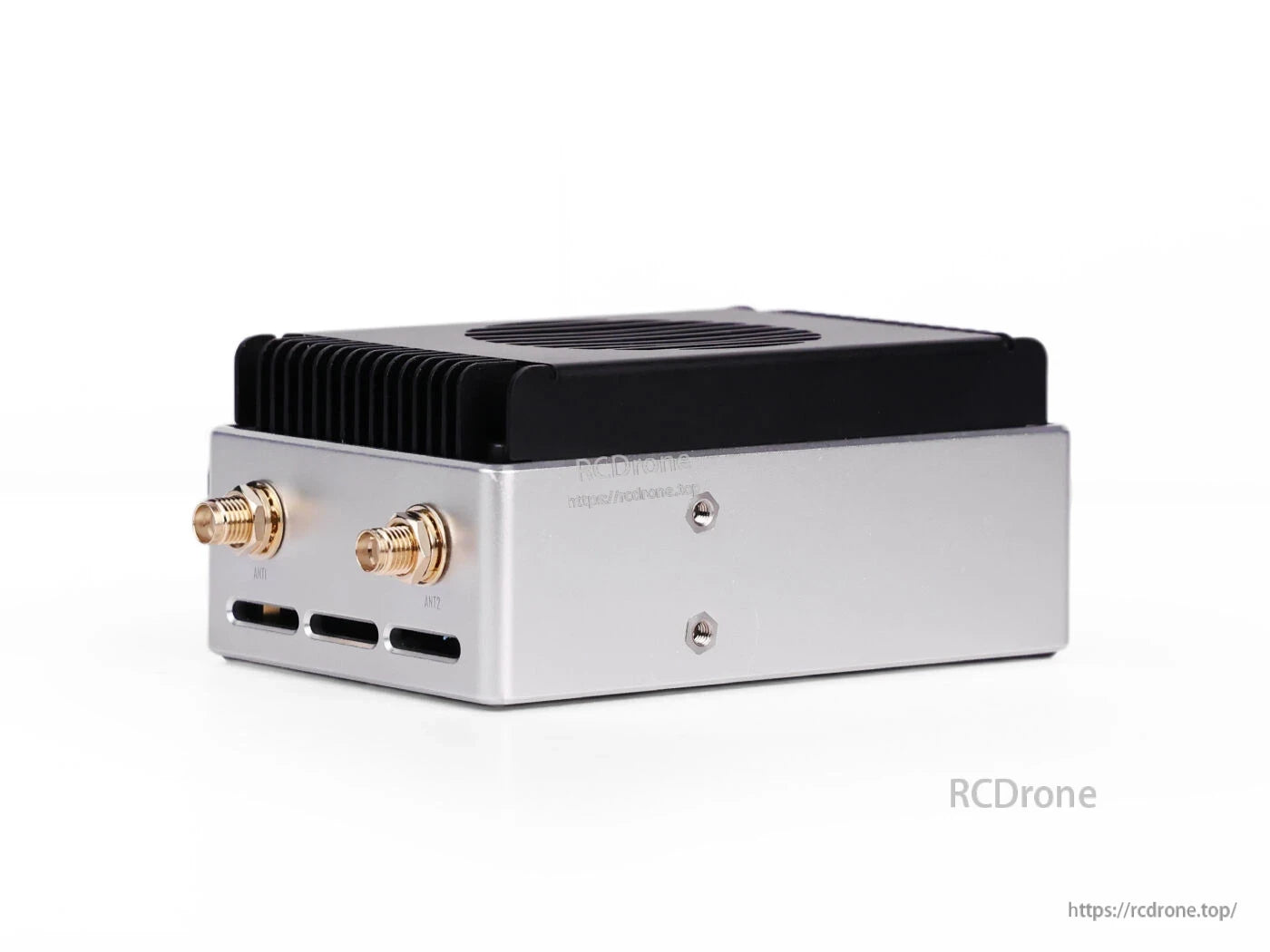

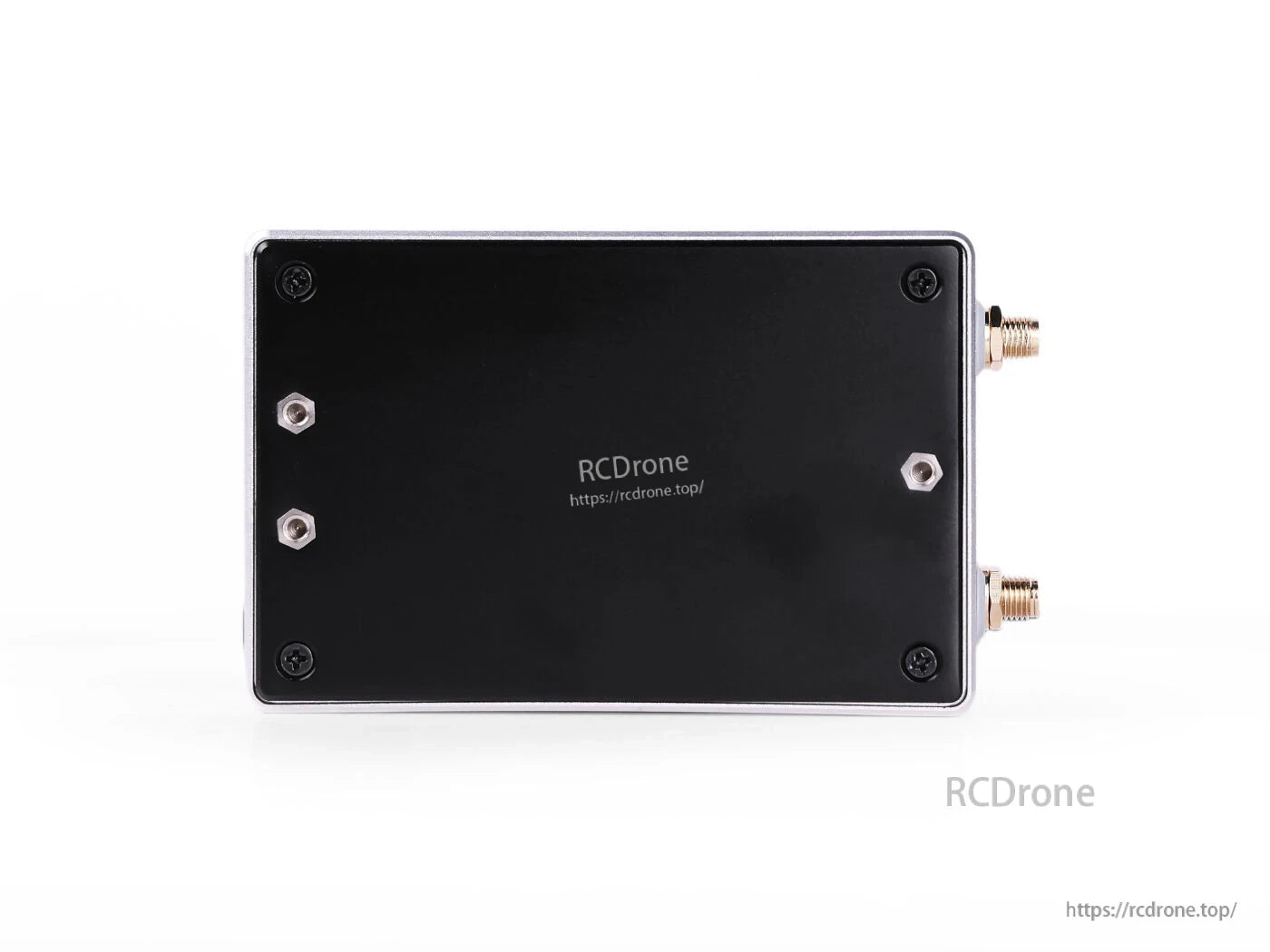

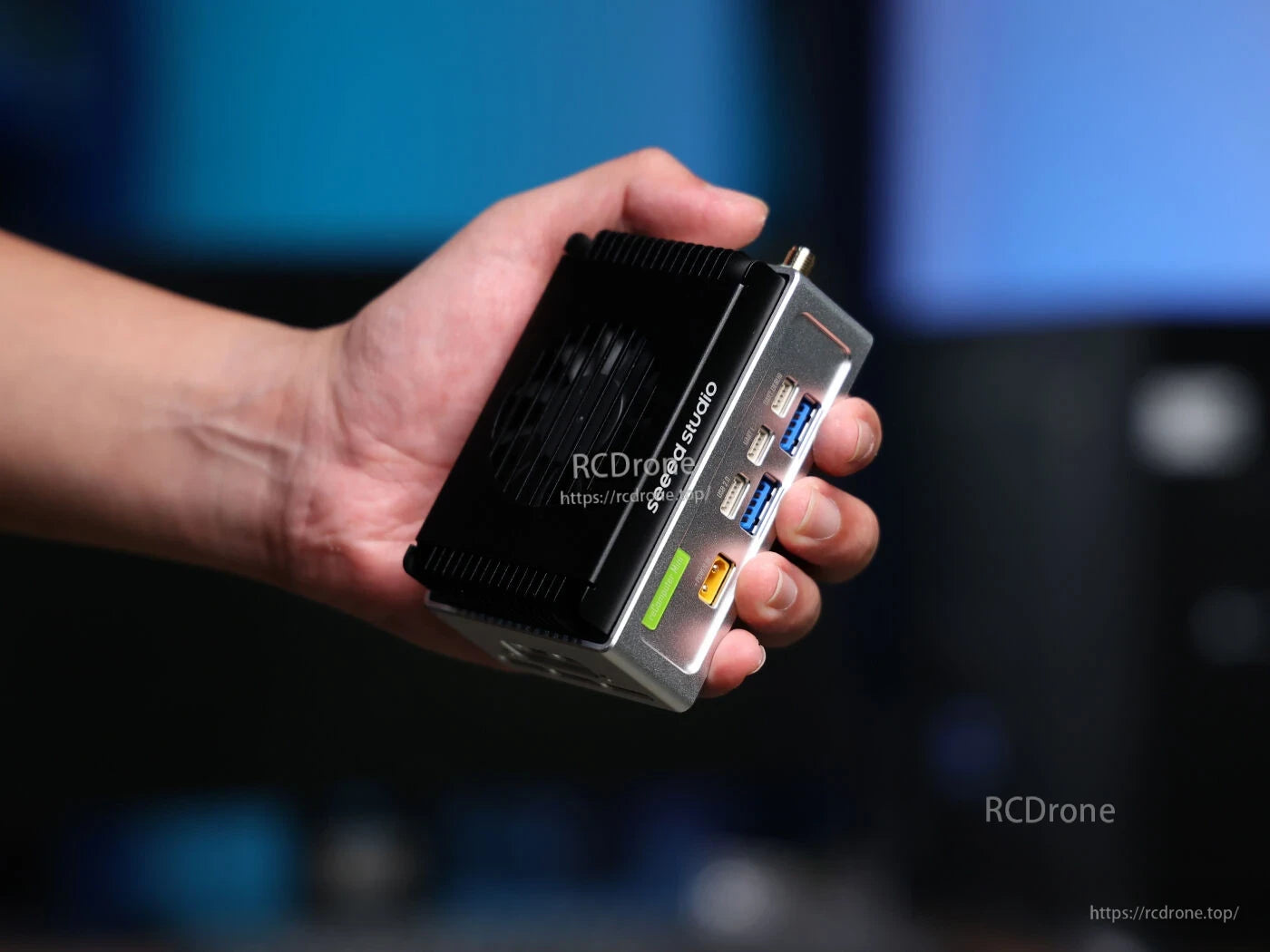

• Hand-size design: 63mm x 95mm x 42mm; includes NVIDIA Jetson Orin Nano 8GB module, Mini J401 carrier board, fan and enclosure; supports desktop and wall mounting.
• Expandable I/O: up to 4 x USB, DP 1.4, M.2 Key E, M.2 Key M. More options including 4 x USB 3.0, dual CAN, and RJ‑45 GbE are available on the reComputer J3011 with extension.
• Accelerate to production: pre‑installed JetPack 6.0 on 128GB NVMe SSD with Linux BSP; supports Jetson software and leading AI frameworks.
• Scale to deploy: OTA and remote management services supported by Allxon and Balena.
• Flexible customization: options for accessory modules, logo, and hardware interface modifications based on the J3011 design (Seeed ODM).

Specifications

Jetson Orin System on Module

Carrier Board

Mechanical & Environmental

Warranty

Hardware Overview

Desktop, wall Mount, expandable, or fit in anywhere

Application

Robotic Control

• Capable of Bringing Generative AI to the Edge — Build AI agents using Vision‑Language Models such as LLaVA to summarize, search, and extract insights from video using natural language.

• Build Multi‑streams AI Video Analytics — Jetson video decoder accelerates playback from SD to UltraHD. reComputer J4012 can take 18x1080p30 streams. See YOLOv8 performance on DeepStream.

• Fastest Way to Deploy Generative AI and Computer Vision Models — Use the prepared jetson-example repo for one‑line deployment of Ollama, Llama3, YOLOv8, and more.

ReComputer Mini supports Llama3, ollama, LLaVA, Stable Diffusion, Nanoowl, and Whisper.

Documents

• Datasheet
• Schematic
• 3D File
• Seeed Nvidia Jetson Product Catalog
• Nvidia Jetson Comparison
• Nvidia Jetson Product Comparison
• Seeed Nvidia Jetson Success Cases
• Seeed Jetson One Pager

ECCN/HTS

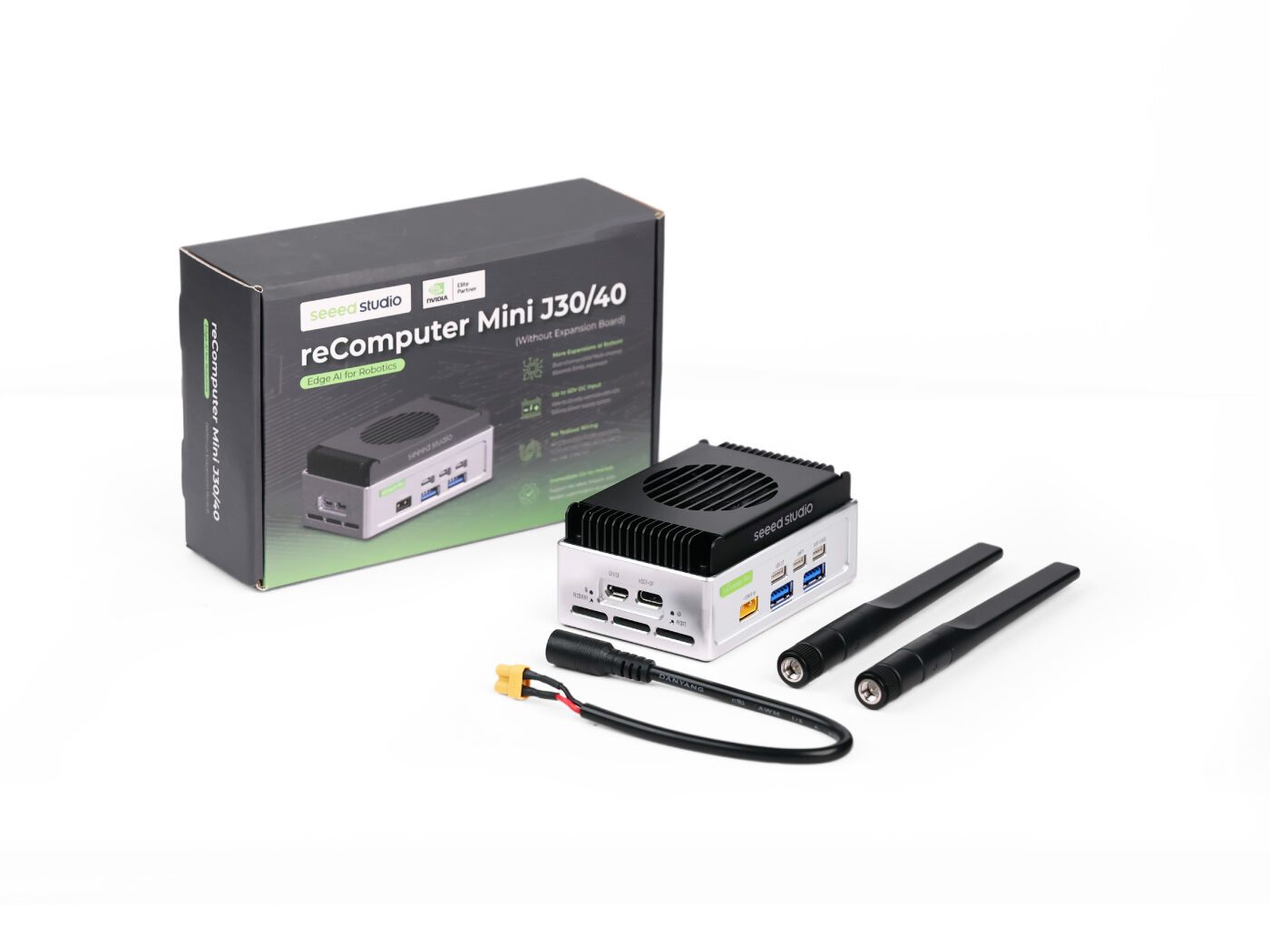

What’s Included

• reComputer Mini J3011 x1
• Antenna x2
• xt30 to DC power connector x1

Details

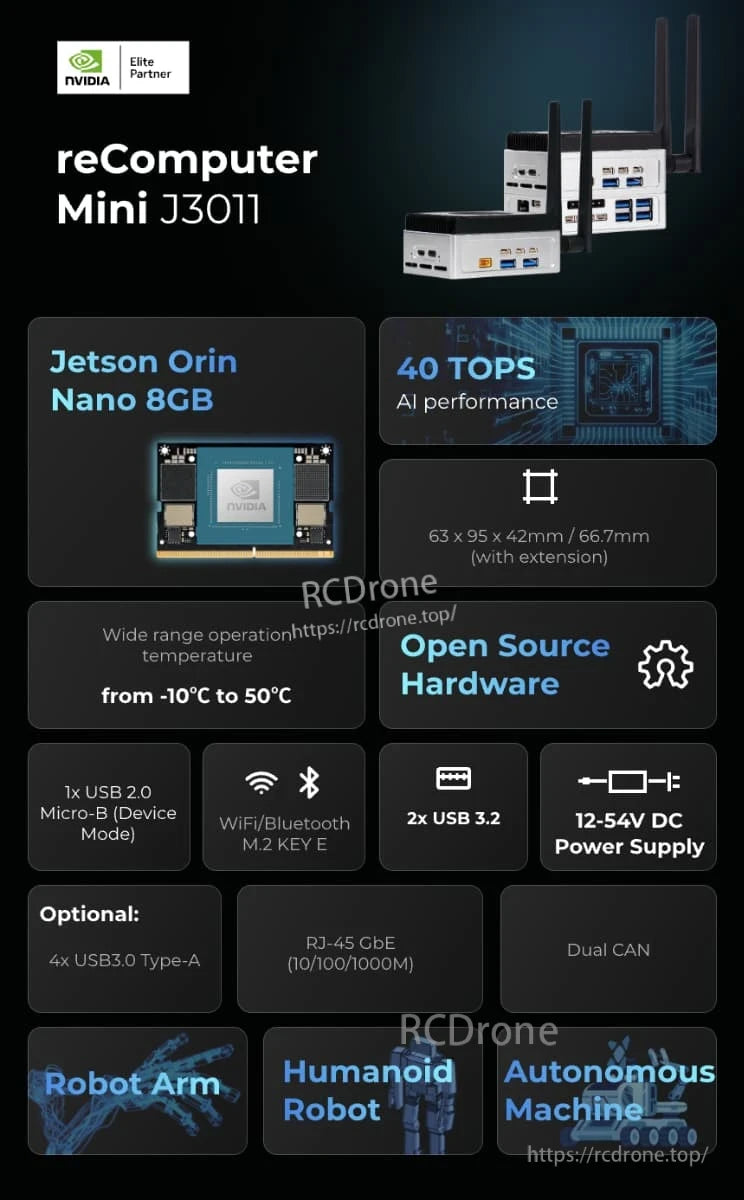

Elite Partner NVIDIA reComputer Mini J30I. Powered by Jetson Orin with 40 TOPS Nano and 8GB of memory, this device offers high performance in a compact package measuring 63*95*42mm (66.7mm with extension). Operating temperature range: -10°C to 50°C. Connectivity features include USB 2.0 Micro-B, Wi-Fi, Bluetooth, and two USB 3.2 ports. Power supply optional. Additional interfaces include RJ-45 GbE, dual CAN, and four USB 3.0 Type-A ports.

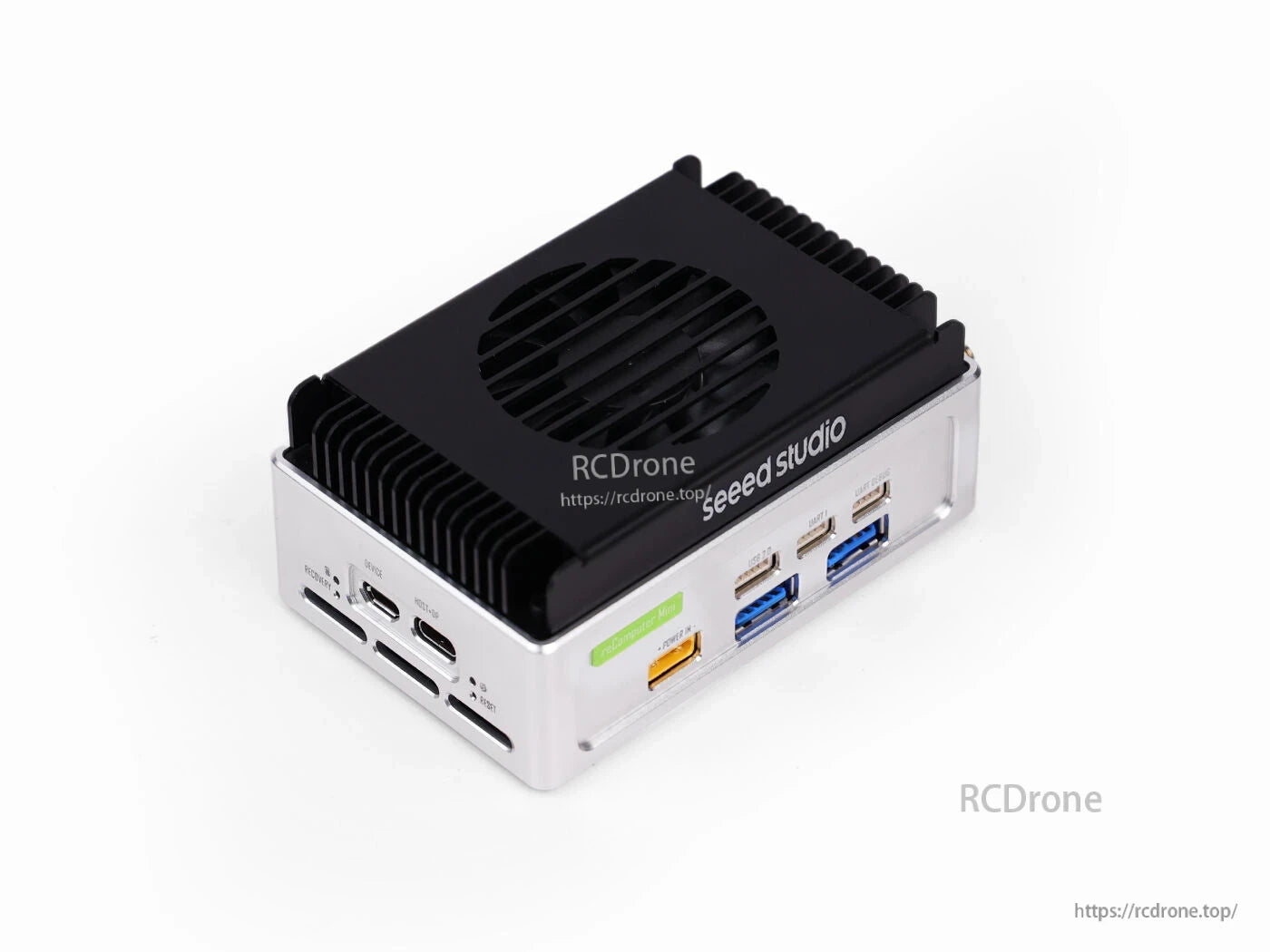

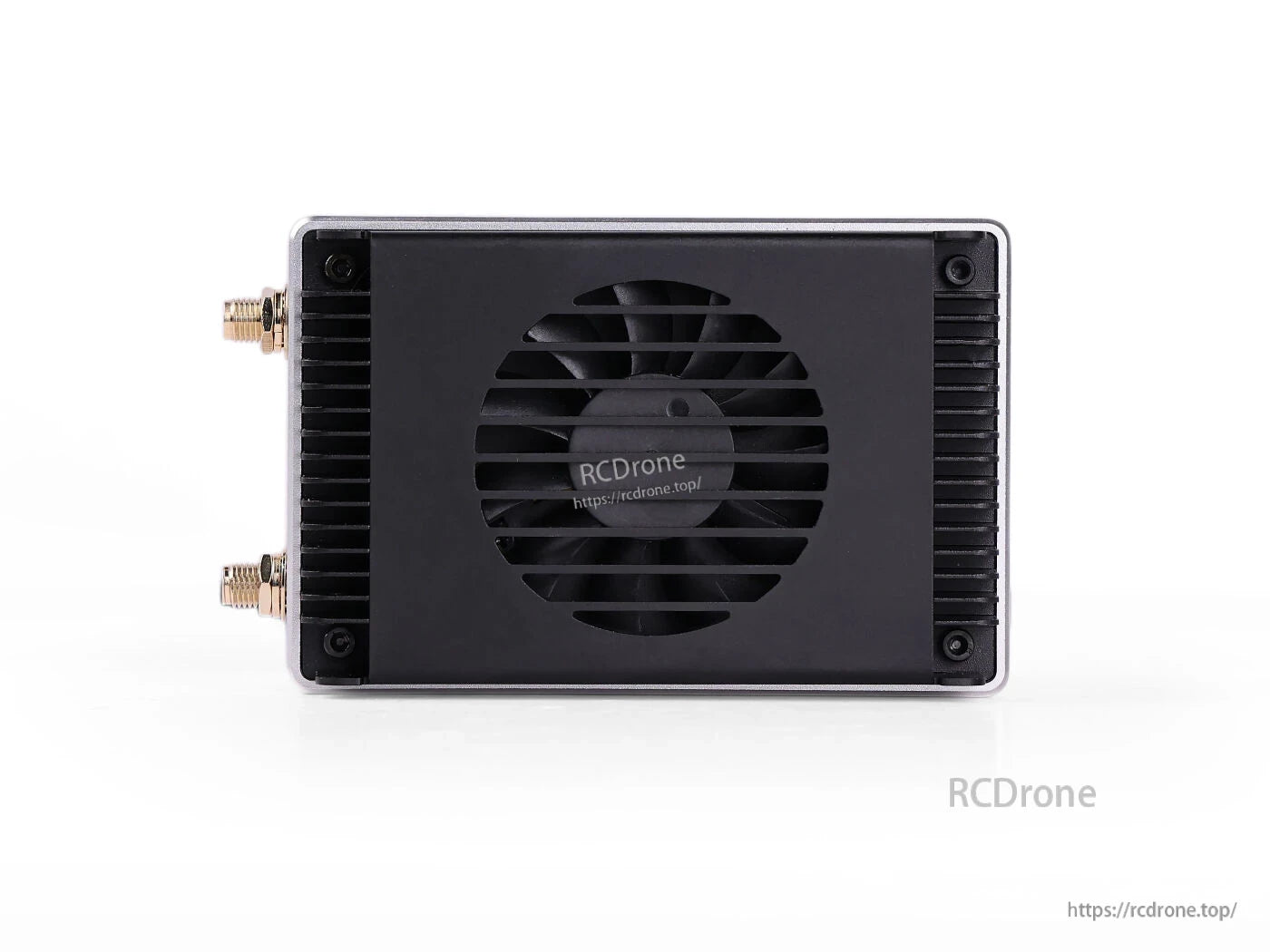

Compact and powerful, the J40 Mini Edge AI Computer offers extensive connectivity. Side ports include USB 2.0 Micro-B (Device Mode), HOST+DP, RESET, and RECOVERY. The front features POWER IN (9–60V), USB 2.0, UART1, and UART DEBUG. Rear interfaces provide 2x USB 3.2 Type-A, 4x USB 3.0 Type-A (5 Gbps), Ethernet, SPI, CAN0+Power, IIC1, IIC0, and Can1. Designed for efficient performance, it includes cooling fins for thermal management. Ideal for edge computing, its robust layout supports diverse industrial applications in a compact form factor.

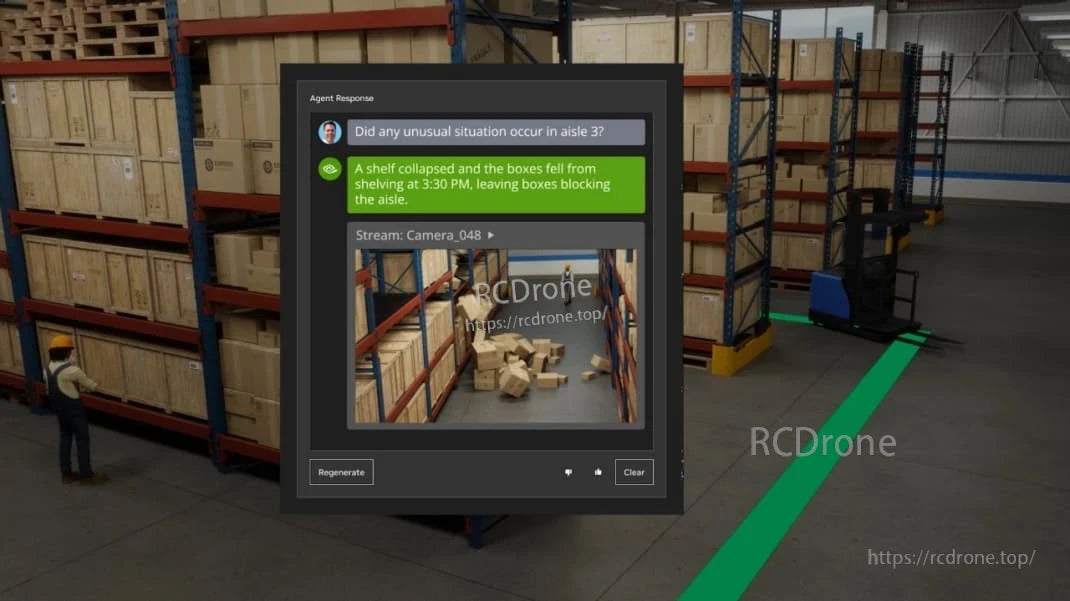

Shelf collapsed at 3:30 PM, boxes fell and blocked aisle; incident captured on camera.

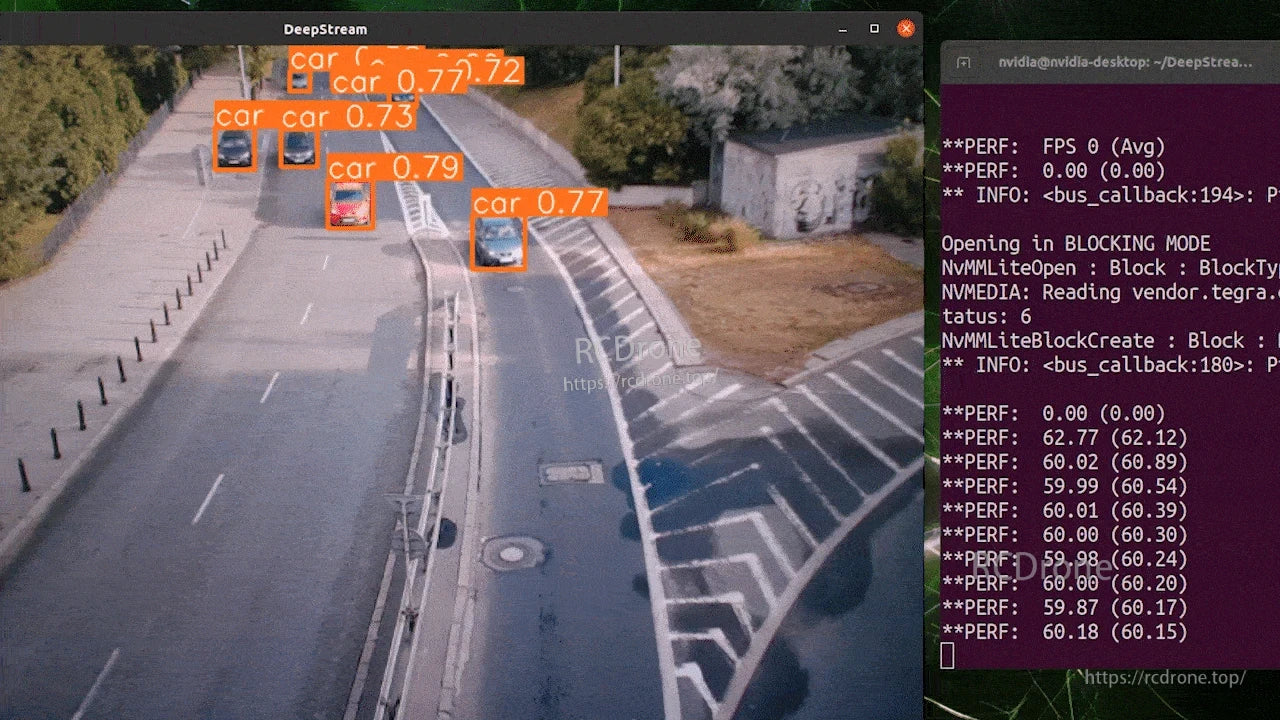

NVIDIA DeepStream car product with a performance of 0.73 FPS and 0.79 Avg.

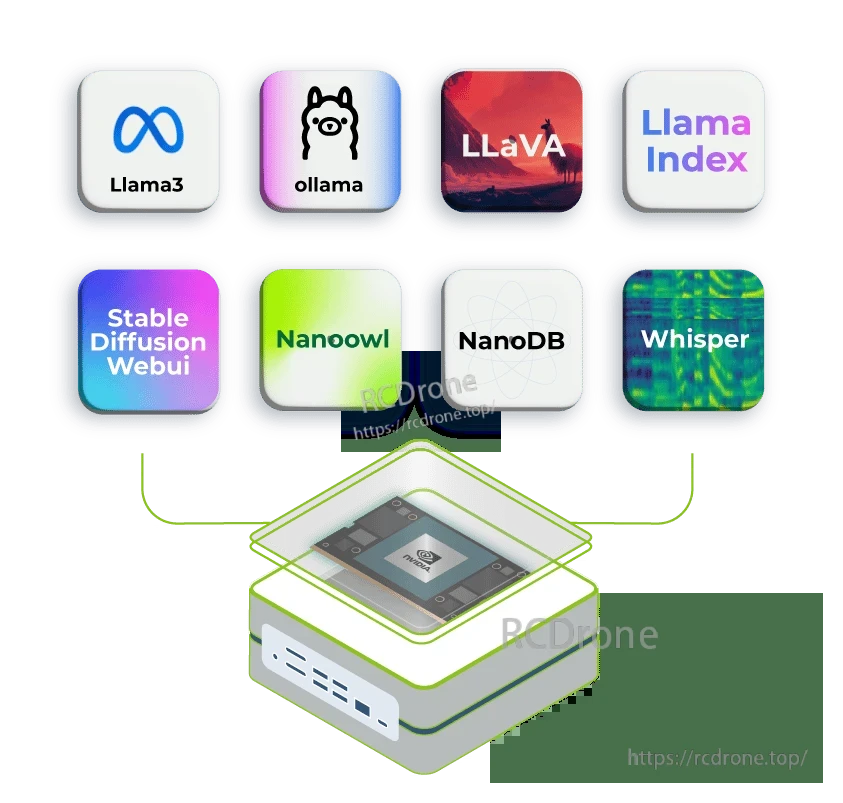

Edge AI device with Llama3, ollama, LLaVA, and more.
