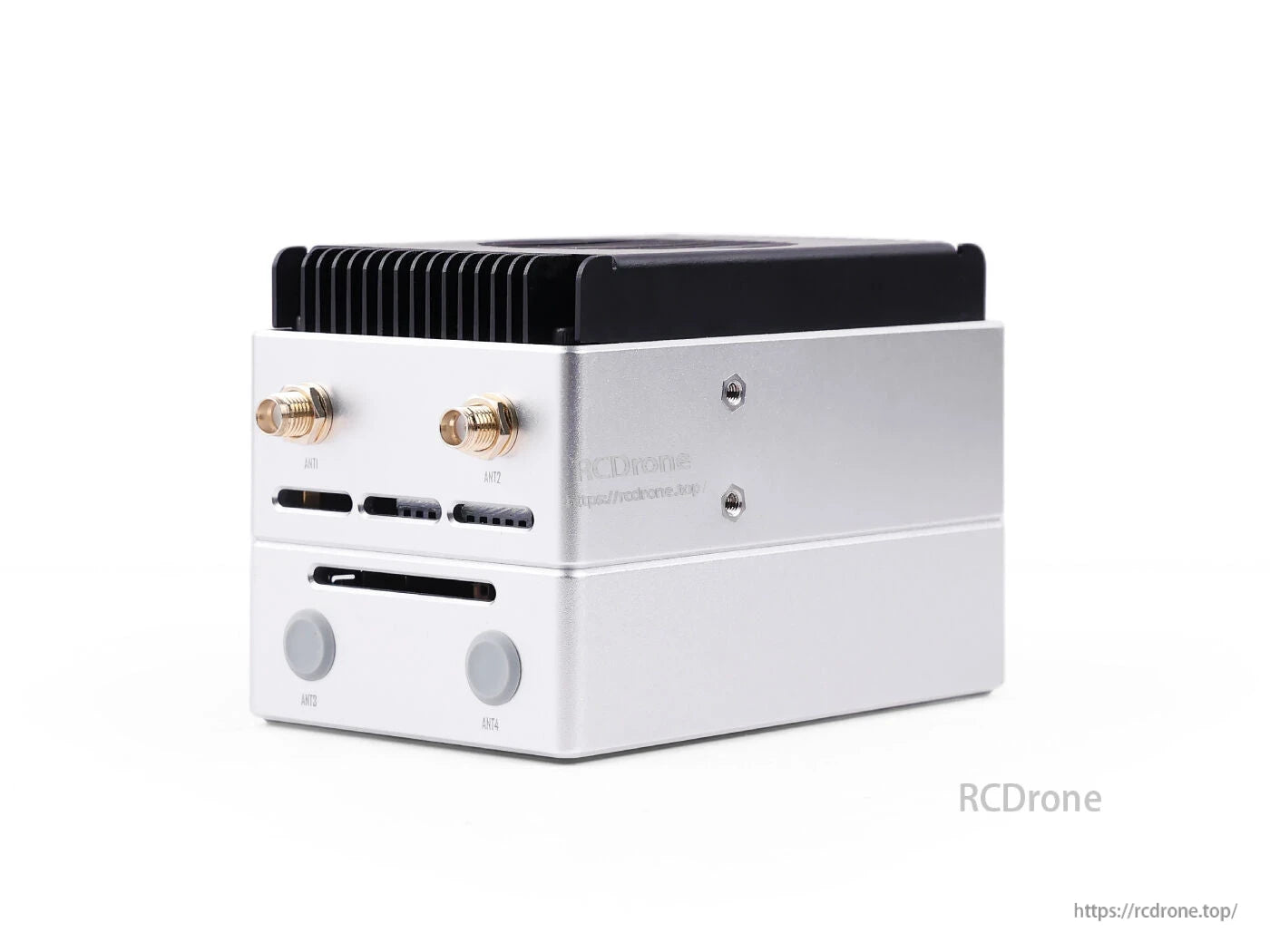

  • Compact Jetson Orin Nano 8GB AI computer with 40 TOPS, PCIe, 8 USB, dual CAN, ANT ports, aluminum case, and cooling fins.

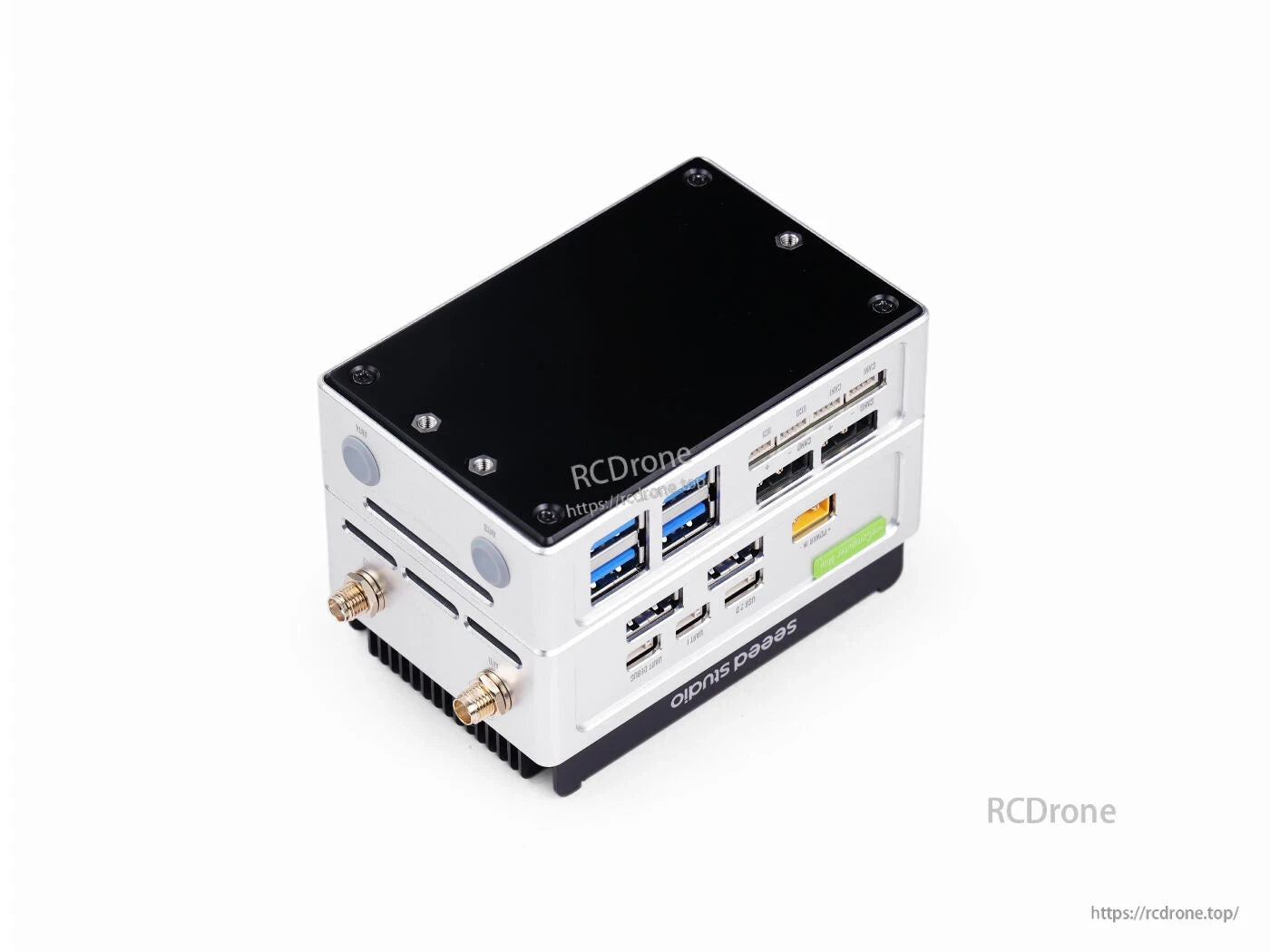

  • The reComputer Mini J3011 is a compact Edge AI computer powered by Jetson Orin Nano 8GB, delivering 40 TOPS performance with PCIe, USB, and CAN interfaces.

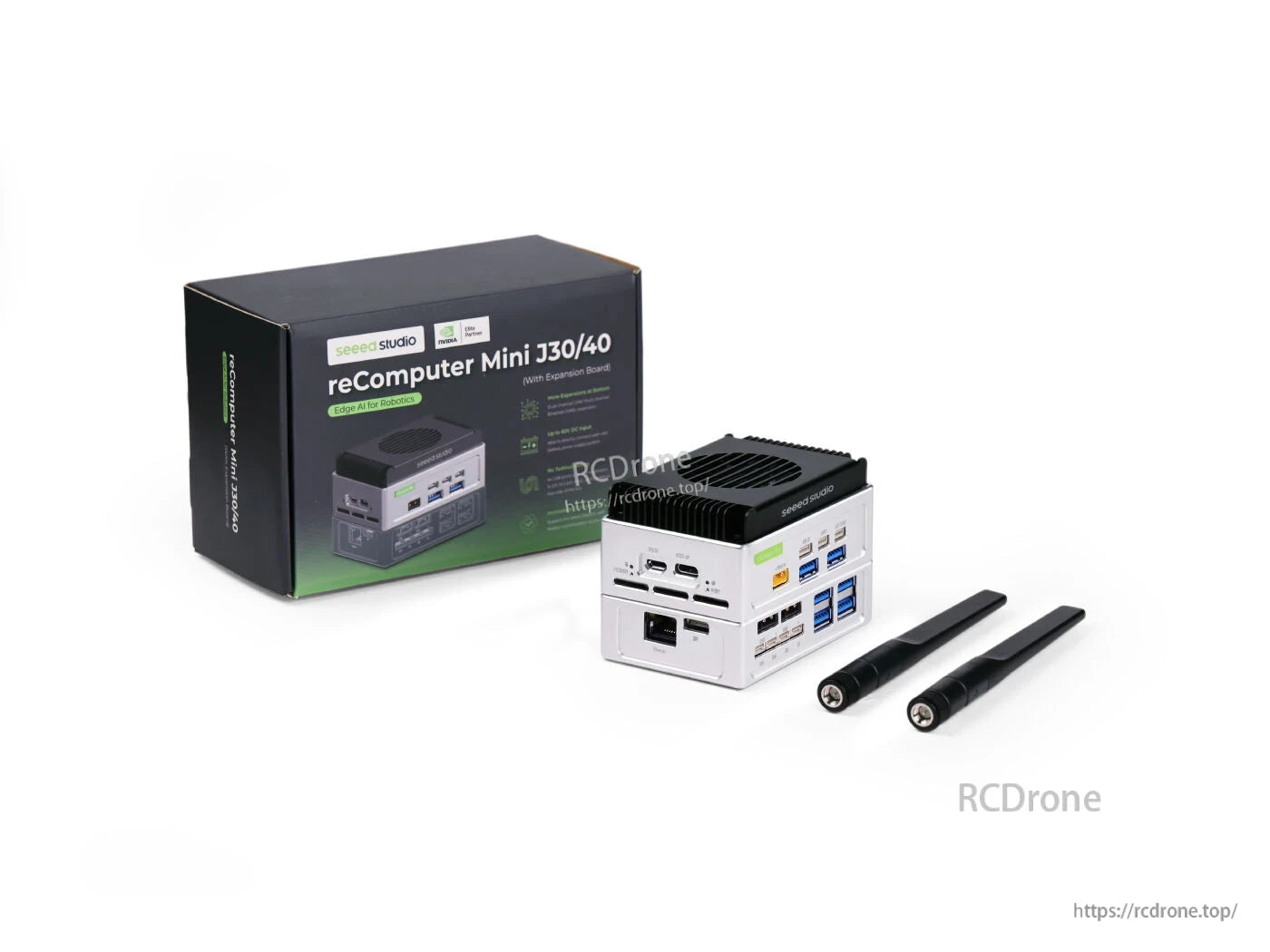

  • Compact Jetson Orin Nano 8GB AI computer with 40 TOPS, PCIe, up to 8 USB, dual CAN, and expansion board for robotics.

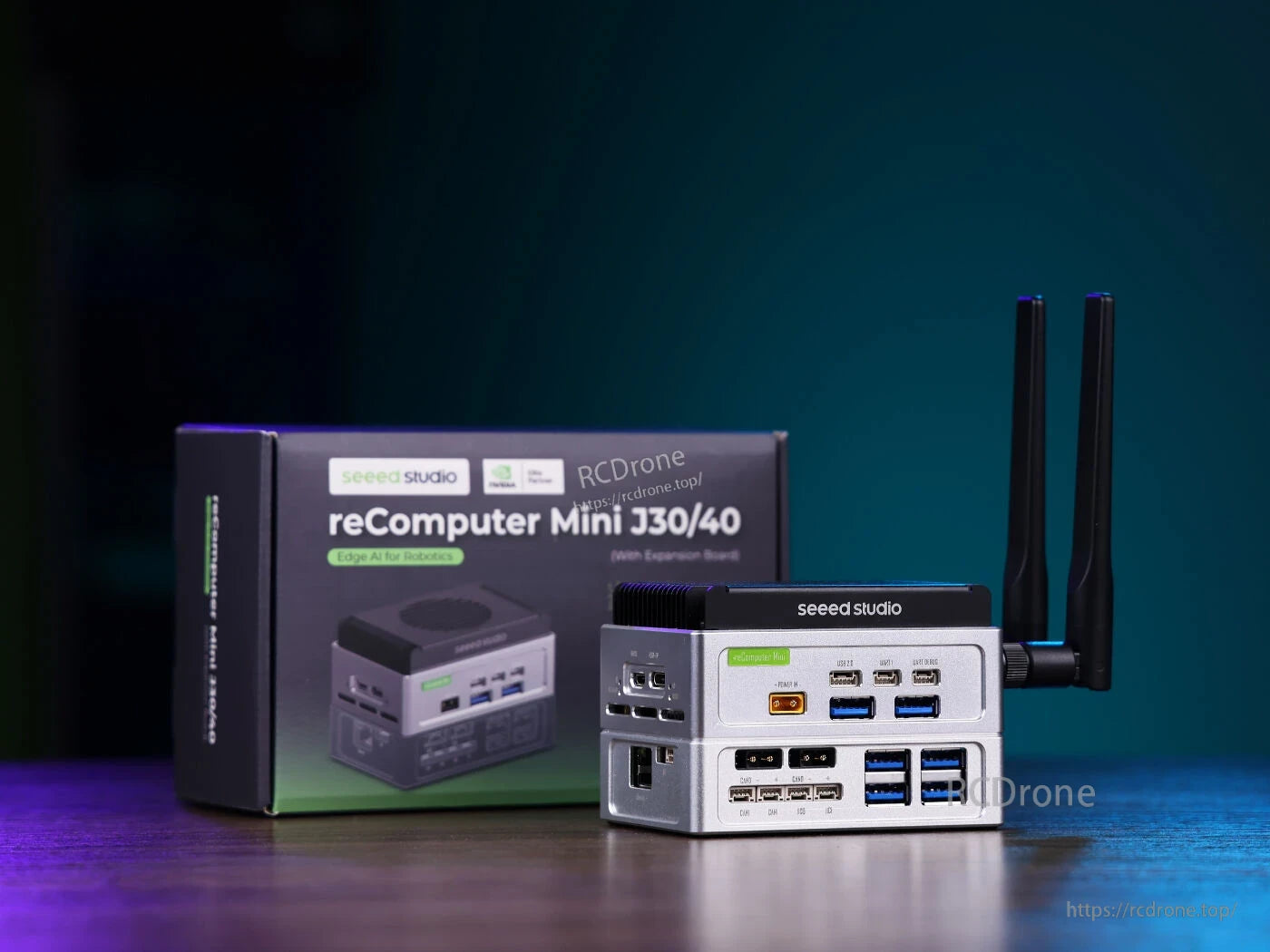

  • The reComputer Mini J30/40 is an Edge AI robotics solution powered by Jetson Orin Nano 8GB, delivering 40 TOPS, PCIe, up to 8 USB ports, dual CAN, from Seeed Studio.
1 6

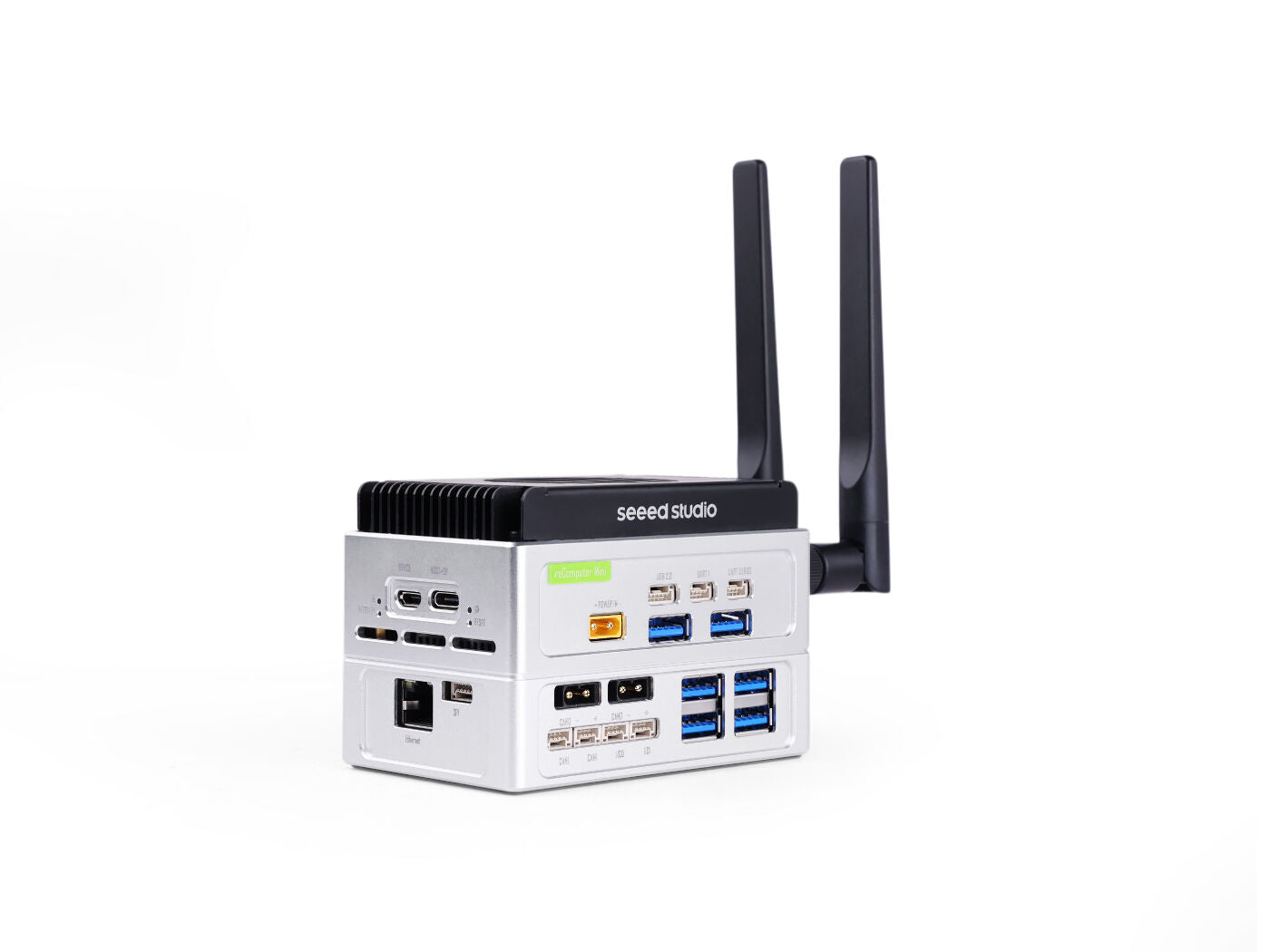

reComputer Mini J3011 with Extension – Edge AI Computer, Jetson Orin Nano 8GB, 40 TOPS, PCIe, up to 8 USB, dual CAN

reComputer Mini J3011 with Extension – Edge AI Computer, Jetson Orin Nano 8GB, 40 TOPS, PCIe, up to 8 USB, dual CAN

Seeed Studio

$1,050.00 USD
$1,050.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Processor+Memory
Extension Board
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

reComputer Mini J3011 with Extension is an Edge AI Computer built on the NVIDIA® Jetson™ Orin™ Nano 8GB module, delivering up to 40 TOPS AI performance. The system integrates a bottom PCIe expansion interface enabling rich I/O, including up to 8 USB ports and dual CAN, and is designed for embedded deployment in autonomous machines such as drones, patrol robots, and delivery robots. Power input is via XT30 (12–54V DC), suitable for battery-powered systems. Compact mechanicals support desktop and wall mounting.

Key Features

  • Up to 40 TOPS AI performance powered by NVIDIA Orin SoC with NVIDIA Ampere™ GPU architecture and NVIDIA Deep Learning Accelerators.
  • Hand-size chassis: 63mm x 95mm x 66.7mm (with extension); 63mm x 95mm x 42mm (without extension).
  • Expandable I/O: up to 8x USB, DP 1.4, 1x RJ-45 GbE, M.2 Key E, M.2 Key M, dual CAN, GPIO.
  • Pre-installed JetPack 6.0 on 128GB NVMe SSD with Linux OS BSP; supports Jetson software and leading AI frameworks.
  • Scale to deploy with OTA and remote management services powered by Allxon and Balena.
  • Flexible customization: accessory modules, logo, and hardware interface modifications based on the original J3011 design.
  • Operating temperature: -10℃ to 50℃.
  • Open Source Hardware (per product image).

reComputer Mini J3011 AI Computer, reComputer Mini J3011 overview

Specifications

Jetson Orin System on Module
AI Performance reComputer Mini J4012 – Orin NX 16GB, 100 TOPS reComputer Mini J3011 – Orin Nano 8GB – 40 TOPS
GPU 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
CPU 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU (Orin NX 16GB) 6-core Arm® Cortex®-A78AE (Orin Nano 8GB)
Memory 16GB 128-bit LPDDR5 (Orin NX 16GB) 8GB 128-bit LPDDR5 (Orin NX 8GB)
Video Encode 1x 8K30 (H.265) | 2x 4K60 (H.265) | 4x 4K30 (H.265) | 9x 1080p60 (H.265) | 18x 1080p30 (H.265) 1080p30 supported by 1–2 CPU cores
Video Decode 1x 8K30 (H.265)
2x 4K60 (H.265)
4x 4K30 (H.265)
9x 1080p60 (H.265)
18x 1080p30 (H.265) 		1x 4K60 (H.265)
2x 4K30 (H.265)
5x 1080p60 (H.265)
11x 1080p30 (H.265)
DL Accelerator 2x NVDLA v2 /
Carrier Board
Storage 1x M.2 Key M PCIe (M.2 NVMe 2242 SSD 128G included)
Networking M.2 Key E 1x M.2 Key E for WiFi/Bluetooth module
I/O USB 2x USB 3.2 Type-A (10Gbps);
1x USB 2.0 Micro-B (Device Mode);
1x USB 3.2 Type-C (Host Mode);
1x USB 2.0 JST-5 pin (Host Mode);
UART 1x UART; 1x Debug Uart
Display 1x DP 1.4 (included in Type-C connector)
Fan 1x 4-pin Fan Connector (5V PWM)
Button 1x Reset Button; 1x Recovery Button
Extension Port 2x 60-pin High Speed Connector (for extension board)
1x 10-pin Power Connector (for extension board)
RTC 1x RTC 2-pin
Power 1x XT30 Connector (12–54V DC)
Extension Board
Networking Ethernet 1x RJ-45 Gigabit Ethernet (10/100/1000M)
I/O USB 4x USB 3.0 Type-A (5Gbps)
CAN (Providing Power) CAN0: XT30 (2+2)x2; CAN1: JSTx2
Fan 1x 4-pin Fan Connector (5V PWM)
I2C 2x I2C JST 4-pin (3.3V)
SPI 1x SPI JST 6-pin (3.3V)
Mechanical
Dimensions (W x D x H) 63mm x 95mm x 42mm (without extension); 63mm x 95mm x 66.7mm (with extension)
Weight 345g (without extension); 462g (with extension)
Installation Desk, Wall-mounting
Operating Temperature -10℃~50℃
Warranty 1 Year

Hardware Overview

reComputer Mini J3011 AI Computer, J3011 hardware overview

Desktop, wall mounting, expandable, or fit in anywhere

Applications

Robotic Control

  • Capable of Bringing Generative AI to the Edge

reComputer Mini J3011 AI Computer, VLM for vision-language

Build AI agents that process live or archived videos and images using Vision-Language Models (VLM) such as LLaVA to summarize, search, and extract insights from video using natural language.

  • Build Multi-streams AI Video Analytics

reComputer Mini J3011 AI Computer, DeepStream multi-stream analytics

For video analytics, Jetson Orin NX incorporates the NVIDIA Multi-Standard Video Decoder to accelerate decode across SD, HD and UltraHD content. reComputer J4012 can take 18x1080p30 streams. See tested YOLOv8 performance using NVIDIA DeepStream.

  • Fastest Way to Deploy Generative AI and Computer Vision Models

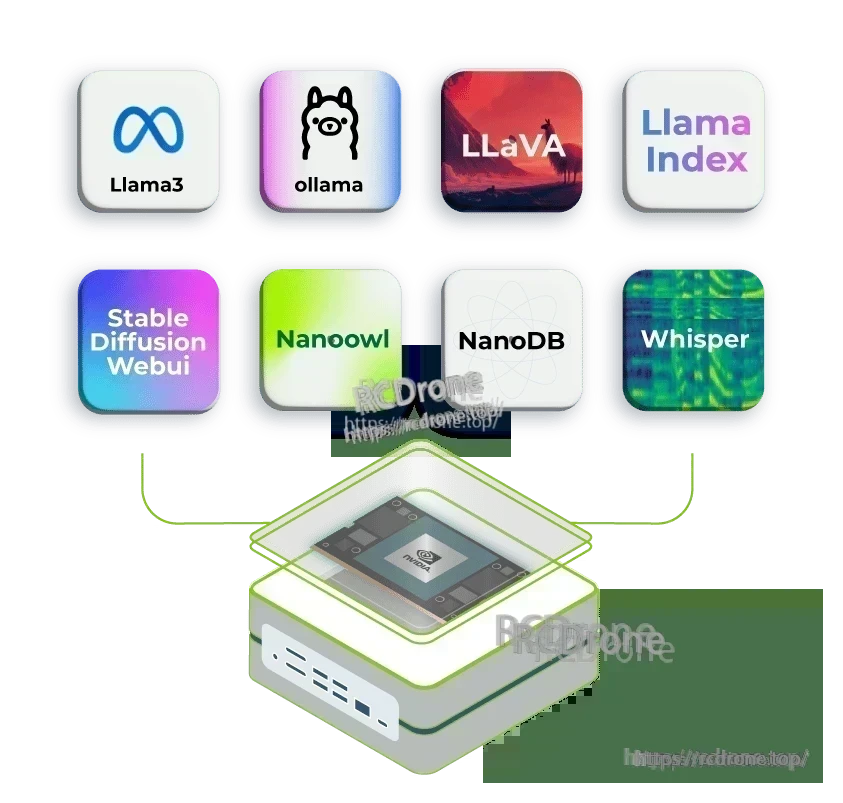

reComputer Mini J3011 AI Computer, Jetson examples deployment

See jetson-example projects offering single-command deployment for edge AI workloads including Ollama, Llama3, YOLOv8, and others.

Documents

Certification

CEEUDOCFCCreComputer Mini J3011 AI Computer, ReComputer Mini J3011 with Extension is an AI computer built on NVIDIA Jetson Orin Nano 8GB module for AI performance.reComputer Mini J3011 AI Computer, NVIDIA Orin SoC with Ampere GPU architecture and Deep Learning Accelerators provides AI performance up to 40 TOPSUKDOC
HSCODE 8471504090
USHSCODE 8517180050
UPC
EUHSCODE 8471707000
COO CHINA

What’s Included

reComputer Mini J3011 (with Extension) x1
Antenna x2
XT30 to DC power connector x1

Details

reComputer Mini J3011 AI Computer, Jetson Orin Nano 8GB offers 40 TOPS AI, compact size, wide temperature tolerance, open hardware, and versatile connectivity, ideal for robotics and autonomous systems. (24 words)

Jetson Orin Nano 8GB with 40 TOPS AI performance, compact design, wide temperature range, open hardware, multiple connectivity options, ideal for robot arms, humanoid robots, and autonomous machines. (39 words)

reComputer Mini J3011 AI Computer, The device has multiple interfaces including power inputs, USB, UART, I2C, SPI, CAN Bus, Ethernet, and a power button.

Reset Power In (9-6V) Host+DP USB 2.0, UART 1 (Device Mode), UART Debug Recovery, USB 3.2 Type-A Reboot Button, Mini USB 2x USB 3.0 Type-A (5 Mbps), CANO, Power Ethernet IICI, SPI Canl, Bus T/MART F/A, Power.

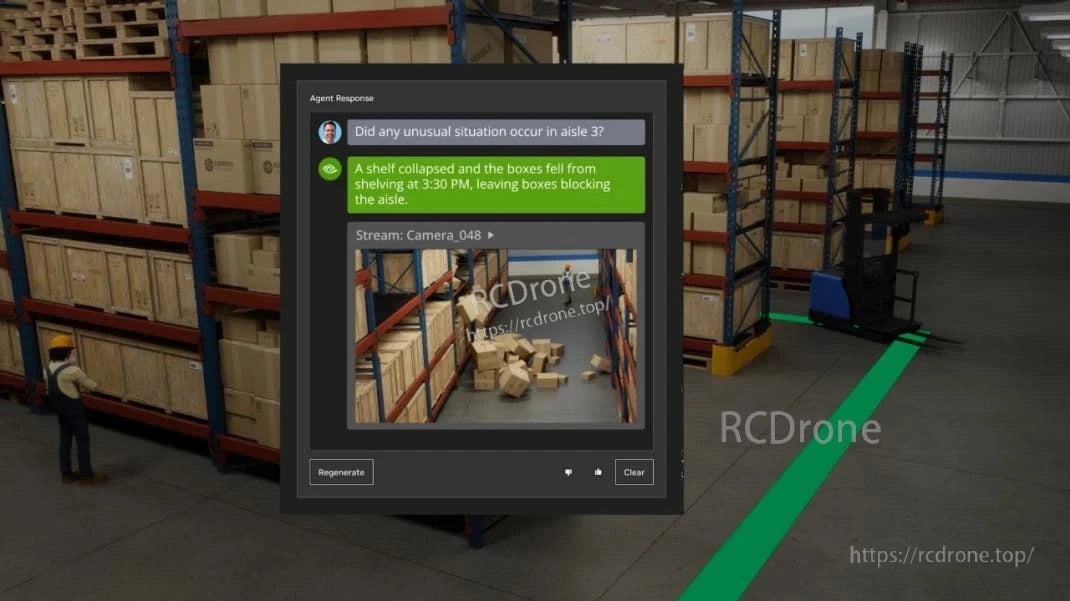

reComputer Mini J3011 AI Computer, Aisle blockage caused by unexpected shelf collapse at 3:30 PM in aisle 324.

An unexpected occurrence happened in aisle 324; a shelf collapsed, causing boxes to fall from shelving at 3:30 pm.

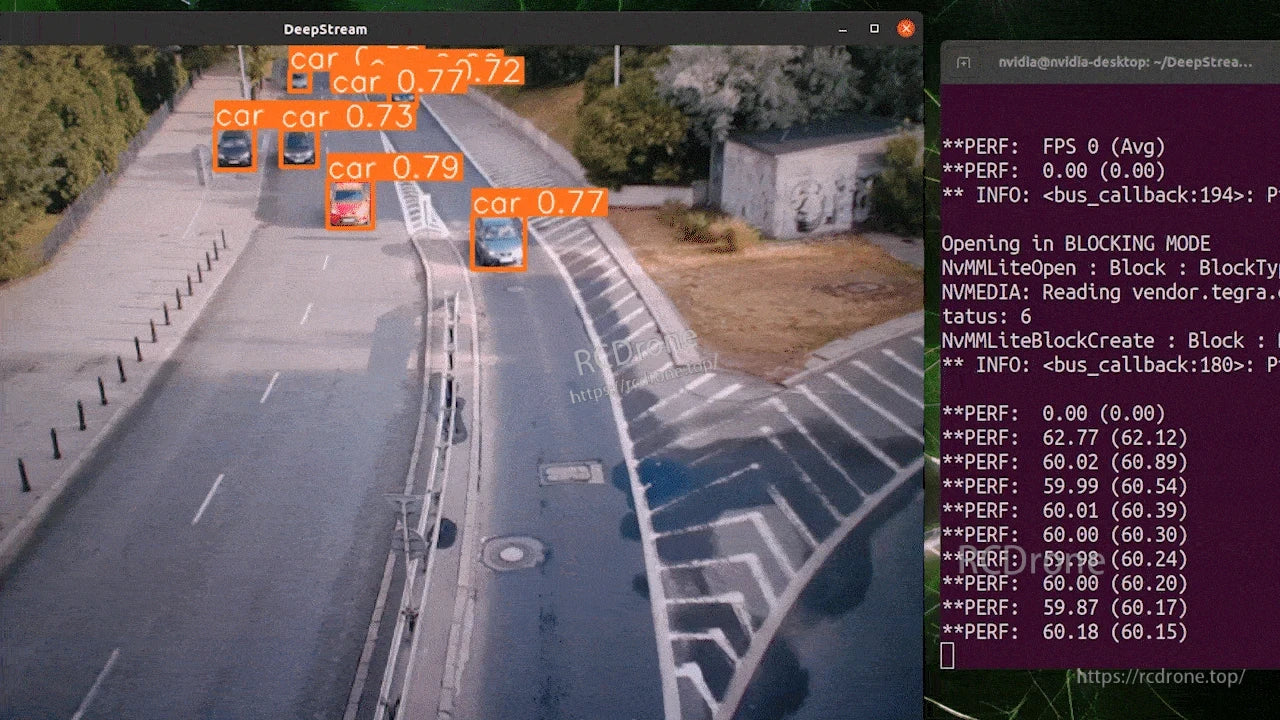

reComputer Mini J3011 AI Computer, DeepStream detects cars with confidence scores, displaying real-time FPS, performance metrics, and system status on an AI computer.

Cars are detected with confidence scores in a DeepStream application. Terminal logs display FPS, performance metrics, and system status during real-time processing on an AI computer.

reComputer Mini J3011 AI Computer, An AI computer running Llama3, Ollama, LLaVA, and Stable Diffusion WebUI for advanced AI processing, language tasks, and image generation.

AI computer running Llama3, ollama, LLaVA, and Stable Diffusion Webui.

reComputer Mini J3011 AI Computer, Jetson Orin NX accelerates video analytics with NVIDIA Multi-Standard Video Decoder for SD, HD, and UltraHD content.reComputer Mini J3011 AI Computer, NVIDIA Jetson Orin system on module with AI performance, GPU, CPU, memory, video encode/decode, DL accelerator, and expansion options for robotics and edge AI applications.
