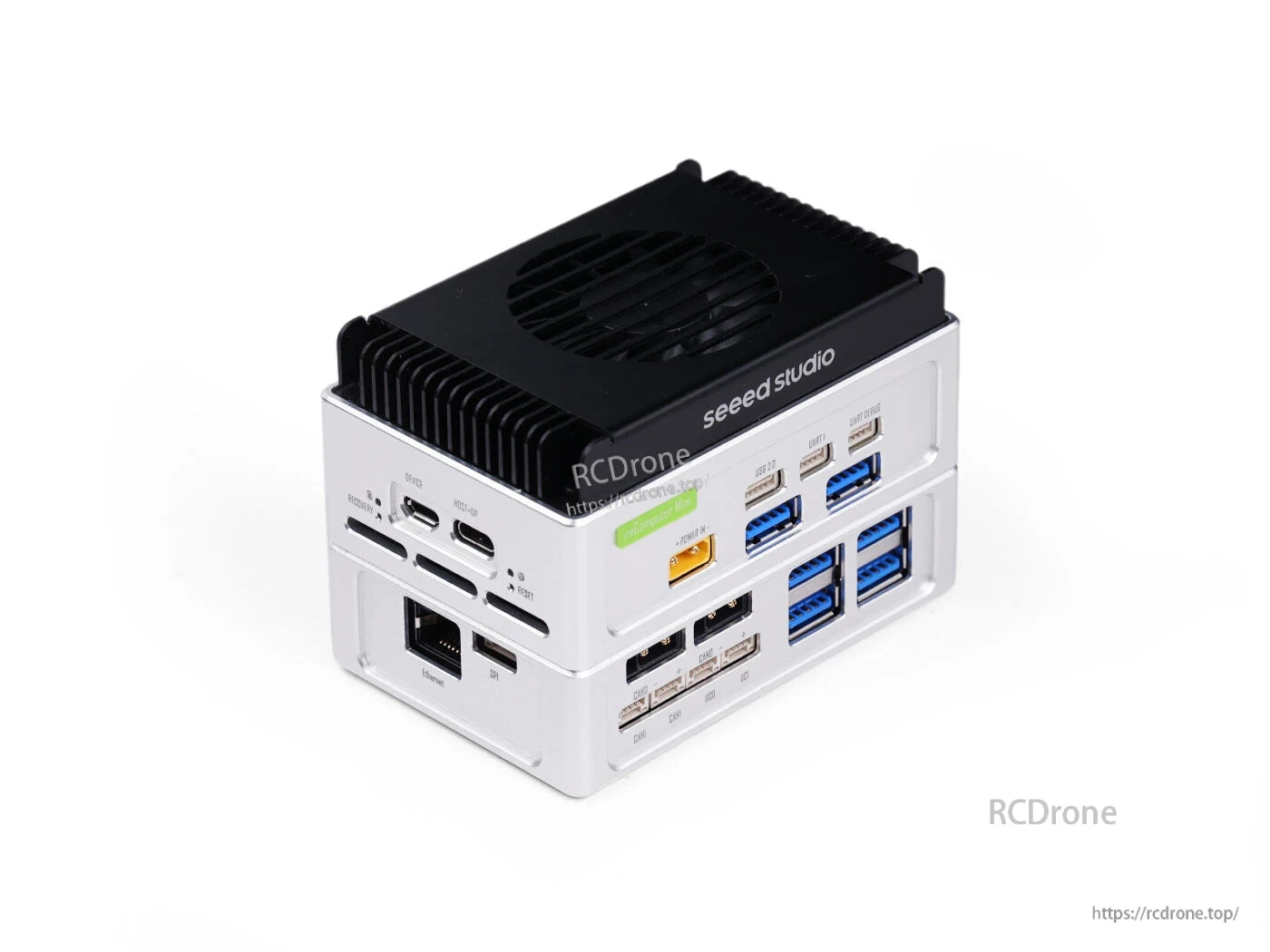

  • Compact Edge AI computer with NVIDIA Jetson Orin NX 16GB, 100 TOPS, wide voltage input, Dual CAN, USB, HDMI, Ethernet, and GPIO for industrial drone applications.

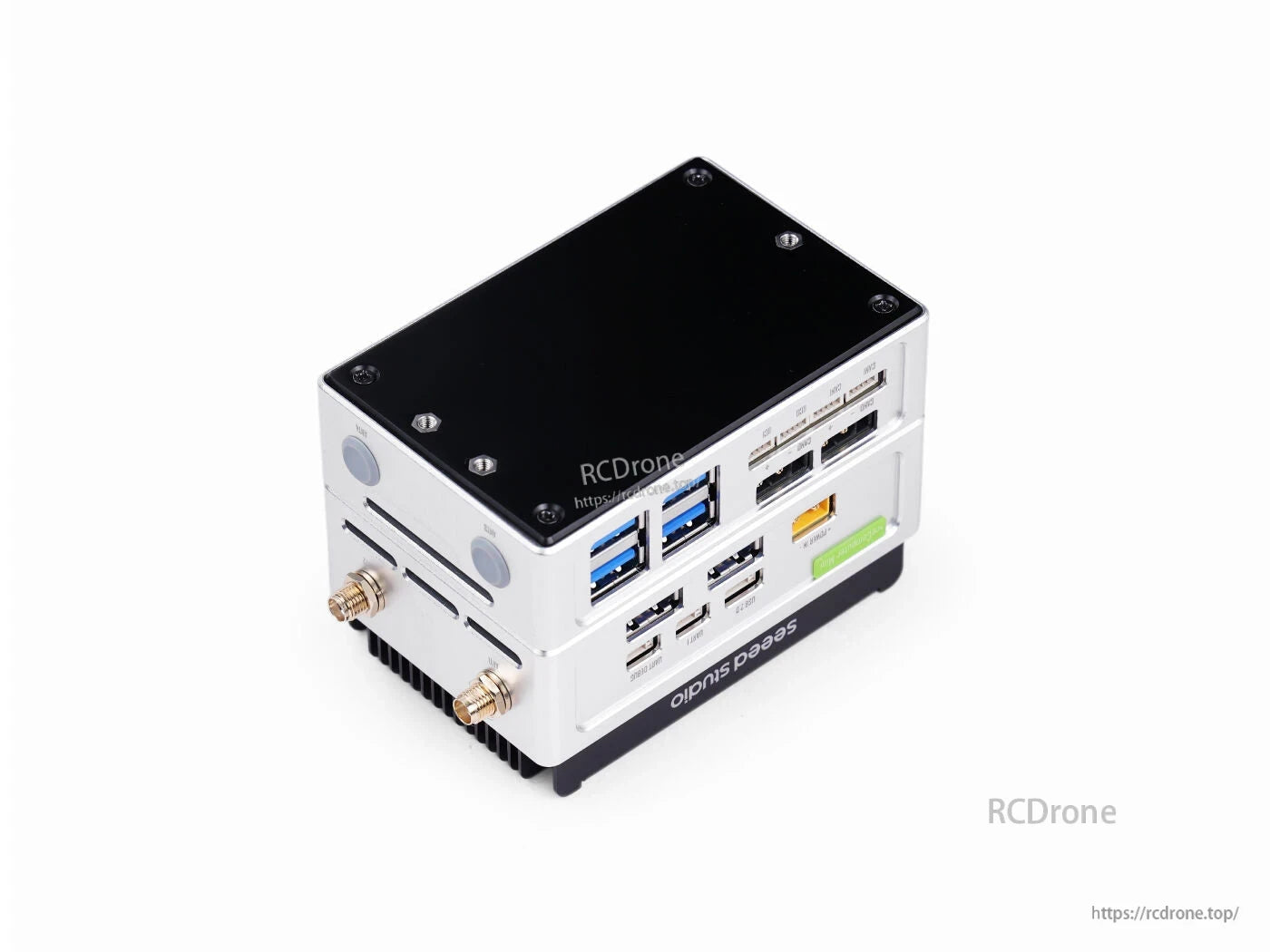

  • The reComputer Mini J4012 is a compact Edge AI computer powered by Jetson Orin NX 16GB, delivering 100 TOPS for high-performance AI applications in robotics and automation.

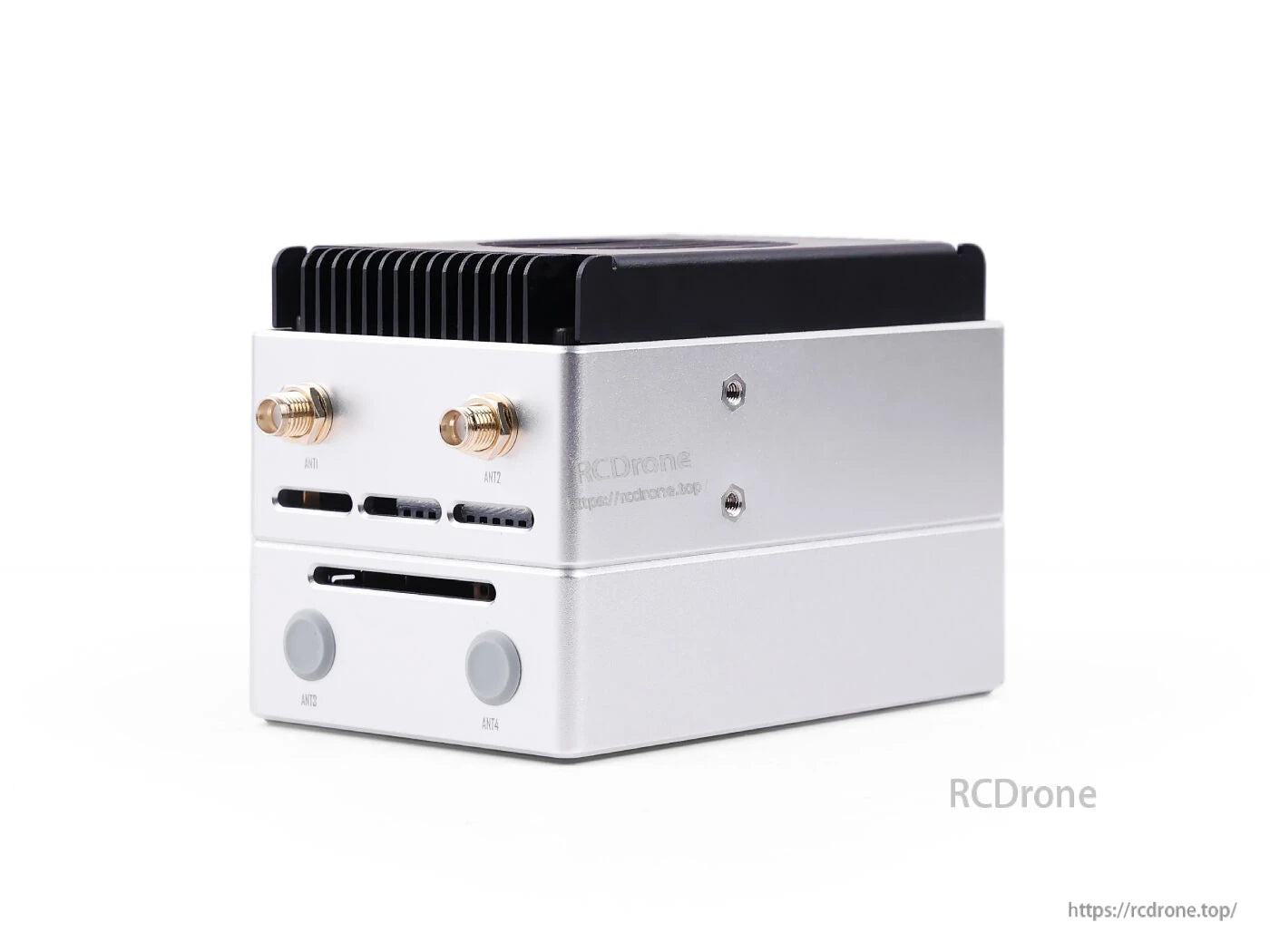

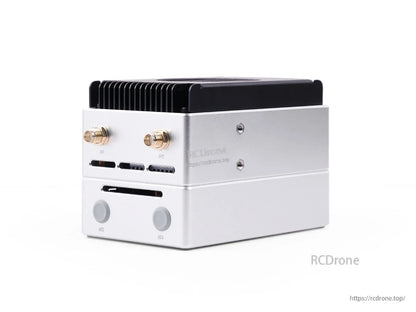

  • Compact Edge AI computer with NVIDIA Jetson Orin NX 16GB, 100 TOPS, 12–54V DC input, Dual CAN, and visible ANT1-ANT4 ports.

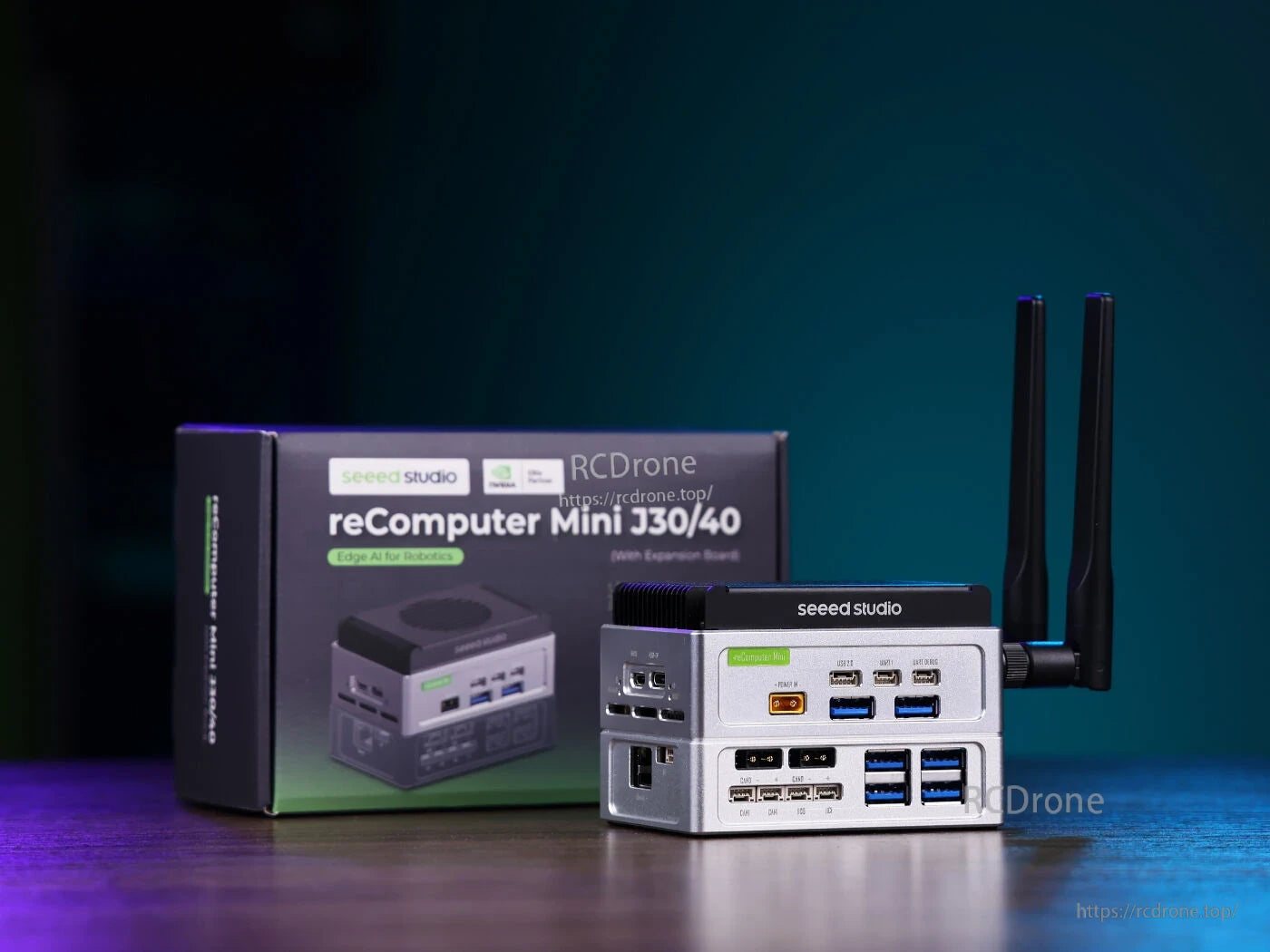

  • Compact Edge AI device for robotics with NVIDIA Jetson Orin NX 16GB, 100 TOPS, Dual CAN, wide voltage input (12–54V), from Seed Studio.
1 6

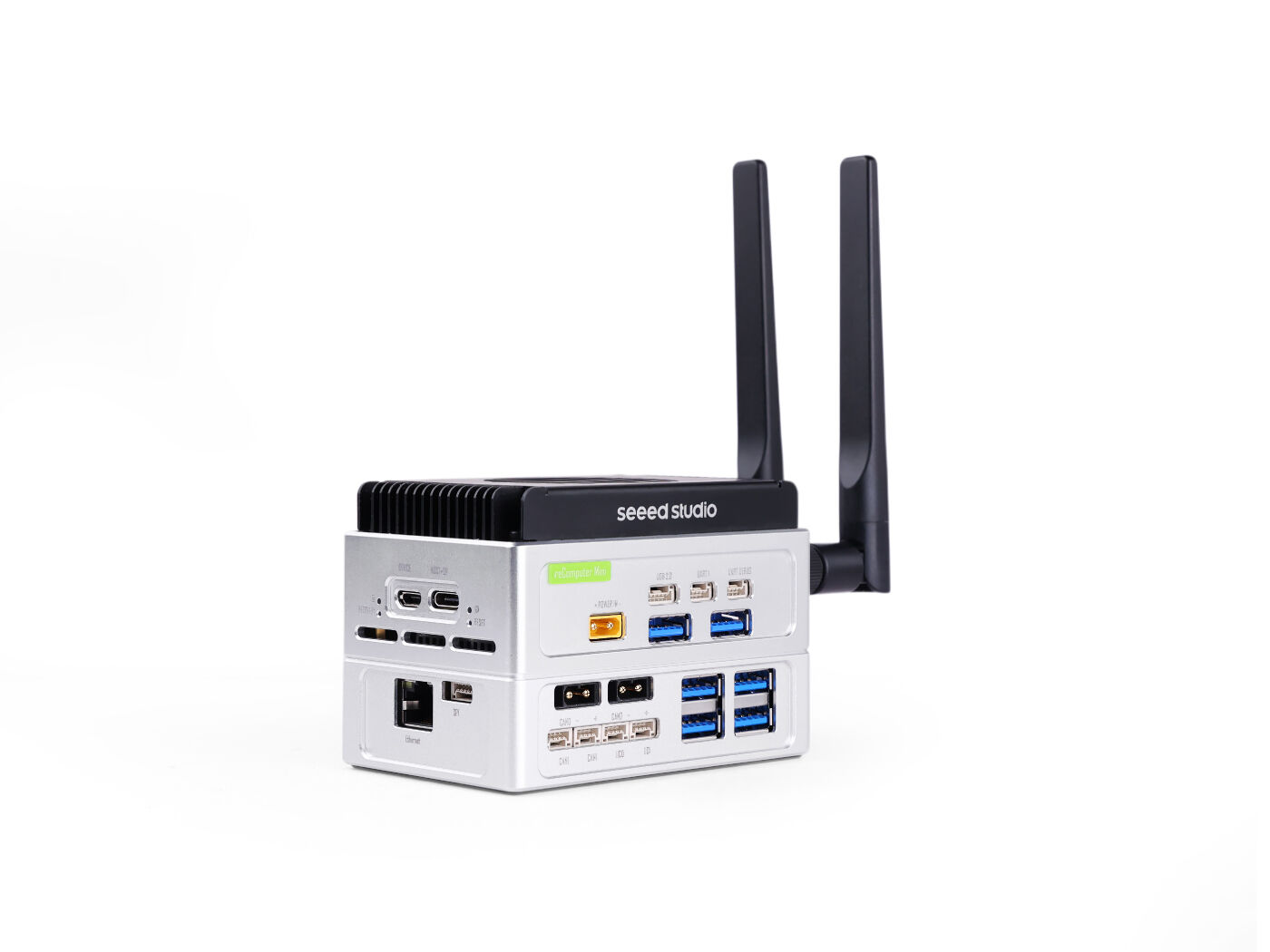

reComputer Mini J4012 with Extension – Edge AI Computer with NVIDIA Jetson Orin NX 16GB, 100 TOPS, 12–54V DC, Dual CAN

reComputer Mini J4012 with Extension – Edge AI Computer with NVIDIA Jetson Orin NX 16GB, 100 TOPS, 12–54V DC, Dual CAN

Seeed Studio

$1,469.00 USD
$1,469.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

reComputer Mini J4012 with Extension is an Edge AI Computer built on the NVIDIA Jetson Orin NX 16GB module, delivering up to 100 TOPS AI performance. The compact system integrates a PCIe expansion interface on the bottom to enable rich I/O, including up to 8x USB ports and dual CAN, with flexible customization options. Designed for embedding into autonomous machines (drones, patrol robots, delivery robots), it supports 12–54V DC input via an XT30 connector, making it suitable for battery-powered deployments.

The unit measures 63mm x 95mm x 66.7mm with the extension (63mm x 95mm x 42mm without extension) and supports desktop or wall mounting.

Key Features

  • Up to 100 TOPS AI performance powered by NVIDIA Orin SoC with NVIDIA Ampere architecture GPU, NVIDIA Deep Learning Accelerators, and advanced video/image processing.
  • Jetson Orin NX 16GB: 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores; 8-core Arm Cortex-A78AE v8.2 64-bit CPU; 16GB 128-bit LPDDR5.
  • Hand-size design: 63mm x 95mm x 66.7mm (with extension) / 63mm x 95mm x 42mm (without extension); supports desktop and wall mounting.
  • Rich expansion: up to 8x USB, DP 1.4 (via Type-C), 1x RJ-45 GbE, M.2 Key E, M.2 Key M, dual channel CAN, GPIO.
  • Pre-installed JetPack 6.0 on 128GB NVMe SSD; Linux OS BSP; supports Jetson software and leading AI frameworks.
  • Scalable deployment: OTA and remote management services via Allxon and Balena.
  • Power input: XT30 connector, 12–54V DC.

Specifications

Jetson Orin System on Module
AI Performance reComputer Mini J4012 with Extension - Orin NX 16GB, 100 TOPS
GPU 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
CPU 8-core Arm Cortex-A78AE v8.2 64-bit CPU (Orin NX 16GB)
Memory 16GB 128-bit LPDDR5 (Orin NX 16GB)
Video Encode 1x 8K30 (H.265) | 2x 4K60 (H.265) | 4x 4K30 (H.265) | 9x 1080p60 (H.265) | 18x 1080p30 (H.265)
Video Decode 1x 8K30 (H.265); 2x 4K60 (H.265); 4x 4K30 (H.265); 9x 1080p60 (H.265); 18x 1080p30 (H.265)
DL Accelerator 2x NVDLA v2
Carrier Board
Storage 1x M.2 Key M PCIe (M.2 NVMe 2242 SSD 128G included)
Networking 1x M.2 Key E for WiFi/Bluetooth module
I/O 2x USB 3.2 Type-A (10Gbps); 1x USB 2.0 Micro-B (Device Mode); 1x USB 3.2 Type-C (Host Mode); 1x USB 2.0 JST-5pin (Host Mode)
1x UART; 1x Debug UART
1x DP 1.4 (included in Type-C connector)
1x 4-pin Fan Connector (5V PWM)
1x Reset Button; 1x Recovery Button
2x 60-pin High Speed Connector (extension board); 1x 10-pin Power Connector (extension board); 1x RTC 2-pin
Power 1x XT30 Connector (12–54V DC)
Extension Board
Ethernet 1x RJ-45 Gigabit Ethernet (10/100/1000M)
USB 4x USB 3.0 Type-A (5 Gbps)
CAN (Providing Power) CAN0: XT30 (2+2) x2; CAN1: JST x2
FAN 1x 4-pin Fan Connector (5V PWM)
I2C 2x I2C JST 4-pin (3.3V)
SPI 1x SPI JST 6-pin (3.3V)
Mechanical
Dimensions (W x D x H) 63mm x 95mm x 42mm (without extension); 63mm x 95mm x 66.7mm (with extension)
Weight 345g (without extension); 462g (with extension)
Installation Desk; Wall-mounting
Operating Temperature -10℃~50℃
Warranty 1 Year

What’s Included

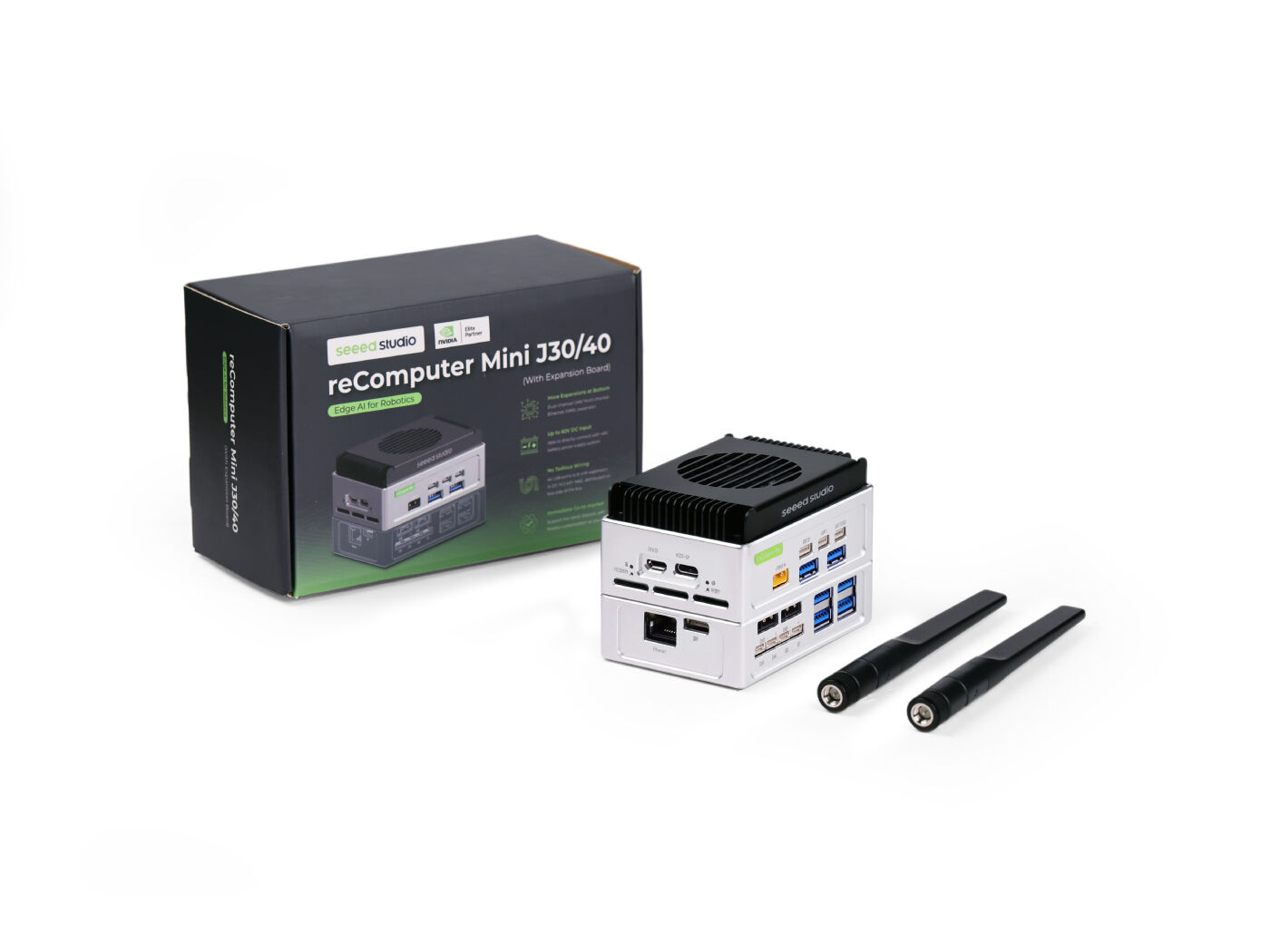

  • reComputer Mini J4012 (with Extension) x1
  • Antenna x2
  • XT30 to DC power connector x1

Applications

Robotic Control

  • Capable of bringing Generative AI to the edge using Vision-Language Models (e.g., LLaVA) to summarize, search, and extract insights from video via natural language.
  • Build multi-stream AI video analytics: Jetson Orin NX video decoder accelerates 8K/4K/HD/SD content; reComputer J4012 can take 18x1080p30 streams (tested with NVIDIA DeepStream).
  • Fast deployment: one-line projects for Generative AI (Ollama, Llama3) and Computer Vision (YOLOv8) with prepared environments.

Documents

ECCN/HTS

HSCODE 8471504090
USHSCODE 8517180050
UPC
EUHSCODE 8471707000
COO CHINA

Details

ReComputer J4012 AI Computer, Elite NVIDIA computer with excellent performance, compact size, and wide temperature range.

Elite Partner NVIDIA reComputer Mini J4012 Jetson Orin, offering TOPS NX performance with 6GB RAM, compact design measuring 63x95x42mm (66.7mm including extension). Operates in a wide temperature range from -10°C to 50°C. Features include I/O ports such as USB 2.0, micro-B, WiFi/Bluetooth, and 4x USB 3.2 Type-A.

ReComputer J4012 AI Computer, The ReComputer J4012 is a compact, feature-rich AI computer with extensive connectivity, clear labeling, and efficient cooling, designed for reliable performance in diverse applications.

Compact and feature-rich, the ReComputer J4012 AI Computer offers extensive connectivity with 2x USB 3.2 Type-A, 4x USB 3.0 Type-A (5 Gbps), Ethernet, SPI, IIC0, IIC1, CAN0+Power, CAN1, USB 2.0, UART1, UART DEBUG, and POWER IN (9–60V). It supports HOST+DP, USB 2.0 Micro-B (Device Mode), RECOVERY, and RESET. A labeled J40 Mini badge identifies the model on the front panel. Ventilation slots aid cooling, while clearly marked ports ensure easy access and setup. Designed for reliable performance in diverse applications.

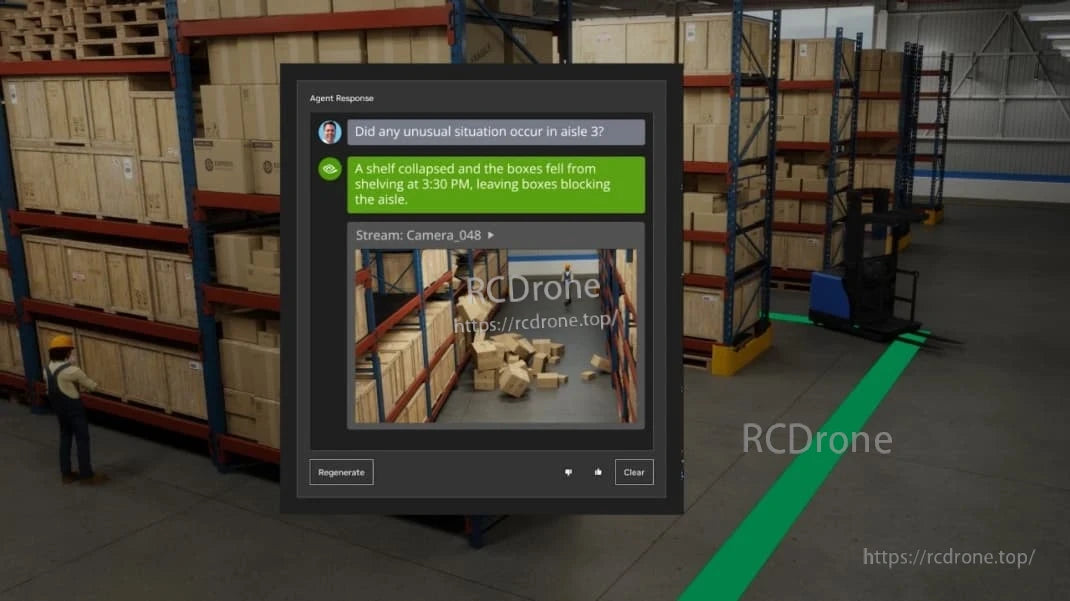

ReComputer J4012 AI Computer, Shelf collapsed, boxes fell at 3:30 PM, blocking aisle in warehouse.

Shelf collapsed, boxes fell at 3:30 PM, blocking aisle in warehouse.

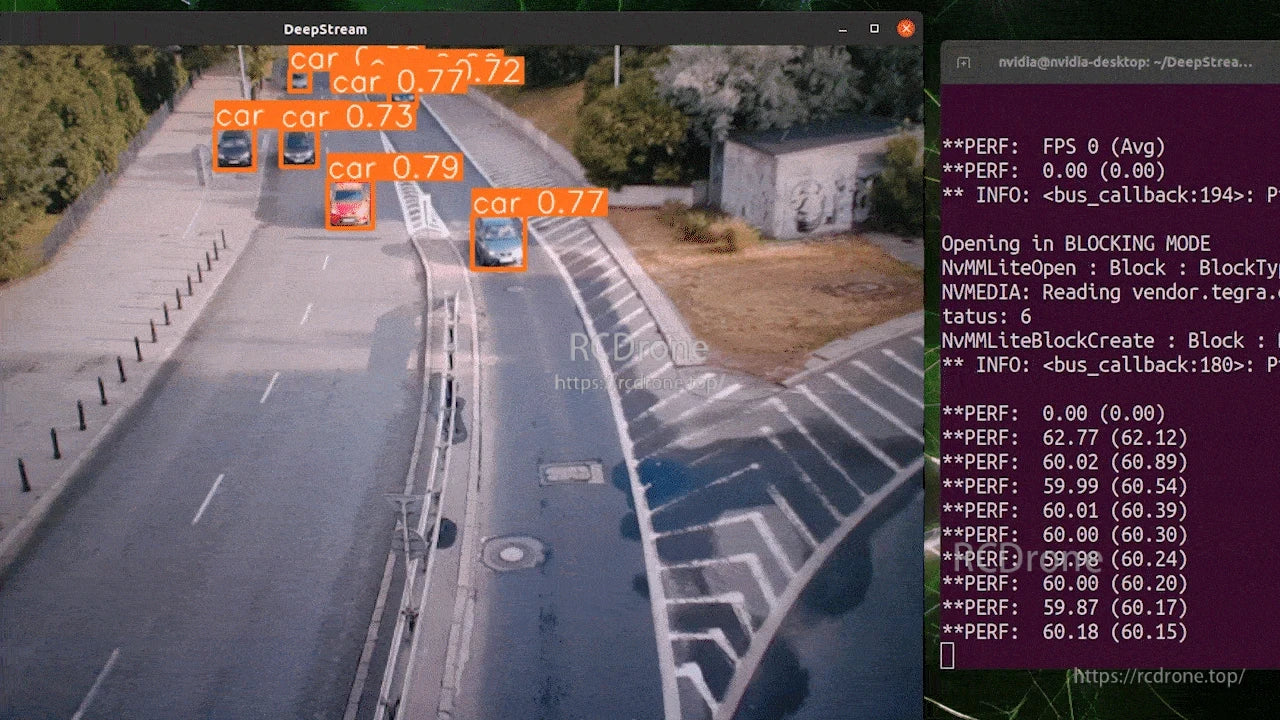

ReComputer J4012 AI computer performs poorly, achieving FPS 0 and average performance of 0.79 with performance metrics ranging from 0 to 60.02.

Nvidia Deepstream car with a performance of 0.73 FPS, opening in BLOCKING MODE.

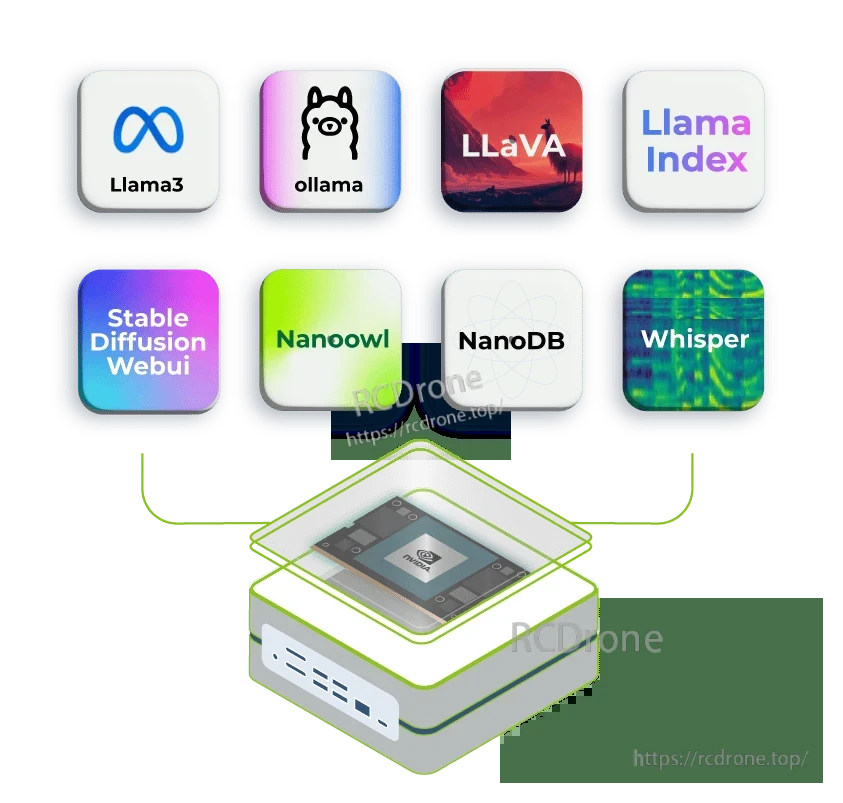

ReComputer J4012 AI Computer, ReComputer J4012 is an AI computer supporting Llama3, Ollama, LLaVA, and other advanced AI tools for powerful edge computing and machine learning applications.

ReComputer J4012 AI computer with Llama3, Ollama, LLaVA, and more.

ReComputer J4012 AI Computer, Compact system integrates PCIe expansion interface for rich I/O, including USB and CAN, with customizable options.ReComputer J4012 AI Computer, Designed for autonomous machines, this module supports 12-54V DC input and is suitable for battery-powered deployments.
