Overview

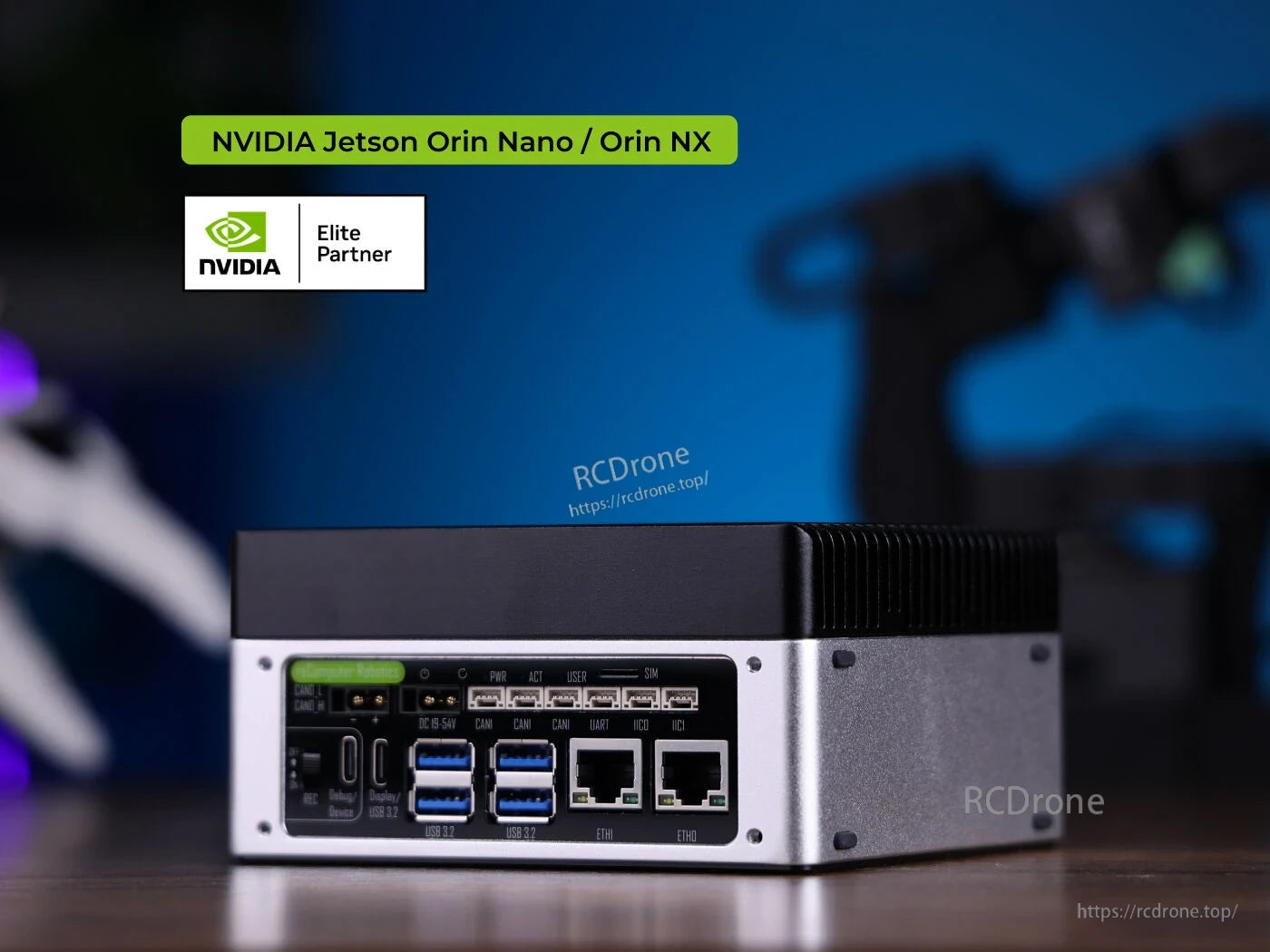

reComputer Robotics J3011 with GMSL Extension is an Edge AI Computer designed for advanced robotics development. It is compatible with NVIDIA Jetson Orin modules in Super/MAXN mode and comes pre-installed with JetPack 6.2 and Linux BSP. With the Jetson Orin Nano 8GB module (Super/MAXN), the system delivers up to 67 TOPS of AI performance and up to 1.7x improvement over its predecessor. The platform functions as a powerful robotic brain to process complex sensor data, including GMSL cameras.
Key Features
- Boosted AI performance in a compact size: Up to 157 TOPS AI performance when using NVIDIA Jetson Orin NX 16GB module in Super/MAXN mode; up to 67 TOPS with Jetson Orin Nano 8GB (Super/MAXN).
- Rich interfaces for robotics: Dual RJ45 Gigabit Ethernet, M.2 slots for 5G/Wi‑Fi/Bluetooth modules, 6x USB 3.2, 2x CAN, GMSL2 (additional purchase), I2C, and UART.
- Industrial-grade power and thermal design: Reliable operation from –20 °C to 60 °C in 25 W mode and up to 55 °C in MAXN mode with a wide 19–54 V DC input, suitable for mobile and industrial robot environments.
- Software-ready ecosystem: JetPack 6.2 and Linux BSP pre-installed for seamless deployment; can be combined with Isaac Sim to build AMRs, manipulators, humanoids, and more.

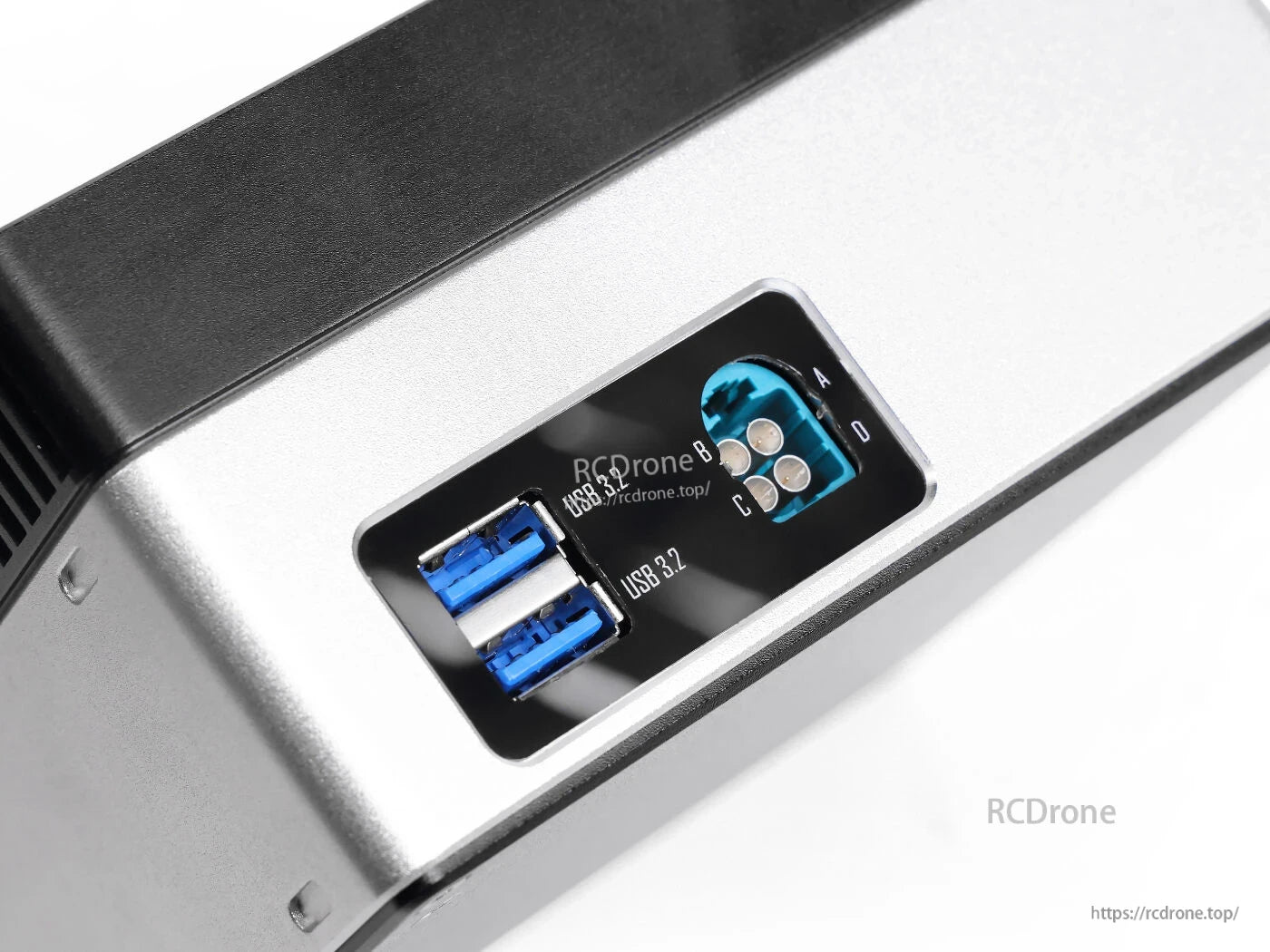

- Ready-to-use GMSL extension: Provides GMSL support for multiple cameras in JetPack with ready-to-use integration.
- Jetson modules performance with Super mode: Enhanced power management, improved higher frame-rate processing, and reduced inference time.
Specifications
Module
| Model | reComputer Robotics J3011 |
| Applications Processor (AP) | NVIDIA Jetson Orin Nano 8GB |
| AI Performance | Orin Nano 8GB – 67 TOPS (MAXN) |
| GPU | 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
| GPU Max Frequency | 1020 MHz (MAXN_SUPER) |
| CPU | 6-core Arm Cortex-A78AE |
| CPU Max Frequency | 1.7 GHz (MAXN_SUPER) |
| Memory | 8GB 128-bit wide LPDDR5 DRAM (up to 68GB/s; 102 GB/s MAXN_SUPER) |
| Power Profiles | 7W / 15W / 25W |
| Video Encode | 1080p30 supported by 1–2 CPU cores |
| Video Decode | 1x 4K60 (H.265); 2x 4K30 (H.265); 5x 1080p60 (H.265); 11x 1080p30 (H.265) |
| CSI Camera | Up to 4 cameras (8 via virtual channels); 8 lanes MIPI CSI-2; D-PHY 2.1 (up to 20Gbps) |
| Mechanical (Module) | 69.6mm x 45mm; 260-pin SO-DIMM connector |
Carrier Board
| Storage | 1x M.2 Key M (PCIe) |
| Networking – M.2 Key E | 1x M.2 Key E for WiFi/Bluetooth module |
| Networking – M.2 Key B | 1x M.2 Key B for 5G module |
| Ethernet | 2x RJ-45 Gigabit Ethernet |
| USB | 6x USB 3.2 Type‑A (5Gbps); 1x USB 3.0 Type‑C (Host/DP 1.4); 1x USB 2.0 Type‑C (Device mode for reflash/debug) |
| CAN | 2x CAN0 (XT30(2+2)); 3x CAN1 (4‑Pin GH‑1.25 Header) |
| Display | 1x DP1.4 (Type‑C Host) |
| UART | 1x UART (4‑Pin GH‑1.25 Header) |
| I2C | 2x I2C (4‑Pin GH‑1.25 Header) |
| Fan | 1x 4‑Pin Fan Connector (5V PWM); 1x 4‑Pin Fan Connector (12V PWM) |
| Extension Port | 1x Camera Expansion Header (for GMSL2 board) |
| RTC | 1x RTC 2‑pin; 1x RTC Socket |
| LED | 3x LED (PWR, ACT, User) |
| Pinhole Buttons | 1x PWR; 1x RESET |
| DIP Switch | 1x REC |
| Antenna Holes | 5x Antenna holes |
| Power Input | 19–54V via XT30(2+2) (XT30 to 5525 DC Jack cable included) |
| JetPack Version | JetPack 6.2 |
| Mechanical (System) | 115mm x 115mm x 38mm; 200g; installation: desk or wall‑mounting |
| Operating Temperature | –20℃ ~ 60℃ (25W mode); –20℃ ~ 55℃ (MAXN mode) – with reComputer Robotics heat sink with fan |
| Warranty | 2 Years |
| Certification (Pending) | RoHS, CE, FCC, KC |
Cameras Supported in JetPack
| Manufacturer | Model | Resolution |
| Sensing | SG3S-ISC031C-GMSL2F | 1920H*1536V |
| Sensing | SG2-AR0233C-5200-G2A | 1920H*1080V |
| Sensing | SG2-IMX390C-5200-G2A | 1920H*1080V |
| Sensing | SG8S-AR0820C-5300-G2A | 3840H*2160V |
| Orbbec | Orbbec Gemini 335Lg | 3D |
Hardware Overview

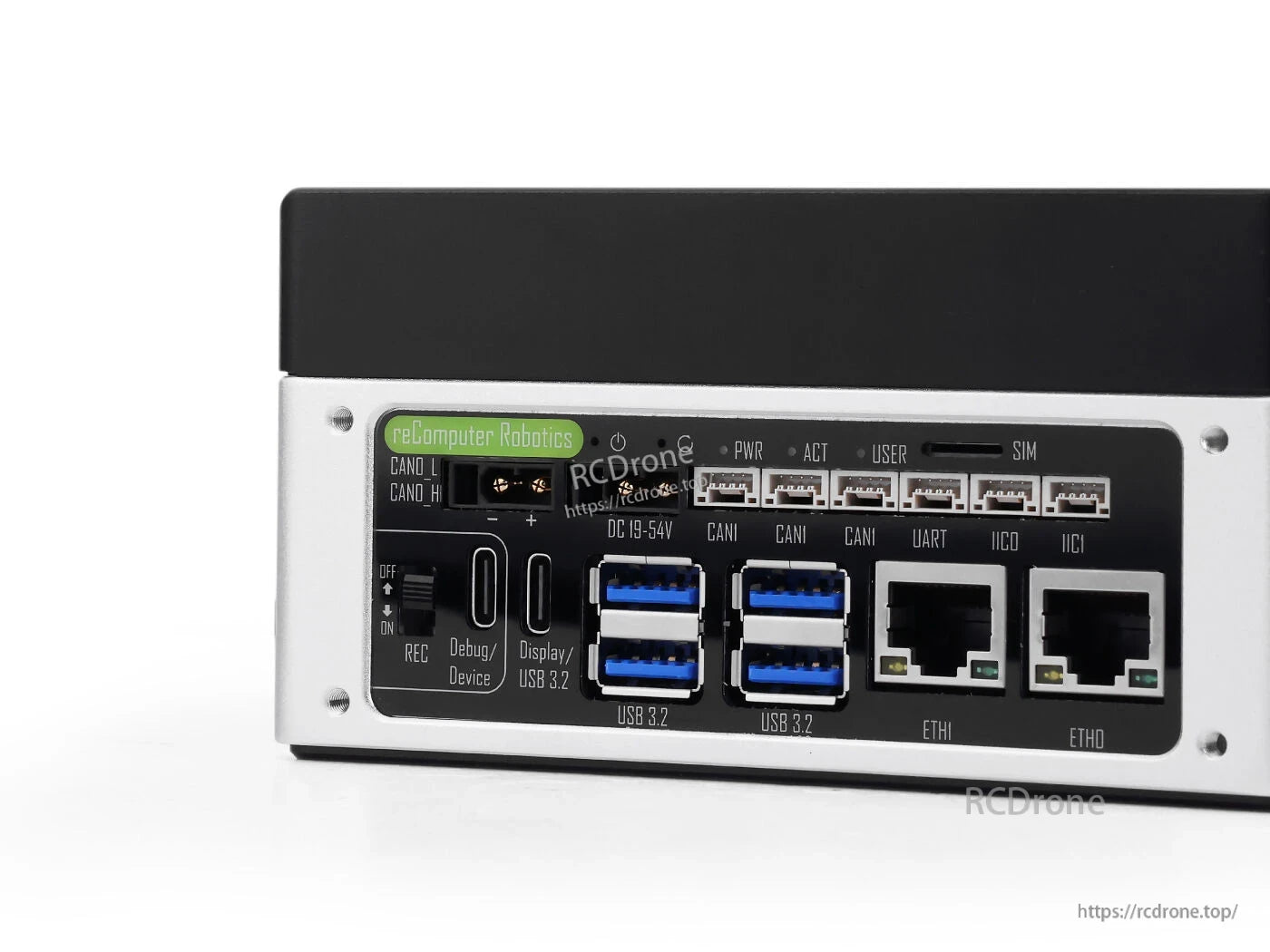

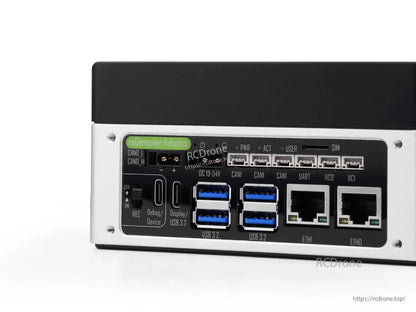

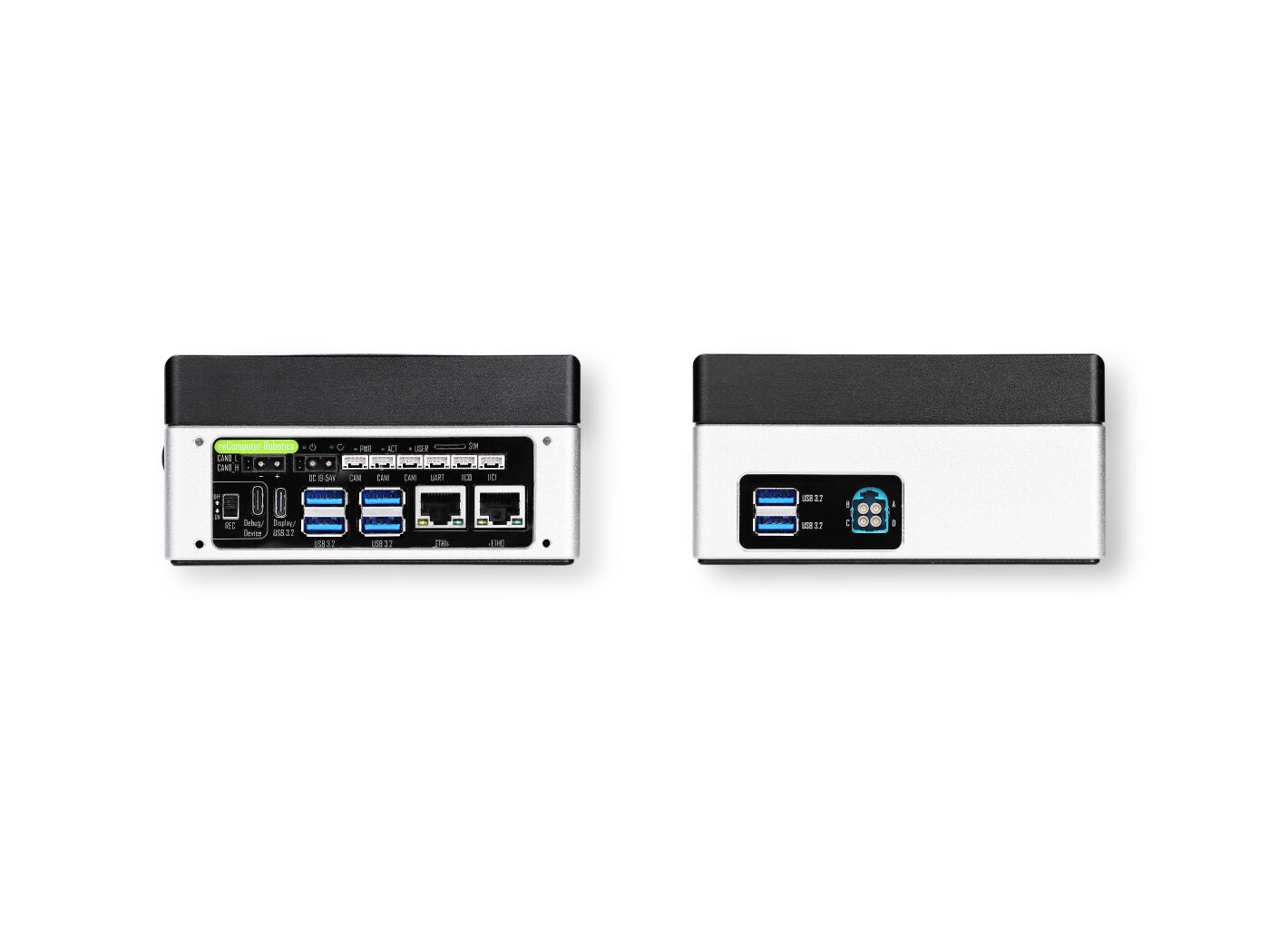

Rear-panel and carrier board layouts provide labeled access to CAN0/CAN1, dual RJ45 Ethernet, USB 3.2/Type‑C (DP1.4), UART, I2C, RTC battery socket/2‑pin header, M.2 Key E/B/M slots, DIP switch (REC), and the Camera Expansion Header for GMSL2.
Applications
Jetson Software | NVIDIA Developer is designed to accelerate AI application development and deployment.
Designed for Edge AI computer vision applications:Jetson Platform Services simplify development, deployment, and management of Edge AI applications on NVIDIA Jetson (e.g., BEV sensing demo with 4 GMSL cameras).
Designed for demanding AI applications: AMR, smart retail, industrial automation, video surveillance, and smart video analysis scenarios. The NVIDIA Isaac platform delivers CUDA‑accelerated libraries, application frameworks, and AI models to build AMRs, manipulators, humanoids, and more.
Documents
- User Manual & Datasheet
- Carrier Board Schematic
- Power Board Schematic
- GMSL Board Schematic
- 3D File
- Mechanical Document – reComputer Robotics PCBA
- Seeed NVIDIA Jetson Product Catalog
- NVIDIA Jetson Comparison
- Seeed NVIDIA Jetson Success Cases
- Seeed Jetson One Pager
Certification
| HSCODE | 8471504090 |
| USHSCODE | 8517180050 |
| UPC | |
| EUHSCODE | 8471707000 |
| COO | CHINA |

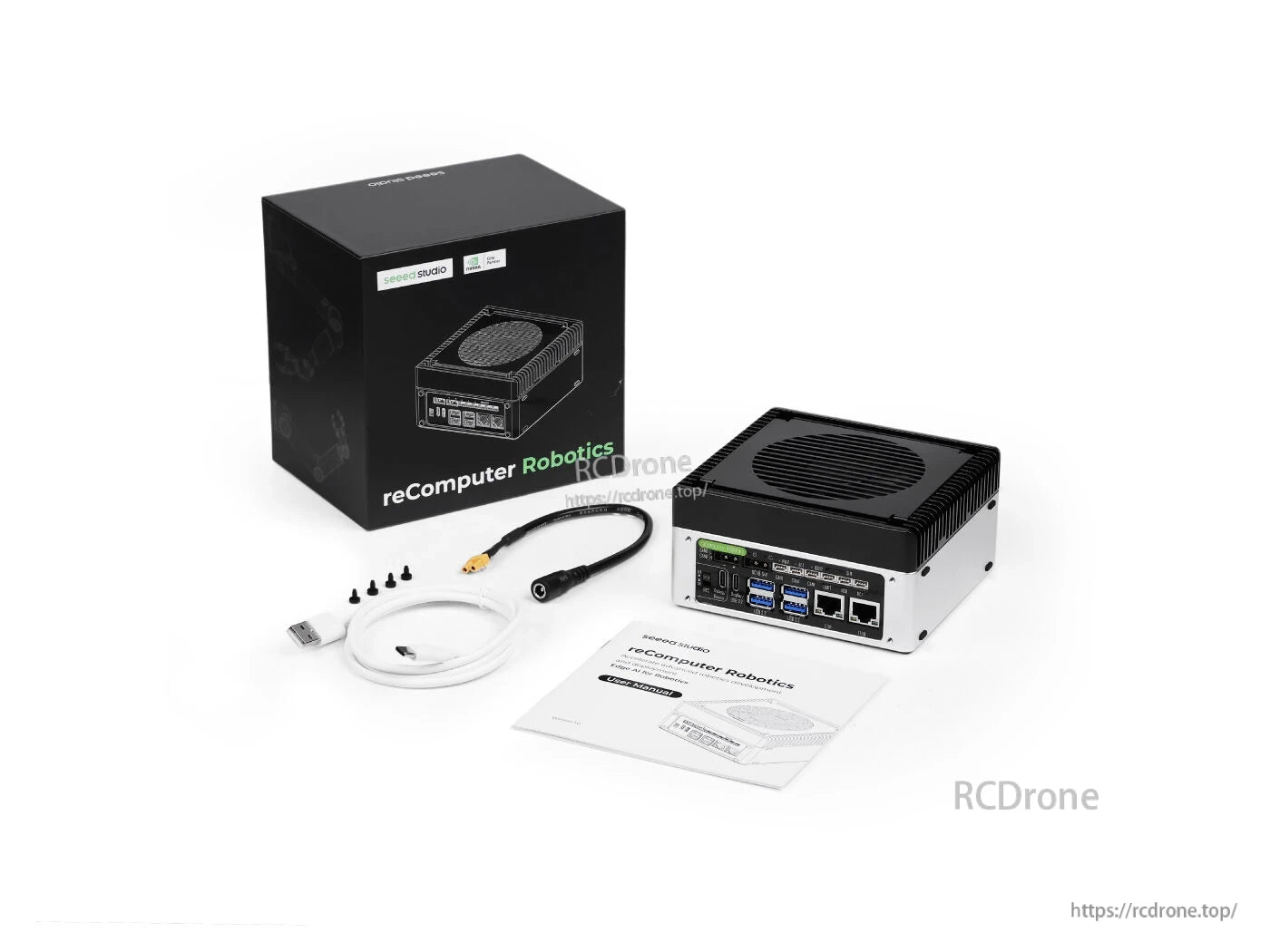

What’s Included
| Items | Quantity |
| Jetson Orin Nano 8GB module | x 1 |
| Seeed Carrier Board (reComputer Robotics J401) with GMSL Extension | x 1 |
| 128GB NVMe SSD | x 1 |

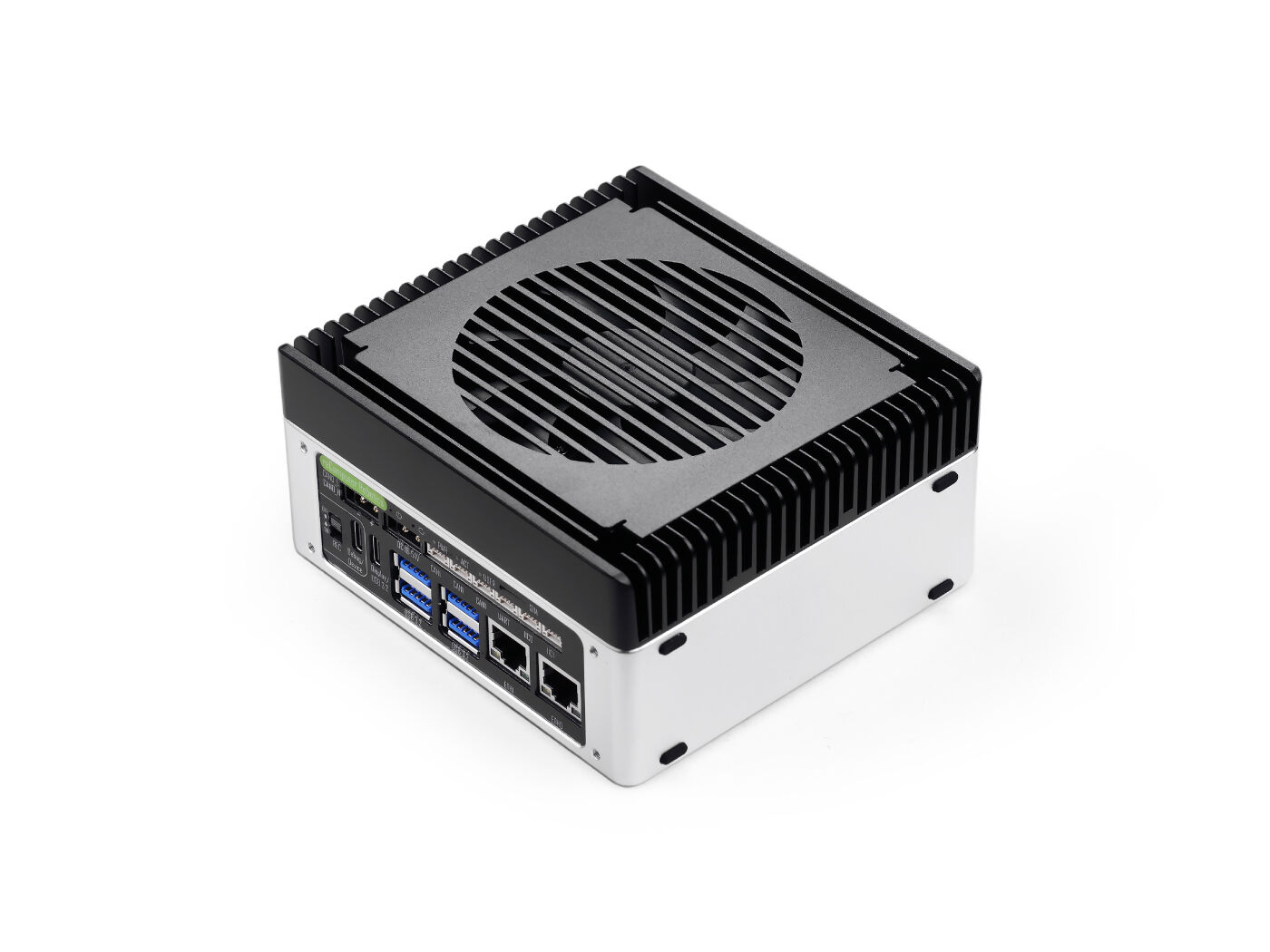

| Aluminum Case and Heatsink with Fan | x 1 |
| USB Cable; Type A to Type C | x 1 |
| XT30 to DC cable | x1 |
| User Manual | x 1 |
