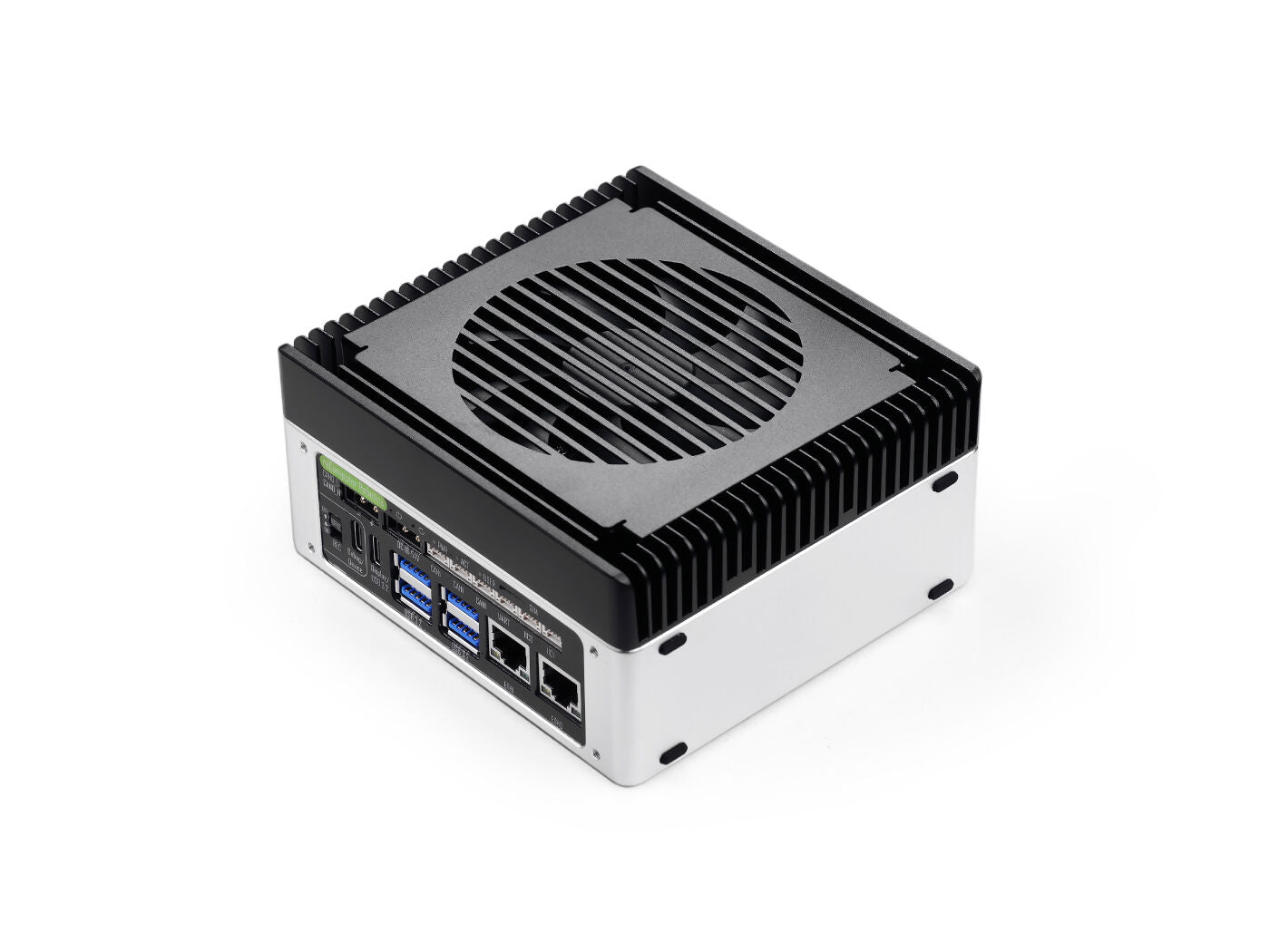

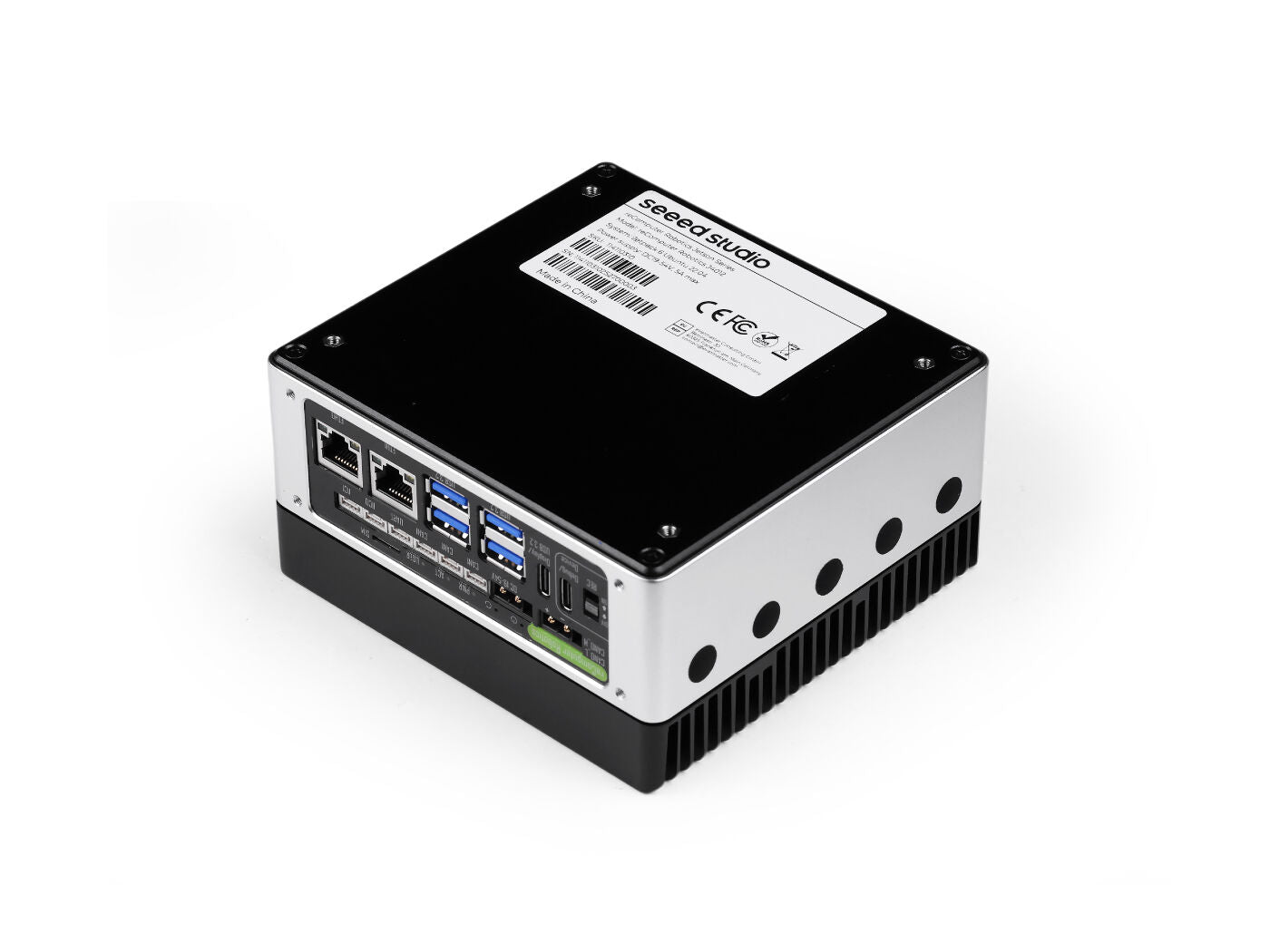

reComputer Robotics J4011 Edge AI Computer, Jetson Orin NX Super 8GB, 117 TOPS, dual RJ45 GbE, 6x USB 3.2, JetPack 6.2

Overview

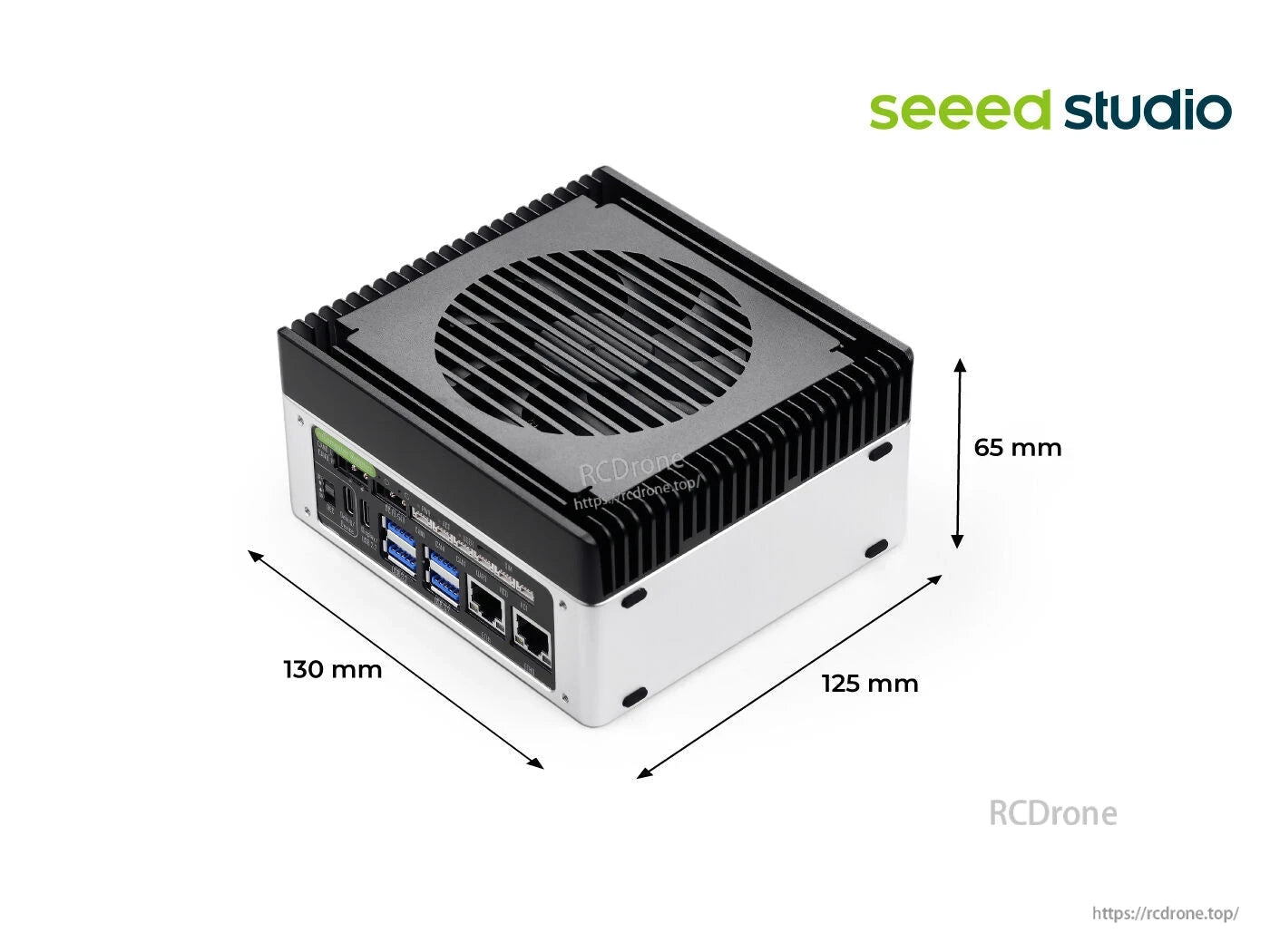

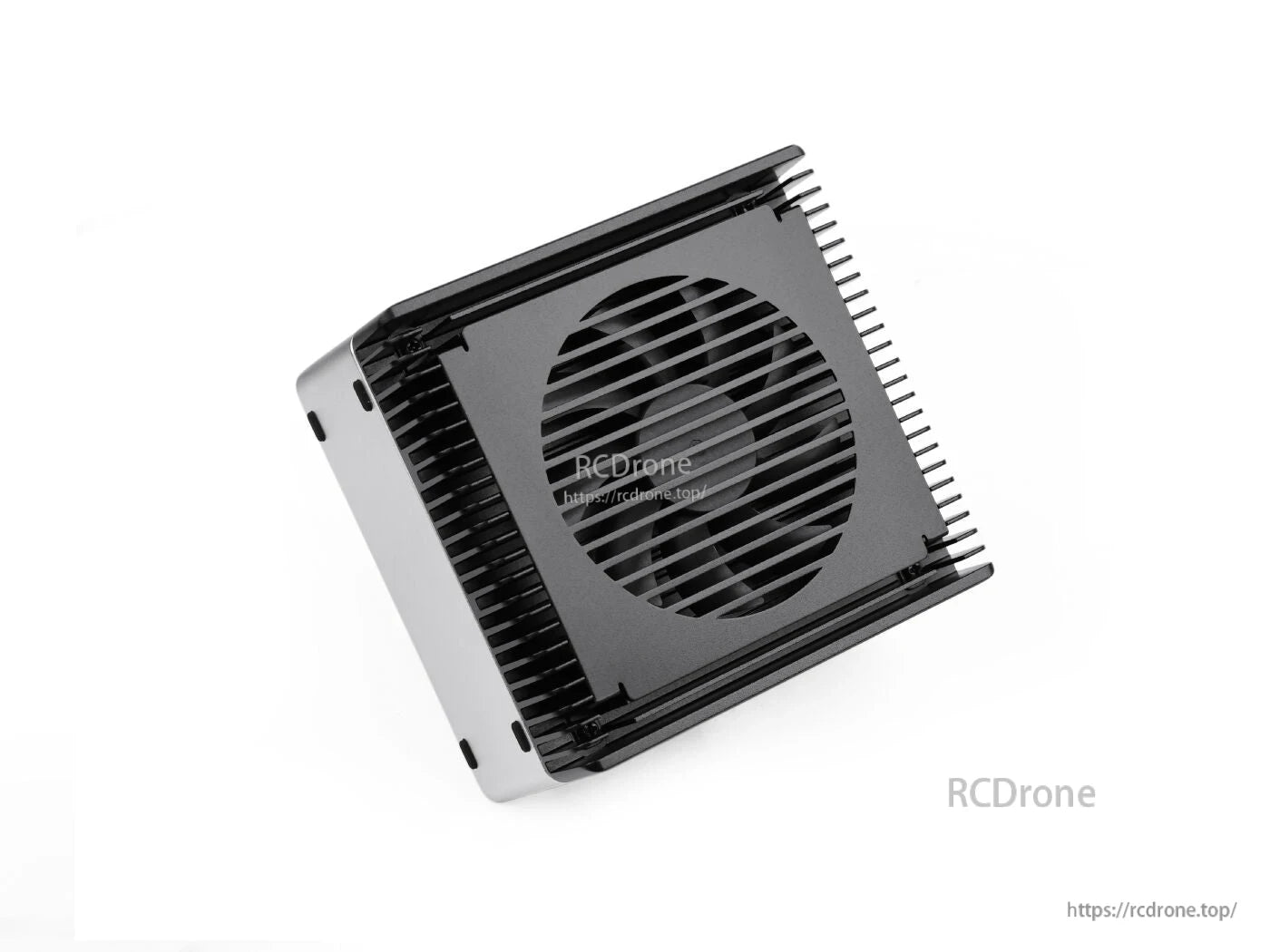

reComputer Robotics J4011 is an intelligent edge AI computer built around the NVIDIA Jetson Orin NX Super 8GB module. In Super/MAXN mode it delivers up to 117 TOPS of AI performance (about 1.7x over its predecessor), and comes pre-installed with JetPack 6.2 and Linux BSP for rapid deployment. The compact aluminum enclosure with active cooling measures 115mm x 115mm x 38mm and supports 10W–40W power profiles. Operating temperature is -20℃ to 60℃ (25W mode) and -20℃ to 55℃ (MAXN mode) with the reComputer Robotics heatsink and fan.

Key Features

• Robust hardware: Jetson Orin NX 8GB module in Super/MAXN mode, up to 117 TOPS AI performance.
• Rich I/O for robotics and video analytics: Dual RJ45 Gigabit Ethernet, 6x USB 3.2 Type‑A (5Gbps), 1x USB 3.0 Type‑C (Host/DP 1.4), 1x USB 2.0 Type‑C (Device Mode for reflash/debug), 2x CAN0 (XT30(2+2)), 3x CAN1 (4‑Pin GH‑1.25), UART, 2x I2C, camera expansion header for GMSL2 board (additional purchase), 5x antenna holes.
• Software setup: JetPack 6.2 and Linux BSP pre-installed.
• Wide operating range: -20℃ to 60℃ (25W) and -20℃ to 55℃ (MAXN).
• Designed for Edge AI NVR: Suitable for video surveillance and smart video analysis scenarios, with high-rate H.265 encode/decode capabilities.

Specifications

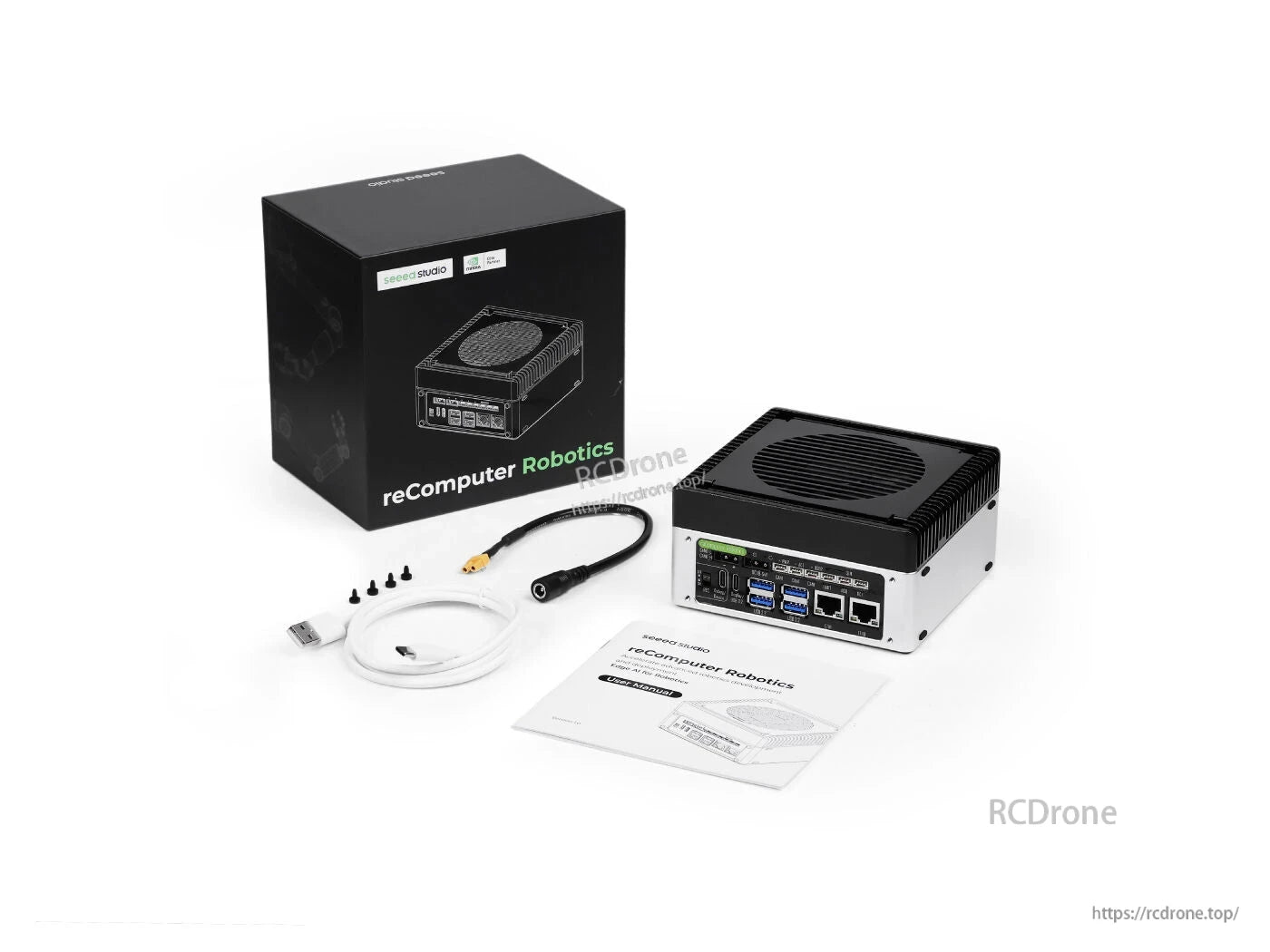

What’s Included

Hardware Overview

CP Imoutec Rohotic PWR FI JRC-D SIM card and CAN handle AM, CANI, CANL U-ART IIC DFF REC USB 3.2 serial board with Ethernet debug display device.

Applications

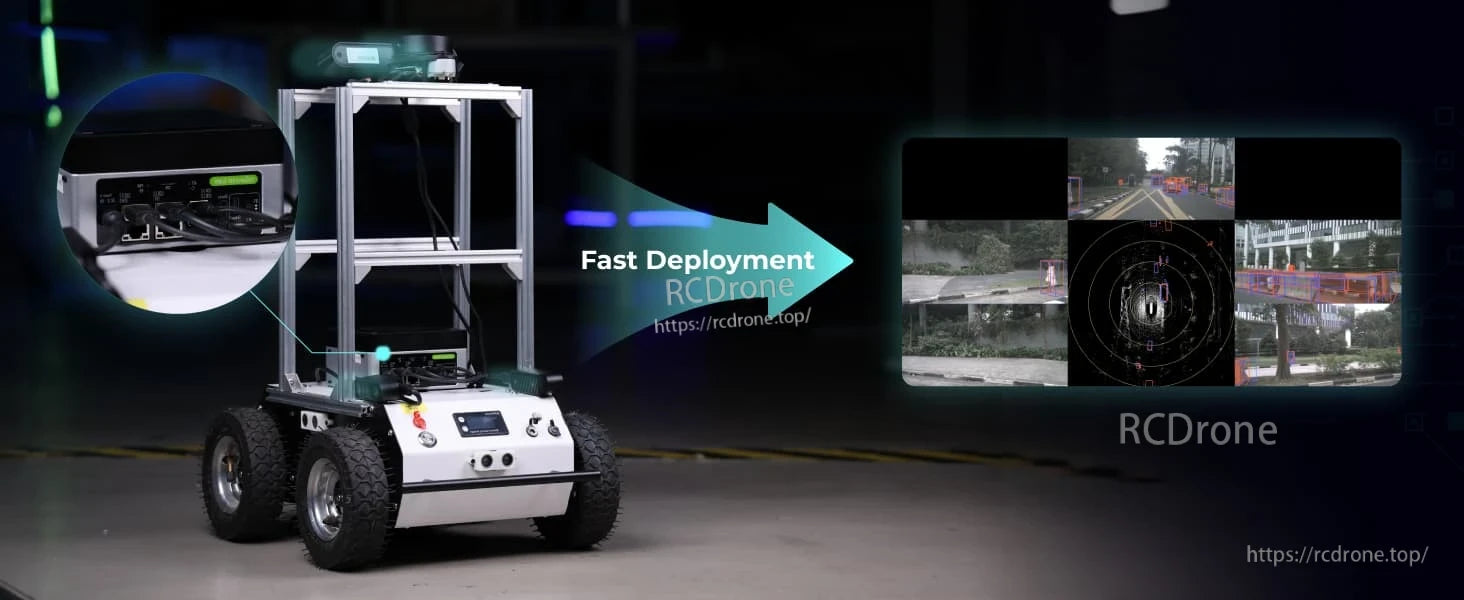

Designed for Edge AI computer vision use cases including AMR, smart retail, industrial automation, and video surveillance with smart video analysis. Jetson Platform Services provide a platform to simplify development, deployment and management of Edge AI applications on NVIDIA Jetson (e.g., BEV sensing demo with 4 USB cameras). One‑line deploy examples for generative AI (Ollama, Llama3), computer vision (YOLOv8), and more are available via the Jetson-example repository.

Jetson Platform Services • Jetson-example

Documents

• User Manual & Datasheet
• Carrier Board Schematic
• Power Board Schematic
• 3D File
• Mechanical Document – reComputer Robotics PCBA
• Seeed NVIDIA Jetson Product Catalog
• NVIDIA Jetson Comparison
• Seeed NVIDIA Jetson Success Cases
• Seeed Jetson One Pager

Certification

Details

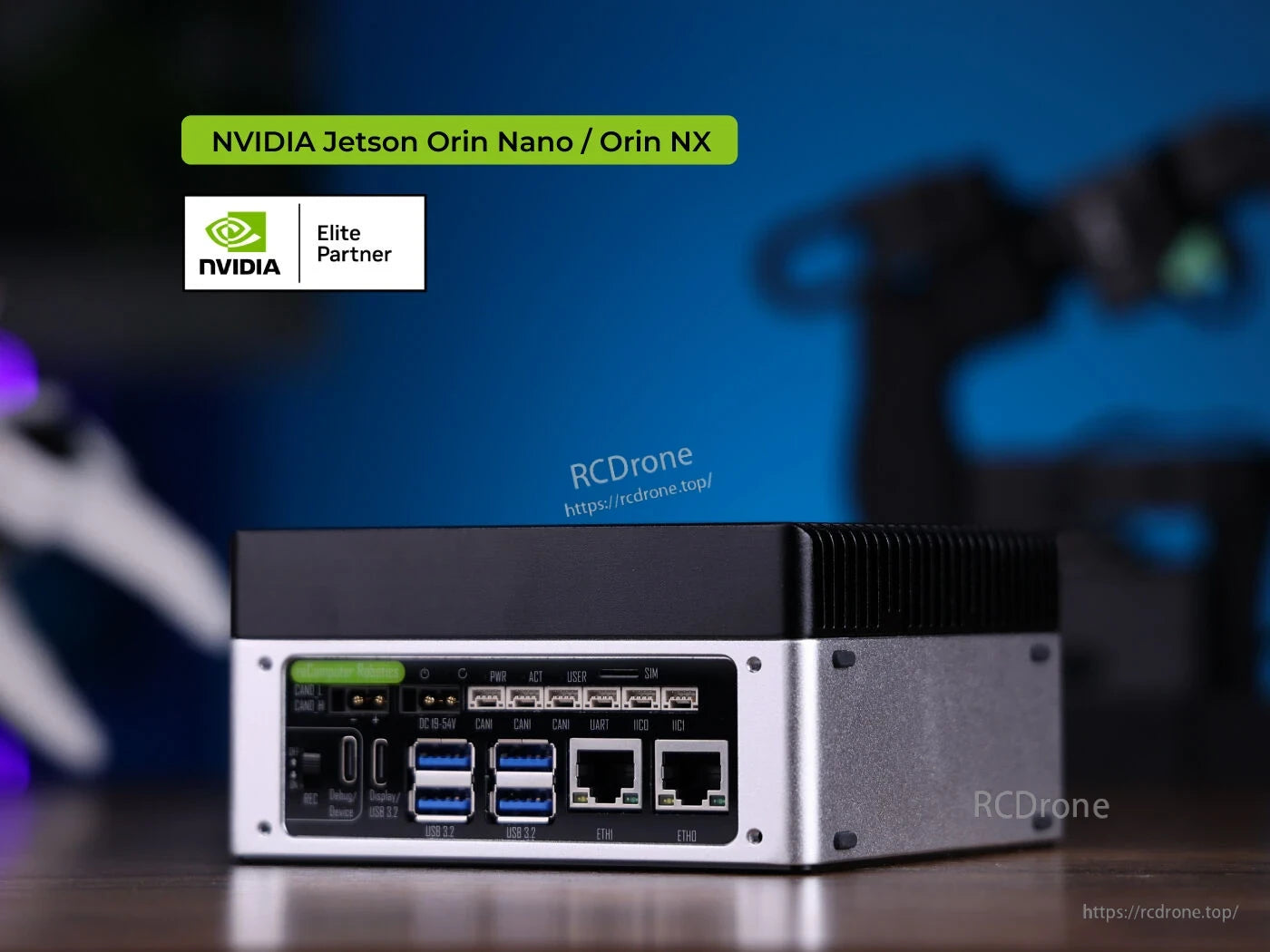

Elite Partner NVIDIA reComputer Robotics J4OII Jetson Orin NX. Powered by NVIDIA latest Orin chip, it offers 117 TOPS of processing power. This device is suitable for robotics and AI applications, with a wide range of operating temperatures from -20°C to 55°C. It also features M2 key B for LTE and 4G connectivity, two RJ-45 GbE ports, WiFi, Bluetooth, and an Sx antenna.

Jetson Orin Nano and Orin NX modules offer varied GPU cores, AI performance, CPU specs, memory bandwidth, dimensions, and power options, with Super Mode boosting frequencies for enhanced computing across commercial applications.

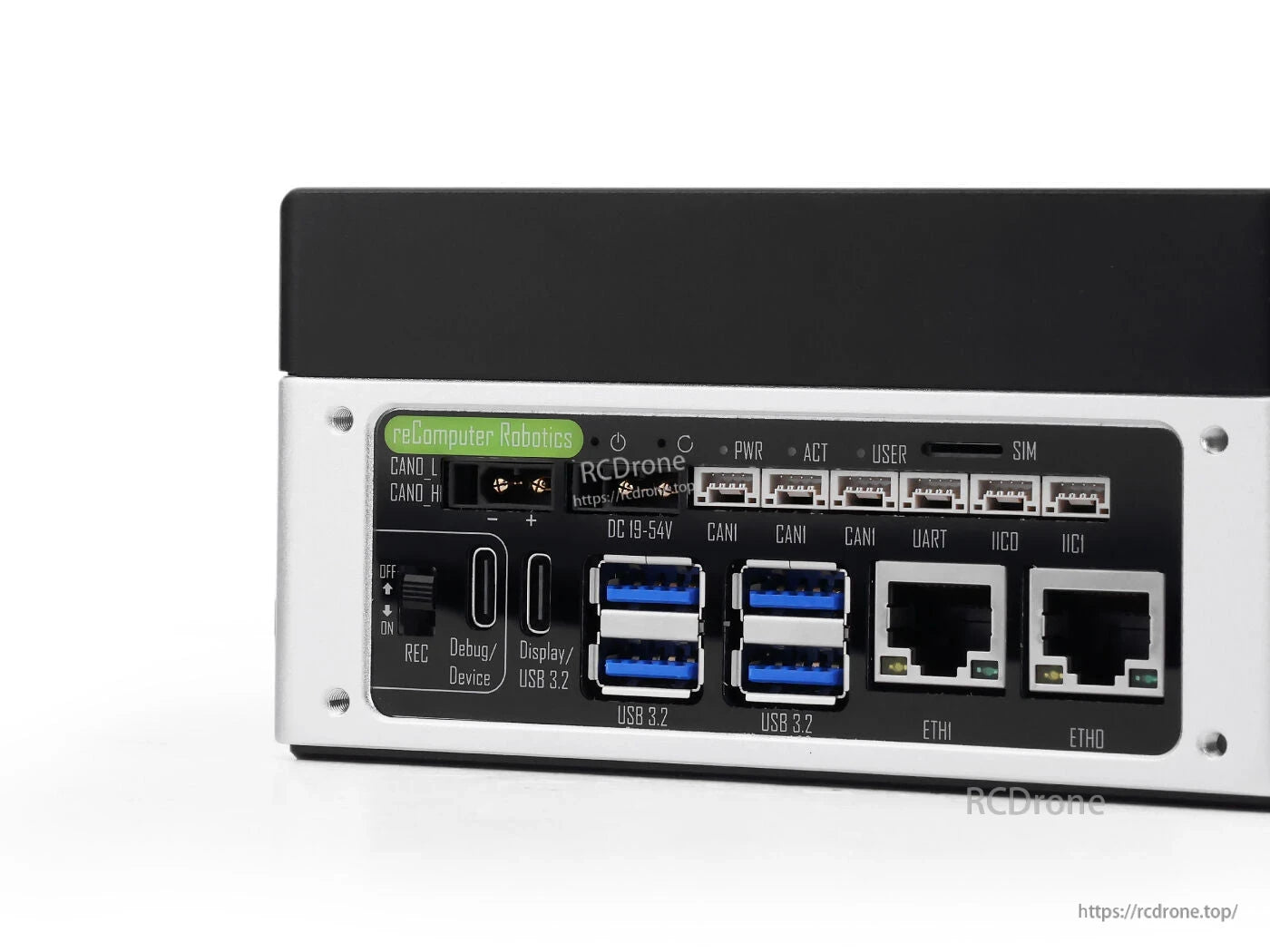

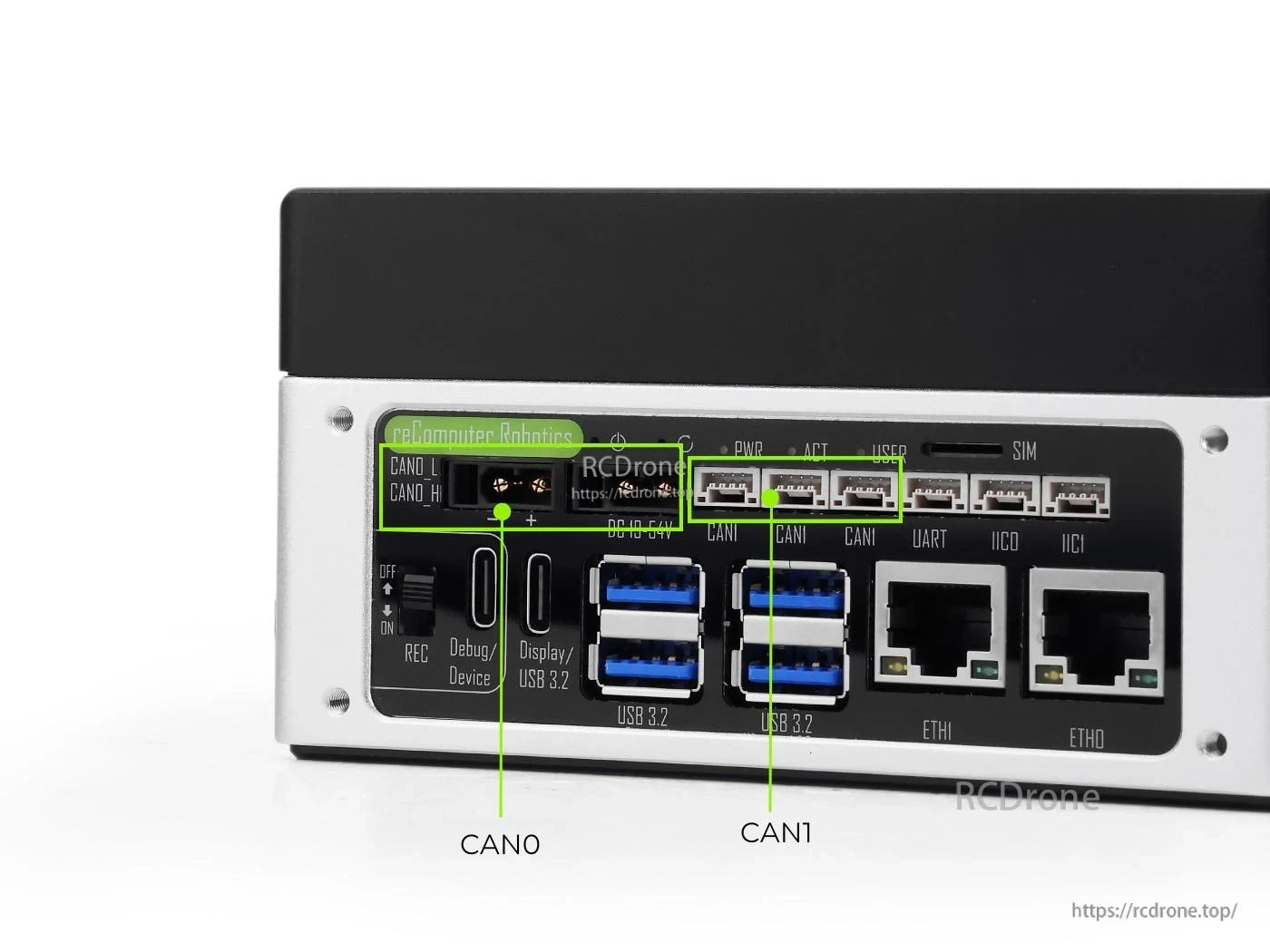

J4011 Edge AI Computer includes CAN0/CAN1, USB 3.2, Ethernet, UART, IIC, power input, and PWR, ACT, USER status indicators.

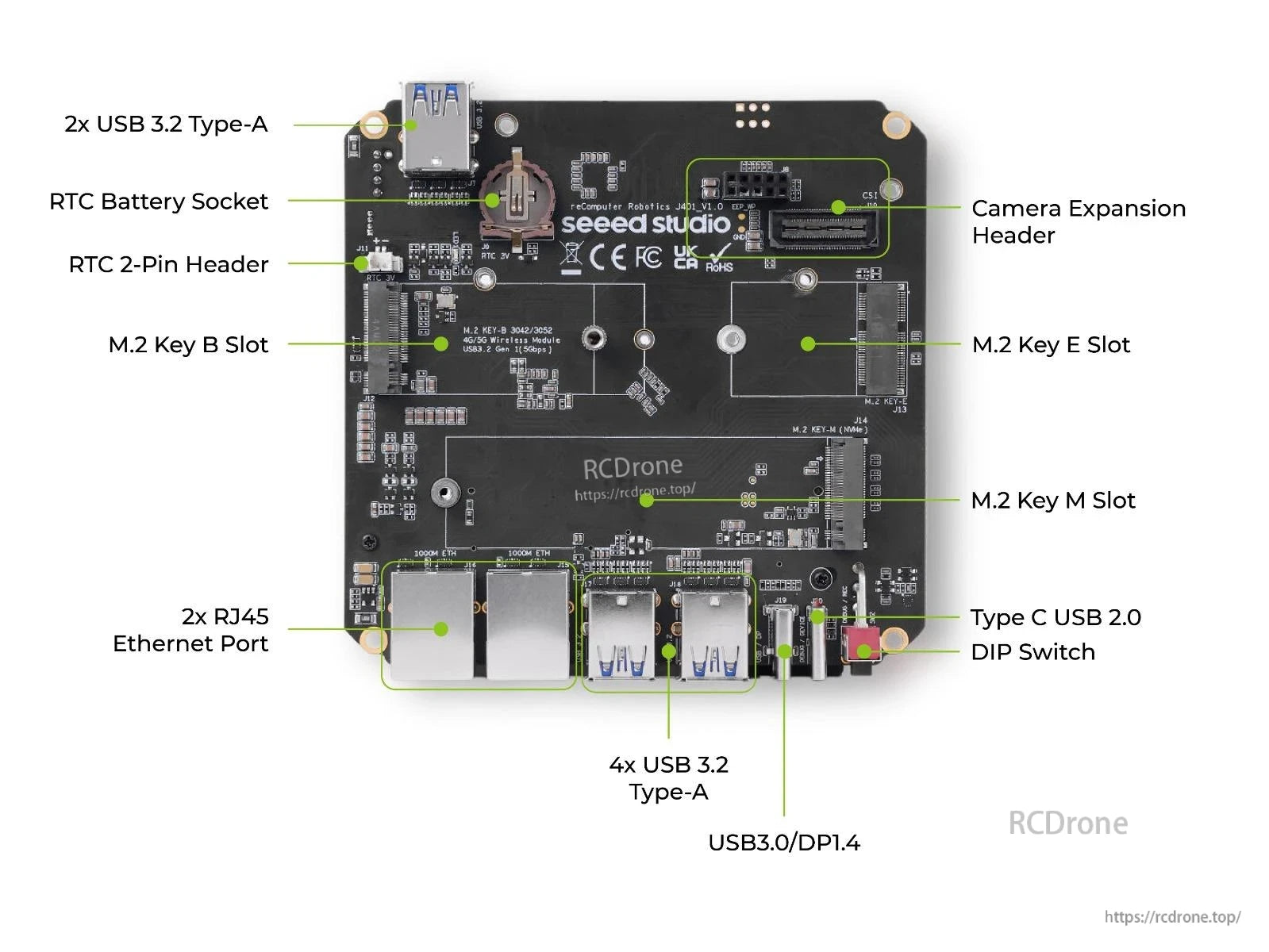

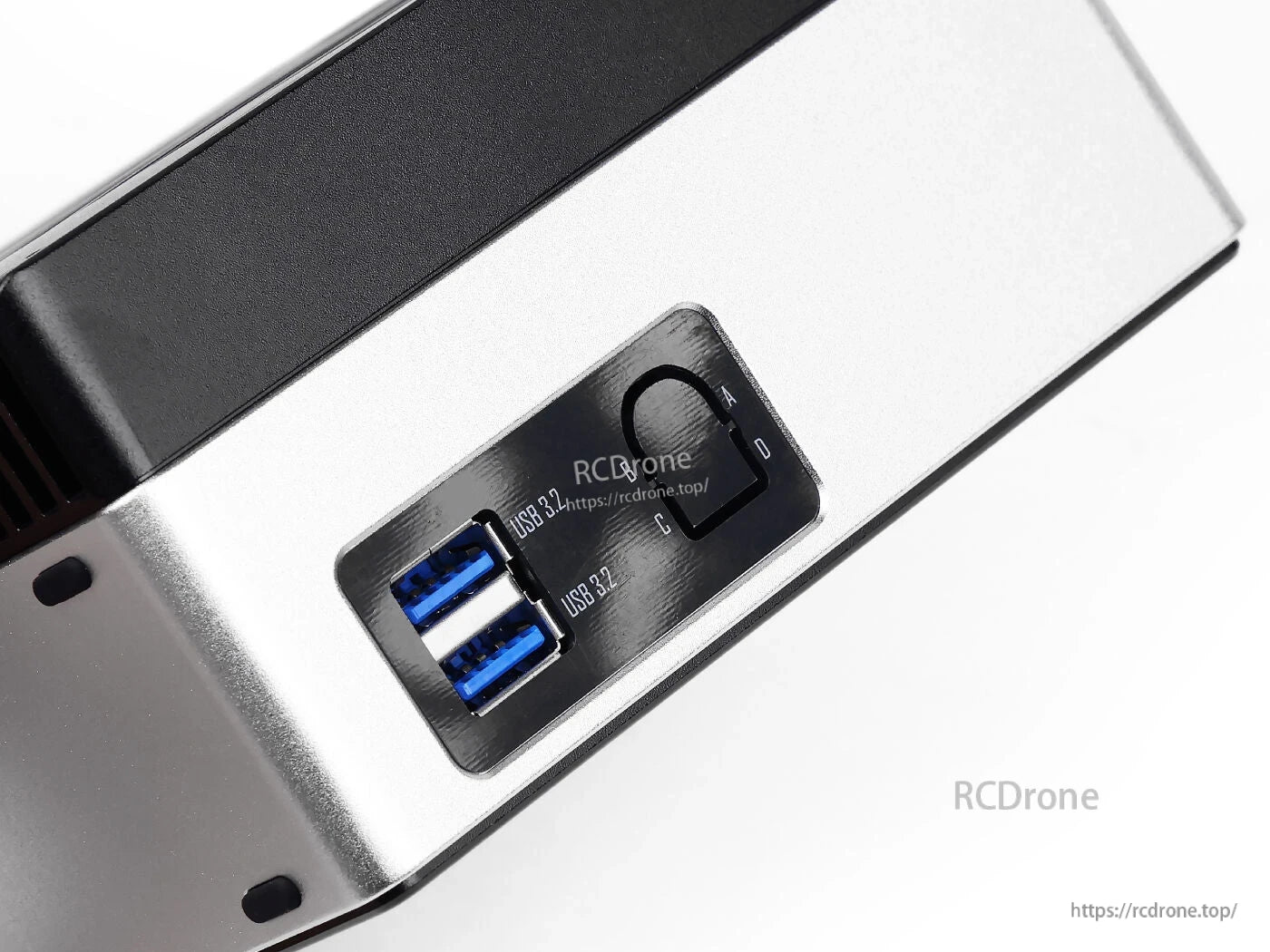

J4011 Edge AI Computer includes multiple USB ports, Ethernet connectors, M.2 slots, camera expansion header, RTC socket, and USB3.0/DP1.4 Type-C port with DIP switch for enhanced connectivity and expansion.

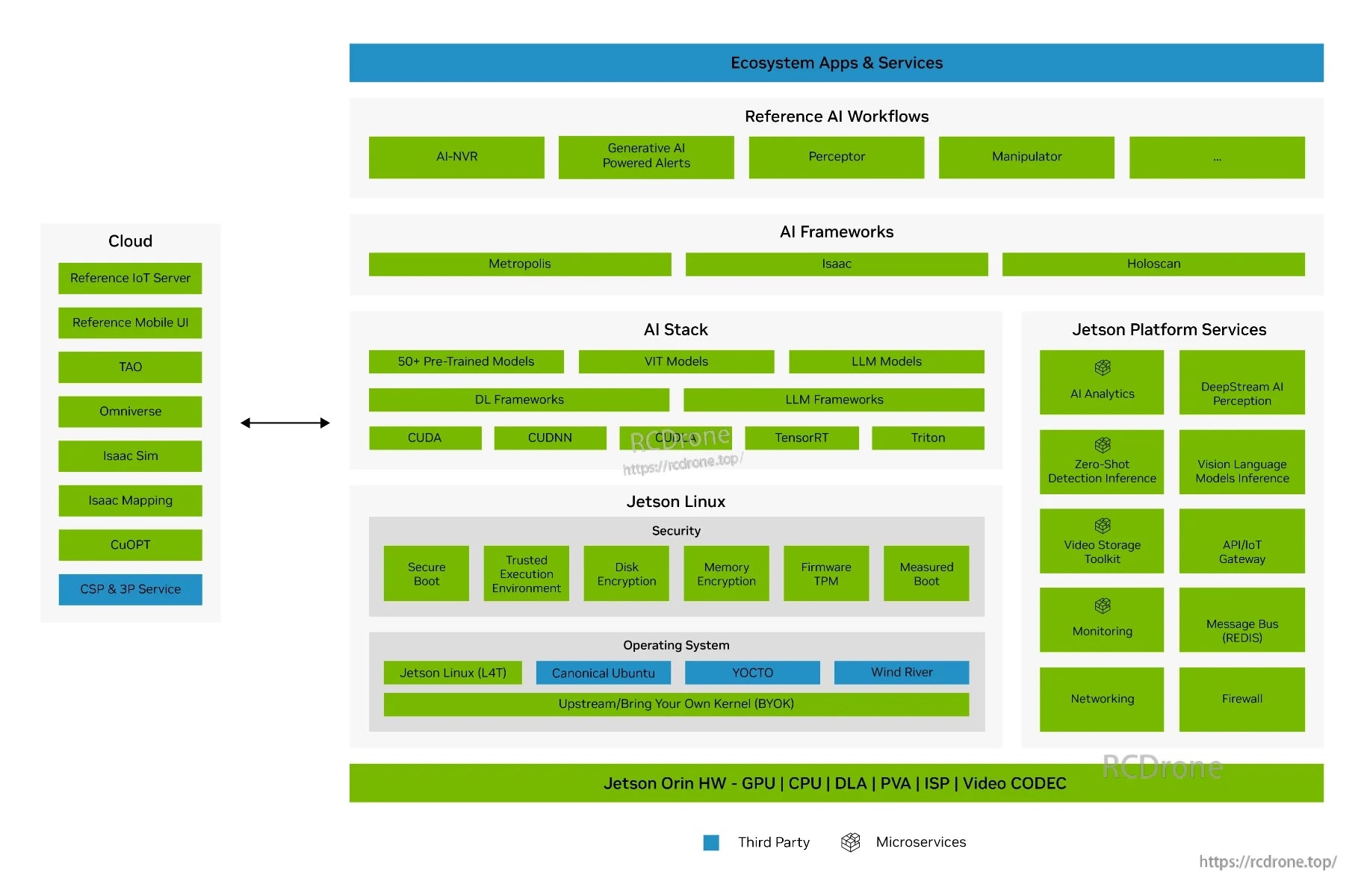

Jetson Orin supports AI workflows, frameworks, and services like AI-NVR, generative AI alerts, and perception. It integrates cloud, security, Jetson Linux, and platform services for edge AI applications. (39 words)

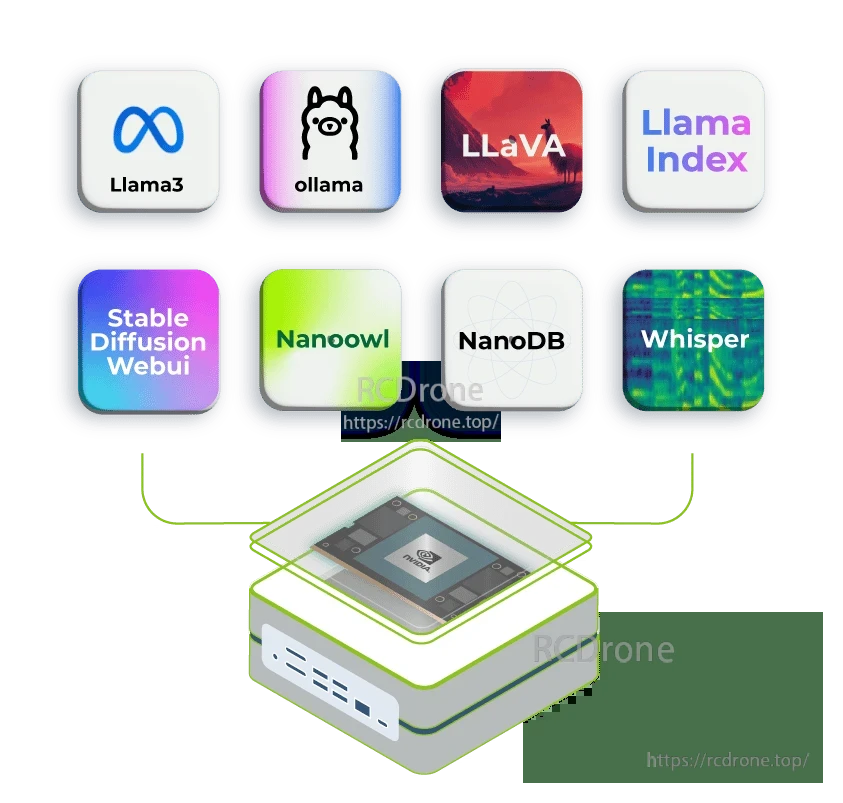

J4011 Edge AI Computer supports Llama3, ollama, LLaVA, Stable Diffusion, Whisper.
