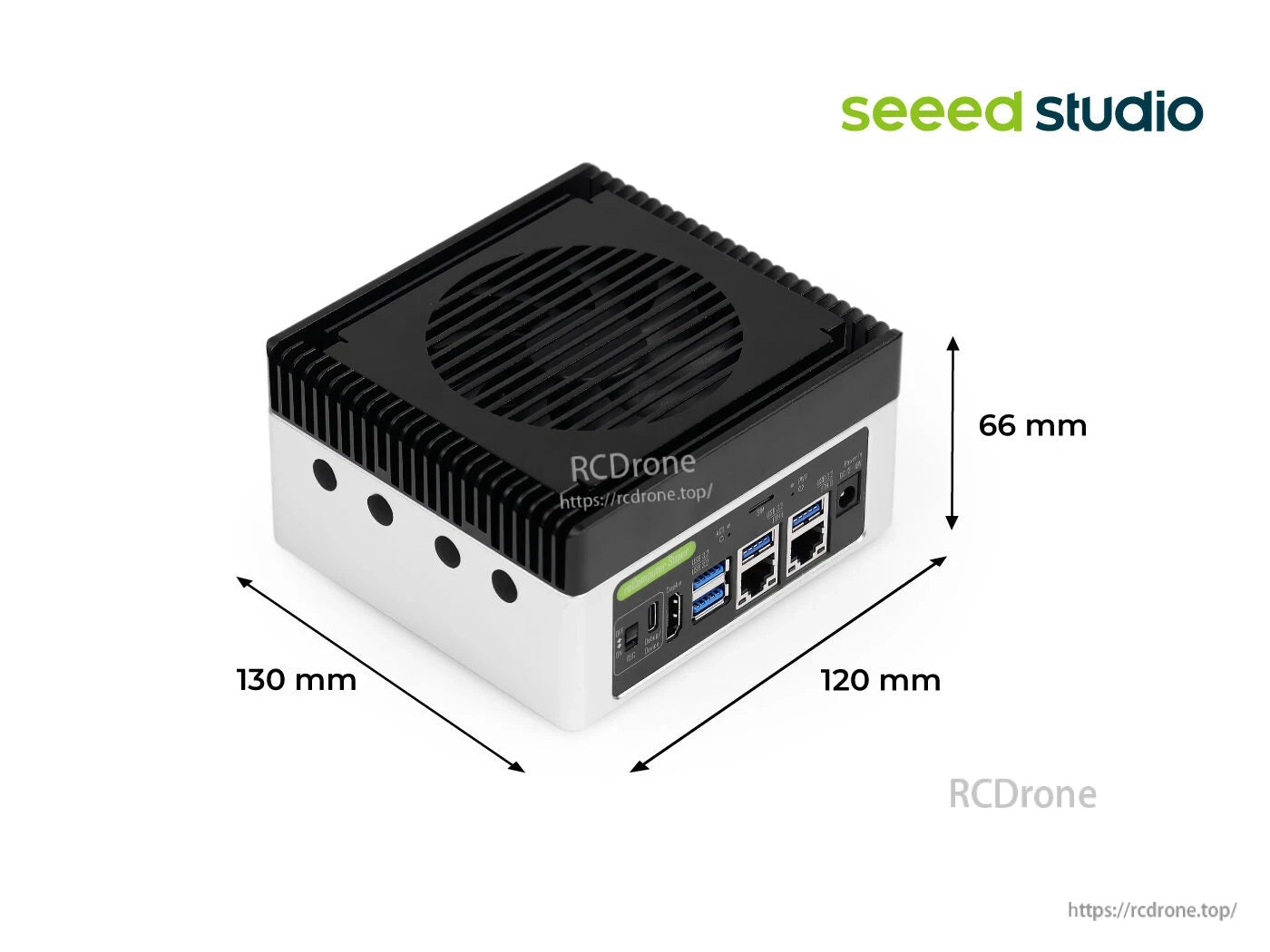

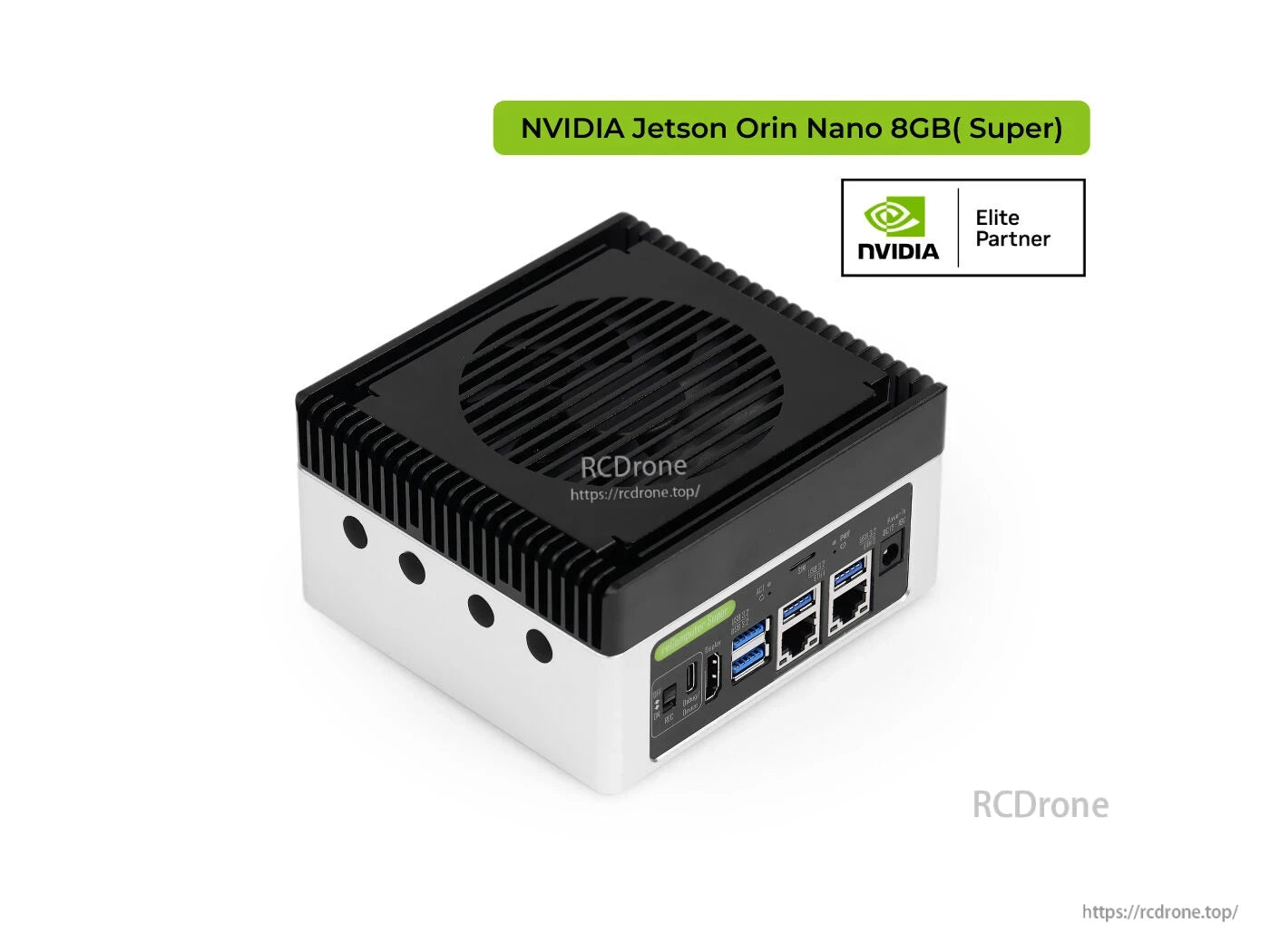

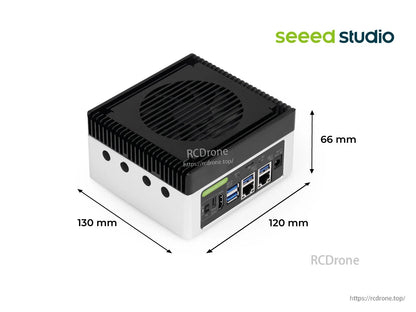

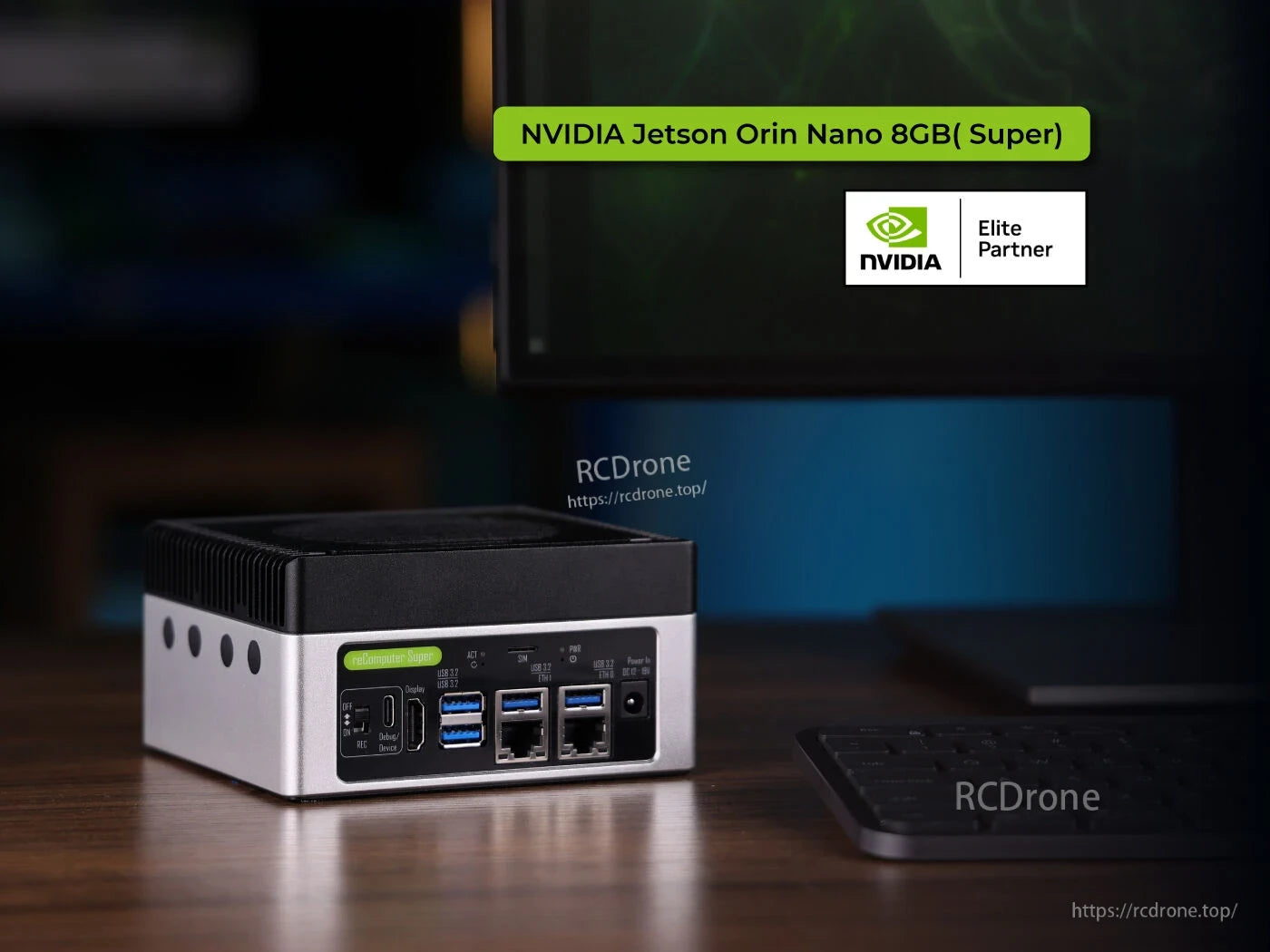

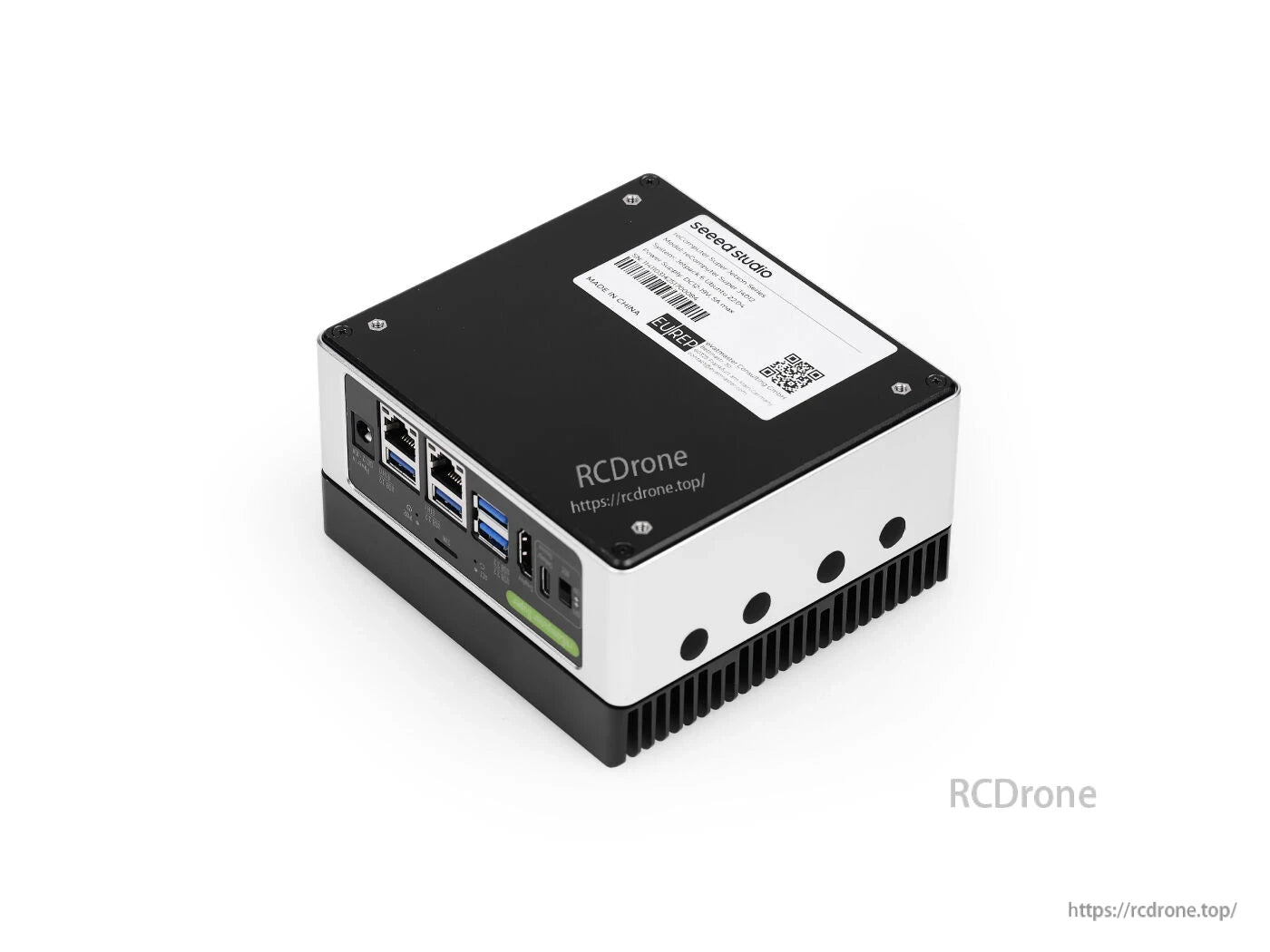

reComputer Super J3011 Edge AI Computer with NVIDIA Jetson Orin Nano 8GB, 67 TOPS, 4x USB 3.2, 2x GbE, JetPack 6.2

Overview

The reComputer Super J3011 is an Edge AI Computer based on the NVIDIA Jetson Orin Nano 8GB module. It delivers up to 67 TOPS in MAXN Super mode and operates in -20℃ to 65℃ environments. Built for rapid development and deployment, it integrates Wi‑Fi/Bluetooth/LTE expansion (via M.2 Key E and mini‑PCIe) and dual Gigabit Ethernet, and comes pre‑installed with JetPack 6.2 on a 128GB NVMe SSD. It is suited for video analysis, multimodal perception, robotics, and other demanding edge AI workloads.

Key Features

• Super Boost AI performance: up to 67 TOPS (MAXN Super Mode) for vision AI, robotics, and generative AI.
• Configurable power modes: 10W to 25W (image guidance), with module power profiles 7W / 15W / 25W available.
• Robust thermal range: reliable operation from -20°C to 65°C.
• Rich interfaces: 2x RJ45 GbE (1Gbps), SIM card slot, 4× USB 3.2 Type‑A (5Gbps), 1× USB 2.0 Type‑C (Device/Debug), 1× HDMI 2.1, 1× CAN (4‑Pin), 4× MIPI CSI (2‑lane 15‑Pin), M.2 Key E (Wi‑Fi/BT), M.2 Key M (NVMe), mini‑PCIe (LTE 4G), 4× antenna holes, 40‑Pin extension header, 12‑Pin control & UART header, RTC socket and 2‑pin header, 5V and 12V PWM fan connectors.
• Ready for deployment: JetPack 6.2 pre‑installed and 128GB NVMe SSD included; supports NVIDIA Isaac, Hugging Face, and ROS2/1.

Specifications

Jetson modules performance with Super Mode

• Enhanced power management
• Improved higher frame rate processing
• Reduced inference time

Module comparison (reference)

Hardware Overview

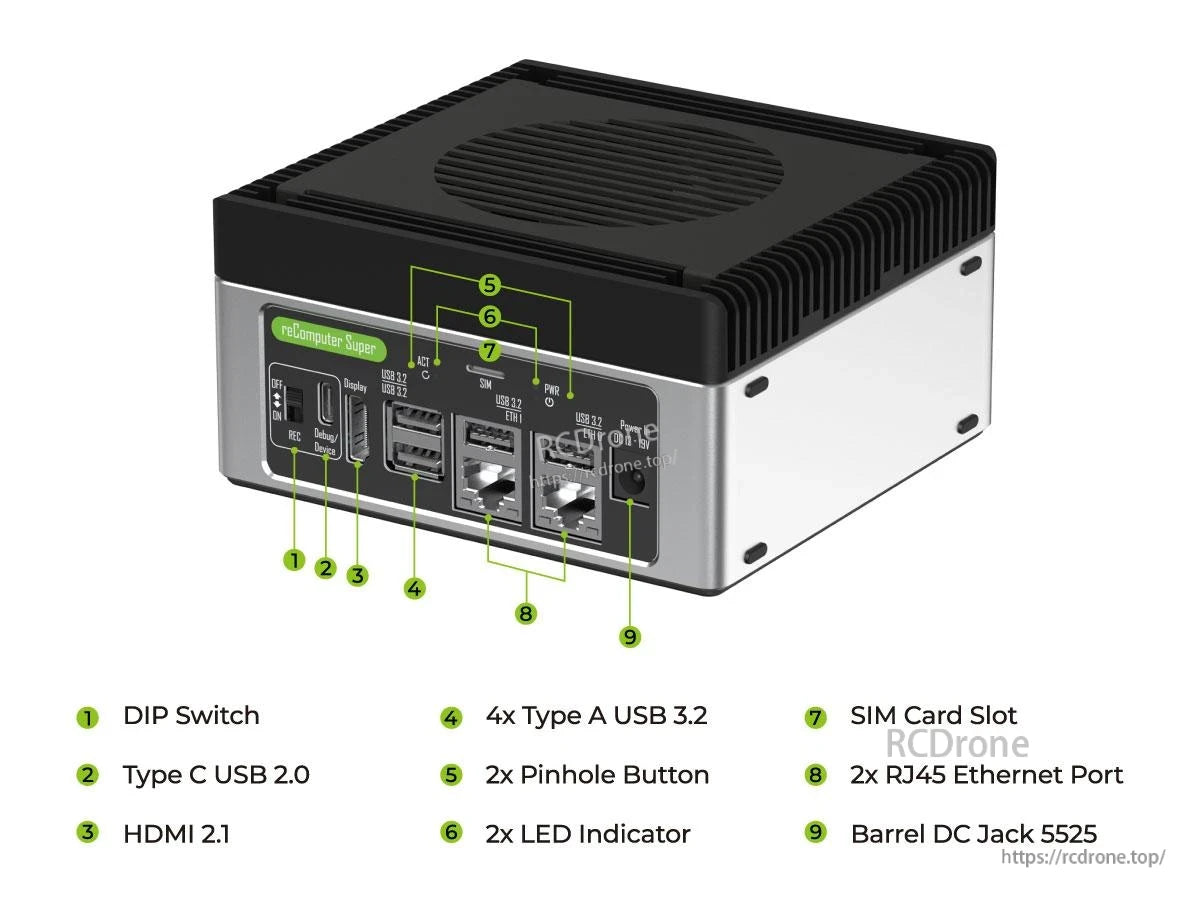

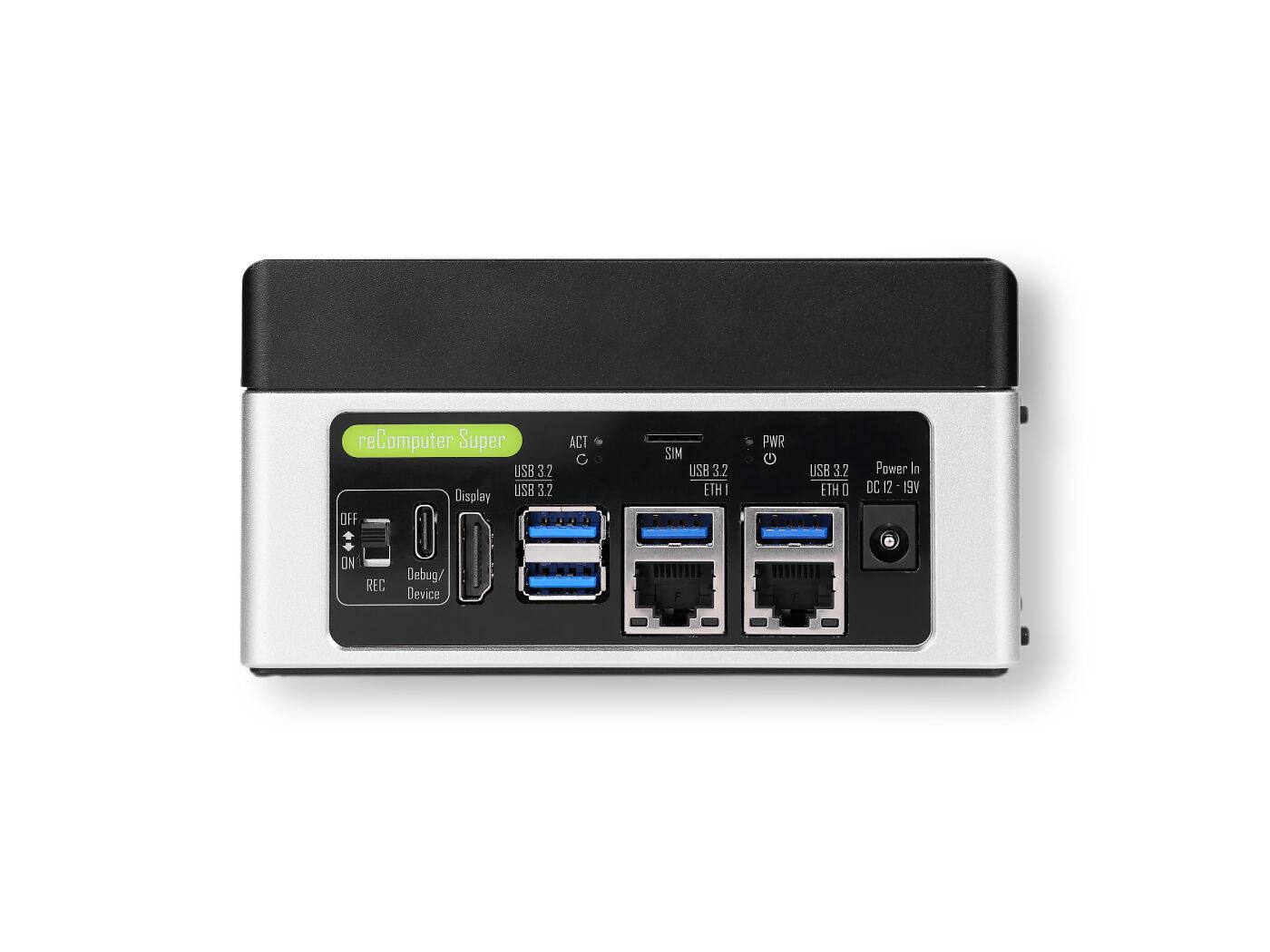

External I/O (rear panel)

• DIP switch (REC)
• USB Type‑C 2.0 (Device/Debug)
• HDMI 2.1
• 4× USB 3.2 Type‑A
• 2× pinhole buttons (e.g., PWR/RESET)
• 2× LED indicators (ACT, PWR)
• SIM card slot
• 2× RJ45 Ethernet ports
• 5525 Barrel DC jack (12‑19V)

Internal connectors

• 4‑Pin fan connector (5V PWM)
• 4‑Pin fan connector (12V PWM)
• 40‑Pin extension header
• CAN header
• 12‑Pin control and UART header
• 4× 15‑Pin MIPI CSI
• RTC battery socket (CR1220) and RTC 2‑Pin header (3V)
• M.2 Key E slot; mini‑PCIe slot; M.2 Key M slot (with SSD)

Applications

• Edge AI computer vision using Jetson Platform Services (e.g., BEV sensing with 4 USB cameras)

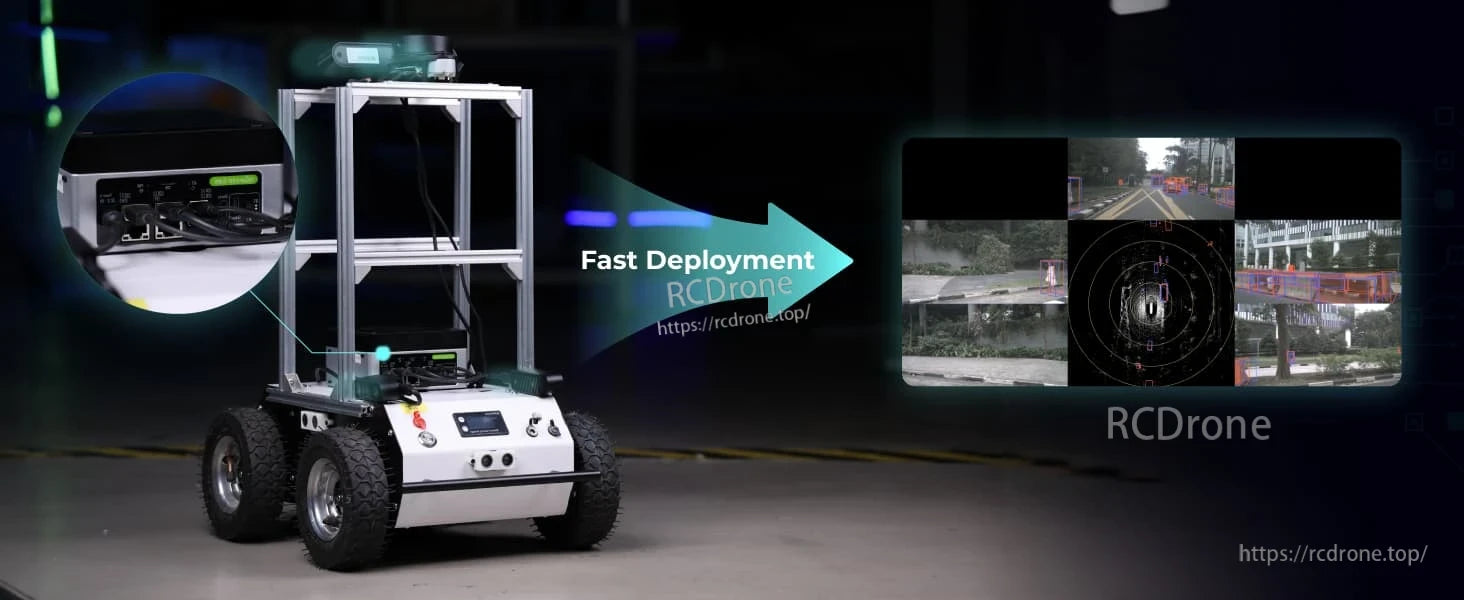

• Autonomous mobile robots (AMR), smart retail, industrial automation
• Video surveillance and smart video analytics
• Quick-start example projects: one‑line deployment for generative AI (Ollama, Llama3), computer vision (YOLOv8), and more via Jetson‑example

Documents

• User Manual & Datasheet
• Temperature Test Report
• Schematic
• 3D File
• Mechanical Document – reComputer Super
• Mechanical Document – reComputer Super PCBA
• Seeed NVIDIA Jetson Success Cases
• Seeed Jetson One Pager

ECCN/HTS

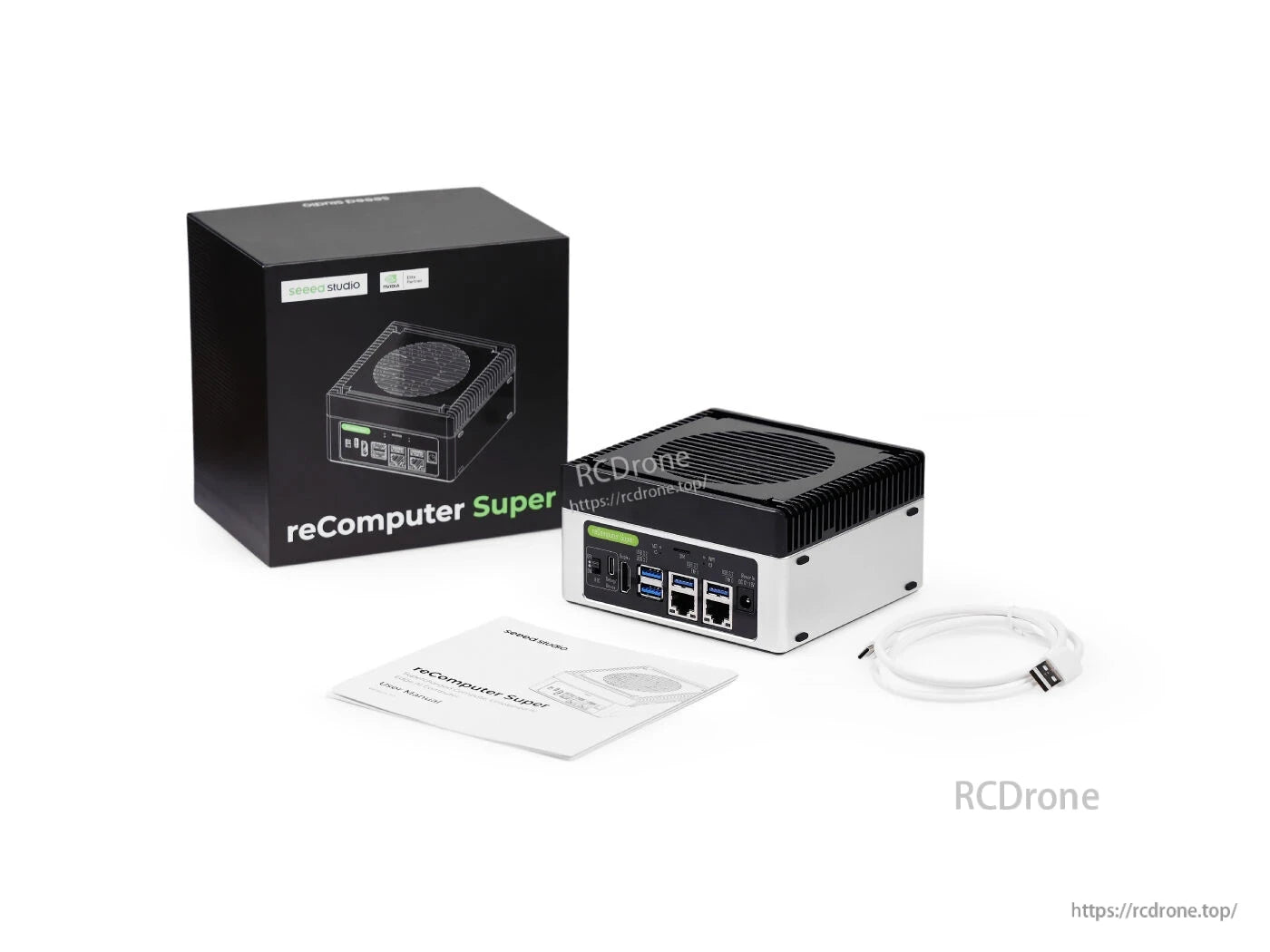

What’s Included

• Jetson Orin™ NX 16GB/NX 8GB / Nano 8GB / Nano 4GB module × 1 (variant per configuration)
• Seeed Carrier Board (reComputer Super J401) × 1
• 128GB NVMe SSD × 1
• Aluminum Case and Heatsink with Fan × 1
• USB Cable; Type‑A to Type‑C × 1
• User Manual × 1

Details

Jetson Orin Nano 8GB delivers 67 TOPS AI performance, 1.7x faster, power-efficient at 10W–25W, open-source hardware, wide temperature support, ideal for robotics, generative AI, and smart transportation. (39 words)

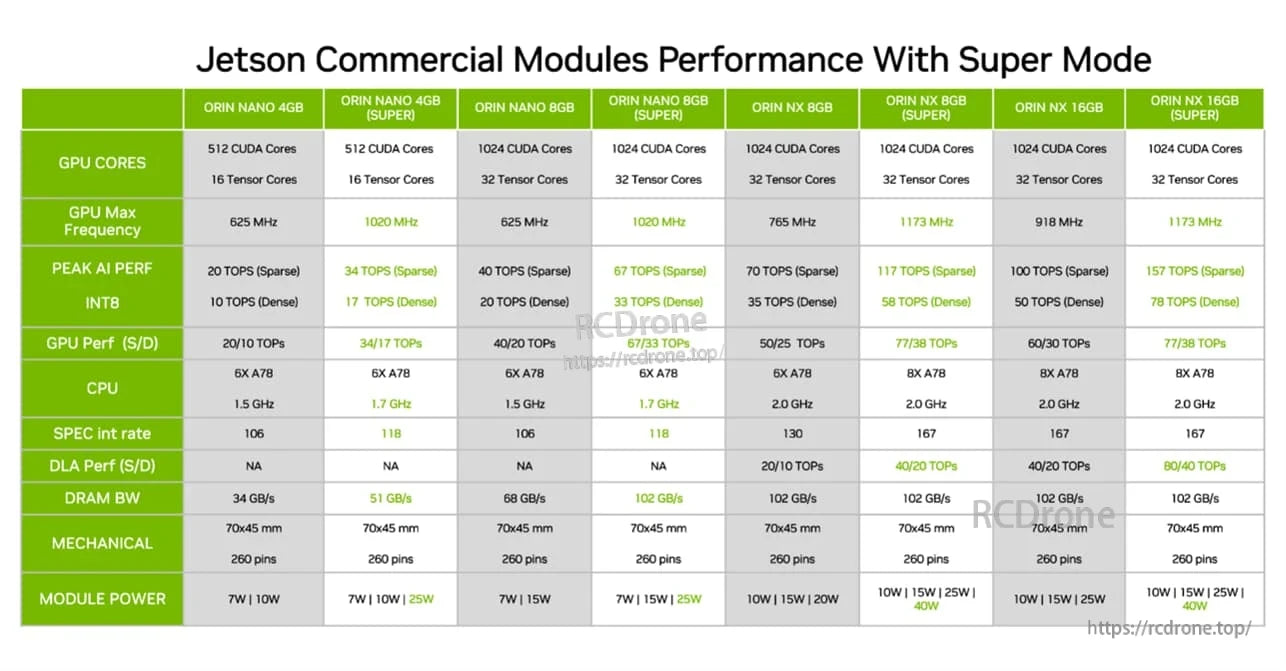

The Jetson Commercial Modules offer performance with Super Mode. ORIN NANO features 512 CUDA Cores, 16 Tensor Cores, and a peak frequency of 918 MHz. GPU Perf delivers up to 117 TOPS for sparse operations. For dense INT8 operations, it reaches 20 TOPS. CPU speed ranges from 15 GHz to 2.0 GHz. DLA Perf achieves up to 167 VB. The modules have various DRAM bandwidth options, including 34 GBIs and 102 GBIg. Dimensions are 70*45 mm with 260 pins. Module power consumption is 25w or 40w.

3DIO Card Reader, 4x Type A USB 3.2, SIM Card Slot, Type C USB 2.0, Pinhole Button, RJ45 Ethernet Port, HDMI, LED Indicator, DC Jack.

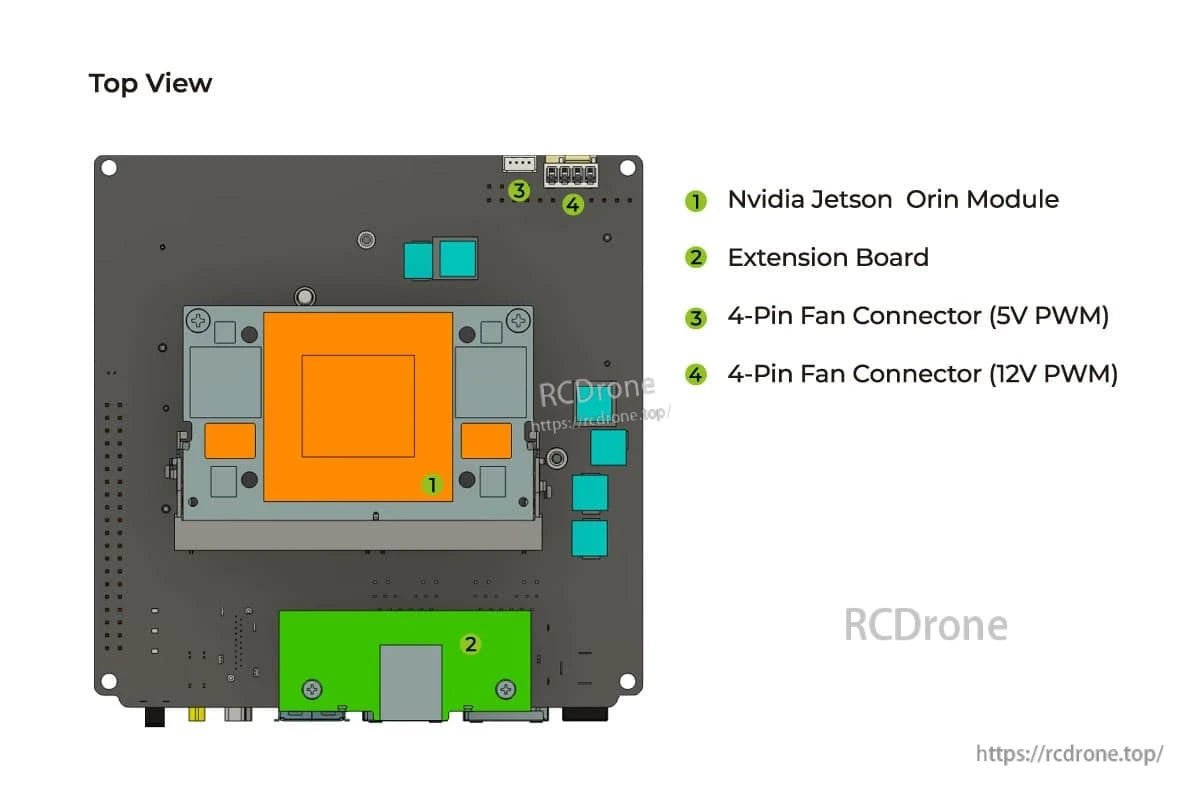

Nvidia Jetson Orin Module Extension Board features a 4-pin fan connector for SV and I2C PWM control at the top.

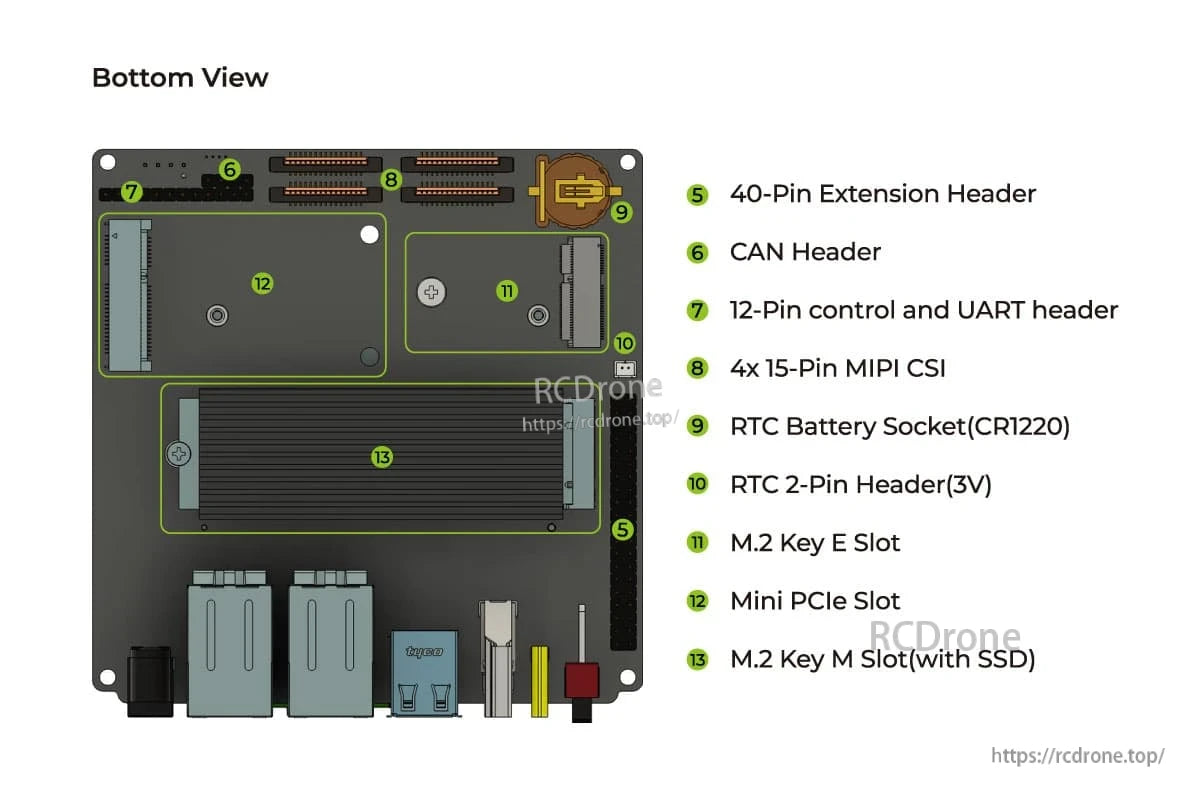

Bottom view of reComputer J3011 AI Computer featuring various connectors and slots including 40-Pin Extension Header, CAN Header, UART header, MIPI CSI, RTC battery socket, M.2 Key E and M slots, Mini PCIe Slot, and power headers.

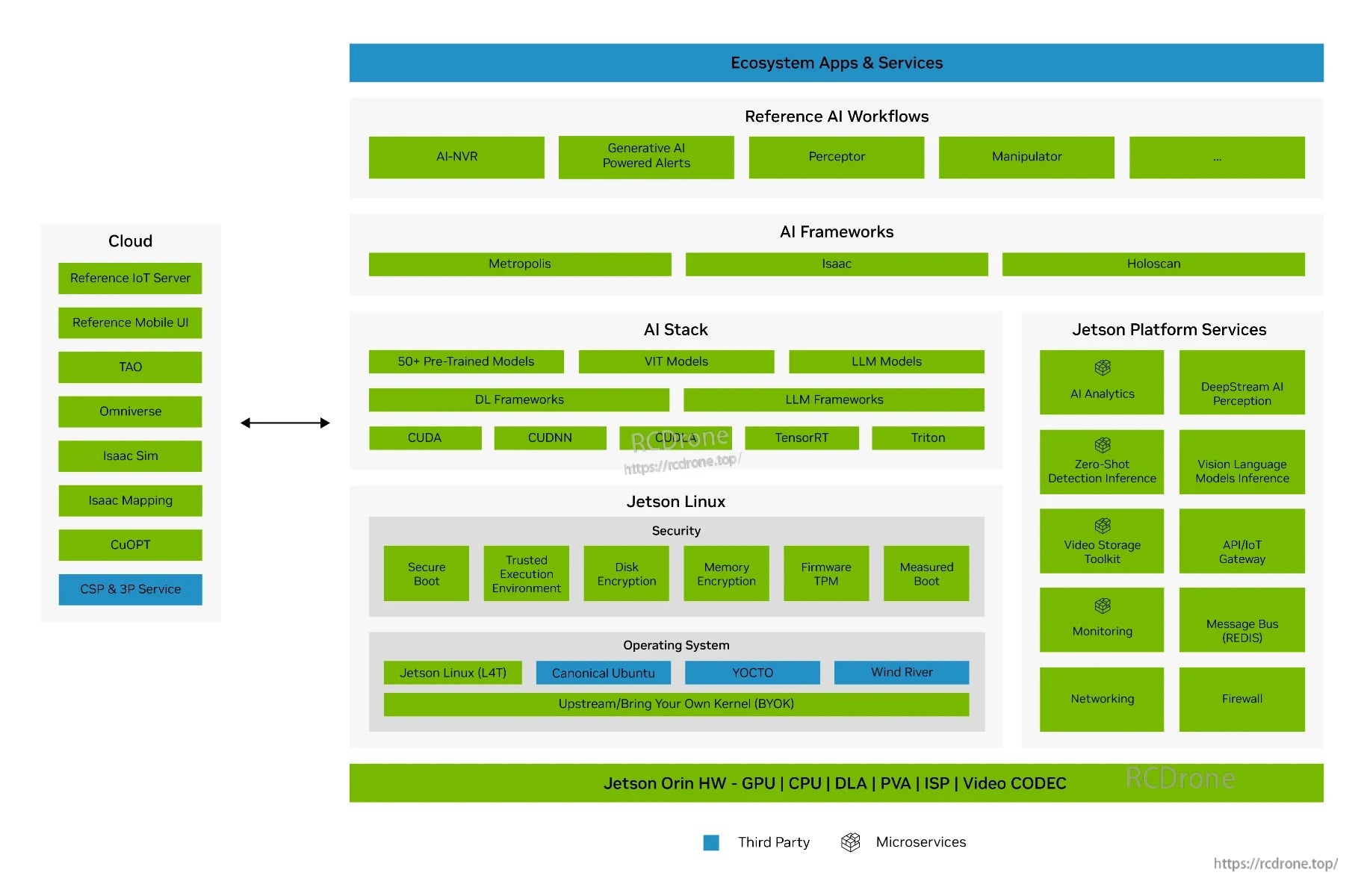

Ecosystem Apps & Services Reference: Al Workflows, Generative AI, NVR Powered Alerts, Perceptor Manipulator, Al Frameworks. Cloud Metropolis, Isaac Holoscan, Reference loT Server, Mobile Ul Al Stack, Jetson Platform Services. 50+ Pre-Trained Models, VIT, LLM, DeepStream Al, DL Frameworks, LLM Frameworks, Al Analytics, Perception Omniverse, CUDA, CUDNN, CUDLA, TensorRT, Triton. Isaac Sim, Zero-Shot Vision, Language Detection, Inference Models, Inference Mapping.

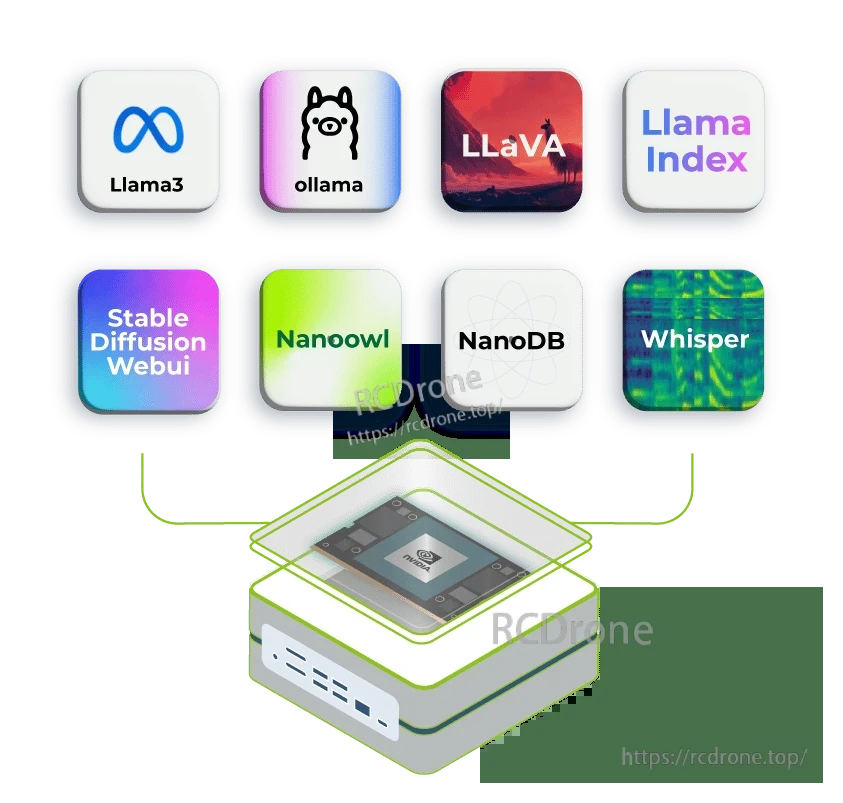

AI computer with Llama3, ollama, LLaVA, and Stable Diffusion Webui.
