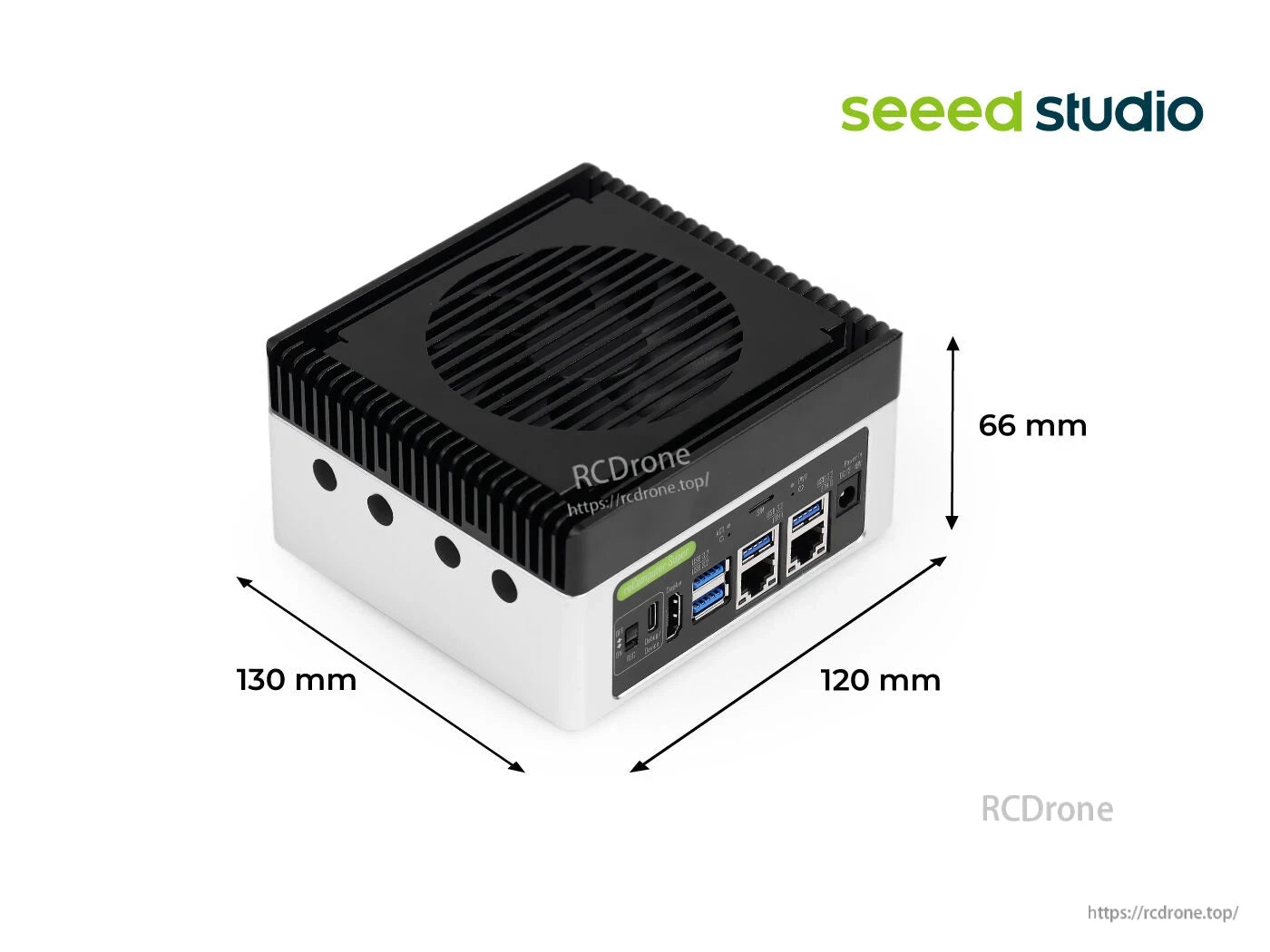

reComputer Super J4012 Edge AI Computer, Jetson Orin NX 16GB, 157 TOPS, 4x USB 3.2, 2x GbE, HDMI 2.1

Overview

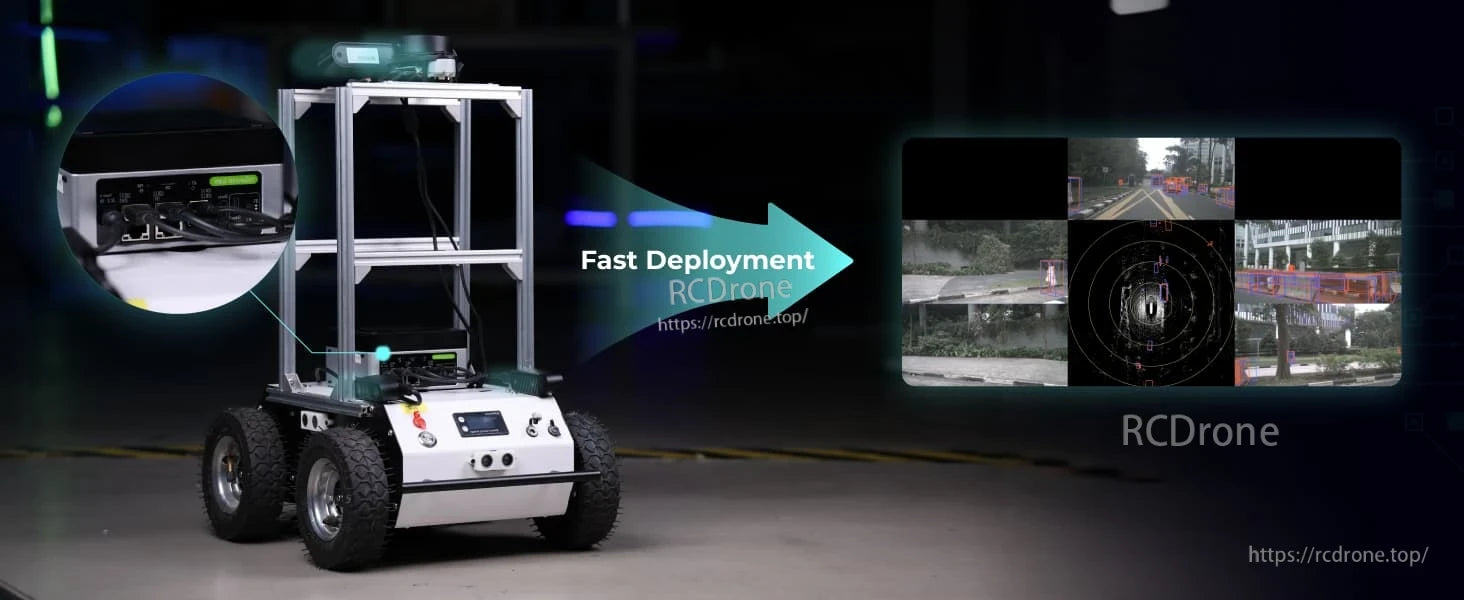

The reComputer Super J4012 is an Edge AI Computer built on the NVIDIA Jetson Orin NX 16GB platform. It delivers up to 157 TOPS in MAXN Super Mode and is engineered for reliable operation from -20℃ to 65℃ (25W mode) or -20℃ to 60℃ (MAXN). For rapid deployment, it comes with JetPack 6.2 pre-installed and a 128GB NVMe SSD. Expansion options include Wi‑Fi/Bluetooth (M.2 Key E), LTE (mini‑PCIe) with SIM card slot, and dual Gigabit Ethernet, making it suitable for video analytics, multimodal perception, and robotics.

Key Features

• 157 TOPS AI performance (Orin NX 16GB, MAXN Super Mode) for vision AI, robotics, and generative AI.
• Configurable power modes: 10W / 15W / 25W / 40W.
• Thermal robustness: -20℃ to 60℃ at 40W; up to 65℃ at 25W.
• Rich I/O: 2x RJ45 GbE, SIM card slot, 4x USB 3.2 Type‑A (5Gbps), USB 2.0 Type‑C (device/debug), HDMI 2.1, 1x CAN.
• Camera connectivity: 4x MIPI CSI (2‑lane, 15‑pin), up to 4 cameras (8 via virtual channels), 8‑lane MIPI CSI‑2, D‑PHY 2.1 (up to 20Gbps).
• Expandable storage and wireless: M.2 Key M (128GB NVMe SSD included), M.2 Key E for Wi‑Fi/Bluetooth, mini‑PCIe for LTE 4G, 4x antenna holes.
• Ready to use: JetPack 6.2 pre‑installed; supports NVIDIA Isaac, Hugging Face, ROS2/1.

Specifications

Jetson modules performance with Super Mode

• Enhanced power management
• Higher frame‑rate processing
• Reduced inference time

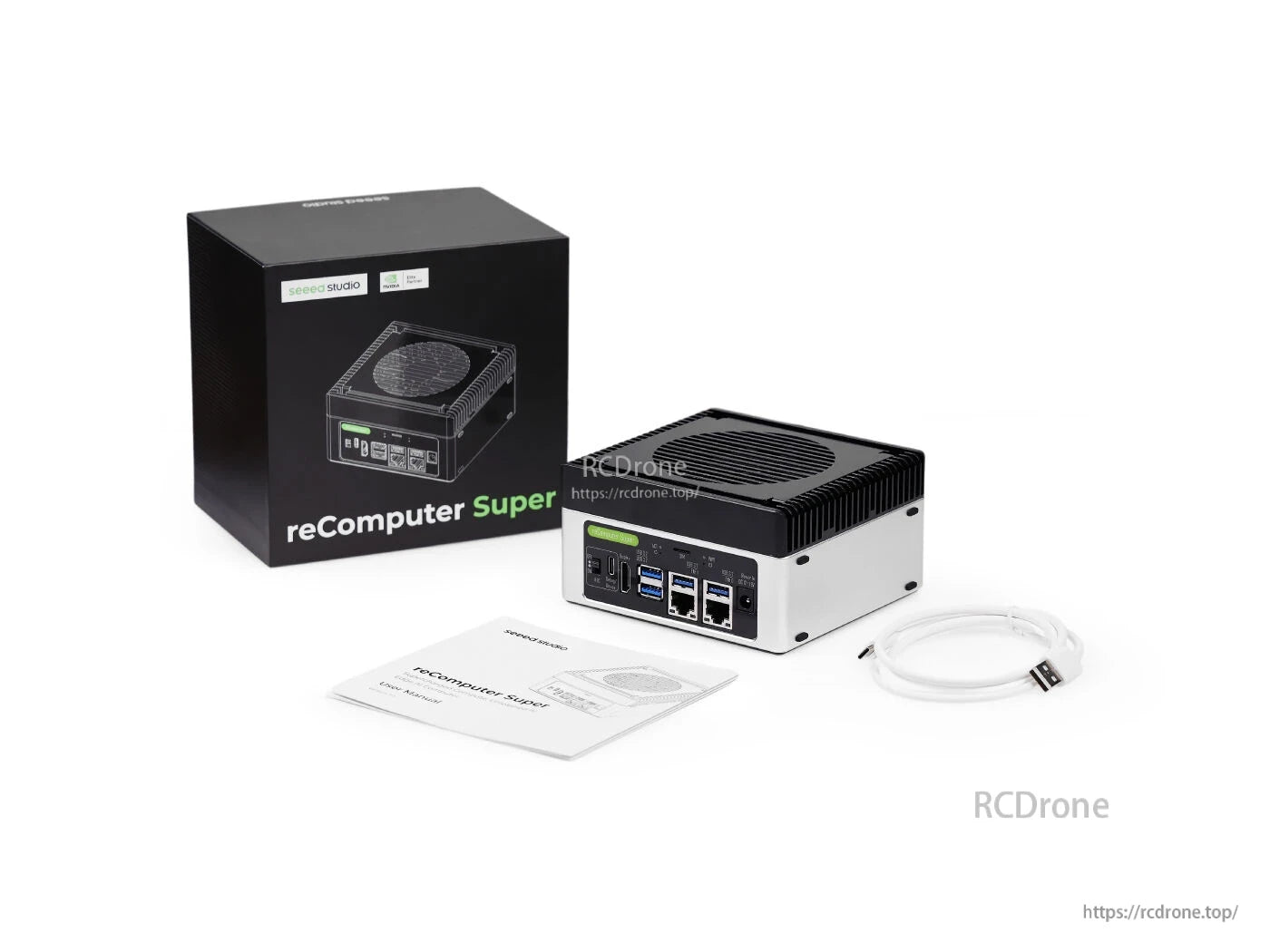

What’s Included

• Jetson Orin™ NX 16GB/NX 8GB / Nano 8GB / Nano 4GB module x 1
• Seeed Carrier Board (reComputer Super J401) x 1
• 128GB NVMe SSD x 1
• Aluminum case and heatsink with fan x 1
• USB Cable (Type‑A to Type‑C) x 1
• User Manual x 1

Applications

• Autonomous mobile robots (AMR), industrial automation, smart retail
• Video surveillance and smart video analytics
• Generative AI and computer vision (e.g., YOLOv8)
• Jetson Platform Services for simplified deployment and management of Edge AI applications

Explore examples and one‑line deployments: Seeed Jetson‑example.

Documents

• User Manual & Datasheet
• Temperature Test Report
• Schematic
• 3D File
• Mechanical Document — reComputer Super
• Mechanical Document — reComputer Super PCBA
• Seeed NVIDIA Jetson Success Cases
• Seeed Jetson One Pager

ECCN/HTS

Details

Jetson Orin NX 16GB with 157 TOPS AI performance, open-source hardware, wide temperature range, WiFi/Bluetooth, 4G LTE, multiple USB and Ethernet ports—ideal for robotics, generative AI, and smart transportation. (39 words)

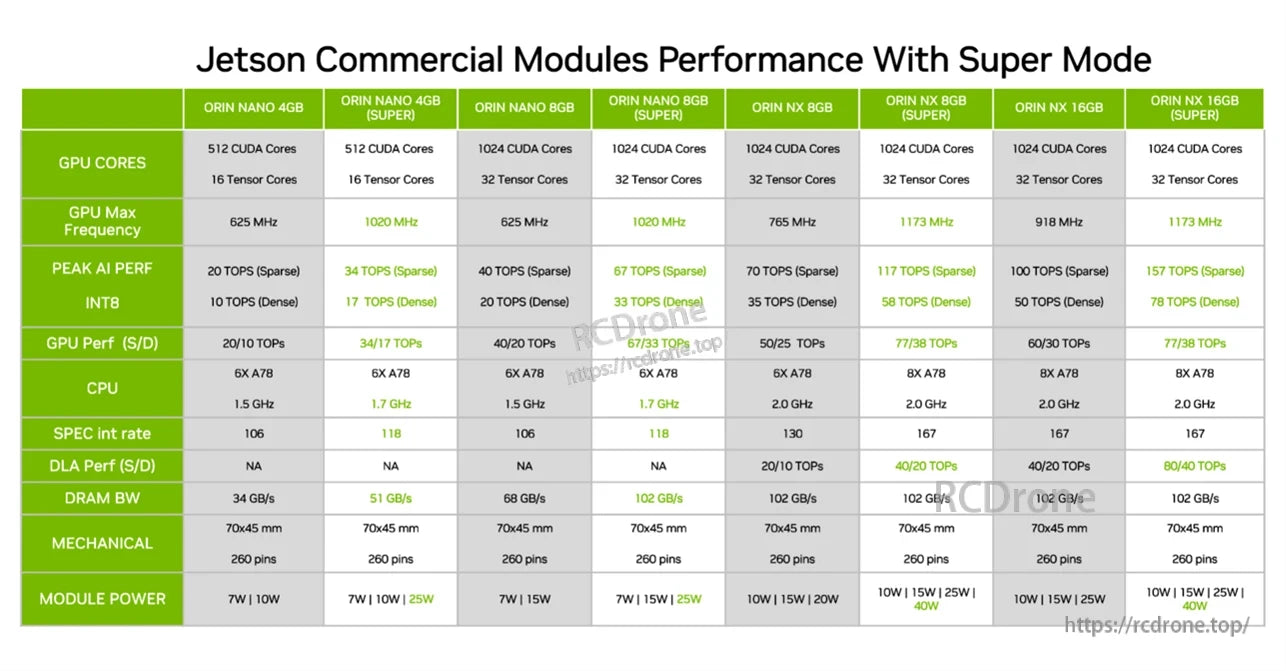

Jetson commercial modules performance with Super Mode, comparing GPU cores, frequencies, AI performance, CPU specs, memory bandwidth, dimensions, and power options across various models including Orin Nano and Orin NX series.

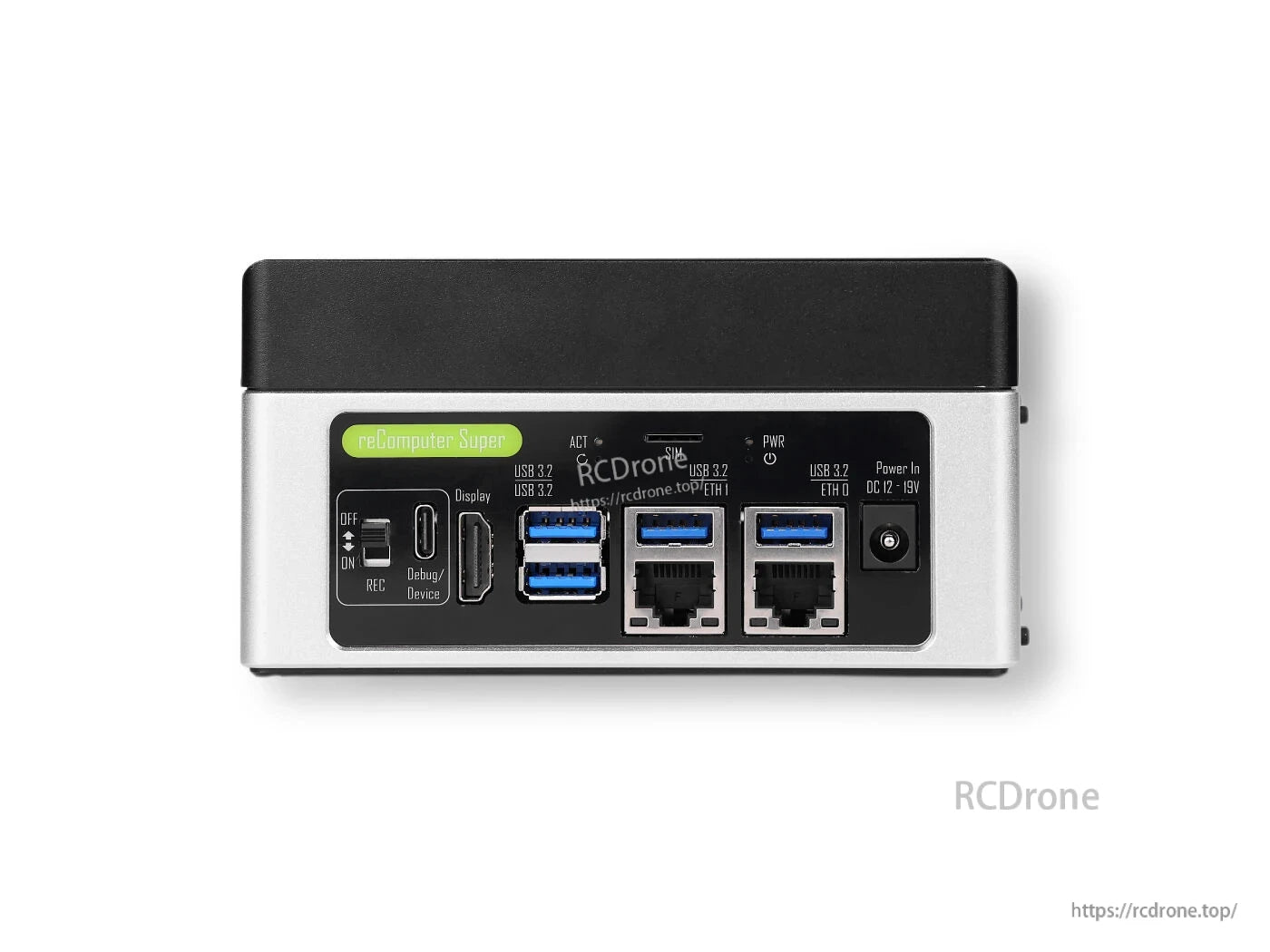

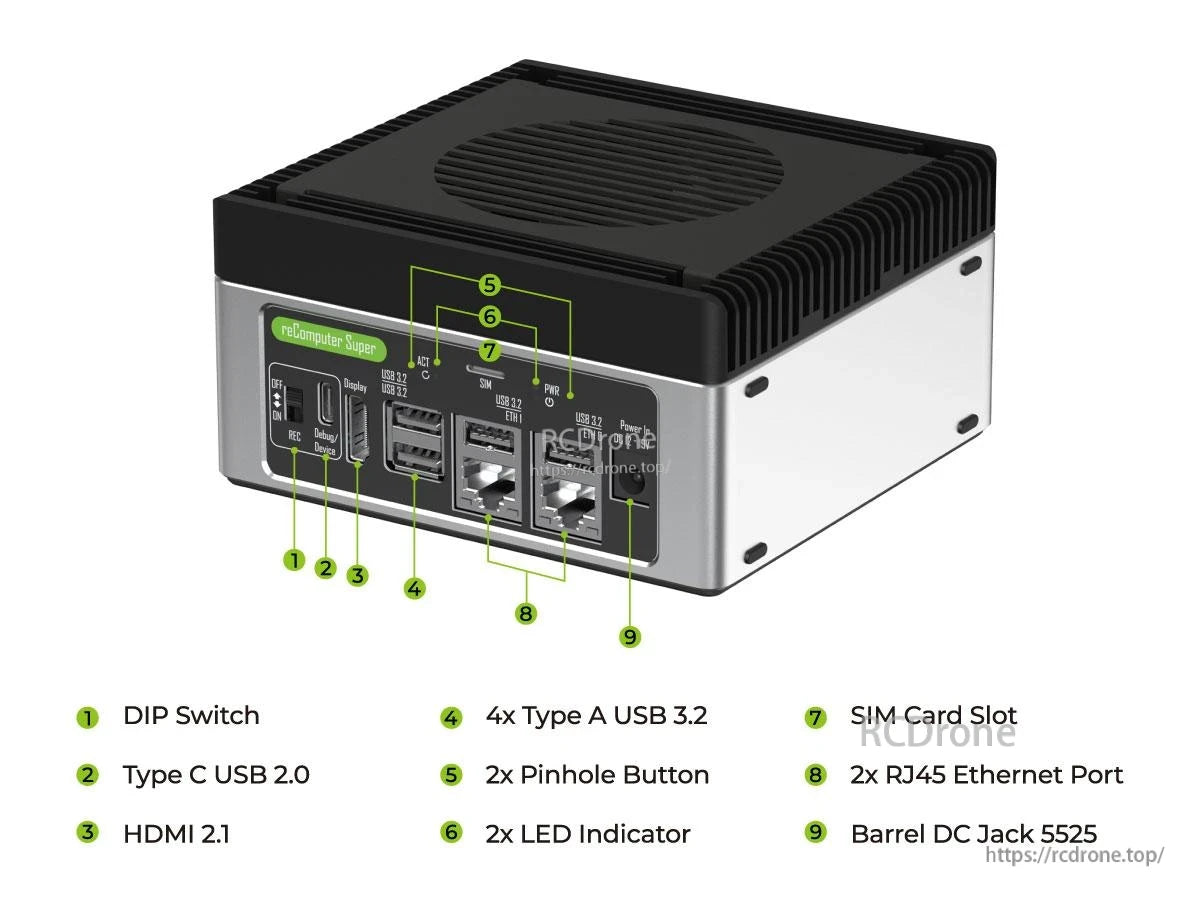

ReComputer Super includes DIP switch, Type C USB 2.0, HDMI 2.1, four USB 3.2 ports, two pinhole buttons, LED indicators, SIM slot, dual Ethernet, and DC power jack.

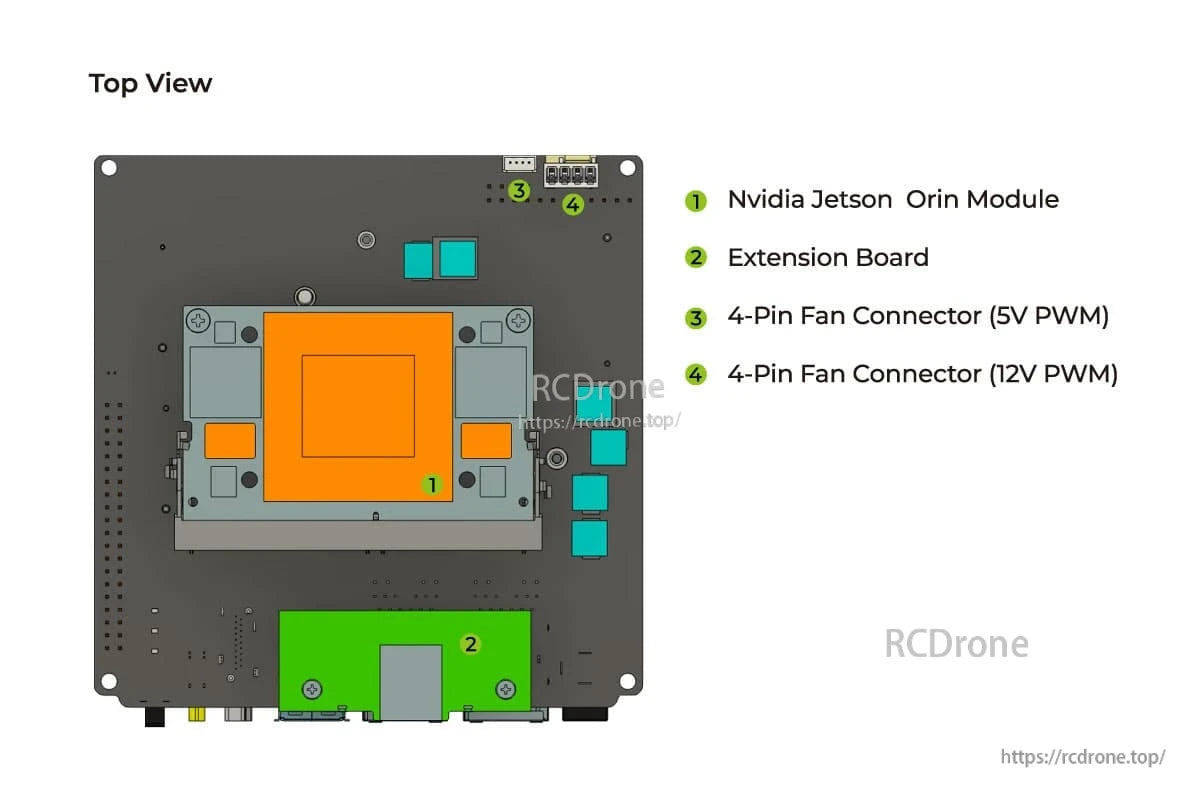

Top view of ReComputer Edge AI with Jetson Orin module and fan connectors.

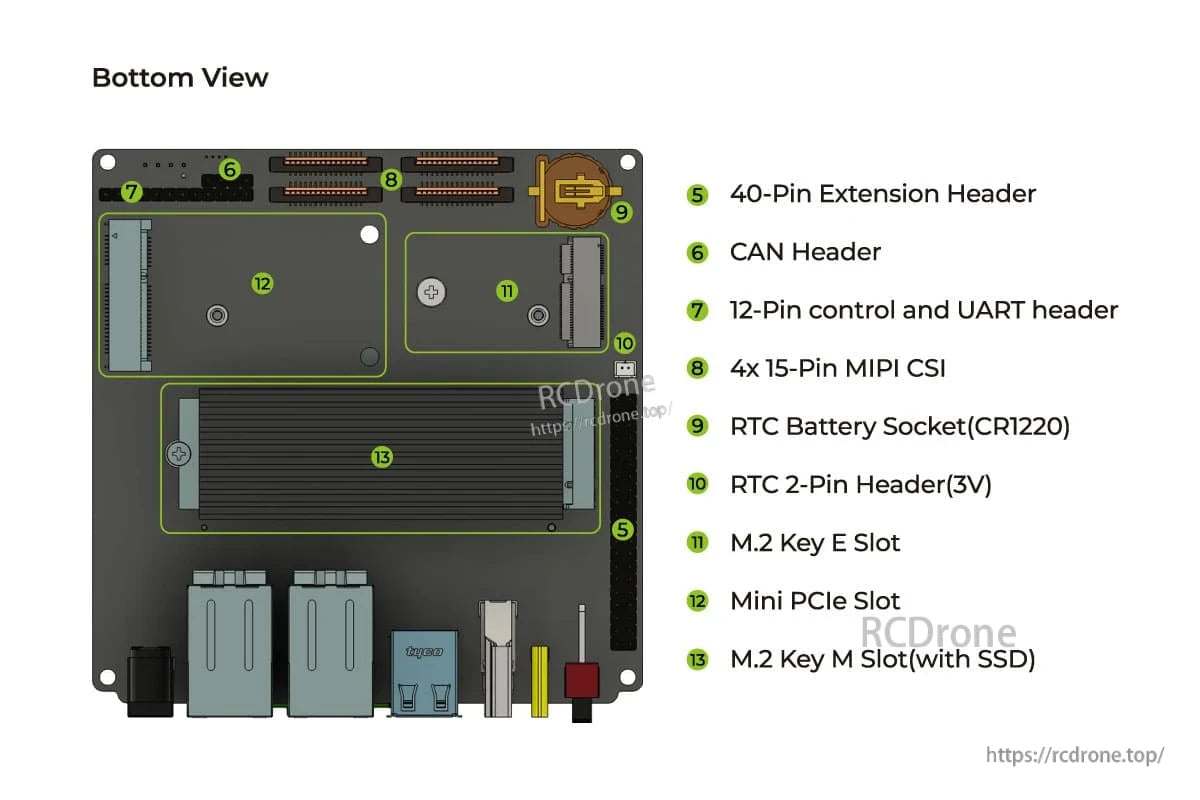

Bottom view of ReComputer Edge AI Computer featuring various connectors and slots including 40-Pin Extension Header, CAN Header, UART header, MIPI CSI, RTC battery socket, M.2 Key E and M slots, Mini PCIe Slot, and 3V RTC header.

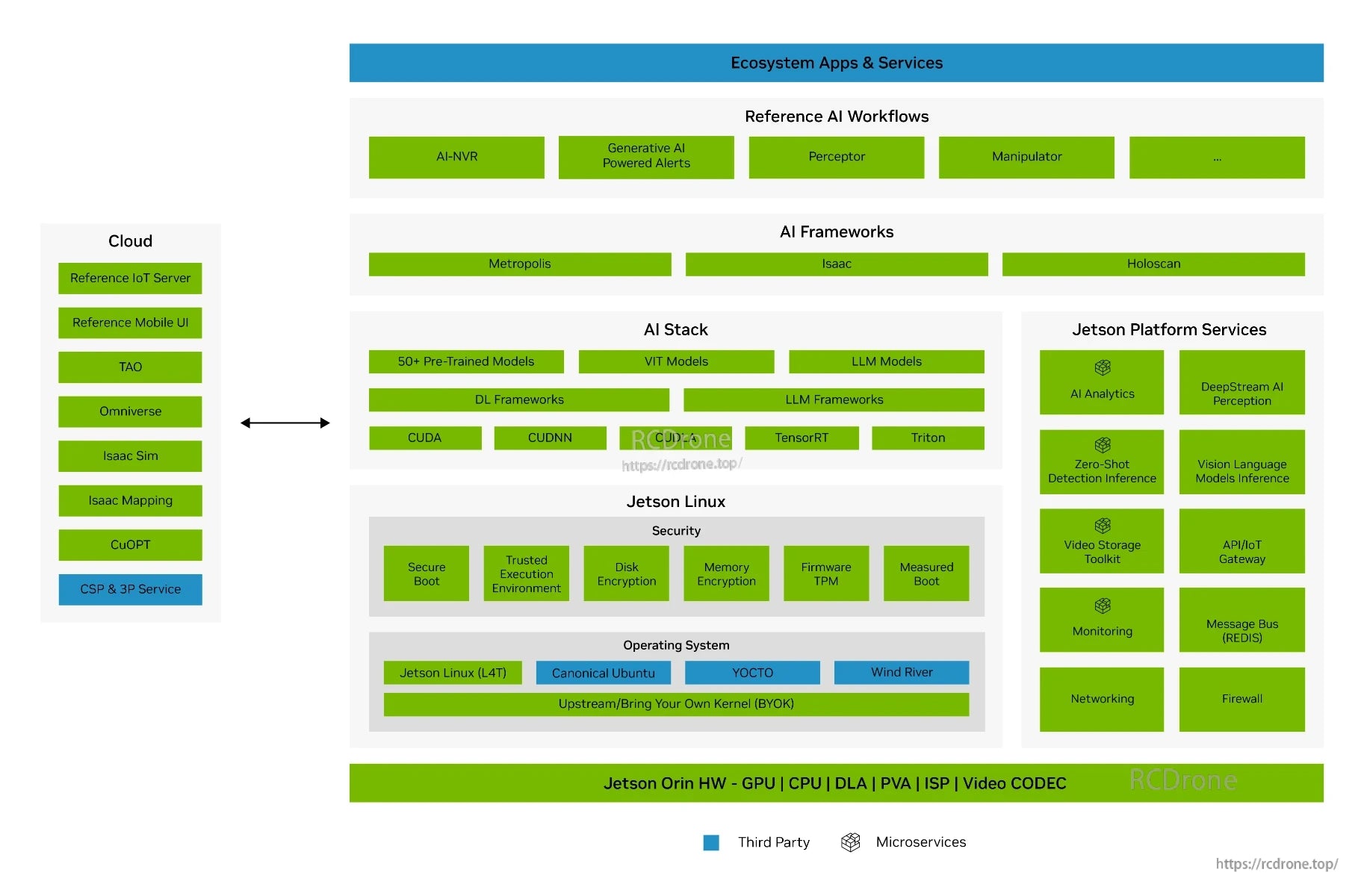

Jetson Orin-powered ReComputer supports AI workflows with GPU, CPU, DLA, PVA, ISP, and video CODEC. Compatible with Metropolis, Isaac, Holoscan, TAO, Omniverse, and Isaac Sim for seamless cloud integration and edge AI development.

ReComputer Edge AI supports Llama3, ollama, LLaVA, Stable Diffusion, Whisper.
