reServer Industrial J4011 Fanless AI NVR Server, Jetson Orin NX 8GB (70 TOPS), 5x RJ45 GbE PoE, dual 2.5" SATA bays
reServer Industrial J4011 Fanless AI NVR Server, Jetson Orin NX 8GB (70 TOPS), 5x RJ45 GbE PoE, dual 2.5" SATA bays
Seeed Studio
Couldn't load pickup availability
Overview
reServer Industrial J4011 is a fanless AI-enabled NVR Server built for edge video analytics. It integrates the NVIDIA Jetson Orin™ NX 8GB module delivering 70 TOPS, and comes with a pre-installed JetPack system. The system provides 5x RJ45 GbE (including 4 PoE PSE 802.3af ports), dual 2.5" SATA drive bays, rich industrial I/O (RS232/RS422/RS485, DI/DO, CAN), and wide-range DC 12–36V power input for reliable operation in surveillance and industrial environments.
Key Features
- NVIDIA Jetson Orin NX 8GB module with 70 TOPS AI performance
- Fanless, passive heatsink design for silent, robust operation
- 5x RJ45 GbE networking: 1x GbE and 4x PoE (PSE 802.3af 15W)
- 2x drive bays supporting 2.5" SATA HDD/SSD (SATA III 6.0Gbps)
- Industrial I/O: 1x RS232/RS422/RS485 (DB9), 4x DI/4x DO, 1x CAN
- 4x USB3.1 Type-A and 2x USB2.0 Type-C for peripherals
- Display output: 1x HDMI 2.1 (per image reference)
- Expansion: Mini PCIe (LoRaWAN®/4G), M.2 Key B (3042/3052) for 4G/5G, TPM 2.0 connector, RTC 2-pin
- Pre-installed JetPack system for rapid deployment
- Operating temperature from -20°C to 60°C (with 0.7m/s airflow)
- Open-source hardware and flexible mounting: Desk, DIN rail, VESA
Note: For SSD compatibility, Seeed recommends using its 128GB, 256GB, or 512GB M.2 NVMe 2280 SSDs. Compatibility may depend on JetPack version.
Specifications
| System on Module | NVIDIA Jetson Orin™ NX 8GB |
| AI Performance | 70 TOPS |
| GPU | 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
| CPU | 6-core Arm® Cortex®-A78AE (Orin NX 8GB) |
| Memory | 8GB 128-bit LPDDR5 |
| Video Encode | 1x 4K60 (H.265) | 3x 4K30 (H.265) | 6x 1080p60 (H.265) | 12x 1080p30 (H.265) |
| Video Decode | 1x 8K30 (H.265) | 2x 4K60 (H.265) | 4x 4K30 (H.265) | 9x 1080p60 (H.265) | 18x 1080p30 (H.265) |
| DL Accelerator | 1x NVDLA v2 |
| Storage | 1x M.2 Key M PCIe (M.2 NVMe 2280 SSD 128G included); 2x drive bays for 2.5" SATA HDD/SSD (SATA III 6.0Gbps) |
| Ethernet | 1x RJ45 GbE (10/100/1000M); 4x RJ45 GbE PoE (PSE 802.3af 15W, 10/100/1000Mbps) |
| USB | 4x USB3.1 Type-A; 2x USB2.0 Type-C |
| DI/DO & CAN | 4x DI, 4x DO, 3x GND_DI, 2x GND_DO, 1x GND_ISO, 1x CAN |
| Display | 1x HDMI 2.1 (image reference) |
| COM | 1x DB9 (RS232/RS422/RS485) |
| Buttons | Reset Button, Recovery Button |
| Expansion | 1x Mini PCIe (LoRaWAN®/4G); 1x M.2 Key B (3042/3052) for 4G/5G (module optional); 1x TPM 2.0 connector; 1x RTC 2-pin (supports CR1220, not included) |
| Cooling | Fanless passive heatsink; 1x 4-pin Fan Connector (5V PWM) |
| Power Input | DC 12V–36V terminal block (2-pin) |

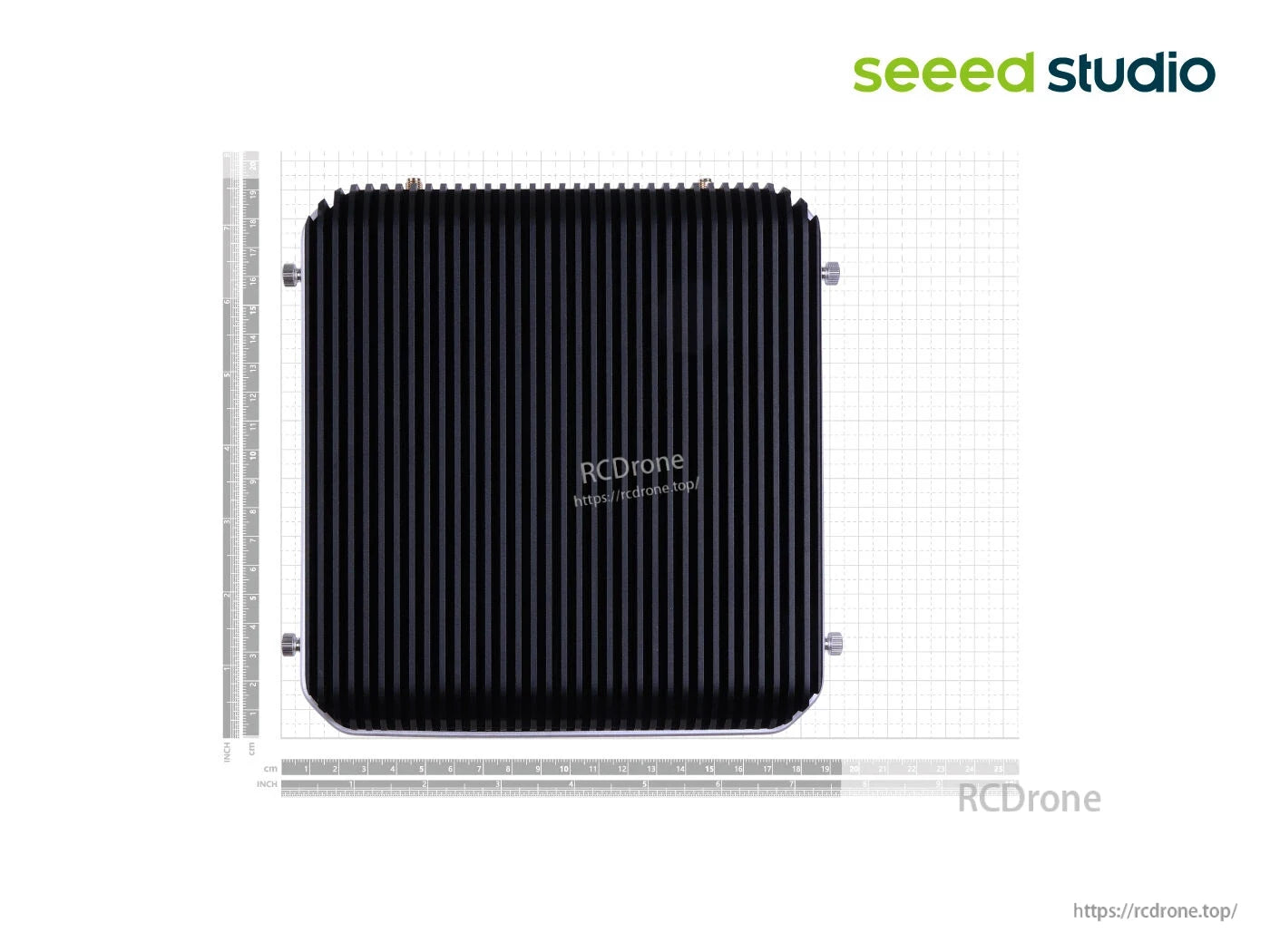

| Dimensions (W x D x H) | 194.33mm x 187mm x 95.5mm |
| Installation | Desk, DIN rail, VESA |
| Weight | 2.8kg |
| Operating Temperature | -20 ~ 60°C with 0.7m/s airflow |
| Operating Humidity | 95% @ 40°C (Non-condensing) |
| Storage Temperature | -40 ~ 85°C |
| Storage Humidity | 60°C @ 95% RH (Non-condensing) |
| Vibration | 3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis |
| Shock | 50G peak acceleration (11 msec duration, eMMC, microSD, or mSATA) |
| Warranty | 2 Years |
Hardware Overview

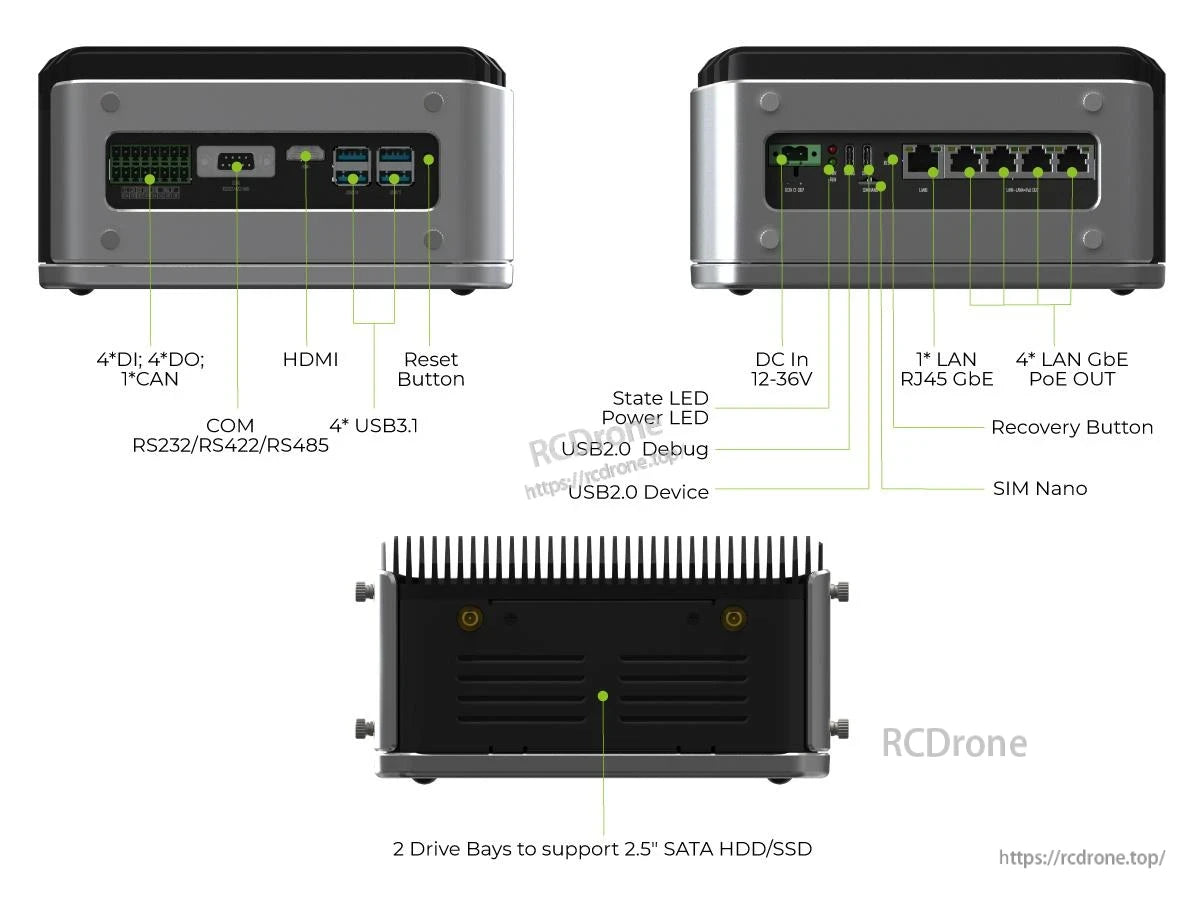

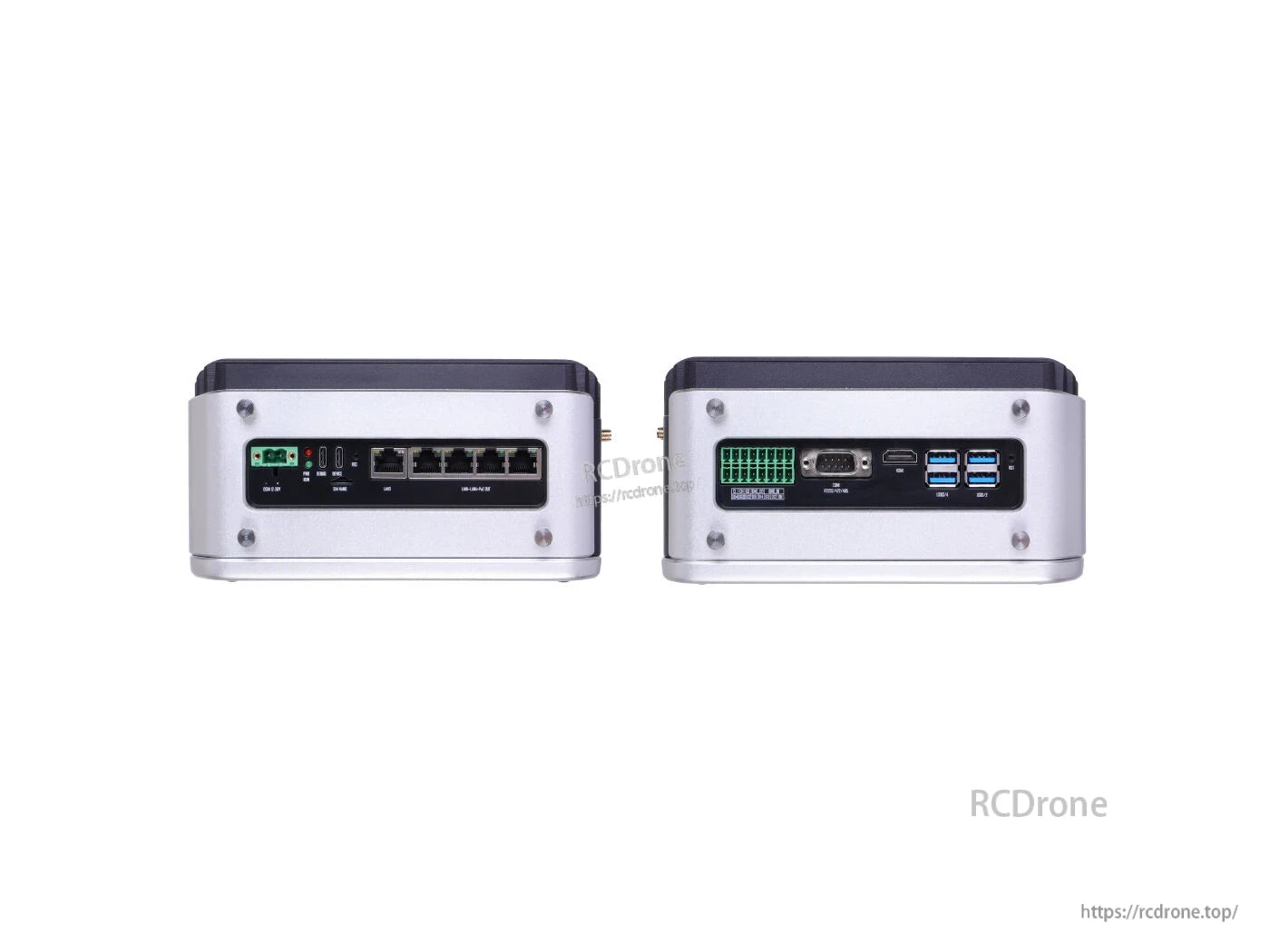

- Front/rear I/O clearly labeled for LAN, PoE, DI/DO, CAN, HDMI, USB3.1, USB2.0, SIM Nano, Reset and Recovery buttons
- Carrier board provides M.2 Key M, M.2 Key B, Mini PCIe, RTC, TPM header, SATA data/power connectors, and fan header
Applications

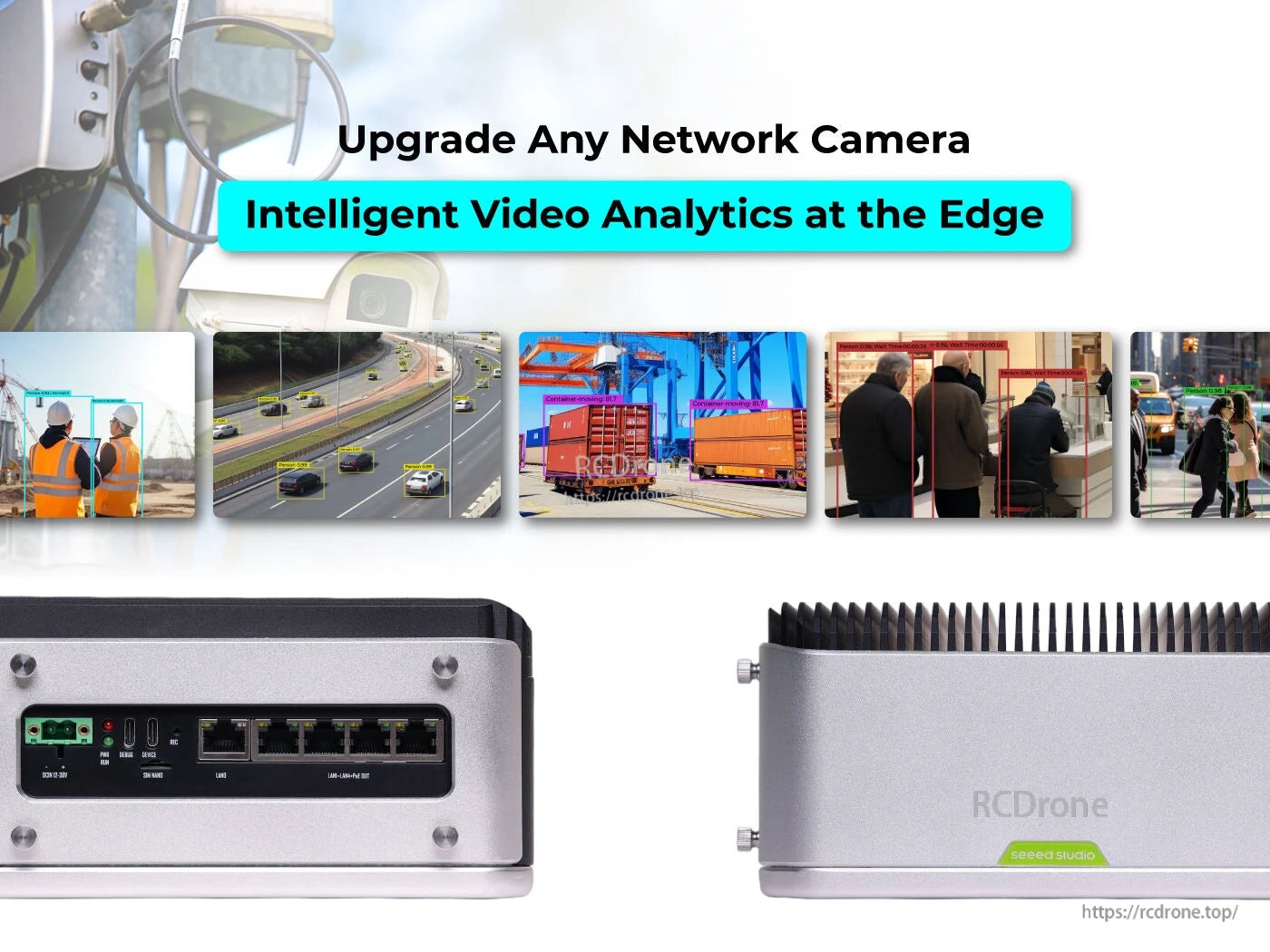

- Unlock AI capabilities for existing cameras and VMS with real-time video analytics on the edge
- Smart storage with dual 2.5" bays: store and upload noteworthy recordings
- Create custom analytics quickly using CVEDIA-RT models (face, vehicle, people, crowd estimation, and more)
- Build video analytics workflows in a no-code way with Lumeo
- End-to-end computer vision development: data collection, labeling, training, optimization, deployment, and remote management
- Suitable for robotics, generative AI prototyping, and video analytics (per image reference)
Documents
Certification
| HSCODE | 8471504090 |
| USHSCODE | 8517180050 |
| UPC | |
| EUHSCODE | 8471707000 |
| COO | CHINA |

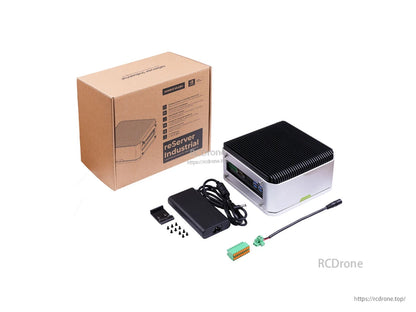

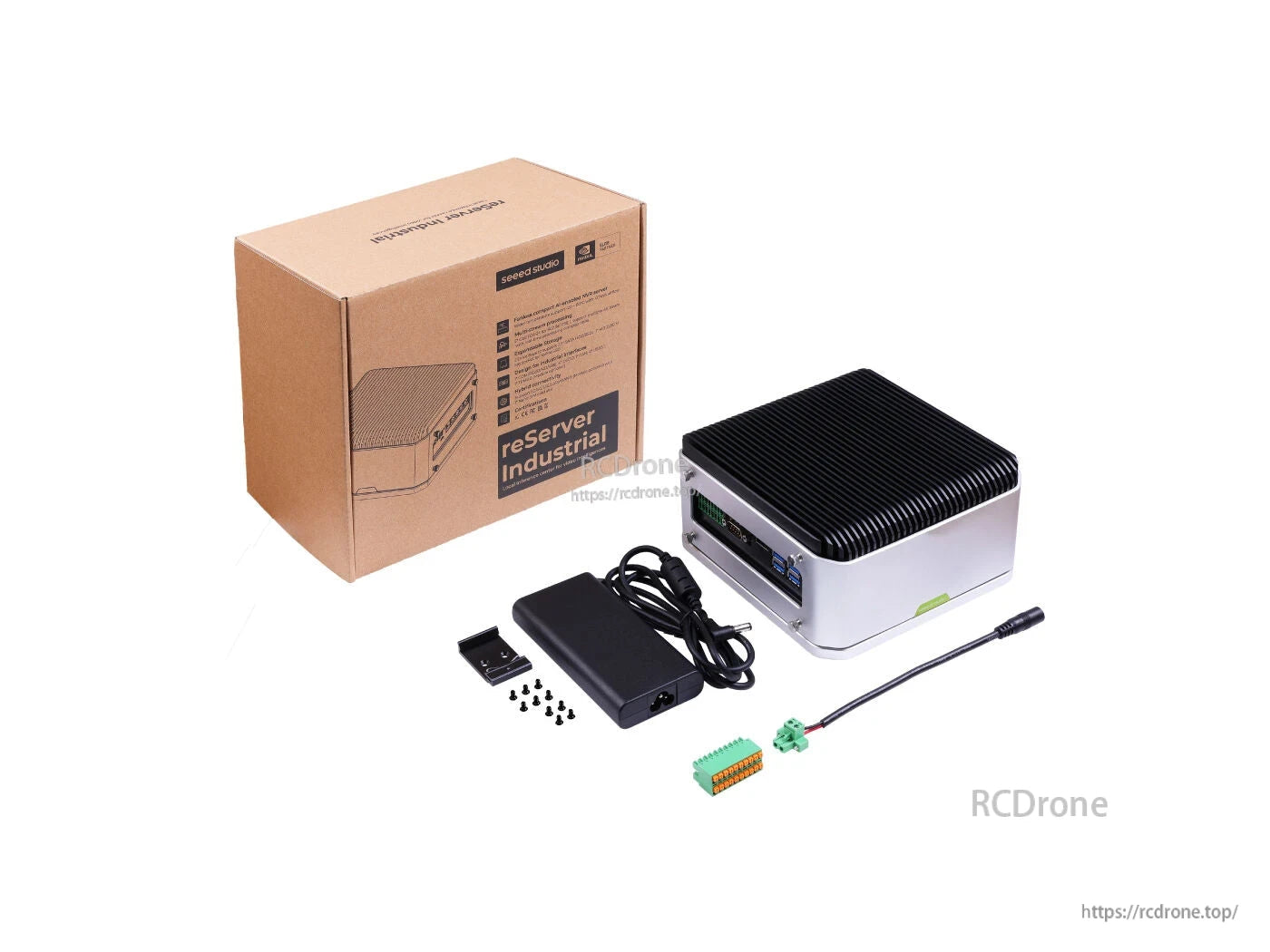

What’s Included
| reServer Industrial J4011 (System Installed) | x 1 |
| DIN rail bracket | x 1 |
| Bracket Bolt | x 10 |
| 16-Pin Terminal block for DIO | x 1 |
| 24V/5A Power adapter (without power cord) | x 1 |
| 2-Pin Terminal block power connector | x 1 |
Note: Power adapter is included, but the AC cloverleaf power cord is not. Please purchase the appropriate AC cloverleaf power cord for your region.
Details
Elite Partner NVIDIA reServer Industrial J40II LX Jetson Orin with 70 TOPS, 8GB of memory, offering high performance and flexibility. Dimensions are 194mm x 33mm, and it suitable for desktop use on DIN 187mm x 95mm rails or VESA mounting. The device operates in a wide temperature range (open from -20°C to 60°C) with an M.2 Key B slot for storage. Connectivity options include RJ-45 GbE, HDMI 2.1, and support for 4G/5.6 SSD.

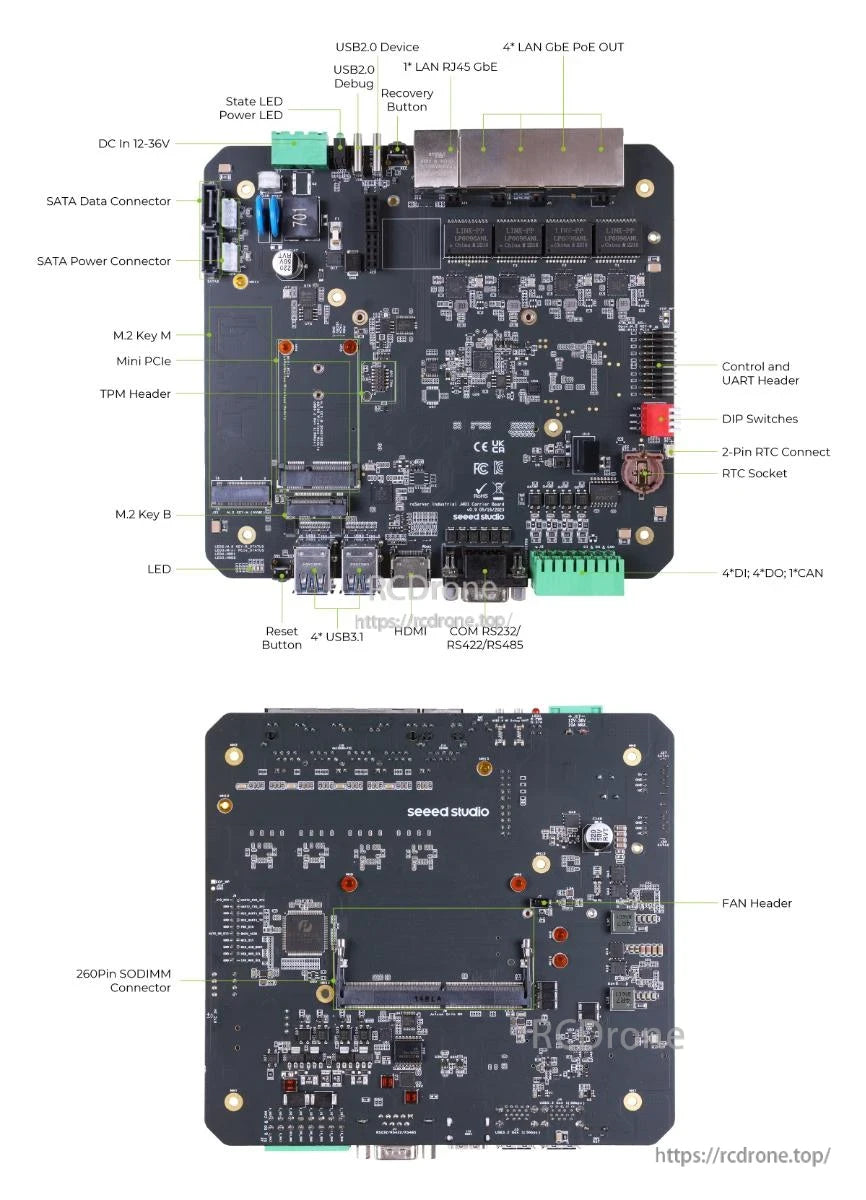

J4011 NVR Server offers 4x PoE GbE, USB 3.1, HDMI, SATA, M.2, SODIMM, and RS232/422/485, CAN, UART headers for flexible industrial connectivity.

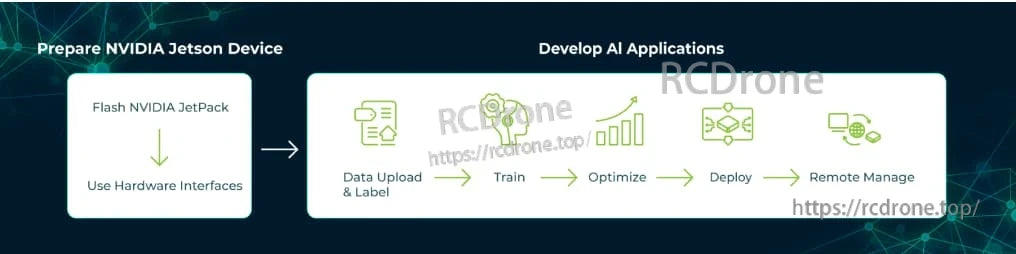

Prepare NVIDIA Jetson Device and Develop AI Applications with Data Upload, Train, Optimize, Deploy, Remote Manage.
