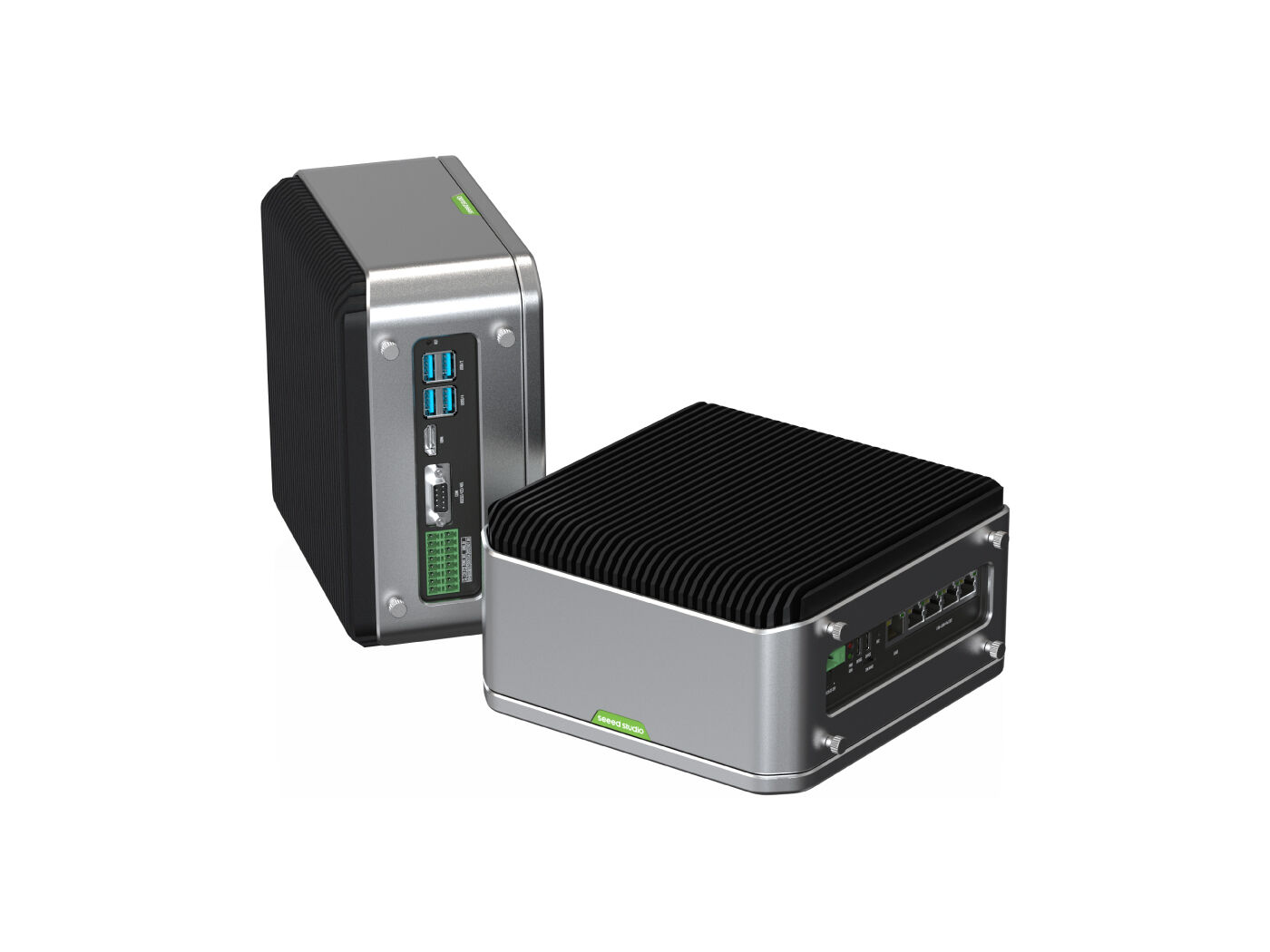

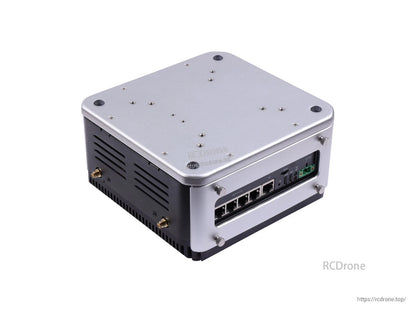

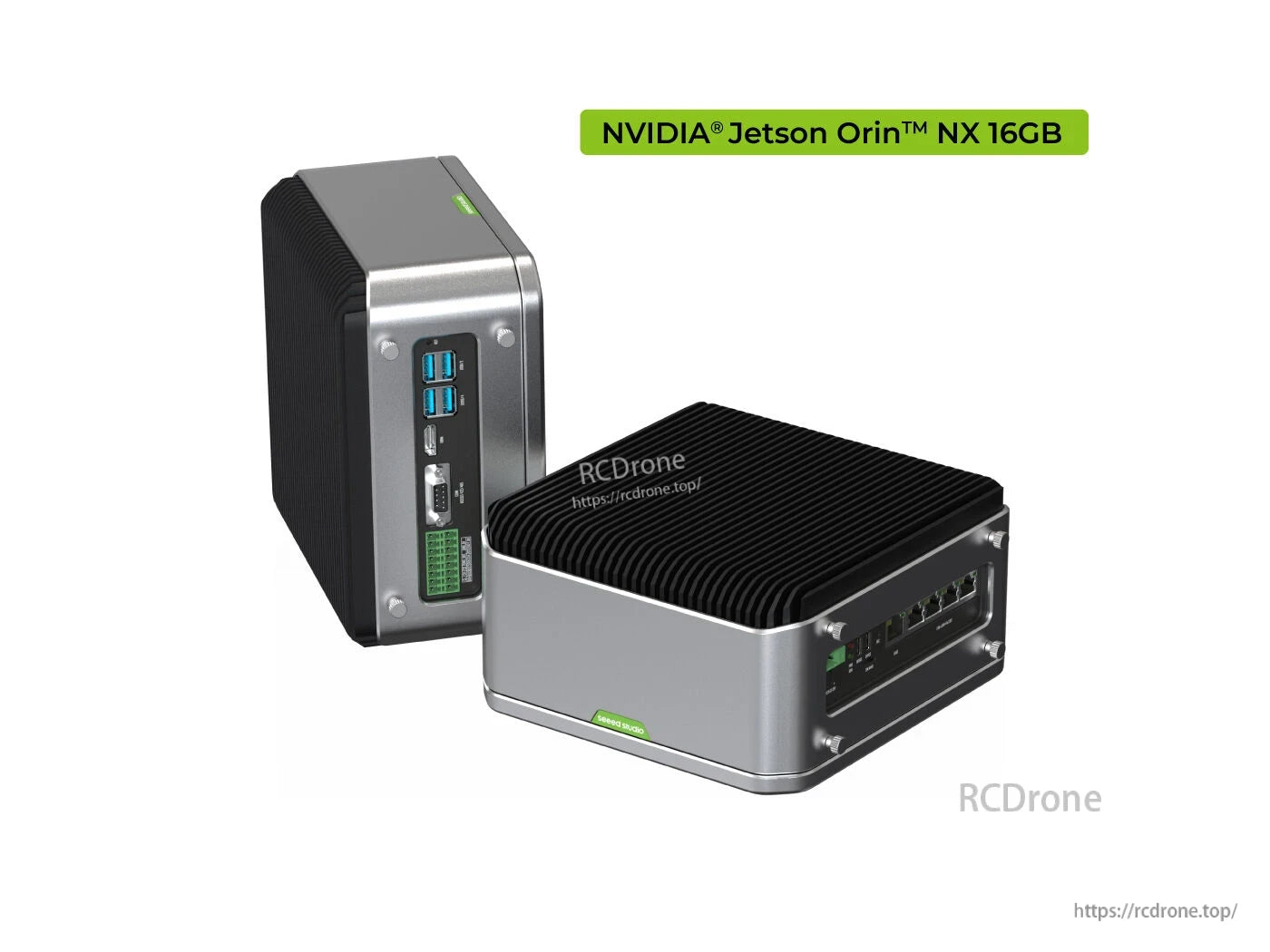

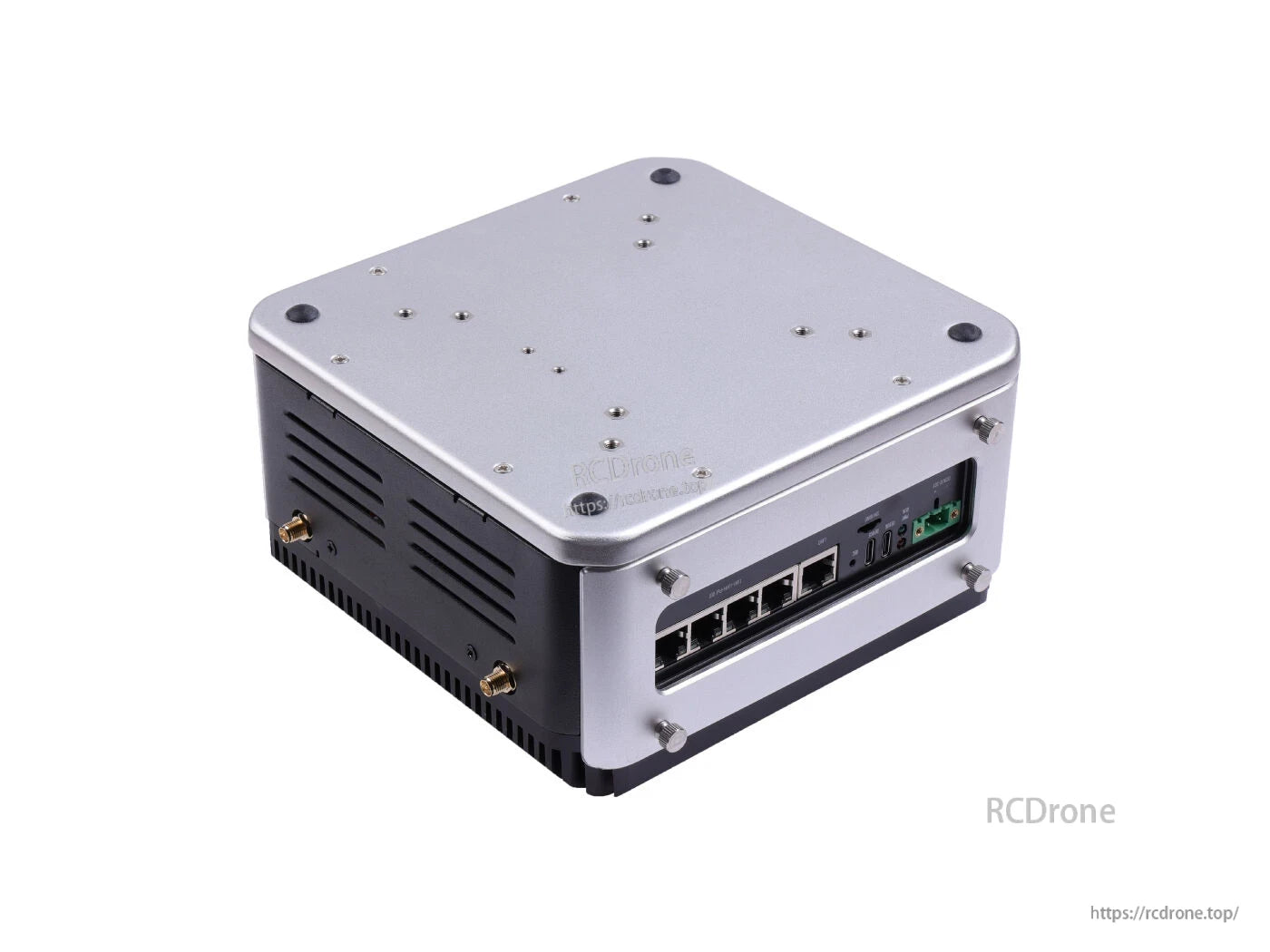

reServer Industrial J4012 AI-enabled NVR Server, Jetson Orin NX 16GB, 100 TOPS, 5x RJ45 GbE PoE, 2x 2.5" bays

Overview

reServer Industrial J4012 is an AI-enabled NVR Server for edge video analytics. It integrates an NVIDIA Jetson Orin NX 16GB module delivering up to 100 TOPS AI performance. The system adopts a fanless, passive heatsink design and provides 5x RJ45 GbE (4x PoE PSE 802.3af 15 W), dual 2.5" SATA drive bays, RS232/RS422/RS485, 4x DI/4x DO, 1x CAN, and a pre-installed JetPack system. Operating temperature is -20 ~ 60°C with 0.7 m/s airflow.

Key Features

• Jetson Orin NX 16GB SoM (1024-core NVIDIA Ampere GPU, 32 Tensor Cores) with up to 100 TOPS AI performance
• Multi-stream, real-time video processing for NVR and video analytics at the edge
• Fanless, compact enclosure with passive heatsink; wide operating temperature -20 ~ 60°C (0.7 m/s airflow)
• Networking: 5x RJ45 GbE (1x GbE + 4x GbE PoE PSE 802.3af 15 W)
• Storage: 2x drive bays for 2.5" SATA HDD/SSD (SATA III 6.0Gbps) plus 1x M.2 Key M PCIe; M.2 NVMe 2280 SSD 128G included
• Industrial I/O: 1x DB9 COM (RS232/RS422/RS485), 4x DI, 4x DO, 3x GND_DI, 2x GND_DO, 1x GND_ISO, 1x CAN
• Display: 1x HDMI
• USB: 4x USB3.1 Type-A, 2x USB2.0 Type-C
• Expansion: 1x Mini PCIe (LoRaWAN®/4G, module optional), 1x M.2 Key B (3042/3052) for 4G/5G (module optional), 1x TPM 2.0 connector (module optional), 1x RTC 2-pin (supports CR1220, not included)
• Connectivity options: Nano SIM card slot for cellular modules
• Mounting: Desk, DIN rail, VESA

Specifications

Hardware Overview

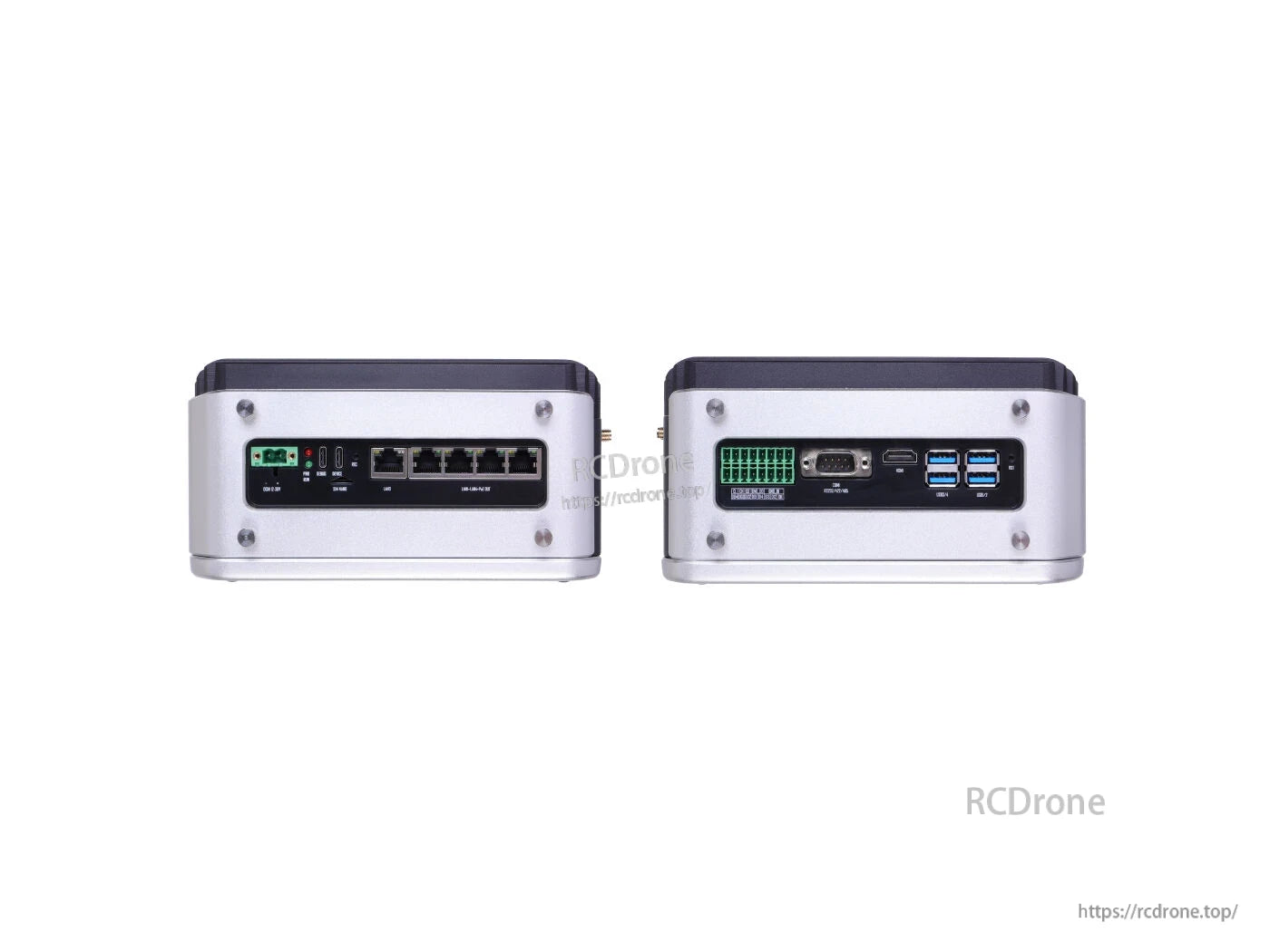

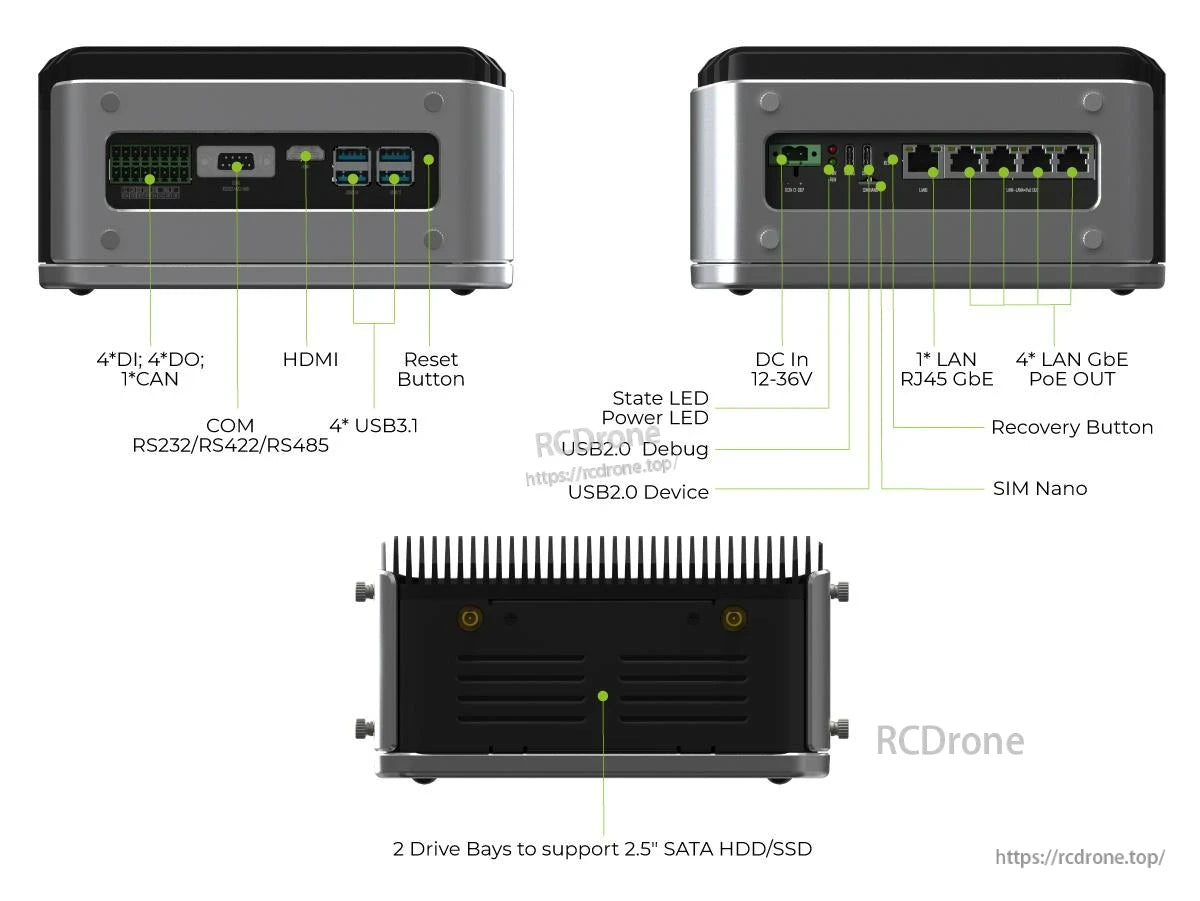

• Annotated front/rear I/O: 4x DI, 4x DO, 1x CAN; HDMI; 4x USB3.1; Reset button; DC In 12–36V; 1x RJ45 GbE; 4x RJ45 GbE PoE OUT; Recovery button; Nano SIM.

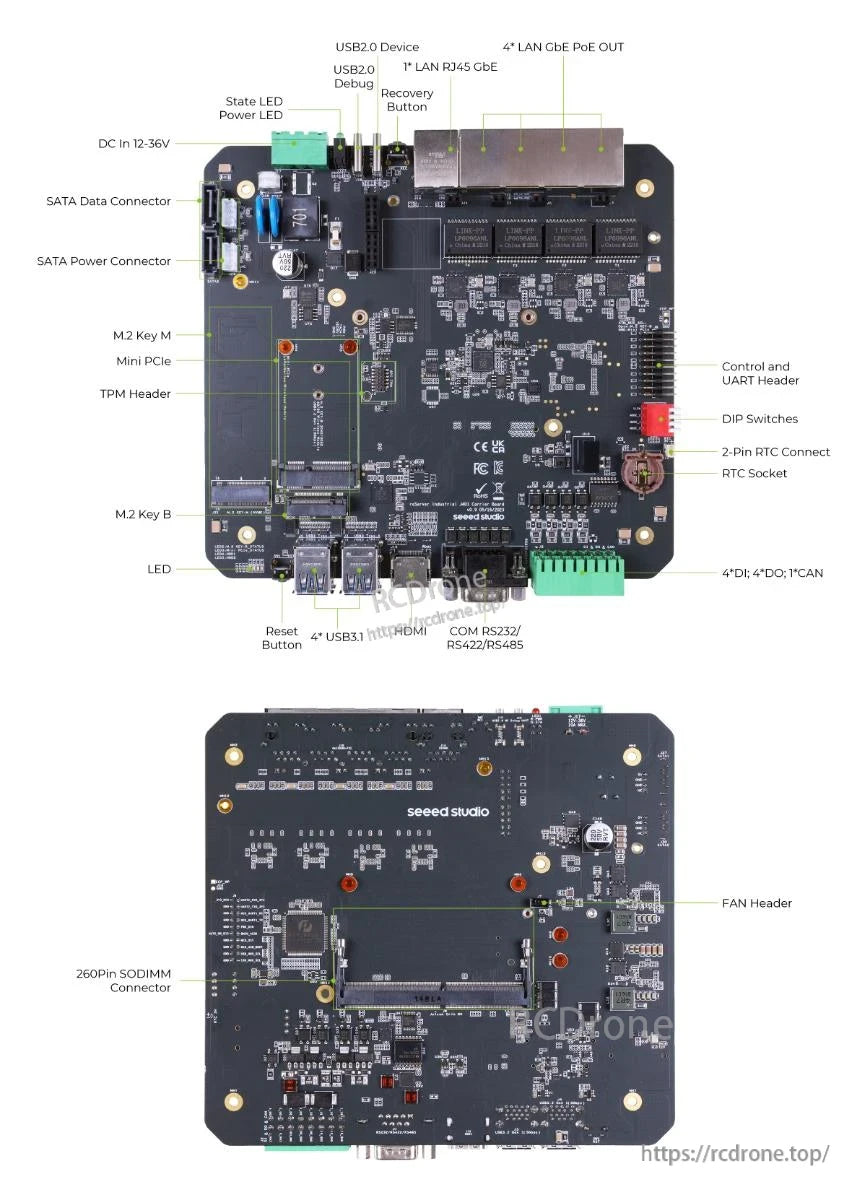

• Carrier board: SATA data/power connectors, M.2 Key M, Mini PCIe, TPM header, M.2 Key B, RTC socket, fan header.

Applications

• Unlock AI capabilities for existing cameras and VMS

Powered by NVIDIA Jetson Orin NX 16GB (up to 100 TOPS), capable of processing multiple video streams in real time. Apply high-performance filters to extract insights across large volumes of video.

• Smart Storage Solutions

Store and upload only noteworthy recordings for downstream processing. Dual 2.5-inch drive bays provide scalable storage for growing data needs.

• Create custom analytics made easy

• Out-of-box tailored AI solution:CVEDIA-RT offers models for face, vehicle, people detection, crowd estimation, and more.
• No-code workflow: Build video analytics pipelines using Lumeo drag-and-drop tools.

• End-to-end Computer Vision Development

Resources are available to acquire and label data, train and optimize models for edge deployment, and perform remote management.

Documents

• Datasheet
• Schematic
• 3D File
• Assembly Guide
• Seeed Nvidia Jetson Product Catalog
• Nvidia Jetson Comparison
• Nvidia Jetson Product Comparison
• Seeed Nvidia Jetson Success Cases
• Seeed Jetson One Pager

ECCN/HTS

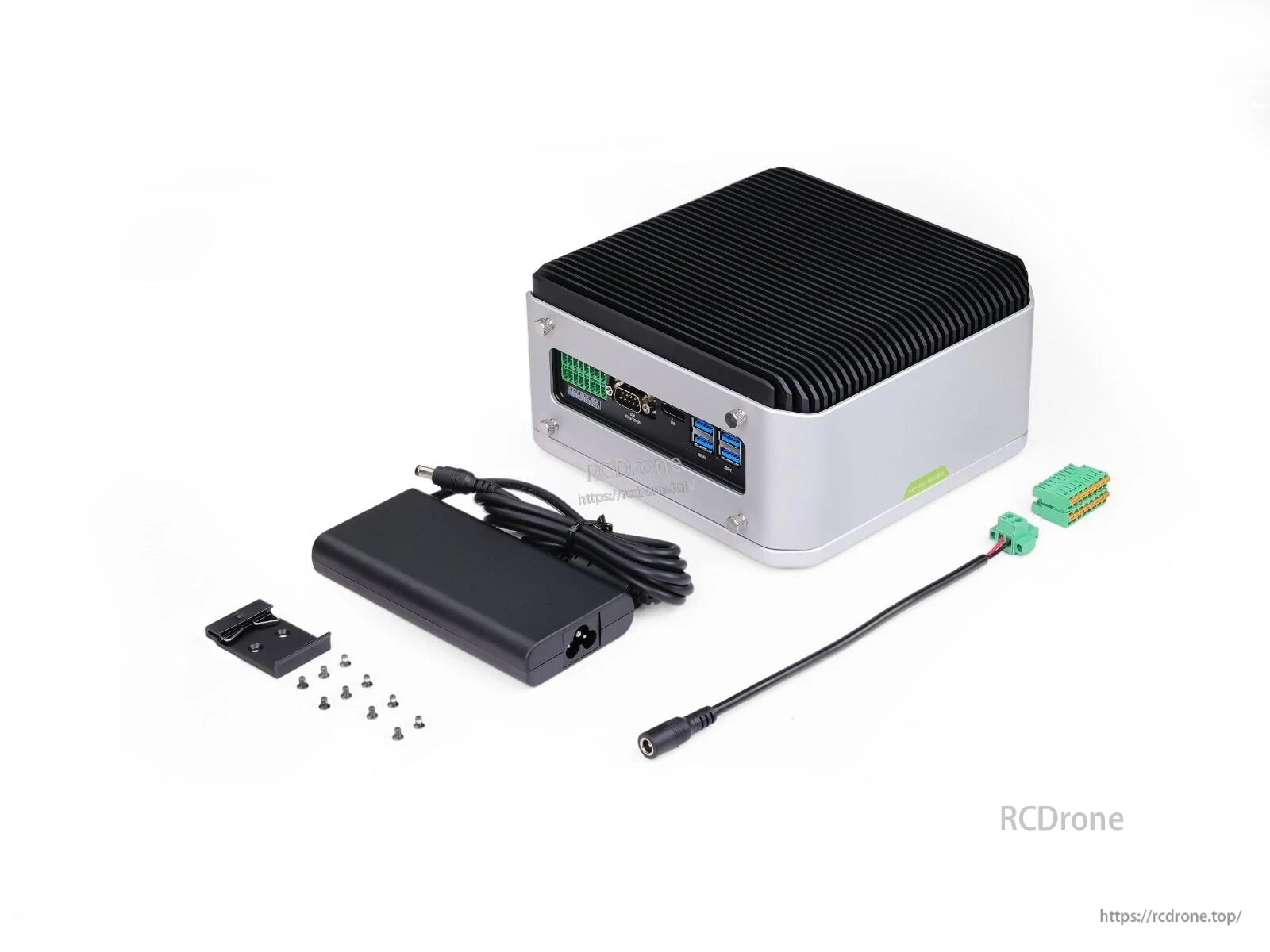

What’s Included

• reServer Industrial J4012 (System Installed) x 1
• DIN rail bracket x 1
• Bracket screw x 10
• 16-Pin Terminal block for DIO x 1
• 24V/5A Power adapter (without power cord) x 1
• 2-Pin Terminal block power connector x 1

Note

The product includes a power adapter but does not include an AC cloverleaf power cord. Please purchase a suitable cord for your region:

• AC Cloverleaf Power Cord - US
• AC Cloverleaf Power Cord - EU

Details

Jetson Orin NX 16GB with 100 TOPS AI performance, open hardware, wide temperature support, multiple connectivity options, ideal for robotics, generative AI, and video analytics. (39 words)

HTHH Kel product features include HDMI reset, DC input, and LAN/GbE connectivity. It also has a CAN button, power LED recovery, and RS232/RS422/RS485 interfaces. Additionally, the device supports 2.5" SATA HDD or SSD drives in two drive bays.

The USB-ZO device features LAN Gigabit Ethernet PoE output and a USB-ZO 1*LAN RJ-45 connector. It has debug and recovery state LED buttons with power LEDs and DC input (12-36V). The device also includes SATA data and power connectors, mini PCle control and UART headers, TPM header DIP switches, and RTC connector.

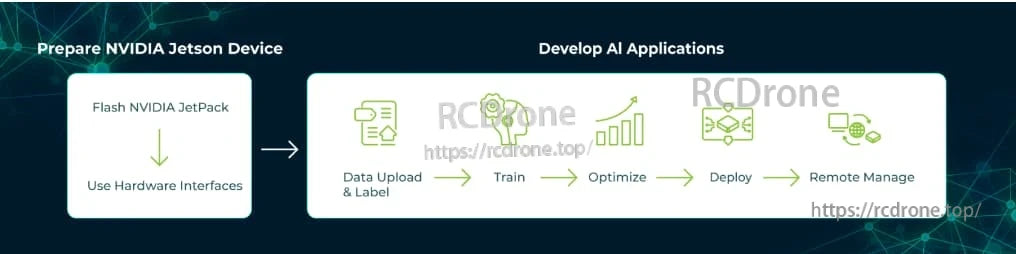

Prepare Jetson Device, Develop AI Apps: Flash, Upload, Train, Optimize, Deploy, Manage
