RFD900X Telemetry Radio Modem - With Hex upgrade orange cube Pixhawk2 Flight Control autopilot Here 3 CAN GNSS GPS module for fixed-wing drone

Hex Technology Pixhawk 2.1 Full Bundle Standard Carrier Board RFD900+ Telemetry Combo

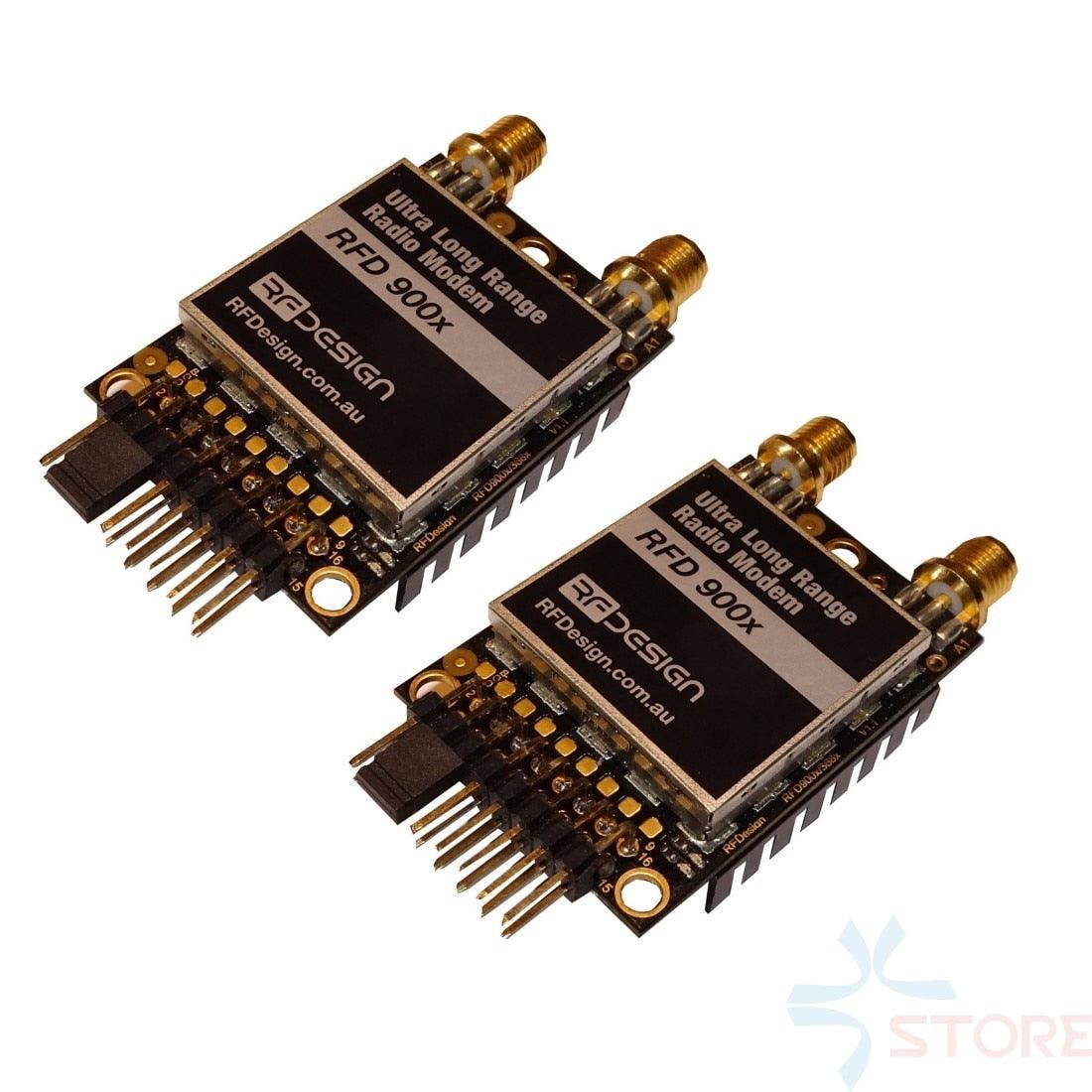

This Ultra Long Range 915MHz Telemetry modem features:

Upgrade the radio on your aircraft to a RFD900+ or RFD900u and increase the range several times more.

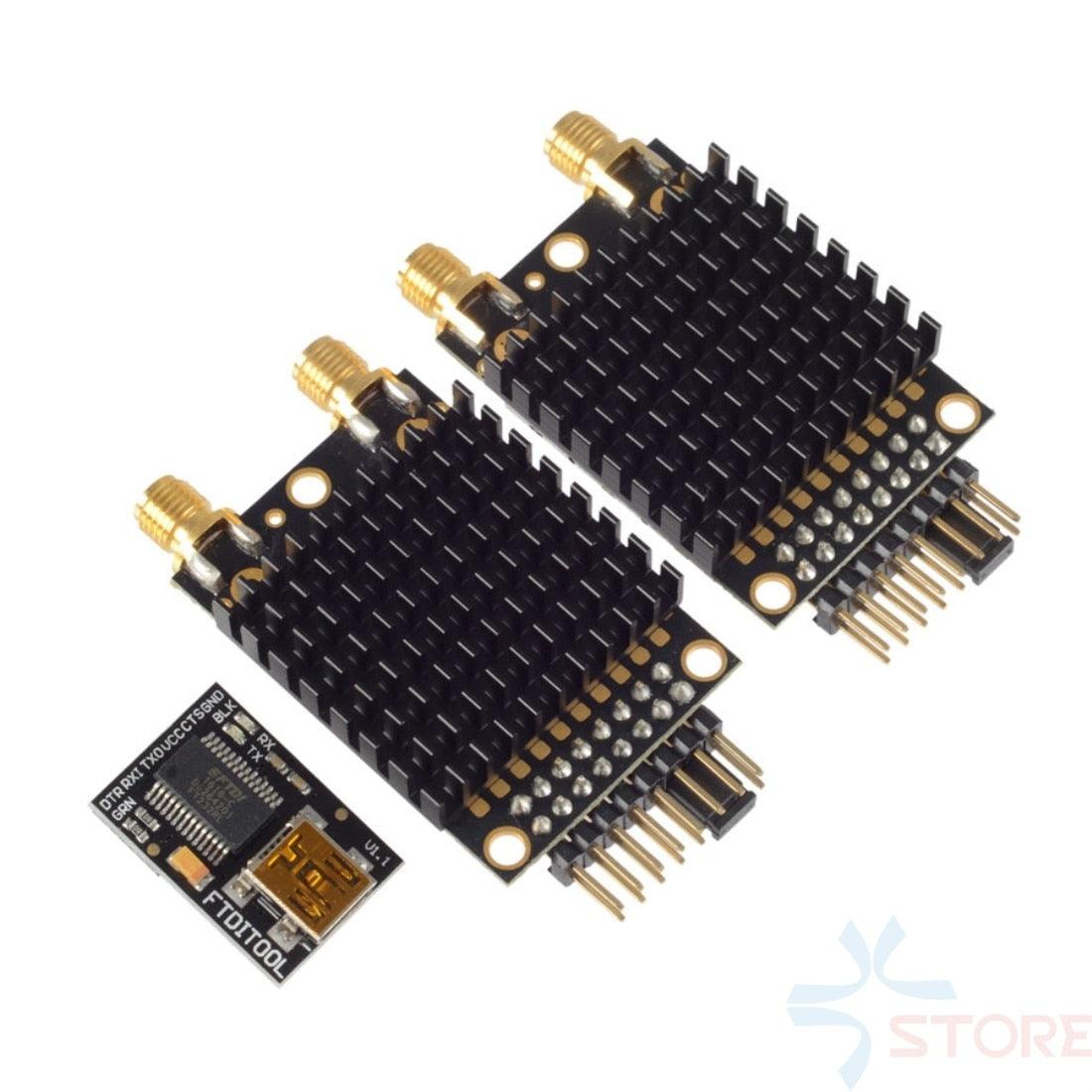

This bundle includes:

- 2) RFD900X modems

- 4) 3dBi antenna for air and ground stations

- 1) FTDI cable for upgrading and programming

- 1) Pixhawk to RFD900+ cable

- 1) APM to RFD900+ cable

"Stock" Hope RF systems are only good for about 1Km, so this is the upgrade you need!

Fully compatible with the 3DR Mission Planner too (same as the Hope RF radios)!

Features:

Long range >40km depending on antennas and GCS setup *80km demonstrated by Edge Research labs on a balloon !, 57km in India, on Dipoles.

• 2 x RP-SMA RF connectors, diversity switched.
• 1 Watt (+30dBm) transmit power.
• Transmit low pass filter.
• > 20dB Low noise amplifier, high IP3 (Updated on RFD900+)
• RX SAW filter.
• All I/O ESD protected and filtered (New on RFD900+)
• Open source firmware SiK (V1.x) / tools, field upgradeable, easy to configure.
• Multipoint software capability with MP SiK (V2.x)
• Small, light weight.
• Compatible with 3DR / Hope-RF radio modules.
• License free use in Australia, Canada, USA, NZ

Interfaces:

• RF : 2 x RP-SMA connectors
• Serial: Logic level TTL (+3.3v nominal, +5v tolerant)
• Power: +5v, ~800mA max peak (at maximum transmit power)
• GPIO: 6 General purpose IO (Digital, ADC, PWM capable).

Specifications:

• Frequency Range:  902 - 928 MHz (USA) / 915 - 928 MHz (Australia)
• Output Power: 1W (+30dBm), controllable in 1dB steps ( +/- 1dB @=20dBm typical )
• Air Data transfer rates: 4, 8, 16, 19, 24, 32, 48, 64, 96, 128, 192 and 250 kbit/sec ( User selectable, 64k default )
• UART data transfer rates: 2400, 4800, 9600, 19200, 38400, 57600, 115200 baud  ( User selectable, 57600 default )
• Output Power: 1W (+30dBm)
• Receive Sensitivity: >121 dBm at low data rates, high data rates (TBA)
• Size: 30 mm (wide) x 57 mm (long) x 12.8 mm (thick) - Including RF Shield, Heatsink and connector extremeties
• Weight: 14.5g
• Mounting: 3 x M2.5 screws, 3 x header pin solder points
• Power Supply: +5 V nominal, (+3.5 V min, +5.5 V max), ~800 mA peak at maximum power
• Temp. Range: -40 to +85 deg C, tested operational from -73 to +123 deg C.

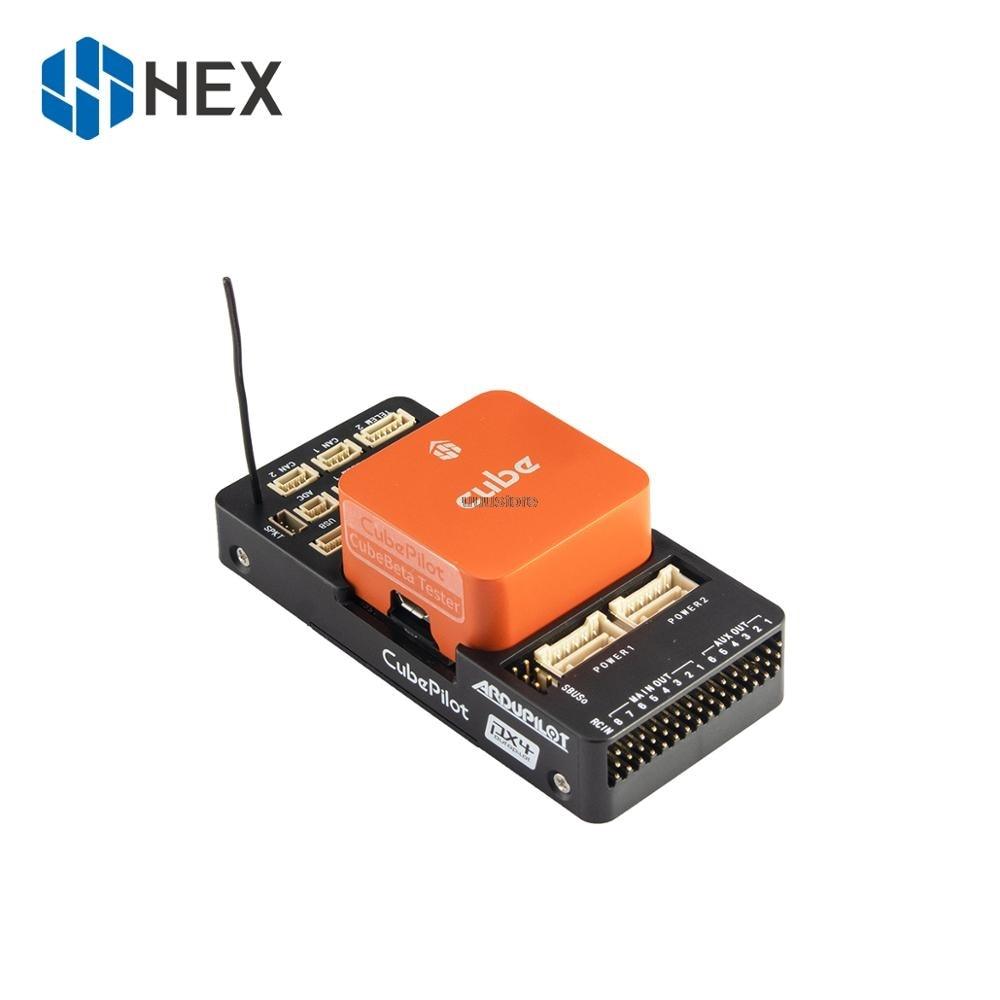

Pixhawk 2 Orange Cube description
Cube Orange targets to education, amateur drones lovers, and professionals with cost effective flight control hardware.
Includes new generation of more powerful H7 processor, with stronger performance, faster processing, increased security with built-in
triple redundant sensors, temperature control shock absorption IMU.
With the help of flight software, Cube Orange can completely fly any remotely controlled aircraft, helicopter
or multi-rotor vehicle and turn it into a more professional uav platform.
ADS-B Carrier Board
A standard carrier board with an integrated 1090MHz ADS-B receiver allowing the software to receive information about he location of manned aircraft in the area.
Receives information such as position, altitude, speed, etc, which can all be viewed in Mission Planner.
Through settings, you can optionally set up your cube to allow the vehicle to automatically avoid aircraft that are within an exclusion zone set by you
General Pixhawk 2.1 Cube Key Features
Built-in IMU Heating system, allowing flights at extreme temperature (below freezing)
Robust DF17 Interface connectors give enhanced drop and shock resistence
Airframes: VTOL, Plane, Multicopter, Traditional Heli, Rover, Boat, Sub, General Robotics
Get Started on your road to Autonomy!

a 1090MHz ads-b receiver from UAvionix has been integrated into the new ADS-B carrier board . you can optionally set Up your cube to allow the vehicle to automatically avoid aircraft that are detected in an exclusion zone .

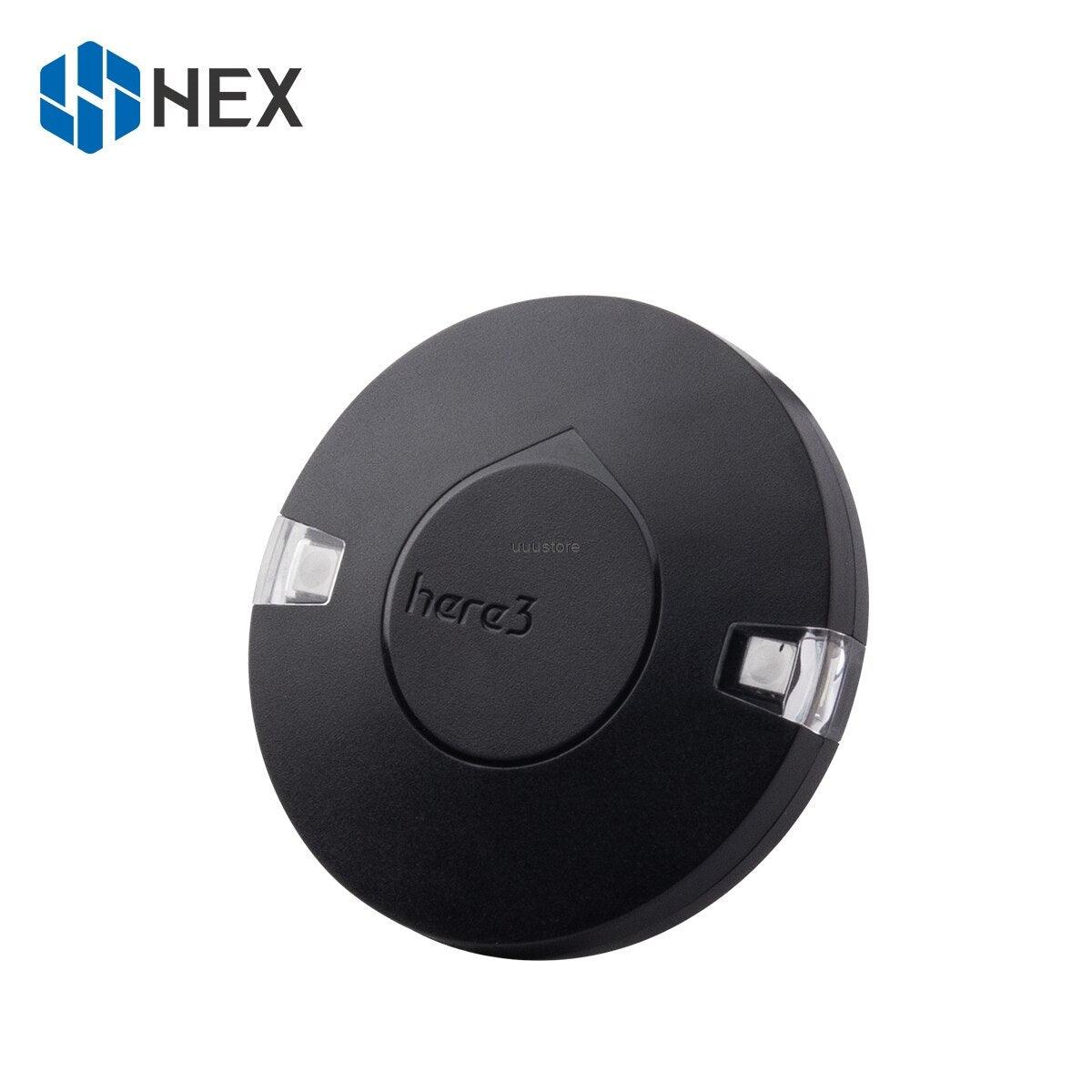

Hex Here 3 GPS description

GPS positioning: Yes
Magnetic compass: Yes
Communication protocol: CAN
Gyroscope + accelerometer: Yes
Run real-time operating system: Yes
Support firmware update: Yes
RTK positioning: Yes
Dust-proof and splash-proof: Yes

Hardware parameters
Satellite receiver type: u-blox eighth generation positioning and navigation chip (M8P)
Navigation satellite frequency band: GPS L1C/A, GLONASS L1OF, Beidou B1I
Positioning accuracy: 3D positioning (3D FIX): 2.5m/differential positioning (RTK): 0.025 m
Processor chip: STM32F302
IMU sensor: ICM20948
Navigation update rate: up to 8Hz
Communication protocol: CAN
Working environment temperature: -40°C to 85°C
Size: 76mmx76mmx16.6mm
Weight: 48.8g
