RJXHOBBY Mark4 V2 8-inch 367mm Carbon Fiber Plain Matte Frame Kit for RC FPV Racing Drone

RJXHOBBY Mark4 V2 8 inch FPV Frame Kit Overview

The RJXHOBBY Mark4 V2 8-inch frame kit is a high-precision solution designed for FPV enthusiasts who demand a balance of agility, strength, and versatility. With a 367mm wheelbase and a compact frame size of 234mm x 282mm, this frame is optimized for 8-inch propellers, delivering responsive control and stable flight. The lightweight structure weighs just 199.9g, featuring a durable build made from premium plain matte carbon fiber. The inner space height of 35mm provides ample room for flight controllers and other electronic components, while the versatile installation options accommodate 19x19mm cameras and flight controllers with both 20x20mm and 30.5x30.5mm hole spacings. This frame kit is designed to excel in both long-range and freestyle applications, offering a sturdy and adaptable platform for a wide range of flying styles.

RJXHOBBY Mark4 V2 8 inch FPV Frame Kit Key Features:

• High-Grade Carbon Fiber Construction: The RJXHOBBY Mark4 V2 frame is made from durable plain matte carbon fiber, offering excellent impact resistance while maintaining a lightweight design.
• Compact and Efficient Design: With a frame size of 234mm x 282mm and a 367mm wheelbase, the Mark4 V2 is engineered to deliver precise control and stability, ideal for both freestyle flying and long-range exploration.
• Flexible Installation Options: The frame supports 19x19mm camera mounts, with flight controller and image transmission mounting options at 20x20mm and 30.5x30.5mm hole spacings, making it compatible with a wide range of setups.
• Complete Assembly Kit: The kit includes all necessary hardware, such as M3 screws, standoffs, and press nuts, along with additional accessories like anti-slip silicone pads and sponge damping pads for vibration reduction and secure component mounting.
• Reinforced Structure for Durability: Stiffening plates and arm bracers are included to enhance the frame’s rigidity, ensuring reliable performance during high-speed maneuvers and demanding flight conditions.

What’s Included:

• Carbon Fiber Plates:

  • Top Plate (2.0mm) x1
  • Mid Plate (3.0mm) x1
  • Bottom Plate (3.0mm) x1
  • Arm (6.0mm) x4
  • Arm Bracer (2.0mm) x2
  • Stiffening Plate (2.0mm) x2
  • Camera Plate (2.5mm) x2

• Hardware:

  • M335D5 Standoffs x8
  • M3*6 Screws x8
  • M3*10 Screws x4
  • M3*12 Screws x8
  • M3*16 Screws x8
  • M3*25 Screws x4
  • M3 Nuts x4

• Accessories:

  • Anti-Slip Silicone Pad (2mm) x1
  • Sponge Damping Pads x4
  • Battery Straps x2

RJXHOBBY Mark4 V2 FPV Frame Kit Dimensions:

• Wheelbase: 367mm
• Frame Size: 234mm x 282mm
• Net Weight: 199.9g
• Camera Mount Size: 19mm x 19mm
• Image Transmission Hole Spacing: 20mm x 20mm and 30.5mm x 30.5mm
• Flight Control Hole Spacing: 20mm x 20mm and 30.5mm x 30.5mm
• Motor Mounting Holes: 16mm x 16mm and 19mm x 19mm
• Inner Space Height: 35mm

Assembly and Build:

The RJXHOBBY Mark4 V2 8-inch frame kit offers an intuitive assembly experience with a modular design that is both builder-friendly and efficient. The combination of stiffening plates and arm bracers ensures enhanced rigidity, reducing vibrations and flex during aggressive flying. This frame is suited for both experienced FPV pilots and those looking to elevate their skills, offering a stable yet responsive platform for various flight styles.

Applications:

This frame is versatile and ideal for:

• Freestyle flying with dynamic control
• Long-range FPV missions with stable flight characteristics
• Technical acrobatics with precise responsiveness
• Cinematic FPV captures with smooth, controlled movements

Conclusion:

The RJXHOBBY Mark4 V2 8-inch 367mm Carbon Fiber Frame Kit provides the perfect foundation for pilots seeking a high-performance, durable, and adaptable frame. Whether you’re into freestyle tricks, long-range exploration, or cinematic captures, this frame delivers on all fronts with its lightweight build, robust construction, and versatile setup options. Take your FPV flying to the next level with the RJXHOBBY Mark4 V2 8-inch frame kit.

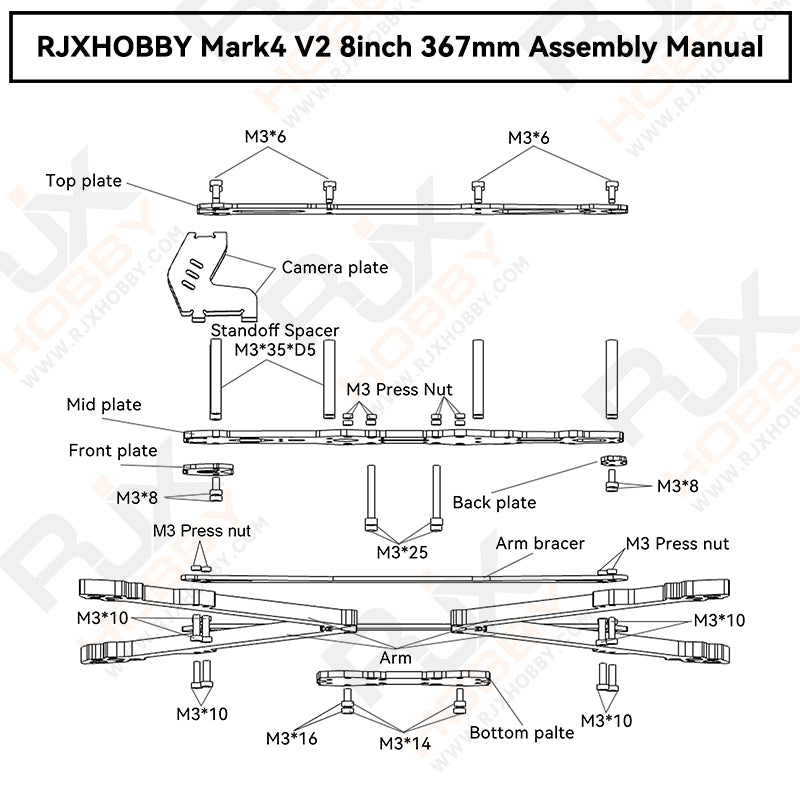

RJXHOBBY Mark4 V2 8-inch carbon fiber frame kit for RC FPV racing drone, including assembly manual and various components such as top plate, camera plate, standoff, spacers, mid plate, front and back plates, arm bracket, arms, bottom plate, with M3 screws.

RJXHOBBY Mark4 V2 8-inch carbon fiber frame kit for RC FPV racing drones includes top plate, stiffening plates, mid plate, cam plates, arms, bottom plate, battery straps, arm bracers, anti-slip silicone pad, and sponge damping pads.
