Rocket-RC Supersonic V2 130A/160A Waterproof Brushless ESC for 1/8 & 1/7 RC Cars

Rocket-RC

$85.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Options 130A ESC (XT60+T) 160A ESC (XT60+XT60) 160A ESC (XT90+XT90) Programming Card

Quantity

View full details

Overview

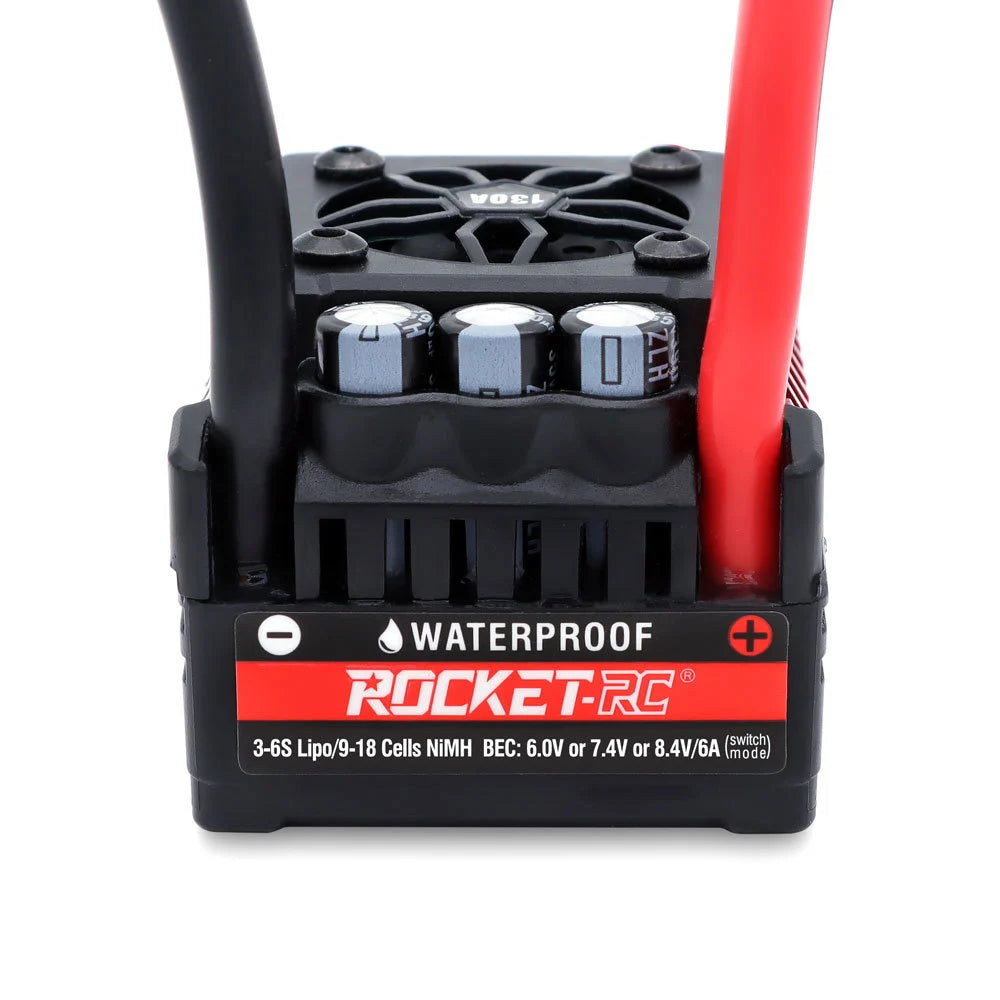

The Rocket-RC Supersonic V2 is a waterproof brushless ESC for sensorless RC car power systems. Available in 130A and 160A versions, it supports 3-6S LiPo or 9-18 cell NiMH battery packs and provides selectable 6.0V, 7.4V, or 8.4V 6A BEC output.

Key Features

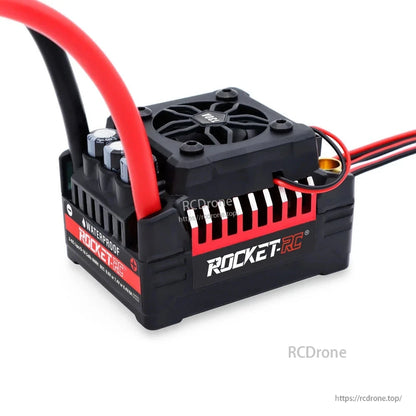

IP67 waterproof and dustproof design.
ESC and motor overheat protection.
Infineon MOSFETs and ruby capacitors.

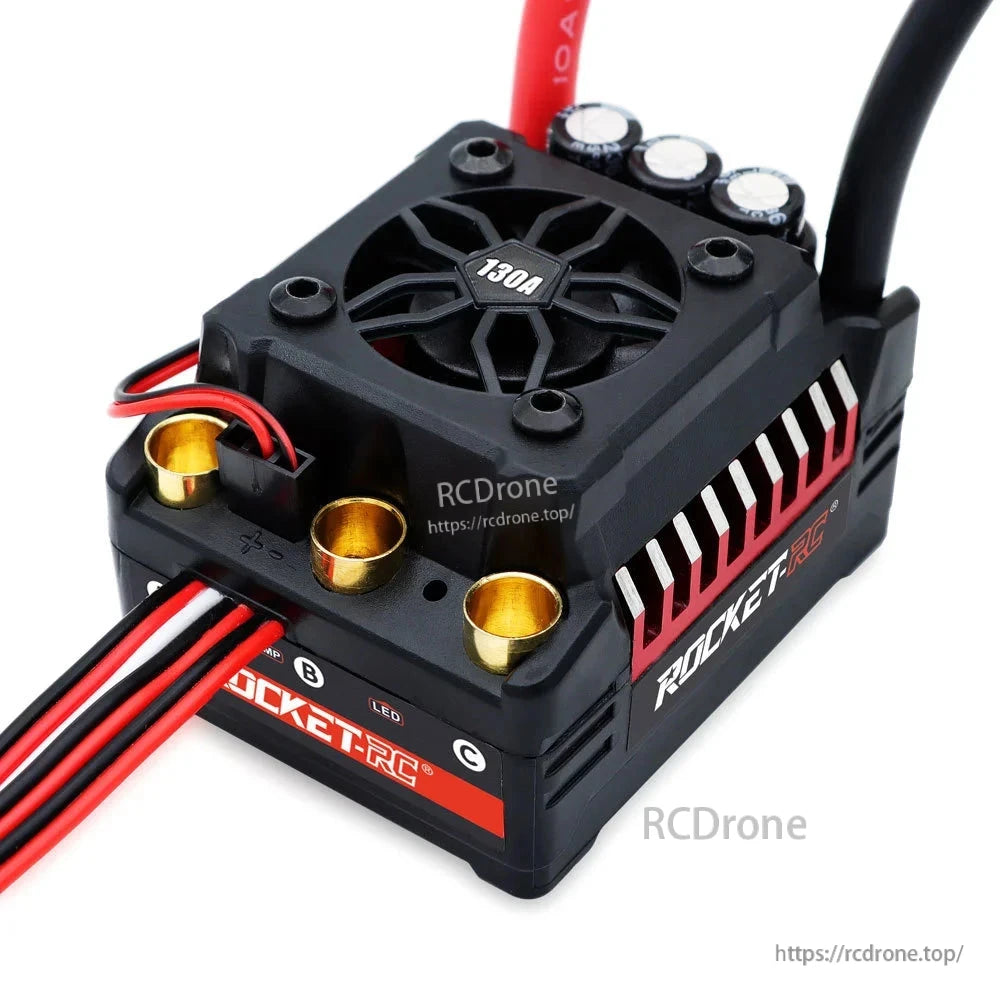

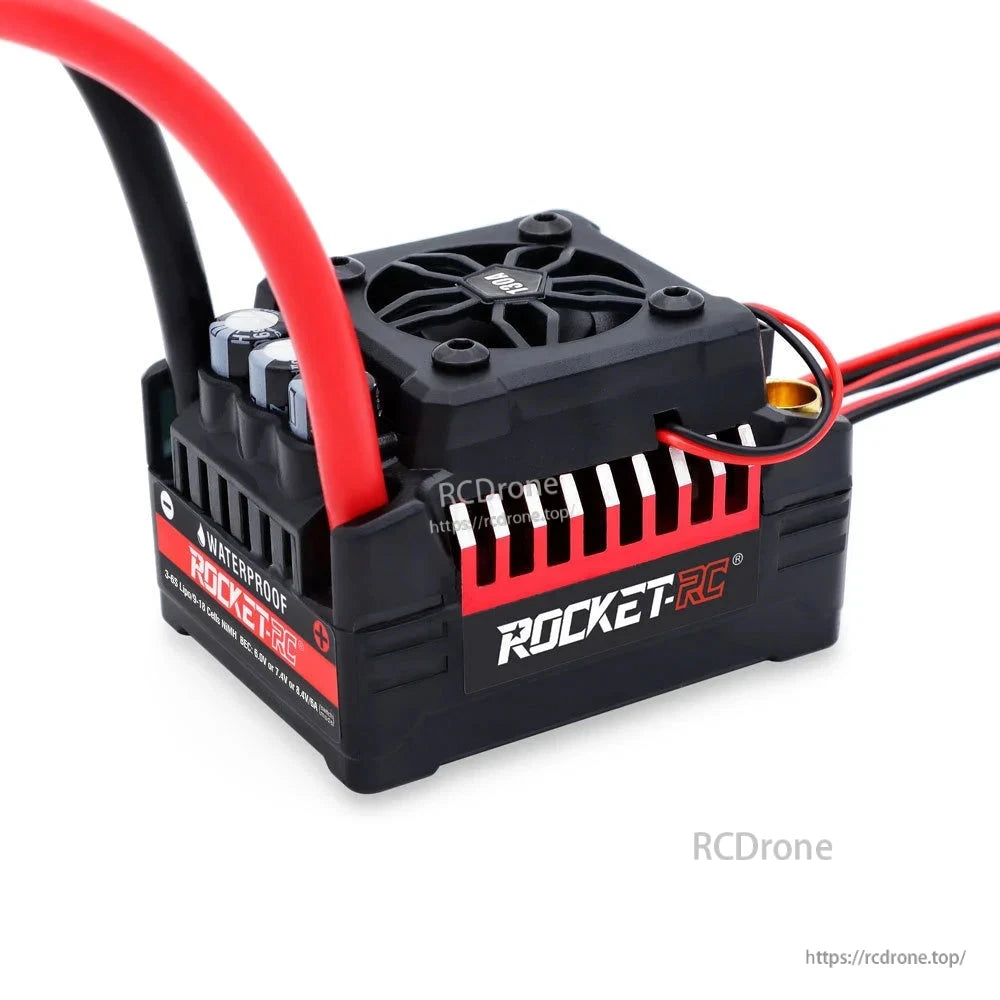

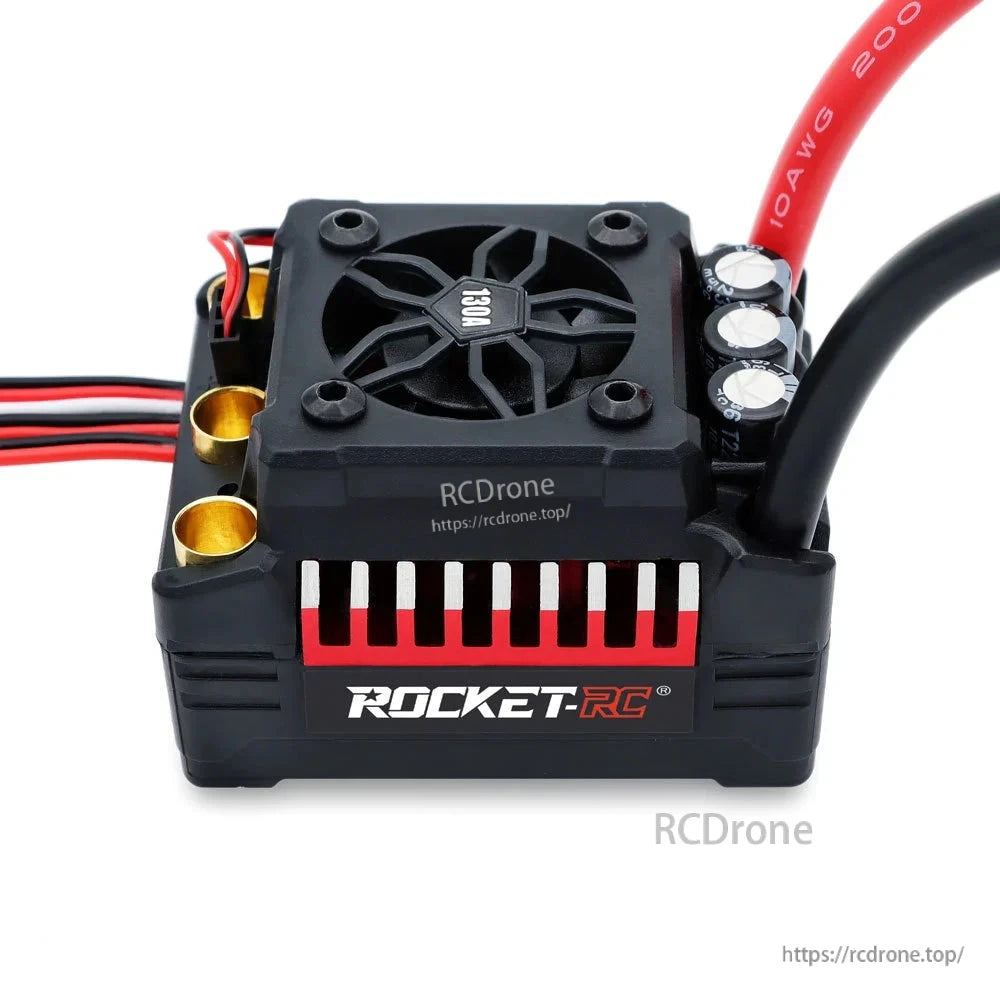

Aluminum heat sink with a removable 30 x 30 x 10 mm cooling fan.
Selectable Super BEC output: 6.0V, 7.4V, or 8.4V at 6A.
Adjustable throttle travel and startup settings.
Low-voltage protection with audible prompts.
Automatic shutdown after 5 minutes without operation.

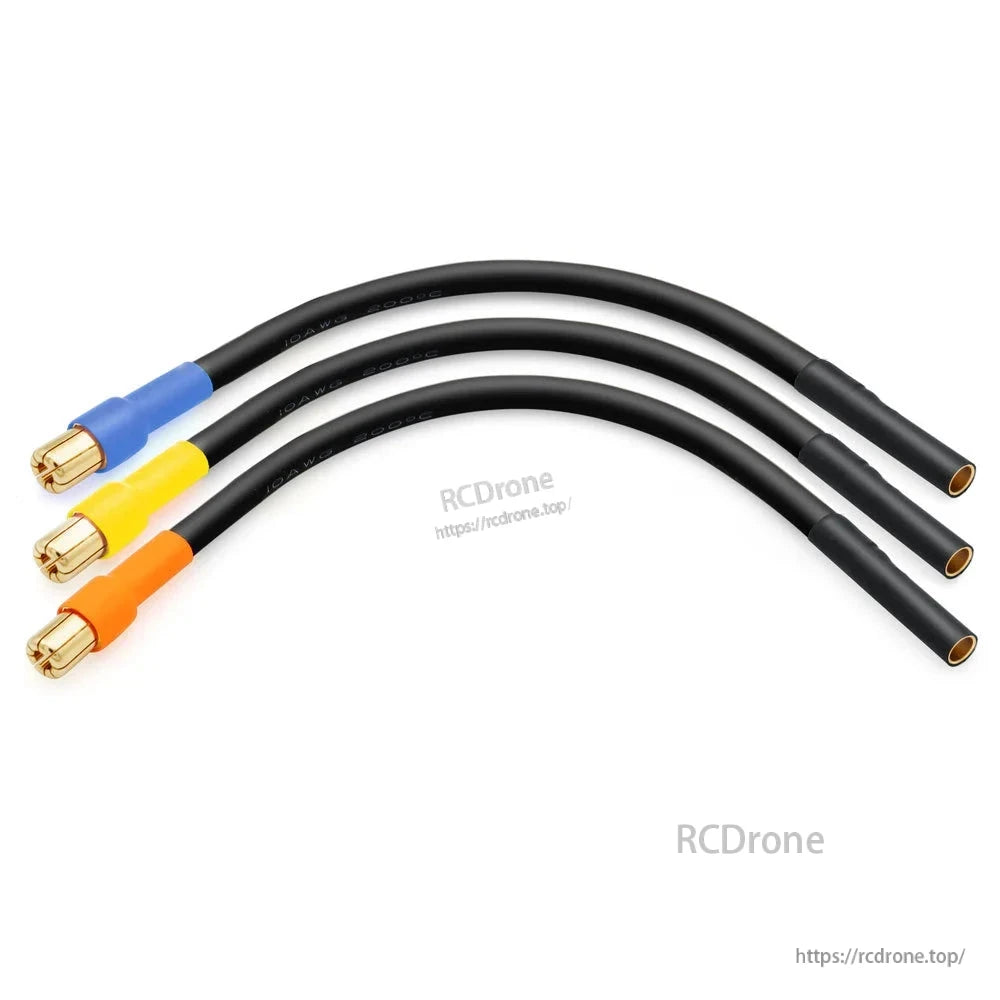

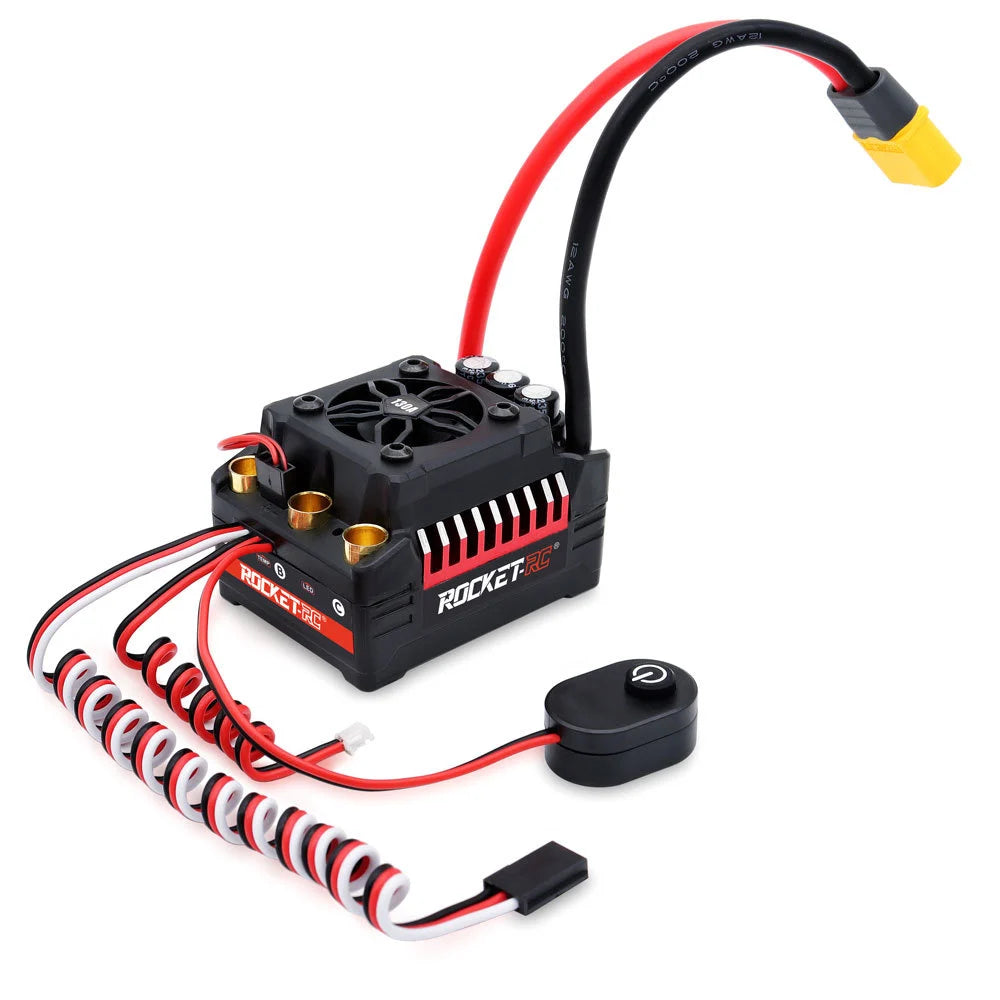

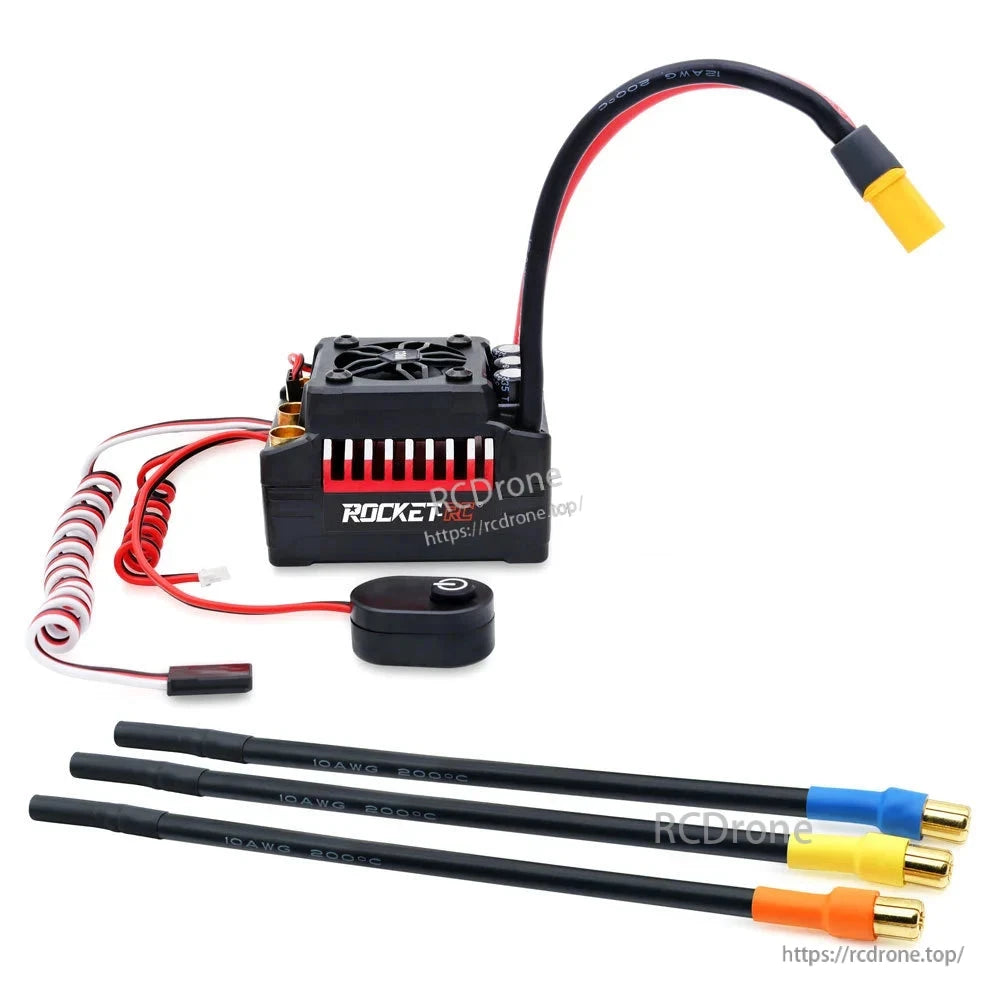

Electronic switch, receiver lead, ZH1.27 plug, motor connectors, and XT60/XT90 battery connector options.

Specifications

Model	Supersonic V2 130A	Supersonic V2 160A
Continuous / Burst Current	130A / 860A	160A / 1080A
Suitable Vehicle	1/8 RC car	1/8 and 1/7 RC cars
Motor Type	Sensorless brushless motor	Sensorless brushless motor
Battery Input	3-6S LiPo or 9-18 cell NiMH	3-6S LiPo or 9-18 cell NiMH
BEC Output	6.0V / 7.4V / 8.4V, 6A selectable	6.0V / 7.4V / 8.4V, 6A selectable
Resistance	0.00035 ohm	0.00028 ohm
Dimensions	57.5 x 45 x 37 mm	57.5 x 45 x 37 mm
Weight	126 g	150 g

Motor Compatibility

Battery	Supersonic V2 130A	Supersonic V2 160A
4S LiPo or 12 cell NiMH	On-road: 40XX or smaller, KV <3000 Off-road / buggy / monster: 40XX or smaller, KV <2500	On-road: 42XX or smaller, KV <3000 Off-road / buggy / monster: 42XX or smaller, KV <2500
6S LiPo or 18 cell NiMH	On-road: 40XX or smaller, KV <2500 Off-road / buggy / monster: 40XX or smaller, KV <2000	On-road: 42XX or smaller, KV <2500 Off-road / buggy / monster: 42XX or smaller, KV <2000

Remove the cooling fan before water use, and clean and dry the ESC after use to help prevent connector corrosion. For product assistance, contact rcdrone.top.
