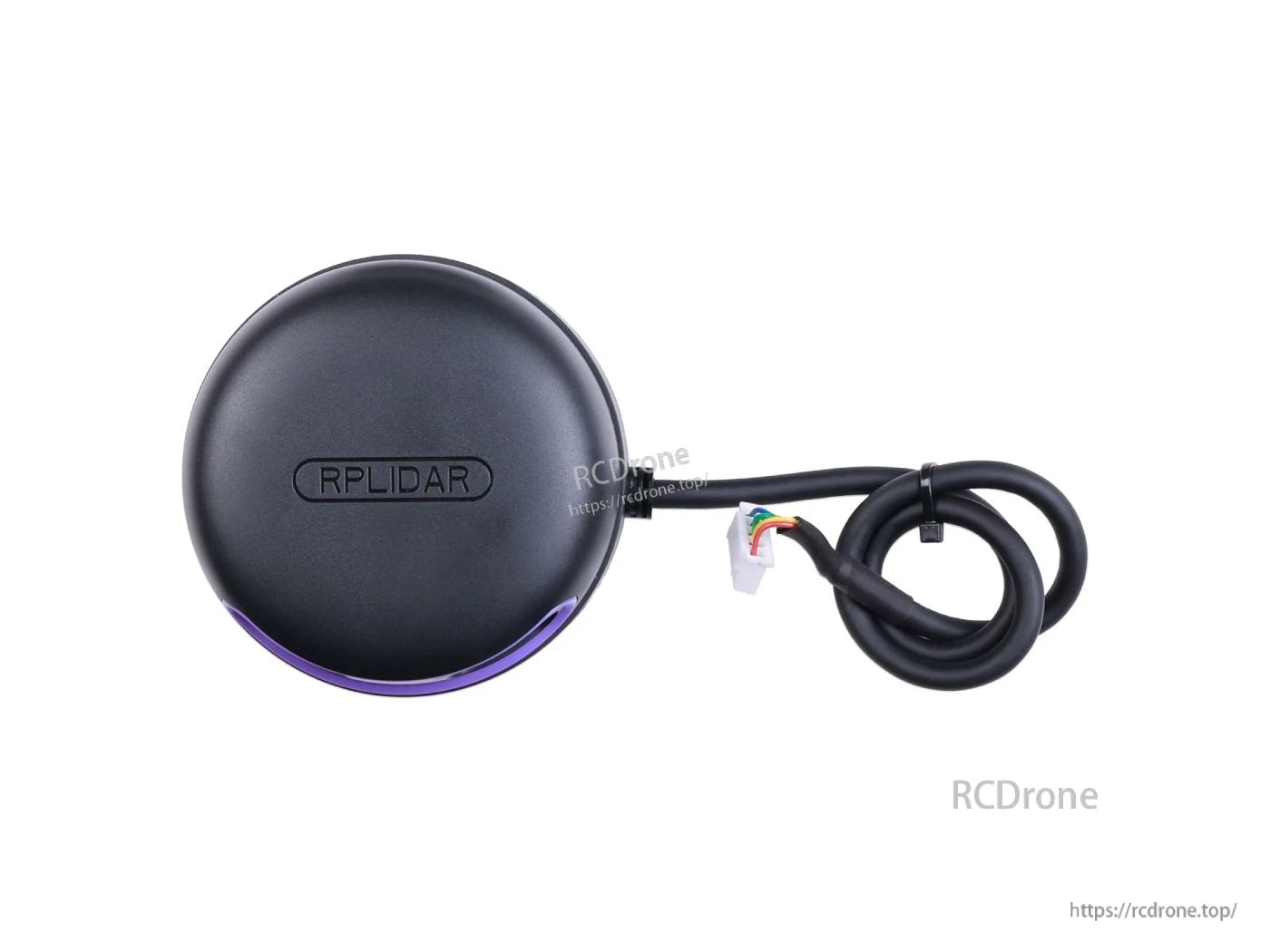

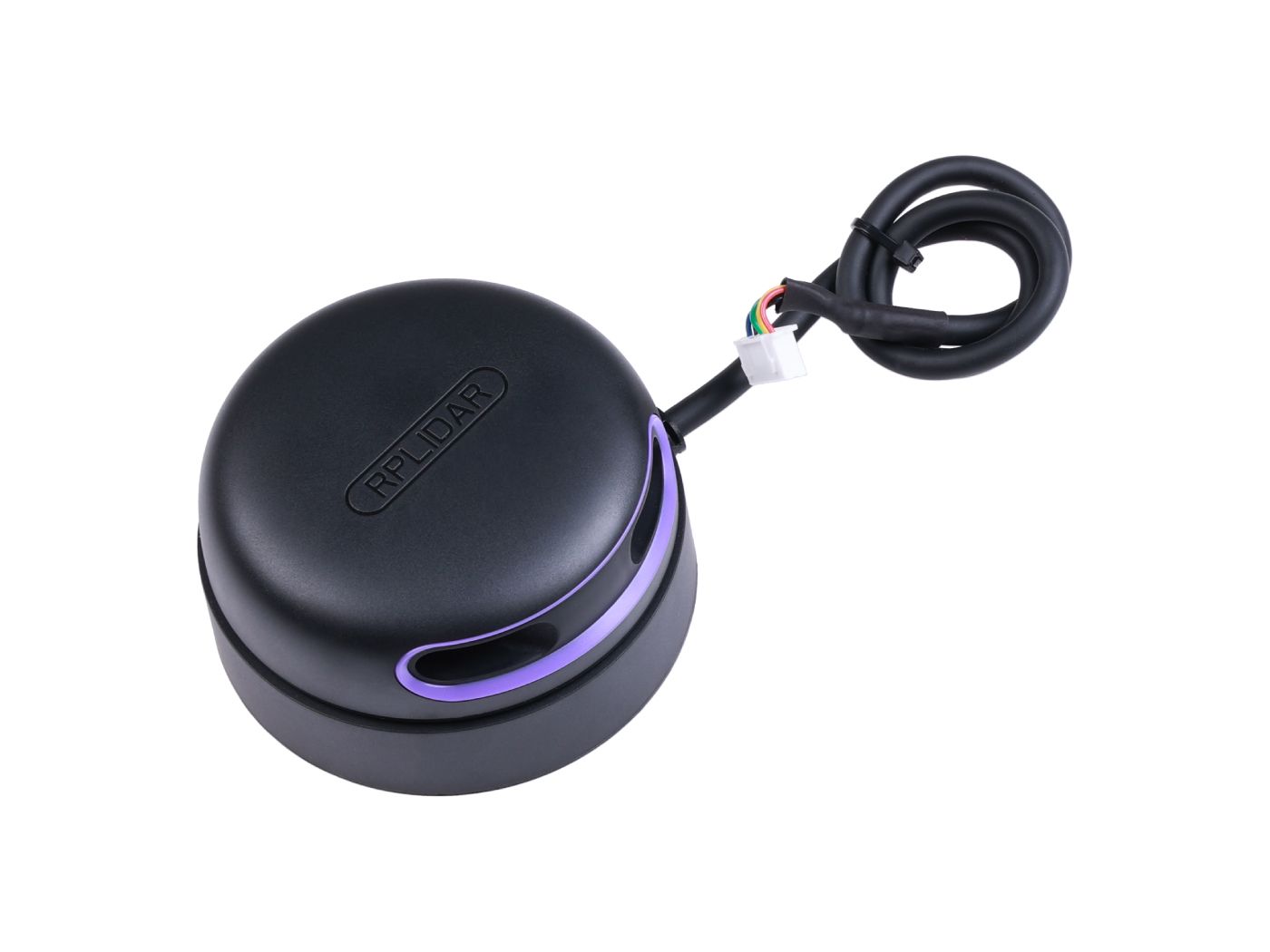

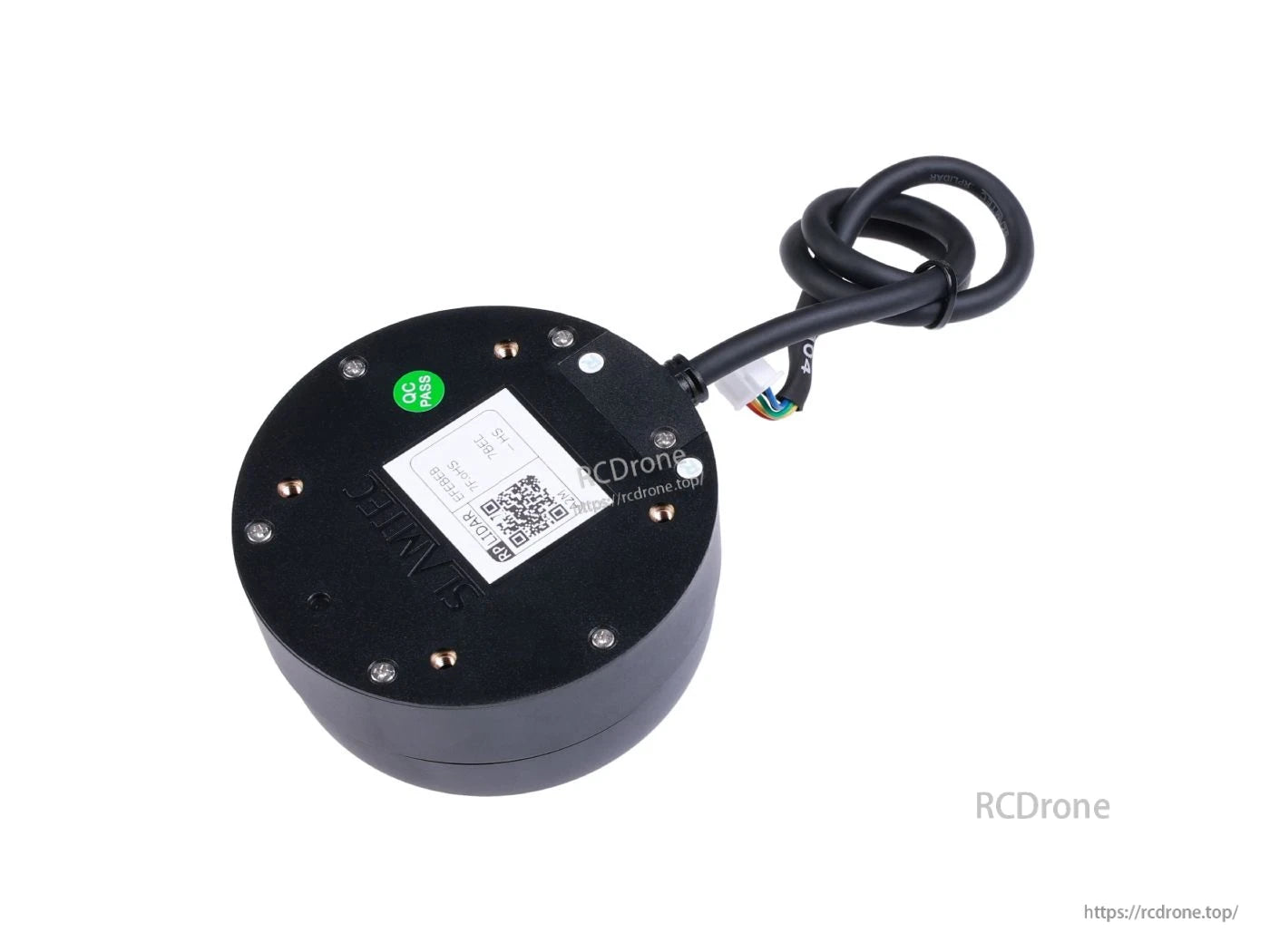

RPLiDAR A2M12 12M Range 360 Degree Laser Scanner Kit, 16 kHz Sampling, 0.225° Angular Resolution, 5~15Hz

Overview

The RPLiDAR A2M12 is a 360 Degree Laser Scanner Kit based on triangulation laser sensing. It samples at up to 16 kHz to generate 2D point cloud maps for a 12m radius (within low precision), delivering 0–360° coverage and dependable operation for up to 5 years. Its compact, cup-size design suits in-home robots, 3D modeling, positioning, and obstacle detection.

Key Features

• 360 Degree Triangulation Laser Sensor Ranging Scanner: Generate 2D point cloud map information for 12m radius, 0.225° angular resolution
• Distinguished Sampling Capability: High-speed RPVision3.0 range engine, up to 16 kHz measurement frequency, 5 ~ 15 Hz adjustable rotational speed
• Prolong Operation Life: OPTMAG light magnetic fusion technology supports up to five years of reliable running
• Certified Output Laser Power: Safe as IEC-60825 Class One eye safety rating

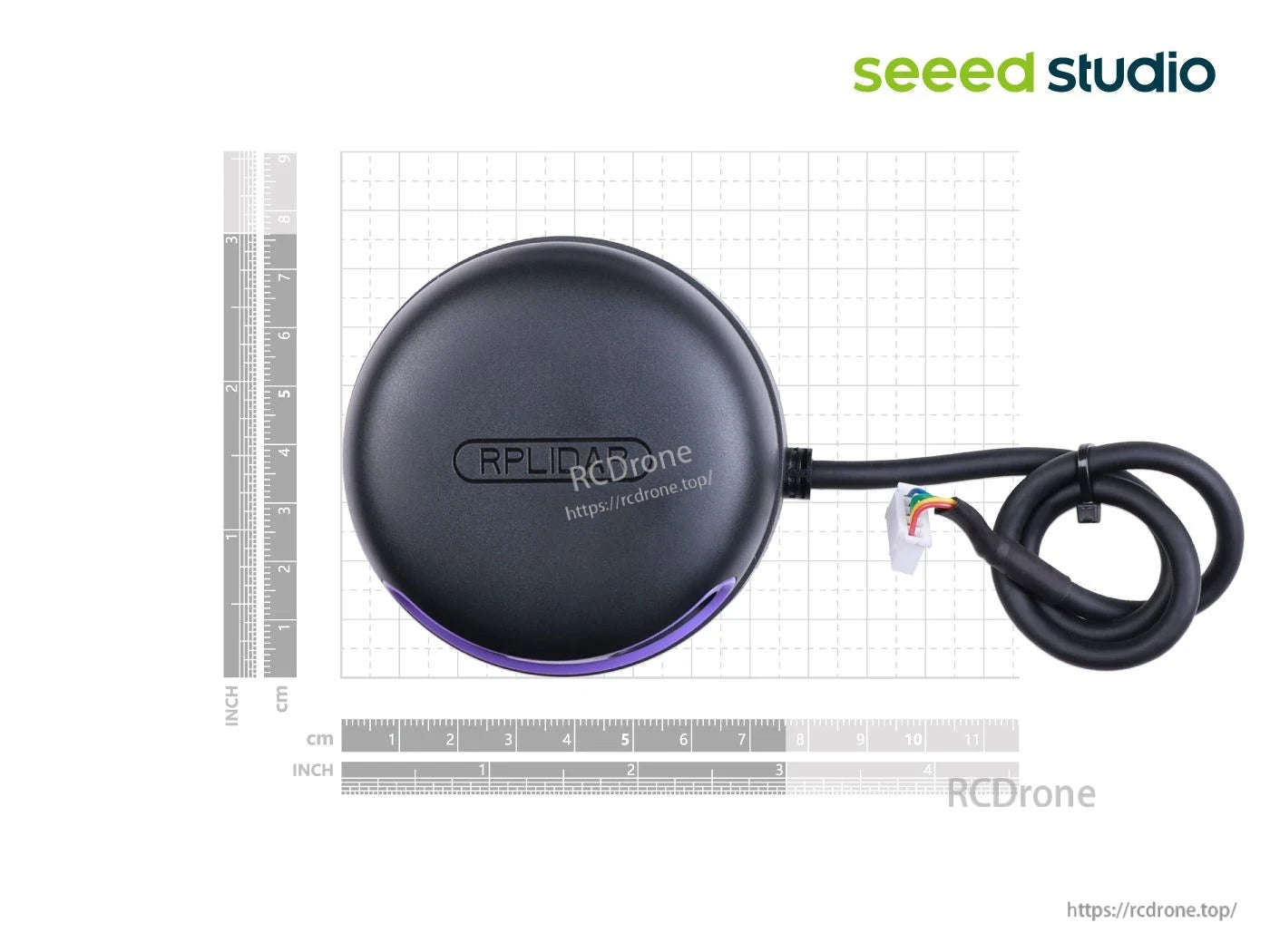

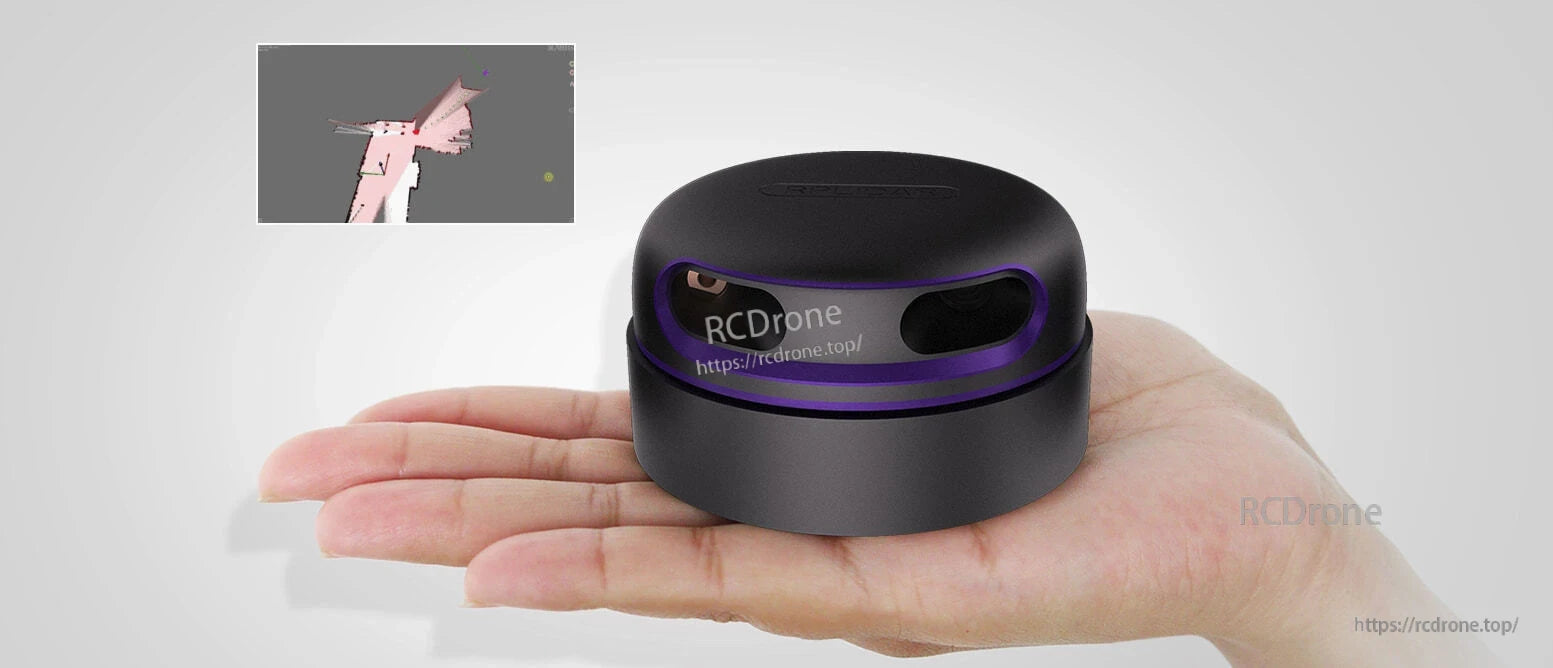

• Cup-size Design: Light & portable, 4cm ultra-thin shell; suitable for floor mopping robots

Description

RPLiDAR A2M12 applies the triangulation laser sensing method, emitting and receiving laser to measure distance by calculating receiving time. With the embedded high-speed RPVision3.0 range engine, it offers 360 degrees, 12M radius, 16 kHz light detection and ranging, 0.225° angular resolution (10 Hz) with 5 ~ 15 Hz adjustable rotational speed, low sensing precision, and 5 years reliable operation for producing 2D point cloud information.

A brushless motor non-contact drive enables ultra-low noise. Output laser power meets IEC-60825 Class One eye safety. At only G.W 190g and a 4cm ultra-thin profile, it integrates easily into domestic robots (e.g., floor mopping or home care robots) and home deployments for navigation and positioning.

Comparing 6 Different RPLiDARs

For convenience, the following table compares six RPLiDAR models.

Applications

• General robot navigation and localization
• Environment scanning and 3D re-modeling
• Service robots or industrial robots working for long hours
• Home service/cleaning robot navigation and localization
• General SLAM (simultaneous localization and mapping)
• Smart toy localization and obstacle avoidance

Specifications

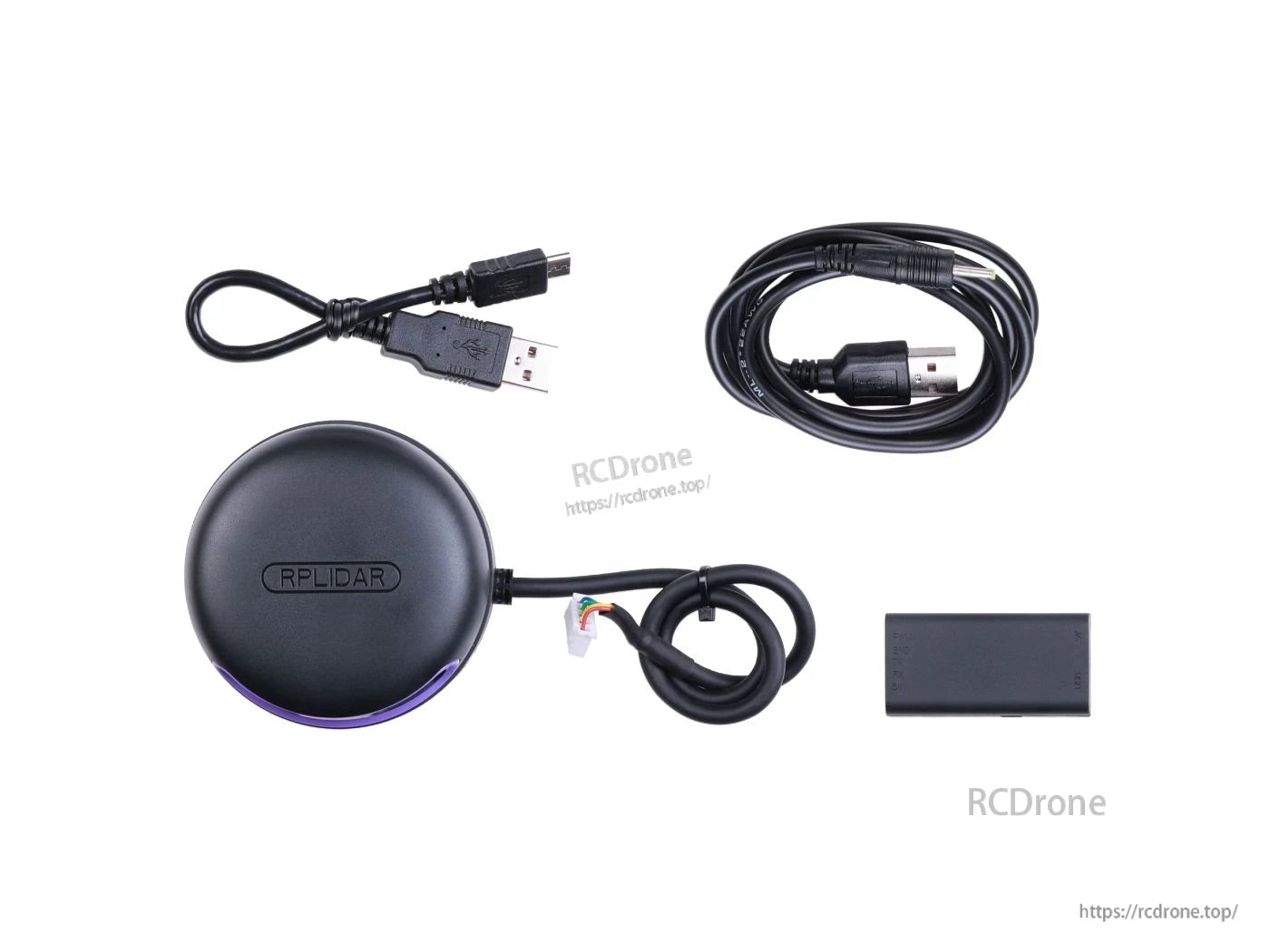

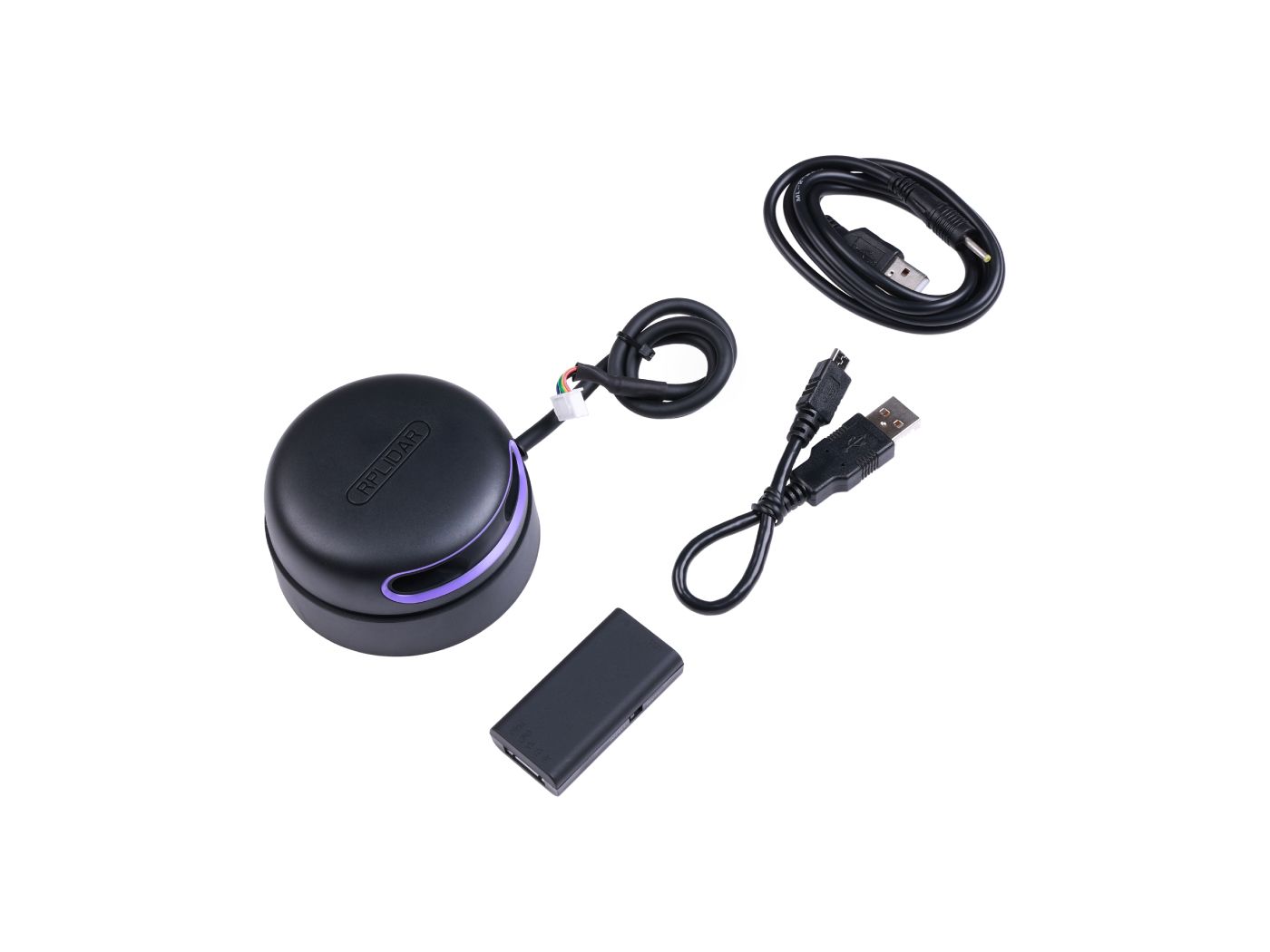

What’s Included

Manuals & Documents

• Note: Please download the offline version of RoboStudio while testing: RoboStudio 20 v1.7.5_rtm.rar
• Slamtec Lidar Documentation Hub

FAQ

Q: How come my product is not working since arrive and when I connect the PC there doesn't show any port?
A: Please check if the driver has been installed on your PC, or re-download the software.
