RPLiDAR A3M1 360° 2D Laser Scanner Kit, 25 m Range, 16 kHz Sampling, 0.225° Resolution, TTL UART, IEC Class 1
RPLiDAR A3M1 360° 2D Laser Scanner Kit, 25 m Range, 16 kHz Sampling, 0.225° Resolution, TTL UART, IEC Class 1
Seeed Studio
Couldn't load pickup availability
Overview

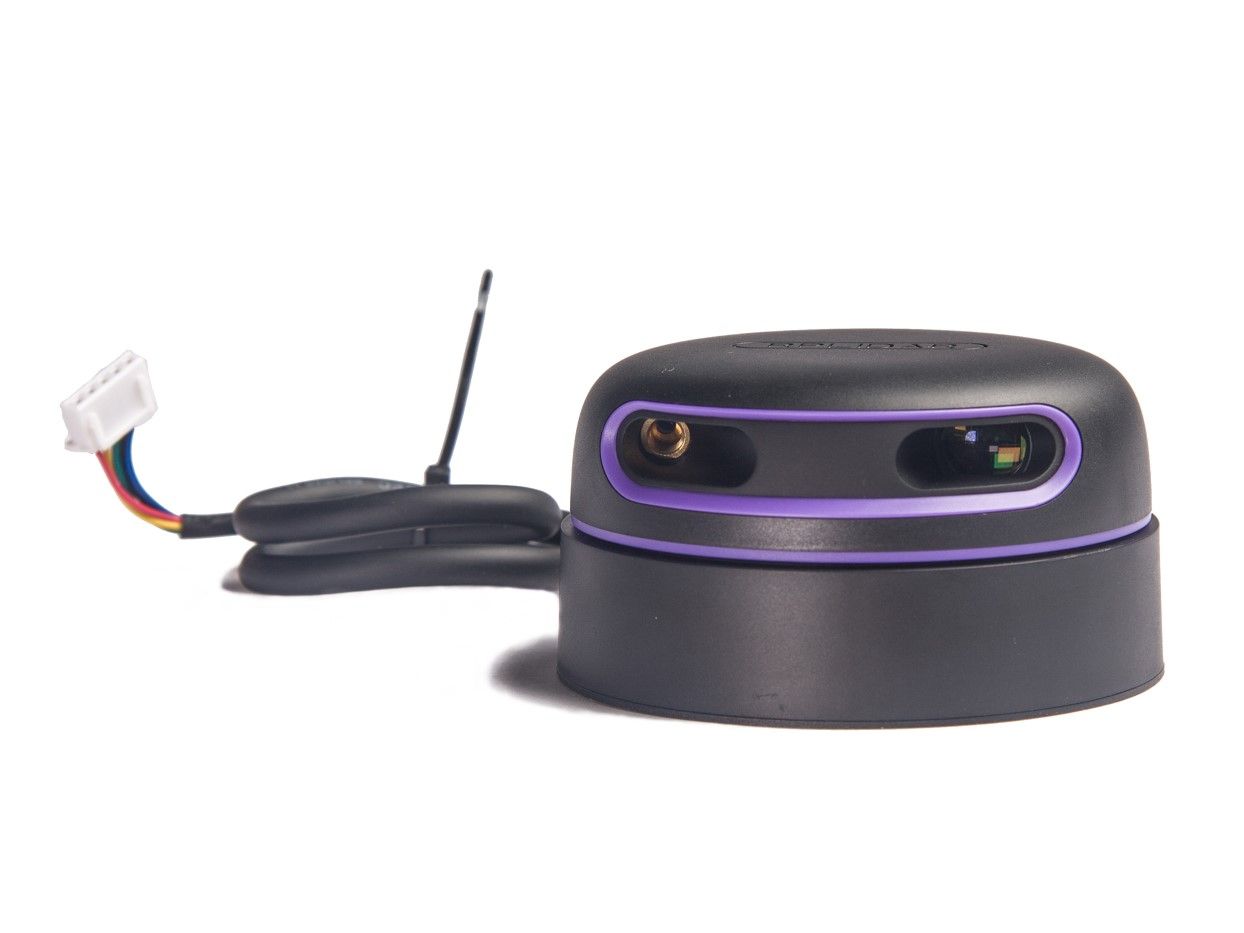

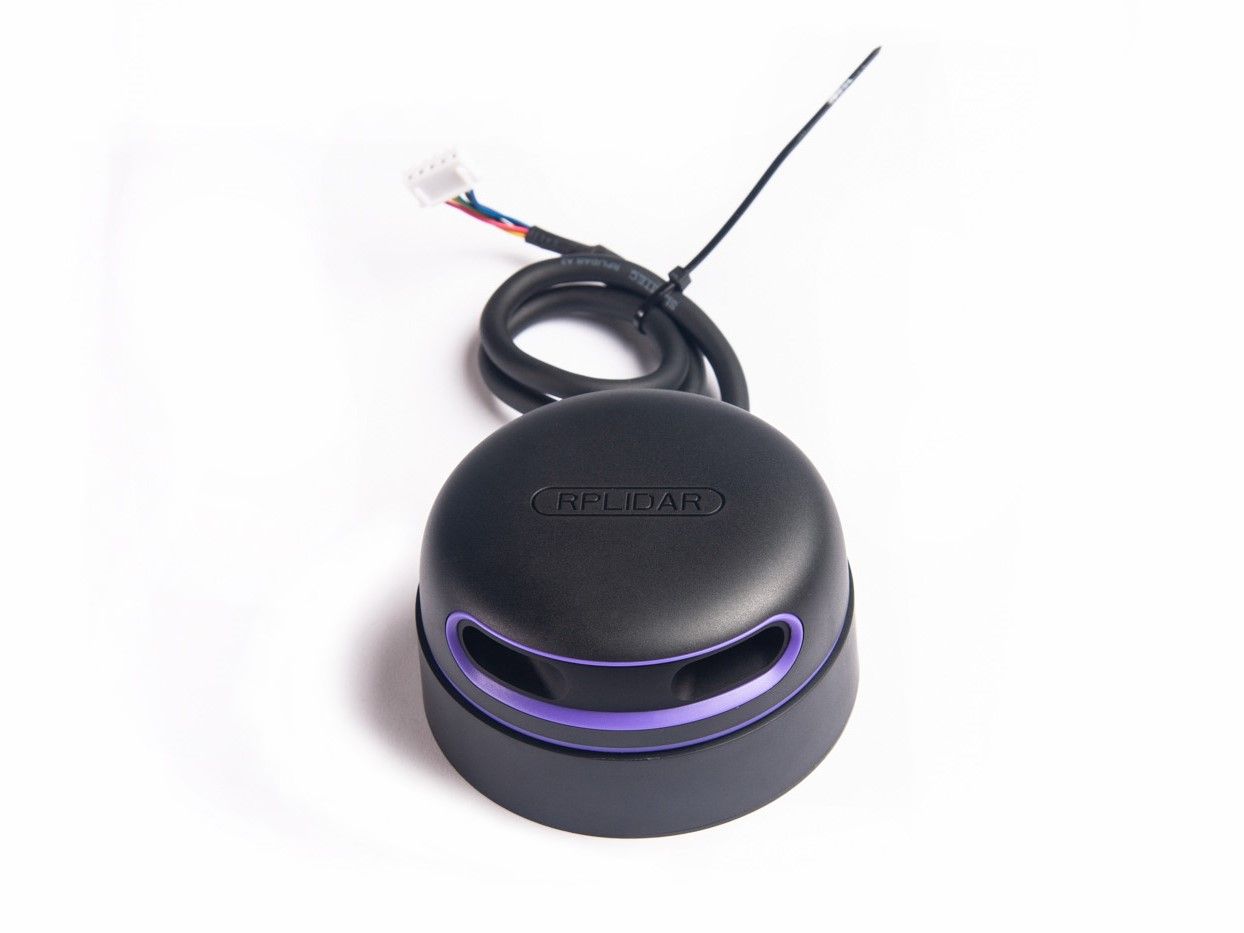

The RPLIDAR A3M1 360° 2D laser scanner kit is a low-cost LIDAR solution from SLAMTEC designed for mapping, localization, and environment modeling. This laser scanner kit captures up to 16000 samples per second with high rotation speed and uses SLAMTEC’s patented OPTMAG technology for long-term stable operation. It delivers 2D, 360-degree scans with a maximum ranging radius of 25 meters, supports enhanced and outdoor modes for different environments, and meets IEC-60825 Class 1 laser safety.
Key Features

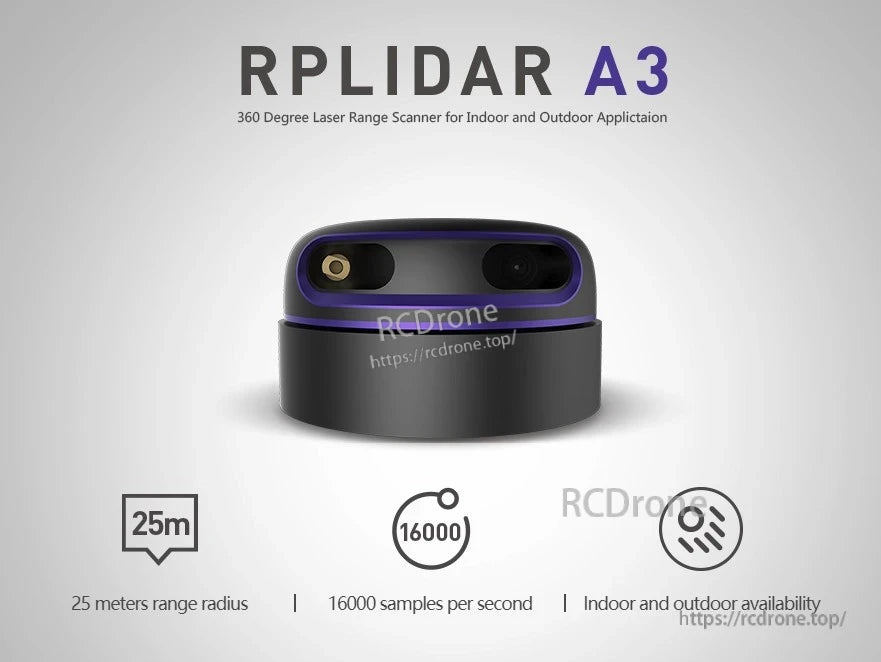

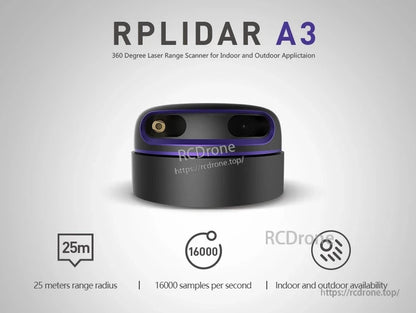

Ranging 16000 times per second
High sample rate (up to 16 kHz) enables fast, accurate map building.
25 m range radius
Collects more environment outline information; distance performance varies by object reflectivity and mode.
Indoor and outdoor availability
Two operating modes: enhanced mode for maximum range and sampling indoors; outdoor mode offers reliable resistance to daylight interference.
360° omnidirectional scanning
Clockwise rotating core generates a full 360° 2D point cloud.
Ultra-thin design (~4 cm)
Compact form factor with 41 mm thickness (76 mm x 76 mm x 41 mm), suitable for service robots.
Brushless motor, low noise, non-contact drive
Self-designed brushless motor reduces mechanical friction for smooth, low-noise operation.
OPTMAG original design
Wireless power and optical communication reduce wear versus slip rings, supporting long service life.
IEC-60825 Class 1 laser safety
Low-power infrared laser driven by modulated pulses for eye safety.
Specifications
| Dimensions | 76mm x76mm x41mm |
| Weight | G.W 190g |
| Battery | Exclude |
| Scan rate (typical) | 10 Hz (600 rpm) |
| Scan rate (typical, per technical details) | 15 Hz |
| Scan rate (adjustable) | 5 Hz – 20 Hz |
| Angular resolution | 0.225° (mode-dependent; see below) |
| Communication interface | TTL UART |
| Communication speed | 256000 bps |
| Compatibility | Support former SDK protocols |
| Laser safety | IEC-60825 Class 1 |
Enhanced Mode
| Application scenarios | Extreme performance; ideal for indoor environments with maximum ranging distance and sampling frequency. |
| Distance range | White object: 25 meters; Black object: 10 meters |
| Sample rate | 16 kHz |
| Scan rate | Typical value: 15 Hz (adjustable between 5 Hz–20 Hz) |
| Angular resolution | 0.225° |
| Communication interface | TTL UART |
| Communication speed | 256000 bps |
| Compatibility | Support former SDK protocols |
Outdoor Mode
| Application scenarios | Extreme reliability; ideal for both outdoor and indoor environments with reliable resistance to daylight. |
| Distance range | White object: 25 meters; Black object: 8 meters |
| Sample rate | 16 kHz or 10 kHz |
| Scan rate | Typical value: 15 Hz (adjustable between 5 Hz–20 Hz) |
| Angular resolution | 0.225° or 0.36° |
| Communication interface | TTL UART |
| Communication speed | 256000 bps |
| Compatibility | Support former SDK protocols |

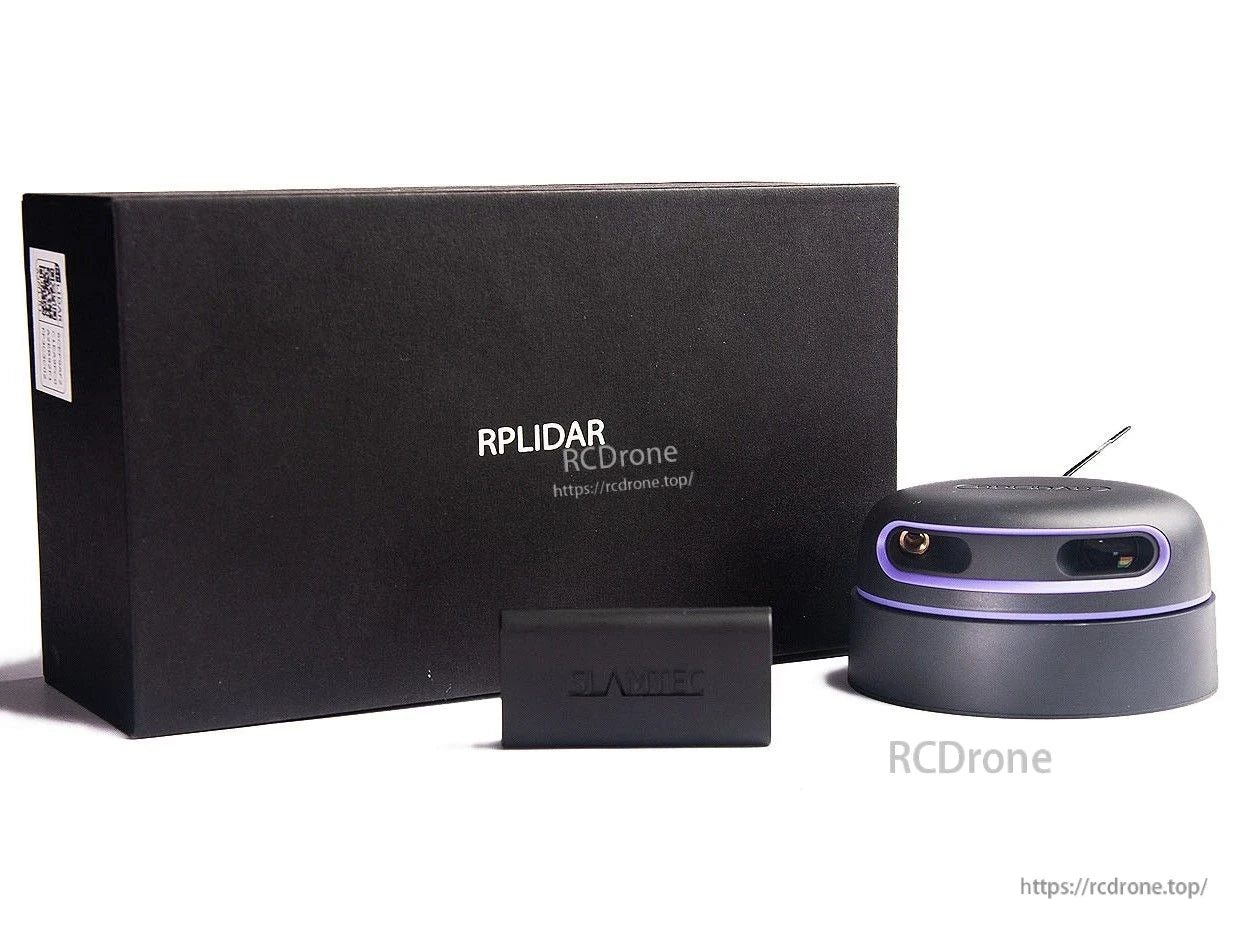

What’s Included
- RPLIDAR (PWM motor driver embedded) x1
- USB Adapter x1
- Micro-USB cable x1
- DC Power Cable x1
Applications
- General robot navigation and localization
- Environment scanning and 3D re-modeling
- Service robots and industrial robots operating for long hours
- Home service/cleaning robot navigation
- Simultaneous localization and mapping (SLAM)
- Smart toys: localization and obstacle avoidance
Manuals
- Slamtec Lidar Documentation Hub
- Note: Please download the offline version of RoboStudio for testing: RoboStudio 20 v1.7.5_rtm.rar
