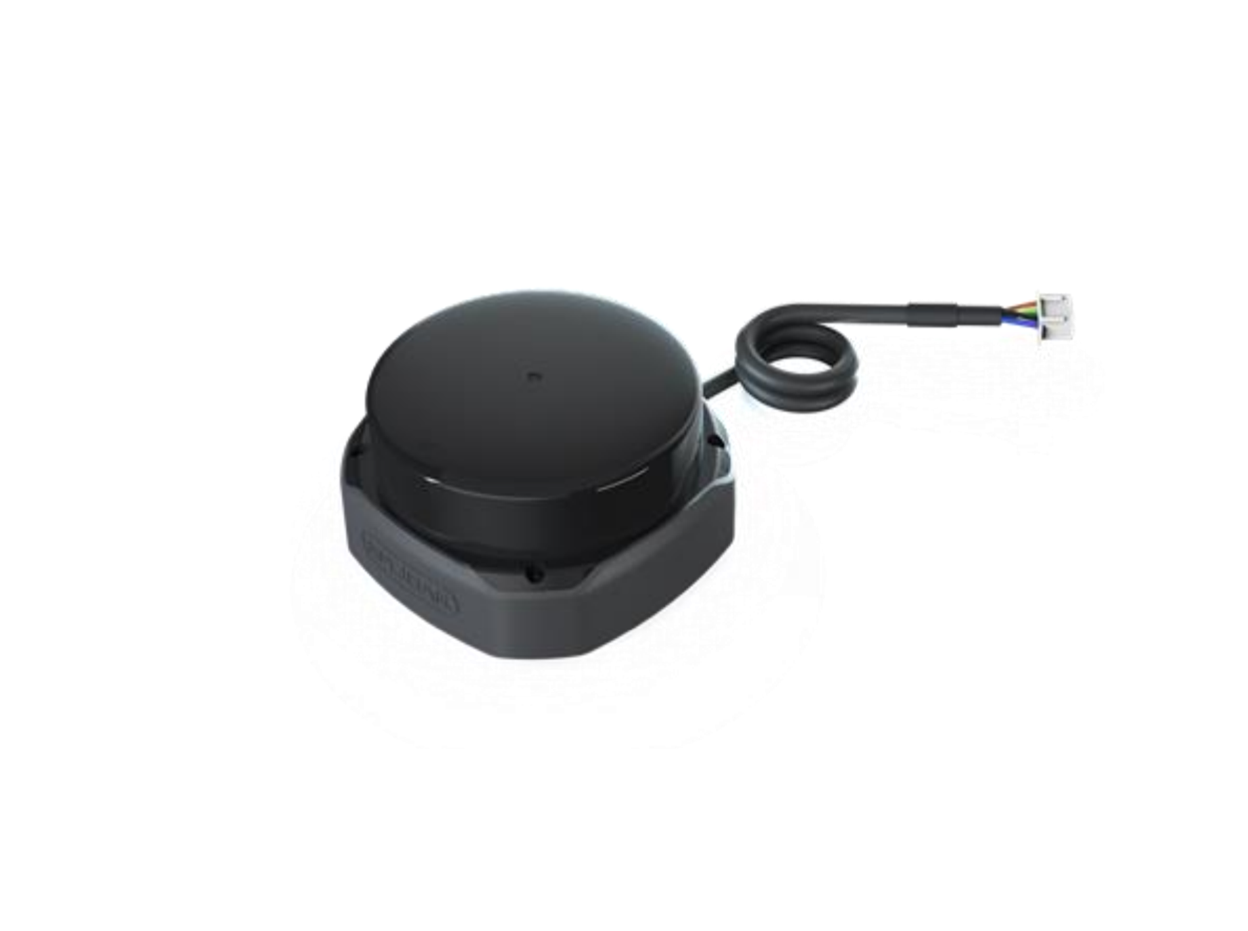

RPLiDAR S2 360° Laser Range Scanner (LIDAR), 30 m range, 32 kHz sampling, 0.12° resolution, Class 1

Overview

RPLiDAR S2 is a low-cost two-dimensional laser range scanner (laser range scanner product_type) designed for 360° omnidirectional scanning on a 2D plane within a 30 m radius. It uses time-of-flight (ToF) ranging to generate flat point cloud maps for applications such as mapping, robot positioning and navigation, and object/environment modeling. With non-contact energy and signal transmission, the S2 delivers long-term reliable operation in both indoor and outdoor environments.

Key Features

• High-speed laser ranging sampling capability of 32,000 times per second
• Non-contact energy and signal transmission technology
• Reliable and stable operation for a long time
• Coverage area with a radius of 30 meters on a two-dimensional plane
• 360° omnidirectional laser ranging scanning
• Excellent application in both indoor and outdoor environments
• Built-in speed detection and adaptive system
• Cost reduction because there is no need to provide a complex power supply system
• The emitted laser power complies with IEC-60825 Class 1 human eye safety level

Description

RPLiDAR S2 adopts laser time-of-flight ranging technology and SLAMTEC high-speed acquisition and processing, achieving 32,000 ranging actions per second. Its non-contact energy and signal transmission design overcomes the life limitations of traditional lidar for long-term stable use. Compared with other series, S2 offers more stable ranging performance for long-distance targets, transitions between black/white objects, and strong light conditions, enabling ideal mapping within a 30 m ranging radius in indoor and outdoor environments.

Specifications

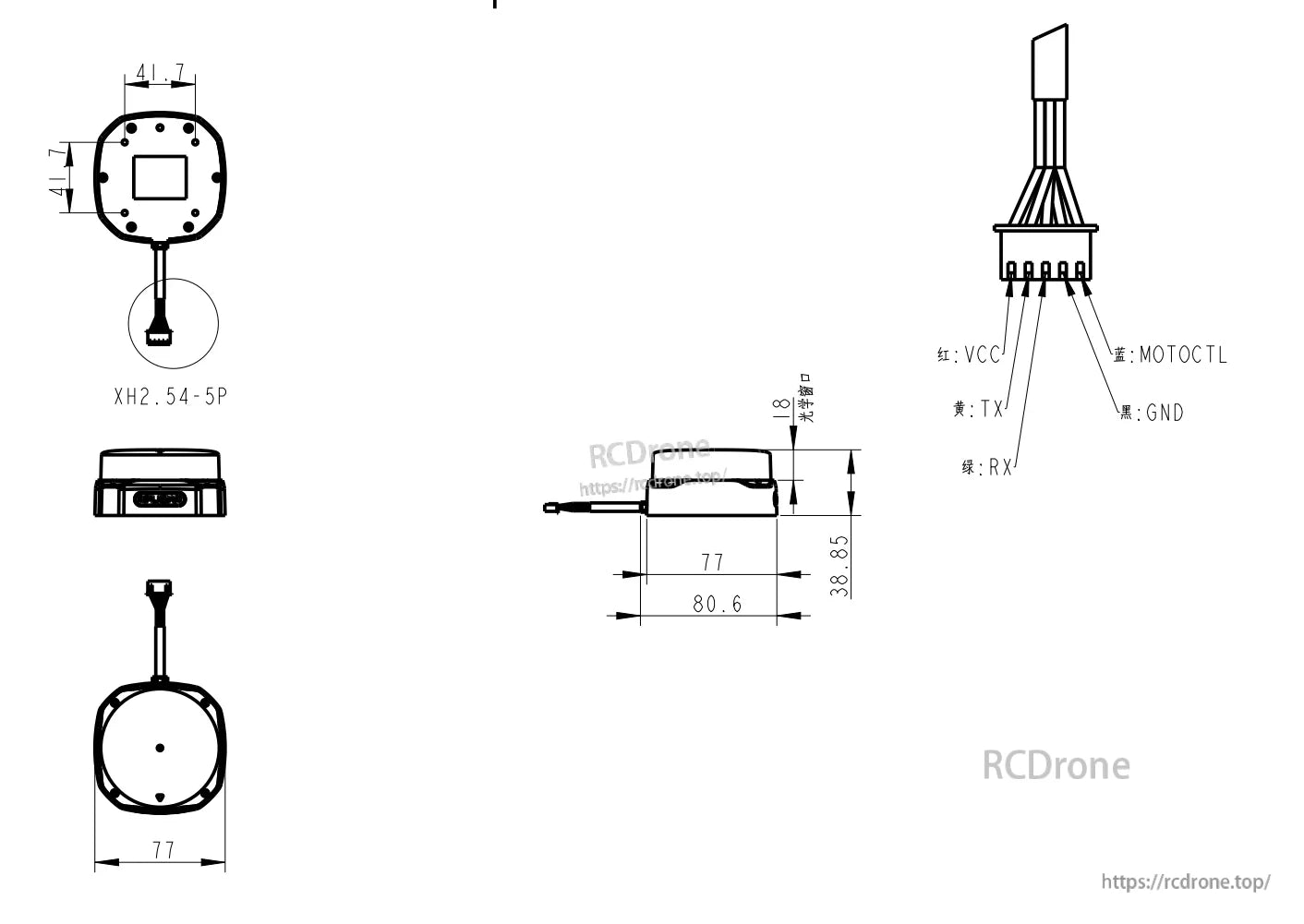

Mechanical & Connector

• Connector: XH2.54-5P
• Pinout (wire colors): VCC (red), TX (yellow), RX (green), MOTOCTL (blue), GND (black)

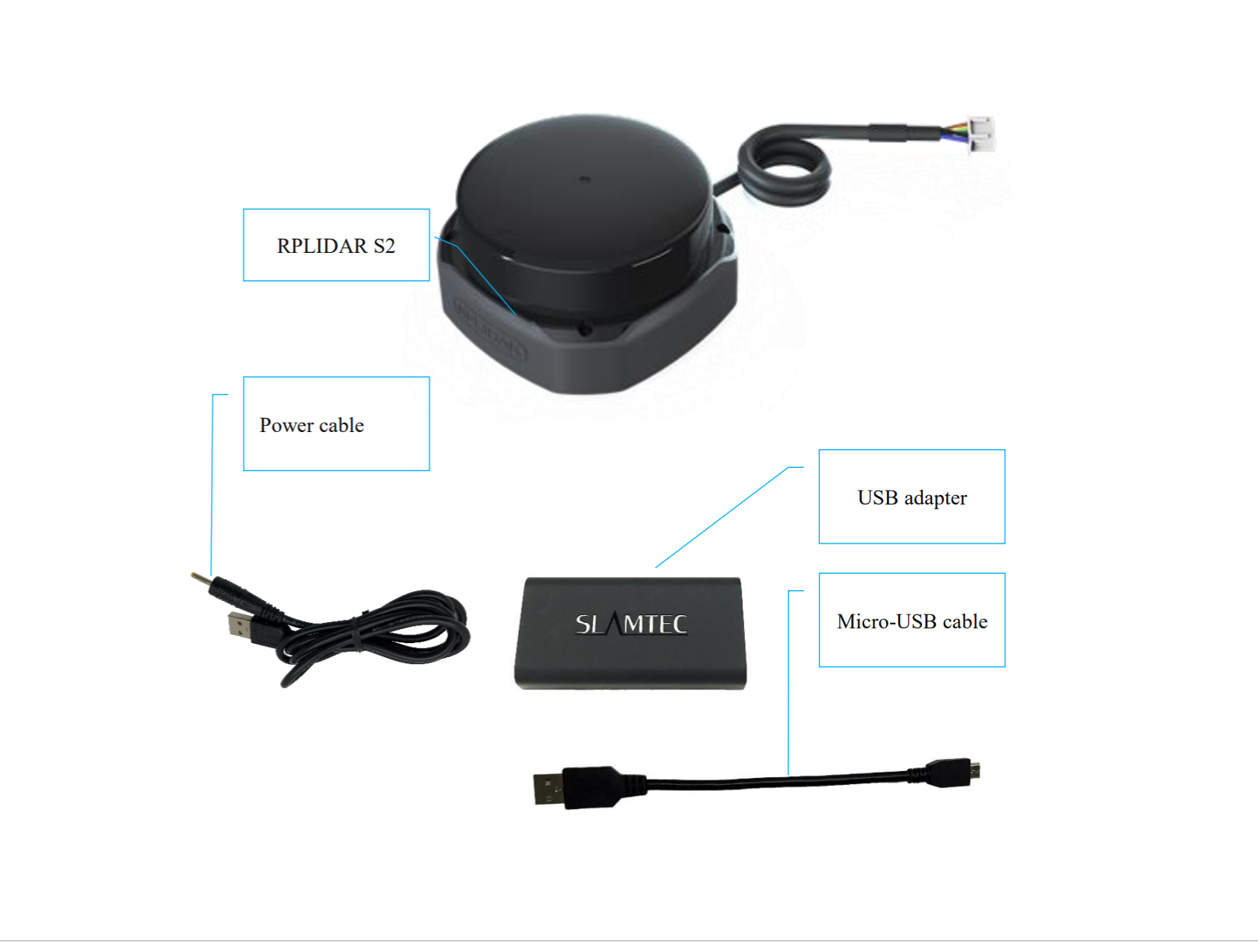

What’s Included

• RPLIDAR S2 module (built-in PWM motor driver) ×1
• USB adapter ×1
• Micro-USB cable ×1
• Power cable ×1

Applications

• Universal simultaneous positioning and mapping (SLAM)
• Environmental scanning and 3D reconstruction
• Service robots and industrial fields requiring long-duration operation
• Navigation and positioning of home care/cleaning robots
• General robot navigation and positioning
• Positioning and obstacle detection of smart toys

Comparison Table

Documents

Slamtec Lidar Documentation Hub

Certification

Note

Please download the offline version of RoboStudio while testing: RoboStudio 20 v1.7.5_rtm.rar
