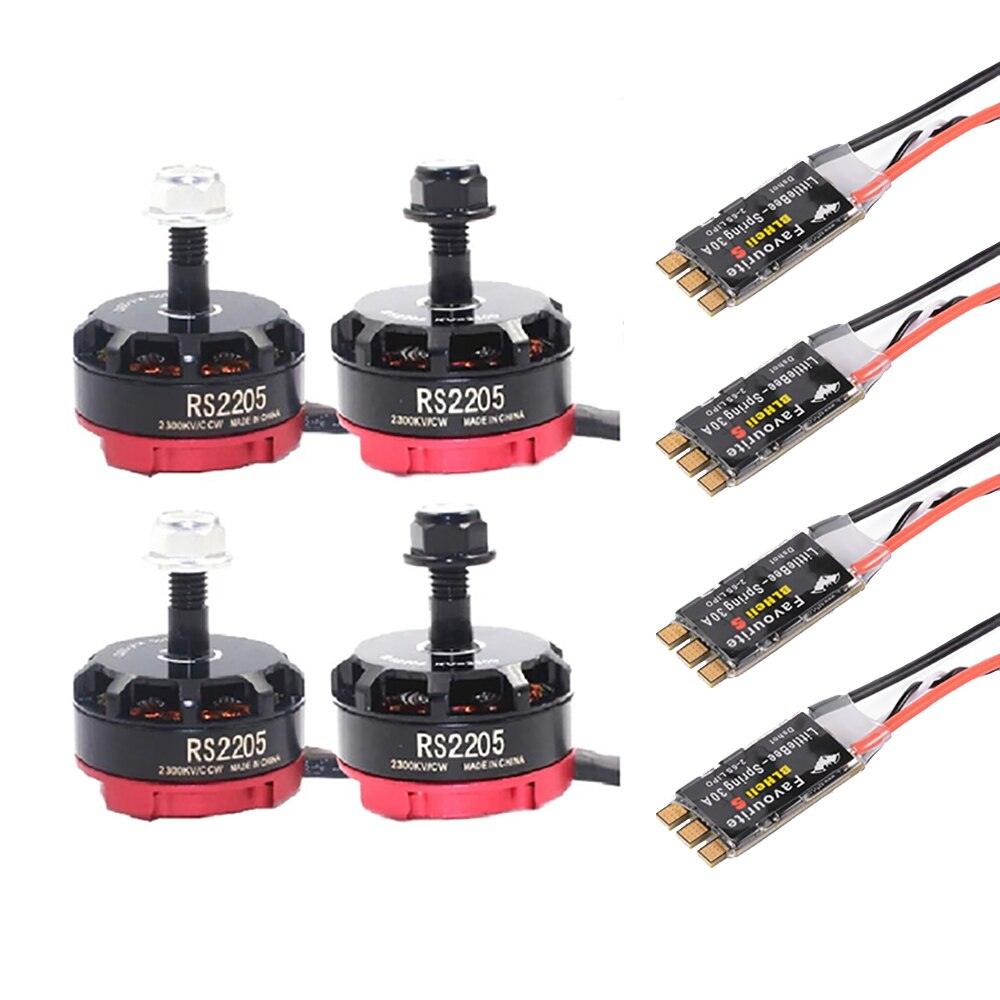

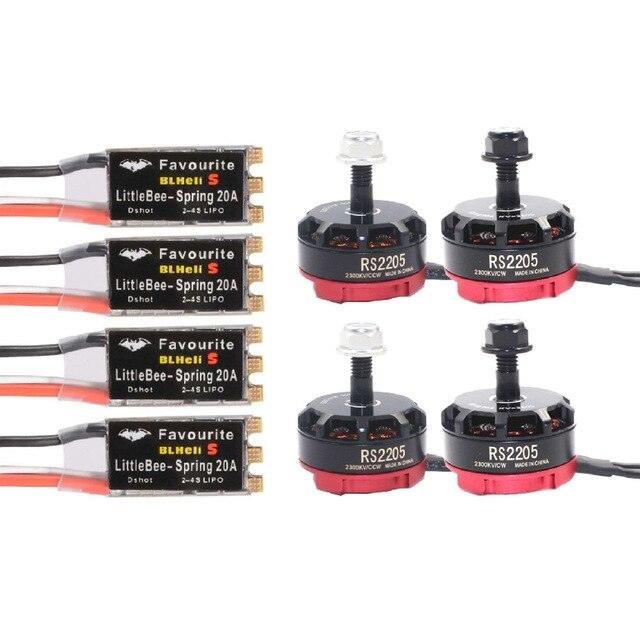

RS2205 2205 2300KV CW CCW Brushless Motor With LittleBee 20A/30A BLHeli_S ESC for FPV RC QAV250 210mm Racing Drone Multicopter

RS2205 2205 2300KV CW CCW Brushless Motor With LittleBee 20A/30A BLHeli_S ESC for FPV RC QAV250 210mm Racing Drone Multicopter

RCDrone

Regular price $14.95 USD
Regular price $29.90 USD Sale price $14.95 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

90 orders in last 90 days

Color

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

SPECIFICATIONS

Wheelbase: Screws

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: ESC

Tool Supplies: Grinded

Technical parameters: Value 3

Size: mm

Remote Control Peripherals/Devices: ESC

Recommend Age: 12+y

RC Parts & Accs: Motors

Quantity: 1 pcs

Origin: Mainland China

Model Number: RS2205+ESC 30A

Material: Metal

Four-wheel Drive Attributes: Motors

For Vehicle Type: Airplanes

Brand Name: Skyquist

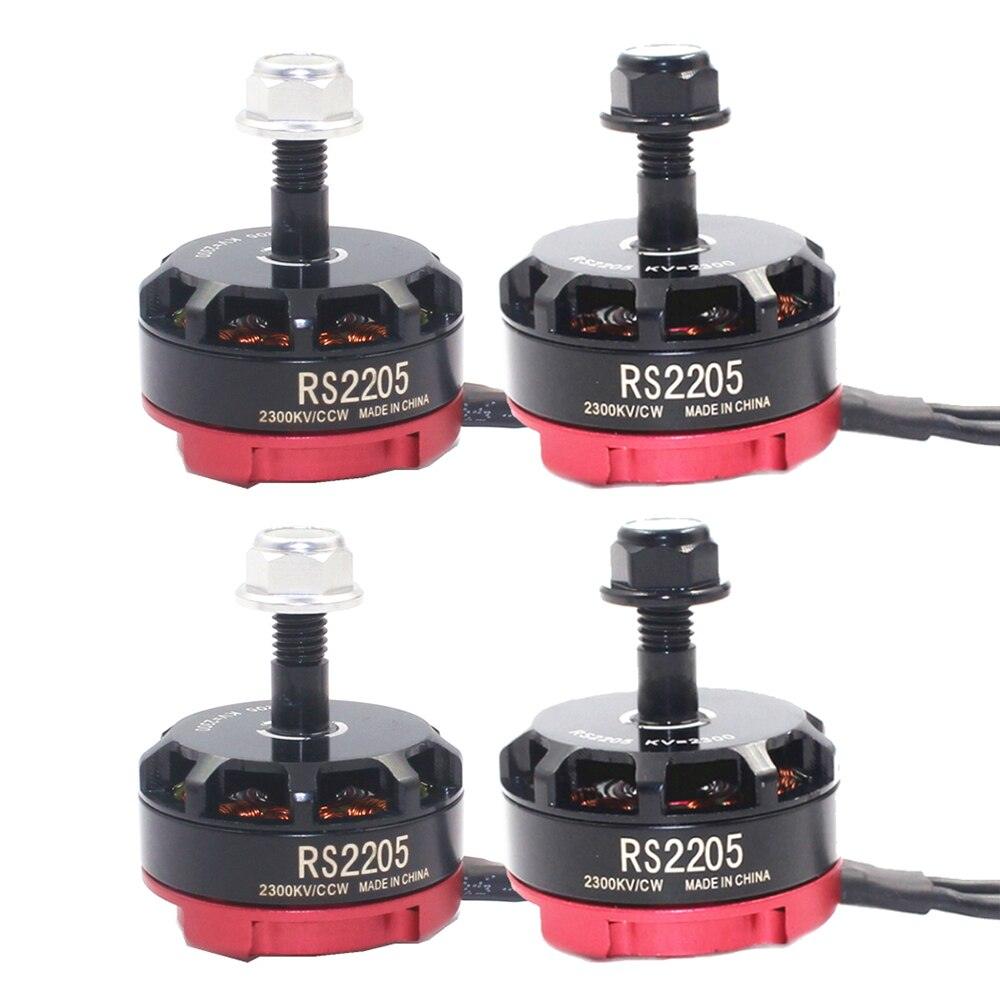

RS2205 2205 2300KV CW CCW Brushless Motor With Little

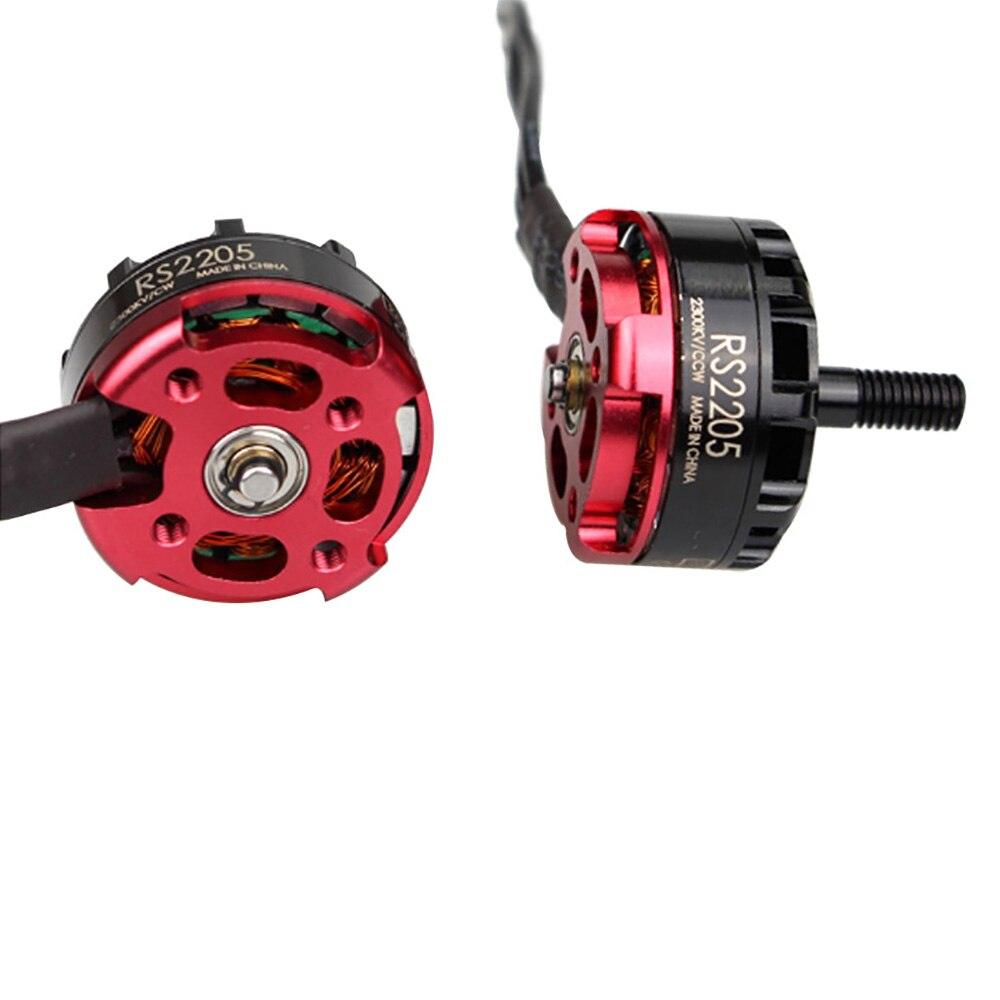

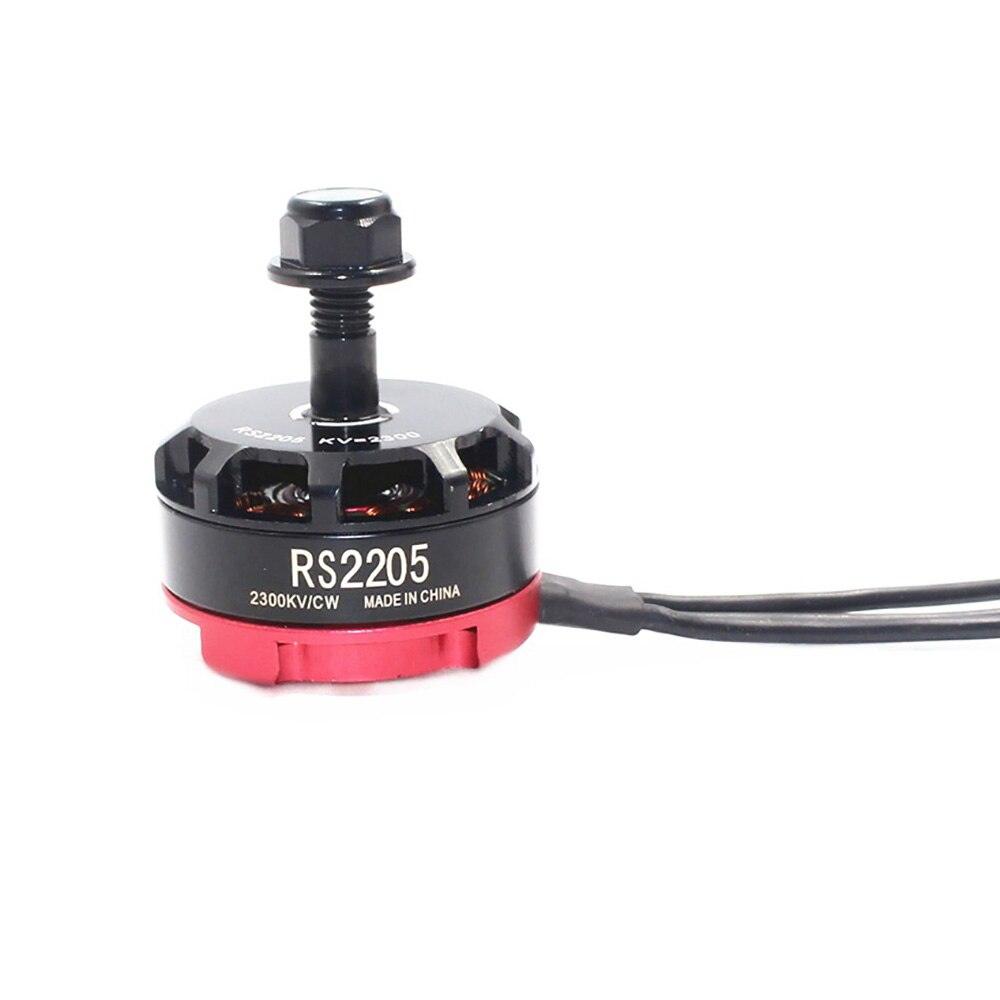

Model: RS2205-2300KV Motor

Framework: 12N14P
No. of Cells: 3 - 4S
Color: Red
Length: 31.7mm
Shaft: M5
KV: 2300
Max Thrust: 1024g
Diameter: 27.9mm

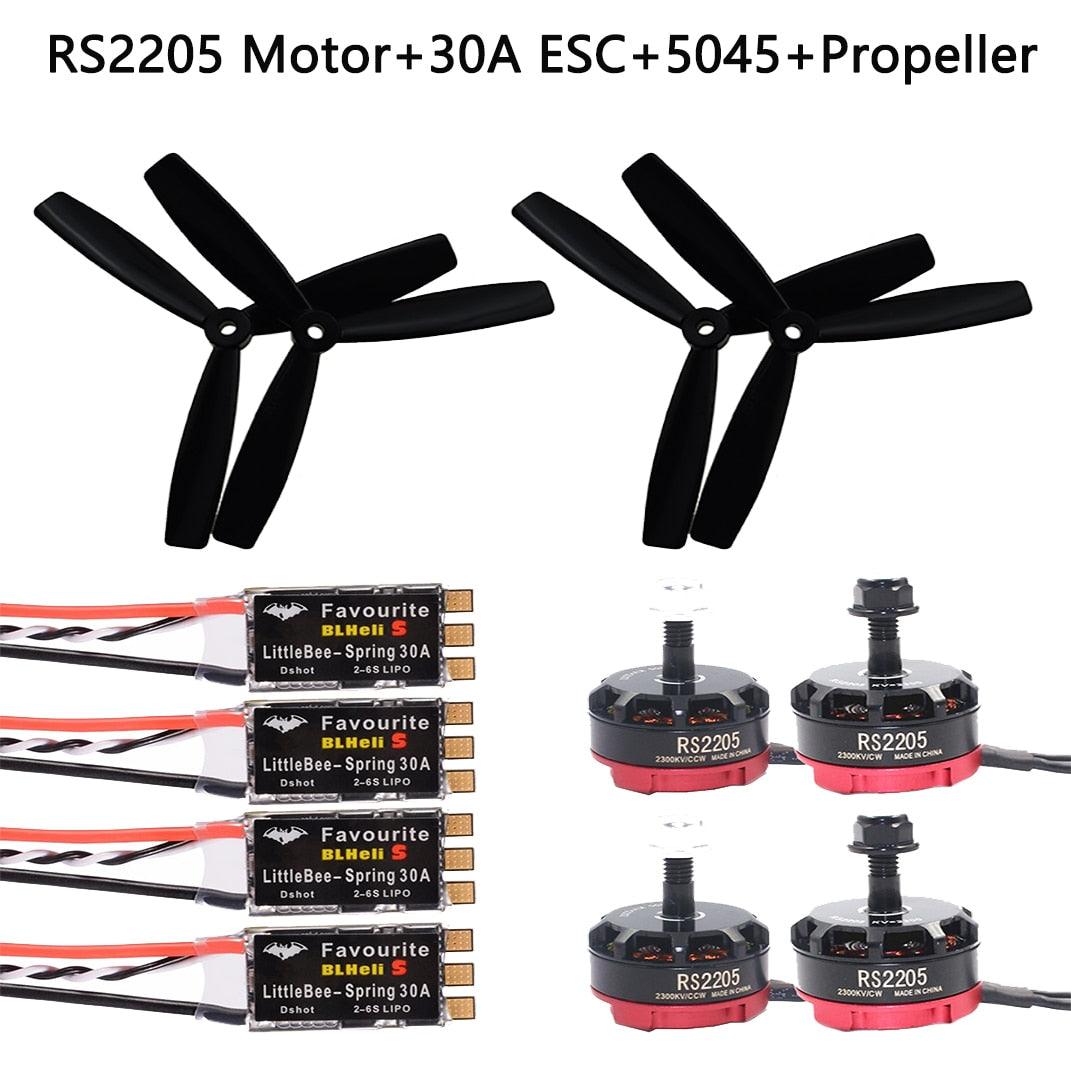

Propeller Suggested: 5045
Weight: 30g

Features:
1. Race Spec Performances
2. High Strength N52 Neodyum Magnets
3. Active Cooling Fins Greatly Reduce Motor Temeratures
4. Low CG, Light Weight Design
5. Japanese Bearing For Performances
6. Enchance Anti Off U Ring For Safety & Stablility
7. Dual Lock CW / CCW Locknuts

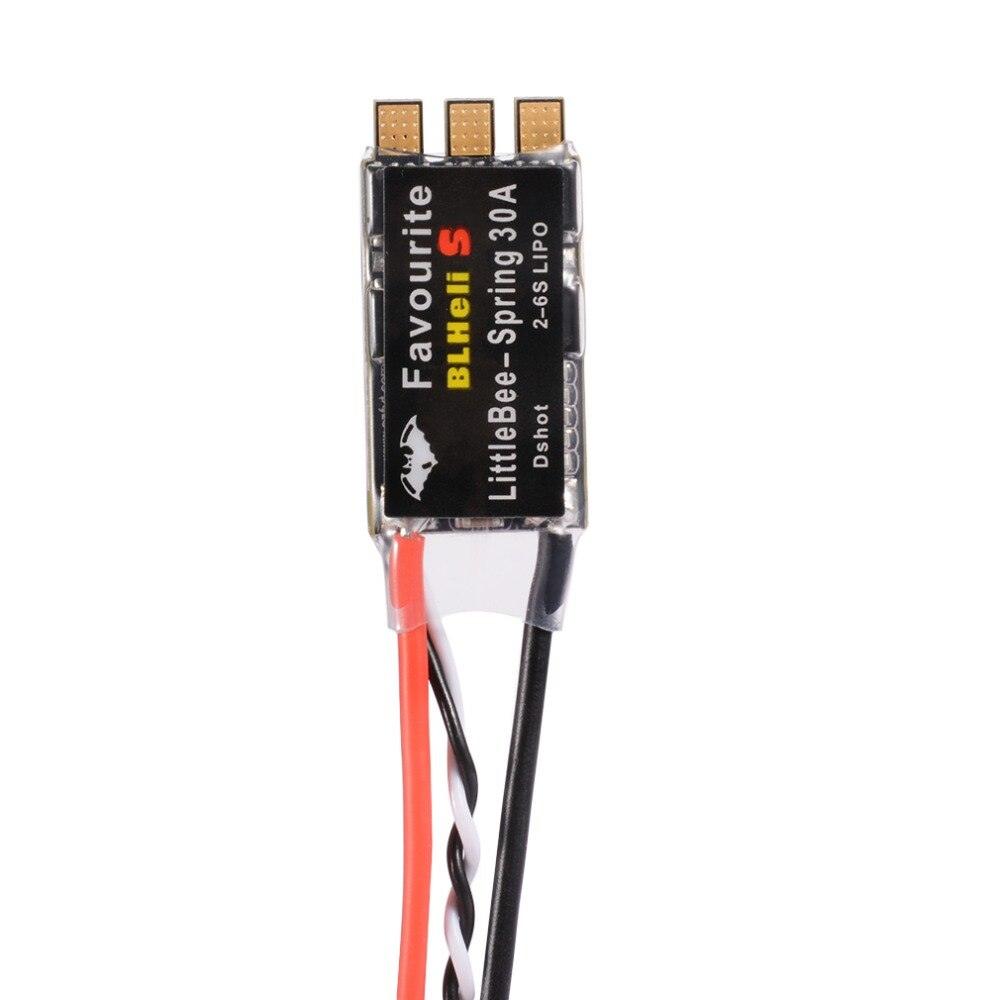

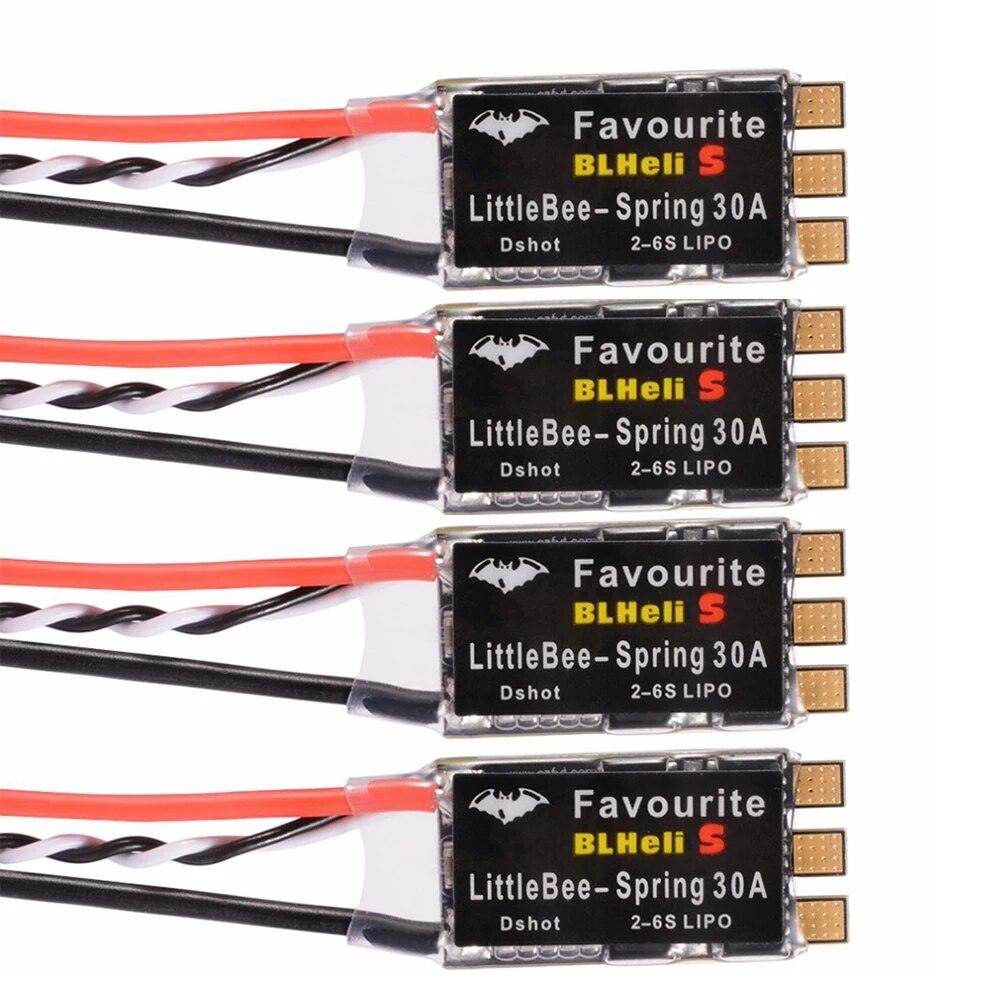

 FVT Littlebee 30A BLHeli-s SPRING ESC

1:input Voltage:2-6S Lipo
2: NO BEC
3:Continue Current:30A,Burst Current:35A up to 10S
4:Size: 35*17mm.
5:Weight:9g(include Power and signal wire)
6:Support Damped mode,Oneshot125,Oneshot42 and Multshot and DSHOT
7:Main IC:SILABS EFM8BB21F16 ,MCU run 48MHz
8:MOS:Both low and high side fets are Nfets
9:Switching speed is very fast,it has dedicated driver chip
10:BLHeli S Bootloader & Firmware
