SAVOX SH-0256 Servo - Ultra Torque Micro Size Super Torque Micro Standard Digital Servo RC parts

Taiwan SAVOX SH-0256 "Ultra Torque" Micro Size Super Torque Micro Standard Digital Servo RC parts

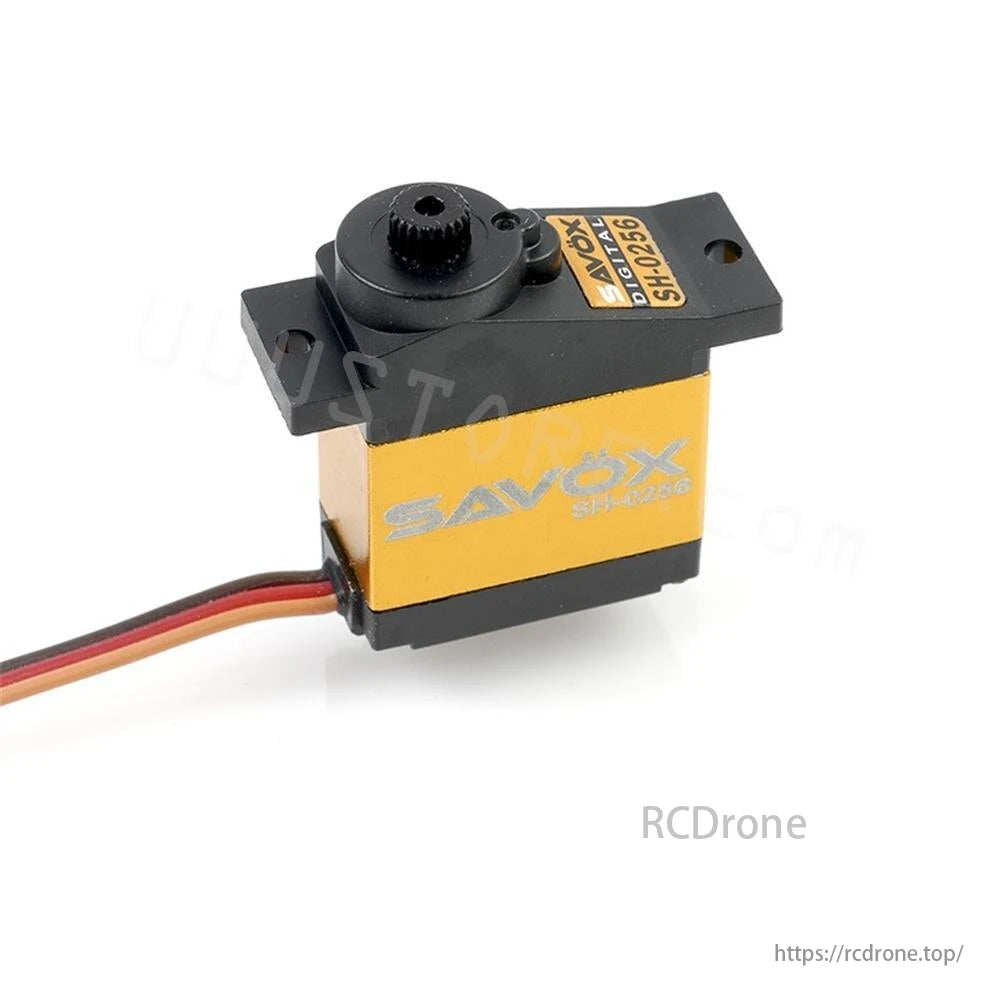

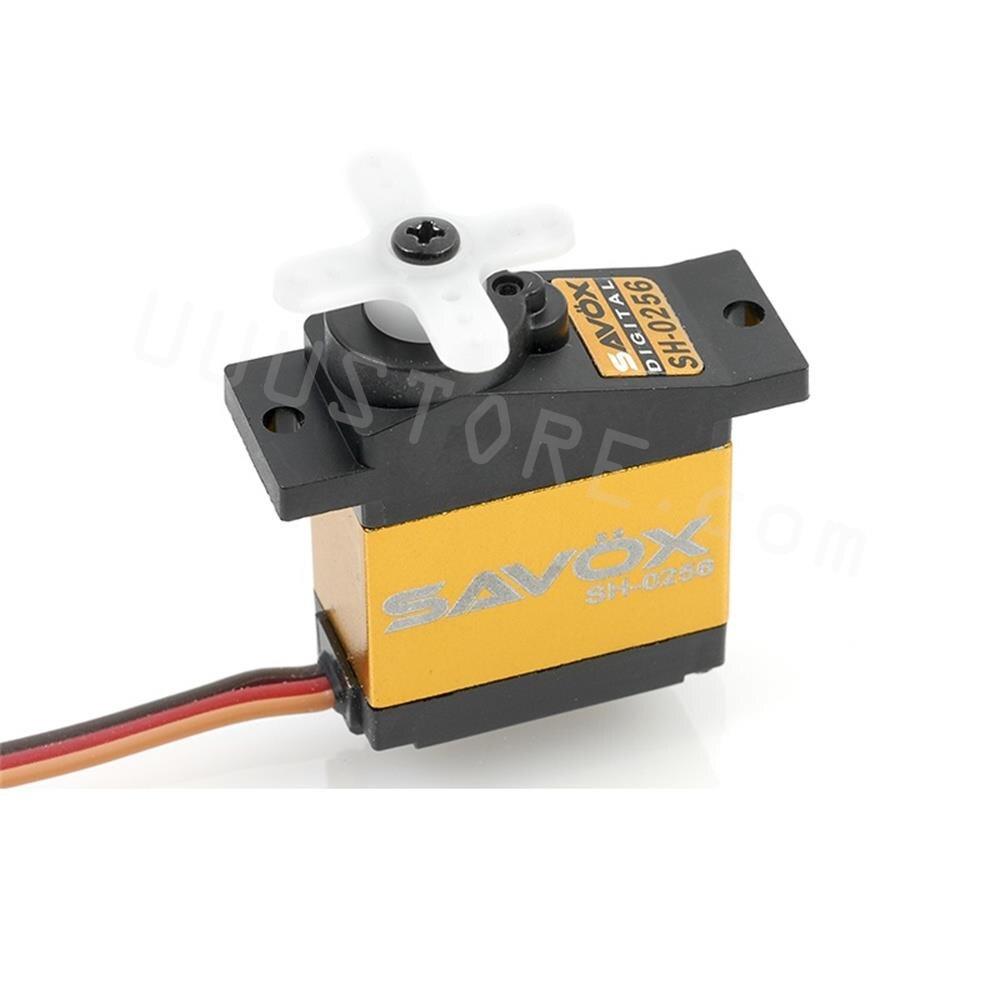

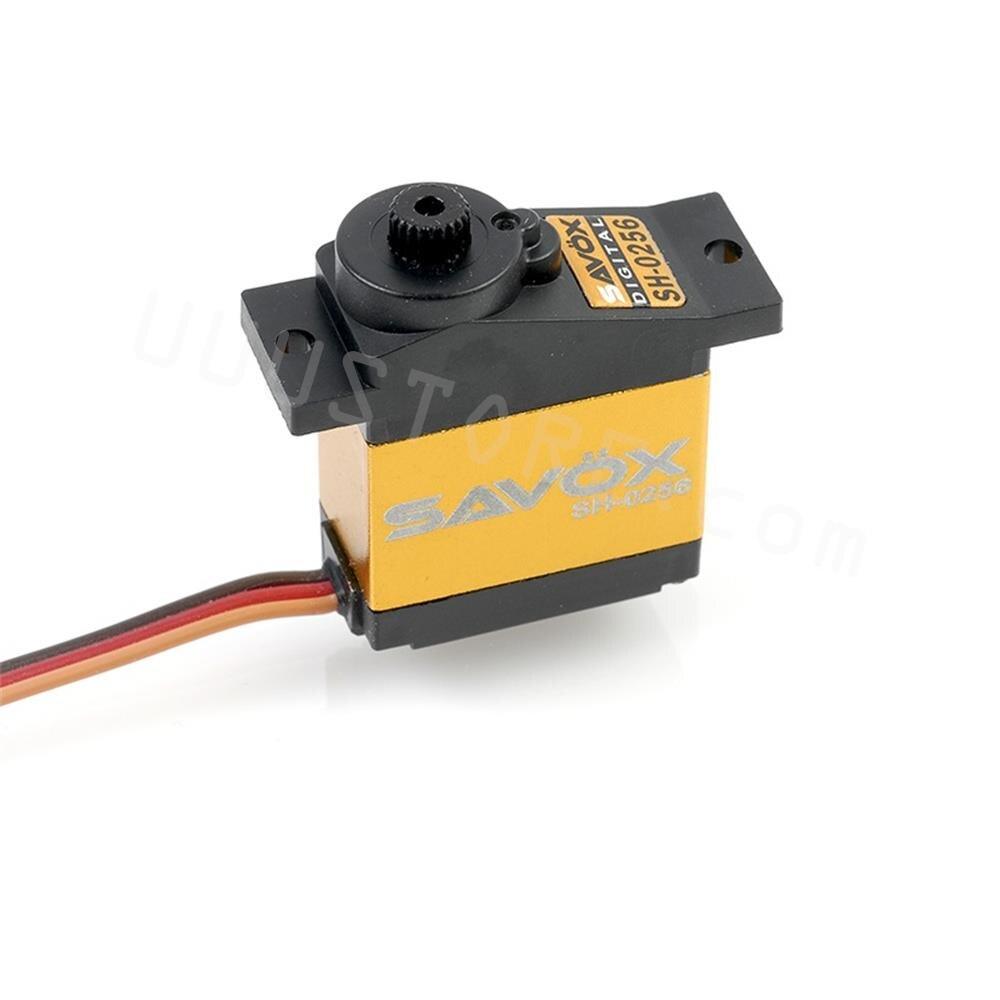

This is the Savox SH-0256 Micro Digital Ultra Torque Servo.

Features:

• Over-spec refined design out performs ordinary micro size servo
• The Aluminum Case design looks good and allows for lower operating temperatures
• Precision metal gears forms a strong and solid framework
• Strict production and quality control of plastic components
• Totally Green – from materials to production, these servos are environmentally friendly
• Idea for CCPM and Rudder on 450 class heli's and Park Flier Airplane's

*NOTE: Certain combinations of receiver and ESC have been found to cause "Brown Out" issues when combined with Savox servos. An external BEC, or BEC stabilizing receiver capacitor may be needed for efficient, glitch free operation in low voltage electric applications.

Specifications:

• Speed @ 6.0V: 0.16 sec/60°
• Torque @ 6.0V: 63 oz-in / 4.6 kg-cm
• Weight: 15.8g
• Bearing: Single
• Type: Micro Plus
• Gear: Half Metal
• Case: Aluminum
• Output Shaft: 21T Spline

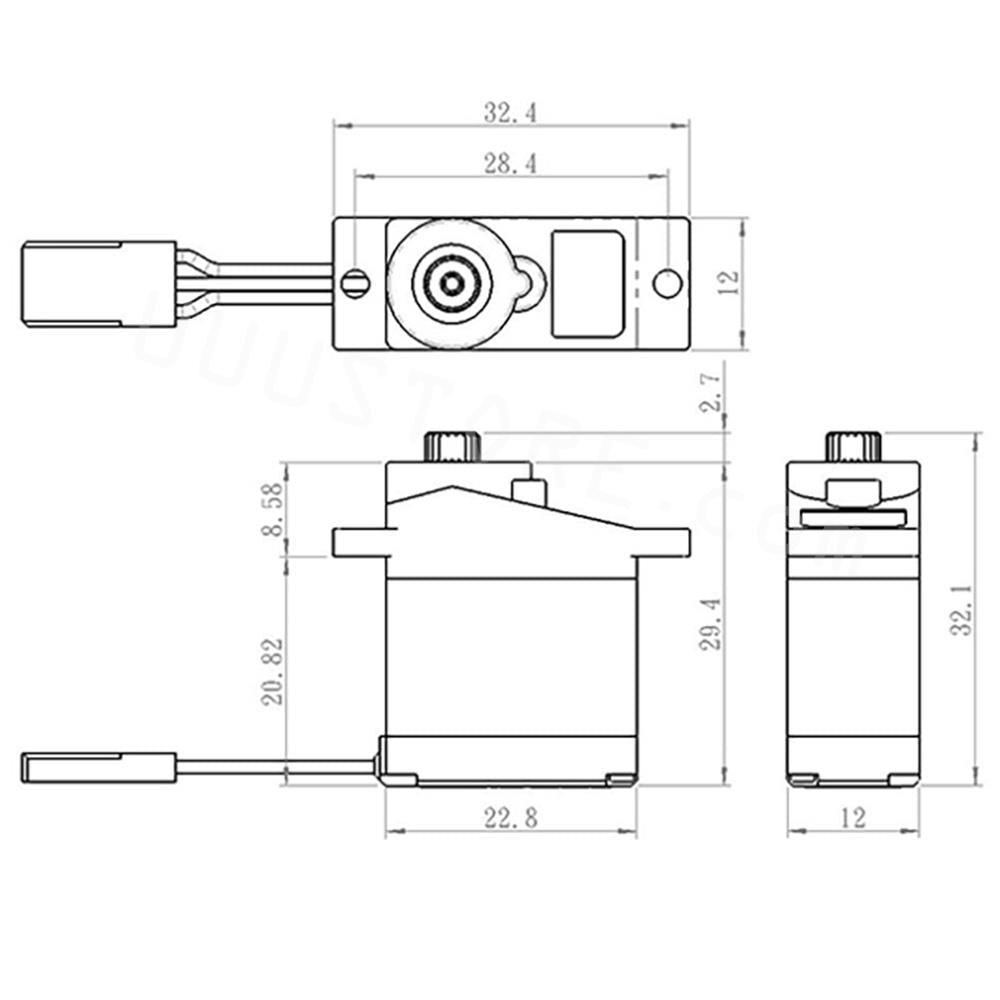

• Case Size (LxWxH): 22.8x12x29.4mm

----------------

Related Article:

SAVOX SH-0256 Servo Review

The SAVOX SH-0256 servo is a high-performance micro-size servo designed for applications that require precision and reliability. This servo offers a refined design that outperforms ordinary micro servos, making it an excellent choice for 450 class helicopters and park flier airplanes. Let's explore the features, specifications, and advantages of the SAVOX SH-0256 servo.

Refined Design and Durability:
The SH-0256 servo features an over-spec refined design that sets it apart from ordinary micro-size servos. Its aluminum case not only provides a sleek and attractive appearance but also helps to dissipate heat effectively, resulting in lower operating temperatures. This design element contributes to the overall longevity and durability of the servo.

Precision Metal Gears:
Equipped with precision metal gears, the SAVOX SH-0256 servo ensures a strong and solid framework for smooth and reliable operation. The use of high-quality gears enhances the servo's performance and allows it to withstand the rigors of demanding applications.

Environmental Friendliness:
SAVOX takes pride in producing environmentally friendly servos. From the selection of materials to the production processes, the SH-0256 servo adheres to green standards, making it a responsible choice for environmentally conscious users.

Performance Specifications:
- Speed @ 6.0V: 0.16 sec/60°
- Torque @ 6.0V: 63 oz-in / 4.6 kg-cm
- Weight: 15.8g
- Bearing: Single
- Type: Micro Plus
- Gear: Half Metal
- Case: Aluminum
- Output Shaft: 21T Spline
- Case Size (LxWxH): 22.8x12x29.4mm

Advantages:
1. Enhanced Performance: The SAVOX SH-0256 servo delivers exceptional speed, with a response time of 0.16 seconds per 60 degrees at 6.0V. This ensures precise and rapid control for demanding maneuvers.
2. Reliable Torque: With a torque rating of 63 oz-in or 4.6 kg-cm at 6.0V, this servo provides ample power to handle the control requirements of 450 class helicopters and park flier airplanes.
3. Compact and Lightweight: Weighing only 15.8g, the SH-0256 servo is designed to fit seamlessly into micro-sized applications without adding excessive weight.
4. Half Metal Gear: The use of half metal gears contributes to the servo's durability and ensures smooth operation, even under challenging conditions.
5. Aluminum Case: The aluminum case not only provides a visually appealing design but also aids in dissipating heat, which ultimately prolongs the servo's lifespan.
6. Versatile Application: The SH-0256 servo is suitable for CCPM (Cyclic/Collective Pitch Mixing) and rudder control on 450 class helicopters and park flier airplanes.

Important Note:
It is worth noting that certain combinations of receivers and ESCs may cause "Brown Out" issues when used with Savox servos. To ensure efficient and glitch-free operation in low-voltage electric applications, the use of an external BEC (Battery Eliminator Circuit) or a BEC stabilizing receiver capacitor may be required.

In summary, the SAVOX SH-0256 servo offers a refined design, precision metal gears, and impressive performance for micro-sized applications such as 450 class helicopters and park flier airplanes. With its lightweight construction, aluminum case, and environmentally friendly manufacturing practices, this servo provides durability and reliability. If you are in need of a micro servo that delivers exceptional performance and reliability, the SAVOX SH-0256 servo is an ideal choice.
