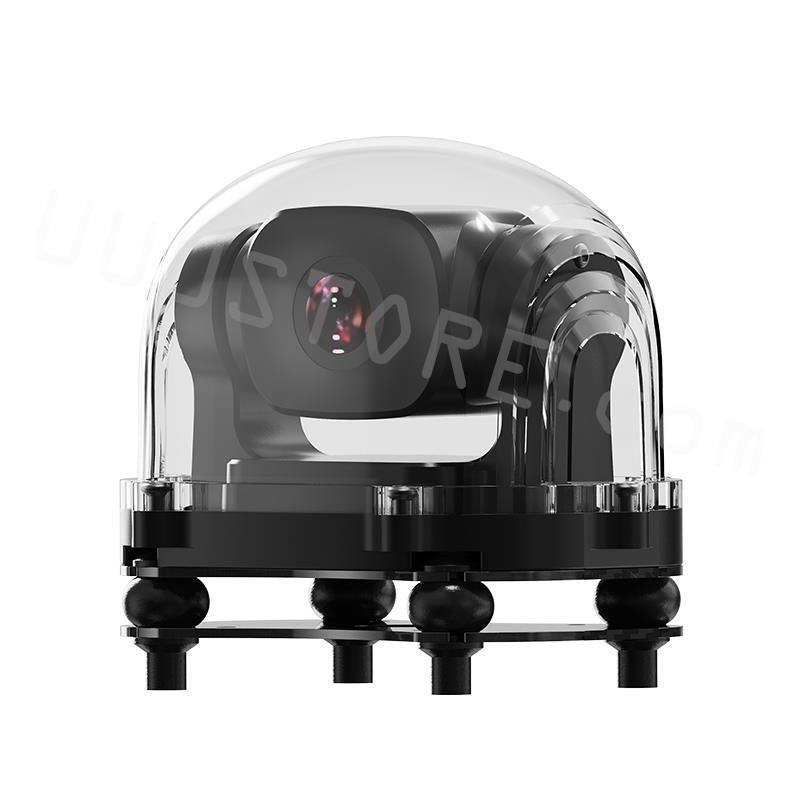

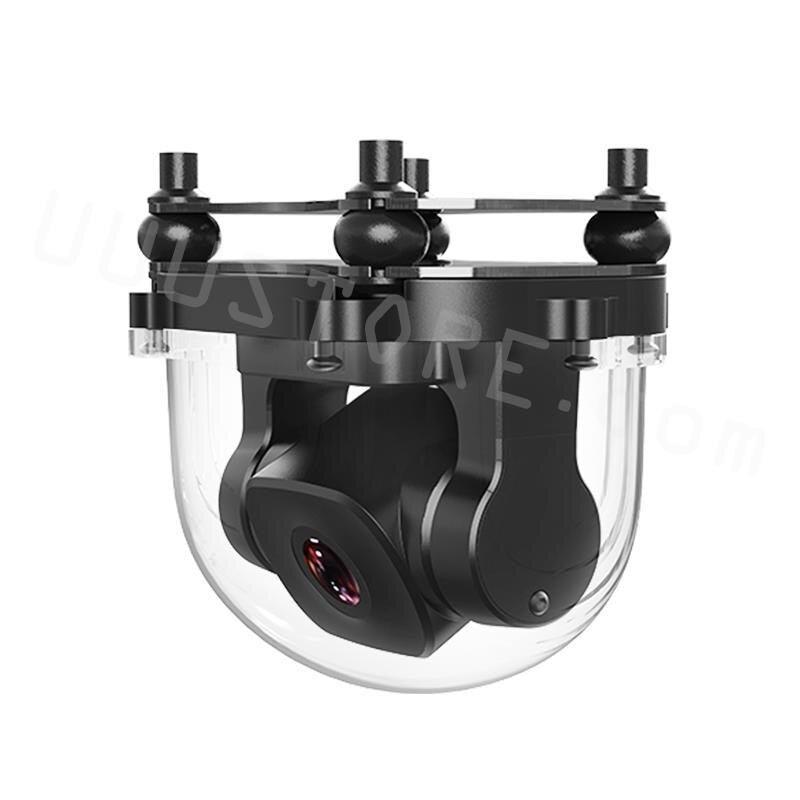

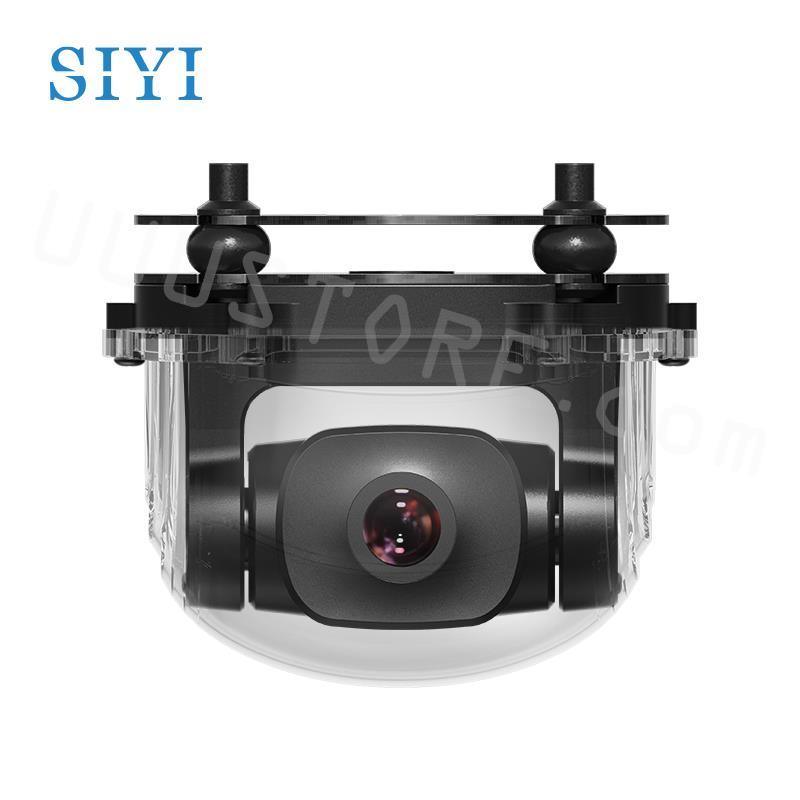

The A2 Mini Gimbal camera is equipped with a horizontal 160° ultra-wide angle lens. This gives the operator an unobstructed view during flight without changing the attitude much. The powerful distortion correction algorithm makes the images clear and natural.

Technical data

• Video Output Port: Ethernet
• Control Signal Input Port: S.BUS / PWM
• Working Voltage: 12V
• Power Consumption: summit 12W
• Working temperature: -10°C - 50°C
• Waterproof: IP65
• Dimension: 65x43x50 mm
• Weight: 85g
• Gimbal Controllable Pitch Angle: -90° ~ 25°
• Camera Image Sensor: 1/2,7" CMOS, 2MP effective resolution
• Camera FOV: Horizontal 160°

Scope of delivery

• SIYI A2 Mini Gimbal Camera

FPV Distortion Correction Industry Class IP65 Protection Upside Down Mode UUU CORZ com.

The SIYI A2 mini features a horizontal ultra-wide-angle lens with a 160-degree FOV, allowing for an expansive view of the operation field. This provides the operator with a clear and unobstructed view during flight, minimizing the need to adjust the drone's attitude.

The SIYI A2 mini ultra-wide angle FPV gimbal's 1080p Starlight camera sensor features an ultra-sensitive starlight CMOS that ensures bright images even in low-light environments.

The external FPV camera, specifically the SIYI A2 mini, features an IP67 rating for waterproof performance, providing effective protection against water and other environmental contaminants.

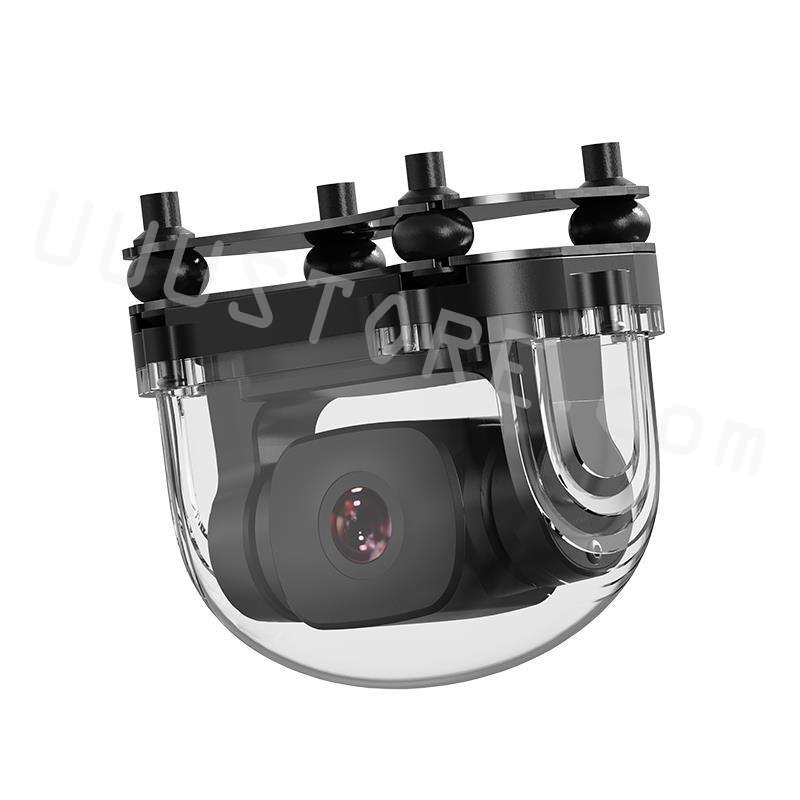

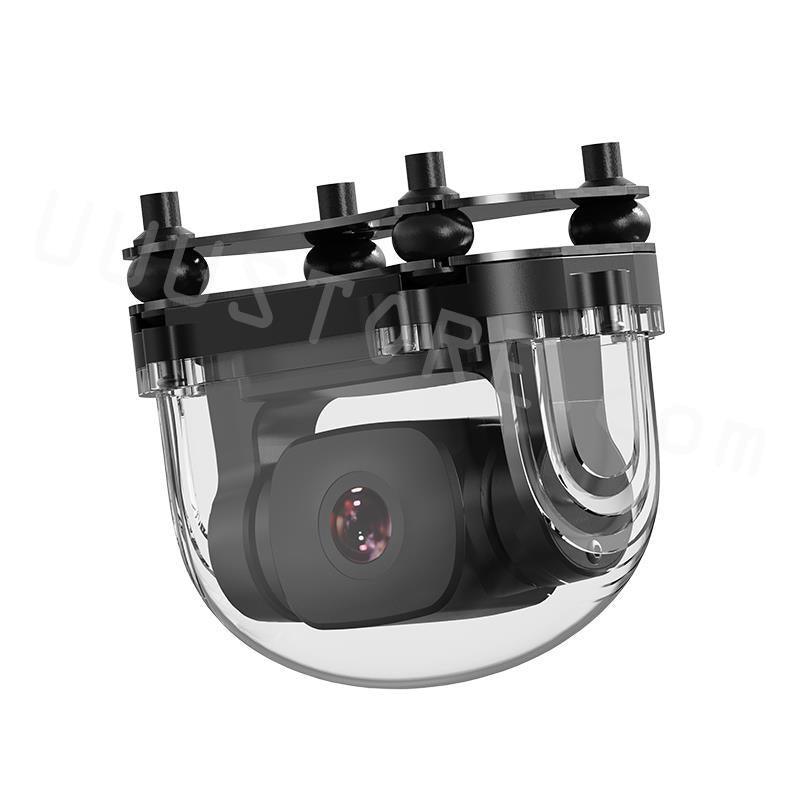

The SIYI A2 mini FPV gimbal features an automatic upside-down mode activation when installed in reverse, making it ideal for mounting on various vehicles such as unmanned ground vehicles (UGVs), underwater surface vehicles (USVs), robots, and robotic dogs.

The SIYI A2 mini FPV gimbal employs industry-leading stabilization technology and advanced FOC (Field-Oriented Control) algorithms, allowing operators to control the tilt angle with precision and ease.

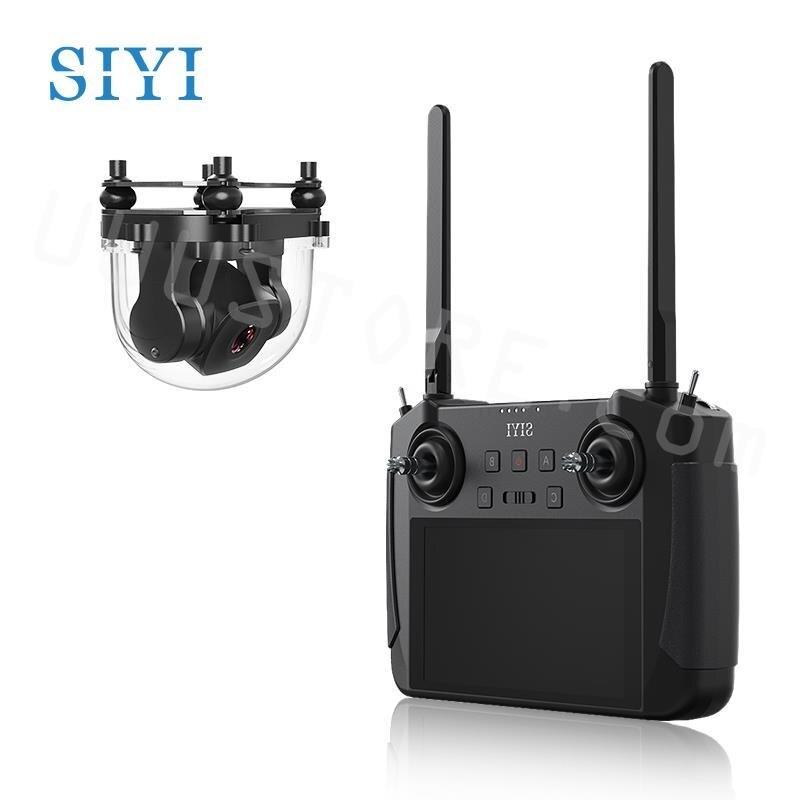

Comprehensive Link and Controller Options: Includes MK32 Enterprise HM3O, Full HD Wireless Handheld Ground Station with Digital Imaging Capabilities.
