Overall
Model: A8 mini
Video Output Port: Ethernet, HDMI, CVBS (AV)
Control Signal Input Port: S.Bus / UART / UDP
Control Signal Output Port: S.Bus
Working Voltage: 14.8 V
Power Consumption: Summit 12 W
Working Temperature: -10 ~ 50 ℃
Dimension: 55*55*70 mm
Weight: Approx. 95 g

Gimbal
Angular Vibration Range: ±0.01°
Controllable Pitch Angle: -135° ~ +45°
Controllable Yaw Angle: -160° ~ +160°
Controllable Roll Angle: -30° ~ +30°

Camera
Lens: 6X Digital
Focal Length: 21 mm
Image Sensor: Sony 1/1.7-inch, 8 MP effective resolution
Aperture: F2.8
FOV: 93°
TF Recording Resolution:

• 4K (4096 x 2160) @ 25 fps

• 2K (2560 x 1440) @ 30 fps

• 1080p (1920 x 1080) @ 30 fps

• 720p (1280 x 720) @ 30 fps

Supported File System: FAT32 (exFAT will be supported later by firmware update)
Photography File Format: JPG
Video File Format: MP4
Supported MicroSD Cards: MicroSD Class10, max 128 GB
White Balance: Auto

Sony Photo & Video Recording 6X 6X Digital Zoom Upside Down Mode Starlight Night Vision Camera @ UUUS= 'CvoSE'

The SIYI A8 mini gimbal camera features autonomous object identification, able to recognize moving objects such as vehicles, boats, and people. The camera's 48x mini zoom lens maintains the tracked object in the center of the image at all times.

The SIYI A8 mini gimbal camera features a powerful imaging system with a 1/1.7-inch Sony image sensor, boasting an impressive 8 megapixels CMOS with remarkable photosensitivity capabilities. It can capture stunning 4K video recordings and offers 6x digital zooming for breathtaking distant views.

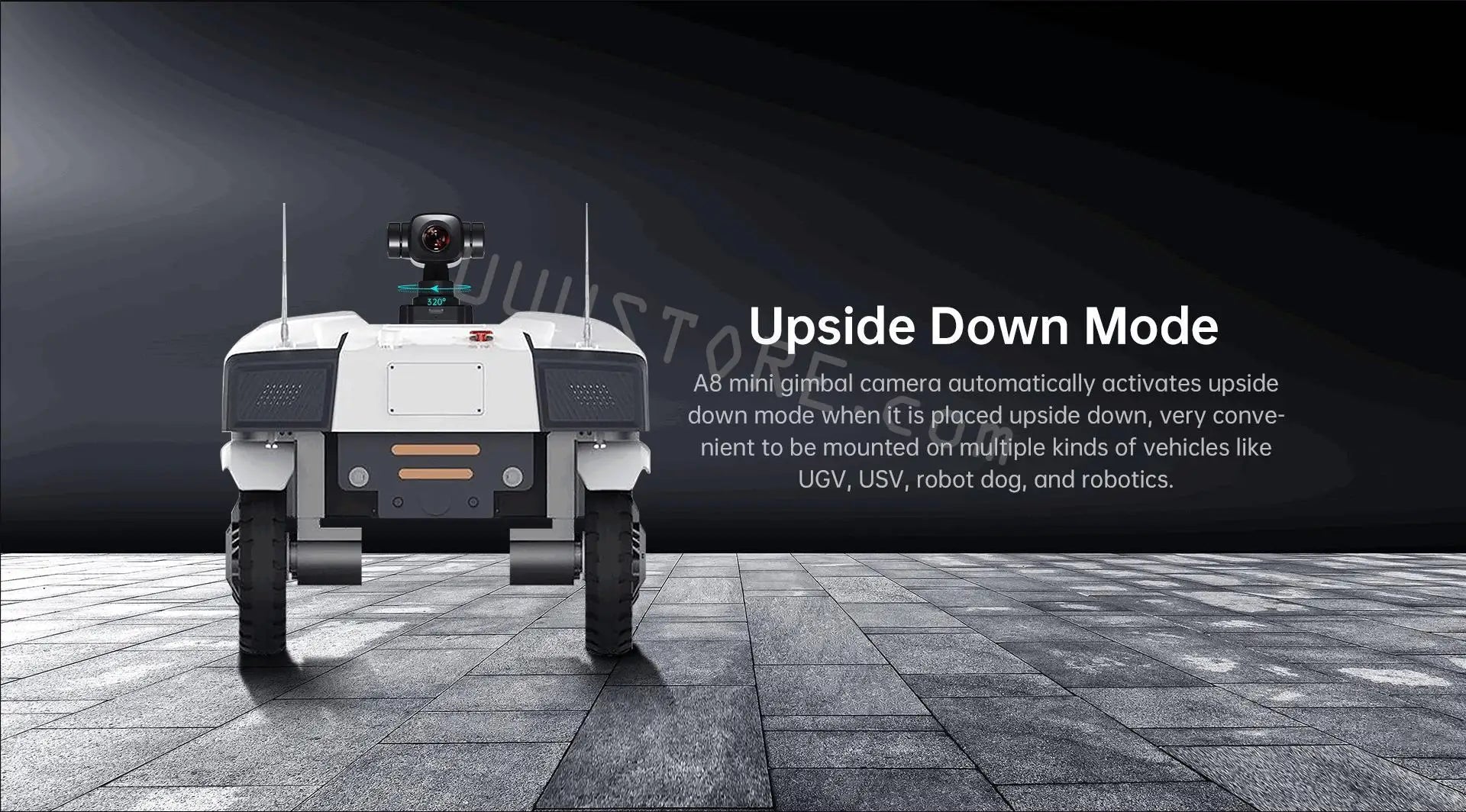

A8 mini gimbal camera automatically activates upside down mode when it is placed upside down . very conve- nient to be mounted on multiple kinds of vehicles like UGV, USV, robot and robotics .

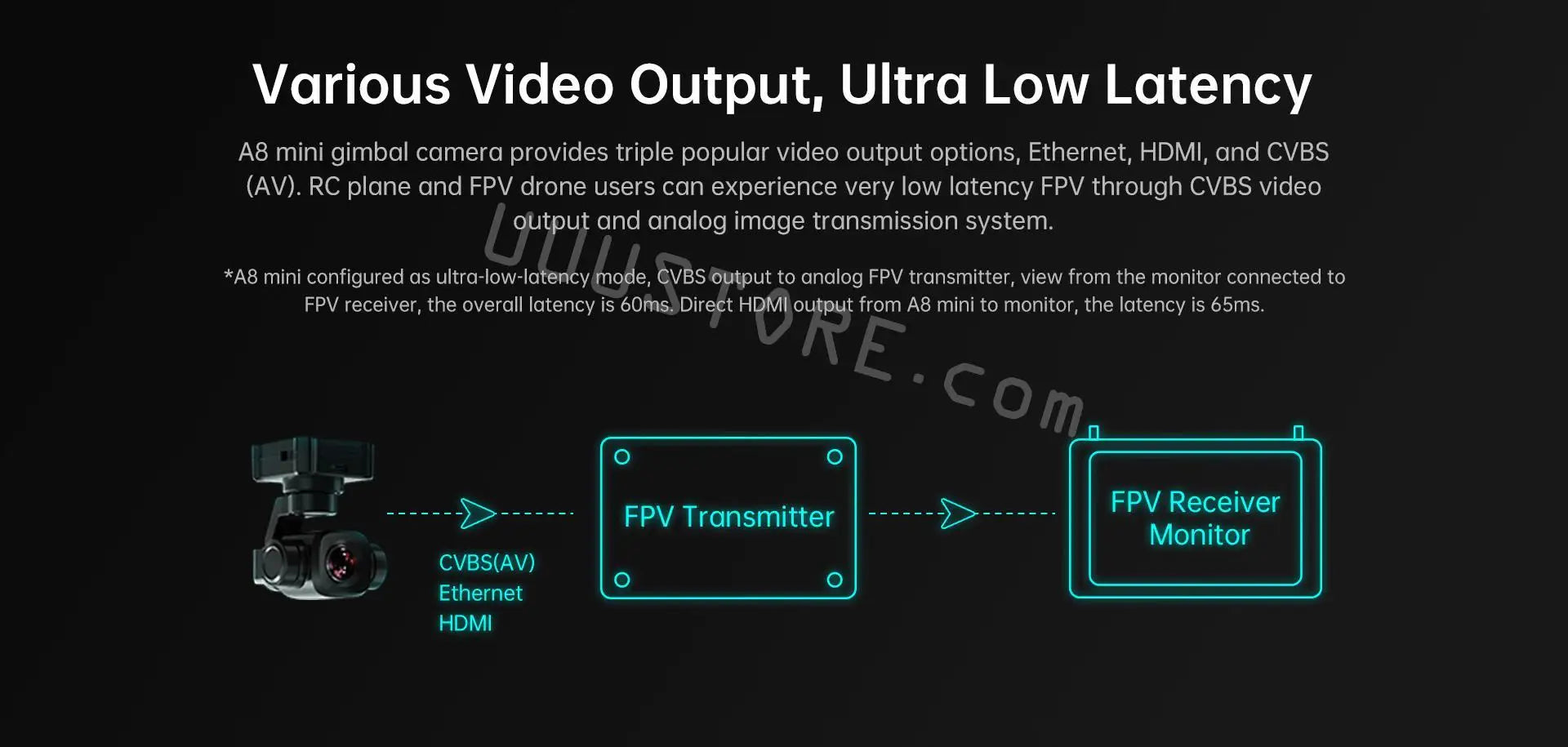

The SIYI A8 mini gimbal camera offers three popular video output options, including HDMI, Ethernet, and CVBS (AV), providing ultra-low latency for seamless FPV drone and RC plane operation.

The gimbal camera features multiple motion modes, including FPV (First-Person View) Follow and Lock modes. In FPV mode, the gimbal rotates simultaneously with the aircraft's roll, outputting stable and enhanced images suitable for planes and racing drones. Additionally, the follow mode allows it to track horizontal movements, making it compatible with multi-copter drones as well.

The SIYI A8 mini gimbal camera features a 1/1.7-inch ultra-sensitive CMOS sensor with Starlight Night Vision capabilities, which allows for bright and clear imaging even in low-light environments.

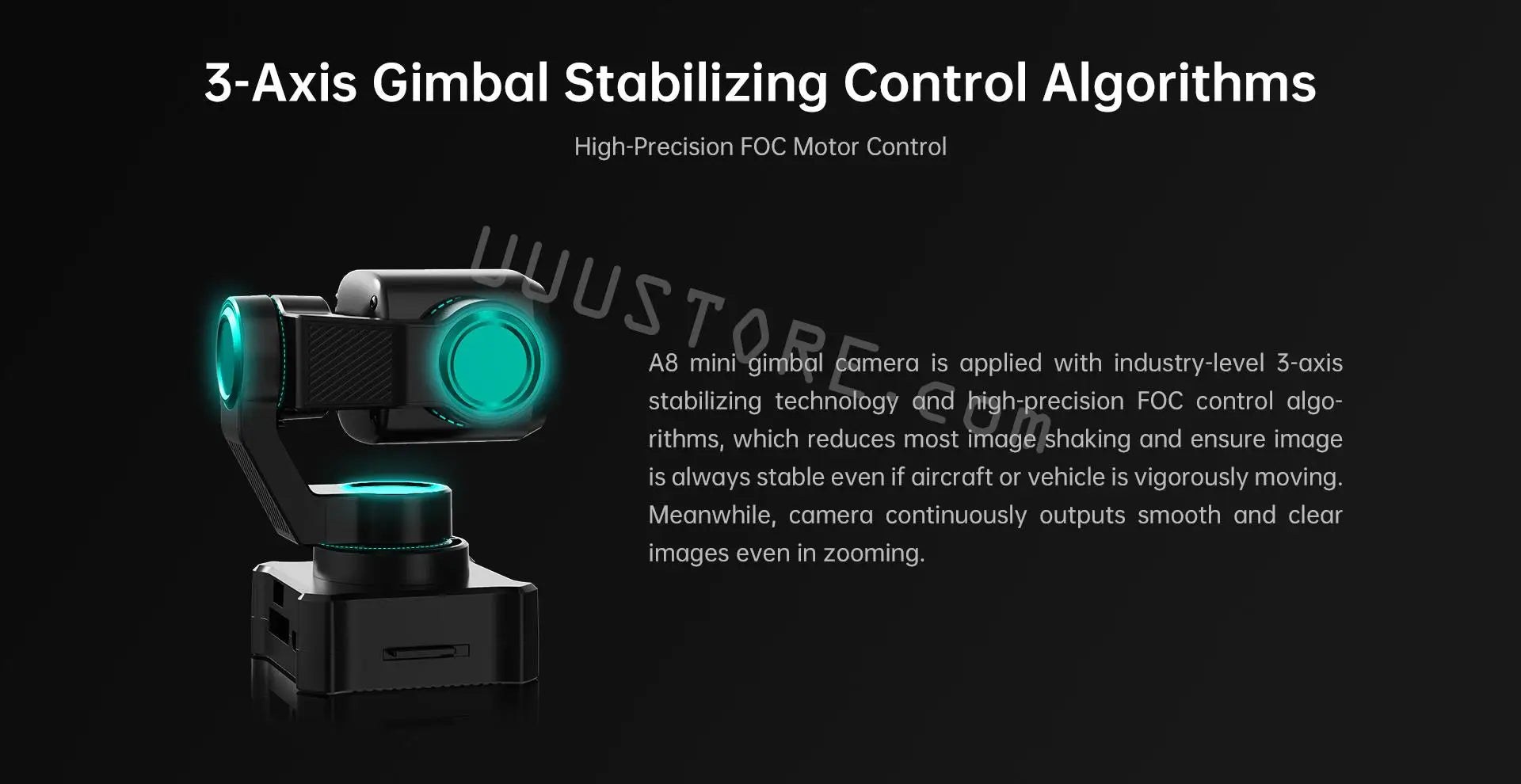

The SIYI A8 mini camera employs advanced 3-axis stabilization technology and precise FOC (Focus on Content) algorithms to effectively minimize image shake and guarantee stable video capture, even in high-motion scenarios such as aerial or vehicular applications.
