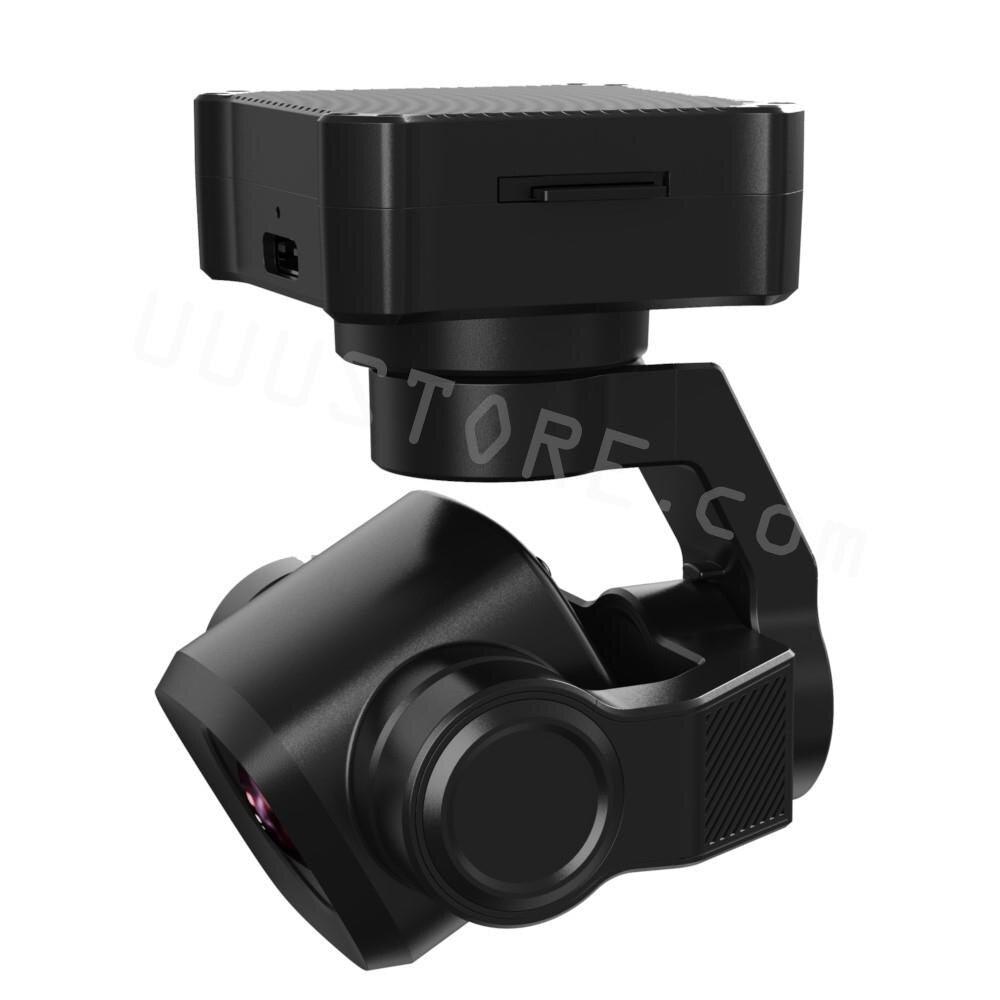

SIYI A8 mini 4K AI 8MP Ultra HD 6X Digital Zoom Gimbal Camera with DVR 1/1.7 inch Sony Sensor 95g Lightweight 55x55x70mm

Overall
Model: A8 mini
Video Output Port: Ethernet, HDMI, CVBS (AV)
Control Signal Input Port: S.Bus / UART / UDP
Control Signal Output Port: S.Bus
Working Voltage: 11 ~ 25.2 V
Power Consumption: Summit 12 W
Working Temperature: -10 ~ 50 ℃
Dimension: 55*55*70 mm
Weight: Approx. 95 g

Gimbal
Angular Vibration Range: ±0.01°
Controllable Pitch Angle: -135° ~ +45°
Controllable Yaw Angle: -160° ~ +160°
Controllable Roll Angle: -30° ~ +30°

Camera
Lens: 6X Digital
Focal Length: 21 mm
Image Sensor: Sony 1/1.7-inch, 8 MP effective resolution
Aperture: F2.8
FOV: 93°

TF Recording Resolution:

• 4K (4096 x 2160) @ 25 fps

• 2K (2560 x 1440) @ 30 fps

• 1080p (1920 x 1080) @ 30 fps

• 720p (1280 x 720) @ 30 fps

Supported File System: FAT32 (exFAT will be supported later by firmware update)
Photography File Format: JPG
Video File Format: MP4
Supported MicroSD Cards: MicroSD Class10, max 128 GB
White Balance: Auto

Sony CMOS Photo & Video Recording 6X 6X Digital Zoom Upside Down Mode Starlight Night Vision Camera 1/1.7 Inch 4K Ultra HD Identify Tracking .

The A8 mini gimbal camera features an embedded Neural Processing Unit (NPU) that utilizes brand-new AI algorithms developed by SIYI.

The SIYI A8 mini gimbal camera features a powerful imaging system equipped with a 1/1.7-inch Sony image sensor, an 8-megapixel CMOS chip with remarkable photosensitivity capabilities, allowing for impressive 4K video recording and smooth 6X digital zooming.

A8 mini gimbal camera automatically activates upside down mode when it is placed upside down . very conve- nient to be mounted on multiple kinds of vehicles like UGV, USV, robot and robotics: dog .

The SIYI A8 mini gimbal camera offers three versatile video output options: Ethernet, HDMI, and CVBS (AV). With an overall latency of just 60ms, users can enjoy seamless video transmission. Specifically, FPV drone and RC plane enthusiasts will appreciate the extremely low latency achievable through the CVBS video output.

The gimbal's motion mode includes FPV (First-Person View) Follow and Lock modes, which allow for enhanced stability in aerial footage. In fpv mode, the gimbal rotates simultaneously with aircraft roll movements, producing smooth and stable images compatible with planes and racing drones. The follow mode allows the gimbal to track aircraft rotations horizontally, but not when it tilts or changes pitch.

The SIYI A8 mini gimbal camera features a 1/1.7-inch starlight CMOS sensor that excels in capturing bright images even in low-light environments. Additionally, its HDR (High Dynamic Range) feature enables precise capture of details in both highlights and shadows, effectively reducing the impact of low light or backlighting.

The SIYI A8 mini gimbal camera features advanced 3-axis stabilization technology and high-precision Focus Control (FOC) algorithms, effectively reducing most image shaking and ensuring a stable image even when the aircraft or vehicle is in motion.

The SIYI A8 mini camera features gimbal control with video output options including S-Video, Bus, UART, UDP, and control signal input via Ethernet or HDMI. Additionally, it supports CVBS (also known as AV) format.
