SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Type: NO, Industrial Drone Parts - Transmission System

Transmission Range: 20 km

Supported Models: Quadcopters, Multi-rotors, Fixed Wings, Gliders, Helicopters

Supported FC: PIX/APM, etc BOYING PALADIN V2 JIYI K3A/K++

Recommend Age: 12+y

Place of Origin: Guangdong, China

Origin: Mainland China

Operating Frequency: 2.400 GHz ~ 2.483 GHz

Model Number: DK32S

Material: Composite Material

Channels: 16 CH

Brand Name: SIYI

Brand Name: aerops

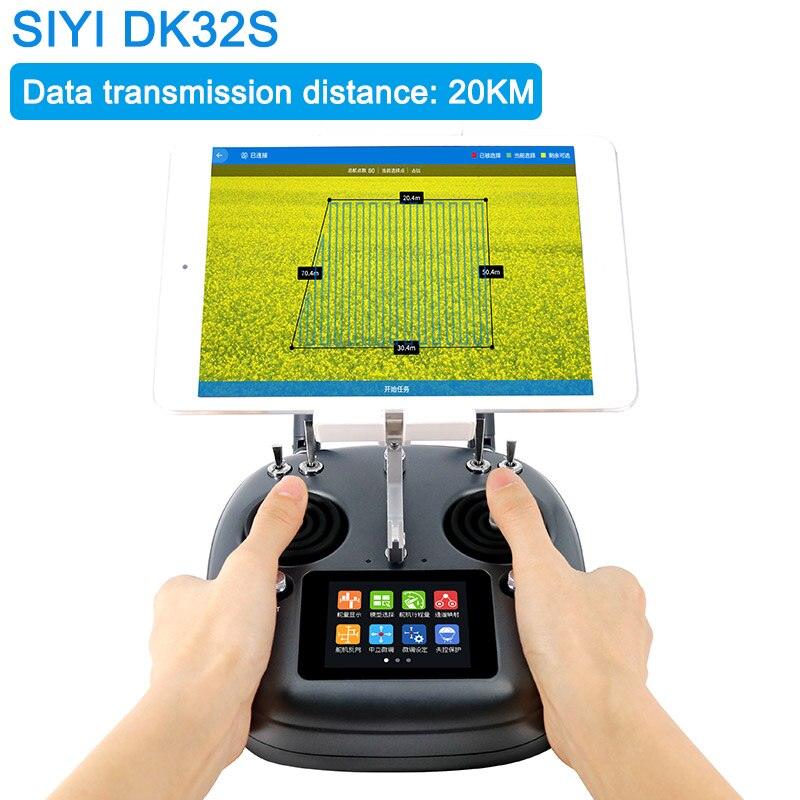

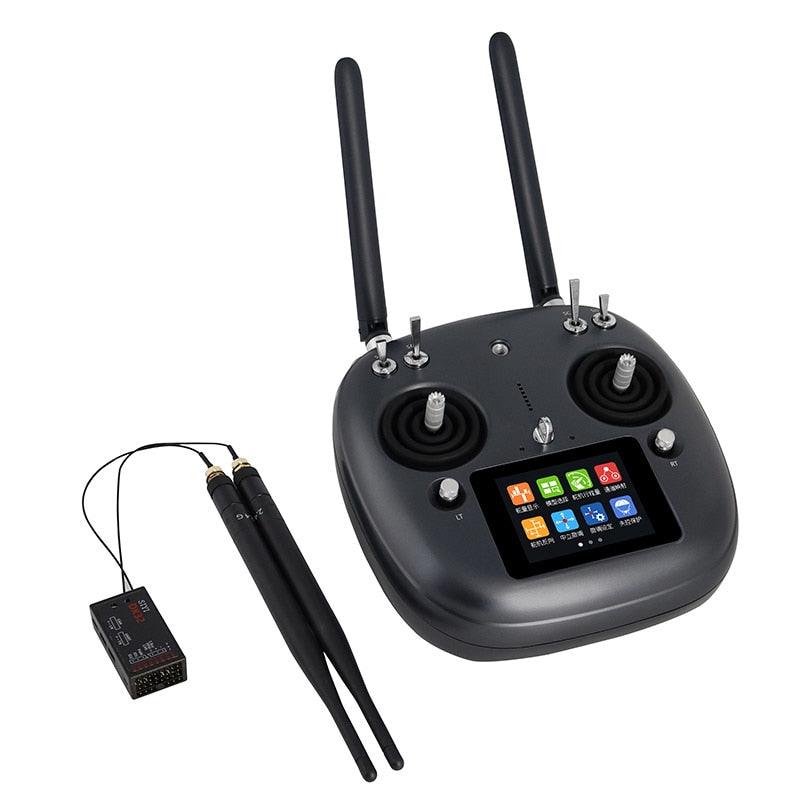

SIYI DK32S 2.4G 16CH Transmitter Remote Controller Transimitter Receiver integrated 20KM Datalink for DIY Agricultural drones

Overall performance
Maximum communication distance (no interference, no blocking): 15 km
Operating frequency: 2.400-2.483 GHz
Number of channels: 26 physical channels, 16 receiver output channels
Support models: plant protection machine / multi-rotor / fixed wing / glider / helicopter
Flight control supported by digital transmissio:TopXgun T1-A
                                                                         Woozoom THEONE – A
                                                                         EFY Finix200
                                                                         JIYI K3A
                                                                         BOYING PALADIN V2
                                                                         QIAO Matrix
                                                                         Cfuas C1-A
                                                                         Open source flight control PIX, APM

Ground terminal (remote carontrol transmitter)
Language display:Chinese/English
Connect mobile phone, tablet interface A-USB, Micro USB,  WIFI (optional)
Dimensions :194.5 x 172.5 x 114mm
Weight :610g
Battery ambient temperature :0°C ~55°C
Battery 4000 mAh Lithium Rechargeable Battery 1S
Charging Micro USB 5V 2A

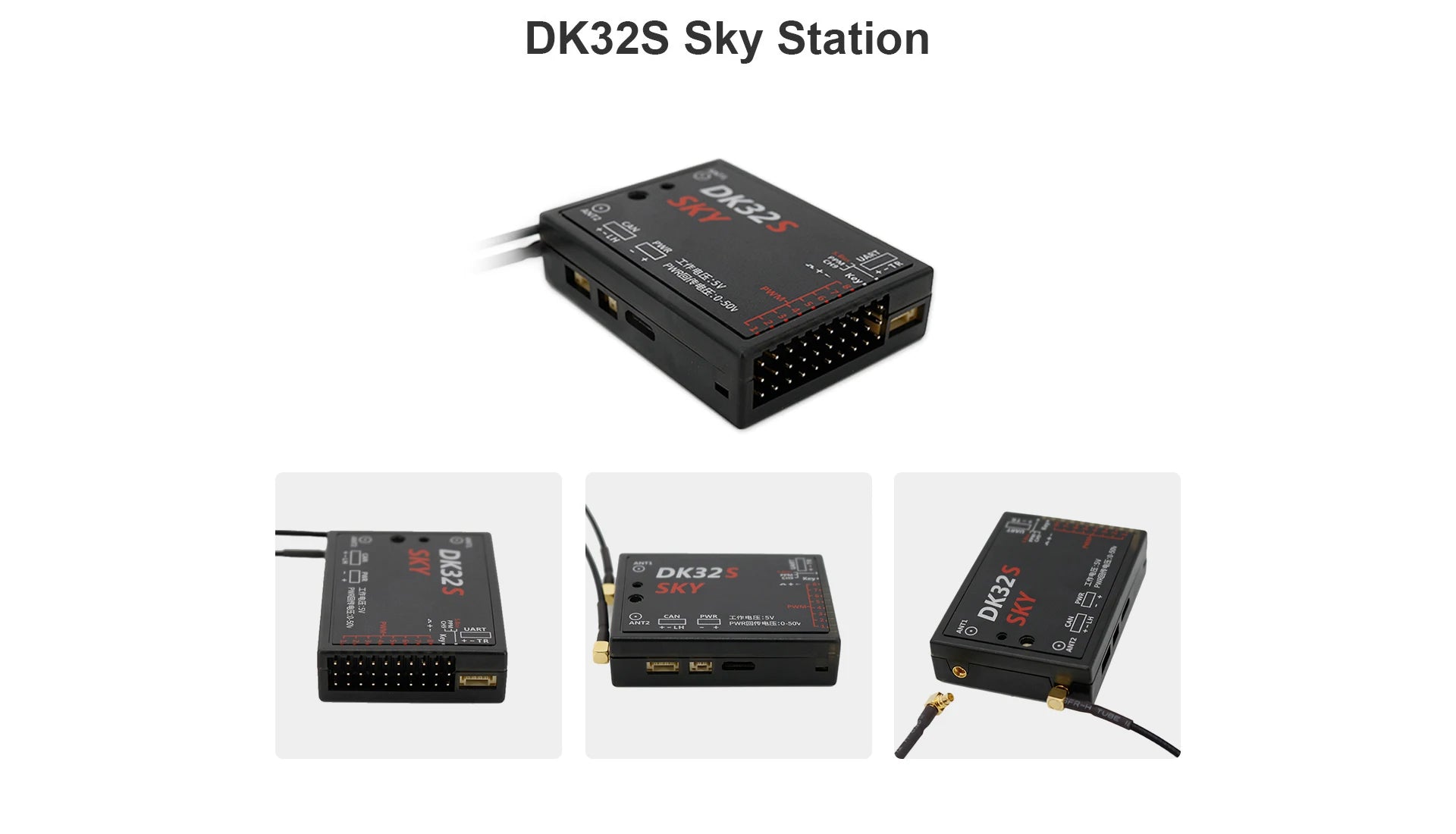

Sky terminal (remote control receiver integrated DATALINK)
Signal output 16-channel S.Bus, 9-channel PPM, 9-channel PWM
Connect flight control interface UART, CAN (optional)
Dimensions (without antenna) 49 x 26 x 14mm
Weight (without antenna) 22g
Antenna gain 5dBi
Working voltage 5 V-8.4V
Working environment temperature -10 ° C to 55 ° C

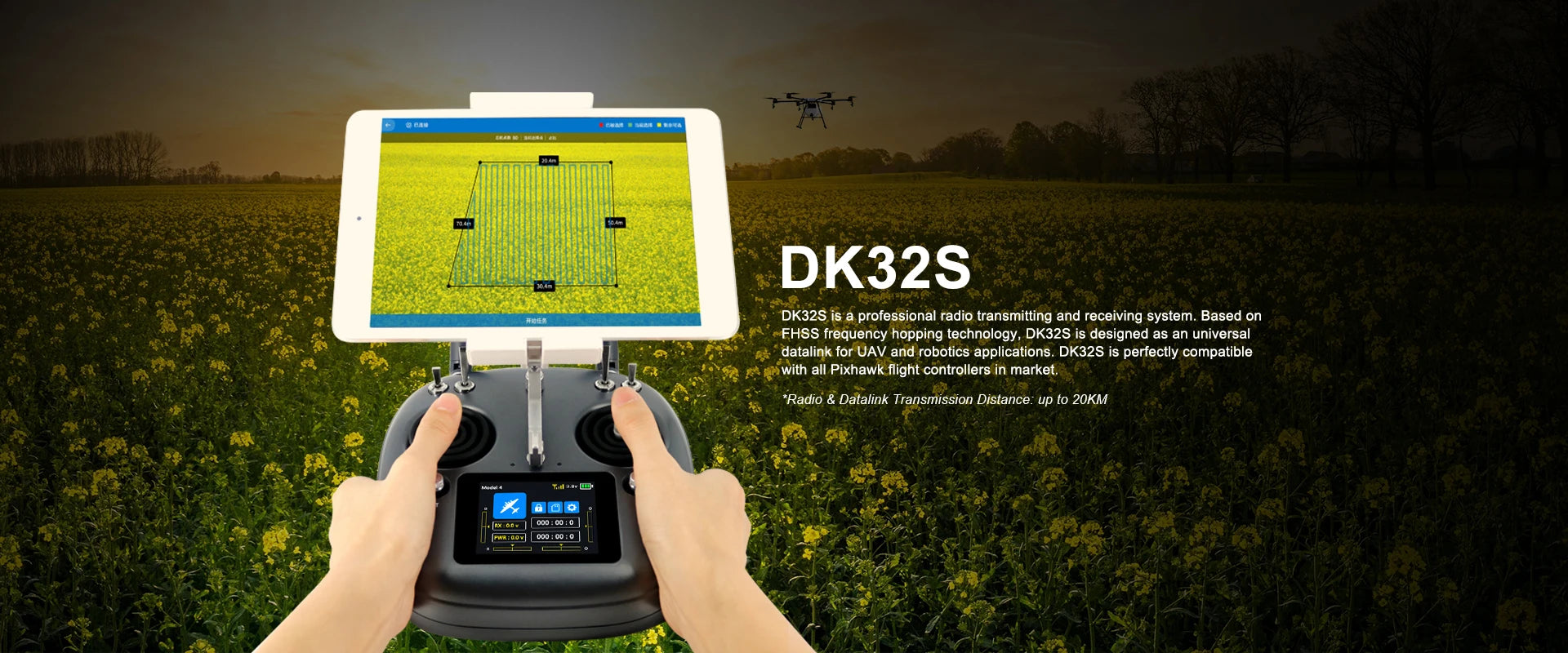

DK32S is a professional radio transmitting and receiving system . it is designed as an universal datalink for UAV and robotics applications . the system is perfectly compatible with all Pixhawk flight controllers .

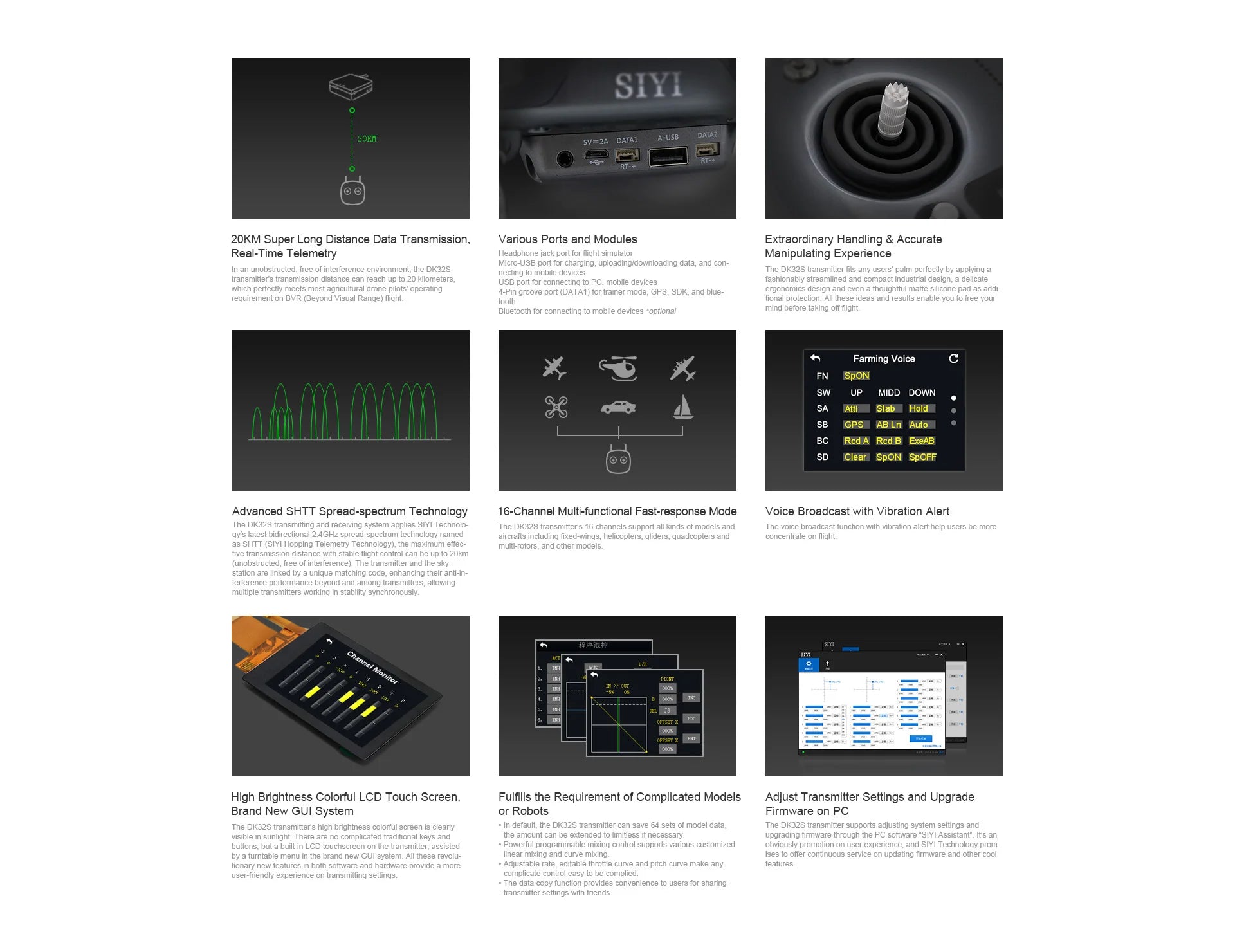

Siy's latest bidirectional technology, featuring 4GHz spread-spectrum transmission, supports a wide range of aircraft types, including fixed-wing planes, helicopters, gliders, and quadcopters. The transmitter and receiver are linked by a unique matching code, enhancing their anti-interference performance.

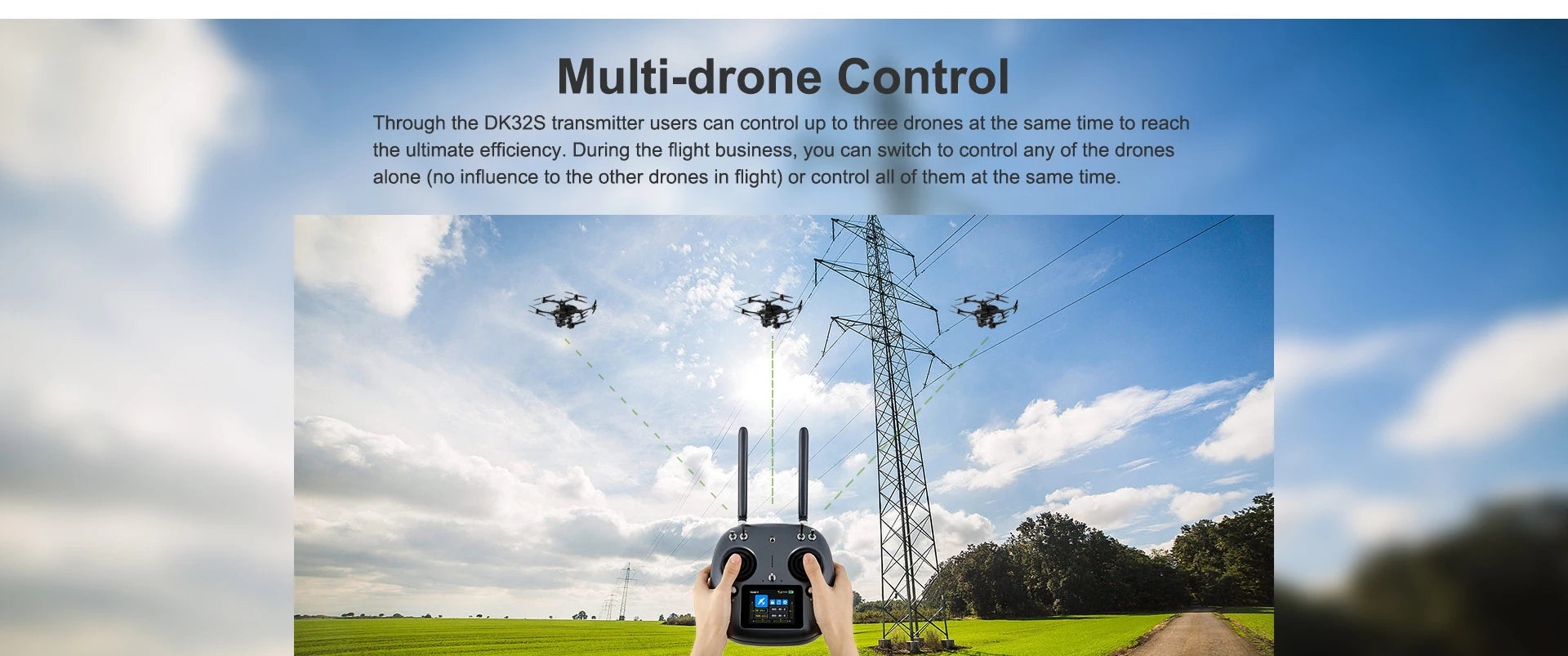

Users can efficiently manage up to three drones at once, with the ability to seamlessly transition between controlling one drone solo, multiple drones simultaneously, or individually switching focus between them without disrupting the others' flight operations.

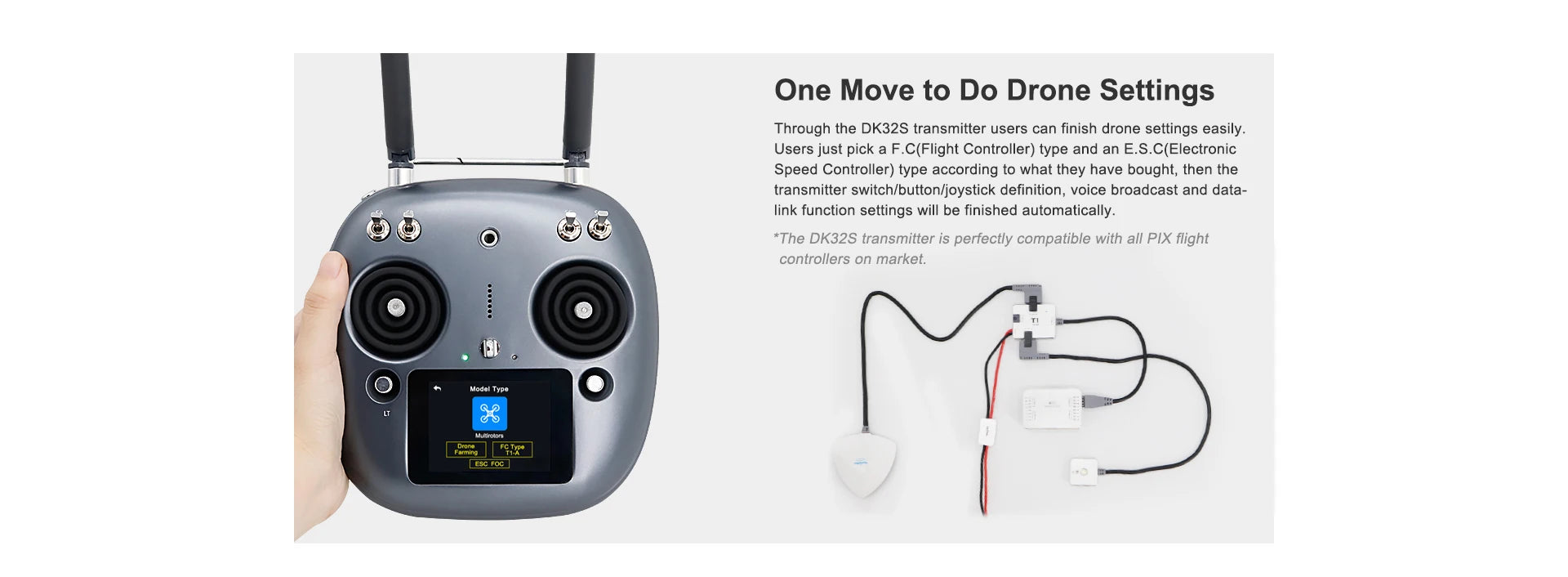

The SIYI DK32S transmitter is perfectly compatible with all PIX flight controllers currently available on the market. Users simply need to choose their desired flight controller type and electronic speed controller (ESC) type.

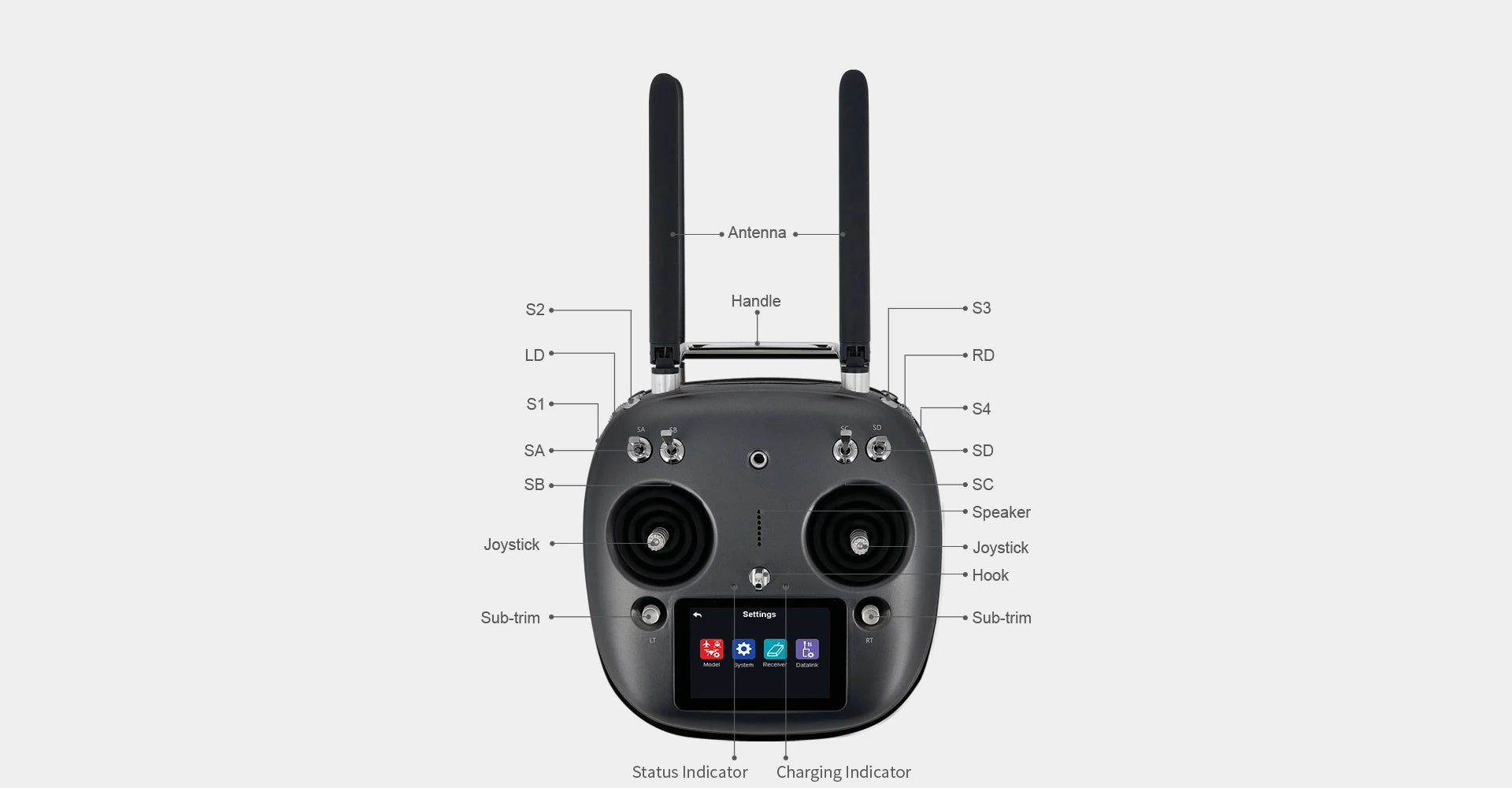

The SIYI DK32S remote controller features an antenna, handle, joystick, hook, sub-trim settings, status indicator, charging port, and other components such as LD, RD, S1, S4, SA, SD, SB, SC, and Speaker.

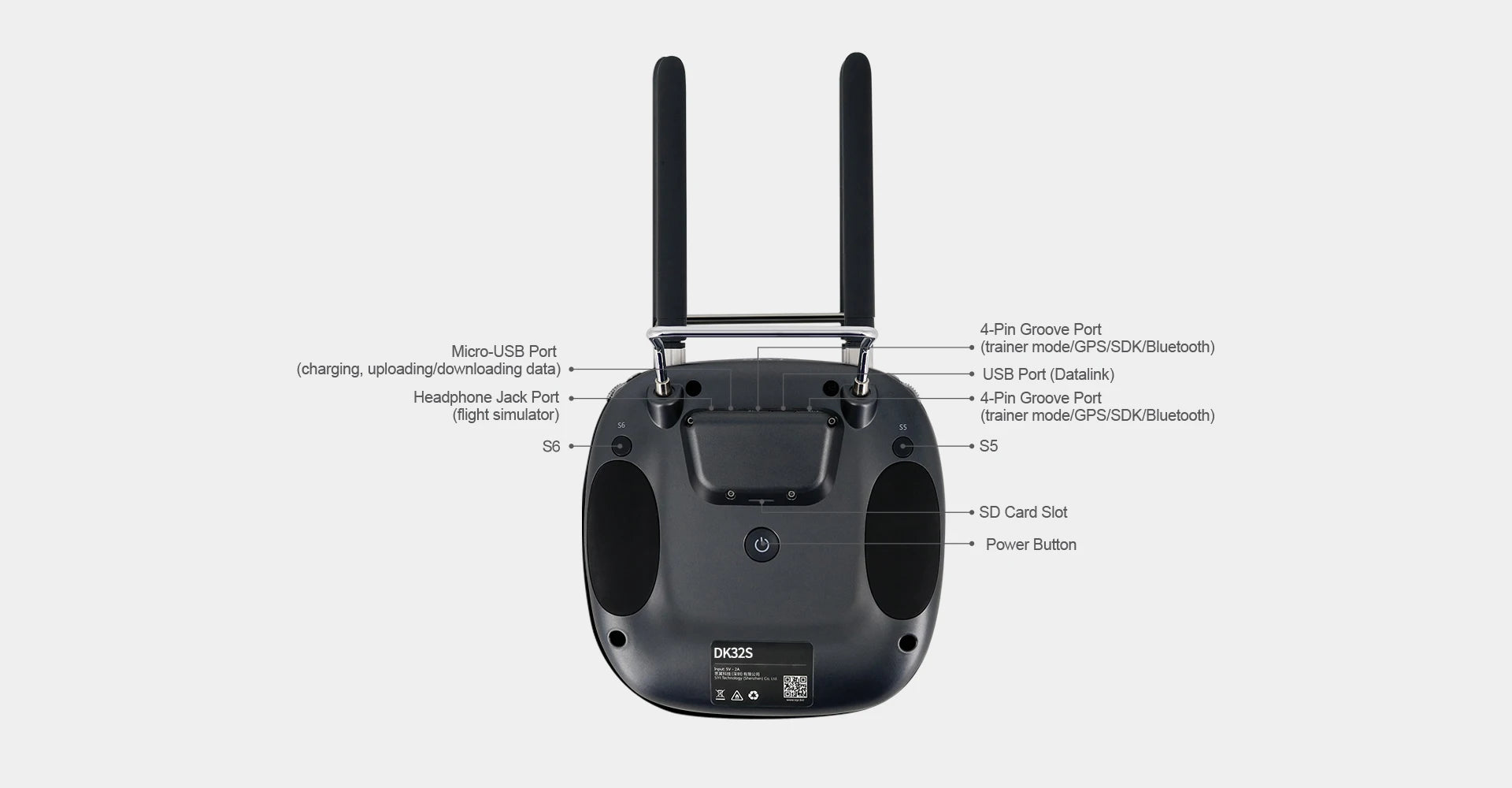

The SIYI DK32S features a micro-USB port for charging, uploading and downloading data, as well as a GPS, Bluetooth, and trainer mode. It also has a power button, an SD card slot (S5), and a 4-pin groove port (Piatatu).
