Technical

Overall

Model: MK32
Max Transmission Range: 15 kilometers (unobstructed, free of interference)
Channels: 16 physical channels, 16 communication channels
Datalink Compatible Flight Controllers: Pixhawk / APM based flight controllers or any flight controllers with UART datalink output
Image Transmission Compatible Android GCS:
- QGroundControl
- SIYI FPV
Image Transmission Compatible Windows GCS:
- QGroundControl

Ground Station

Monitor: 7-Inch High Definition and High Brightness LCD Touchscreen
System: Android 9.0 OS, 4G RAM & 64G ROM
Dimension (antenna overlapped): 308 x 148 x 72 mm
Weight: 1440 g
Battery Capacity & Type: 10200 mAh 7.4 V 2S Li-ion, 75.48 Wh
Fast Charging Protocol: PD 30W
Charging Time: 3.5 Hours (30W PD Charging)
Battery Life: 10 hours
Interface & Ports:
- Video Output:  Standard HDMI
- External Device: USB-A
- MIC Input: Top Audio Port
- Charging: Type-C
- Firmware Upgrade: Type-C
- File Transfer: Type-C / USB-A
- 4G Cellular Network: SIM Card Slot
- External Storage: TF Card Slot / USB-A
- Communication: LAN (Ethernet)
- RC Input / Output: Bottom Audio Port
Waterproof Level: IP4X
Working Temperature: -10 to 50℃

Air Unit
Signal Output: 16 channels of S.BUS, 5 channels of PWM
Interface & Ports:
- SBUS: 3-Pin
- Datalink (to FC): UART 4-Pin
- PWM Channel 1 to 5: 6-Pin
- Video Input: Ethernet 8-Pin
- Firmware Upgrade: Type-C
Dimensions (antenna excluded, fan included): 70 x 55 x 16 mm
Weight (antenna excluded): 74 g
Antenna Gain (standard omni): 5 dBi
Power Input: 11 to 16.8 V (expandable to 4S to 18S with BEC)
Working Temperature: -10 to 50℃

Air Unit HDMI Input Converter
(Optional or Packed with HDMI Combo)

Video Input Port: Mini HDMI
Video Output Port: Ethernet
Working Voltage: 12 V
Power Consumption: 3 W

TF Card Recording Resolution: 1080P (1920*1080) @ 30 fps, 720p (1280 x 720) @ 30 fps

Video Storage Bitrate: 12 Mbps

File Storage Format: FAT32
Video Format: H.265
Supported MicroSD Cards: MicroSD Class10, Max 32GB
Working Temperature: -10 to 50℃

Dimensions: 42 x 41 x 11 mm
Weight: 26 g

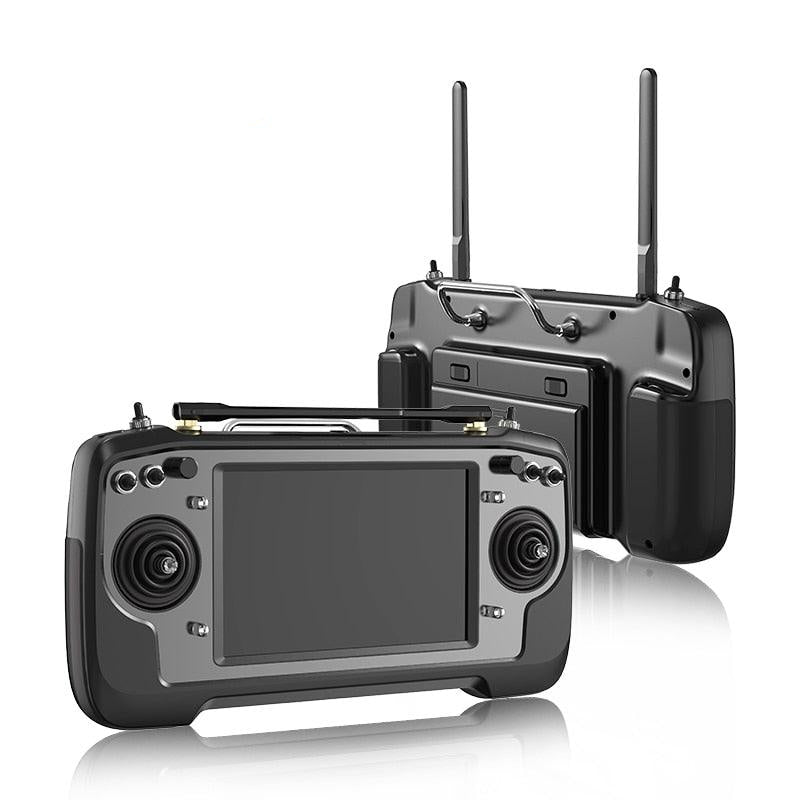

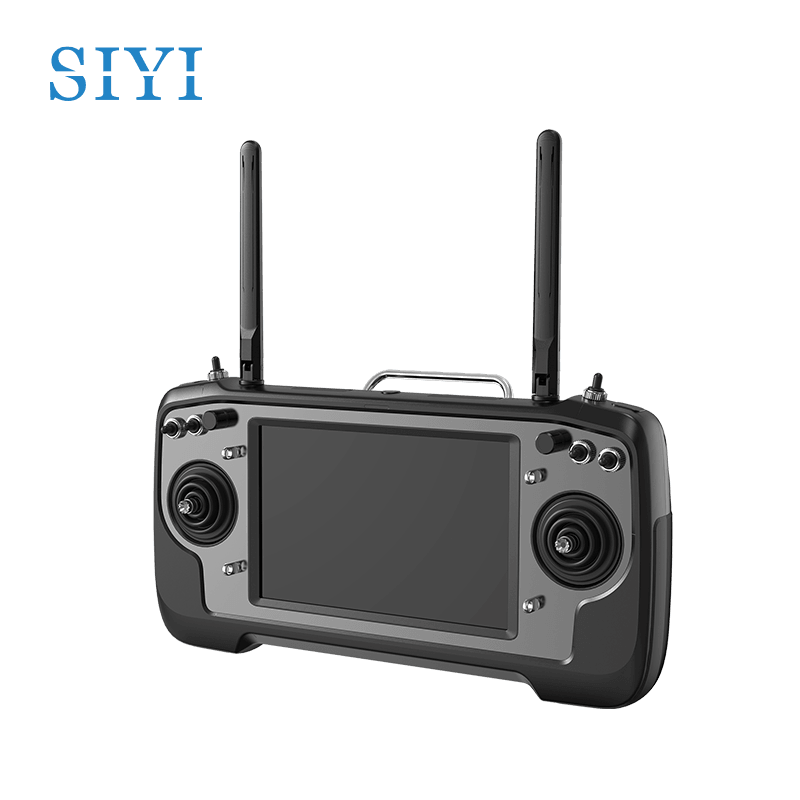

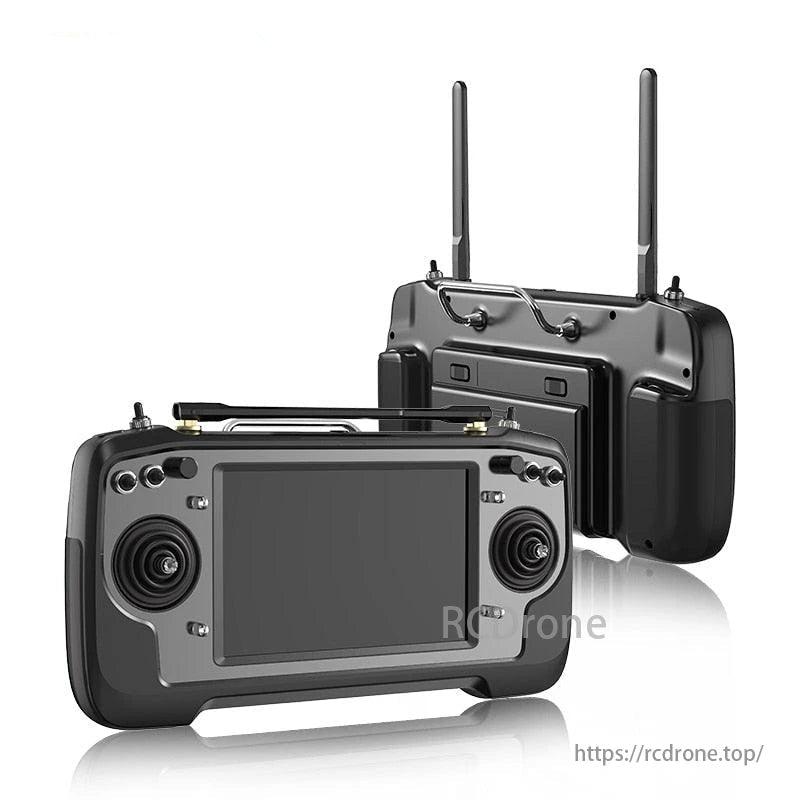

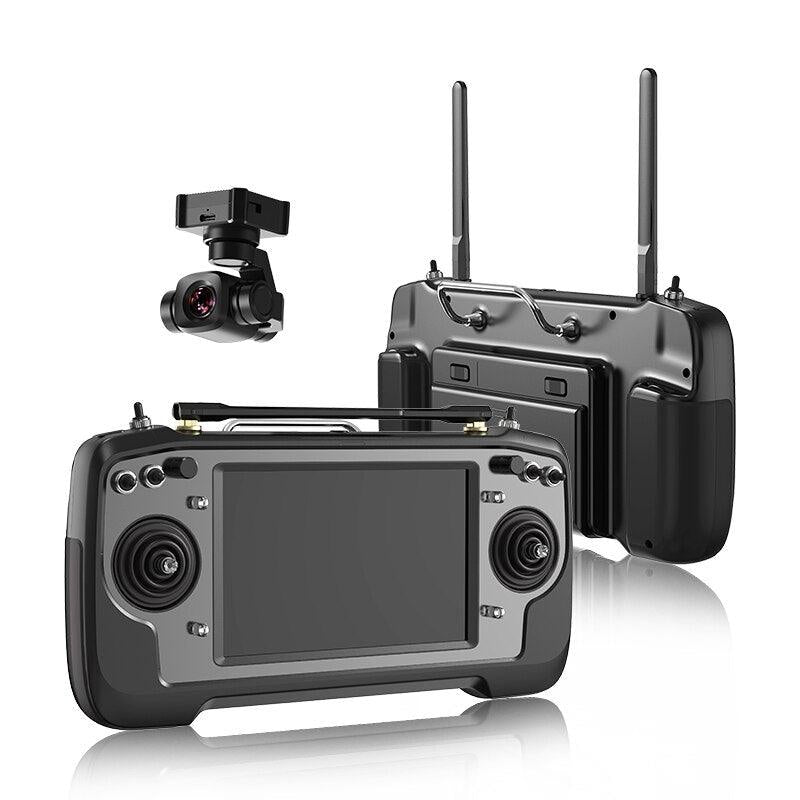

MK32 Enterprise Handheld Ground Station 7-Inch HD High Quakcomm Core CPU Brightness Monitor 4G RAM 64G ROM Duol Operator ISKM Dual 1O8Op RC Reloy Digital Image Transmission .

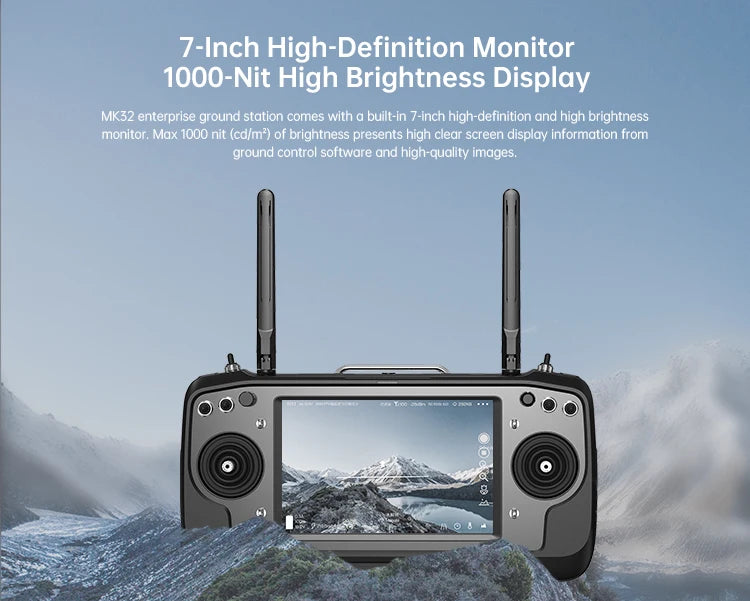

The built-in 7-inch high-definition (HD) monitor with a maximum brightness of 1000 nits (cd/m2) provides a high-contrast, clear screen display.

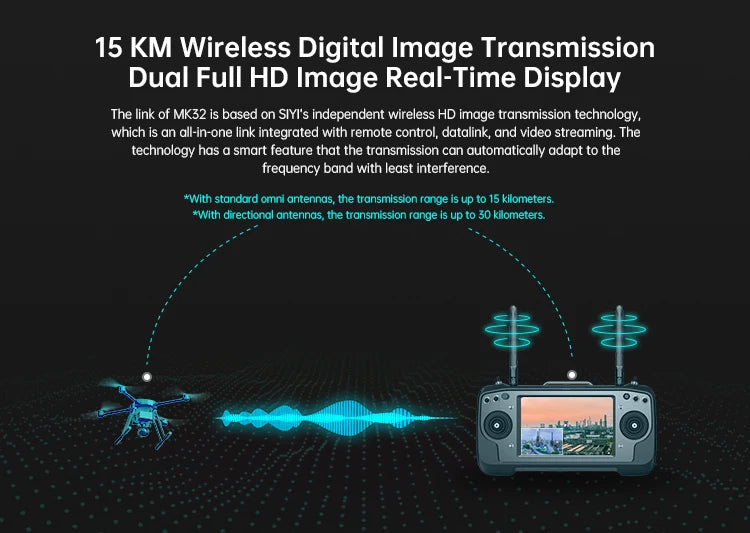

The Wireless Digital Image Transmission (MK32) relies on SIYI's proprietary wireless High-Definition (HD) image transmission technology, which can automatically adjust to the frequency band with the least interference.

The MK32's Android-based system features a Qualcomm-powered processor that allows for smooth decoding of high-definition (1080p) video streams at 60 frames per second, supported in either H.264 or H.265 formats.

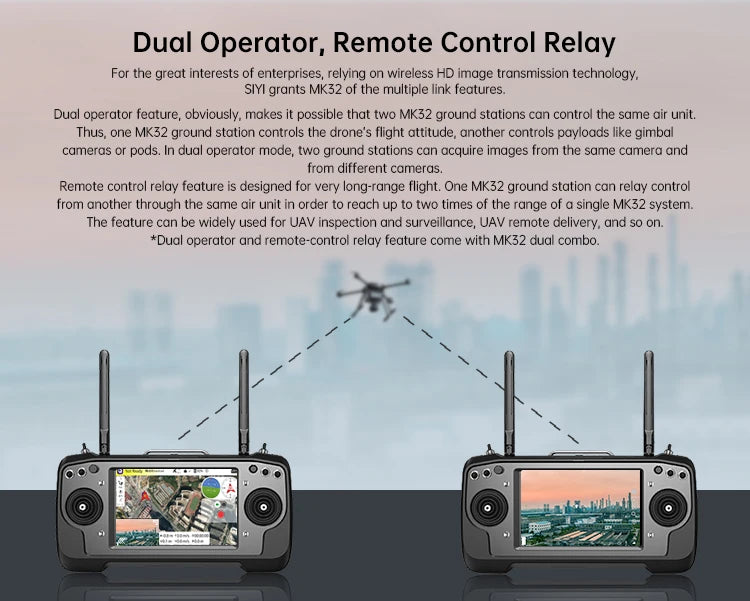

The dual operator feature enables simultaneous control of the same air unit by two ground stations, while the remote control relay feature supports extended-range flights and has applications in various fields such as UAV inspection and surveillance, as well as remote delivery.

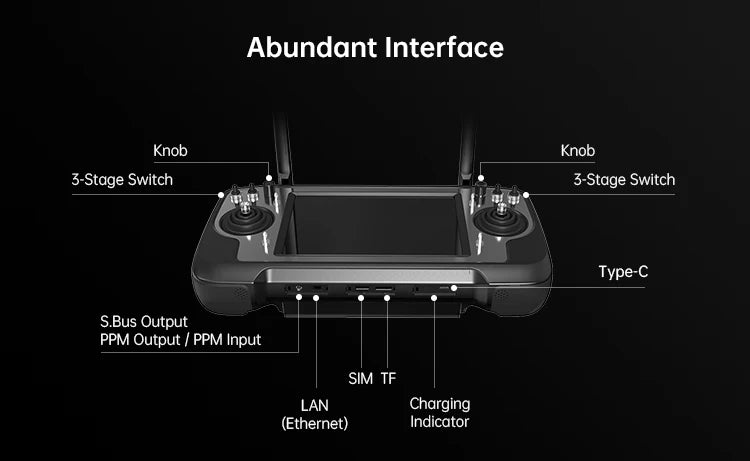

This device features an abundance of interfaces, including a knob with three-stage switch, a Type-C output, and supports S-Bus protocol. Additionally, it has inputs for Pulse Position Modulation (PPM) signals and is compatible with SIM cards. It also includes LAN charging via Ethernet.

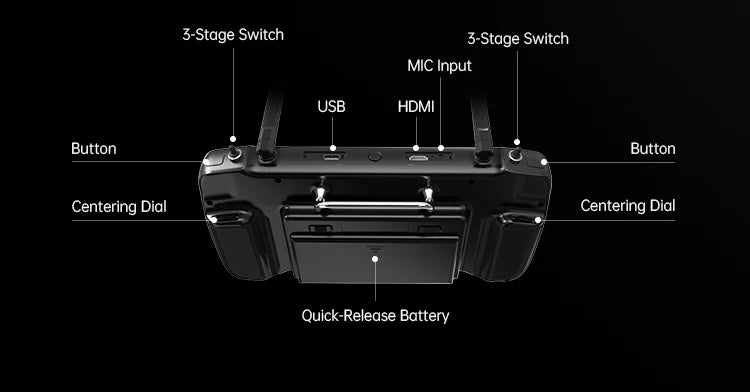

Three-stage switch with microphone input, USB and HDMI connectivity, button control, centering dial, and quick-release battery.

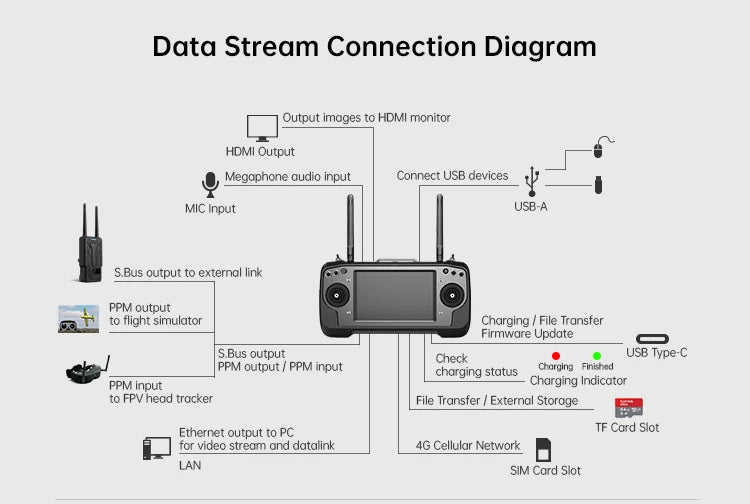

This handheld ground station controller, the SIYI MK32 DUAL Enterprise, features various input/output options, including USB-A for MIC input, SBUS output for external link connection, PPM output for flight simulator compatibility, and charging capabilities. Additionally, it has a firmware update function with five bus outputs, as well as a power indicator that displays the charging status. The device also supports file transfer via Ethernet output to PC, TF card slot for storing video streams and data links, and cellular network/LAN SIM card slot for connectivity.

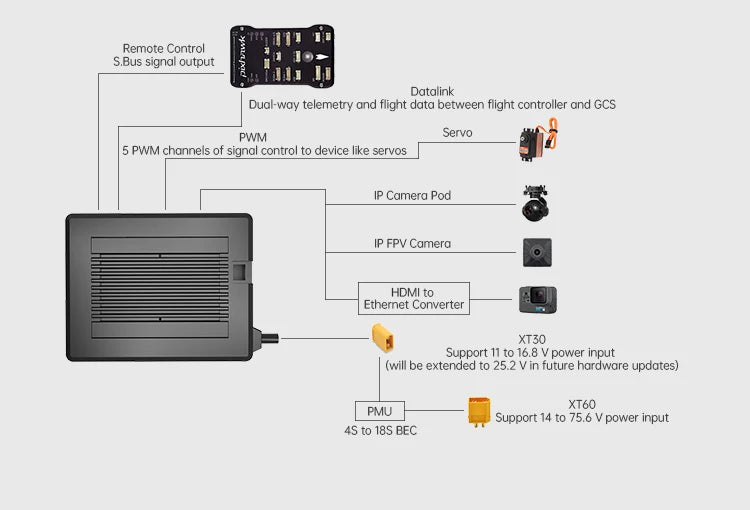

This product, SIYI MK32 DUAL, features dual operator control with remote relay functionality. It supports servo PWM channels for controlling devices like servos, cameras, and FPV cameras. Additionally, it includes HDMI-to-Ethernet converter capabilities and XT3O power management, which can handle input voltages ranging from 1.1 to 16.8V (with future hardware updates expected to support up to 25.2V). The XT6o Power Management Unit also supports a wide range of power inputs, including 14-75.6V and provides backup energy conversion capabilities between 45-185V.

This product is part of a series that includes various combos and optional parts: the MK32 Standard Combo, MK33 Ground Station, MK34 Air Station, MK38 Air-to-Air Converter, MK39 Dual Combo, MK37 Dual Ground Station, and MK36 Dual Ground Station.

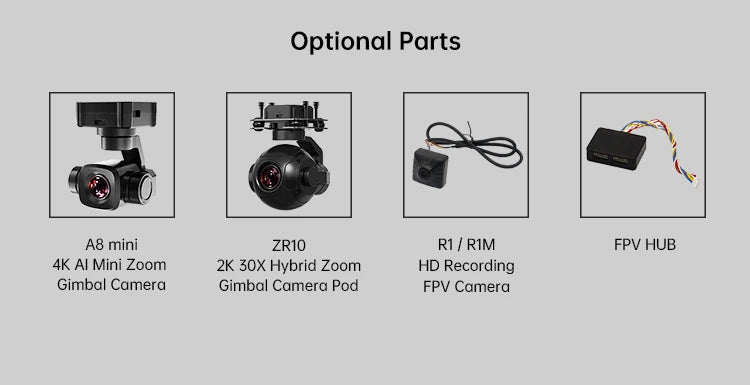

Optional parts include an A8 mini ZRI O/R IM FPV hub with 4K mini zoom, 2K resolution, and 30x hybrid zoom capabilities for high-definition recording and gimbal camera pod functionality.
