SIYI UniRC 7 / 7 Pro - 2.4 & 5 GHz 40KM 7 Inch 1080P Handheld Ground Station for UAV Drone

UniRC 7/7 Pro New Era Handheld Ground Station for Crossing Clouds and Sailing Immediately

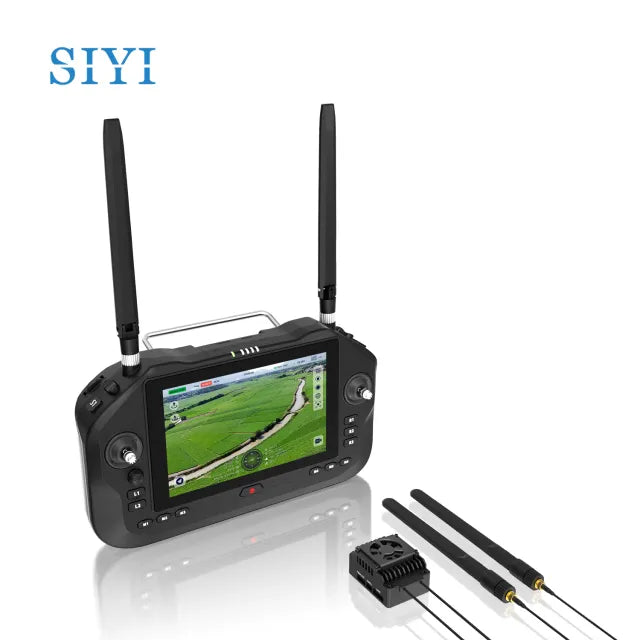

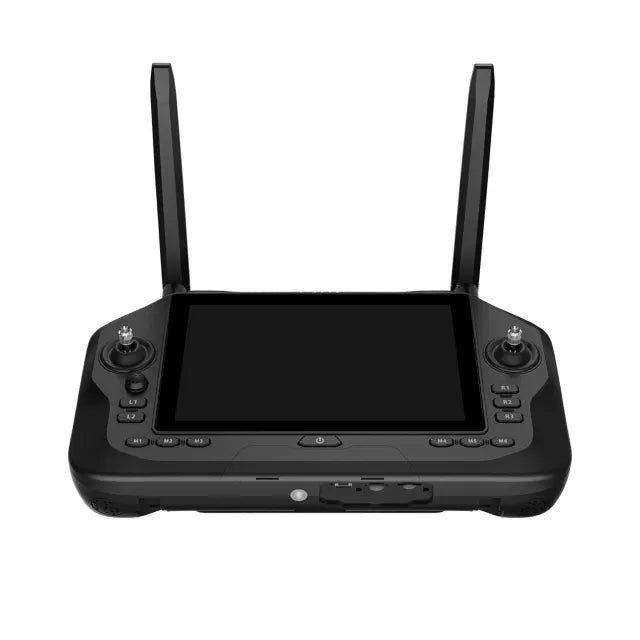

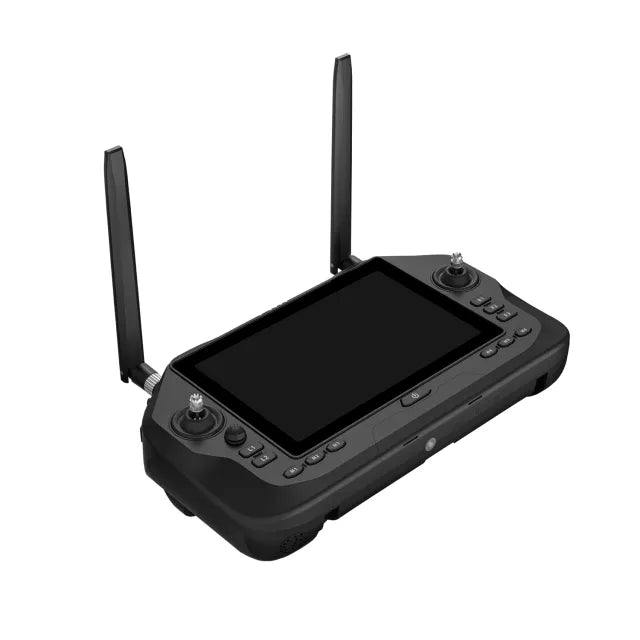

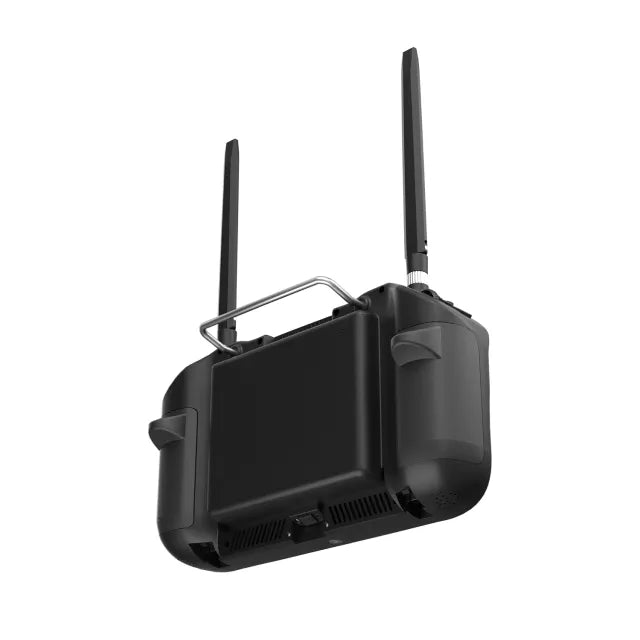

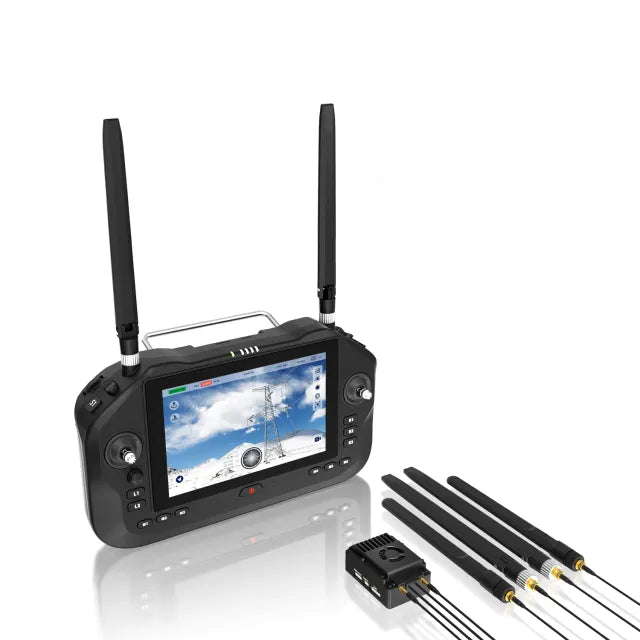

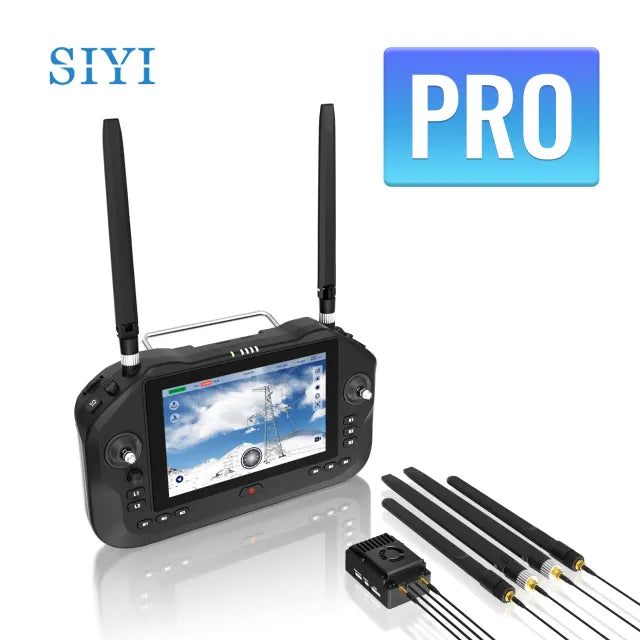

UniRC 7/7 Pro are SIYI new era handheld ground station series designed for drones, vehicles, boats, and smart robotics. The series comes with 2.4/5 GHz dual-frequency, 40 km communication range, 4K 30fps decoding capability, transmission bitrates up to 65 Mbps, AES encryption, a 1600-nit brightness 1080p definition 7-inch monitor, unique design sub joystick, six flight mode buttons, and quick-release brackets, etc. Combining top-notch performance and innovative design, UniRC 7/7 Pro delivers an ultimate control experience and leads the industry standards to a new level.

Siyi UniRC 7/7 Pro features a dual frequency system with a communication range of up to 40km on both 2.4 and 5 GHz frequencies. It boasts redundancy for reliable performance. The air unit has an 11-hour battery life, while the ground unit features quick-release design. The drone is equipped with a Qualcomm 8-core CPU, 30W PD fast charging, 4GB RAM, and 64GB ROM. The controller has a unique sub joystick belly bracket, dual operator support, and six flight mode buttons. The air unit also features active cooling and a detachable quick-release battery.

Smart Dual Frequency Image Transmission System with Stable Long Range Vision and Control. The UniRC 7/7 Pro features a transmission range of 40km, bitrate of 65Mbps, bandwidth of 20M, and latency of 170ms.

SIYI UniRC 7/7 Pro integrates SIYI new-generation self-developed image transmission technology: The new transmission technology automatically selects the best channel based on environmental interference, providing enhanced anti-interference capabilities and up to 40km transmission range. The system supports real-time image transmission in 4K at 30fps for single streams or 1080p at 60fps for dual streams. Transmission bitrate up to 65 Mbps and latency as low as 170 ms. Data transmission also supports AES encryption, ensuring data safety on both ends.

7-Inch HD Display Every Frame Shines UniRC 7/7 Pro equips a 7-inch HD touchscreen with ultra-high screen-to-body ratio and 1600-nit brightness at 1080p resolution, which ensures clear visibility even under direct sunshine. The screen also features adaptive brightness, adjustable based on ambient light, providing an anti-glare outdoor experience with crystal-clear vision.

Innovative Sub Joystick provides precise control for gimbals and other devices. Unique design offers convenient and versatile control options. Suitable for gimbal cameras, 3-axis searchlights, robotic arms, and more.

Innovative quick-release belly brackets, a patented design by SIYI, enable users to easily wear UniRC 7 series devices while saving effort. The bracket attaches a soft silicone mat, providing ergonomic and comfortable support during long operations, significantly reducing hand fatigue and allowing pilots to focus more on their missions.

Ultimate craftsmanship with detailed six flight mode buttons, dual speakers, IP54 protection, active cooling, backlight buttons for night use, logo quick-release battery and customizable logo ergonomic grip.

Android 13 OS-based UniRC 7/7 Pro device runs on a Qualcomm Snapdragon 8-core CPU, equipped with 4GB of RAM and 64GB of ROM. It features advanced performance capabilities, including 4K video decoding at 30 frames per second, for smooth multitasking and robust data processing.

Long battery life for heavy use, temperature control protection for charging when powered on and reducing charging power when overheating. Quick-release battery design for easy swappable use, ideal for continuous operation scenarios.

Dual Operator Flexible Collaboration Designed for dual-operator scenarios, UniRC 7/7 Pro supports two ground units controlling one air unit simultaneously: One operator flies the drone, another controls the gimbal camera or other payloads. Either ground unit can see the same camera view or different camera views. Payload Control Flight Control The dual operator feature is currently under development; stay tuned!

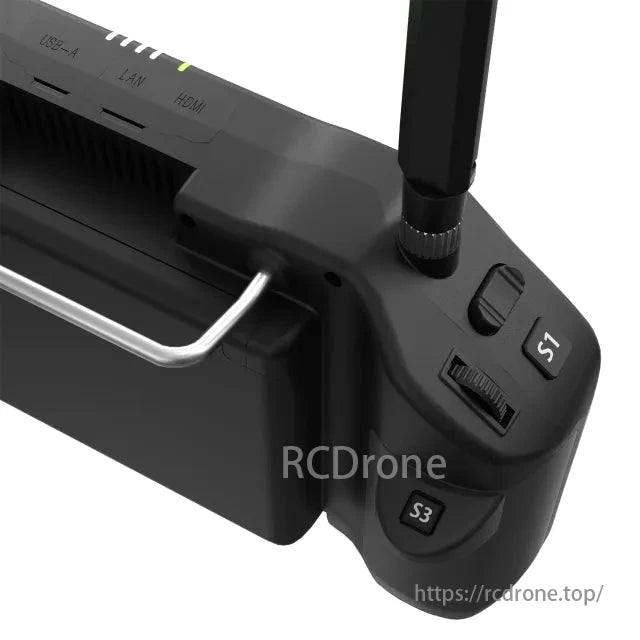

Abundant interfaces; powerful expandability. The ground unit supports various interfaces, including Ethernet (Pro version only), HDMI (Pro version only), SIM and TF cards. It also provides many data link ports such as UDP, Bluetooth, UART (Android built-in serial port) and Type-C, making it easy to switch between different application scenarios.

UniRC 7 and 7 Pro Comparison Table UniRC7 Pro, UniRC 7 Screen Resolution, Screen Resolution 1920x1200, 1280x800 Transmission Frequency, Transmission Frequency 24.5 GHz, 2.4 GHz LAN Port, LAN Port Yes, No HDMI Port, HDMI Port Yes, No Ground Unit Antennas, Ground Unit Antennas 2 x External & 2 x Internal, 2 x External USB-A Port, USB-A Port Functions as UART (for RTK dotting), Functions as UART only and as USB for USB Disks Microphones (for RTK dotting) Battery Life, Battery Life 8 hours, 11 hours Quick-Release Belly Bracket, Quick-Release Bracket Shoulder Strap Neck Air Unit Dimensions, Air Unit Dimensions L63 W40.5 H26.5 mm, L57 W40.5 H28 mm Air Unit Antennas, Air Unit Antennas 2 x Quick-Release MMCX & 2 x Detachable IPEXZ, 2 x Detachable IPEX Air Unit Weight, Air Unit Weight Approx: 115 g (without antennas), Approx: 90 g (without antennas) Belly Strap

Diverse product ecosystem linking infinity and future, gimbal link and camera controller, autopilot propulsion, UniGCS system.
