SIYI ZR10 x MK32 SPECIFICATIONS

Warranty: 12 months

Video Capture Resolution: 1080p FHD

Type: Airplane

State of Assembly: Ready-to-Go

Remote Distance: 15km

Remote Control: No

Recommend Age: 12+y

Power Source: NITRO

Package Includes: Original Box,Camera

Origin: Mainland China

Operator Skill Level: Expert

Material: Plastic

Indoor/Outdoor Use: Indoor-Outdoor

Features: Other

Dimensions: 0-10cm

Controller Mode: MODE1,MODE2

Control Channels: 12 Channels & Up

Camera Mount Type: Other

Brand Name: SIYI

Barcode: No

Aerial Photography: No

SIYI ZR10 Gimbal Camera Unboxing

https://youtu.be/rYNSxUUAmxc

How easy it is using SIYI ZR10 gimbal camera together with MK15 smart controller?

https://youtu.be/sqVFtMFgGbI

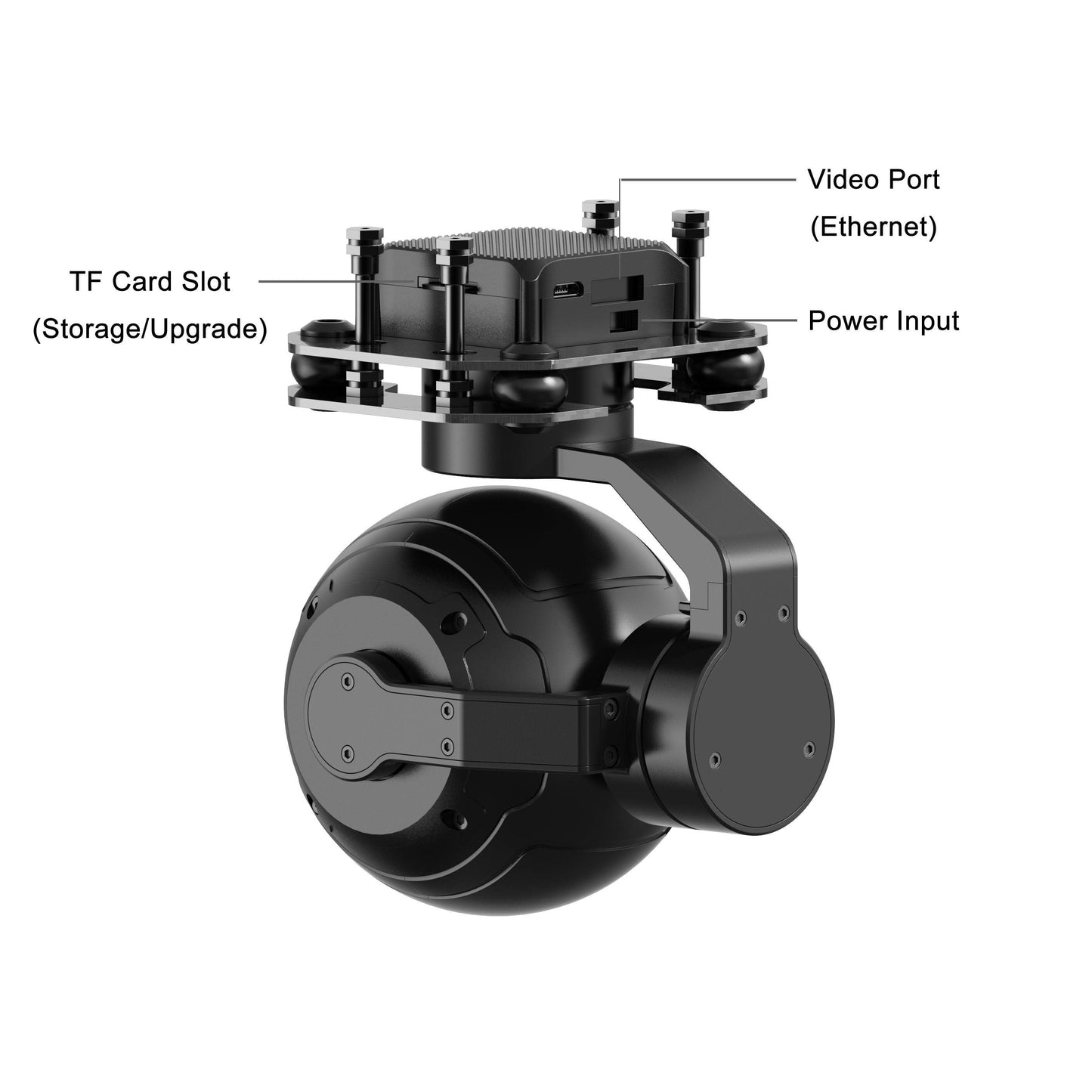

ZR10 Technical Specifications

Overall

Model: ZR10
Video Output Port: Ethernet
Control Signal Input Port: S.Bus / PPM / UART / UDP
Working Voltage: 11 to 25.2 V
Power Consumption: 3 W
Working Temperature: -10 ~ 50 ℃
Waterproof Level: IP4X

Dimension: 121*101*78 mm

Weight: 381 g

Gimbal

Angular Vibration Range: ±0.01°
Controllable Pitch Angle: -90° to +25°
Mechanical Pitch Angle: -135° to +45°
Controllable Yaw Angle: -45° to +45°
Mechanical Yaw Angle: -90° to +90°

Camera

Lens: 10X Optical Zoom (30X Hybrid Zoom)

Focal Length: 5.15±5% to 47.38±5% mm
Minimum Focus Distance: 200 mm
Image Sensor: 1/2.7"-inch, 4 MP effective resoultion

Aperture: F1.8 to F2.5

FOV: Diagonal 79.5°, Horizontal 71.5°

TF Recording Resolution: 2K (2560*1440) @ 30 fps

Video Storage Bitrate: 12 Mbps

File Storage Format: FAT32
Image Format: JPEG
Video Format: MP4 (Recorded in H265, *auto converted to MP4 after restart)
Supported MicroSD Cards: MicroSD Class10, Max 128GB

Still Photography Mode: Single

Metering Mode: Evaluative metering

Mark
Features marked with "*" are in development and can be updated later by firmware.

1OX Optical Zoom 400 Megabits Support TF Card 3-Axis 3x Digital Zoom Pixels 2K Video Recording Gimbal Stabilizer 2K Photography HDR High-Precision High Starlight Night F1.8 Aperture FOC Control Dynamic Range Vision

SIYI's ZR10 features a fast and accurate algorithm that enables quick focusing and easy output of high-quality videos, thanks to its 30x hybrid zoom and autofocus capabilities.

The SIYI ZR10 ground station sales bundle features 4K/2K recording capabilities that support high-speed Class 10 microSD cards, allowing for crisp and detailed video presentations.

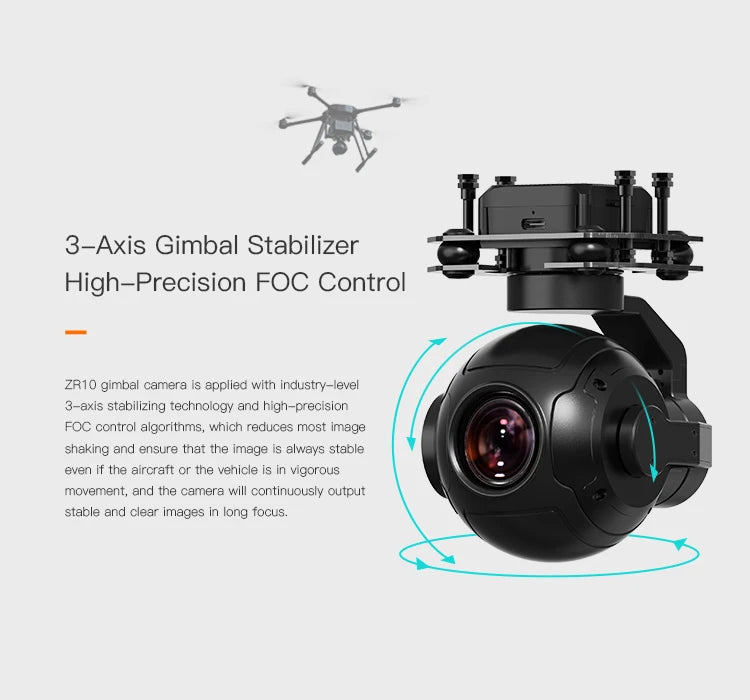

The SIYI ZR10 gimbal camera features an industry-level 3-axis stabilization technology, paired with high-precision Follow-On-Camera (FOC) control algorithms, which effectively reduces camera shake and ensures that the image remains stable even in situations where the aircraft or vehicle is experiencing vigorous movement.

The ultra-sensitive Starlight CMOS camera ensures a bright image, even in low-light environments, with or without High Dynamic Range (HDR) enabled.

The SIYI ZR10's 30X hybrid zoom camera can be effectively applied in various asset inspection scenarios, including power plants, construction sites, and other environments. Notably, this technology is particularly useful for inspecting high-risk assets such as electric towers and wind turbines.

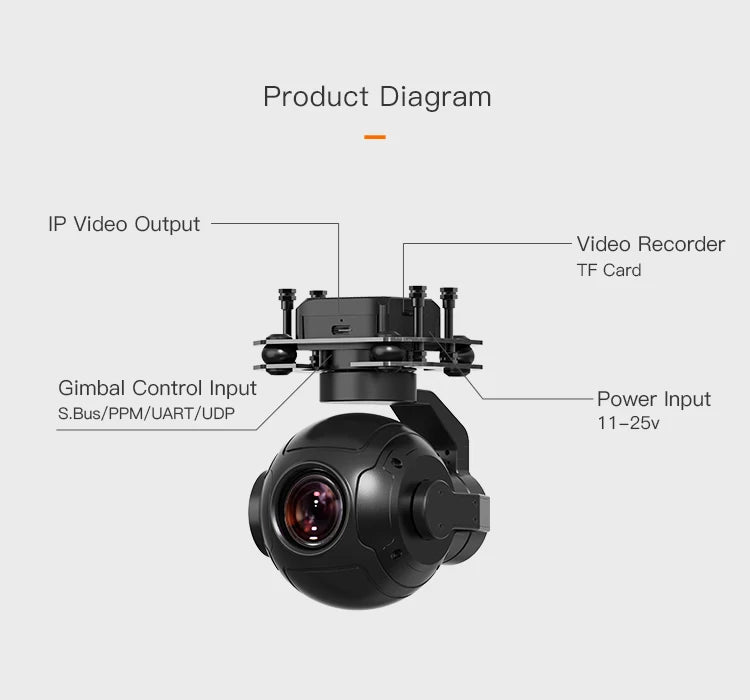

This product diagram illustrates an IP video output, along with features such as a video recorder, TF card, gimbal control input, power input, and interfaces including S.Bus, PPM, UART, and UDP. It spans a range of 11 to 25 volts.
